2017 Tacoma Right side front and rear speaker wire colors?

Discussion in 'Audio & Video' started by Dr Dam, Mar 26, 2020.

Post Reply

Mar 26, 2020 at 7:26 AM

#1

#1
Dr Dam [OP] Member

Joined:

Mar 25, 2020

Member:

#322989

Messages:

5

Gender:

Male

First Name:

Braden

Vehicle:

2017 Tacoma TRD Sport

Alpine Double Amp and DSP Stereo Upgrade

Hey wondering if anyone knows the polarity of the speaker wires on the right side front and rear speakers. Wondering the polarity at the speaker location. I've attached photos of the wire colors. Thanks in advance

This is right front

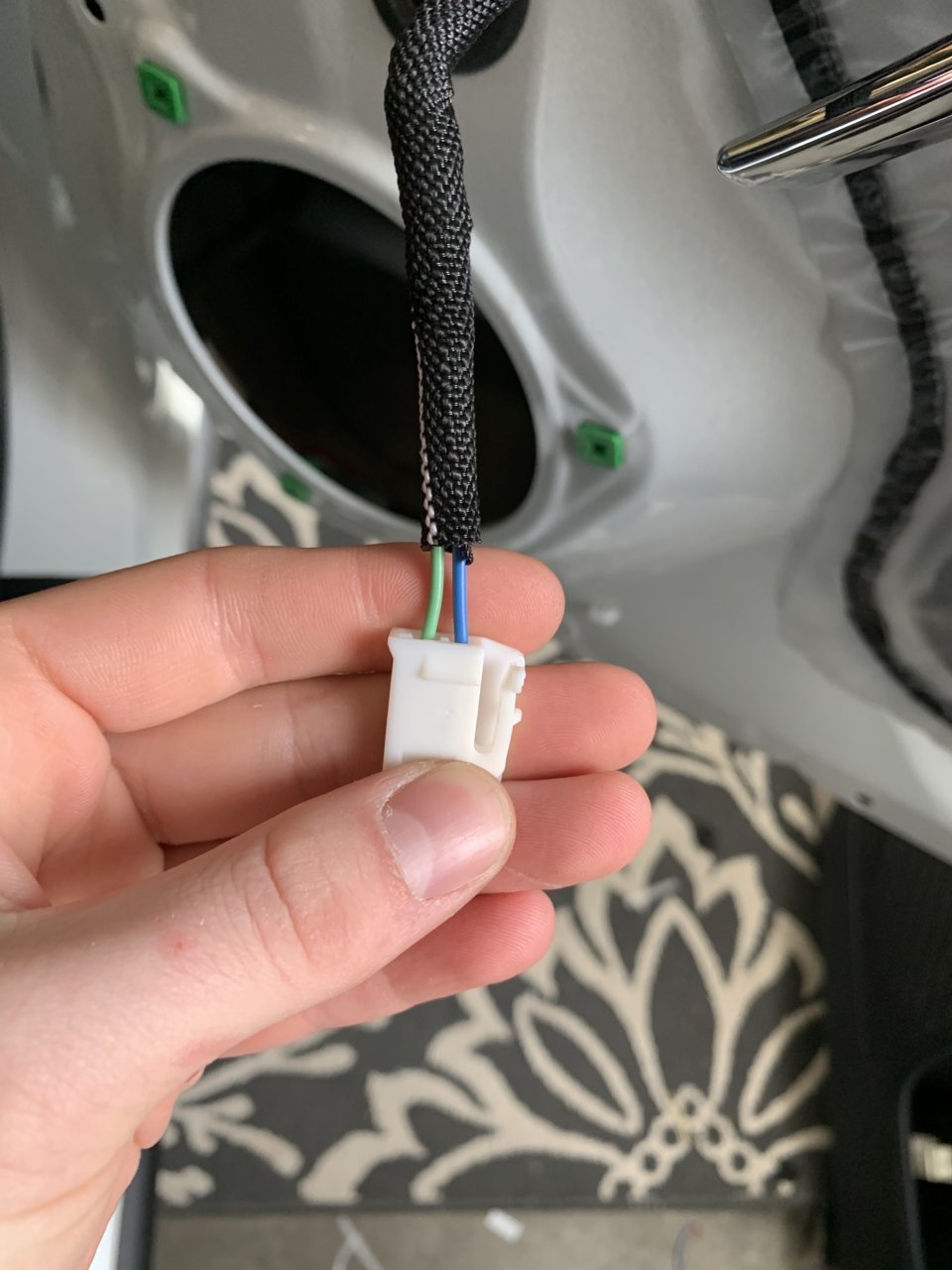

This is right rear

Dr Dam, Mar 26, 2020

#1

Mar 26, 2020 at 7:30 AM

#2

#2
destin_meeks I used to fix people's crappy stereos

Joined:

Jul 14, 2017

Member:

#223997

Messages:

3,933

Gender:

Male

First Name:

Destin

Tuscaloosa, AL

Vehicle:

2017 SSM DoubleCab TRD Off-Road 4x4

FR
+grey
-blue

FL
+dark green
-light green

RR
+blue
-green

RL
+white
-black

destin_meeks, Mar 26, 2020

#2

cacocker likes this.

Mar 26, 2020 at 7:37 AM

#3

#3
Dr Dam [OP] Member

Joined:

Mar 25, 2020

Member:

#322989

Messages:

5

Gender:

Male

First Name:

Braden

Vehicle:

2017 Tacoma TRD Sport

Alpine Double Amp and DSP Stereo Upgrade

destin_meeks said: ↑

FR
+grey
-blue

FL
+dark green
-light green

RR
+blue
-green

RL
+white
-black
Click to expand...

Thank you appreciate it!

Dr Dam, Mar 26, 2020

#3
