2019 Bedside Storage Cubby

Discussion in '3rd Gen. Tacomas (2016-2023)' started by MISTERRABBIT, Aug 25, 2019.

  1. Aug 25, 2019 at 3:36 PM
    #1
    MISTERRABBIT

    MISTERRABBIT [OP] Active Member

    Joined:
    Aug 18, 2019
    Member:
    #302602
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2019 TACOMA TRD OR
    I've seen some posts of others cutting into the side of the bed and installing the Tuffy box or even a marine glove box. However, I was curious if anyone installed the OEM storage box.

    Part#'s
    Cubby box - 64741-04011
    Box cover - 64073-04011

    Of course this may be the most expensive route. The main reason for this is I would like to install one of those Expedition Essentials mount for the Twin ARB. I know they make a 12v adapter to run it on the passenger side, but doesn't look "as clean."

    Wondering if anyone has any thoughts on the mount - driver side vs passenger side. Has anyone installed an OEM cubby in the driver side of bed?

  2. Aug 25, 2019 at 4:14 PM
    #2
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,430
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT

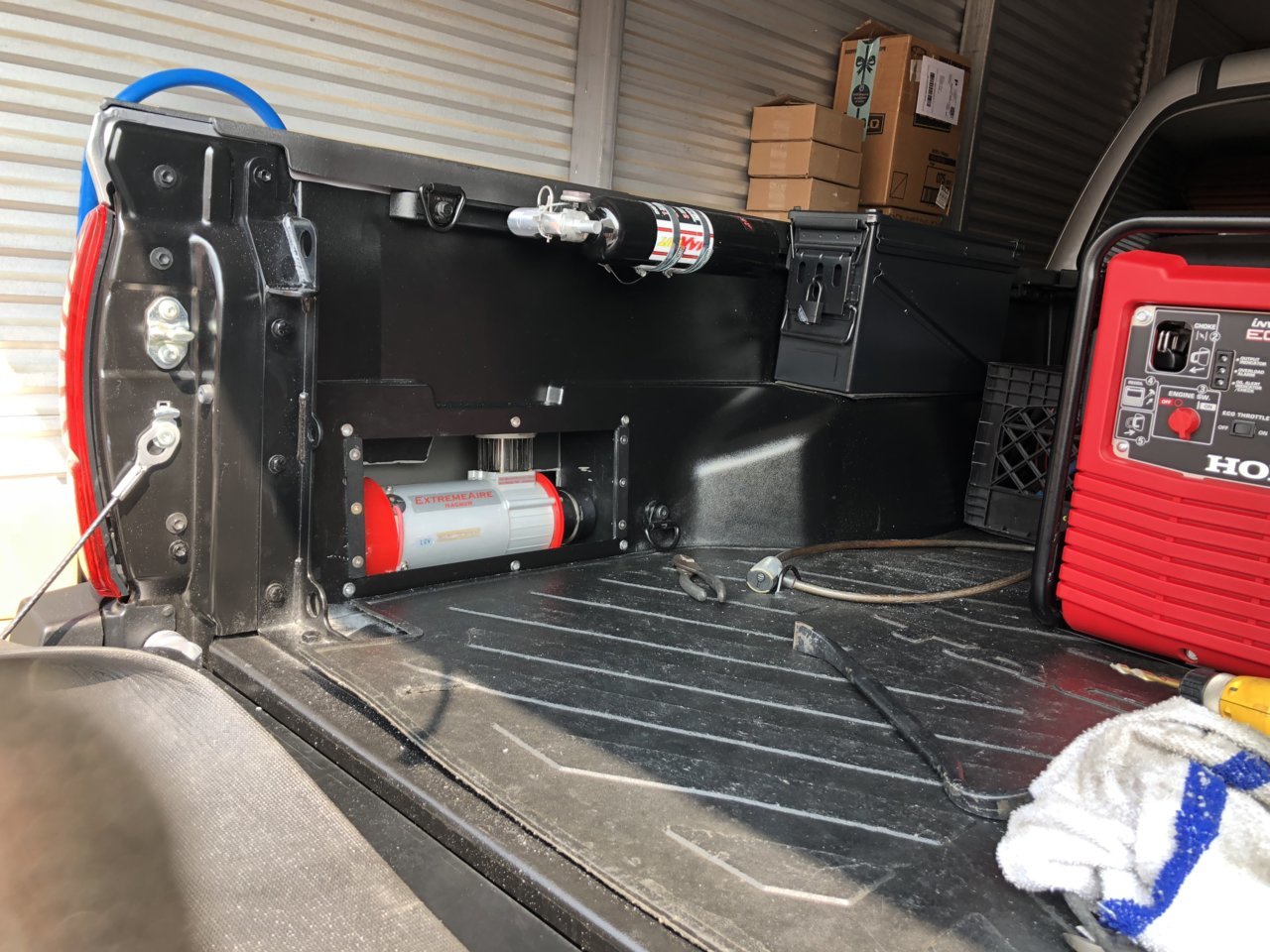

    I’ve installed an EE compressor mount, you do need the OEM cubby and cover, since you have to cut the front most part of the OEM cover that goes on the outside. It works and I have a 20lb compressor that barely fit. I used the Mobtown metal front covers.

    I’d definitely do it on the drivers side since the AC outlet is in the passengers side.





  3. Aug 25, 2019 at 7:14 PM
    #3
    camillethetoy

    camillethetoy Just a Minor Threat

    Joined:
    Apr 16, 2019
    Member:
    #290384
    Messages:
    707
    Gender:
    Male
    First Name:
    jeremy
    KCMO
    Vehicle:
    98 T100
  4. Aug 26, 2019 at 12:47 AM
    #4
    MISTERRABBIT

    MISTERRABBIT [OP] Active Member

    Joined:
    Aug 18, 2019
    Member:
    #302602
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2019 TACOMA TRD OR
  5. Aug 26, 2019 at 2:17 PM
    #5
    6MTPro

    6MTPro Well-Known Member

    Joined:
    Apr 22, 2019
    Member:
    #290940
    Messages:
    1,467
    HI -> CA
    Vehicle:
    2018 TRD Pro 6MT | 2004 4Runner 4.7 V8
    Tune, 285/75/16, Diode Dynamics, PPF, Bakflip Mx4, Meso, Cali Raised, TJM
    Still find it strange that they removed in from 2018 to 2019.

    camillethetoy likes this.
  6. Oct 19, 2019 at 3:14 PM
    #6
    dullpup

    dullpup Active Member

    Joined:
    Dec 5, 2018
    Member:
    #274959
    Messages:
    38
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2019 TRD OR, DCSB
    Just curious if you ever got an answer or were able to make something work to make a cubby and fit the arb compressor, I have a 2019 taco and would also like to do this very exact thing lol

  7. Oct 19, 2019 at 3:19 PM
    #7
    shakerhood

    shakerhood Well-Known Member

    Joined:
    Aug 9, 2015
    Member:
    #161370
    Messages:
    36,982
    Gender:
    Male
    Southern Ohio
    Vehicle:
    2017 MGM DCSB Off Road, 6 Speed MT, P&T
    Cost cutting, it's gone for good after 2018.

  8. Oct 19, 2019 at 3:21 PM
    #8
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    8,430
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    You can put it under the hood very easily since you have an OR


  9. Oct 19, 2019 at 3:38 PM
    #9
    dullpup

    dullpup Active Member

    Joined:
    Dec 5, 2018
    Member:
    #274959
    Messages:
    38
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    2019 TRD OR, DCSB
    Oh thank you! I figured the engine bay would be the same in most v6 Tacomas. But I was hoping to go this route to hopefully use the engine bay for another battery, but I’d like to keep the passenger side cubby for rachet straps also. It’s a bummer Toyota did away with the driver side cubby

  10. Jun 9, 2021 at 3:48 AM
    #10
    Alexbar10

    Alexbar10 Well-Known Member

    Joined:
    Nov 20, 2020
    Member:
    #347293
    Messages:
    86
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 black tacoma TRD PRO MT

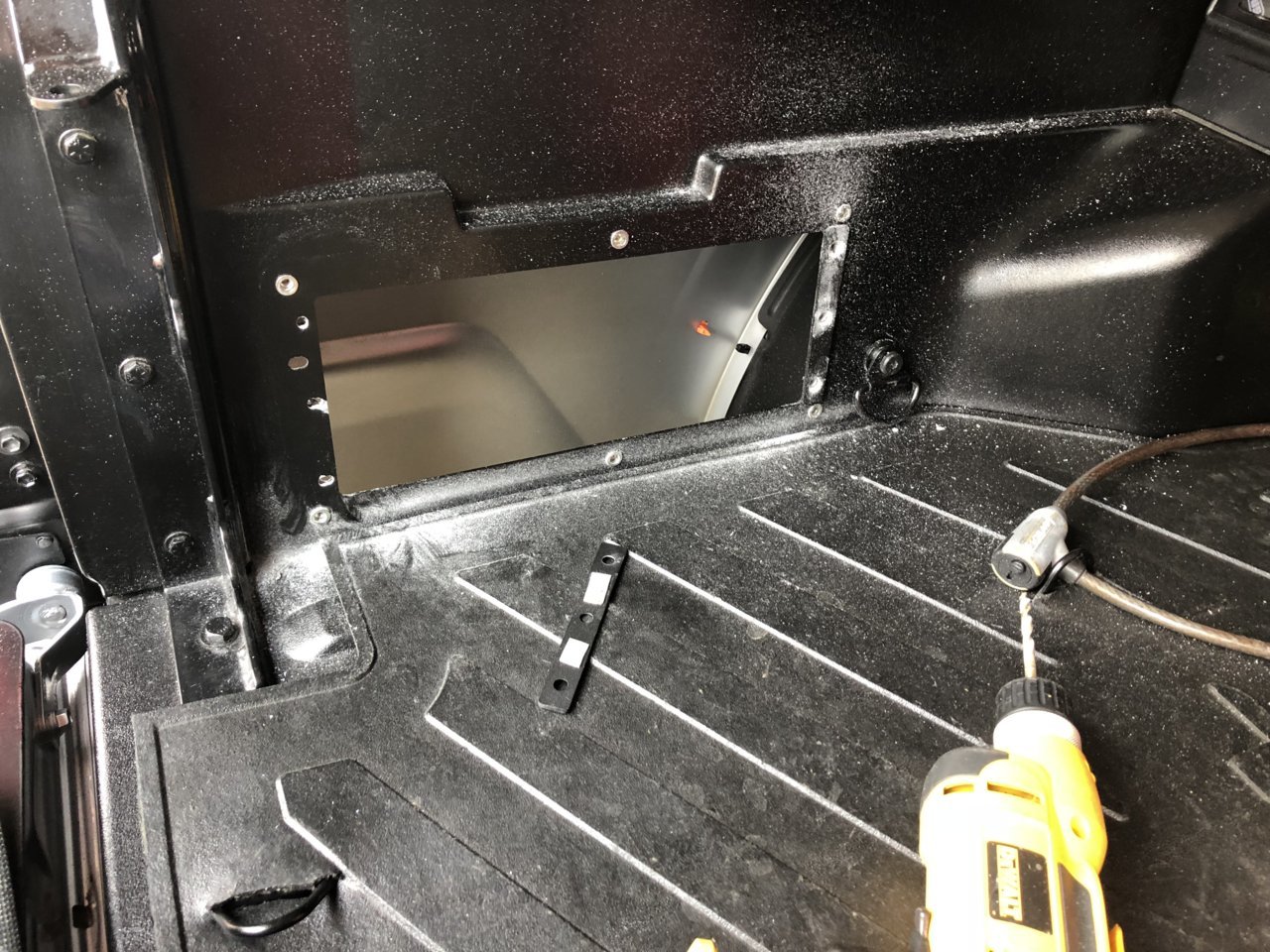

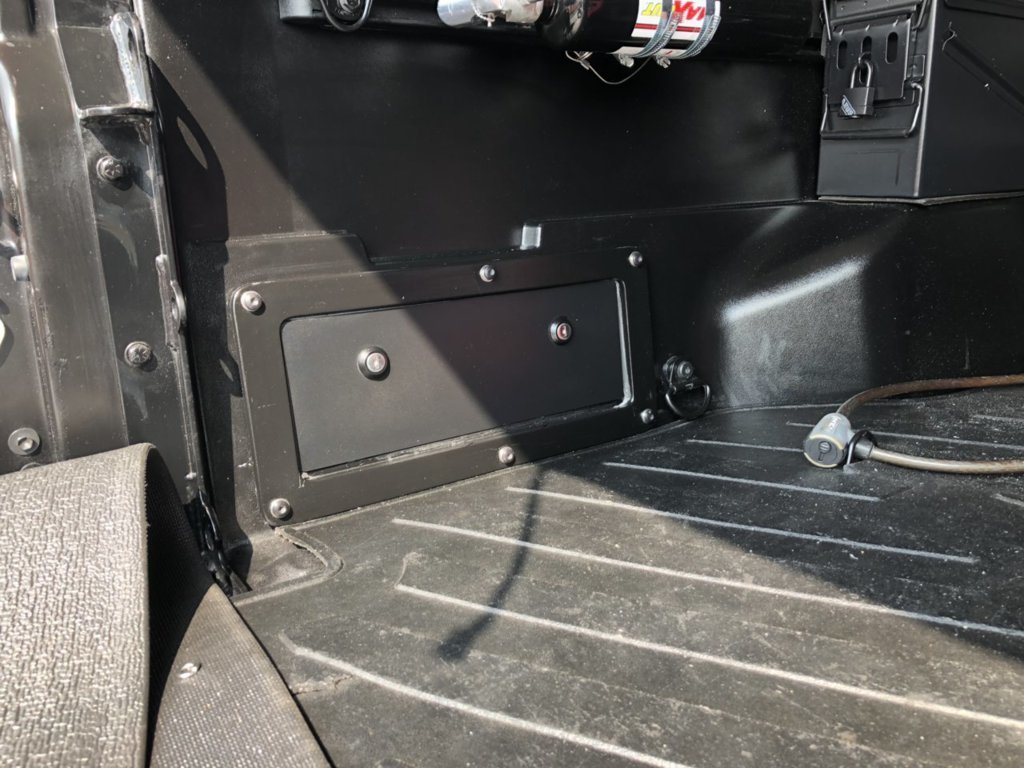

    I just bought the oem cubby on eBay for about $50 shipped. Curious if anyone has gotten this installed. Going to be cutting the hole and putting the cubby back on my 2020.

    This site contains affiliate links for which the site may be compensated.
    #10
  11. Jun 10, 2021 at 5:52 PM
    #11
    Alexbar10

    Alexbar10 Well-Known Member

    Joined:
    Nov 20, 2020
    Member:
    #347293
    Messages:
    86
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2020 black tacoma TRD PRO MT
    Anyone know the bolts and nuts setup? I want to cut the hole out and set it up in an OEM way
