2019 Interior Light Wiring for Toyota LED Bedlight Kit (PT948-35160)

Discussion in '3rd Gen. Tacomas (2016+)' started by 7mgte, Oct 7, 2019.

  1. Oct 7, 2019 at 4:47 PM
    #1
    7mgte

    7mgte [OP] 2019 Tacoma

    Joined:
    Sep 10, 2011
    Member:
    #63256
    Messages:
    4
    Ohio
    I picked up a Toyota LED Bedlight Kit (PT948-35160) for my 2019 Tacoma (Access Cab w/ long bed). Confirmed with the dealer that the kit is applicable to my truck. Unfortunately, the only set of instructions they can provide appears to be for the 2016 or 2017 model year, and the wiring harness has apparently changed. The instructions call for connecting the red wire of the bedlight harness to the white wire at Pin #11 of connector IA2. And the black lead of the bed light harness gets connected to the purple wire at Pin #9 of connector D35.

    Anyone know what the equivalent connectors and wires are on a 2019 wiring harness and connectors?

    Thanks!

    Don

  2. Oct 7, 2019 at 5:14 PM
    #2
    mutely

    mutely Well-Known Member

    Joined:
    Feb 15, 2017
    Member:
    #210640
    Messages:
    1,580
    Vehicle:
    TRD Pro in metallic primer
    Are you sure you’re looking at the right set of connectors? The instructions & pics make it sound like the connector block is just under the dash. It’s actually right on the floor, ( well maybe an inch or two above the floor).
    I know the 2019 double cab wiring points have not changed, so I’d be surprised if the 2019 access cab have. But other than that, pull the panel with the bedlight switch in it, and connect to the back of that switch.

  3. Oct 7, 2019 at 5:57 PM
    #3
    7mgte

    7mgte [OP] 2019 Tacoma

    Joined:
    Sep 10, 2011
    Member:
    #63256
    Messages:
    4
    Ohio
    mutely,

    Based on your comments, I went back and looked at the instructions I have and some photos I took. The printed copy of the instructions I have is black & white, and difficult to read. I found a PDF version on line that was in color and I could zoom in on the pictures. Reviewing the PDF and the photos I took, it does appear that they are the same! I will confirm and test tomorrow or Wednesday and report back.

    Thanks for getting me to dig in a bit deeper!

    Don

  4. Oct 8, 2019 at 4:43 PM
    #4
    7mgte

    7mgte [OP] 2019 Tacoma

    Joined:
    Sep 10, 2011
    Member:
    #63256
    Messages:
    4
    Ohio

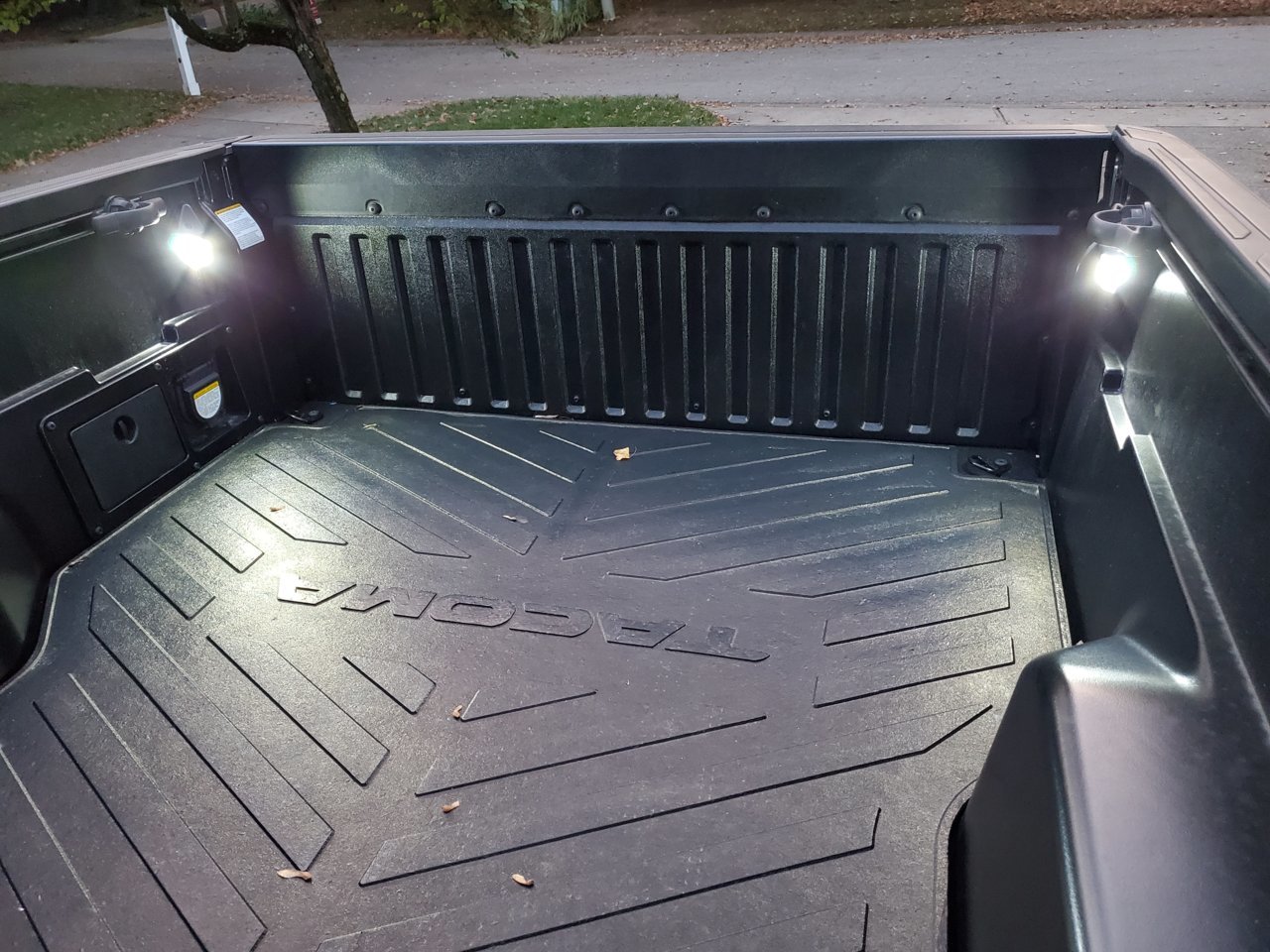

    Success! Amazing what a good color picture does for figuring out the wiring!

    Thanks!

    Don

    davidstacoma and daks like this.
