2019 Tacoma TPS sensor wont work ahhh

Anyone have a trick to get these working? I tried pushing the tps reset when u turn on the truck and even disconnected the battery. My tps sensor light went on and the truck wont recognize the sensors? I installed the front and rear anytime cam but besides that nothing else chnaged



What did you change from stock?



I swapped from or rims to pro but that was at least a month ago



I can't imagine what the front/rear anytime camera could have to do with it, but that's where I would start first. Could be as simple as a slightly damaged conductor or pin. Failing that, beg or borrow a scan tool with TPMS capability, confirm that the tire sensors are working correctly, and then trouble-shoot from there.



Did you use your OEM TPMS?



If the Pro wheels have OEM TPMS, they need to be programmed into your trucks PCM.



Yes oem tps sensors from my or to pro rims



You need the Pro wheel sensor ID numbers programmed into your PCM/ECU with the correct OBDII plug in tool. The lower dash TPMS button does not do that.



Hey Duke so i used my original tps sensors from my OR rims and put them in the pro rims, they worked fine for about a month then i went on a trip to big bear while towing a boat and right when i reached my location i got the tps dash light on after that i tried to get them working with no luck. I have a scan tool i will try right now if that doesnt work ill disconnect the camera harness and try it again.

If it is the anytime camera ill try and get an exact cause, i know from the start there was a loose pin on the relay i had to fix



Good deal! Something is odd for sure, good call on un-pluging the newest aftermarket stuff.



So plug in my carista and all 4 sensors are reading correctly, saved the sensor ids and still nothing its looking like the harness i will drive around and see if it picks up. But right now on my app it shows all 4 sensors reading correctly



ok and results are..... nothing!!

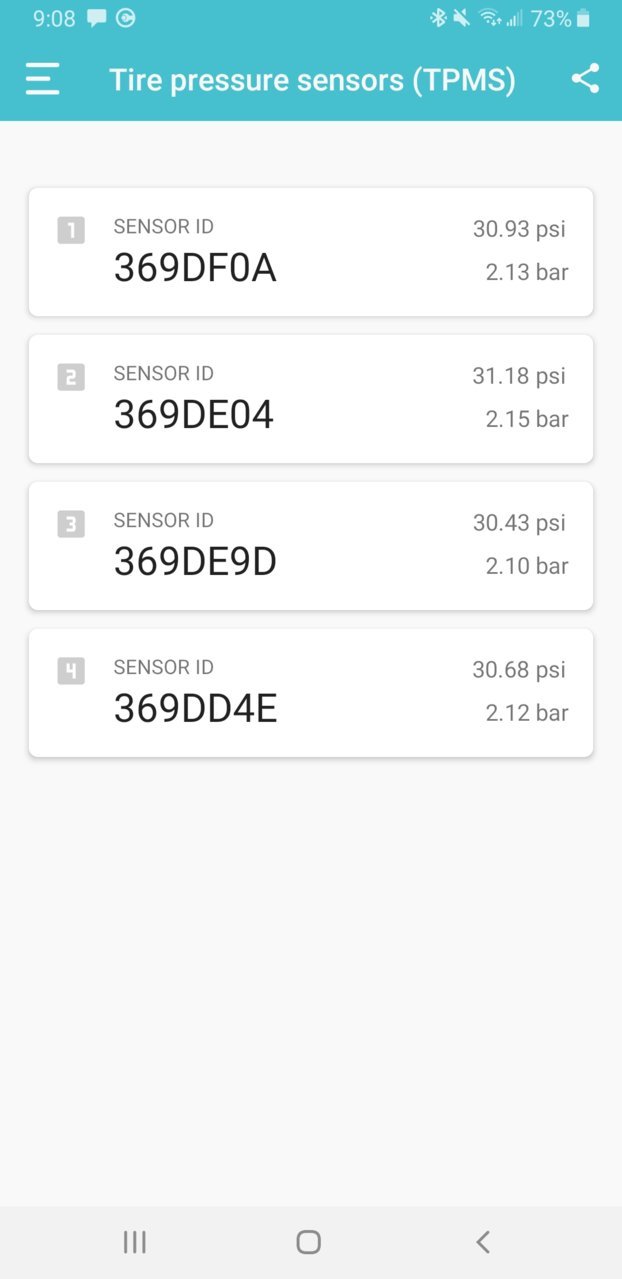

I removed the anytime cam harnesses, and tried to get the sensors to read on the display and no luck. here is a screen shot of all 4 being read from the obd2 carista app.

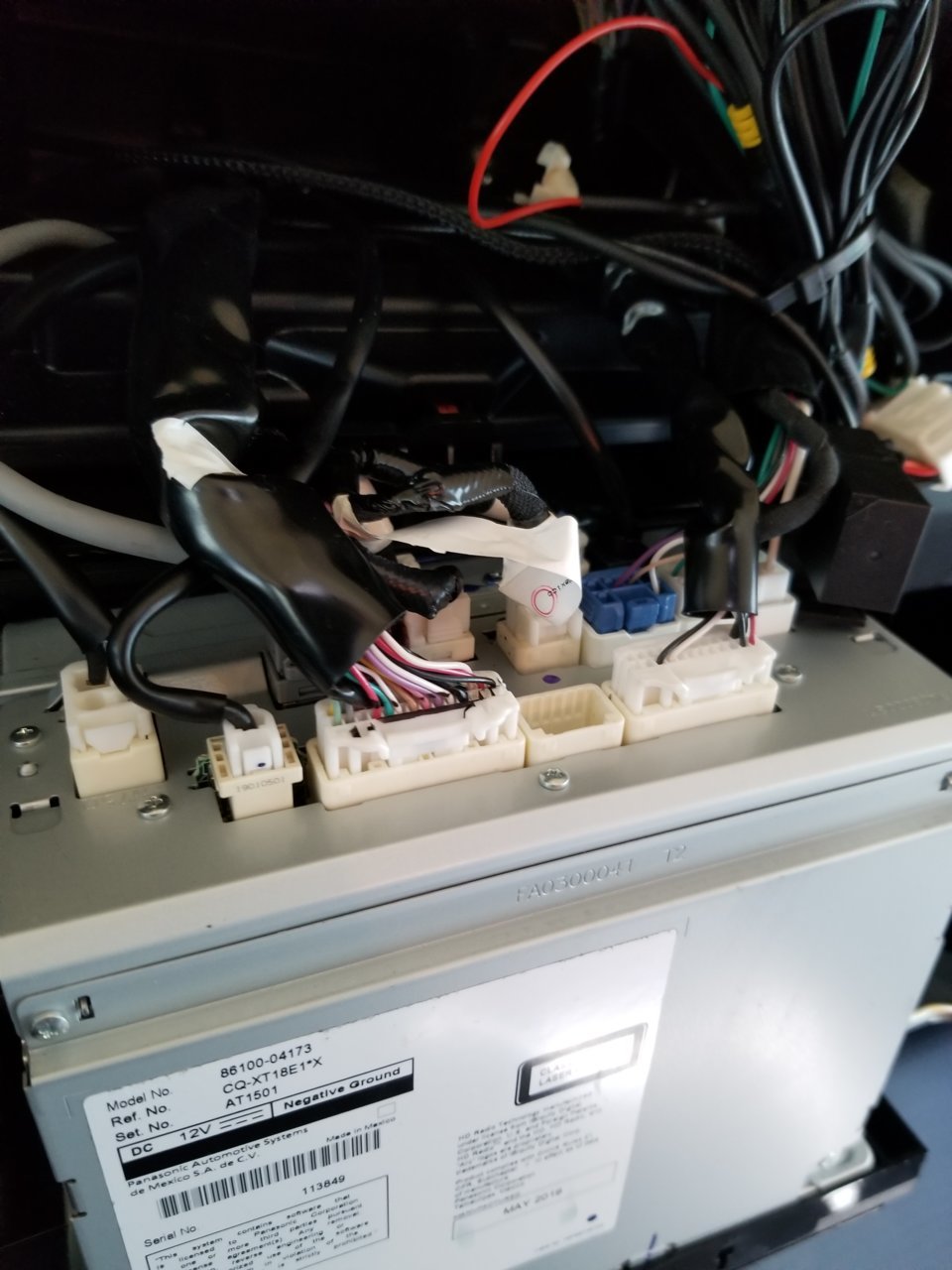

The 2nd picture is my entune radio not sure if something is suppose to plug into the connector without a plug installed. anyone one else having this issue with the tire sensors?

next step to drive it about 20 miles after i save the sensor ids with the app, if that doesnt work i guess off to the dealership?.



Ok took it to American tire co and turned out to be a broken stem, the sensor was just floating around inside the tire. All work now thx for the help
