2019 Tailgate Lock - PN: PK3B6-35JS0

Discussion in '3rd Gen. Tacomas (2016+)' started by Goncalves_Taco, Nov 7, 2019.

  1. Nov 8, 2019 at 5:23 PM
    #41
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,672
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Can you post a picture of the wires for the connectors?

  2. Nov 8, 2019 at 5:25 PM
    #42
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,672
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    It’s not that- they made a part specifically to pass 2 harnesses through so no modifications necessary

  3. Nov 8, 2019 at 5:30 PM
    #43
    Goncalves_Taco

    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    Amen to that!

  4. Nov 8, 2019 at 5:57 PM
    #44
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

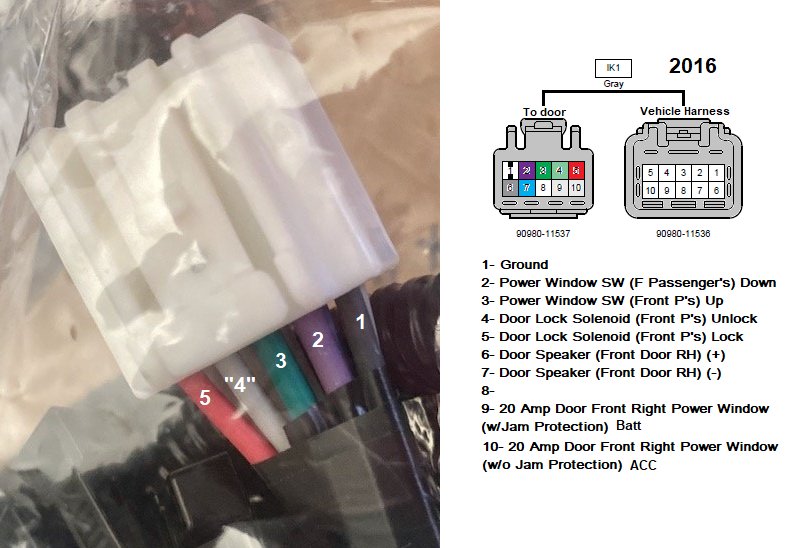

    Seems the UNLOCK (4) color changed or it may be to ID to the Y harness...:notsure:

    Last edited: Nov 8, 2019
  5. Nov 8, 2019 at 6:24 PM
    #45
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,672
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    It’s shouldn’t matter if the color changed so long as it’s the correct wire for the function correct? Do you have one of those connector diagrams for the 2020 to compare?

  6. Nov 8, 2019 at 6:25 PM
    #46
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    You are correct, it shouldn't matter.
    Not yet:playball:

  7. Nov 8, 2019 at 6:34 PM
    #47
    Goncalves_Taco

    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    I agree different colors shouldn't be a deal breaker but comparing the current wire diagram mentioned along with a '19+ to ensure they are in fact for the same unlock function would be ideal :)

  8. Nov 8, 2019 at 6:38 PM
    #48
    Goncalves_Taco

    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    Something caught my eye; wire 3 is green and wire 4 (from the diagram appears light green)...maybe the wire change was just for practical purposes (why have two wires next to each other so close in color!)

  9. Nov 8, 2019 at 7:11 PM
    #49
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    4 is LIME green...:D and to screw with color-blind folks...

    Last edited: Nov 9, 2019
  10. Nov 9, 2019 at 5:46 AM
    #50
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Thanks:hattip:
    Awaiting the reveal:popcorn:

    BadFlounder likes this.
  11. Nov 9, 2019 at 8:33 AM
    #51
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  12. Nov 9, 2019 at 9:06 AM
    #52
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I'm thinking fuses are to "blow" if rear collision occurs...

    BadFlounder likes this.
  13. Nov 9, 2019 at 9:20 AM
    #53
    Goncalves_Taco

    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    So are we thinking this'll be plug n play for '16-'18...

  14. Nov 9, 2019 at 9:21 AM
    #54
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    90%...:rofl:

  15. Nov 9, 2019 at 9:26 AM
    #55
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If @BadFlounder would open the fuse holder and remove the fuses, then check continuity from fuse pins to connectors.

  16. Nov 9, 2019 at 9:59 AM
    #56
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

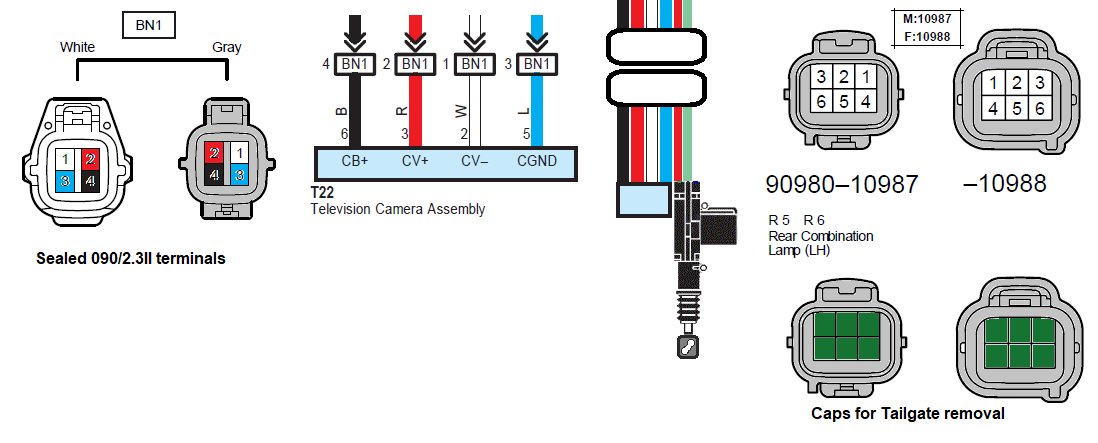

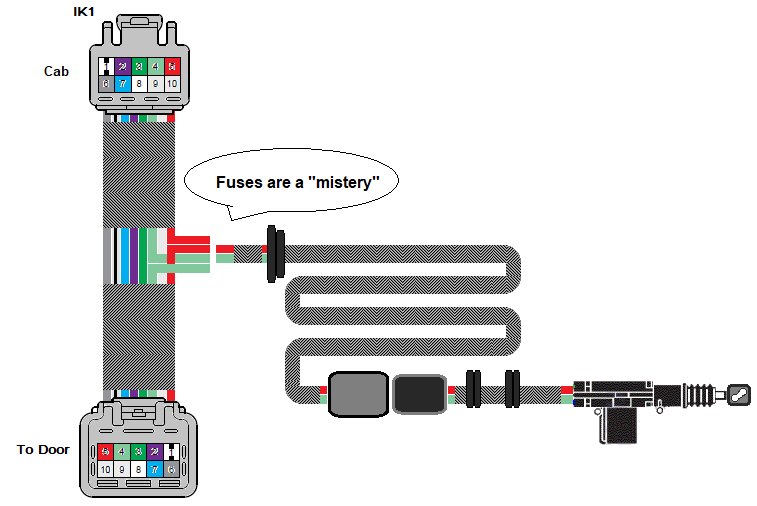

    For those without this harness but are contemplating the other choices, you can do this:
    Acquire these connectors (x2 pairs), they are on the Tundra and the 2nd Gen Tacoma tail lamps(and other vehicles) and remove the pins from BN1 to the new 6 slot connector, hide the wires in same loom. One exit, removable tailgate...

    Last edited: Nov 9, 2019
    Vttroy likes this.
  17. Nov 9, 2019 at 12:42 PM
    #57
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,672
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    The purpose of that would be to? Prevent a short in the passenger door lock/unlock cycle or

  18. Nov 9, 2019 at 1:04 PM
    #58
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

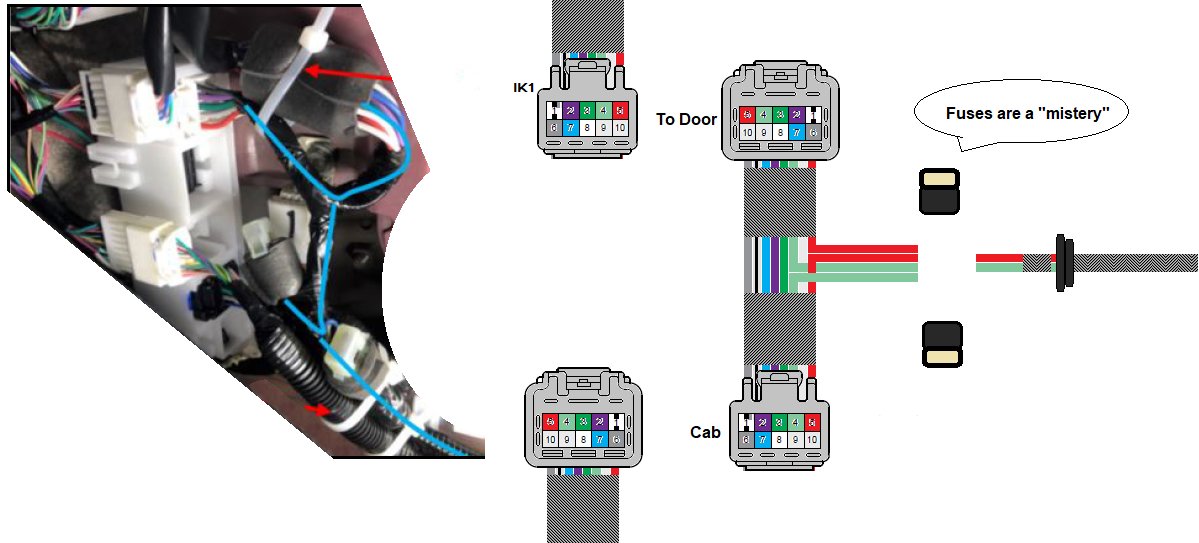

    That's my thought, in case of rear end collision or similar, the fuse would perform if wires are grounded and you could still unlock the doors via door switch or FOB. (Especially the rear passenger doors)

    Last edited: Nov 9, 2019
  19. Nov 9, 2019 at 1:15 PM
    #59
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    2,672
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    That makes sense I suppose. so a fuse for each wire is why it would have 2 fuses then

  20. Nov 9, 2019 at 1:23 PM
    #60
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    6,164
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Don't know for sure, I don't have the harness to verify or any other info. Waiting on BadFlounder...
