2019 Tailgate Lock - PN: PK3B6-35JS0

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Goncalves_Taco, Nov 7, 2019.

Page 7 of 39
  1. Dec 13, 2019 at 7:22 PM
    #121
    baldbeardedtaco

    #121
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,260
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I thought this kit was technically for 2020… is that wrong and it’s 19+?


    Edit: I wasn’t even paying attention to the thread title which says 19 (+) :rasta:

    baldbeardedtaco, Dec 13, 2019
    #121
  2. Dec 13, 2019 at 7:23 PM
    #122
    Goncalves_Taco

    #122
    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    Yes that's the plan; I have a '17 and I bought the oem setup so it's just a matter of time for me unless someone is quicker on the draw than me :)

    Goncalves_Taco, Dec 13, 2019
    #122
  3. Dec 13, 2019 at 7:24 PM
    #123
    Goncalves_Taco

    #123
    Goncalves_Taco [OP] Well-Known Member

    Joined:
    Nov 3, 2019
    Member:
    #309766
    Messages:
    279
    Gender:
    Male
    Vehicle:
    2017 Black Tacoma TRD Sport
    The part number fits a 19+ -- we are trying to ID if it fits 16-18

    Goncalves_Taco, Dec 13, 2019
    #123
  4. Dec 13, 2019 at 7:26 PM
    #124
    baldbeardedtaco

    #124
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,260
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I just noticed that and already edited my post above

    baldbeardedtaco, Dec 13, 2019
    #124
  5. Dec 13, 2019 at 7:50 PM
    #125
    beetledude

    #125
    beetledude Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310925
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2020 TRD Offroad 4X4
    going to install the kit on my 2020 this weekend. but here are pics of the connectors in case it helps determine if it will work for earlier models.

    the entire kit:
    [​IMG]

    the actuator
    [​IMG]

    tailgate cable (connects the actuator to the long cable run)
    actuator side
    [​IMG]

    cable extension side
    [​IMG]

    this is what I think you guys want to see. "Y" connector that connects to the kick panel door controls
    [​IMG]
    [​IMG]

    beetledude, Dec 13, 2019
    #125
  6. Dec 13, 2019 at 7:54 PM
    #126
    caribe makaira

    #126
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    @beetledude We'd (I) like to have a visual on the connector on the vehicle.

    caribe makaira, Dec 13, 2019
    #126
  7. Dec 13, 2019 at 8:05 PM
    #127
    caribe makaira

    #127
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OP, you get a number on the connectors?

    caribe makaira, Dec 13, 2019
    #127
  8. Dec 13, 2019 at 8:40 PM
    #128
    baldbeardedtaco

    #128
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,260
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    @caribe makaira on this connector I’m missing pins 2,3,8,10. Since his has all I’m assuming they would go to something on the truck side, right? Or why pin them at all.

    baldbeardedtaco, Dec 13, 2019
    #128
  9. Dec 13, 2019 at 8:43 PM
    #129
    beetledude

    #129
    beetledude Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310925
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2020 TRD Offroad 4X4
    there are cables connected to all of the pins

    [​IMG]
    [​IMG]

    beetledude, Dec 13, 2019
    #129
  10. Dec 13, 2019 at 8:46 PM
    #130
    caribe makaira

    #130
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

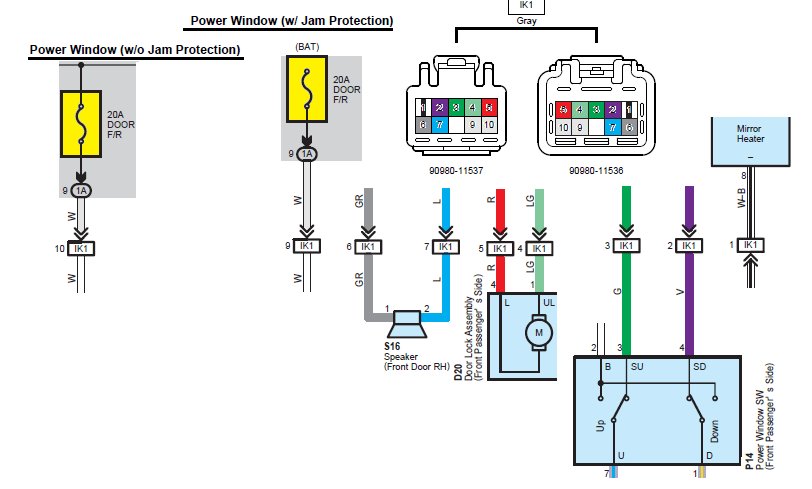

    No "mistakes" during assembly and variances between power window w Jam Protection and without. The power to the window changes. Don't leave a slot open is better than custom ones.
    Your Tacoma has Power window WITH Jam Protection. Power to the module is pin 9 (always hot 20 amp)

    caribe makaira, Dec 13, 2019
    #130
  11. Dec 13, 2019 at 8:51 PM
    #131
    caribe makaira

    #131
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I have to say that there's no change (except for color choice in wires) The wire positions and connectors correlate to the systems on '16 ~'20.

    caribe makaira, Dec 13, 2019
    #131
  12. Dec 13, 2019 at 8:52 PM
    #132
    baldbeardedtaco

    #132
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,260
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    that makes since, make 1 and not multiple versions based on specific options

    Some of the colors are swapped around too. His pin 4 is grey and mine is green moving his green to 3.

    baldbeardedtaco, Dec 13, 2019
    #132
  13. Dec 13, 2019 at 8:56 PM
    #133
    caribe makaira

    #133
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The gray seems to be to ID the wire going to the inline fuse, instead of straight to the solenoid, like the POPnLOCK is installed. The unlock wire on the vehicle is lime green. slot #4.
    The lock is RED, slot #5.

    caribe makaira, Dec 13, 2019
    #133
  14. Dec 13, 2019 at 9:02 PM
    #134
    caribe makaira

    #134
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

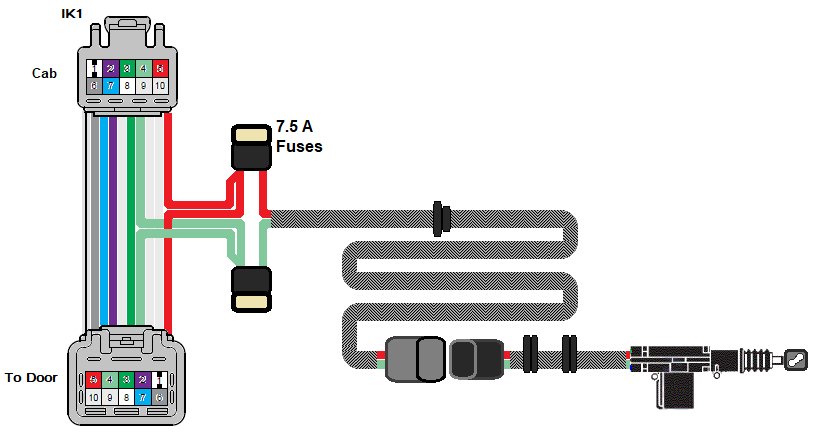

    @beetledude has verified the continuity between the fuses on the harness, one is inline with the UNLOCK and the other to LOCK wires. (My Theory is:) In case of a rear collision, in the event the tailgate solenoid wire goes to ground the fuses would disconnect the rest of the unlock circuit. The system would not fail due to tailgate solenoid. (isolation)

    caribe makaira, Dec 13, 2019
    #134
  15. Dec 13, 2019 at 9:50 PM
    #135
    baldbeardedtaco

    #135
    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,260
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I’ve read this multiple times trying to understand. So his slot4 on the truck is green but his slot4 on the harness is grey (which goes to the inline fuse)

    what does that mean about the green slot3 on his harness (and my green on slot4 or nothing on slot3)? Or does that not matter

    baldbeardedtaco, Dec 13, 2019
    #135
  16. Dec 13, 2019 at 11:02 PM
    #136
    caribe makaira

    #136
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

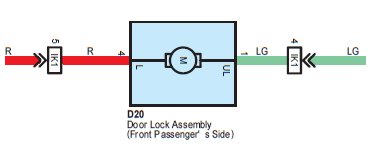

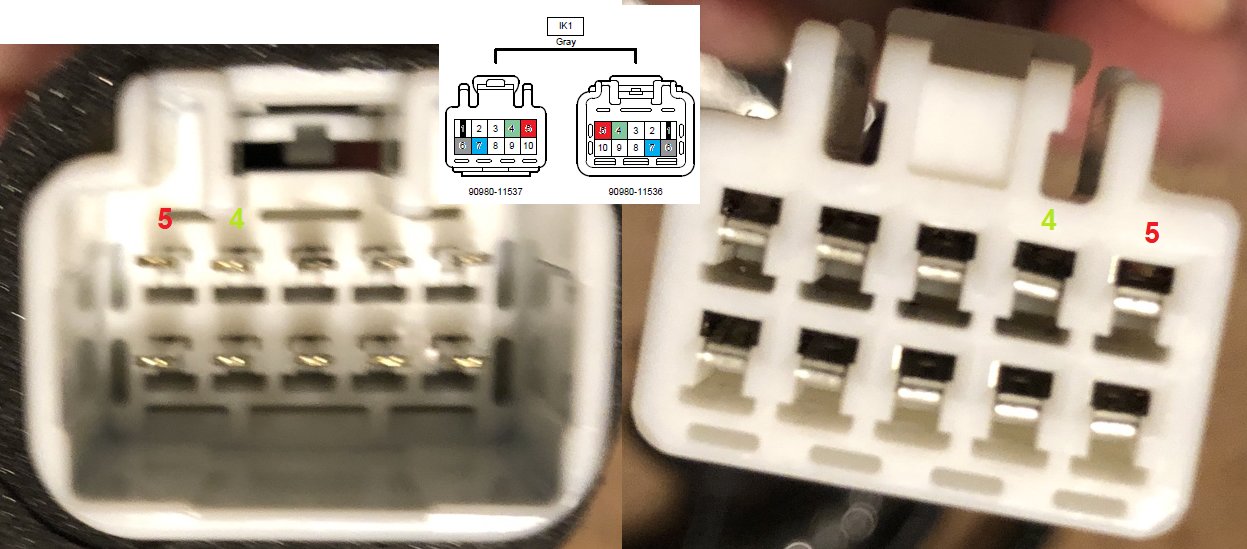

    4 is UNLOCk, 5 is LOCK for this tailgate lock install is the concern. All other wires in the Y harness connectors are straight through, no branching out.





    Last edited: Dec 25, 2019
    caribe makaira, Dec 13, 2019
    #136
    iptman likes this.
  17. Dec 15, 2019 at 10:57 AM
    #137
    beetledude

    #137
    beetledude Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310925
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2020 TRD Offroad 4X4
    installed the kit yesterday -- it was pretty straightforward. I do have the factory installed bed lighting so I'm not sure why they say it's incompatible. the actuator is pretty quiet. I like it!

    beetledude, Dec 15, 2019
    #137
    ericvega and shakerhood like this.
  18. Dec 15, 2019 at 11:00 AM
    #138
    TRD Larry

    #138
    TRD Larry trd larry

    Joined:
    Sep 24, 2007
    Member:
    #2792
    Messages:
    1,048
    Gender:
    Male
    First Name:
    Larry
    South Park, PA
    Vehicle:
    2019 Tacoma Black,Sport,Premium and Tech Package
    Sport pedals,, Magnaflow cat back exhaust system,Kuhmo 275x55x20, Platinum #220 Abyss wheels 20x9.5. Under hood lights, OEM LED cargo bed lights, extra D-rings installed in bed, AC mod, diff. breather mod, OEM LED puddle lights and footwell lights, Homelink mirror, oil catch can, raptor grille lights, replaced chrome grille molding with black molding, tailgate lock/unlock and tailgate opener, console organizer, glove compartment organizer, Caliraised stealth LED light bar, TRD Cold Air Intake, Lighted cup holders, Meso extended fuse cover, Meso stage 1 tail lights, Meso switch panel, Door bowl lights. Anytime front and rear backup camera mod. TRD Pro Rigid fog lights.Door edge guards. TRD Pro shift knob with Boomer's TRD LED light (Red for security, blue for interior), Glass Break Sensor, sensor with LED light tied into the security LED light, OEM LED Headlights, Sequential LED Turn Signals.
    I also have the bed lighting. I have no problem with the actuator, I don’t think it is that loud either. Is yours opening on the 3rd click? Mine is opening on the second click of the fob.

    TRD Larry, Dec 15, 2019
    #138
  19. Dec 15, 2019 at 11:04 AM
    #139
    caribe makaira

    #139
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

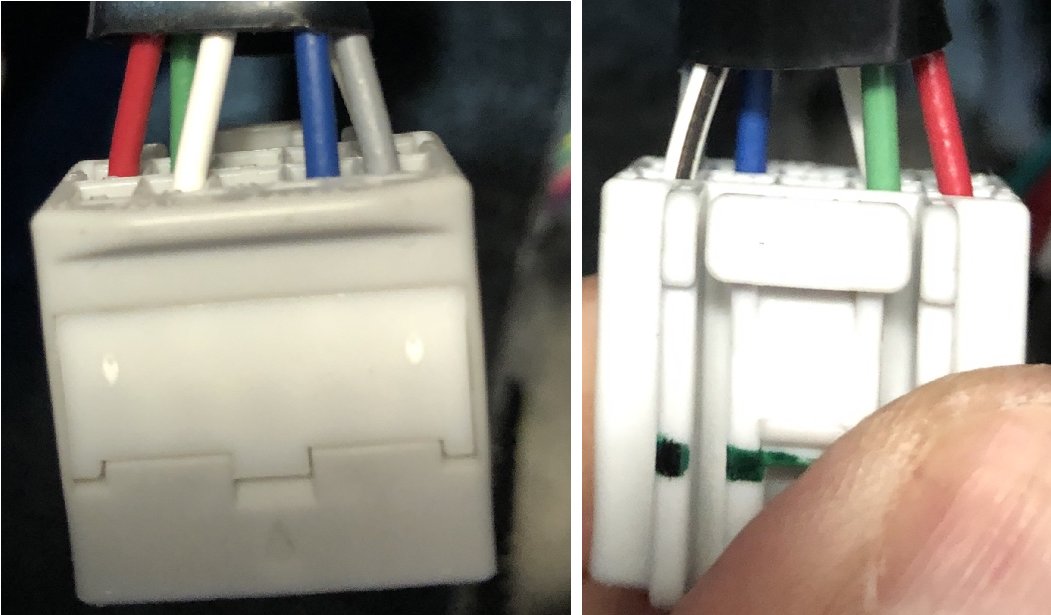

    Vehicle side of IK1 connectors, Photo of @beetledude :thumbsup:2020 Tacoma Offroad

    caribe makaira, Dec 15, 2019
    #139
  20. Dec 15, 2019 at 11:07 AM
    #140
    caribe makaira

    #140
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,506
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    OEM has no @DSIM module...:rolleyes::rofl:

    caribe makaira, Dec 15, 2019
    #140
