2019 wheels on 2013 Lug Nut Question

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TxStVanWilder, Jan 19, 2022.

  1. Jan 19, 2022 at 11:14 AM
    #1
    TxStVanWilder

    TxStVanWilder [OP] The Pale Horse

    Joined:
    Apr 19, 2015
    Member:
    #153494
    Messages:
    680
    Gender:
    Male
    Tx
    Vehicle:
    2013 TRD Sport
    Went to discount tire *enter large sigh here* and had a set of 2019 take off's to swap on to my 2013. The owner of the 2019 wheels gave me the lug nuts as well when i purchased the wheels. They're still in a box on my shelf at home. When i went to discount the person at the counter mentioned there were a difference in lug nuts between my 2013 and the 2019 wheels that i was going to have them install and i would need to purchase new lug nuts from them. Something along the lines of the 2019 will use a more conical type lug nut to fit the wheel vs a 2013 lug nut that has a flat face.

    I chose not to have them balance and swap the wheels due to it being a $125 charge to swap wheels and balance them. So before i swap the wheels over myself using the lugs from the 2013 wheels, i was wondering if anyone was more well versed than i am in this situation to tell me if the lugs are a different style and will/wont work with the wheels

    This site contains affiliate links for which the site may be compensated.
    #1
  2. Jan 19, 2022 at 11:27 AM
    #2
    drizzoh

    drizzoh itsjdmy0

    Joined:
    Jun 29, 2020
    Member:
    #332922
    Messages:
    2,307
    First Name:
    Andrew
    Arizona
    Vehicle:
    2021 Tacoma TRD Off-Road 4x4
    Uhhhh.. If the wheels have flat lug holes then they will require the factory mag seat lugs.

    If they have tapered lug holes they will require acorn lugs.

    Post a pic of the wheels.

  3. Jan 19, 2022 at 11:34 AM
    #3
    Clearwater Bill

    Clearwater Bill Never answer an anonymous letter

    Joined:
    Oct 11, 2014
    Member:
    #140097
    Messages:
    24,858
    Gender:
    Male
    First Name:
    Billy
    Largo Florida
    Vehicle:
    '13 5 lug AC w/convenience package
    A few OE parts from fancy trucks
    Look at the wheel where the lugs go. Easy to tell. And it sounds like you already own the right lugs.

  4. Jan 19, 2022 at 11:38 AM
    #4
    jake72

    jake72 Well-Known Member

    Joined:
    Jul 7, 2012
    Member:
    #82099
    Messages:
    2,564
    Gender:
    Male
    First Name:
    Jake
    N.E. PA
    Vehicle:
    2019 trd off-road dcsb mt
    Sounds like you have the correct lug nuts to me

  5. Jan 19, 2022 at 11:58 AM
    #5
    OkieCowboy

    OkieCowboy Well-Known Member

    Joined:
    Dec 14, 2017
    Member:
    #238506
    Messages:
    162
    Gender:
    Male
    First Name:
    Lloyd
    Choctaw, Oklahoma
    Vehicle:
    2012 TRD 4X4 Access Cab
    Well there is one more thing to check. I put a set of third Gen TRD wheels on my 2013 a month ago using my 13 lug nuts. It cost me $100 to move the TPMS.

  6. Jan 19, 2022 at 12:05 PM
    #6
    TxStVanWilder

    TxStVanWilder [OP] The Pale Horse

    Joined:
    Apr 19, 2015
    Member:
    #153494
    Messages:
    680
    Gender:
    Male
    Tx
    Vehicle:
    2013 TRD Sport
    I guess more of what im asking here is, since i have the 2019 lugs sitting in a box at another hangar at another airport, will the 2013 lugs fit?

    I guess ill just have to go out on one of my breaks and just pull one lug from the wheels currently on my truck to see

  7. Jan 19, 2022 at 12:33 PM
    #7
    2015WhiteOR

    2015WhiteOR Well-Known Member

    Joined:
    Feb 2, 2015
    Member:
    #147773
    Messages:
    1,880
    Gender:
    Male
    Gainesville TX
    With the conical seat lugnuts, there is a "short" and "long" version and it depends on the style of the wheel, so that's a factor as well.

    But flat vs cone.. easy to know the difference.

  8. Jan 19, 2022 at 12:42 PM
    #8
    drizzoh

    drizzoh itsjdmy0

    Joined:
    Jun 29, 2020
    Member:
    #332922
    Messages:
    2,307
    First Name:
    Andrew
    Arizona
    Vehicle:
    2021 Tacoma TRD Off-Road 4x4
    Do a test fit yourself. If you have properly designed lugs to fit those wheels and get at least 8 lug turns when installing, you'll be fine.

    Discount is king of telling people things are incompatible.

  9. Jan 19, 2022 at 4:24 PM
    #9
    TxStVanWilder

    TxStVanWilder [OP] The Pale Horse

    Joined:
    Apr 19, 2015
    Member:
    #153494
    Messages:
    680
    Gender:
    Male
    Tx
    Vehicle:
    2013 TRD Sport

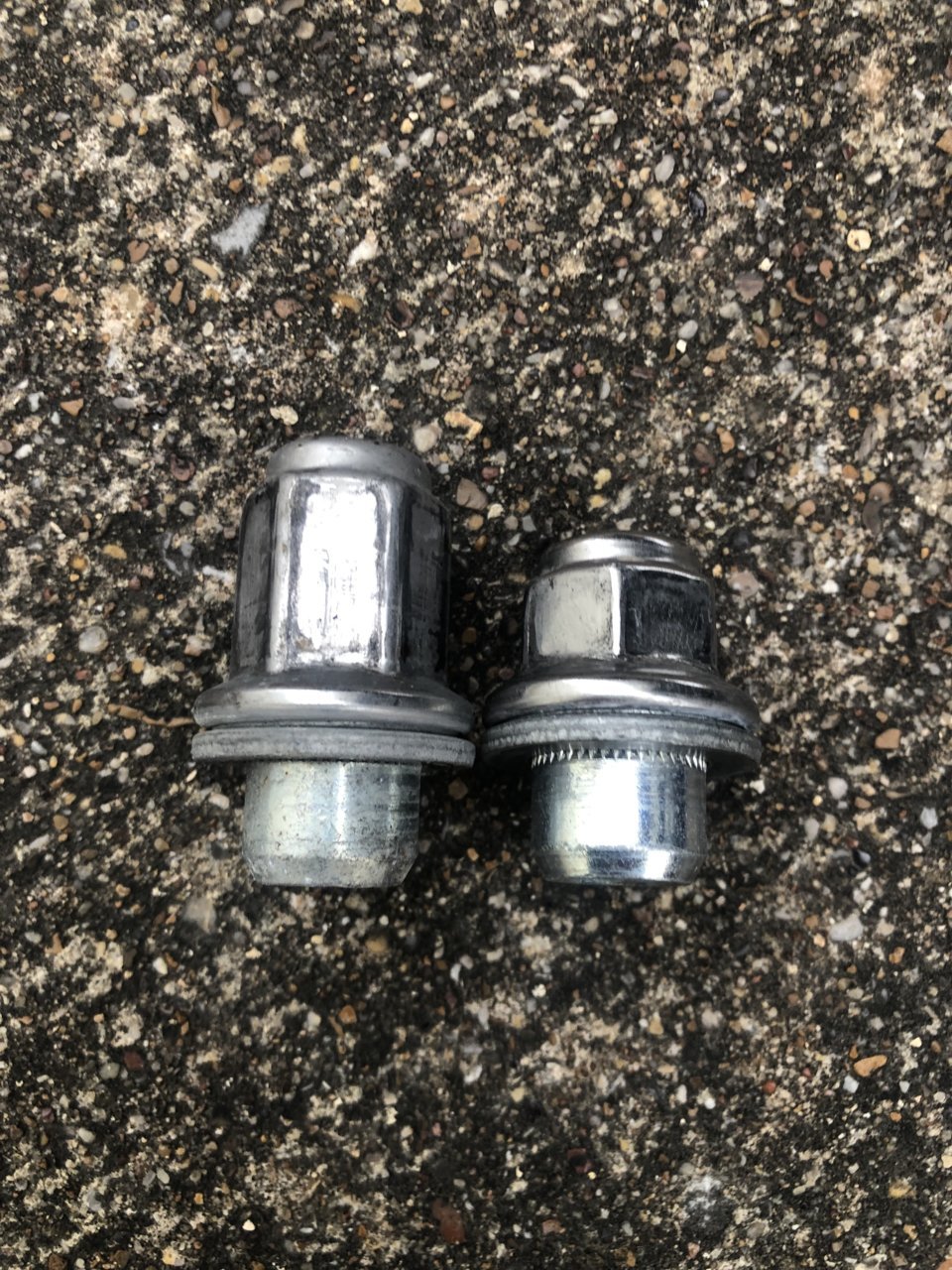

    Just went to grab the “new” lugs at my other hangar. They’re significantly different in appearance. I went ahead and stayed with my original lugs which are larger in size and deeper.
