2020 off-road grill to trd pro grill camera

Discussion in '3rd Gen. Tacomas (2016+)' started by yshin80, Oct 12, 2020.

  1. Oct 12, 2020 at 12:15 PM
    #1
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM

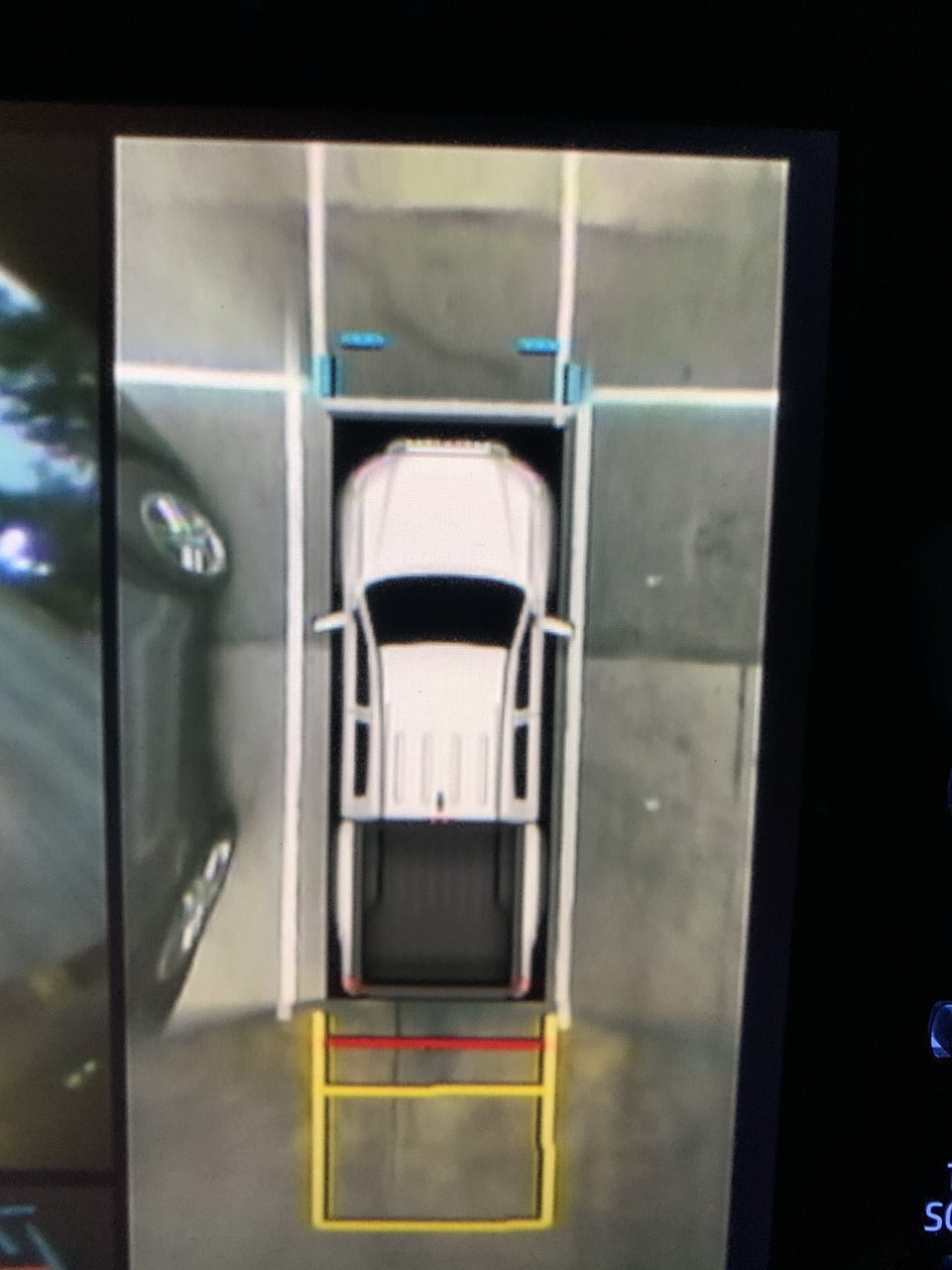

    I took the plunge and got an OEM 2020 trd pro grill. Now the camera seems to be a bit off. Does anybody know how to recalibrate the camera so it lines up with with the sides? This is what it looks like within the lines of a parking spot.


  2. Oct 12, 2020 at 1:04 PM
    #2
    OldGregg

    OldGregg Well-Known Member

    Joined:
    May 30, 2020
    Member:
    #329882
    Messages:
    112
    Gender:
    Male
    New Mexico
    Vehicle:
    2020 TRD OR Access Cab Cement
    yshin80 [OP] likes this.
  3. Oct 12, 2020 at 3:21 PM
    #3
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    Tried all 3 methods to try to get into diagnostic mode. Don’t know what flickering is, my seek button doesn’t click right or left, the light truck didn’t work. :/ thanks anyway.

  4. Oct 13, 2020 at 6:57 AM
    #4
    AjaxTaco

    AjaxTaco Member

    Joined:
    Apr 25, 2020
    Member:
    #325840
    Messages:
    16
    Vehicle:
    2020 Taco OR
    To go into diagnostic mode:
    1. Turn on the ignition
    2. Turn your headlight switch fully off then on one click
    3. After your HU screen has settled down press the Home button and then press-and-hold-in the Audio button
    4. While pressing on the Audio button on the screen turn your headlight switch forward two clicks and back one click, three times, so you are cycling between the 2nd and 3rd options on your headlight switcher on the steering column. Keep the on-screen Audio button pressed.

    In diagnostic mode, you can adjust your cameras and a few other things like change the color of the truck in bird’s eye view.

    Seth2197, yshin80 [OP] and OldGregg like this.
  5. Oct 13, 2020 at 8:10 AM
    #5
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM

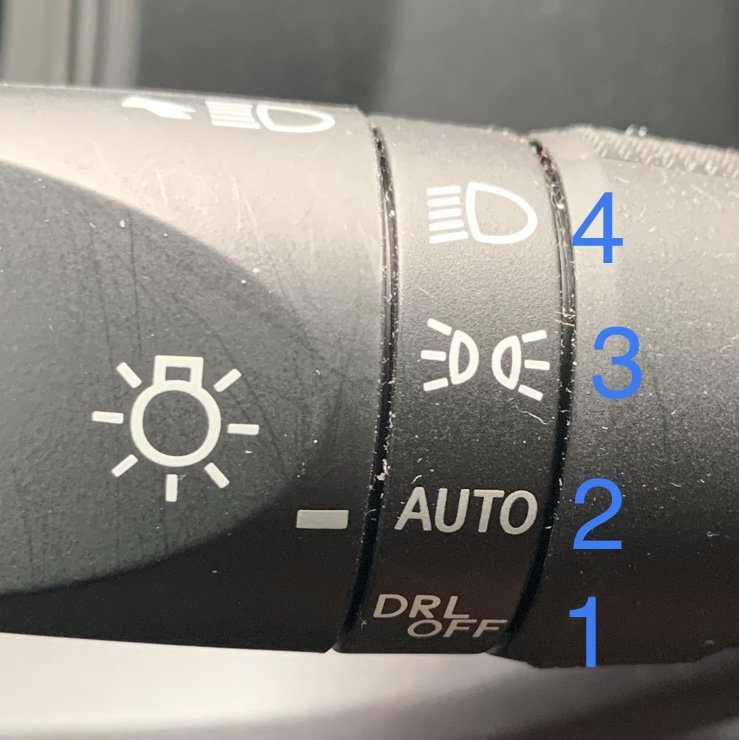

    Thanks for the instructions! Can you clarify some of it? I’ve put a picture with light position labels for reference.
    A. Do you need go to from position 1 to 2 per step 2 (Update: this is not important)
    B. Per step 4, do you go from position 2 to 4 then 3 then back to 2 and repeat? Or do you just toggle between 2 and 3? (Update: you can just keep toggling back and forth between 2 and 3)
    Update: I’ve gotten this to work as well. Important thing is you read the instructions and hold Audio (third button from the top on left side of LCD), not the Power/Volume knob.



    Last edited: Oct 13, 2020
  6. Oct 13, 2020 at 8:49 AM
    #6
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    So from OldGregg’s link, the second instructions worked.


    1. Turn the ignition on.
    2. Make sure the audio system is off.
    3. Push the Menu button on the multi-display.
    4. Press the Display button in the lower right section of the multi-display.
    5. Press Screen Off on the display.
    6. Push the Seek > button five times, push the < Track button five times, and verify that the diagnostic mode is entered.

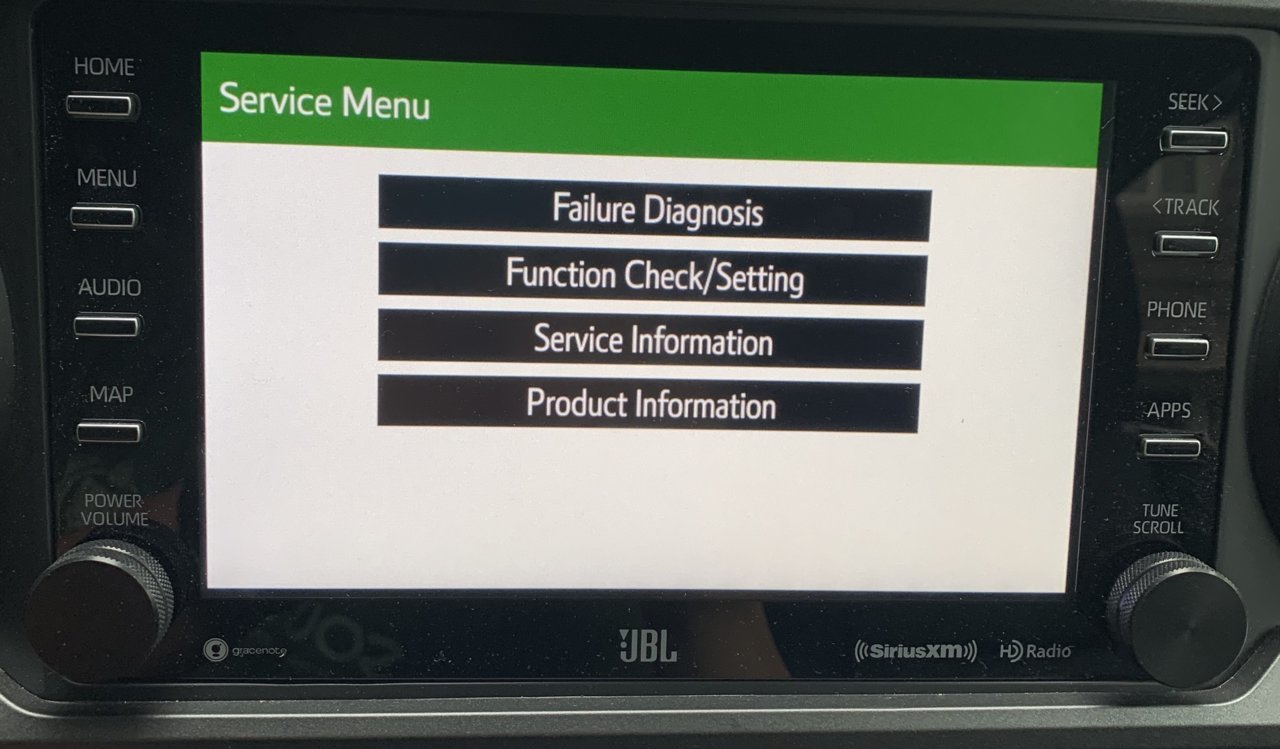

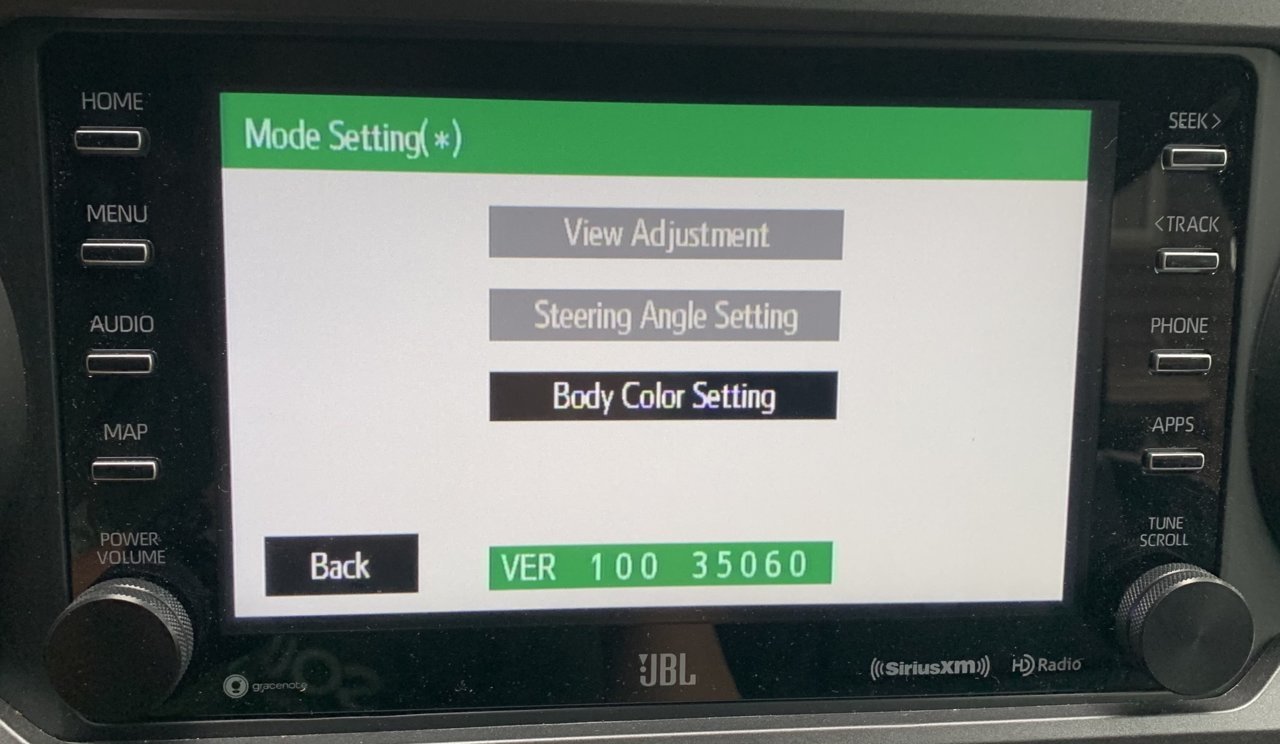

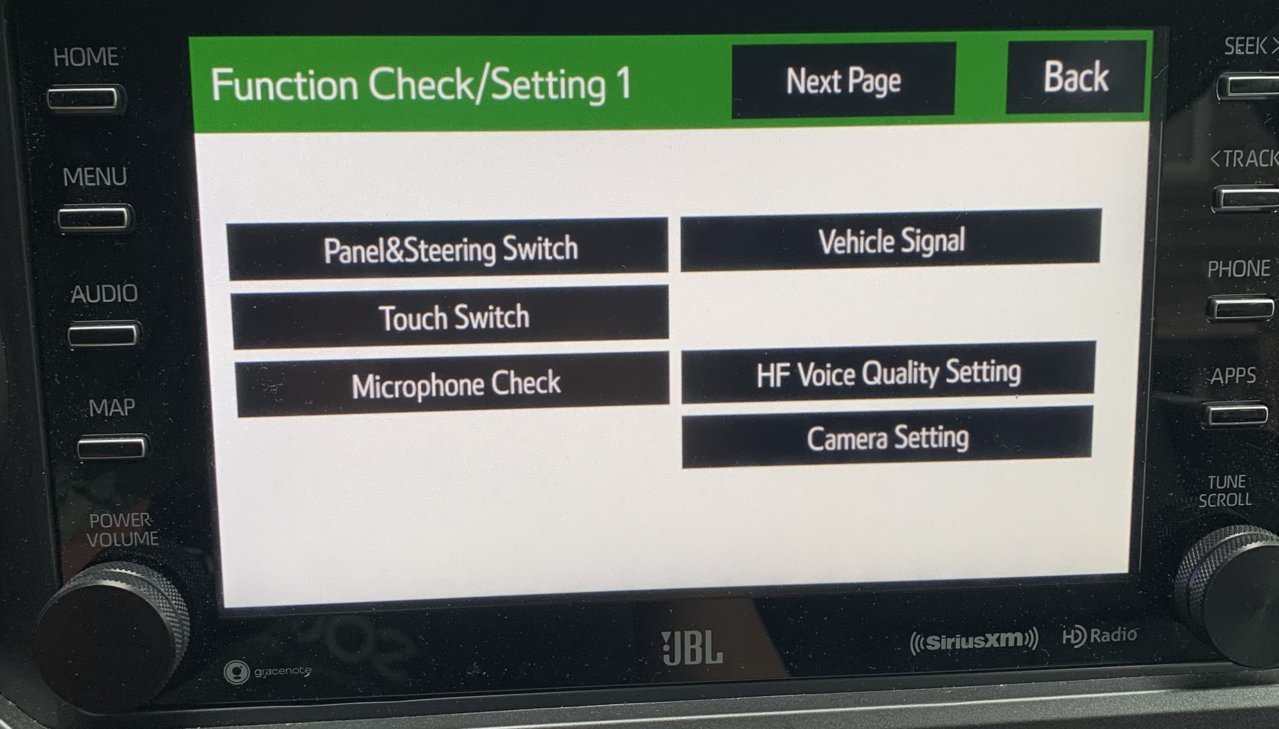

    After you hit the < Track button for the fifth time, it immediately goes to the Sevice Menu. But after I hit Function check/settings then Camera setting, the options for view adjustment and steering angle setting is grayed out! So close!


    Last edited: Oct 13, 2020
  7. Oct 13, 2020 at 10:01 AM
    #7
    mjcollum

    mjcollum Well-Known Member

    Joined:
    Sep 25, 2020
    Member:
    #341961
    Messages:
    55
    Gender:
    Male
    Texas
    Vehicle:
    2021 AG OR 6MT
    hmmm, on my 21.this works also...

    1.truck running.
    2.hold audio button
    3.flip headlights from all the way off to auto 3x (off,auto,off,auto,off,auto,off)
    4.profit?

    yshin80 [OP] likes this.
  8. Oct 13, 2020 at 10:05 AM
    #8
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    Is the camera view adjustment and steering angle setting also grayed out on yours?

  9. Oct 13, 2020 at 10:07 AM
    #9
    mjcollum

    mjcollum Well-Known Member

    Joined:
    Sep 25, 2020
    Member:
    #341961
    Messages:
    55
    Gender:
    Male
    Texas
    Vehicle:
    2021 AG OR 6MT
    yes, but I didn't have a camera stock. I added an aftermarket one. I just assumed that was why on mine.

    yshin80 [OP] likes this.
  10. Oct 13, 2020 at 6:44 PM
    #10
    20limited4x4

    20limited4x4 Member

    Joined:
    Dec 24, 2019
    Member:
    #314103
    Messages:
    9
    Central NC
    Vehicle:
    2020 Silver Sky Tacoma Limited 4x4
    AjaxTaco, mjcollum and yshin80 [OP] like this.
  11. Oct 13, 2020 at 7:53 PM
    #11
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
  12. Oct 13, 2020 at 8:02 PM
    #12
    20limited4x4

    20limited4x4 Member

    Joined:
    Dec 24, 2019
    Member:
    #314103
    Messages:
    9
    Central NC
    Vehicle:
    2020 Silver Sky Tacoma Limited 4x4
    Sorry, haven't come across one yet.

    For giggles and shits, have your truck in drive/gear and try going back to where you had options grayed out in the diagnostics menu. This is a total guess.

    yshin80 [OP] likes this.
  13. Oct 14, 2020 at 8:00 AM
    #13
    NohleCJ

    NohleCJ Member

    Joined:
    Jul 27, 2020
    Member:
    #335742
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Tacoma Limited
    Prinsu Roof Rack
    I've had the same issue with the options greyed out. Curious to see a solution.

    yshin80 [OP] likes this.
  14. Oct 14, 2020 at 8:36 AM
    #14
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    my unproven theory is that the cameras don’t have servo motors to change the angle of the camera. The software probably has to either zoom or clip the static image. But maybe the software isnt good enough yet. Buying the TRD Pro camera might be a way to fix it but not looking to spend $500 to find out.

  15. Oct 14, 2020 at 4:25 PM
    #15
    20limited4x4

    20limited4x4 Member

    Joined:
    Dec 24, 2019
    Member:
    #314103
    Messages:
    9
    Central NC
    Vehicle:
    2020 Silver Sky Tacoma Limited 4x4

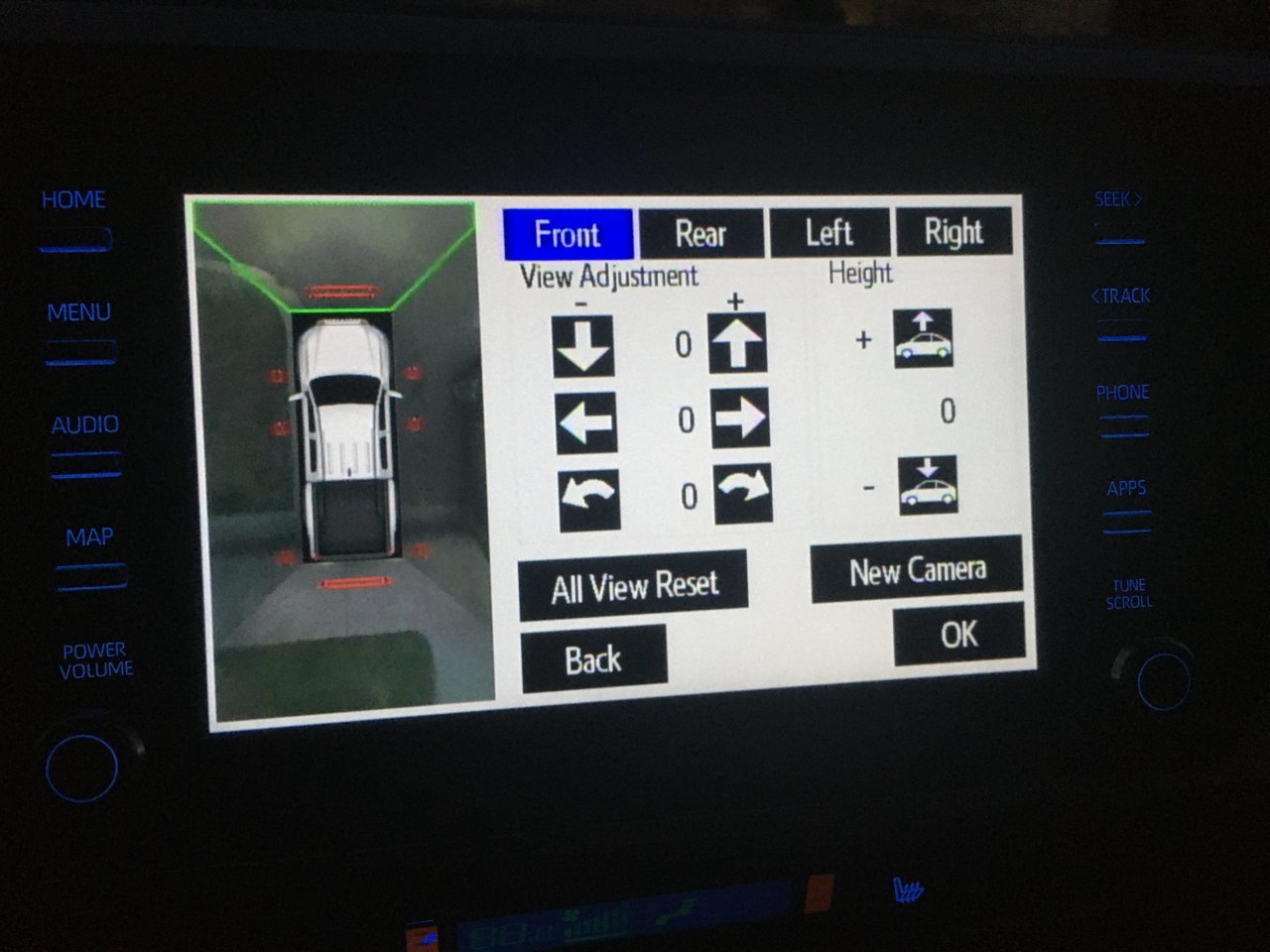

    Hold the button for view adjustment for 5-10 seconds .:thumbsup:
    I didn't mess with any of the settings, so not sure if it'll achieve what you're wanting.
    IMG_3359 - Copy.jpg

  16. Oct 14, 2020 at 5:34 PM
    #16
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    That’s it! Thank you so much. How did you figure that out?!

  17. Oct 14, 2020 at 6:00 PM
    #17
    20limited4x4

    20limited4x4 Member

    Joined:
    Dec 24, 2019
    Member:
    #314103
    Messages:
    9
    Central NC
    Vehicle:
    2020 Silver Sky Tacoma Limited 4x4
    Lucky guess.

    Let us know how well the adjustments do.

    WhoDeany likes this.
  18. Oct 14, 2020 at 6:04 PM
    #18
    yshin80

    yshin80 [OP] Well-Known Member

    Joined:
    Dec 28, 2019
    Member:
    #314389
    Messages:
    49
    Gender:
    Male
    Vehicle:
    2020 OR DCSB MGM
    will do. Need to get to a parking lot and use the lines as markers. I’ll try to remember to do a before and after pic

    ktbell444 and WhoDeany like this.
  19. Oct 15, 2020 at 1:52 AM
    #19
    ktbell444

    ktbell444 Problem Solver

    Joined:
    Aug 8, 2017
    Member:
    #226306
    Messages:
    314
    Gender:
    Male
    GA / FL
    Vehicle:
    2020 Tacoma TRD Pro - Army Green
    I'm interested in the outcome as well!

  20. Oct 15, 2020 at 2:35 AM
    #20
    HLTaco

    HLTaco Well-Known Member

    Joined:
    Jun 2, 2019
    Member:
    #295179
    Messages:
    165
    Gender:
    Male
    First Name:
    Huy
    NorCal
    Vehicle:
    2020 Tacoma Off-Road 4x4
    Same. Looks like a pro grill will be in my near future now that I can adjust the camera

    t0nyvalenzuela likes this.
