2020 parts list

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Siblue, Jul 12, 2019.

  1. Nov 14, 2019 at 2:32 PM
    #221
    Quacktacular81

    Quacktacular81 Unknown Member

    Joined:
    Oct 24, 2019
    Member:
    #308871
    Messages:
    102
    Gender:
    Male
    First Name:
    Jason
    SW Colorado
    Vehicle:
    2020 Tacoma TRD Off-Road
    @Jeff Lange Wanted to double-check on the part number for the 2020 4WD auto trans fill plug gasket. The local parts counter said it changed it for 2020 and ordered me 90301-A0041, which is an o-ring. This is a different number than I am finding in the DIY threads (90301-15004). I want to be sure I have the right one before digging in. Thanks!

  2. Nov 15, 2019 at 3:20 AM
    #222
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    What is the part number for the side mirrors bottom trim cover with the cutout for the cameras?

  3. Nov 15, 2019 at 9:55 AM
    #223
    e3po

    e3po Active Member

    Joined:
    Nov 9, 2019
    Member:
    #310284
    Messages:
    27
    Gender:
    Male
    Vehicle:
    2020 Tacoma TRD Off-Road

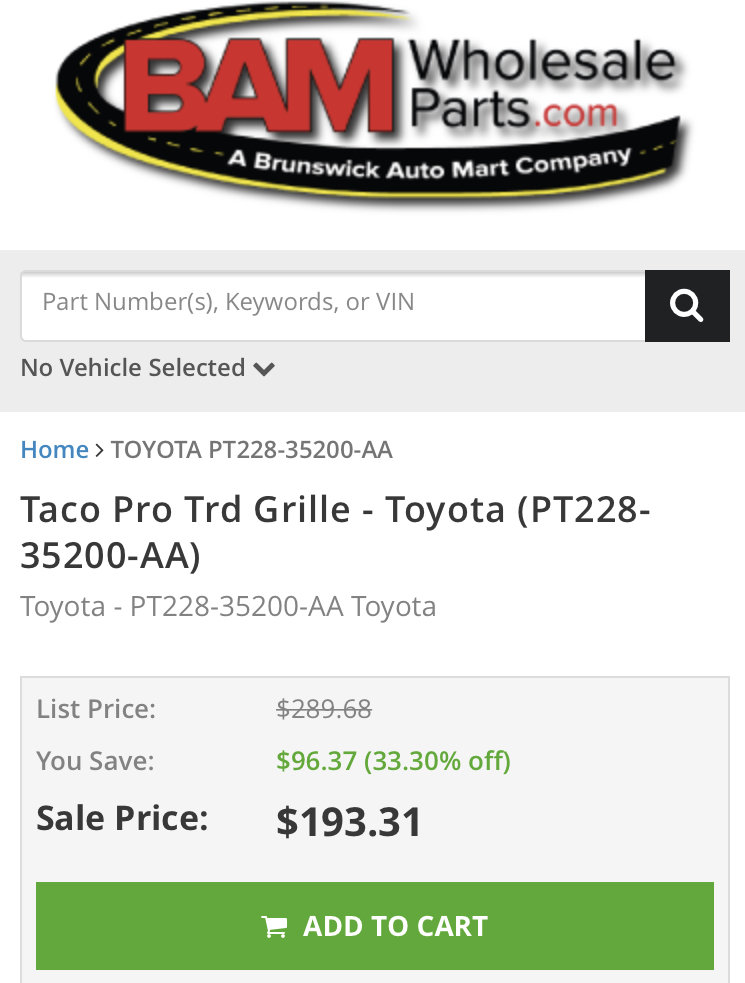

    This part is no longer on sale on BAM. Hmmm.

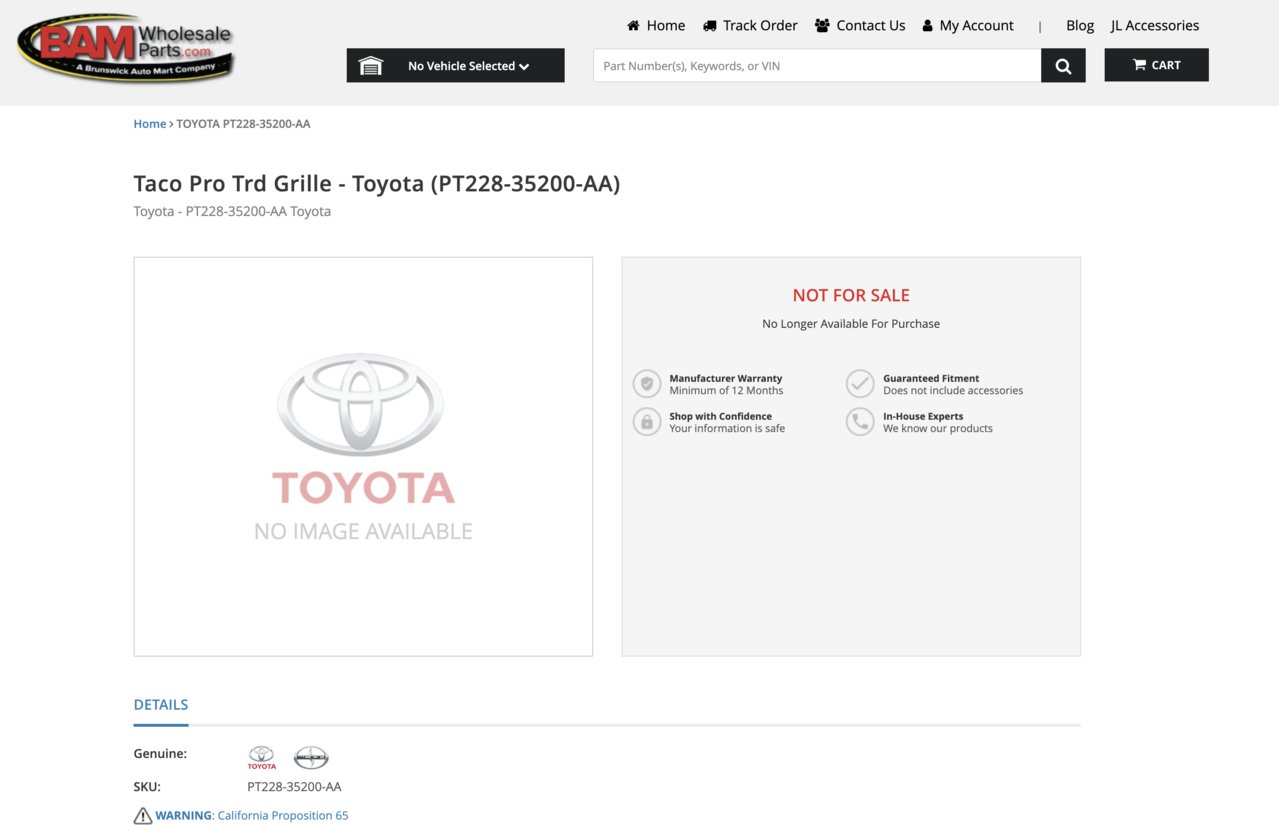

    Screen Shot 2019-11-15 at 9.56.30 AM.jpg

  4. Nov 15, 2019 at 7:05 PM
    #224
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    The Pro has a different ECU for the cameras, so add that to your list. 86792-35030.

    I don't, but if I had to guess I would say sometime in the next month or so.

    55446-04090-C0, and it will fit a 2016-2019 without issue.

    90301-15004 is still correct. The o-ring they gave you is for another plug in the transmission case, but the transmission fluid is actually filled through a plug in the extension housing between the engine and transfer case. The original part number for the AC60E/AC60F is 90301-A0055, however this is replaced by 90301-15004.

    This cover is not sold separately, the complete mirror must be ordered (which includes the camera itself).

    Jeff

  5. Nov 15, 2019 at 7:20 PM
    #225
    BadFlounder

    BadFlounder Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203338
    Messages:
    218
    Gender:
    Male
    Colorado
    Vehicle:
    2020 MGM TRD Pro
    Right! The front camera has really complicated this endeavor. I’ll hold out to see what pops up on the replica/knockoff scene or just stick with the OEM, which I don’t mind as much now that it’s not chrome.

    Now, come on Toyota and release those 2020 bed lights. I acquired the OEM install instructions from another thread here and it confirms that the 2020 bed lights are simple plug-and-play to plugs already in the taillight wiring harness (If I recall, you had mentioned that these were pre-wired on the 2020s). Nice to see that confirmed in the install guide!

  6. Nov 15, 2019 at 8:59 PM
    #226
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    On the 2016-2019s you can buy them separately, is there a reason why it is not available in parts?
    What would the part number be for the whole mirror assembly? With camera.

  7. Nov 15, 2019 at 9:51 PM
    #227
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Do you know the part numbers for the 2016-2019 ones? The parts catalog doesn't list them separately for them either (though it is possible that they are available separately, it happens occasionally when a part is in the supply system but not in the catalog, and can be ordered using the part number stamped on the part itself or by finding the component listed in another catalog).

    Generally speaking when a part isn't listed separately in the catalog it is either because Toyota doesn't think it is a good idea to replace it separately (difficult to replace), or because the part is from another supplier that doesn't sell components, or similar reasons. Sometimes it's for dumb reasons that I don't know, don't understand, or don't agree with (for instance when something is listed separately on one car but not another, even though they both use the same assembly part).

    https://www.tacomaworld.com/posts/21735705

    Jeff

    Rainoffire[QUOTED] likes this.
  8. Nov 15, 2019 at 11:02 PM
    #228
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    I will have to follow up with my dealer.
    Cause that was how I got the bottom trim cover for both the Tacoma and 2019+ RAV4s.

  9. Nov 15, 2019 at 11:20 PM
    #229
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    The lower cover is listed separately for the 2013-2020 Japan-produced RAV4 and the 2013-2018 Canadian-produced RAV4 (but not the Canadian-produced 2019-2020 RAV4). I can provide the part numbers for the RAV4 if that would help. They may be similar or even the same.

    Jeff

  10. Nov 15, 2019 at 11:32 PM
    #230
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport

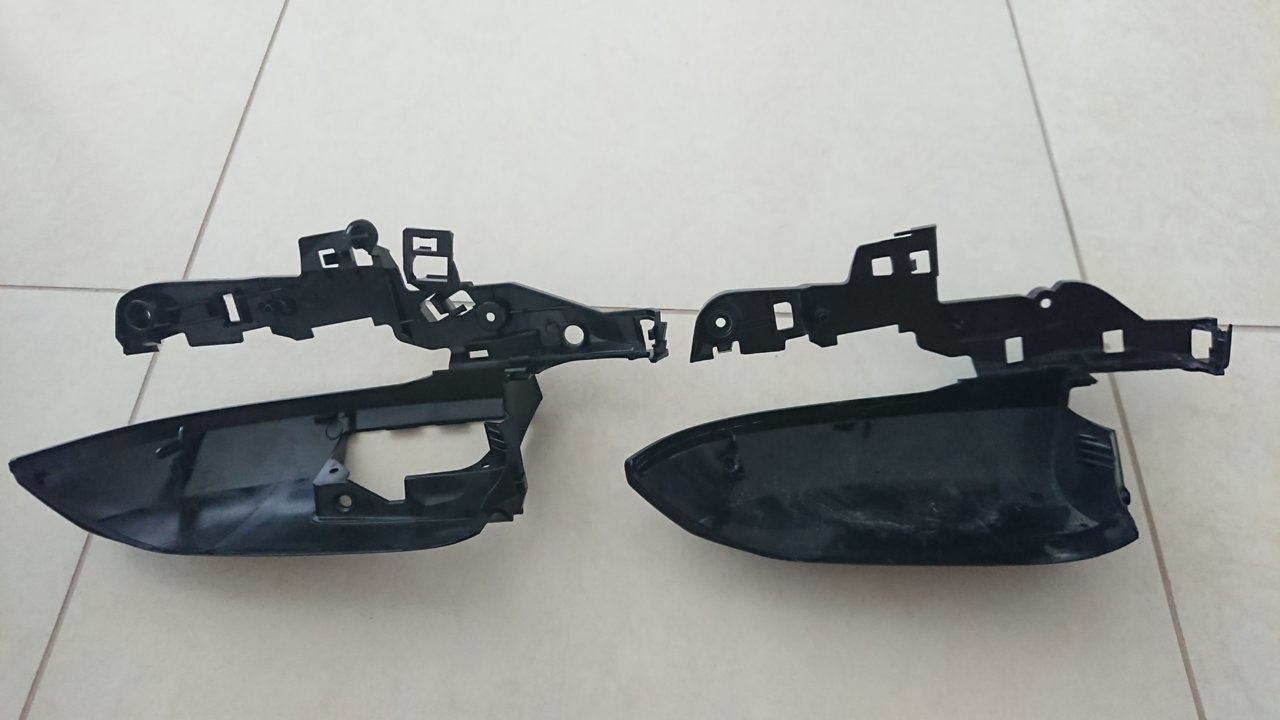

    I actually already got the covers from the 2019 RAV.
    • Right: Part #8791B-42E50
    • Left: Part #8794B-42E20
    There are some minor differences to them that prevent them from fully seating into the Tacoma's assemble.
    Before I trim/cut the RAV4's bottom trim cover to make them fit, I wanted to see if I can source the 2020 Tacoma bottom trim cover.

  11. Nov 19, 2019 at 5:47 AM
    #231
    WilderTaco

    WilderTaco Active Member

    Joined:
    Jul 23, 2019
    Member:
    #300063
    Messages:
    42
    Gender:
    Male
    Iowa
    Vehicle:
    2019 TRD OR DCLB Cement

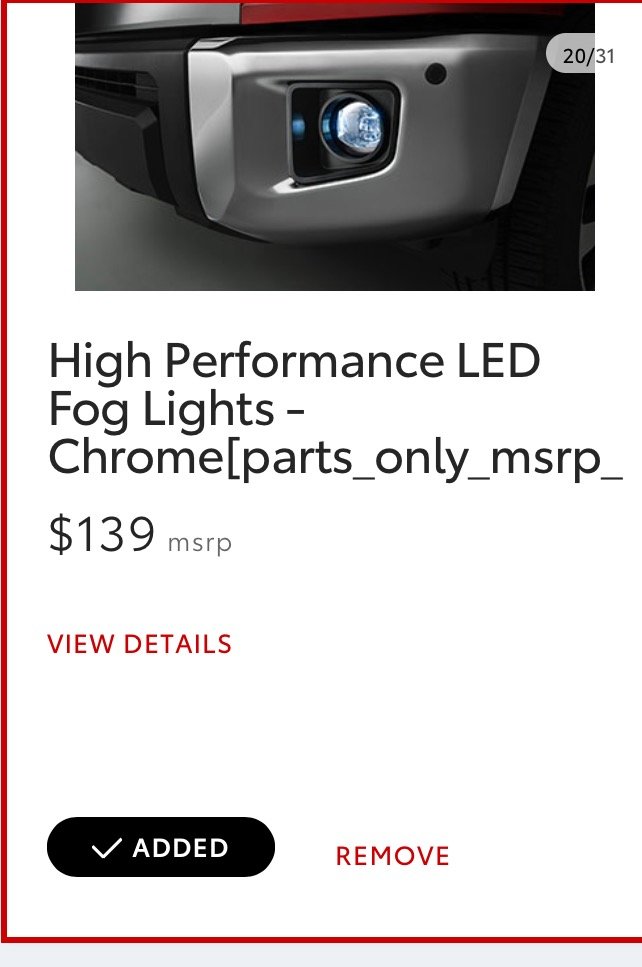

    IMG_8672.PNG.jpg Does anyone have the part number for these?

  12. Nov 19, 2019 at 7:23 AM
    #232
    BadFlounder

    BadFlounder Well-Known Member

    Joined:
    Nov 26, 2016
    Member:
    #203338
    Messages:
    218
    Gender:
    Male
    Colorado
    Vehicle:
    2020 MGM TRD Pro
  13. Nov 19, 2019 at 11:01 PM
    #233
    BangosTaco

    BangosTaco Well-Known Member

    Joined:
    Sep 7, 2019
    Member:
    #304587
    Messages:
    362
    Gender:
    Male
    Vehicle:
    2020 Toyota Tacoma TRD PRO [MT]
    Stock
    Best place to buy the new Headlights?

  14. Nov 20, 2019 at 3:29 AM
    #234
    MannyS

    MannyS Well-Known Member

    Joined:
    Aug 20, 2015
    Member:
    #162263
    Messages:
    1,887
    Republic of Texas
    SE Toyota region previously offered these foglights as a distributor installed accessory option. These Auer Automotive light kits were also sold at various dealers.

  15. Nov 20, 2019 at 7:09 AM
    #235
    6MTPro

    6MTPro Well-Known Member

    Joined:
    Apr 22, 2019
    Member:
    #290940
    Messages:
    1,444
    HI -> CA
    Vehicle:
    2018 TRD Pro 6MT | 2004 4Runner 4.7 V8
    Tune, 285/75/16, Diode Dynamics, PPF, Bakflip Mx4, Meso, Cali Raised, TJM
    Don't you already have them since you have a 2020 Pro?

  16. Nov 22, 2019 at 5:06 PM
    #236
    HeyMikeyyyyyy

    HeyMikeyyyyyy New Member

    Joined:
    Jul 19, 2017
    Member:
    #224429
    Messages:
    1
    Gender:
    Male
    First Name:
    Mikhail
    VA Beach
    Vehicle:
    2020 Cement TRD OR
    2020 TRD Pro taillights part number(s)?

  17. Nov 22, 2019 at 5:11 PM
    #237
    Viper1092

    Viper1092 Well-Known Member

    Joined:
    Nov 29, 2018
    Member:
    #274222
    Messages:
    175
    Gender:
    Male
    Vehicle:
    2019 cement Tacoma TRD OffRoad

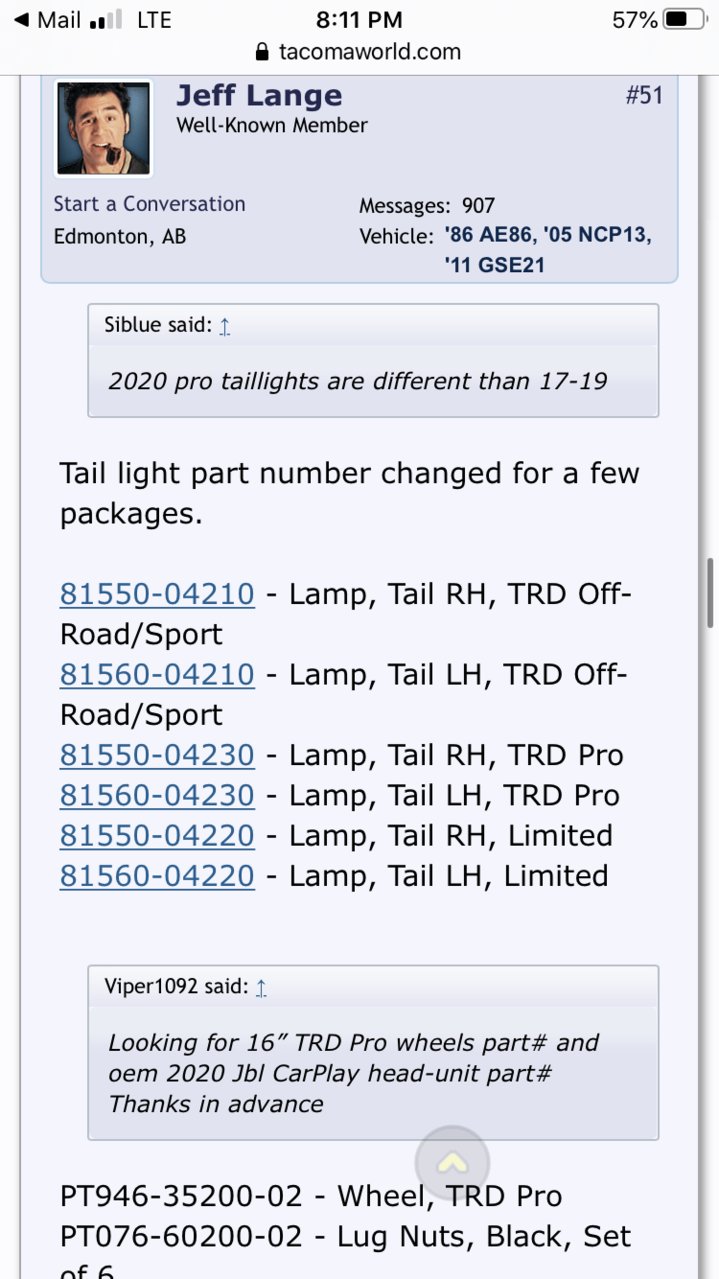

    Here you go93541746-125E-42CD-930C-699DED292314.jpg

    Jeff Lange likes this.
  18. Nov 24, 2019 at 11:42 AM
    #238
    bluedevils9

    bluedevils9 Well-Known Member

    Joined:
    Oct 26, 2019
    Member:
    #309085
    Messages:
    59
    Vehicle:
    2020 Cement TRD Off Road
    does toyota make an OEM tailgate lock or do you have to use a pop and lock? thanks!

  19. Nov 24, 2019 at 12:06 PM
    #239
    Eagle46

    Eagle46 My Baby..

    Joined:
    Nov 9, 2019
    Member:
    #310231
    Messages:
    142
    Gender:
    Male
    First Name:
    Blake "Blakie"
    Langhorne, Bucks Cty Pa SEPA Philadelphia Area
    Vehicle:
    2020 TRD Sport DCLB, AT 4X4 VDB

    I was just at my dealership and the parts guys called the Parts Warehouse, and was told that the part was available for a short time and Toyota issued a " Stop Sale", sometimes Toyota does that with a new part, Toyota will send the accessories to port first, then to dealers when they get enough parts, that was case a few years ago with running boards for Highlander. Part is supposed to be available APX February, Also could be a quality control problem.

  20. Nov 24, 2019 at 12:15 PM
    #240
    Roadkill1081

    Roadkill1081 Well-Known Member

    Joined:
    Jan 19, 2012
    Member:
    #70964
    Messages:
    385
    Gender:
    Male
    Maryland
    Vehicle:
    2020 DCSB TRD SPORT CEMENT
    bluedevils9[QUOTED] likes this.
