2020 parts list

Discussion in '3rd Gen. Tacomas (2016+)' started by Siblue, Jul 12, 2019.

  1. Feb 29, 2020 at 11:17 AM
    #581
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,225
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    http://techinfo.toyota.com provides repair, wiring, and other information if you buy a subscription.

    16P Connector:
    Pin 1: +B, Black, Battery Power +
    Pin 2: RSW+, Beige, Display On Signal Output +
    Pin 4: GND1, White/Black, Chassis Power -
    Pin 8: IG, Pink, Ignition Power +
    Pin 9: ACC, Grey, Accessory Power +

    40P Connector:
    Pin 1: SGND, -, LH Camera Shield -
    Pin 2: LCB+, Black, LH Camera Power +
    Pin 3: LGND, Green, LH Camera Power -
    Pin 4: LCV-, Red, LH Camera Signal Input -
    Pin 5: LCV+, White, LH Camera Signal Input +
    Pin 10: RCV+, Yellow, RH Camera Signal Input +
    Pin 11: BCB+, Black, Front Camera Power +
    Pin 12: BCV+, White, Front Camera Signal Input +
    Pin 13: SGND, -, Rear Camera Shield -
    Pin 14: CB+, Pink, Rear Camera Power +
    Pin 15: CV+, Red, Rear Camper Signal Input +
    Pin 16: NS+, Green, Display Video Signal Output +
    Pin 17: NS-, Red, Display Video Signal Output -
    Pin 18: NSG, -, Display Video Shield -
    Pin 20: CANL, White, CAN BUS Low
    Pin 21: CANH, Yellow, CAN BUS High
    Pin 26: ISSW, Black, Front Wide View Switch Signal Input -
    Pin 27: REV, Red, Reverse Switch Signal Input +
    Pin 30: SGND, -, RH Camera Shield -
    Pin 31: RCB+, Pink, RH Camera Power +
    Pin 32: RGND, Green, RH Camera Power -
    Pin 33: RCV-, Blue, RH Camera Signal Input -
    Pin 34: SGND, -, Front Camera Shield -
    Pin 35: BGND, Green, Front Camera Power -
    Pin 36: BCV-, Red, Front Camera Signal Input -
    Pin 37: CGND, Green, Rear Camera Ground
    Pin 38: CV-, Blue, Rear Camera Signal Input -
    Pin 39: CANL, White, CAN BUS Low
    Pin 40: CANH, Green, CAN BUS High

    Wheels are only available for warranty or collision repair for TRD Pro vehicles. They can only be ordered if Toyota Canada is supplied with a VIN and a repair order from a repair or body shop. They are not being sold as something that can be added to non-Pro vehicles.

    As far as pricing goes, that's nothing new. Pricing varies between Canada and the USA for every part. Sometimes it is cheaper in Canada, but often it is cheaper in the USA.

    Jeff

    DartFrog and Tanchi220 like this.
  2. Feb 29, 2020 at 3:28 PM
    #582
    Tanchi220

    Tanchi220 Member

    Joined:
    Jan 29, 2020
    Member:
    #317686
    Messages:
    10
    Gender:
    Male
    First Name:
    Gary
    Vehicle:
    2020 TRD off road
    Thanks Jeff! You're awesome. I'll be taking a look into that site.

  3. Feb 29, 2020 at 7:55 PM
    #583
    markram

    markram Well-Known Member

    Joined:
    Feb 26, 2008
    Member:
    #4967
    Messages:
    98
    washington, state of
    Vehicle:
    2020 TRD OR DCSB 4X4 Cement
    i subscribed for the $20 2 day deal and can't get logged in. when i try it says invalid e-mail address/password!? i used the same ones i used to set my account up. guess i'll call them on monday and see what's up, but by then my two days will almost be up... :(

  4. Feb 29, 2020 at 9:23 PM
    #584
    Bradg93

    Bradg93 Well-Known Member

    Joined:
    Sep 11, 2019
    Member:
    #305019
    Messages:
    195
    Gender:
    Male
    Port Hope, Ontario, Canada
    Vehicle:
    2020 TRD Sport DCLB Cement Grey
    Damn and I would assume that you can’t really tell how long a “stop sale” will go on for? My dealer says they can get me the 2019 pro rims so I assume they have to give a Pro VIN number to order them too? Or is it just different because these rims are new and they don’t want people buying them?

    Damn it Toyota, take my money!

    I guess if I choose to get these my only option is to order them from a US dealer/website and pick them up lol

  5. Feb 29, 2020 at 9:34 PM
    #585
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    9,844
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    Make a trip across the border lol I had no issues getting mine here

  6. Feb 29, 2020 at 9:39 PM
    #586
    Bradg93

    Bradg93 Well-Known Member

    Joined:
    Sep 11, 2019
    Member:
    #305019
    Messages:
    195
    Gender:
    Male
    Port Hope, Ontario, Canada
    Vehicle:
    2020 TRD Sport DCLB Cement Grey
    Lol I’m thinking about. But I’d still have to order it from a website and get it shipped somewhere , I called a couple dealership and they said like $330 USD. When online websites say $196 that sounds much nicer.

  7. Feb 29, 2020 at 9:46 PM
    #587
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    9,844
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    I ordered through parts.toyota.com and picked them up free at the dealer

    Bradg93 likes this.
  8. Feb 29, 2020 at 10:09 PM
    #588
    Bradg93

    Bradg93 Well-Known Member

    Joined:
    Sep 11, 2019
    Member:
    #305019
    Messages:
    195
    Gender:
    Male
    Port Hope, Ontario, Canada
    Vehicle:
    2020 TRD Sport DCLB Cement Grey
    None of the dealers on that website are close to Niagara falls

  9. Mar 1, 2020 at 8:45 PM
    #589
    ToyoProTaco

    ToyoProTaco Member

    Joined:
    Dec 31, 2019
    Member:
    #314753
    Messages:
    19
    Vehicle:
    2020 Magnetic Gray Metallic Tacoma TRD Pro
    Is there an available replacement hardware kit for the predator steps? Thanks!

  10. Mar 2, 2020 at 10:42 AM
    #590
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,225
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    PT925-35170-HK - Hardware Kit, Predator Step Bars

    The hardware kit is basically just 12 M8x1.25x30mm black hex-head bolts with captive washers. For posterity and future use, Toyota factory part 90119-08763 should be more or less equivalent and will be available for long after the accessory kit is discontinued.

    Jeff

  11. Mar 3, 2020 at 9:49 AM
    #591
    Lando883

    Lando883 Well-Known Member

    Joined:
    Jul 15, 2017
    Member:
    #224091
    Messages:
    58
    Gender:
    Male
    First Name:
    Lando
    SoCal
    Vehicle:
    2017 Tacoma TRD OR 2WD
  12. Mar 4, 2020 at 3:11 PM
    #592
    DamGuide

    DamGuide Well-Known Member

    Joined:
    Nov 29, 2019
    Member:
    #312054
    Messages:
    171
    Nooga, TN
    Vehicle:
    2020 TRD Offroad
    @Jeff Lange do you know what size screw 90167-50063 is if I wanted to buy it at Ace or Home Depot?

    2 Screws for installing front camera on a 2020 TRD OR or Sport Grille.

  13. Mar 5, 2020 at 1:42 PM
    #593
    deusxanime

    deusxanime Well-Known Member

    Joined:
    Jul 12, 2017
    Member:
    #223889
    Messages:
    876
    Gender:
    Male
    MN
    Vehicle:
    2019 Cement Sport DCSB 6MT 4x4 Prem+Tech
    @Jeff Lange I'm looking at buying a set of the black 5" oval nerf bars, listed as part# PT767-35112, from someone on craigslist, but they say they don't have the hardware for mounting, just the bars themselves. Is there a hardware kit for those (maybe the same as the Predator Step Bars like above) as well?

  14. Mar 5, 2020 at 1:51 PM
    #594
    ChouDawg

    ChouDawg Active Member

    Joined:
    Jan 2, 2019
    Member:
    #277803
    Messages:
    35
    Gender:
    Male
    San Diego
    Vehicle:
    2020 Super White TRD OR
    I recall reading that you can add -HK to the end of any of the step PNs and that will net you the associated hardware kit. Having just removed a set of the black 5" oval bars I know very clearly that there are three unique D-shaped washers on each side that are used on the mounting holes closest to the bracket bend. A regular round washer would hit the bend and not allow the bolt to sit flush. This is different than the predator steps which use all round washers; Jeff mentioned above that hardware set can just be bought at a hardware store.

  15. Mar 5, 2020 at 1:57 PM
    #595
    deusxanime

    deusxanime Well-Known Member

    Joined:
    Jul 12, 2017
    Member:
    #223889
    Messages:
    876
    Gender:
    Male
    MN
    Vehicle:
    2019 Cement Sport DCSB 6MT 4x4 Prem+Tech
    PT767-35112-HK isn't bringing anything up on parts.olathetoyota.com, so doesn't seem like that is it. I'd probably want to get the OEM kit, especially if their are specifically shaped washers that need to be used by it. Thanks for the heads up though that the Predator kit wouldn't work. Hopefully Jeff can find something. I haven't bought the steps yet from the person because I want to be sure I'll be able to get the hardware to mount them before I do.

  16. Mar 5, 2020 at 2:01 PM
    #596
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,225
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    PT767-35110-HK - Kit, Hardware (has some special washers and so on in addition to the bolts as was said)
    PT767-35110-BK - Kit, Brackets and Hardware (just in case you also needed the brackets)

    Jeff

    deusxanime likes this.
  17. Mar 5, 2020 at 2:03 PM
    #597
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,225
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    I don’t know the size, sorry.

    Jeff

  18. Mar 5, 2020 at 2:09 PM
    #598
    deusxanime

    deusxanime Well-Known Member

    Joined:
    Jul 12, 2017
    Member:
    #223889
    Messages:
    876
    Gender:
    Male
    MN
    Vehicle:
    2019 Cement Sport DCSB 6MT 4x4 Prem+Tech
    Thanks! That PT767-35110-HK is much more reasonably priced than the Predator one as well!

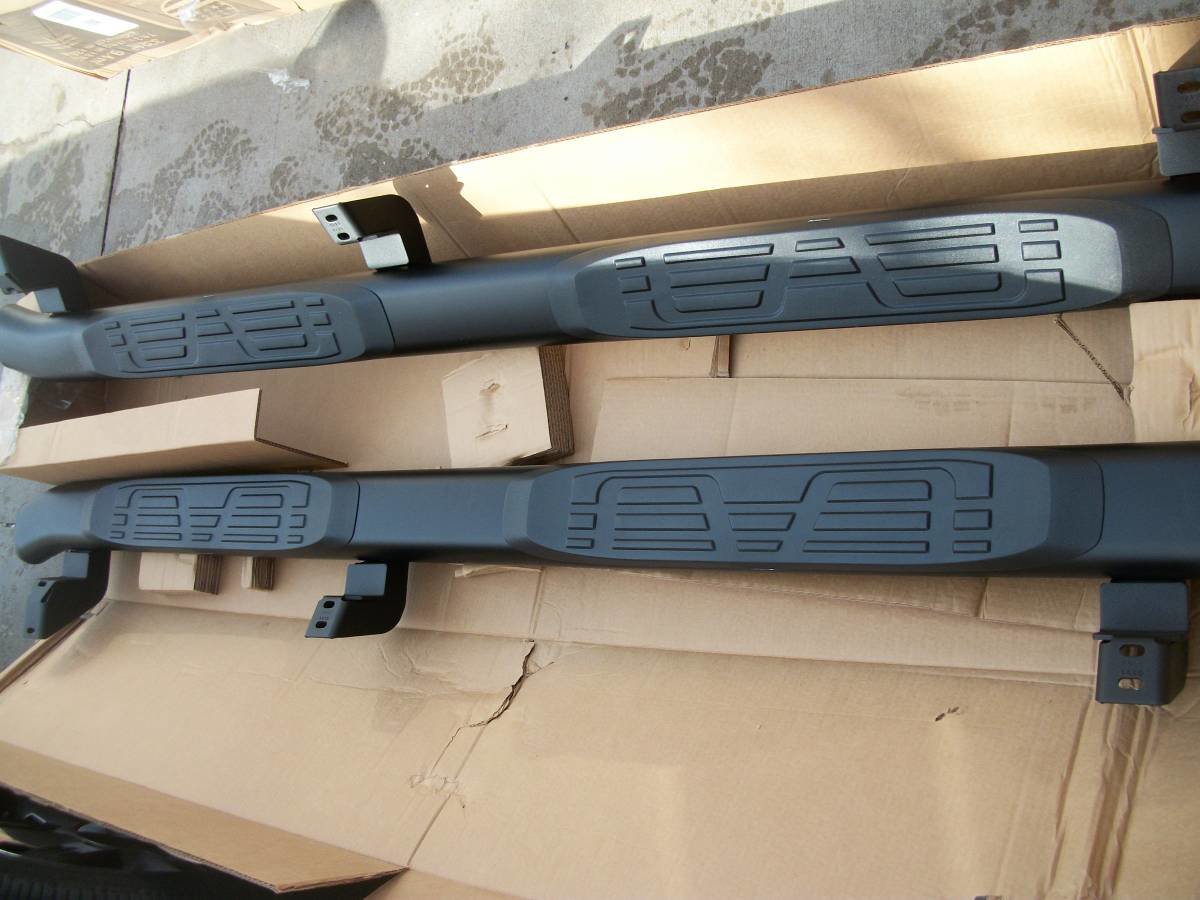

    For brackets, I don't think I would need them, I assume those are what are already attached in the picture they put up (below)?


    Hopefully that is anyway, because the full hardware kit with brackets is $100+ more!

    Are you able to tell if anything else would be missing other than the bolts/washers supplied in PT767-35110-HK? Don't want to pick them up then find I need to spend another big chunk of money just to mount them. At that point I might as well just buy a new set from online that includes all the mounting hardware.

  19. Mar 5, 2020 at 2:18 PM
    #599
    ChouDawg

    ChouDawg Active Member

    Joined:
    Jan 2, 2019
    Member:
    #277803
    Messages:
    35
    Gender:
    Male
    San Diego
    Vehicle:
    2020 Super White TRD OR
    The brackets are the L shaped pieces attached to the steps themselves. They are fastened to the steps via hardware on the underside. If that's what you're getting (they look brand new by the way, shame they don't have the hardware) then you only need the hardware kit. I'm not sure if the hardware kit also includes the bracket hardware but if so you'll prob end up with some extras. The D-shaped washers are really the only "unique" part of the kit.

  20. Mar 5, 2020 at 2:47 PM
    #600
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    1,225
    Edmonton, AB
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    You should be fine with just the hardware. Even id you couldn’t get it from Toyota I’m sure it wouldn’t be too hard to make up a kit. The washers aren’t even that special.

    Jeff
