2020 parts list

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Siblue, Jul 12, 2019.

  1. Apr 14, 2022 at 4:13 PM
    #1021
    daveeasa

    daveeasa FBC Harness Solutions Vendor

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,290
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    Anyone have the part number handy for the passenger side trim panel on top of the dash mounted tweeter next to the a pillar with the grab handle? Mine has no ambient light sensor, just a dummy piece, but it’s tempting to put one in and play.

    Part number 1 in this diagram.


    Last edited: Apr 14, 2022
  2. May 16, 2022 at 11:32 AM
    #1022
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    @Jeff Lange

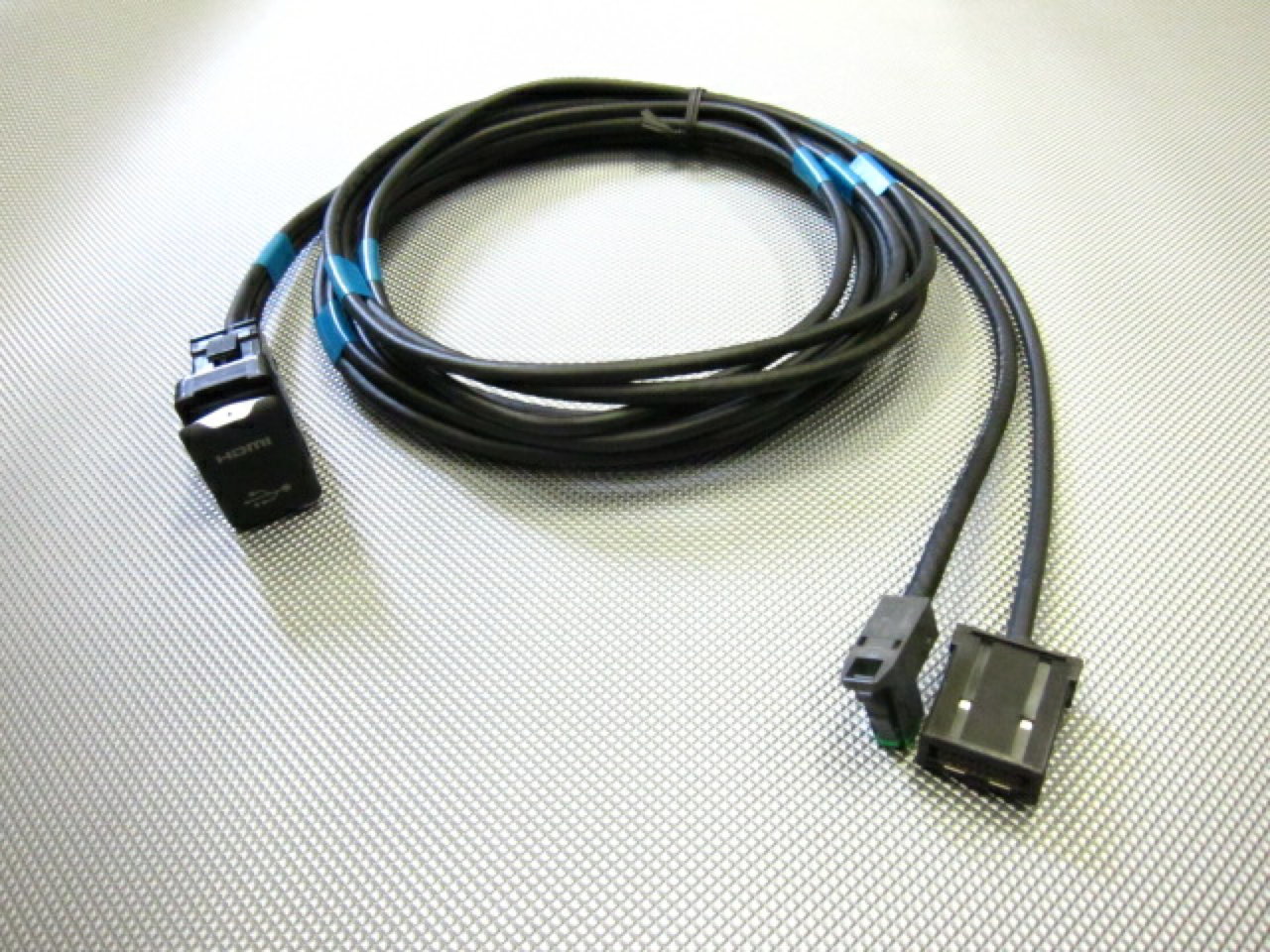

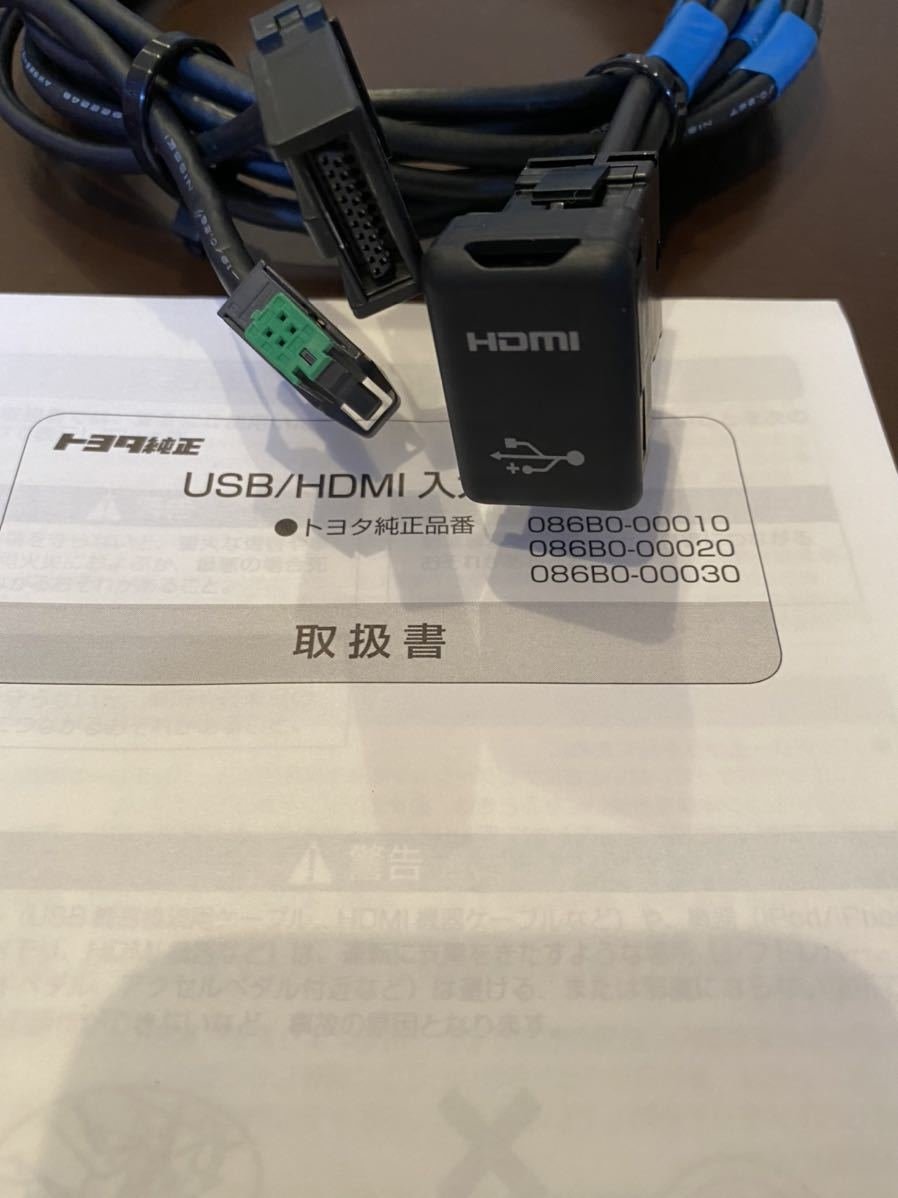

    Would you happen to know if there is a variant of the OEM HDMI/USB Port (086b0-00010) with standard HDMI and USB ends?

    It is a JDM Toyota part, so it uses an HDMI Type E connector which is difficult to source an adapter for.
    imgrc0065266396.jpg r486055948.1.jpg

    Hoping there is a version with standard ends.

  3. May 16, 2022 at 9:08 PM
    #1023
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    You could try 82821-48320 in combination with 86842-40020, but that's about all I can think of, but I suspect it is the wrong shape and I haven't personally seen it to verify the HDMI type either.

    Jeff

    Rainoffire likes this.
  4. May 16, 2022 at 9:33 PM
    #1024
    dfanonymous

    dfanonymous Well-Known Member

    Joined:
    Apr 9, 2019
    Member:
    #289657
    Messages:
    1,604
    Gender:
    Male
    Vehicle:
    2019 Voodoo Blue Tacoma TRD Pro.
    -Shmellfab rocksliders.... -BD ditch lights -Cali raised ditch light brackets -Sway bar discos -Auxbeam aux 6 gang -Uptop Bravo -Rci trans skid -Rci cat guards -Trd pro eibach lift springs -Hypertech speedo calibrator Etc.

    Can you get the part number for the .5 spacer that used for the rear lift for the 2022 Pro? At least I think it was a block when I looked at it…

  5. May 16, 2022 at 11:12 PM
    #1025
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    PT82A-35220-SS

    Jeff

  6. May 17, 2022 at 2:33 AM
    #1026
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    Do these come in pairs or just one per side?

  7. May 17, 2022 at 2:54 AM
    #1027
    WhiteTaco20

    WhiteTaco20 Well-Known Member

    Joined:
    May 28, 2020
    Member:
    #329685
    Messages:
    1,016
    Gender:
    Male
    Quakertown, PA
    Vehicle:
    SW 2020 TRD Sport DCSB
    I thought the same lol

  8. May 17, 2022 at 8:20 PM
    #1028
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    Per side.

    Jeff

    Rainoffire[QUOTED] likes this.
  9. May 21, 2022 at 5:16 AM
    #1029
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,099
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    Would you also happen to know if they require new longer center pin bolts? Or if they can just added on to existing hardware?

    Asking cause, other aftermarket 0.5" blocks use a new center pin as oppose to 1" blocks that you can just slap on without changing anything.

    EatingTacosinmyTaco22 likes this.
  10. Jun 26, 2022 at 9:23 PM
    #1030
    NMHunter

    NMHunter Well-Known Member

    Joined:
    Feb 21, 2014
    Member:
    #123643
    Messages:
    51
    Gender:
    Male
    Northern NM
    Vehicle:
    05 and 22 tacoma
    Just a couple
    Jeff,
    Awesome thread, huge help to the community and much appreciated.
    Does anyone have a new coupon code from BAM wholesale?
    Thanks in advance

  11. Jul 9, 2022 at 4:10 PM
    #1031
    3JOH22A

    3JOH22A Toyota Gigolo

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    11,779
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner

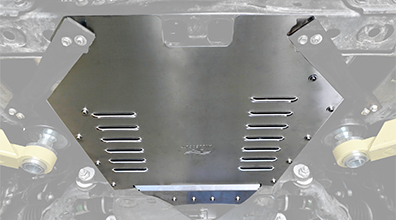

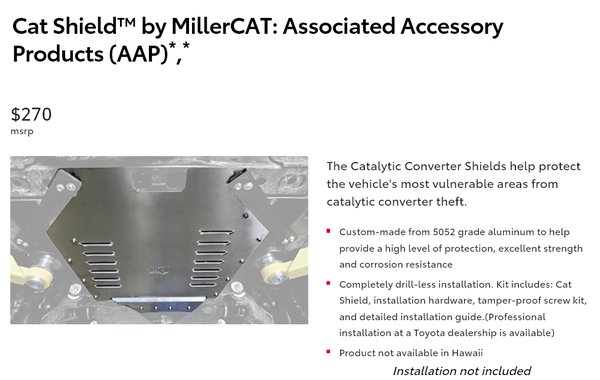

    Today I learned the Miller Cat Shield is now available as a dealer accessory, but keeps its own 90-day warranty period. This is from Toyota's Build & Price page:



    From the photo URL we get Toyota P/N PTN59-35165. Seems the parts counter price is $370-$430 US.

    [​IMG]

    shiftd likes this.
  12. Jul 16, 2022 at 6:13 PM
    #1032
    VicNic3

    VicNic3 Well-Known Member

    Joined:
    May 5, 2018
    Member:
    #252619
    Messages:
    710
    Gender:
    Male
    GA
    Vehicle:
    2018 Toyota Tacoma Sport 4x4 DCSB Silver Sky Metallic
    Looking for the LH and RH outside part mirror numbers with heated mirror and turn signal.

  13. Jul 17, 2022 at 5:48 PM
    #1033
    TommyBoy51

    TommyBoy51 Well-Known Member

    Joined:
    May 26, 2022
    Member:
    #398023
    Messages:
    79
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2022 Tacoma SR SX Access Cab Longbed 4x4
    2022 access cab SR SX (long bed)

    Confirmation of PK3B6-35JS0

    Power tailgate lock.

    Thanks

  14. Jul 17, 2022 at 6:10 PM
    #1034
    TommyBoy51

    TommyBoy51 Well-Known Member

    Joined:
    May 26, 2022
    Member:
    #398023
    Messages:
    79
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2022 Tacoma SR SX Access Cab Longbed 4x4
    Hey Jeff, would this rear view mirror fit a 2022 SR. I think it should, as it is battery powered for the homelike buttons. Keep in mind the SR has no power running to the mirror.

    Thanks


  15. Jul 20, 2022 at 7:27 AM
    #1035
    Oaster

    Oaster New Member

    Joined:
    Jul 20, 2022
    Member:
    #401732
    Messages:
    2
    Gender:
    Male
    First Name:
    Josh
    Vehicle:
    2021 Tacoma SR5
    Does anyone have a part number for the driver side master window switch for one touch up/down for all of the windows. My 2021 SR5 comes with only the driver side doing it.
    Thanks

  16. Jul 20, 2022 at 9:47 AM
    #1036
    Barrister

    Barrister Well-Known Member

    Joined:
    Sep 23, 2020
    Member:
    #341747
    Messages:
    609
    Gender:
    Male
    First Name:
    Dennis
    Mesa, Arizona
    Vehicle:
    2023 TRD Pro, Solar Octane, 6 speed Manual
    Predator Steps, OEM Tonneau
    Hey Jeff,

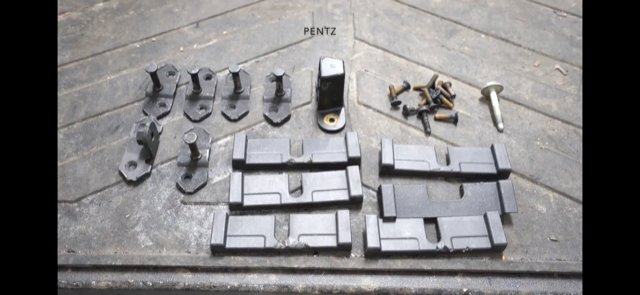

    Do you have the part number for the side trim pieces for the factory Tonneau? 5 of the trim pieces are the same, and one different to accomodate the mounting bolt. One of mine is chewed up and I would like to replace it. See picture and thanks.


  17. Jul 21, 2022 at 9:16 AM
    #1037
    TommyBoy51

    TommyBoy51 Well-Known Member

    Joined:
    May 26, 2022
    Member:
    #398023
    Messages:
    79
    Gender:
    Male
    First Name:
    Tom
    Vehicle:
    2022 Tacoma SR SX Access Cab Longbed 4x4
    Supposedly does not work with bed light kit, according to local dealer?

  18. Jul 26, 2022 at 11:01 AM
    #1038
    Kefka

    Kefka Well-Known Member

    Joined:
    Sep 30, 2020
    Member:
    #342374
    Messages:
    542
    Gender:
    Male
    First Name:
    01001010 01101111 01101000 01101110
    Vehicle:
    2019 MBM TRD PRO
    Longshot but do we have the part number for the 22 PRO bed panel assembly yet?

  19. Jul 27, 2022 at 9:49 AM
    #1039
    Jeff Lange

    Jeff Lange Well-Known Member

    Joined:
    May 19, 2015
    Member:
    #155616
    Messages:
    2,254
    Calgary, Canada
    Vehicle:
    '86 AE86, '05 NCP13, '11 GSE21
    87910-04230 - Mirror, RH
    87940-04240 - Mirror, LH
    87915-04070-B0 - Cover, Mirror (Silver Sky)
    87945-04070-B0 - Cover, Mirror (Silver Sky)

    PK3B6-35JS0 is correct for an Access Cab, but I am not sure if your SR will have the appropriate wiring. I would take a look through the instructions and make sure you have what you need before beginning.

    Yes, this will work on an SR.

    There is no option for all auto on the Tacoma. It's either LH front only or LH/RH front. Rear is never auto. Additionally, swapping out the switch will not work, other components like the motors and wiring are also different.

    84820-0E020 - Switch, Power Window Master (RH/LH Auto)

    Tonneau cover bits can be tricky, but I am pretty sure they are:

    64945-04020 - Cover, Latch (Front)
    64945-04010 - Cover, Latch (Front/Centre); Qty: 3
    64947-04010 - Cover, Latch (Rear RH)
    64948-04010 - Cover, Latch (Rear LH)

    Not sure why the rear ones are different or handed, but that's what I'm seeing.

    65500-04480 - Panel, Bed Side RH (TRD Pro)
    65600-04420 - Panel, Bed Side LH (TRD Pro)

    Jeff

    Last edited: Jul 27, 2022
  20. Jul 27, 2022 at 10:49 AM
    #1040
    Kefka

    Kefka Well-Known Member

    Joined:
    Sep 30, 2020
    Member:
    #342374
    Messages:
    542
    Gender:
    Male
    First Name:
    01001010 01101111 01101000 01101110
    Vehicle:
    2019 MBM TRD PRO
    Thanks, Jeff!! Appreciate the support as always.
