2020 pro headlight wires

Does and have a headlight diagram or know which wires is what on a 2020 pro. There is a pink, green, white/black, red, white and tan



Thank you very much



do you have some alert system so if anyone mentions “wiring diagram” you get notified and jump on to help?

either way, you are a legend.



Nope..just got online..and looked at the threads...



I just got a 2023 TRD Sport Premium with advanced tech package, LED headlights and LED fog lights. The wiring looks pretty much the same. I'm trying to figure out if I should wire my sequential LED strips in from my Armordillo FX LED running boards. Any issues or concerns to tying in to the headlight wiring harness? each side running board is a three wire system. Ground, one to turn signal, and one to daytime running lights. I've attached a PDF of the manufacturer's wiring list.

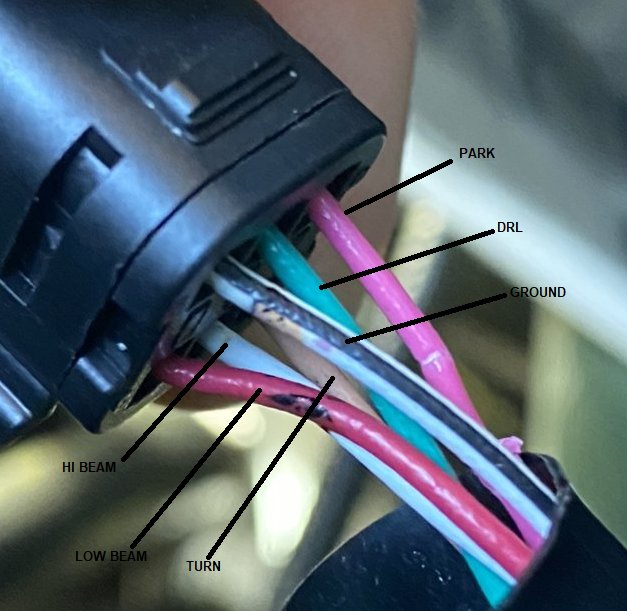

Here's how I've mapped them per your picture above and per the manufacture's wires:
Driver's side:
Tan (turn) = Green (from Rng Board)
Green (DRL) = Brown (from Running Board)
White/Black (Ground) = Black (from Running Board)

Passenger's side:
Light Blue (turn) = Yellow (from Rng Board)
Green (DRL) = Brown (from Running Board)
White/Black (Ground) = Black (from Running Board)

Please take a sanity look and advise before I start putting taps on things. Thanks and much appreciated.



Has anyone tried swapping the DRL with the Amber Turn Signal wires? Just curious if this is possible or not.



Anything is possible. Just not sure of the effect you seek.
