2020 speaker wiring diagram. HELP!!

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Tiger109, Mar 21, 2020.

Page 2 of 2
  1. May 28, 2022 at 5:44 PM
    #21
    j45p3r

    #21
    j45p3r Well-Known Member

    Joined:
    Jun 25, 2016
    Member:
    #190515
    Messages:
    225
    Gender:
    Male
    First Name:
    Jason
    Downeast Maine
    Vehicle:
    2022 MBM TRD Pro 6MT
    Grey/White/Green/Purple are basically industry standard speaker colors. The OEMs like to use their own colors just to keep it interesting. So you’ll just want to splice grey to grey, white to white, green to green and purple to purple.

    j45p3r, May 28, 2022
    #21
  2. Jul 27, 2022 at 2:53 PM
    #22
    x12plyr

    #22
    x12plyr New Member

    Joined:
    Jul 27, 2022
    Member:
    #402279
    Messages:
    2
    Gender:
    Male
    does any one know about the dash speakers? which wires are pos and neg???

    x12plyr, Jul 27, 2022
    #22
  3. Jul 27, 2022 at 2:55 PM
    #23
    Mastiffsrule

    #23
    Mastiffsrule Well-known member, but no one cares.

    Joined:
    Apr 2, 2021
    Member:
    #361446
    Messages:
    1,828
    Gender:
    Male
    First Name:
    Scott
    Vehicle:
    2021 Taco XP Predator

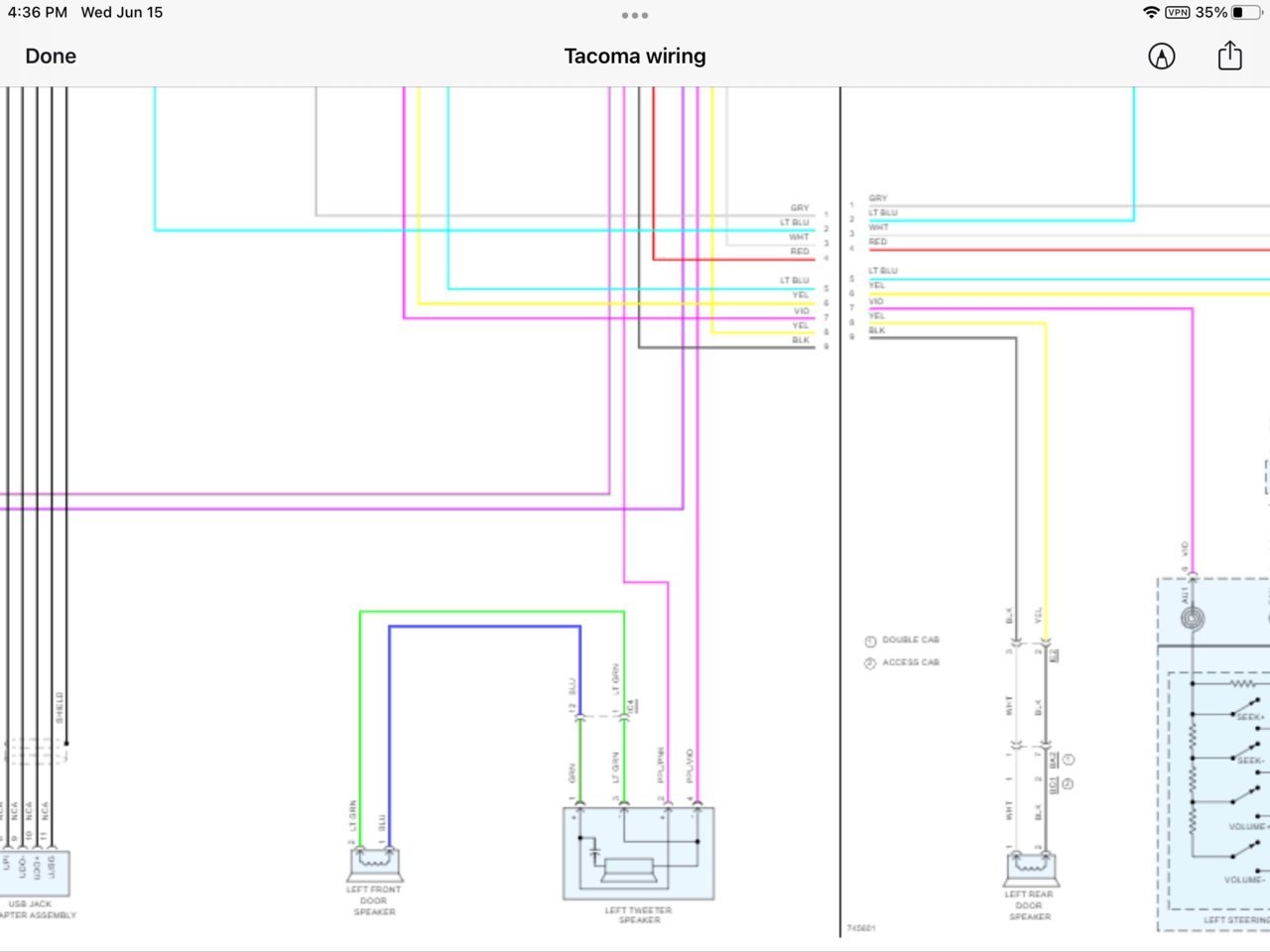

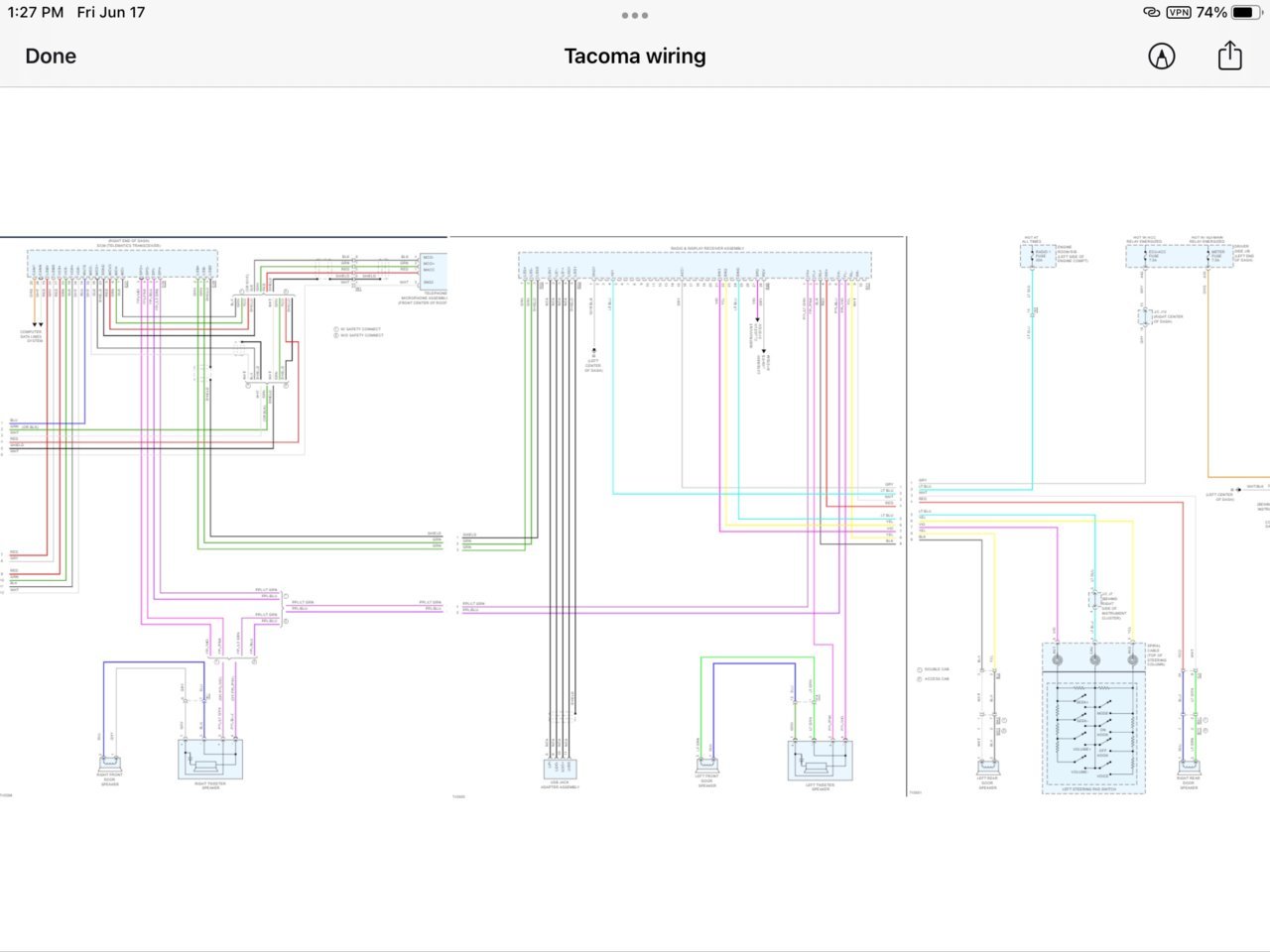

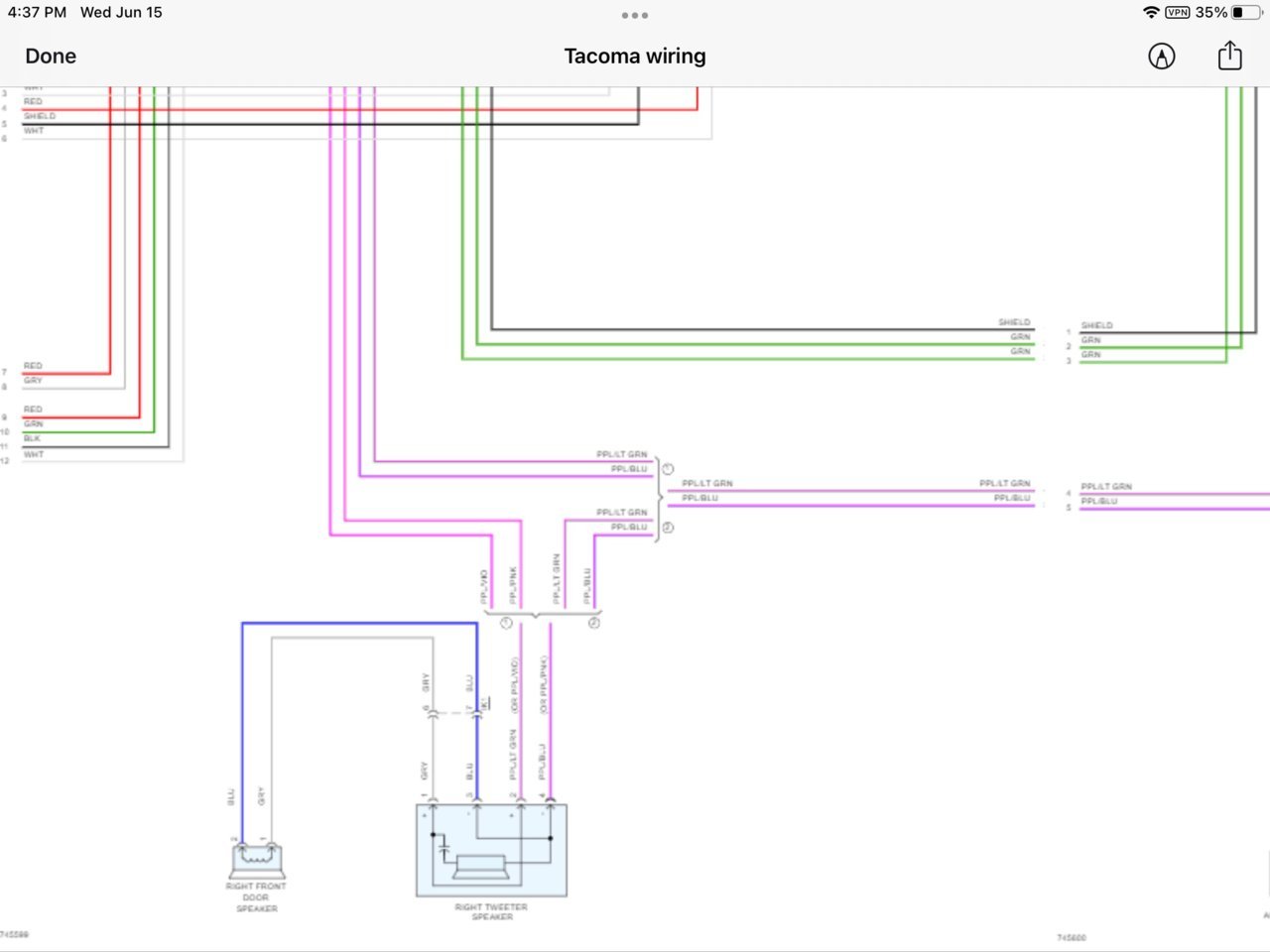

    This is my 21, non JBL. Little hard to read.
    56D0C03C-E1FC-465F-BAA5-459CCBF74B21.jpg 360D2EDD-22A5-4605-B108-60BFC460A04A.jpg 553432BB-D90A-4B71-BC76-D05F5FA179DD.jpg

    Mastiffsrule, Jul 27, 2022
    #23
    CheemsMcGoober88 and TrailWolff like this.
  4. Sep 6, 2023 at 7:01 AM
    #24
    TrailWolff

    #24
    TrailWolff New Member

    Joined:
    Aug 24, 2023
    Member:
    #432009
    Messages:
    2
    Gender:
    Male
    North Carolina
    Vehicle:
    2023 Tacoma SR Access Cab Utility 2.7l 2wd
    BakFlip M4 Bed cover Trailer Hitch Diode Dynamics Fog Lights Diode Dynamics Hitch Light Pedal Commander TRD Pro Skid Plate Tinted Windows Underland Offroad Molle Back Panel Kicker Rear Speakers K&N Cool Air Intake AFE Mach Force Cat Back Exhaust Seat Jackers with MM Bed Lights Tailgate Anti Theft Security Lock Goose Gear Second Row Seat Delete Panel Option (Driver and Passenger) Overland Equipment Auxiliary Power Kit Keyless Entry addition since Utility Package does now come with it. Front Shackles Removed Stock Chin Strap
    What are the connections for each wire in detail:

    Is what I have listed correct?
    Violet/Blue: Right Front -
    Violet/Green: Right Front +
    Violet/Purple: Left Front -
    Violet/Pink: Left Front +
    Yellow: Left Rear -
    Black: Left Rear +
    White: Right Rear -
    Red: Right Rear +

    Last edited: Sep 6, 2023
    TrailWolff, Sep 6, 2023
    #24
  5. Sep 11, 2024 at 7:28 PM
    #25
    CheemsMcGoober88

    #25
    CheemsMcGoober88 Well-Known Member

    Joined:
    Nov 17, 2022
    Member:
    #410915
    Messages:
    64
    Gender:
    Male
    Vehicle:
    2021 TRD Offroad
    That's an awesome diagram, where did you get it? Also can you upload a higher res version that's legible?

    CheemsMcGoober88, Sep 11, 2024
    #25
