2020 SR Unused Plug In Dash By Passenger Tweeter

Discussion in '3rd Gen. Tacomas (2016-2023)' started by ChuckTacoTruck, May 29, 2021.

  1. May 29, 2021 at 2:58 PM
    #1
    ChuckTacoTruck

    ChuckTacoTruck [OP] Member

    Joined:
    Nov 9, 2020
    Member:
    #346316
    Messages:
    15
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2020 Black SR DCSB 4x4 V6

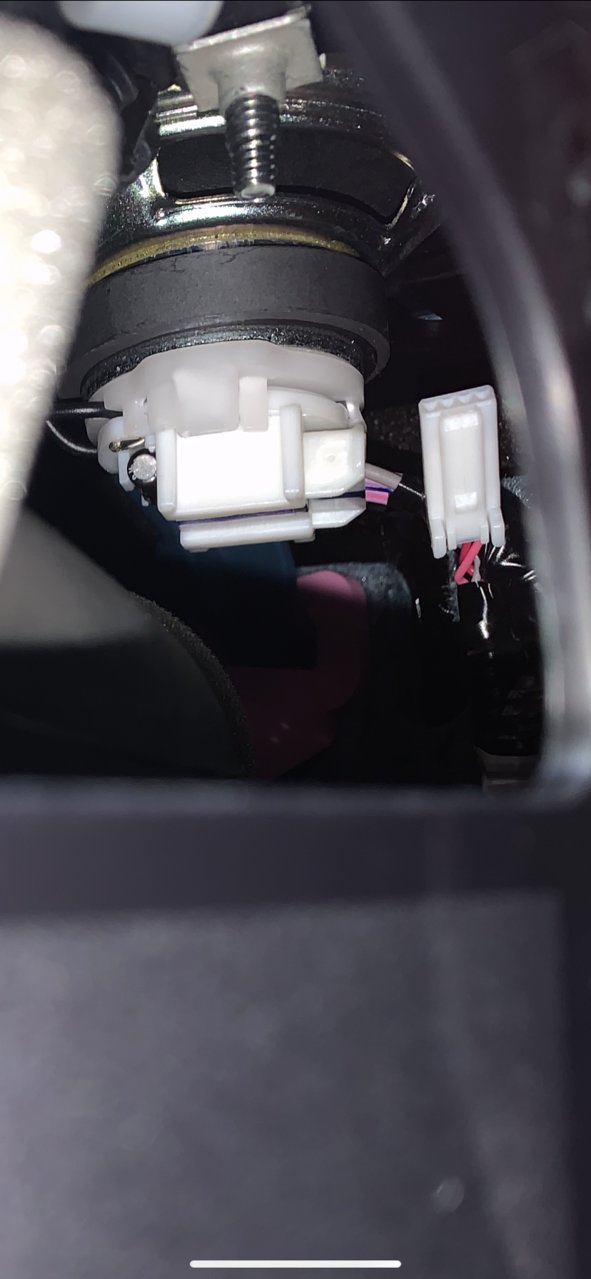

    Digging around in the dashboard of my 2020 SR DC I noticed a plug that is abandoned without anything plugged into it. Could this possibly be meant to run to the roof to power accessories such as the auto dimming rear view mirror and the vanity mirrors that do not come on the SR? Does anyone have info on the pin out or a part number for the harness that is meant to plug into this breakout? I don’t have a voltmeter right now, but does this breakout receive any power?


  2. May 29, 2021 at 3:25 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,786
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

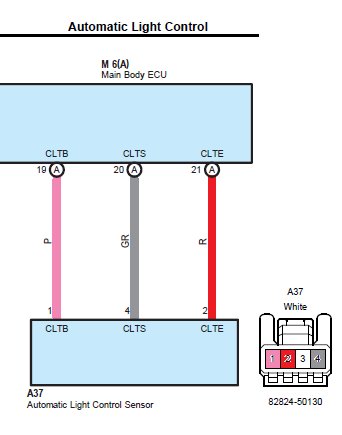

    Automatic Light Control Sensor connector:
    And no, you can't add the missing sensor and have the feature...

    ChuckTacoTruck[OP] likes this.
  3. May 29, 2021 at 3:25 PM
    #3
    VonStueckle

    VonStueckle Well-Known Member

    Joined:
    Oct 11, 2017
    Member:
    #232649
    Messages:
    207
    Gender:
    Male
    First Name:
    Nathan
    Liberty Lake, WA
    Vehicle:
    21 TRDOR Super White 6MT
    4R TRD Pro rims, 265/70/17 ridge grapplers
    That is probably for the optional automatic headlight sensor, it site over there by the tweeter on the passenger side. Not sure if it would have power or not.

    ChuckTacoTruck[OP] likes this.
