2020 taco sr5 speaker line colors?

im trying to install a sub on my 2020 tacoma sr5 double cab with the non jbl HU. i have the line output converter but i cant seem to identify the speaker wires coming out of the back of the head unit. i cannot find any info online about the HU anywhere.



Might have more luck in the audio sub forum



okay thank you



Calling @caribe makaira

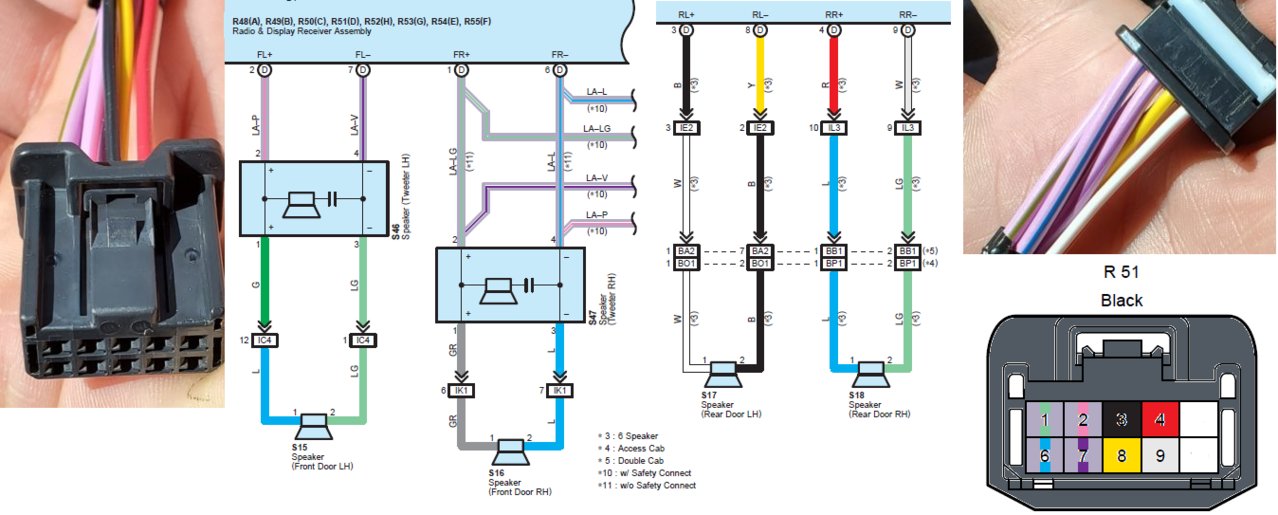

I don't know if either of these help . . .



it probably would if i could actually read wiring diagrams lol i guess i shouldve said i need to find out how to identify the speaker wire colors



Page 1 of each document shows the speakers. Follow back up to the connector to see pin numbers and wire colors. The big question is whether these diagrams represent the unit in your truck?



unfortunately from what i can tell, it looks like it doesnt have the specific colors of the wires that my particular radio has. i ran into this problem every where i looked



A picture of the back end of the HU might help.

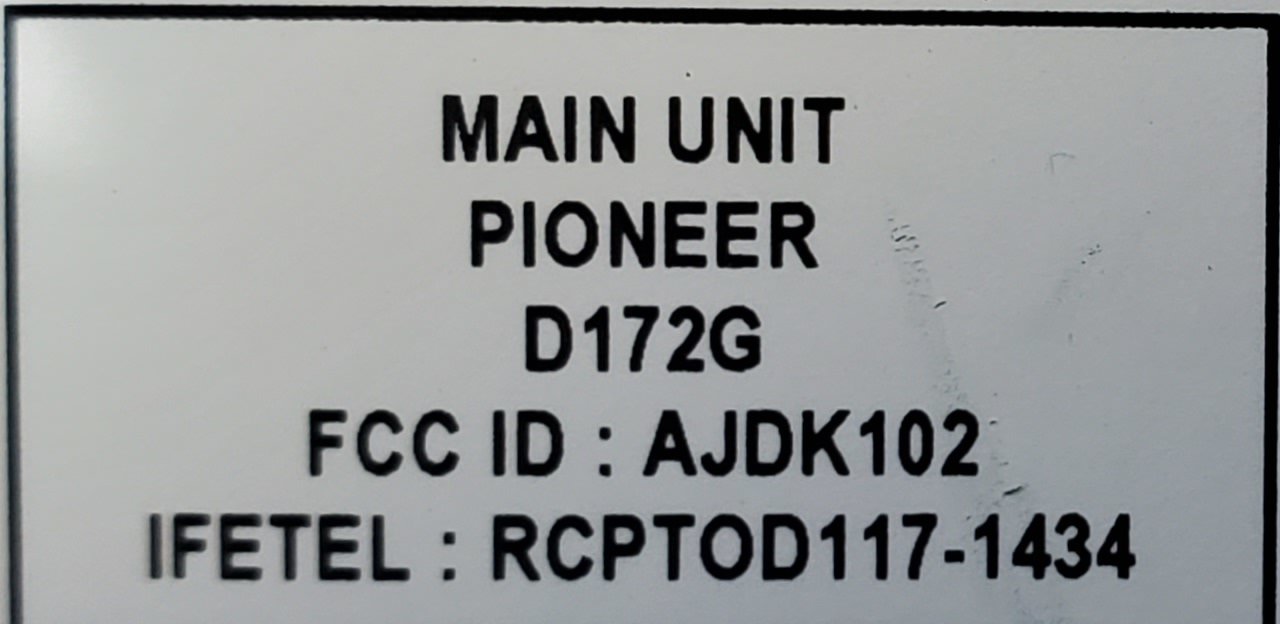

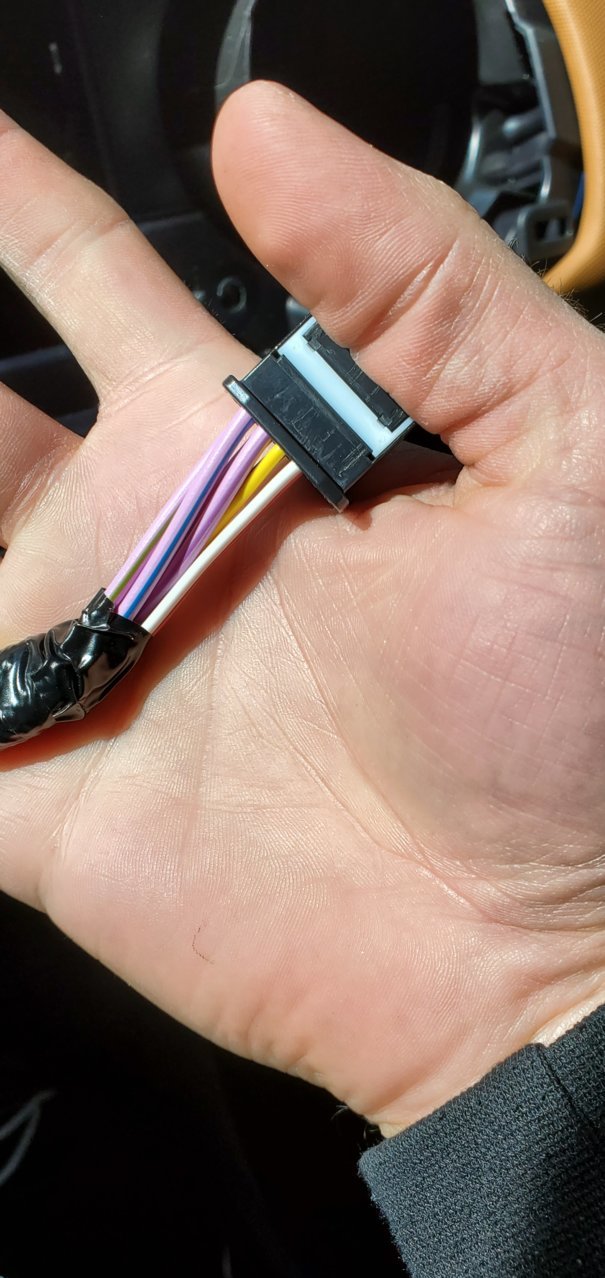

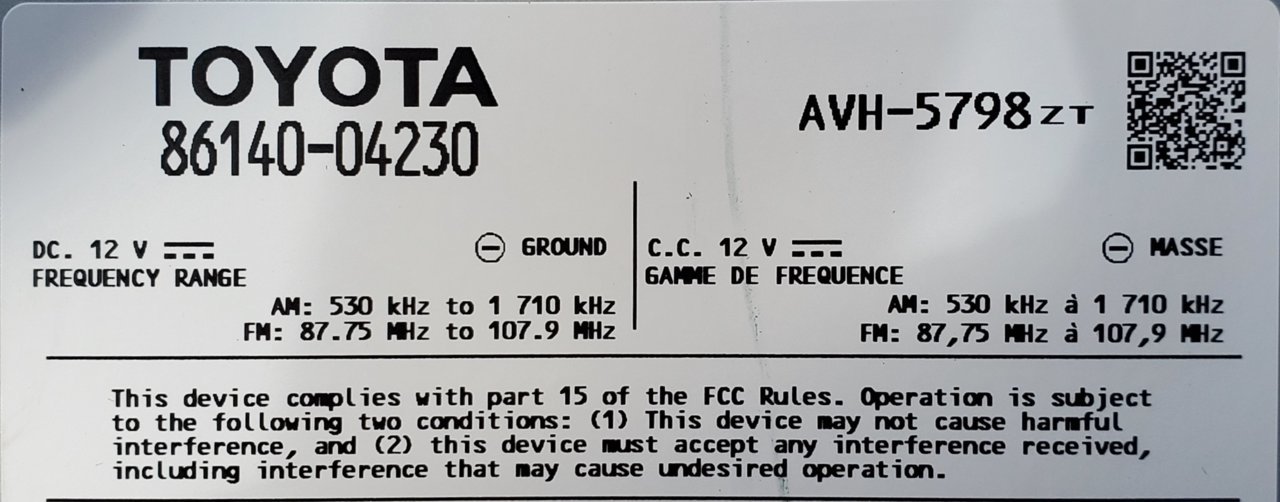

OP, can you get a part# on that connector? it's tiny, same color, makes it hard to see, 5 digit...



so the part no. 12C39

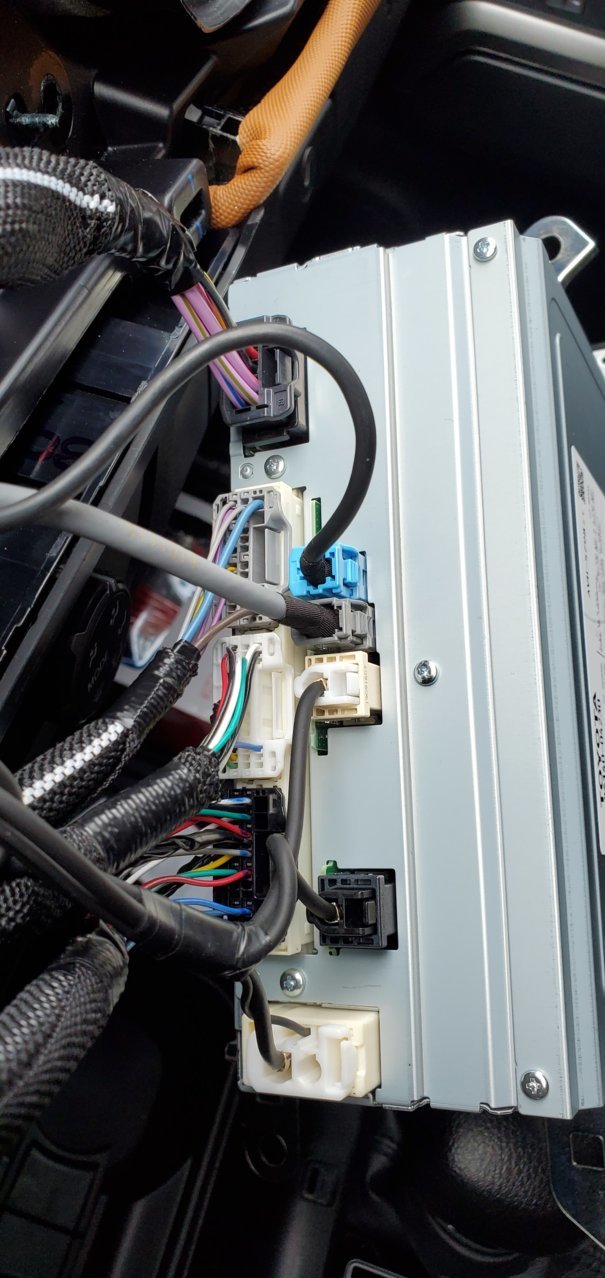

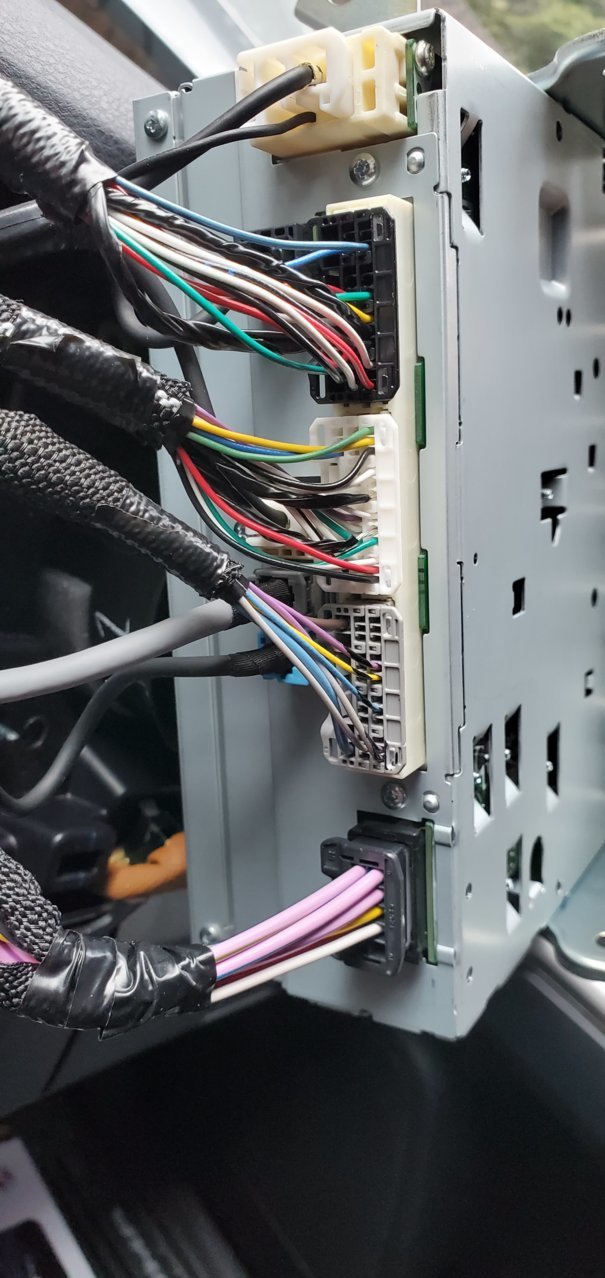

and i have a shot of the back of the hu. i need to know which is the power and ground too



That's a lot of wires



OP, if you can, part# for them connectors...



I'm only seeing the first connector which is 12c39
Will they all have them



They should...different spot...

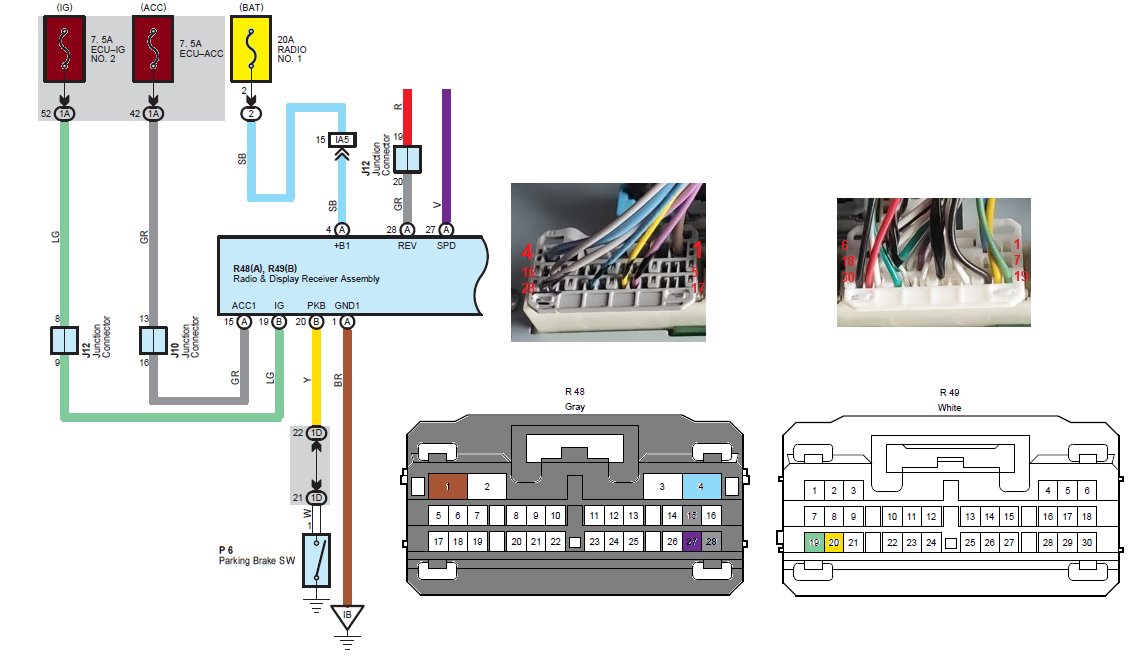

The grey one is b100
The white one is b120
And the other block one is also b100



So should I run my ground off the brown wire and 12v off of the light blue?
