2020 taco sr5 speaker line colors?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by GunJunkie, Mar 9, 2020.

Page 2 of 2
  1. Mar 9, 2020 at 6:57 PM
    #21
    caribe makaira

    #21
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

    Last edited: Mar 9, 2020
    caribe makaira, Mar 9, 2020
    #21
    GunJunkie[OP] likes this.
  2. Mar 9, 2020 at 7:03 PM
    #22
    GunJunkie

    #22
    GunJunkie [OP] Member

    Joined:
    Mar 9, 2020
    Member:
    #321692
    Messages:
    18
    Gender:
    Male
    So yeah brown is ground and what should I use for the 12v the yellow or light blue?

    GunJunkie, Mar 9, 2020
    #22
  3. Mar 9, 2020 at 7:30 PM
    #23
    caribe makaira

    #23
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Light Blue is always ON...
    DO NOT use the yellow on connector R48...

    caribe makaira, Mar 9, 2020
    #23
  4. Mar 9, 2020 at 7:31 PM
    #24
    caribe makaira

    #24
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,



    Last edited: Mar 9, 2020
    caribe makaira, Mar 9, 2020
    #24
  5. Mar 9, 2020 at 7:31 PM
    #25
    caribe makaira

    #25
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    R49_19 is IGN Source....

    caribe makaira, Mar 9, 2020
    #25
  6. Mar 9, 2020 at 9:41 PM
    #26
    GunJunkie

    #26
    GunJunkie [OP] Member

    Joined:
    Mar 9, 2020
    Member:
    #321692
    Messages:
    18
    Gender:
    Male
    okay thank you that all really helped, i just finished installing the LOC and my amp and sub and now got that boom boom back:headbang:

    GunJunkie, Mar 9, 2020
    #26
    DES2009 likes this.
  7. Mar 10, 2020 at 12:19 AM
    #27
    caribe makaira

    #27
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    No pics of the install?:burp:

    caribe makaira, Mar 10, 2020
    #27
    DES2009 likes this.
  8. Mar 10, 2020 at 1:14 PM
    #28
    GunJunkie

    #28
    GunJunkie [OP] Member

    Joined:
    Mar 9, 2020
    Member:
    #321692
    Messages:
    18
    Gender:
    Male
    I can get some, I mean it's nothing impressive. What should take a picture of?

    GunJunkie, Mar 10, 2020
    #28
  9. Mar 10, 2020 at 7:01 PM
    #29
    GunJunkie

    #29
    GunJunkie [OP] Member

    Joined:
    Mar 9, 2020
    Member:
    #321692
    Messages:
    18
    Gender:
    Male

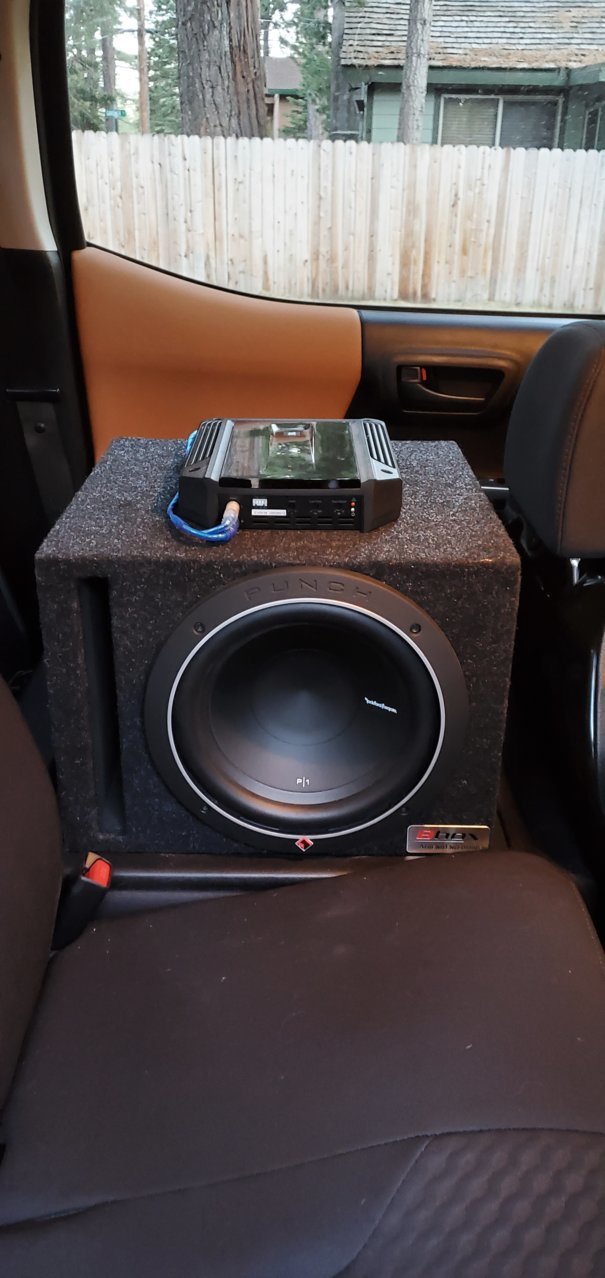

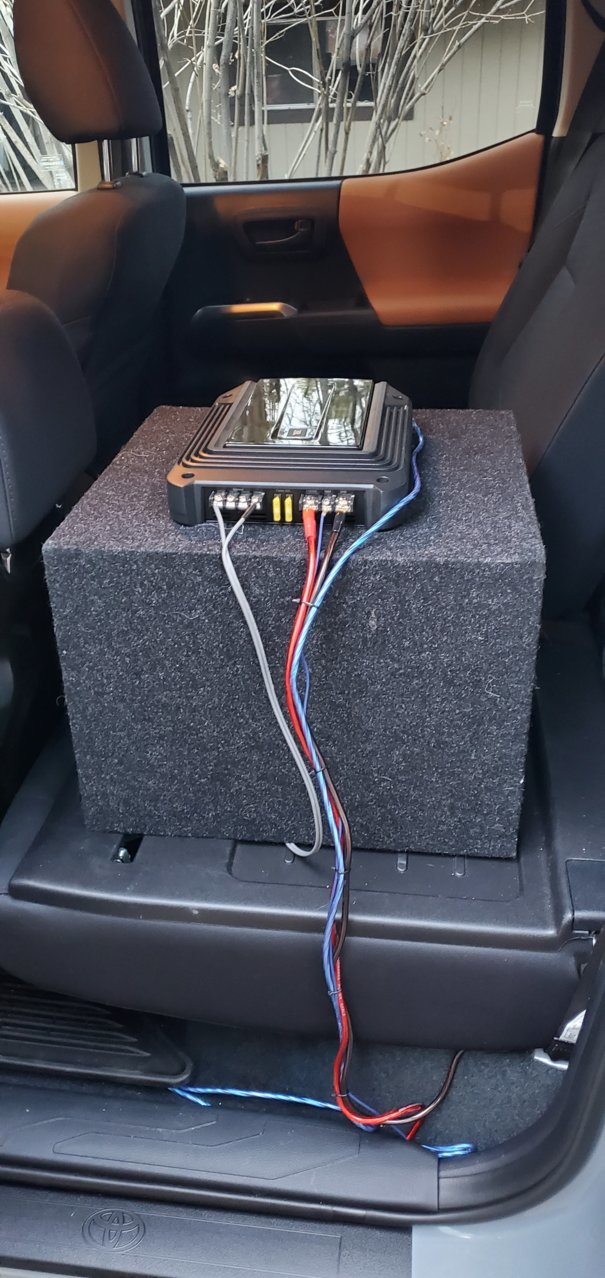

    20200310_185938.jpg 20200310_185953.jpg

    GunJunkie, Mar 10, 2020
    #29
  10. Mar 21, 2020 at 1:36 PM
    #30
    beetledude

    #30
    beetledude Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310925
    Messages:
    54
    Gender:
    Male
    Vehicle:
    2020 TRD Offroad 4X4
    should I use R49_19 as remote turn on? testing with multimeter shows this does not provide power when car is in accessory mode. is there any other wire that provides power when car is in either accessory or ignition mode?

    R48_15 is labeled as ACC but I'm not detecting power there (either in accessory or ignition mode)

    thank you!

    beetledude, Mar 21, 2020
    #30
  11. Mar 21, 2020 at 2:48 PM
    #31
    caribe makaira

    #31
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,715
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

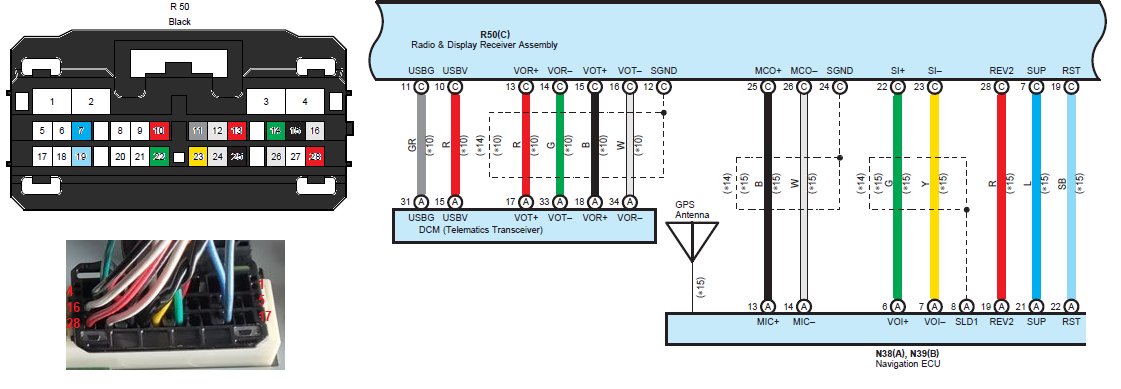

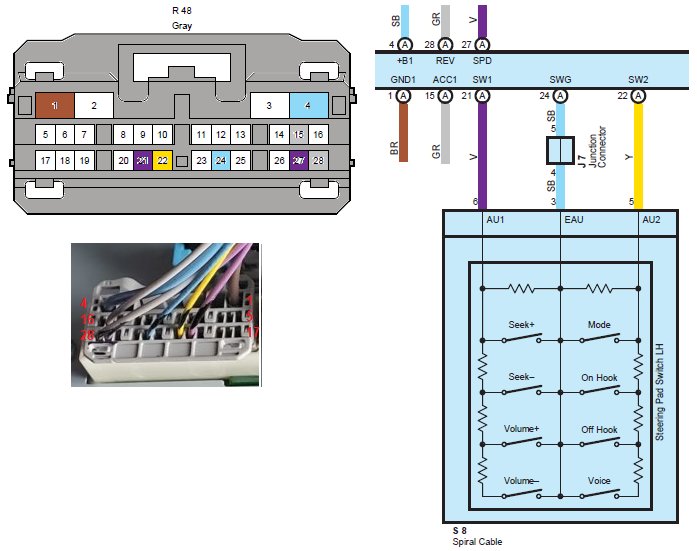

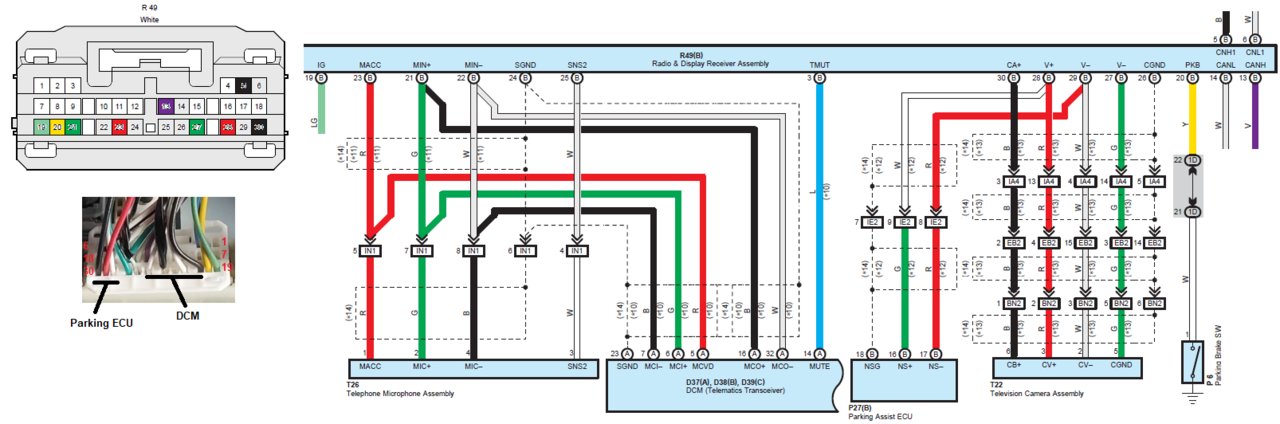

    Maybe your probing the wrong wires...the connector drawing is as if looking into the removed connector. The picture has the wires ID'd in the corners in regards to the drawing.

    caribe makaira, Mar 21, 2020
    #31
