2020 TRD Sport Media USB Relocate NON JBL

Discussion in '3rd Gen. Tacomas (2016-2023)' started by minkmendor, May 1, 2021.

  1. May 1, 2021 at 4:51 PM
    #1
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    Hey all! I will be moving the data port from the front of the truck to the center console when my parts arrive. We all know the headache of the charge only ports in the center console and how nice it would be to have our phones hooked up in the for carplay or android auto! The plan is simple (in my head at least) I did not find any dedicated thread that showed success so I figured I would start this up for yall.

    I have seen around multiple forums that this will work for the 2020 Tacoma NON JBL. I figured it's only 10 bucks so no hard no foul if it doesn't work. I plan to plug this into the back of the stock entune radio which will disable the front usb are you will be unplugging it. I plan on re-purposing that slot at another point in time.
    https://www.aliexpress.com/item/4000904194171.html
    [​IMG]

    This is the extension I will be running under the trim into the center console. It can easily replace the plug in there with the charge only ports but I plan on drilling a new hole and epoxying it.
    https://www.amazon.com/gp/product/B07VHYTTQ2/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8
    [​IMG]

    As soon as these parts come in, I will update this thread with pics and progress!

    TRDRed, bookname305 and SJBrown like this.
  2. May 1, 2021 at 5:04 PM
    #2
    SJBrown

    SJBrown Well-Known Member

    Joined:
    Aug 23, 2020
    Member:
    #338549
    Messages:
    157
    Gender:
    Male
    Vehicle:
    2019 Bearded SR AC 4x4
    Good luck with this. I thought of just pushing my factory port back inside the dash and running an extension cable from it to the relocation spot. I guess I didn't realize my radio just had a regular usb connection back there. Your way seems cleaner.

  3. May 10, 2021 at 2:45 PM
    #3
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    Still waiting on the parts --- In the meantime I have begun the install of amp and sub... Pics to follow soon!

  4. May 10, 2021 at 5:25 PM
    #4
    VTCAL

    VTCAL Well-Known Member

    Joined:
    Mar 11, 2021
    Member:
    #358973
    Messages:
    1,300
    Vehicle:
    2021 Sport
    rotated tires changed oil threw out the old air freshener.
    Did I read "somewhere" that some head units can support a two port hub? Two USB inputs, with the active one selectable.

    I thought it was here somewhere, but I can't locate it atm. I did look for a 2 port automotive hub based on the inspiration, but haven't purchased one yet.

    A full data plug in the center console AND the dash plug option would be very desirable.

    KoalaTACO and AdkGal1 like this.
  5. May 10, 2021 at 6:18 PM
    #5
    High_Desert_Rex

    High_Desert_Rex Well-Known Member

    Joined:
    Mar 11, 2019
    Member:
    #286287
    Messages:
    311
    Gender:
    Male
    First Name:
    Adam
    SLC and Kanab, UT
    Vehicle:
    Cement ‘21 TRDORDCSB w/GFC - Red ‘19 TRDORDCSB6MT w/GFC (rip)
    GoFastCampers Platform Camper
    Nice, I did this exact thing, except I just pushed the usb/aux plug back into the dash, and ran a usb/aux extension into the center console (drilled a hole and mounted next to the 2x usb power ports that are already in there in my 19)

    minkmendor[OP] likes this.
  6. May 11, 2021 at 5:36 AM
    #6
    Scott Rosenberger

    Scott Rosenberger Well-Known Member

    Joined:
    May 27, 2008
    Member:
    #6902
    Messages:
    52
    Vehicle:
    21 Double Cab TRD OR Voodoo Blue - 08 Sr5 Access Cab 4wd
    I wish there was a way to double the Data port in teh 20/21's so I can use Android Auto AND a USB Thumb Drive with my Music on it at the same time

    KoalaTACO likes this.
  7. May 20, 2021 at 8:16 AM
    #7
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    UPDATE - alright friends! so the good news first --
    The adpater i got from ali express works perfect! There is one catch tho.... it only supports usb2 cables
    I tested the usb 3 extender from Amazon and the head unit would not recognize it. I also tried plugging usb 3 to C cables in the ali express adapter and would not get any signal
    As soon as i changed to a usb2 to C - it loaded up android auto! I'm in the process of re-routing the cable now


    EDIT 5/22/21
    It does work with USB3 cables. The amazon flush mount doesnt tho

    Last edited: May 23, 2021
  8. May 20, 2021 at 8:26 AM
    #8
    ryanvar42

    ryanvar42 Well-Known Member

    Joined:
    Feb 9, 2021
    Member:
    #355569
    Messages:
    2,818
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    2024 Silverado Trailboss
    None
    Idk what this means and I didn't know there were diff cables

  9. May 20, 2021 at 8:39 AM
    #9
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
  10. May 20, 2021 at 8:44 AM
    #10
    ryanvar42

    ryanvar42 Well-Known Member

    Joined:
    Feb 9, 2021
    Member:
    #355569
    Messages:
    2,818
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    2024 Silverado Trailboss
    None
    I had to look up usb 2 vs 3. Wonder why they don't use the usb3 which seems better. Anyway, So I neeed to get the ali express one and that's it?

  11. May 20, 2021 at 8:47 AM
    #11
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    @ryanvar42 yesir that's correct! if you want to extend it further, just look for any usb 2.0 extension cable

  12. May 20, 2021 at 9:01 AM
    #12
    the_wanny

    the_wanny Overlanding is just you cosplaying being homeless

    Joined:
    Jun 15, 2020
    Member:
    #331459
    Messages:
    270
    콜로라도
    Vehicle:
    20 Taco TRD Off Road, 16 Lexus LX570
    Just a heads up I bought that exact same one on Amazon to retrofit on my 4th gen 4Runner and while it's cheap it's pretty laggy. Not 100% sure if that's because of the USB extension itself or my JVC Carplay/Android Auto headunit it's attached to, but still something to think about...


  13. May 20, 2021 at 9:15 AM
    #13
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    hey @the_wanny - did you just connect it to the stock data port?

  14. May 20, 2021 at 1:32 PM
    #14
    the_wanny

    the_wanny Overlanding is just you cosplaying being homeless

    Joined:
    Jun 15, 2020
    Member:
    #331459
    Messages:
    270
    콜로라도
    Vehicle:
    20 Taco TRD Off Road, 16 Lexus LX570
    yup

  15. May 22, 2021 at 1:23 PM
    #15
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    Alright everyone! All done...

    Recap -
    Parts Needed -
    https://www.amazon.com/gp/product/B01N97LFKR/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8 - unavailable now but something similar should work. The original flish mount i posted first does not work with the new plug so i had this lying around and put it to use
    https://www.aliexpress.com/item/4000904194171.html

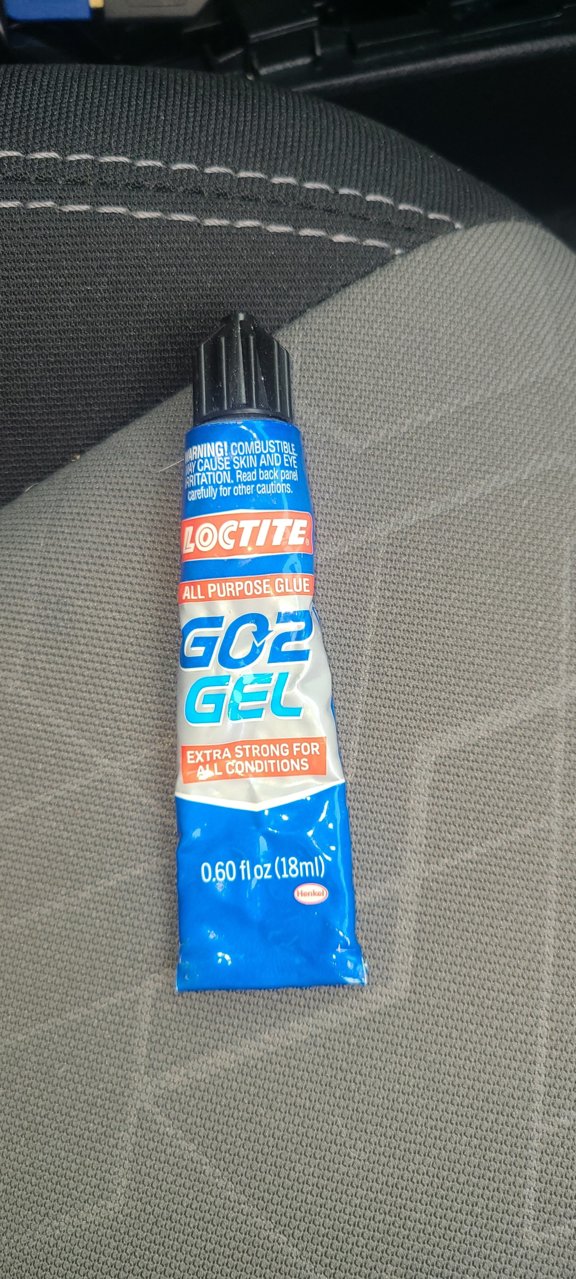

    Some good epoxy

    Steps -

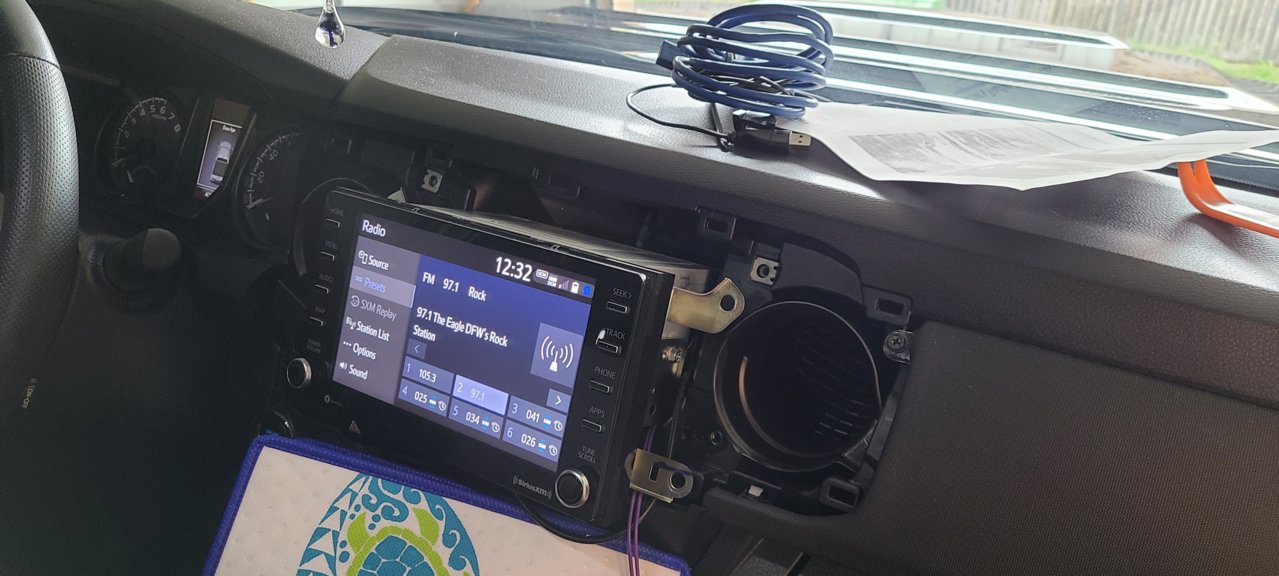

    1.) Take out the stock radio by popping off the trim around it. 10 clips total, comes off easily. There are 4 10mm bolts holding the radio in. Take them out and pull the radio right off. Unplug the old usb hardness that runs to the front data port and replace it with the ali express cable. I ran mine down the right side and tucked it behind the trim.
    [​IMG]

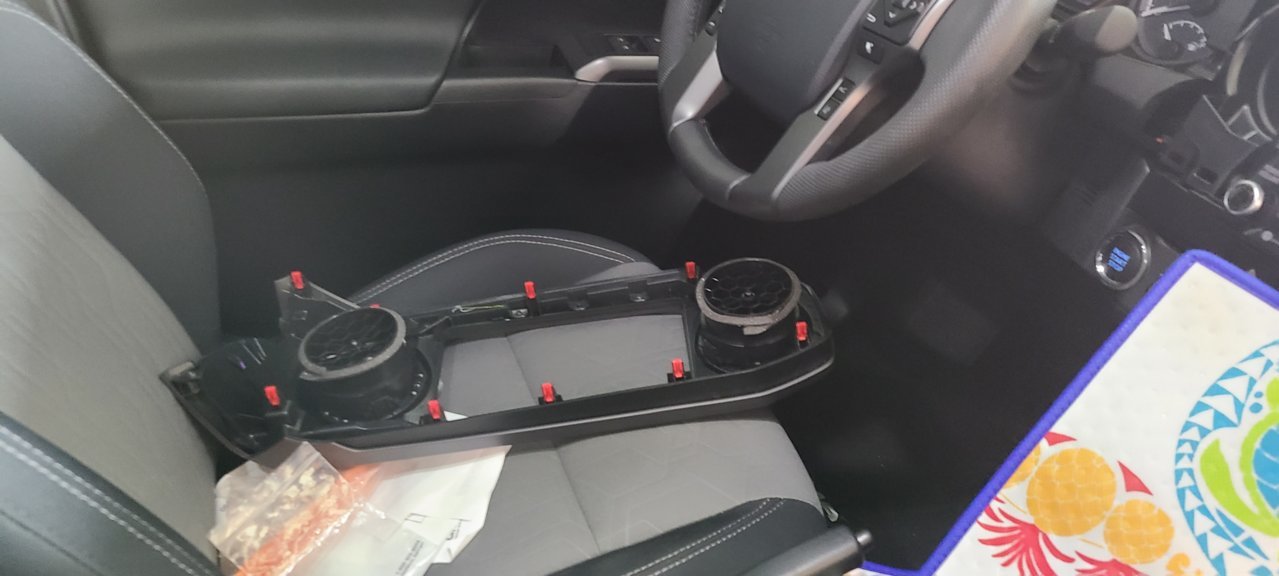

    2.) Once you pop off the trim for the center area... you can feed the cable under it. To get the trimoff, press down on the sifter knob clip. This will allow you to unscrew the shift knob. After that, pull off the trim fro the REAR, right before the center console and make your way forward. You dont need to take it completely, just enough to tuck the cable.

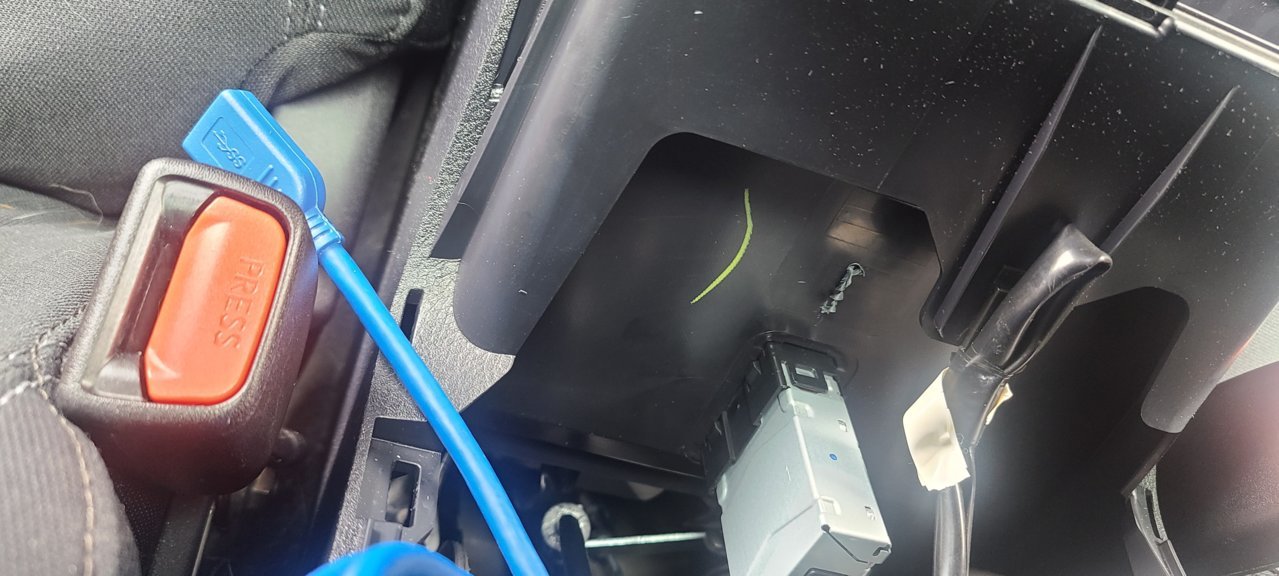

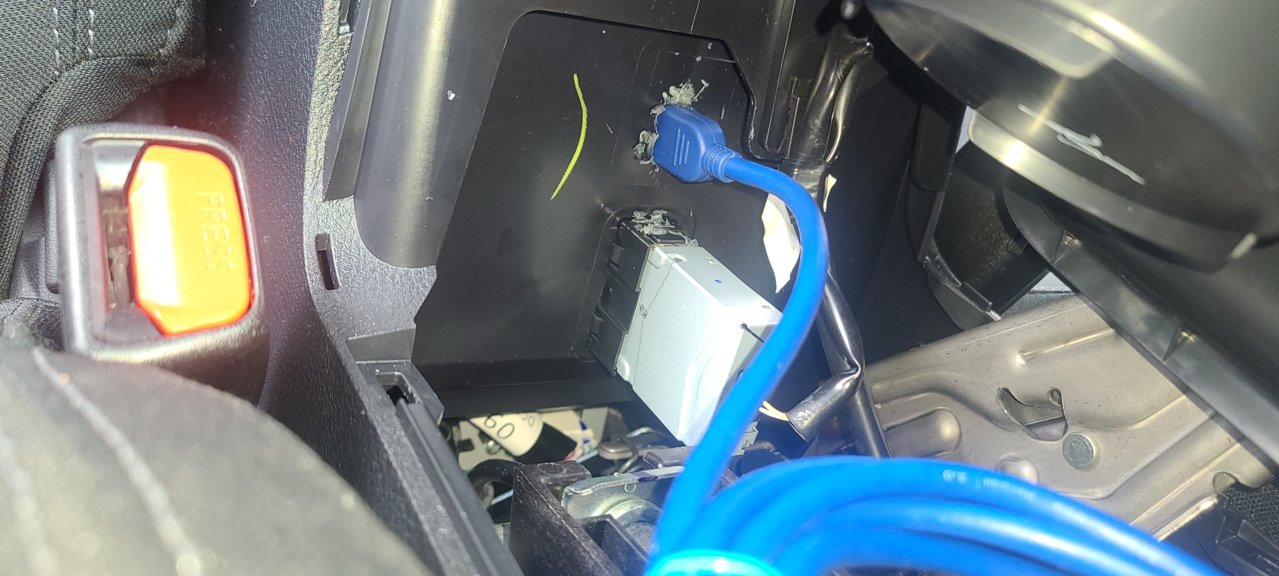

    3.)Run the cable along the side, make sure to not let it get in the way of the shifter. You can then plug in the USB extender

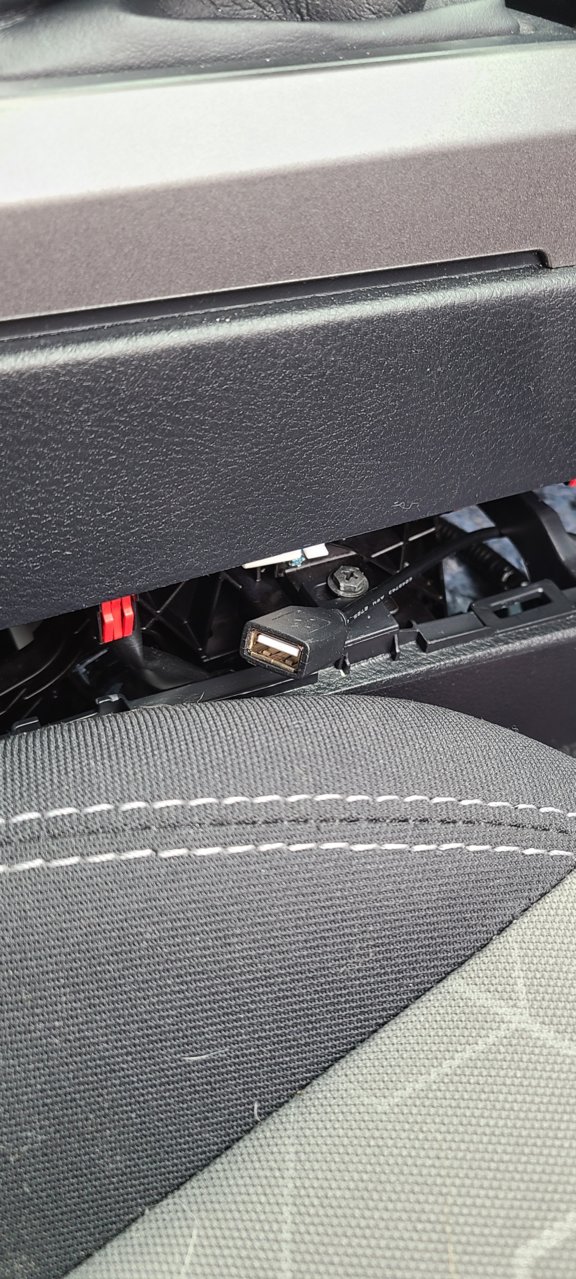

    4.) if you look right above the box, you can see i drilled a pilot hole for where I would be putting the USB female end. I simply cut it out to shape with an exacto knife
    5.) I wedged the cable in there and then hit it on the back with some epoxy
    6.) Here is the inside, nice and hidden. Just need to clean up the scraps!

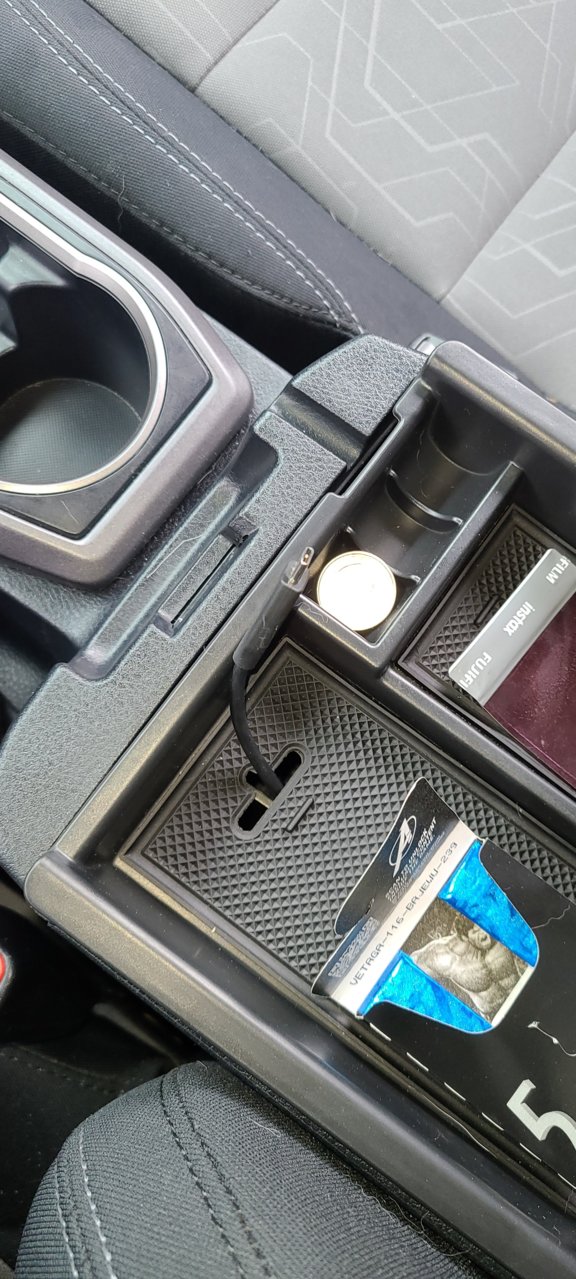

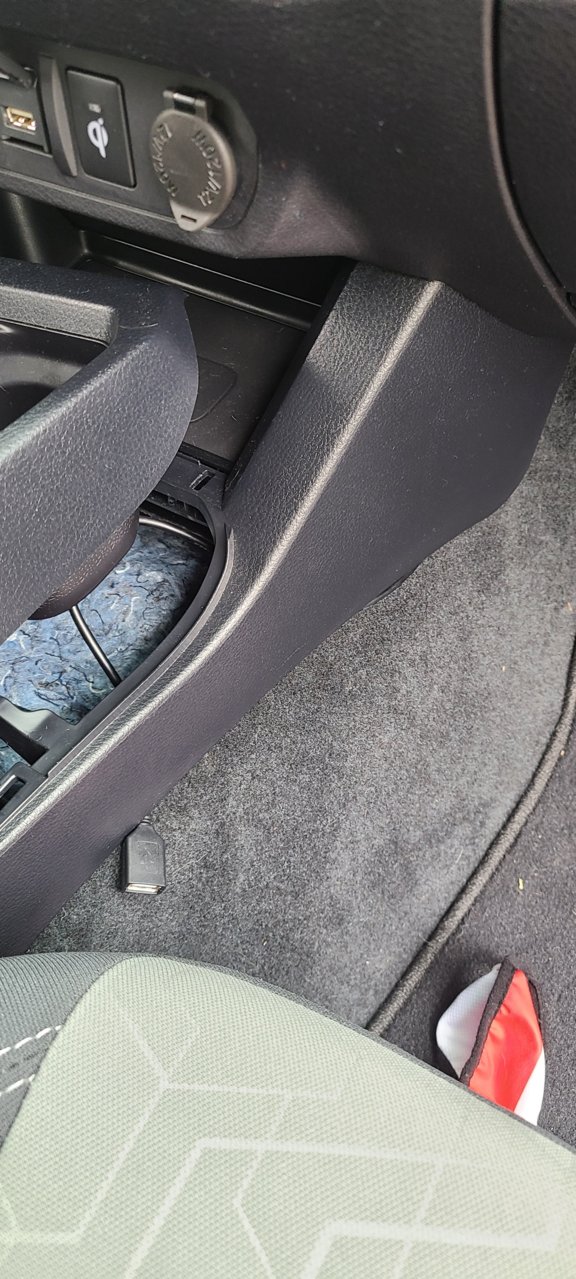

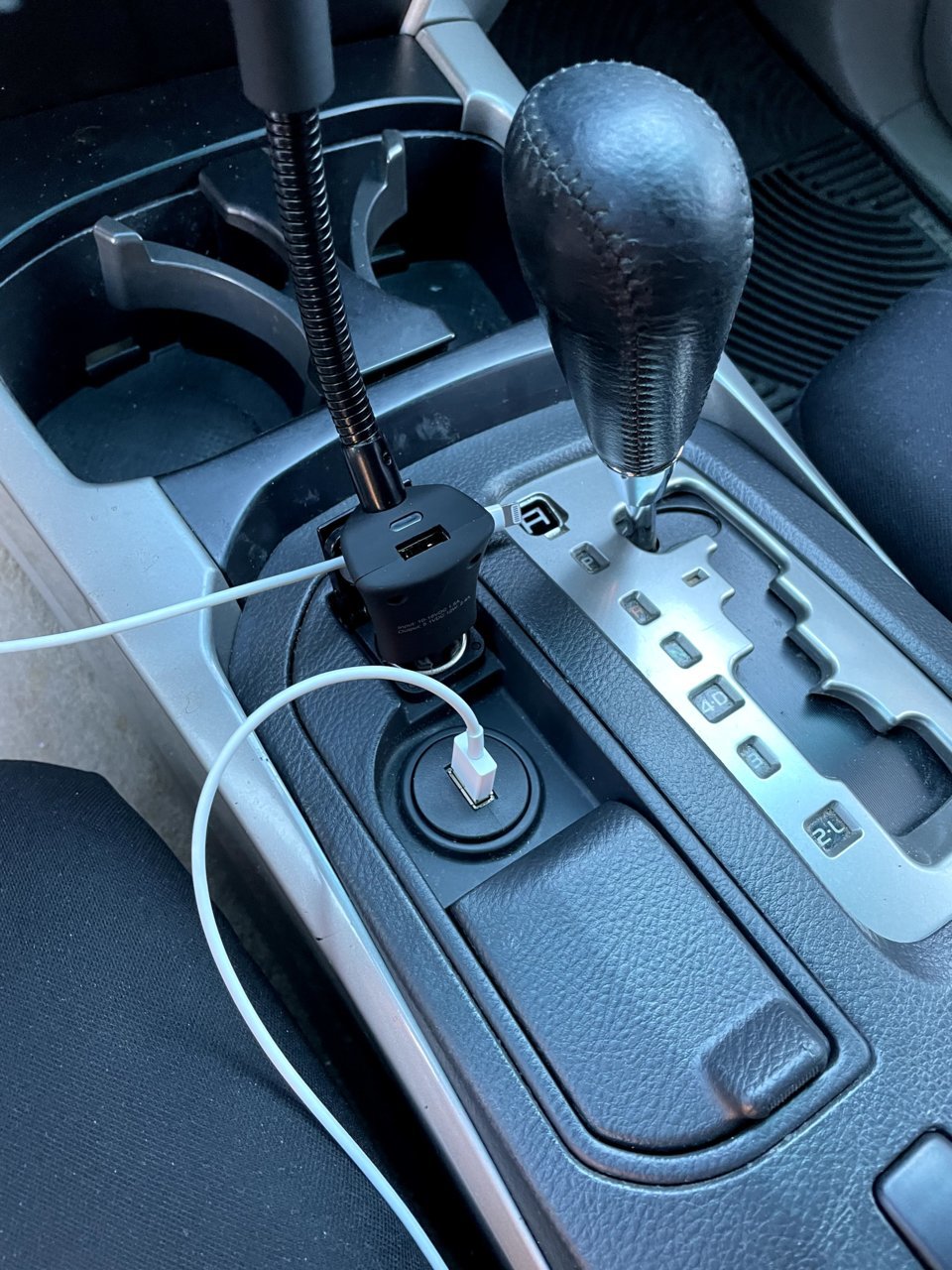

    Final product below! I now have android auto coming from my center console! I will be using the old slot from the previous usb for my bass control knob


    Attached Files:

    Last edited: May 22, 2021
  16. May 23, 2021 at 7:39 AM
    #16
    ryanvar42

    ryanvar42 Well-Known Member

    Joined:
    Feb 9, 2021
    Member:
    #355569
    Messages:
    2,818
    Gender:
    Male
    First Name:
    Ryan
    Vehicle:
    2024 Silverado Trailboss
    None
    Thank you! However didn’t you say we need a usb 2 not 3 cable from the back of the head unit so it would link properly? ? Post #7

  17. May 23, 2021 at 8:06 AM
    #17
    minkmendor

    minkmendor [OP] Member

    Joined:
    May 1, 2021
    Member:
    #364463
    Messages:
    8
    Gender:
    Male
    Vehicle:
    2020 Black Tacoma TRD Sport 4 Door
    led lighting - interior and license plates home-link mirror swap Dash Tweeters - Kicker direct fit replacements - https://www.amazon.com/gp/product/B00PV6F8I2/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Front and Rear Door Speakers - Kicker 46CSC674 - https://www.crutchfield.com/p_20646CC674/Kicker-46CSC674.html?omnews=2004069
    hey @ryanvar42 -- so -- the original Amazon flush mount USB3 did not work... I believe that was due to lack of quality. That blue cable i used, is USB3 as well, i think its just a better cable that allowed the proper voltage to flow thru it for data.
    so a recap - The ali express cable to the back of the head unit with the usb3 extender (non flushmount) works perfect!

  18. Jul 21, 2021 at 6:40 PM
    #18
    KoalaTACO

    KoalaTACO Active Member

    Joined:
    Jul 16, 2021
    Member:
    #371466
    Messages:
    40
    Gender:
    Male
    PA
    Vehicle:
    21' TRD OR DCSB
    Nothin crazy yet...
    Thank you for the very detailed post!! Ive been wondering this since finding out the factory console usb's only offered power.

    What Im now wondering is if I could somehow change out one of the front-facing usb's on the 3TPAM ($200+) mount to offer the same android auto functionality.

    CRIPES! I just got my TACO & my head has been spinning with all the cool shit I wanna do / organize / customize / etc.

    This is awesome
    Thanks again

  19. Mar 25, 2023 at 2:37 PM
    #19
    bookname305

    bookname305 Member

    Joined:
    Mar 16, 2021
    Member:
    #359492
    Messages:
    11
    Gender:
    Male
    Maine
    @minkmendor so would it be possible to splice into that USB media cable and have android auto from a different new cable while maintaining the stock USB?

  20. Mar 25, 2023 at 6:31 PM
    #20
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    5,069
    Gender:
    Male
    NW Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    you can't splice usb cables together. it basically means that usb devices 'argue' with each other to which gets the connection until no one gets the connection.

    there used to be an antique manual usb selector switch that did the trick, but it was usb2 only. though i was quite sure this truck was usb2 only anyways...

    bookname305[QUOTED] likes this.
