2022 Tacoma TRD Sport Audio Upgrade Wiring Help/Opinions (Morel Maximo Ultra Coax and Kicker Key)

Discussion in 'Audio & Video' started by Sprdno, Sep 28, 2022.

  1. Sep 28, 2022 at 1:01 PM
    #1
    Sprdno

    Sprdno [OP] Member

    Joined:
    Aug 24, 2022
    Member:
    #404294
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2022 Tacoma 4x4 Sport
    2022 Tacoma non-JBL

    Speakers:
    Morel Maximo Ultra Coax 692 MKII (on the way)
    Suburu tweeters when first starting out (installed)

    Amp:
    Kicker key 200.4 (mainly due to auto DSP, hidden in dash, and I don't need it super loud) (not ordered yet)

    Sub:
    Not sure yet, maybe a hideway in the future.

    Questions:
    1. Is this cheap Amazon Red Wolf harness ALL I need to connect the amp to stock HU without cutting any factory wires? I just splice it with the cables that come with the amp? I've been trying to look for a clean picture with this specific cheap amazon harness spliced up. (I will also get a separate amp kit,etc)

    2. Is bi-amp mode recommended in this set up? I know they're not components. This is this synonmous with "active" setup...right?

    3. Is Kicker Keyloc recommended for this setup? Or should the key amp auto tune be enough?

    4. Are there better paths to go? I just bought the tweeters over a month ago and would like to keep them if possible.

    TIA

  2. Oct 14, 2022 at 12:04 AM
    #2
    Sprdno

    Sprdno [OP] Member

    Joined:
    Aug 24, 2022
    Member:
    #404294
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2022 Tacoma 4x4 Sport

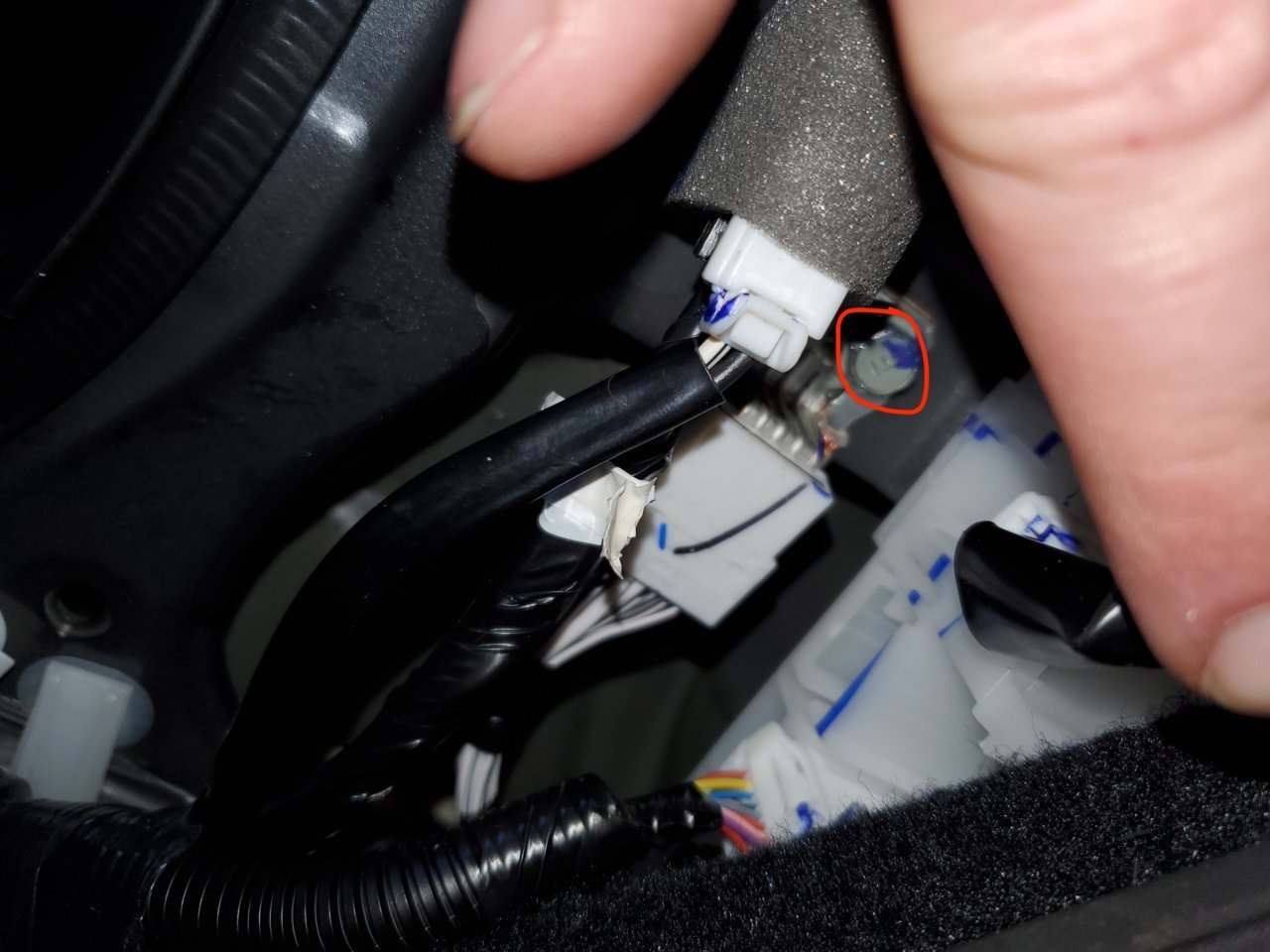

    Update: did kicker key amp with red wolf cable as shown, soldered, heat shrank, and Tessa taped it. Gonna go the non bi-amp route for simplicity. Routed power cable to battery thru big grommet on the low left of dash. Grounded to screw by fuse area shown in red circle.


    Powered it on and does not work :(


    Will try to get a hold of a multimeter tomorrow since it got too dark. Anyone got tips on troubleshooting? Do I need to keep the power cable plugged into the battery? I bought the 12 gauge fuse kit from Crutchfield and have 30a fuse installed. @destin_meeks


    I hope this works and was worth the effort because the morels sound pretty bad without an amp haha. TIA
    43E2458A-5868-4E5B-A62E-903887A349CB.jpg 441525E0-C7B8-4121-877C-72980C3662E7.jpg

  3. Oct 14, 2022 at 3:19 AM
    #3
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

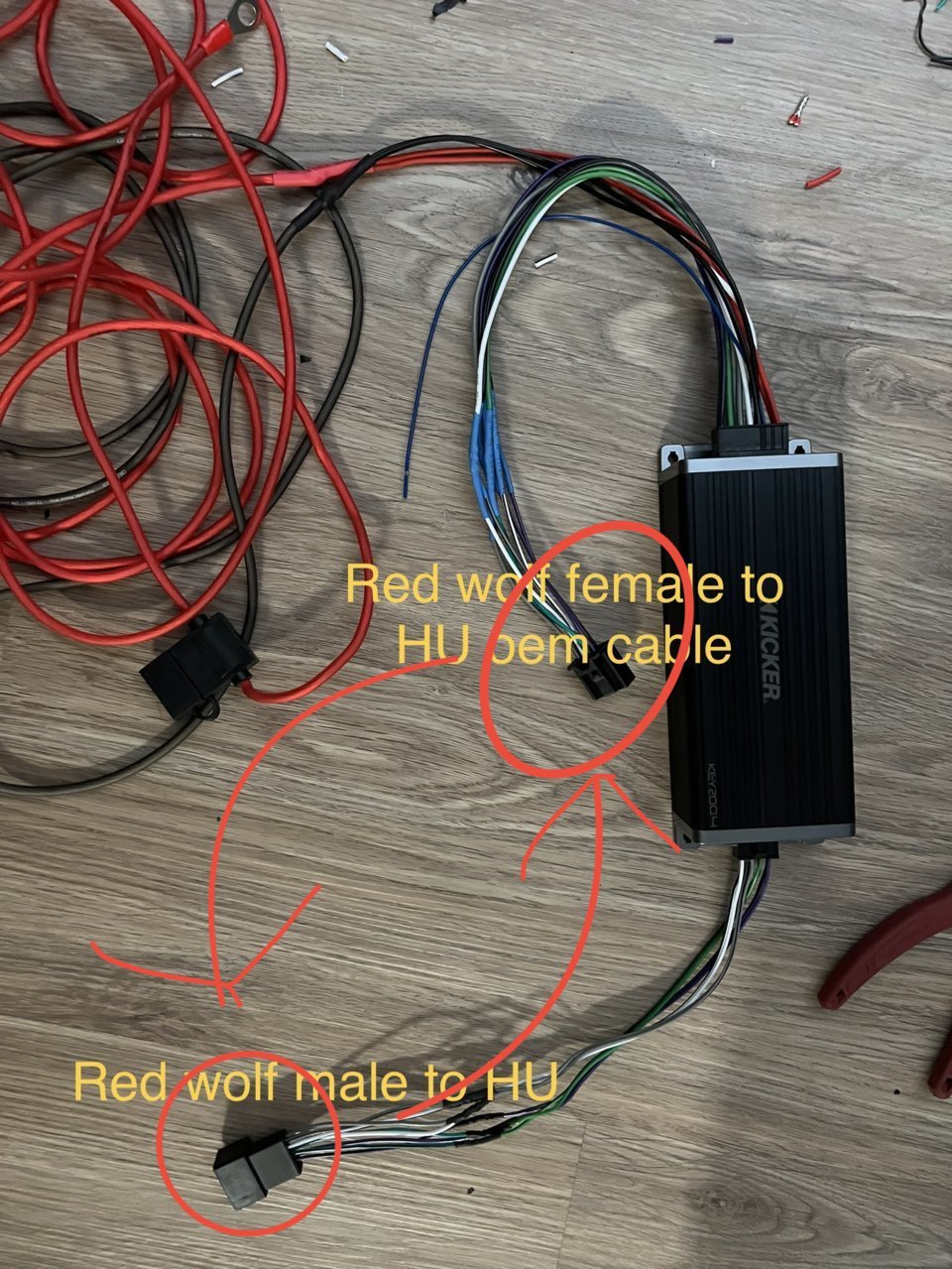

    Your harness is backwards

    these need to flip


    Last edited: Oct 14, 2022
    dolbytone likes this.
  4. Oct 14, 2022 at 9:25 AM
    #4
    Sprdno

    Sprdno [OP] Member

    Joined:
    Aug 24, 2022
    Member:
    #404294
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2022 Tacoma 4x4 Sport
    @destin_meeks

    Hmmm Followed this post.
    ------------------------------------------------------------------------------------------------------------------------
    At least the connections were simple. On the male side of the connector (plugs into the headunit) -- it was a direct one-to-one match for the input side of the amp

    [​IMG]

    the connector that plugs into this side uses the same color codes as the tacotoonz plug. cut off the RCA connectors on the kicker input wires and simply match the colors up.

    On the output side of the kicker key, again match up the speaker color wires to the female side of the tacotoonz connector.


    -----------------------------------------------------------------------------------------------------------------------------------------------
    where Tacotoonz connector = red wolf cable


    Or do I just not know what the input and output of the amp is? *facepalm*


    Attached Files:

  5. Oct 14, 2022 at 11:42 AM
    #5
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

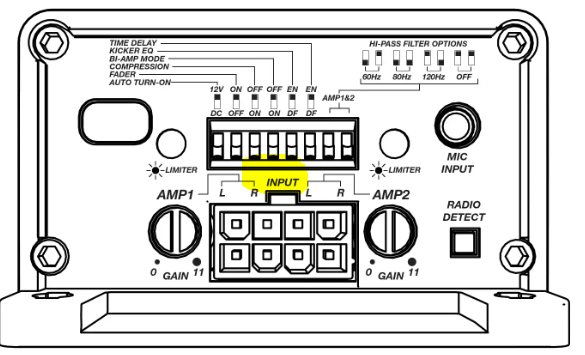

    So “input” on the amp is where the signal is coming FROM. In this case, we’re getting the signal from the radio, so I need the piece that plugs into the radio going to the amps input.
    “Output” is where the sound is going, so in this case it’s the factory speaker wiring.

    this can be a bit confusing if you are just matching words because the amp is getting it’s audio signal from the radio “output” but the radio is sending that signal to the amps “input”

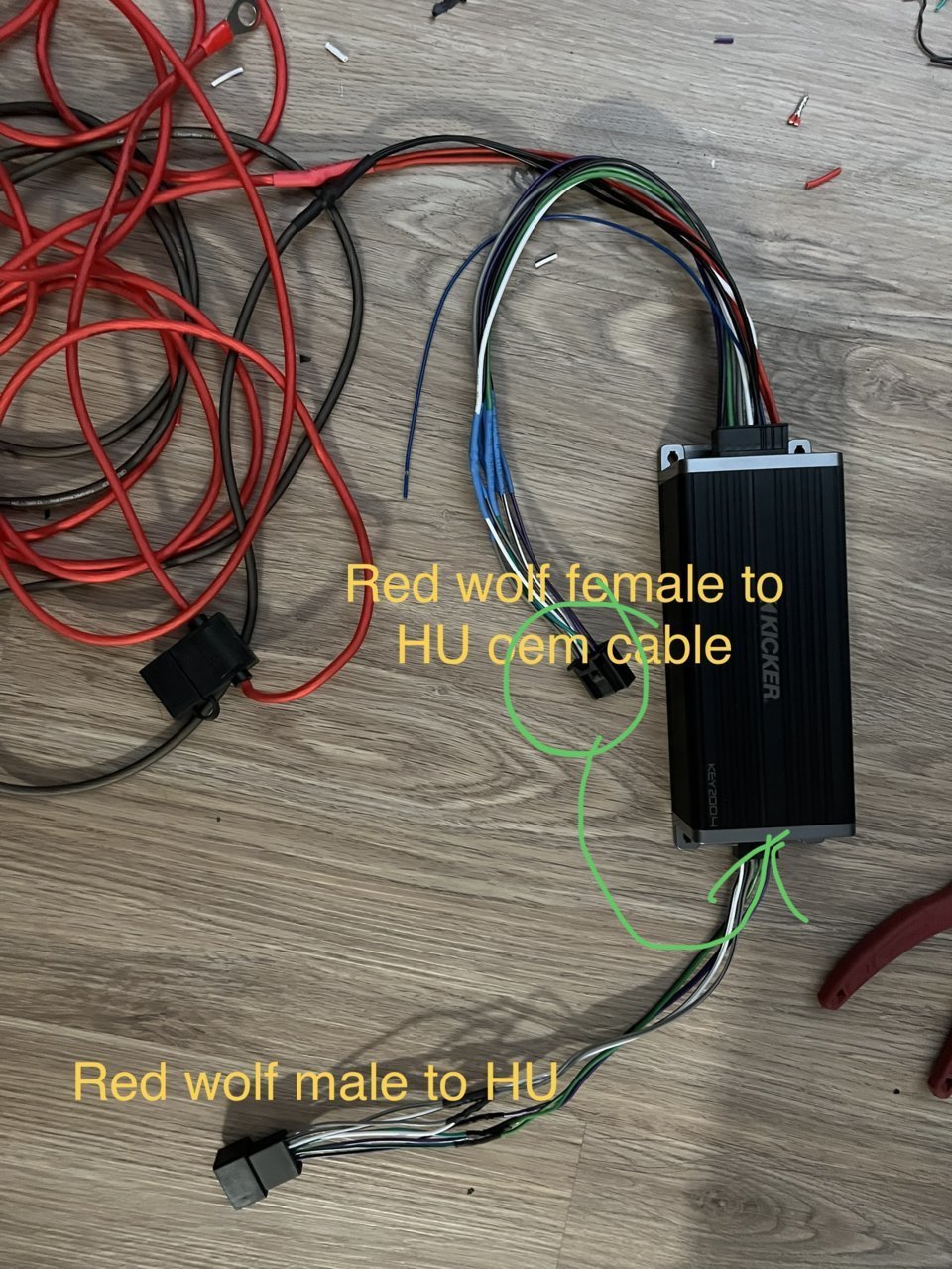

    the connector circled in green is the male side, that plugs into the radio. We need that audio signal going to the Key’s input side


  6. Oct 14, 2022 at 8:24 PM
    #6
    Sprdno

    Sprdno [OP] Member

    Joined:
    Aug 24, 2022
    Member:
    #404294
    Messages:
    5
    Gender:
    Male
    Vehicle:
    2022 Tacoma 4x4 Sport
    @destin_meeks thank you so much, it works! You’re a godsent to this community

    destin_meeks likes this.
  7. Dec 12, 2022 at 9:47 AM
    #7
    kyhillbilly55

    kyhillbilly55 Member

    Joined:
    Nov 23, 2022
    Member:
    #411319
    Messages:
    24
    Gender:
    Male
    Vehicle:
    Tacoma 2022 TRD sport
    so that one red wolf adapter gave you all front and back speakers to send to the amp and then out of the amp to all 4 front and back speakers(i know the tweeters piggy back on the front door speakers)??......Ive got a 2022 access cab MT.....haven't pulled the factory HU yet but going to do something similar .....got an audiocontrol d4.800 under drivers seat, im sending via speed cable and female wolf connector from the HU speakers lines to ....leveling out the audio and then sending them back to the factory speaker plug via speed cable with male end of wolf connector....
    ive seen some diagrams thats very complicated and looks like the factory HU has at least two plugs on the back that has speaker outs on....and then yours only has one.......im soooo confused...did Toyota change the pinout of the HU in the 21 and up models.???

  8. Dec 12, 2022 at 2:54 PM
    #8
    kyhillbilly55

    kyhillbilly55 Member

    Joined:
    Nov 23, 2022
    Member:
    #411319
    Messages:
    24
    Gender:
    Male
    Vehicle:
    Tacoma 2022 TRD sport
    i pulled out my HU and figured out the speaker connections....next what did you tie to to get switched power so your amp would turn on when you turned on your ignition??....or does the auto sens that detects your HU sending voltage to the speakers, on the amp work with your Taco??

  9. Dec 12, 2022 at 4:02 PM
    #9
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    20+ got a new harness

  10. Dec 12, 2022 at 4:03 PM
    #10
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    That audio control amp can use the GTO circuit. No need for a wire

  11. Dec 13, 2022 at 6:08 AM
    #11
    kyhillbilly55

    kyhillbilly55 Member

    Joined:
    Nov 23, 2022
    Member:
    #411319
    Messages:
    24
    Gender:
    Male
    Vehicle:
    Tacoma 2022 TRD sport
    thats good to know....i just remember watching a video on ytube that mentioned that GTO didnt work good with tacos.....might have been an earlier model truck....

  12. Jan 20, 2023 at 10:46 AM
    #12
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    8
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift

    I AM IN THE PROCESS OF DOING THIS SAME SET UP HAVE THE RED WOLF HARNESS AS WELL. I AM ALSO RUNNING THE KEY 500.1 THE REAR SPEAKERS HAVE REALLY NO BASE OUTPUT FROM HU. I AM BI AMPING THE 200.4 and running rear doors off factory HU. with these amps have DSP would I need to pull input signal from front 6x9s?

  13. Jan 20, 2023 at 10:50 AM
    #13
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yes, you need to pull the signal for your 500.1 from the front channels on the INPUT side of the 200.4. NOT the output side

  14. Jan 20, 2023 at 11:05 AM
    #14
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    8
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Thank you bud. As I look at the bi- amp option VIA Kicker. I am running tweeters off amp1 (whites/grays) 6x9 off (amp 2) and splitting the signal 6x9 from HU to provide input for the 500.1.
    Sorry for the questions the wiring hook up is the what I have been dreading.

  15. Jan 20, 2023 at 11:16 AM
    #15
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    In bi-amp mode, the amp ONLY takes the signal from the front (white/grey) input wires coming from the radio. These are the wires you also want to get your 500.1 signal from

    it then takes the front channel audio and splits it into tweeter and woofer signals on the output side

    soundman98 likes this.
  16. Jan 20, 2023 at 11:46 AM
    #16
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    8
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    @destin_meeks thank you for the input bud. This has been so confusing to me. I am going to try and lay it out on paper before diving into it. Already ran two runs of speed wire to dash, all power and ground. Building amp rack this weekend. thanks again for the input. I am sure I will probably have more questions.

  17. Jan 21, 2023 at 1:20 PM
    #17
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    8
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    @destin_meeks
    Here’s what I got as input from HU. The amp output side I think I have figured out it was the input that worried me.Thank you for all you advice you have provided to everyone


    soundman98 likes this.
  18. Jan 21, 2023 at 1:43 PM
    #18
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Spot on!

    soundman98 likes this.
  19. Jan 21, 2023 at 1:51 PM
    #19
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    8
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Thank you again very much appreciated.

    soundman98 likes this.
