2022 Tacoma TRD Sport Audio Upgrade Wiring Help/Opinions (Morel Maximo Ultra Coax and Kicker Key)

Discussion in 'Audio & Video' started by Sprdno, Sep 28, 2022.

  1. Feb 22, 2023 at 12:36 PM
    #21
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

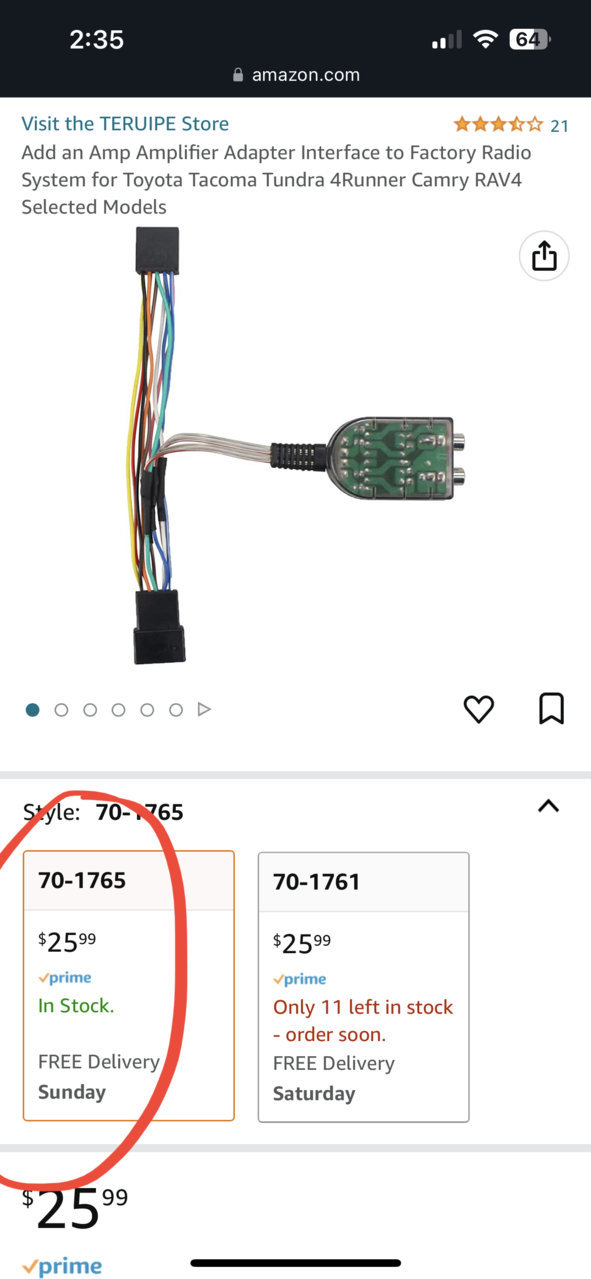

    Yes it will, but there’s easier ways


    soundman98 likes this.
  2. Feb 28, 2023 at 1:59 PM
    #22
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    @destin_meeks

    Good afternoon bud the amps are in. Just to confirm.

    I wired cut the plugs off both RCAs on the 200 and 500 wired them together then wired front speaker outputs to the inputs of both amps.

  3. Feb 28, 2023 at 4:05 PM
    #23
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yes

    when running the auto-tune, make sure to disconnect the other amp.l

  4. Mar 1, 2023 at 5:31 PM
    #24
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    I have to go back through the whole thing. I am getting orange lights on the amps. No sound out the speakers. No one in my area had installed these or I would just pay to have them finish hook up and tune. I am getting aggravated with it.

  5. Mar 3, 2023 at 6:51 AM
    #25
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    @destin_meeks

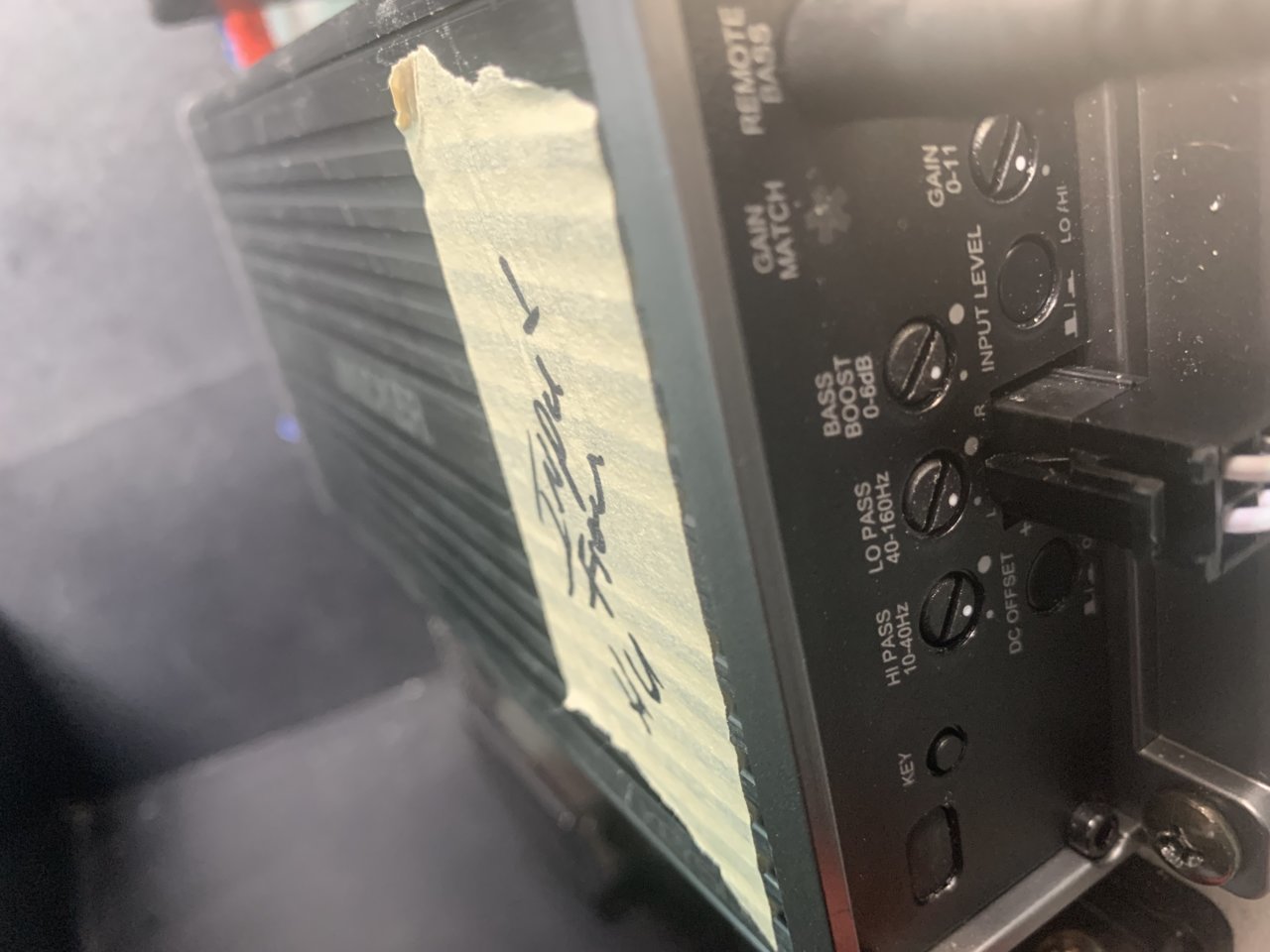

    Hey bud getting no sound from amps. I am getting red PRT lights on both amps and the limiter light coming on. I have checked the voltage to amps both 12v. Amps are in rear compartment driver side out of sun. Inputs are as we discussed from front HU. Any ideas what maybe causing these conditions? I can send you a couple pics or video of the issues. If you were close enough to Jacksonville I would pay you to hook these up. I am close to pulling it all back out.

  6. Mar 3, 2023 at 7:15 AM
    #26
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

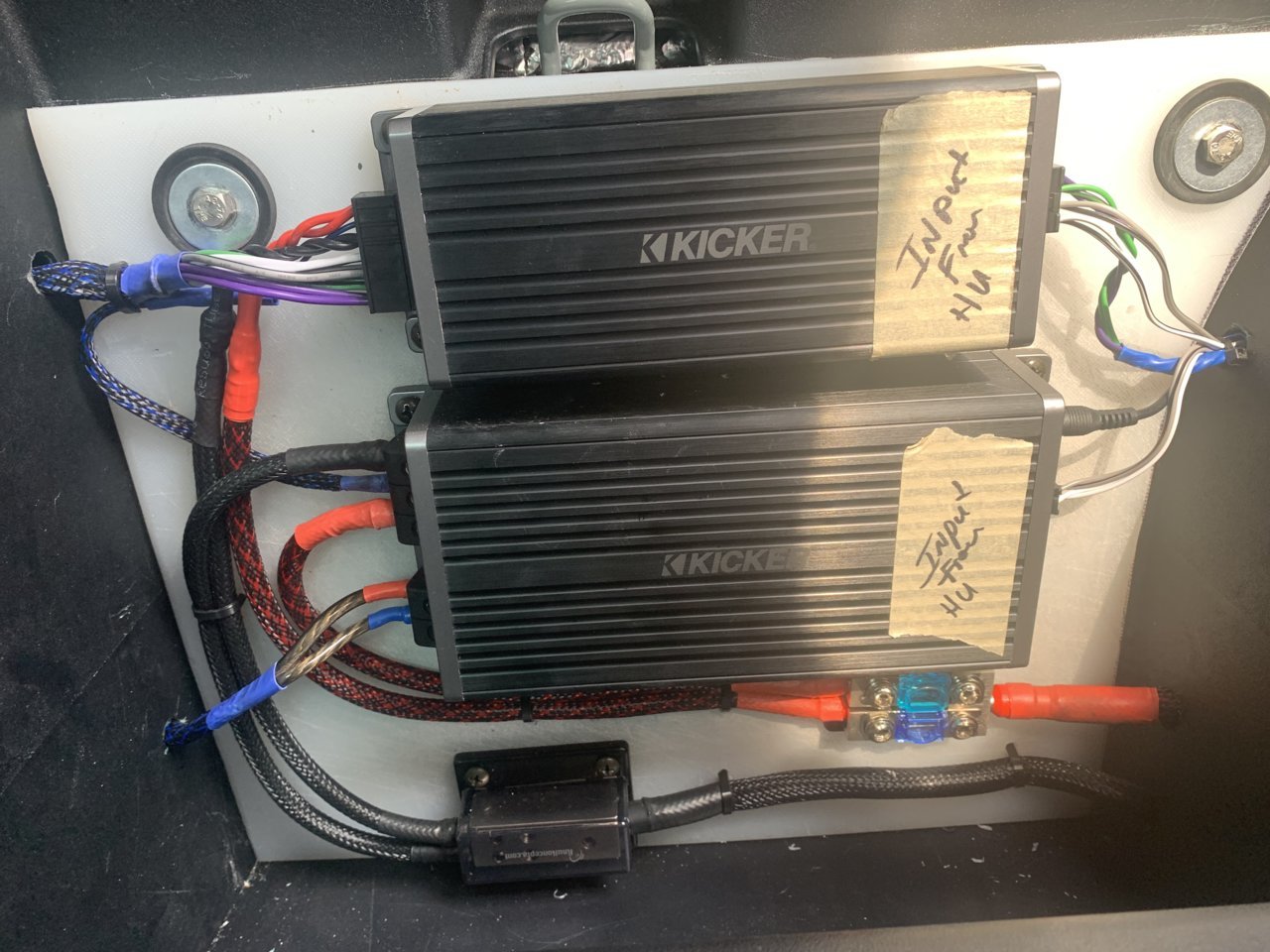

    Can you post a pic with the whole amp setup in it? Just want to be able to look over the wiring before moving on to other troubleshooting steps

  7. Mar 3, 2023 at 7:36 AM
    #27
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift

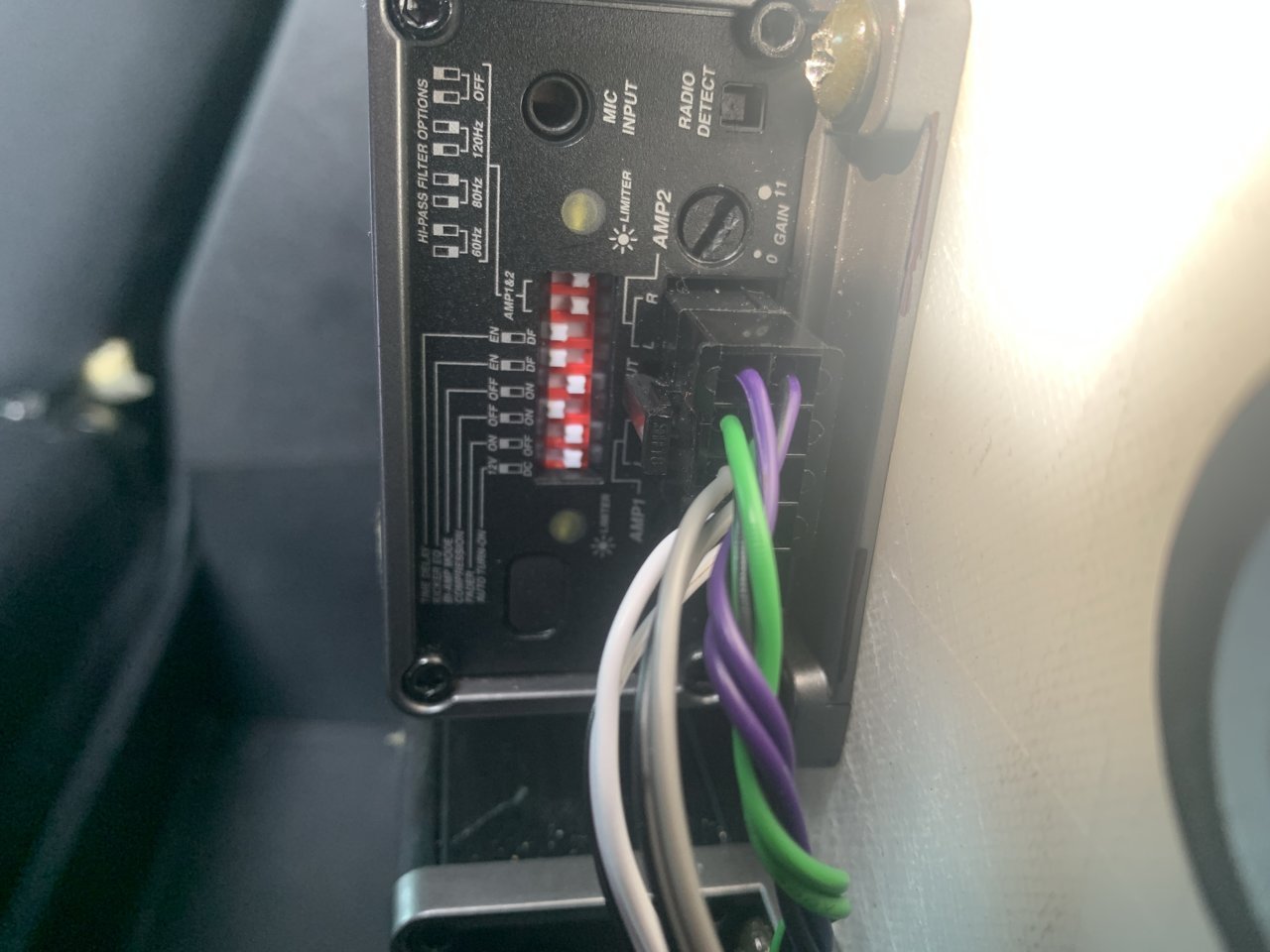

    Inputs are from front. Green/purple not used. 12v at both amps.

    I was going to go back through wiring this weekend. Hate to take everything back apart unless I have to.


  8. Mar 3, 2023 at 9:03 AM
    #28
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Everything there looks correct

    next step would be to pull the head unit and disconnect the output side of your harness where it connects to the factory wiring. Then see if the amps power up correctly. If they seem to work right, there may be a problem with the speaker portion of the wiring

    luckily, pulling the head unit only takes about 2 minutes

  9. Mar 3, 2023 at 9:25 AM
    #29
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    I haven’t even put face back on and only 2 bolts.

    so to confirm I am dis connected the front outputs that are going to amps(inputs).

  10. Mar 3, 2023 at 9:34 AM
    #30
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

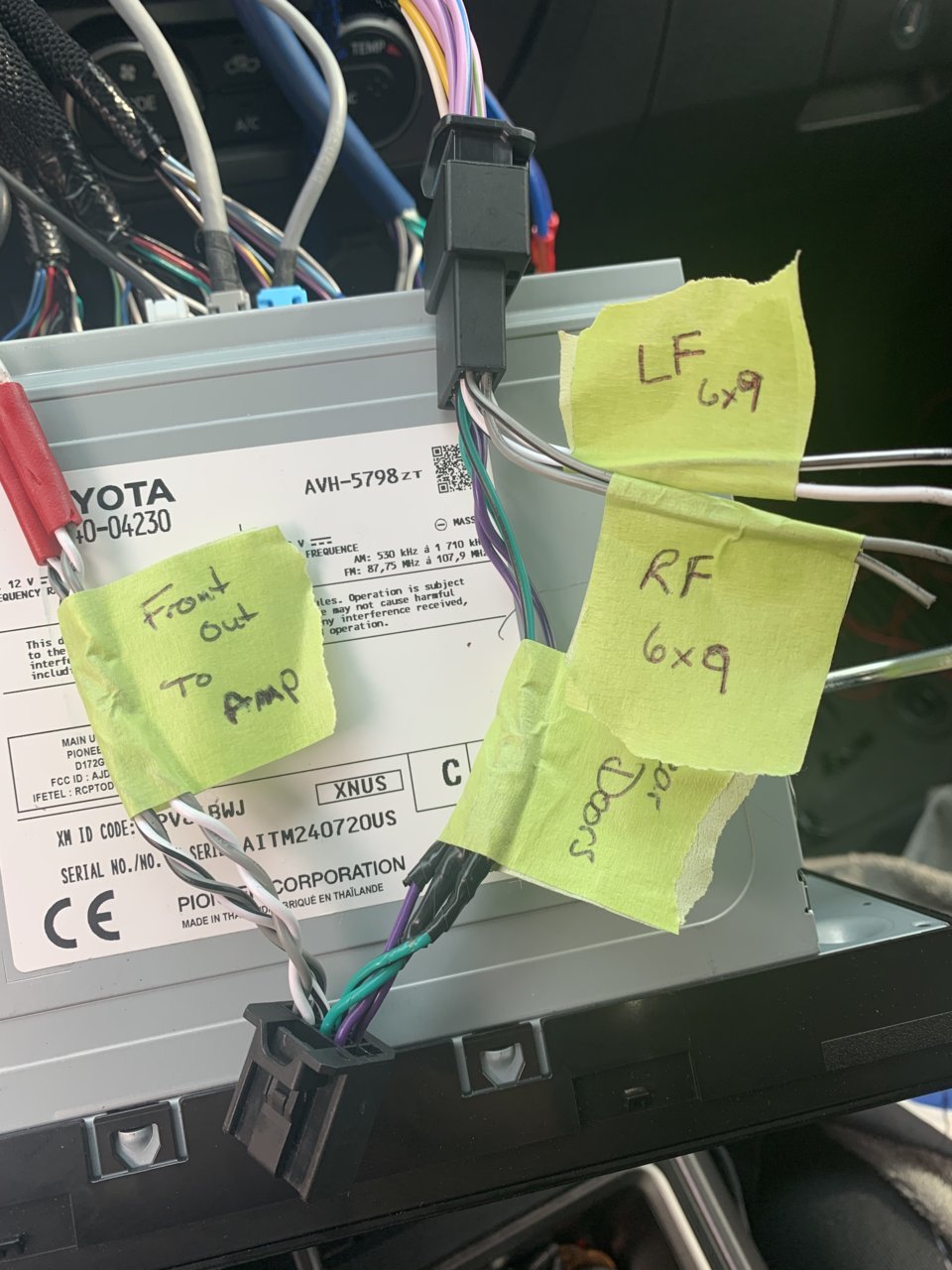

    No, disconnect amp output from factory harness behind the radio

    leave the one connected to the radio, and disconnect the other one

  11. Mar 3, 2023 at 10:11 AM
    #31
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Only thing hooked up now is rear doors and outs to amp still nothing.


  12. Mar 3, 2023 at 10:35 AM
    #32
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4

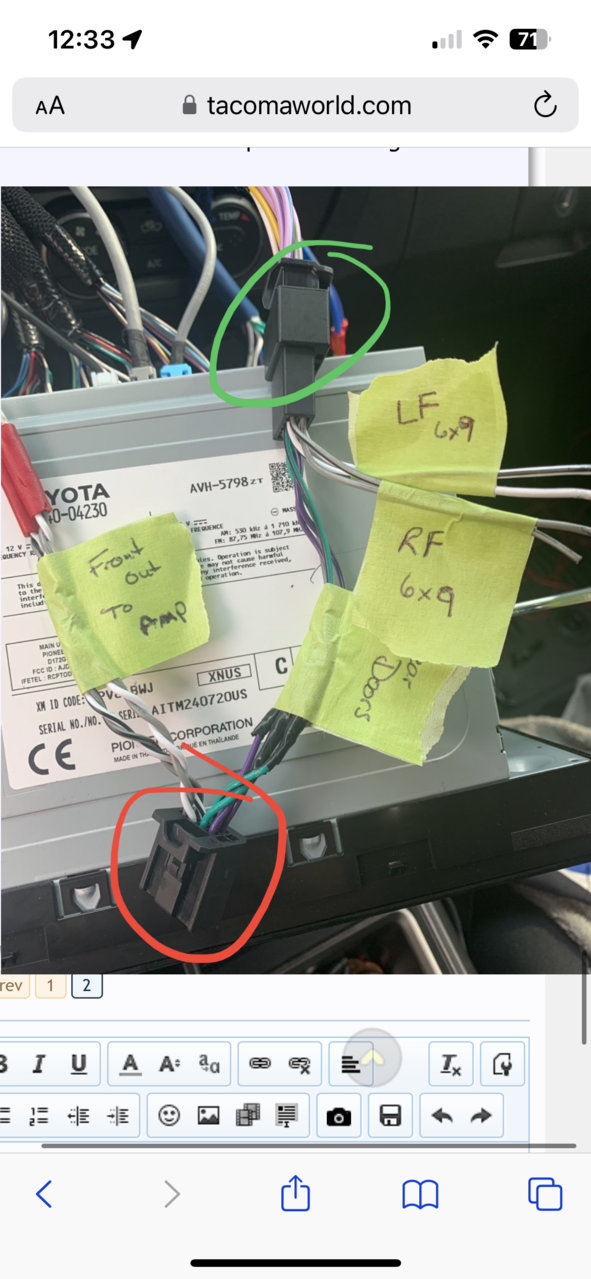

    No, plug red back into the radio and unplug the green


  13. Mar 3, 2023 at 10:36 AM
    #33
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    You need the part plugged into the radio to make sure your signal is going to the amps

  14. Mar 3, 2023 at 12:23 PM
    #34
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Tired that nothing. I am throwing in the towel. I will pull everything apart this weekend re-run all the wires if that doesn’t work pulling them out all together. Thanks for the help.

  15. Mar 3, 2023 at 1:44 PM
    #35
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    It’s going to be something simple we are overlooking.

    soundman98 likes this.
  16. Mar 3, 2023 at 1:48 PM
    #36
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    I think so too. I have nothing planned for the weekend so best to back track it all and start clean. I should be able to tss we check all the wiring without pulling all the door seals and that stuff and just pull amp rack out check all connections wire colors. I will update Monday fingers crossed I can get it right so I can run the tuning set up

  17. Mar 4, 2023 at 3:24 PM
    #37
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Ok a quick update. First I would like to thank @destin_meeks for all the help. Second I apologize to everyone following the post and the confusion because I am an idiot.

    I found the issue within 5 mins of taking everything back apart. I found out that I used the green/purple wires in the speed wire instead of the white/grey.

    from the radio I was using white/grey going to nothing. Switched wires temporarily connected all speakers to make sure getting sound will run the set up tomorrow and permanently connect everything.

    waterlogged77 and soundman98 like this.
  18. Mar 4, 2023 at 4:02 PM
    #38
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,944
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Like I said, it would be something simple. But those are the best problems to have

  19. Mar 4, 2023 at 4:31 PM
    #39
    Houston5

    Houston5 Member

    Joined:
    Jun 15, 2014
    Member:
    #132029
    Messages:
    19
    Gender:
    Male
    First Name:
    Joe
    Florida
    Vehicle:
    89 4runner, 05 Tacoma 4x4, 13 4 Runner
    3inch spacer lift
    Yes sir. I used a second 4 pin connector so that I could just on clip the amp rack if needed and it only had green/purple leads so when soldering in I used the same on speedwire just forgot when hooking up at head unit. Man you have help so many people in this group bud you knowledge is amazing

    waterlogged77 likes this.
  20. Mar 5, 2023 at 2:27 PM
    #40
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    6,140
    Gender:
    Male
    NW Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    glad to hear you got it figured out.

    just remember, greater men have screwed up simpler wiring. it's a perfect reminder that everyone needs to check their work, no matter the experience level.
