265/70/17 Hankook Dyna-Pro ATM's rubbing on front mud flaps. Options?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Bishop2Queens6, Feb 20, 2018.

?

How can I fix the mudflap rubbing?

  1. Aftermarket mud flaps

    1 vote(s)
    14.3%
  2. Cab mount chop + new mudflaps

    1 vote(s)
    14.3%
  3. Deal with the mud and ditch the mud flaps

    5 vote(s)
    71.4%
  4. Get new tires

    0 vote(s)
    0.0%
  1. Feb 20, 2018 at 9:57 AM
    #1
    Bishop2Queens6

    Bishop2Queens6 [OP] Well-Known Member

    Joined:
    Jun 8, 2011
    Member:
    #57944
    Messages:
    1,773
    Gender:
    Male
    First Name:
    Mike
    SoCal
    Vehicle:
    2009 DCSB SR5 4x4
    Icon 2.5 RR/w CDCV 700# springs Front Shocks JBA UCA's Wheeler's Offroad Superbump Front Bump Stops Icon 2.5 RR/w CDCV 4"+ Rear Shocks AllPro Expo Rear Leaf Pack Timbren Rear Bump Stops ARB Front Bumper @Shmellmopwho Rock Sliders w/ Kickout RCI Aluminum Front Skid Plate Prinsu Roof Rack Roll-N-Lock Tonneau Cover CBI Ditch Light Brackets Cali-Raised LED Ditch Lights Cali-Raised Amber Fogs Cali-Raised Flush Mount LED Pods
    I have 265/70/17 Hankook Dyna-Pro ATM's rubbing on my front mud flaps when even I turn the wheel sharply like in parking situations.

    I know the Hankook Dyna-Pro ATM's do run a bit taller than advertised, but I really like the tire. I'm getting great wear, traction, and I love the looks. Currently at 11/32's wear.

    I'm just curious about my options to stop the rubbing on the mudflaps?

    Caveats:
    -I am lifted 3 inches with Icon RR w/CDC. I have JBA UCA's and Moog LCA's with Moog LCA bolts
    -I have adjusted the caster on my truck all the way from +2.5 to +7 and it didn't fix the rub
    -Wheels are the TRD Pro Sema's 17"
    -My current alignment is Toyota factory spec
    -Cab mount chop is an option
    -I need to keep mudflaps. I work on a dairy and I'd rather have "mud" inside the fender well instead of all the way underneath the body

    Thanks!

    Edit: Added Pics

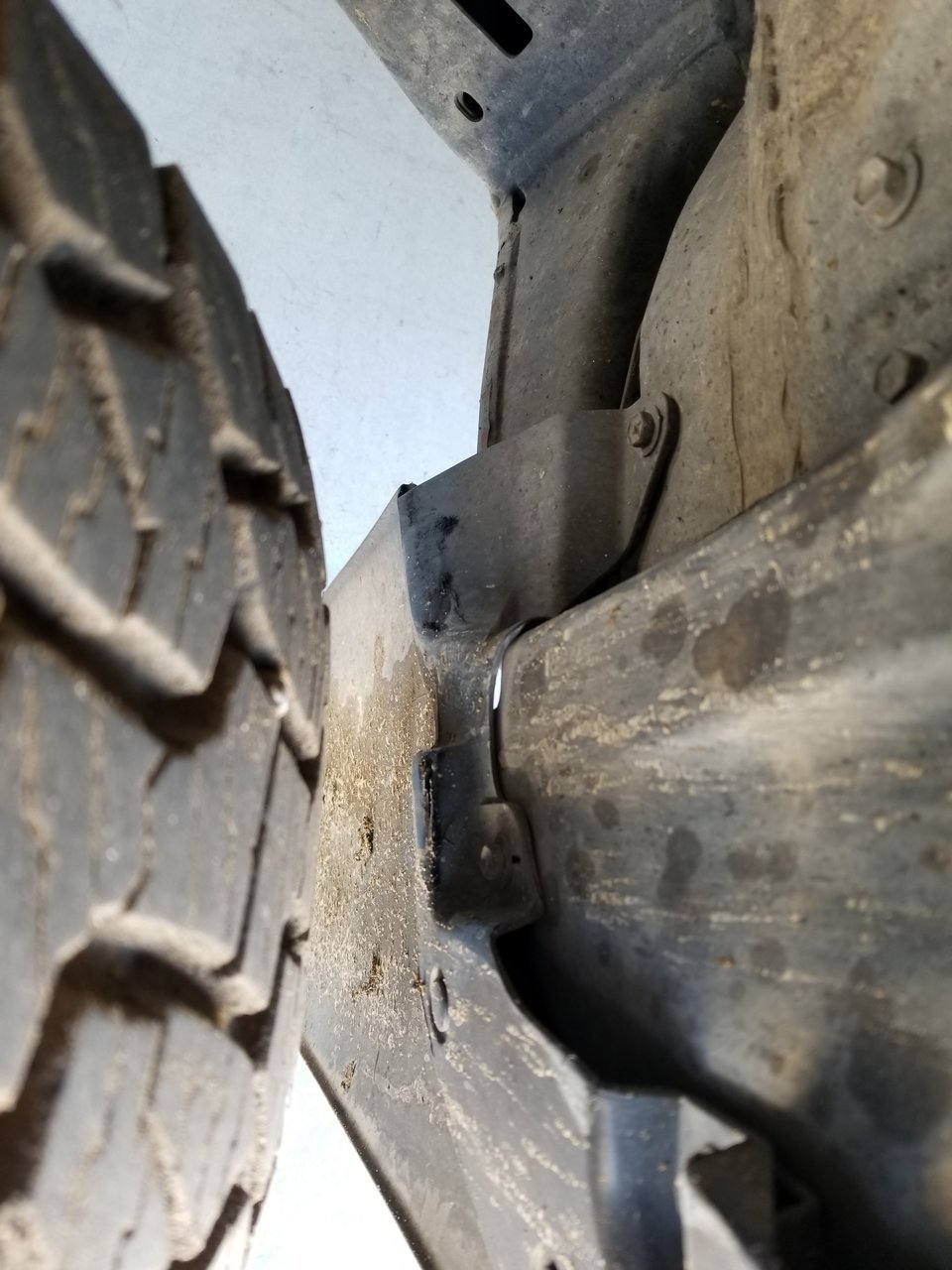

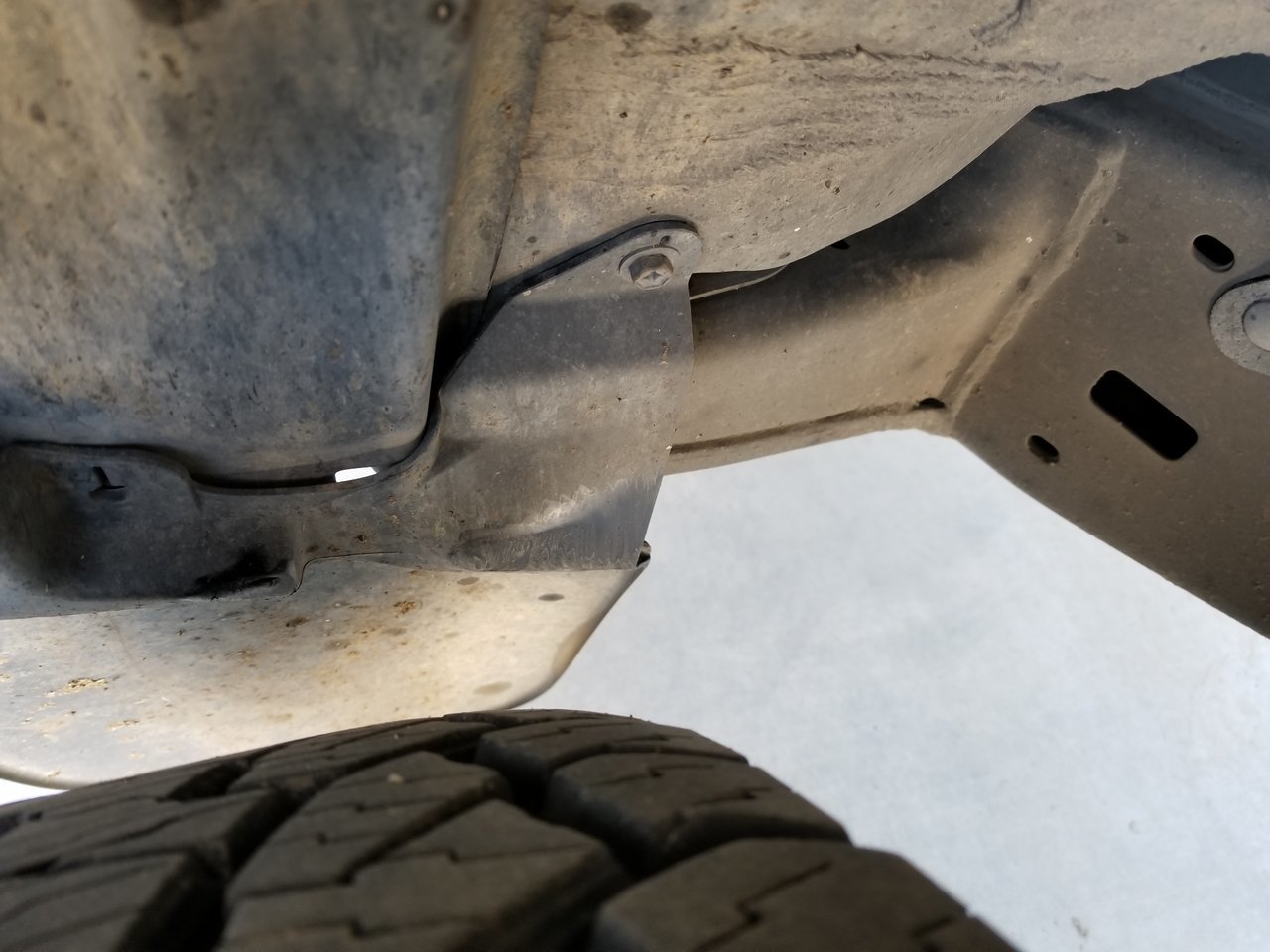

    Driver Front:

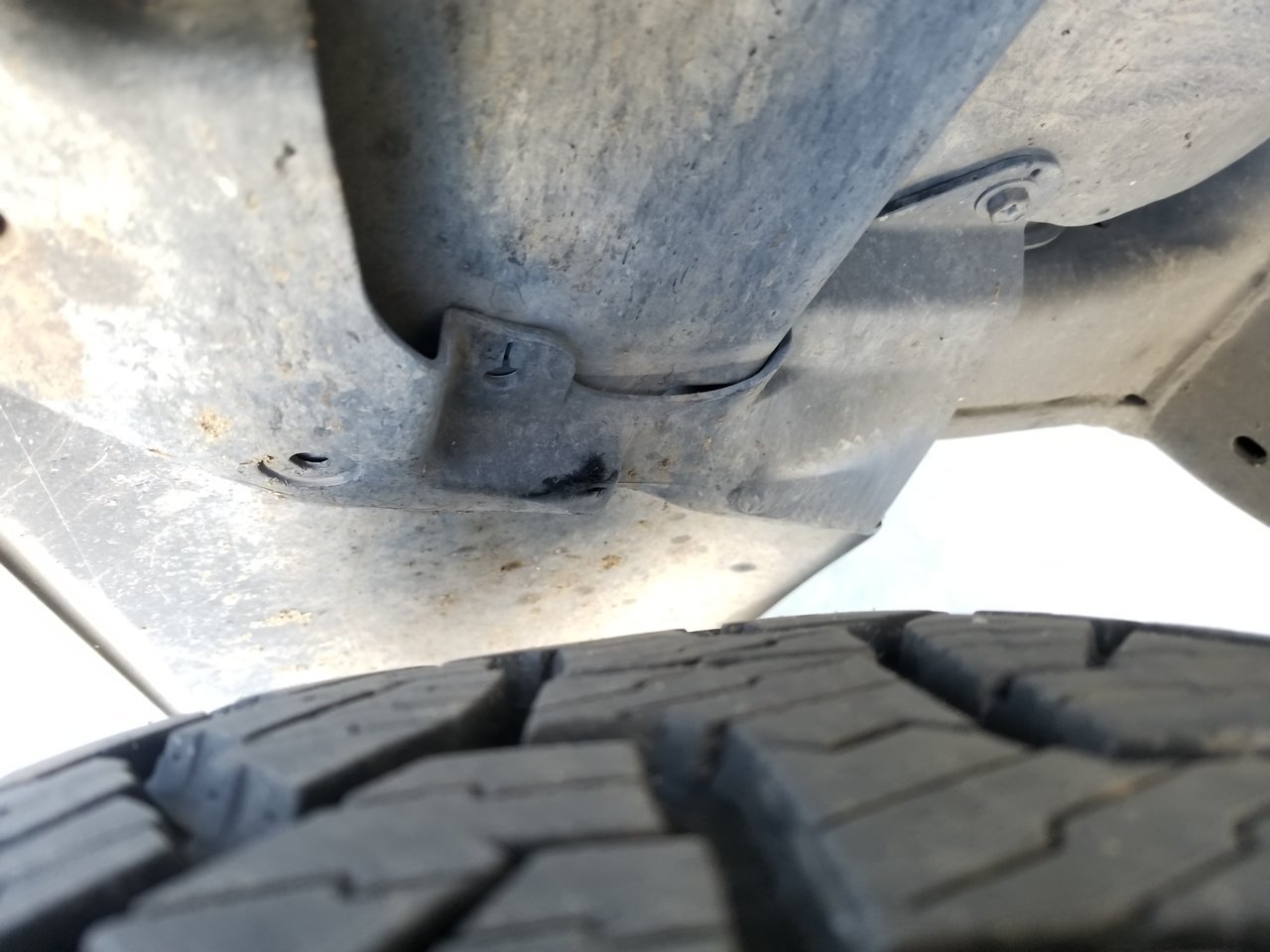

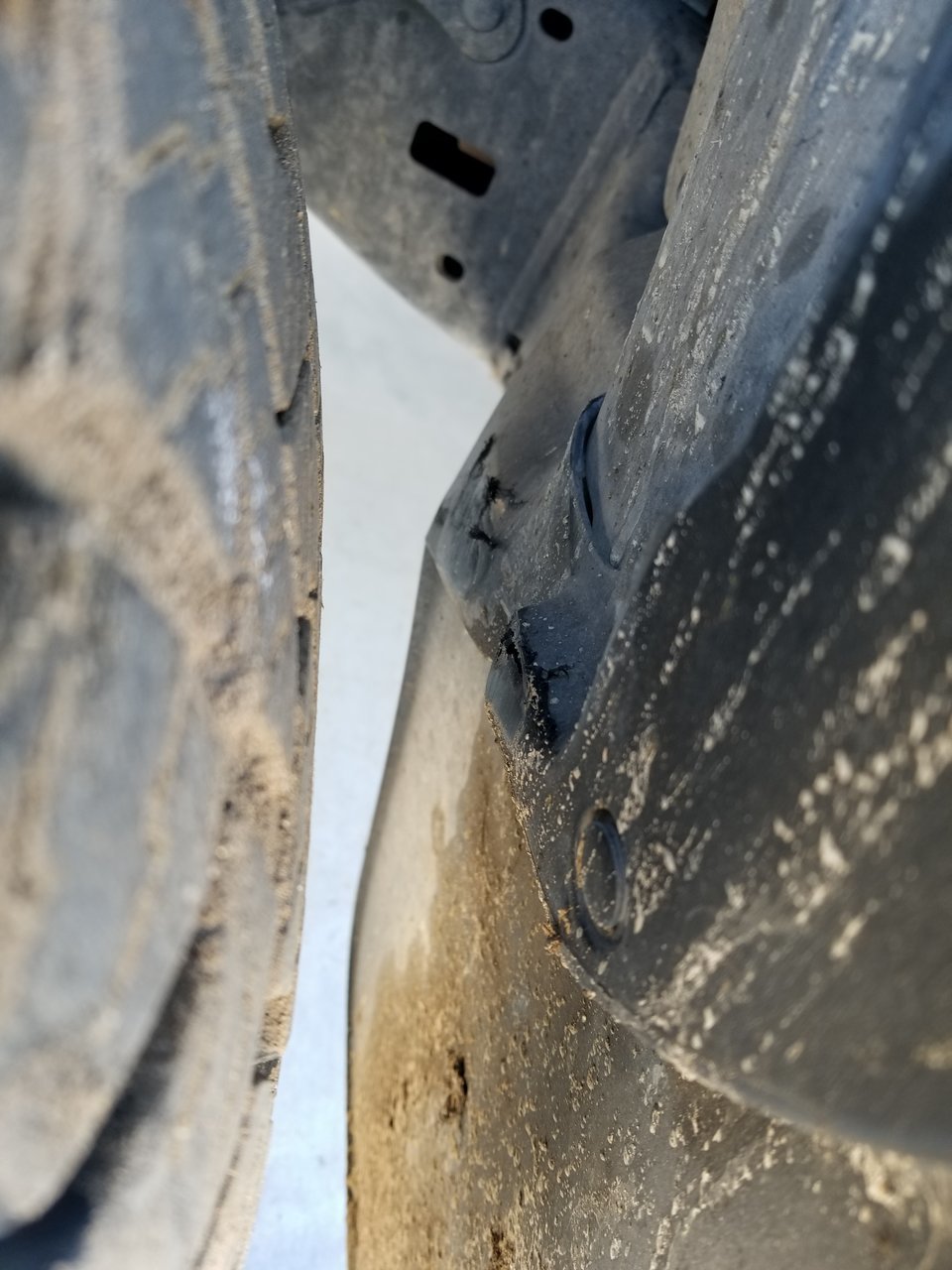

    Passenger Front:


    Last edited: Feb 20, 2018
  2. Feb 20, 2018 at 10:04 AM
    #2
    jztacoma

    jztacoma Trust me I’m an Engineer

    Joined:
    Sep 13, 2013
    Member:
    #112426
    Messages:
    2,359
    Gender:
    Male
    First Name:
    John
    Upstate NY
    Vehicle:
    2024 Tacoma TRD Offroad
    Semi Stockish
    Do you have any pictures? Might be able to trim a bit of plastic to get it to clear. Do you have stock or aftermarket wheels?

    Adgrimmer likes this.
  3. Feb 20, 2018 at 10:08 AM
    #3
    rnish

    rnish Well-Known Member

    Joined:
    May 9, 2014
    Member:
    #129450
    Messages:
    8,606
    Gender:
    Male
    Peoples Republic of Maryland (USA)
    Vehicle:
    Tacoma 2nd gen
    King's, Camburg UCA, Dirt King LCA, armor
    Ditch the mud flaps....

    Adgrimmer and ryfox0276 like this.
  4. Feb 20, 2018 at 10:10 AM
    #4
    TexasWhiteIce

    TexasWhiteIce Well-Known Member

    Joined:
    Sep 12, 2010
    Member:
    #43160
    Messages:
    5,345
    Gender:
    Male
    Texas
    Vehicle:
    2022 White DCLB SR5 - Blackout
    This. Mudflaps look stupid our tacomas anyways.

  5. Feb 20, 2018 at 10:11 AM
    #5
    Adgrimmer

    Adgrimmer Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242803
    Messages:
    99
    Gender:
    Male
    First Name:
    Aaron
    Stephenville,Texas
    Vehicle:
    2015 Silver Tacoma TRD
    3 in lift, 17x9 -12 offset Fuel Krank wheels,New decals, Bull Bar,
    I had the same problem when I went with my new wheels. I just took off the mudflaps. I know it will get muddy under there but that’s the easiest way to fix The problem imo @Bishop2Queens6

  6. Feb 20, 2018 at 11:38 AM
    #6
    Bishop2Queens6

    Bishop2Queens6 [OP] Well-Known Member

    Joined:
    Jun 8, 2011
    Member:
    #57944
    Messages:
    1,773
    Gender:
    Male
    First Name:
    Mike
    SoCal
    Vehicle:
    2009 DCSB SR5 4x4
    Icon 2.5 RR/w CDCV 700# springs Front Shocks JBA UCA's Wheeler's Offroad Superbump Front Bump Stops Icon 2.5 RR/w CDCV 4"+ Rear Shocks AllPro Expo Rear Leaf Pack Timbren Rear Bump Stops ARB Front Bumper @Shmellmopwho Rock Sliders w/ Kickout RCI Aluminum Front Skid Plate Prinsu Roof Rack Roll-N-Lock Tonneau Cover CBI Ditch Light Brackets Cali-Raised LED Ditch Lights Cali-Raised Amber Fogs Cali-Raised Flush Mount LED Pods
    I just added pics. After market TRD Pro Sema 17" wheels.

  7. Feb 20, 2018 at 11:43 AM
    #7
    jztacoma

    jztacoma Trust me I’m an Engineer

    Joined:
    Sep 13, 2013
    Member:
    #112426
    Messages:
    2,359
    Gender:
    Male
    First Name:
    John
    Upstate NY
    Vehicle:
    2024 Tacoma TRD Offroad
    Semi Stockish
    ok cool, looks like what you could try to do is if you have a heat gun start warming up the plastic, then use a wooden dowel or something to push that area of the flap in. Hold it in position until it cools. It should give you enough clearance now, just test it and see what happens.

    A cab mount chop won't help since you aren't contacting the body mount.

  8. Feb 20, 2018 at 11:45 AM
    #8
    Bishop2Queens6

    Bishop2Queens6 [OP] Well-Known Member

    Joined:
    Jun 8, 2011
    Member:
    #57944
    Messages:
    1,773
    Gender:
    Male
    First Name:
    Mike
    SoCal
    Vehicle:
    2009 DCSB SR5 4x4
    Icon 2.5 RR/w CDCV 700# springs Front Shocks JBA UCA's Wheeler's Offroad Superbump Front Bump Stops Icon 2.5 RR/w CDCV 4"+ Rear Shocks AllPro Expo Rear Leaf Pack Timbren Rear Bump Stops ARB Front Bumper @Shmellmopwho Rock Sliders w/ Kickout RCI Aluminum Front Skid Plate Prinsu Roof Rack Roll-N-Lock Tonneau Cover CBI Ditch Light Brackets Cali-Raised LED Ditch Lights Cali-Raised Amber Fogs Cali-Raised Flush Mount LED Pods
    Dang, that's smart. I'll try it.

    jztacoma[QUOTED] likes this.
  9. Feb 20, 2018 at 11:46 AM
    #9
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    39,166
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '24 X3 M40i
    No issues with my Hankook even with the 4Runner off road 17" 7.5" wide wrapped in 265/70/17 :notsure:

  10. Feb 20, 2018 at 11:48 AM
    #10
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    39,166
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '24 X3 M40i
    Castor is at 3.5 degree sitting on Kings at 2.5" of lift. Total Chaos UCAs btw.

  11. Feb 20, 2018 at 11:51 AM
    #11
    KenLyns

    KenLyns 8.75" Third Member

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    29,363
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off-Road Full-Auto
    LED Headlights, Volant CAI, 32" Duratracs
    Huskyliner or Rokblokz flaps have the needed clearance. However, both are 3" shorter than OEM flaps. I'm running Huskyliner with an added flexible rubbery piece attached to the bottom using small stainless screws.

  12. Feb 20, 2018 at 11:52 AM
    #12
    Lord Helmet

    Lord Helmet Prepare To Attack

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    39,166
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    '24 X3 M40i
    Same here with Husky too

  13. Feb 20, 2018 at 11:57 AM
    #13
    jztacoma

    jztacoma Trust me I’m an Engineer

    Joined:
    Sep 13, 2013
    Member:
    #112426
    Messages:
    2,359
    Gender:
    Male
    First Name:
    John
    Upstate NY
    Vehicle:
    2024 Tacoma TRD Offroad
    Semi Stockish
    :thumbsup:

  14. Feb 20, 2018 at 3:10 PM
    #14
    Adgrimmer

    Adgrimmer Well-Known Member

    Joined:
    Jan 29, 2018
    Member:
    #242803
    Messages:
    99
    Gender:
    Male
    First Name:
    Aaron
    Stephenville,Texas
    Vehicle:
    2015 Silver Tacoma TRD
    3 in lift, 17x9 -12 offset Fuel Krank wheels,New decals, Bull Bar,
    I just took all of mine off when I went to 17x9 -12 offset wheels. They rubbed the fronts pretty bad

  15. Feb 20, 2018 at 3:57 PM
    #15
    vssman

    vssman Rocket Engineer

    Joined:
    Jun 17, 2013
    Member:
    #106440
    Messages:
    10,380
    Gender:
    Male
    First Name:
    Paul
    Naugatuck, CT
    Vehicle:
    2013 SR5 double cab
    I used a heat gun on mine; flattened the bump - rubbing is gone.

  16. Feb 20, 2018 at 7:07 PM
    #16
    sparkystaco

    sparkystaco Well-Known Member

    Joined:
    Jan 26, 2010
    Member:
    #30122
    Messages:
    5,918
    Gender:
    Male
    First Name:
    Sparky
    SE Wi
    Vehicle:
    06 4x4 dc trd ofrd
    3" lift? A.R.E cap 285/70/17 moto metal 955 17x9
    I just used a cutoff wheel to cut those bumpouts off, no more rubby rub and I run 285's.
