2nd gen, Anytime-On Rear View Camera with Switch on Dash mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Sep 25, 2011.

  1. Sep 2, 2014 at 8:27 AM
    #201
    jage

    jage Well-Known Member

    Joined:
    Feb 3, 2013
    Member:
    #96749
    Messages:
    100
    Gender:
    Male
    Franktown CO
    Vehicle:
    '010 Silver Double Offroad Leather/Sunroof
    Isn't that this thread? :confused:

    >tap 12v souce
    >apply to camera with switch
    >???

    basically just leave out the part where you connect it to the reverse wire:
    so leave T1 or T3 off, whichever goes to the REV wire you cut.

  2. Nov 15, 2014 at 8:27 PM
    #202
    DJSPEC

    DJSPEC TRD Kaena Point Edition - @GuardianTacos

    Joined:
    Jul 26, 2011
    Member:
    #60600
    Messages:
    882
    Gender:
    Male
    First Name:
    Sean G
    Kaimuki,Hawaii
    Vehicle:
    2011 TRD Sport DCSB 4x4 & 2014 TRD SPORT DCSB & 2016 TRD-OR AC 4x4
    Viper Alarm NorthStar 31 Battery Pelfreybilt Battery Cage OEM roof racks, step sides 35W 6000k HID Fog Lights 35% tint Front windows 5% tint rear windows 2 Sets of Rigid Industries D2 above the valance Duallys on Famous Fabrication's Hood Hinge Brackets Rigid Industries SR2 10" in HoodScoop with C4 Fabrications Hood Scoop Bracket Flowmasters Super 44 series 9942446) Firestone MT2 285/70R17 SCS Stealth 6 Wheels Wet Okole Seat Covers OEM Tow Hitch Plastidip Front Valance FoglightMod(Fuel Pump Relay Version) Matt Gecko Truck Bed LED Kit and Sliding Window Security Bar Snugtop Rebel 3" Lift Light Racing Ball-Joint Upper Control Arms (LR8-25470) OME Front Nitro Shock(900021) with 885 Springs OME Nitro Rear Shocks (ARB8-60091) Revtek Add-A-Leaf (REVAALT5B)
  3. Nov 17, 2014 at 1:49 PM
    #203
    Traviste

    Traviste Now with more woopow

    Joined:
    May 25, 2013
    Member:
    #104899
    Messages:
    848
    Gender:
    Male
    First Name:
    Travis
    Georgia
    Vehicle:
    2014 DCSB Locked 4x4 Mid-Travel
    F:King 2.5 coilover resi ext 700#coils R:King 2.5 ext allpro expos
  4. Jan 28, 2015 at 11:50 PM
    #204
    gti2taco

    gti2taco Well-Known Member

    Joined:
    May 1, 2014
    Member:
    #128940
    Messages:
    90
    Gender:
    Male
    First Name:
    Brian
    Va Beach
    Vehicle:
    14 trd offroad, stock
    Subbed for later mod.

  5. Jan 29, 2015 at 9:58 AM
    #205
    whiting1977

    whiting1977 Well-Known Member

    Joined:
    Apr 14, 2014
    Member:
    #127682
    Messages:
    149
    Gender:
    Male
    First Name:
    Steve
    Sacramento CA
    Vehicle:
    2014 SR5 PreRunner
  6. Jun 15, 2015 at 6:37 PM
    #206
    Navy Jumper

    Navy Jumper Airborne Paratrooper

    Joined:
    May 11, 2015
    Member:
    #155091
    Messages:
    409
    Gender:
    Male
  7. Jun 15, 2015 at 7:56 PM
    #207
    Dropitmore

    Dropitmore Panda Man

    Joined:
    Feb 16, 2015
    Member:
    #148835
    Messages:
    1,982
    Gender:
    Male
    First Name:
    Andy
    Downey, CA
    Vehicle:
    2013 TRD McDouble Cab
    Mall Crawler Edition
  8. Jul 21, 2015 at 11:50 AM
    #208
    Chux

    Chux Pura Vida

    Joined:
    Oct 1, 2013
    Member:
    #113652
    Messages:
    5,941
    Gender:
    Male
    NJ beaches
    Vehicle:
    2013 TRD O/R Beach Buggy
    Click on my Build
    Subd to doing this soon

  9. Oct 18, 2015 at 10:01 PM
    #209
    Aristotle

    Aristotle New Member

    Joined:
    Oct 18, 2015
    Member:
    #167041
    Messages:
    3
    Gender:
    Male
    South Louisiana
    Vehicle:
    2012 Silver Tacoma Pre-Runner SR-5
    Or in the event you run over someone you don't like, you can view it as the action unfolds. Then hit reverse again for instant replay. Lol.

  10. Oct 19, 2015 at 12:03 PM
    #210
    DougsGraphics

    DougsGraphics Duck Hunter!

    Joined:
    Jun 28, 2015
    Member:
    #158319
    Messages:
    244
    Gender:
    Male
    First Name:
    Doug
    Northern New Mexico
    Vehicle:
    2015 Pyrite Mica DCSB TRD OR
    3" Revtech Level, ARB Deluxe Bull Bar front bumper with WARN 9.5XP Winch and KC Pro-Sport LED Driving Lights, black Diamond Back HD tonneau cover, 4 cameras through Entunes display with capacity for two more, LED interior lights with map lights tied to dome, Bussman auxiliary fuse/relay box with 100 amp breaker/disconnect under hood.
    justchil and Old School like this.
  11. Dec 7, 2015 at 6:52 AM
    #211
    nevenelestate

    nevenelestate Well-Known Member

    Joined:
    Dec 10, 2011
    Member:
    #68497
    Messages:
    201
    Gender:
    Male
    First Name:
    Andrew
    Southern MD
    Vehicle:
    12 Tacoma V6 4X4 SR5
    Stock
    Very glad I stumbled on this thread. As others have mentioned I tend to use the back up camera to try to avoid being a Dbag when parking and this saves having to back up after pulling through the spot. I am also planning to do the mod, found on TW, to be able to switch to a second camera so I can mount a camera on the back of my trailer.

    The following was on my 2012 Access cab V6 SR5

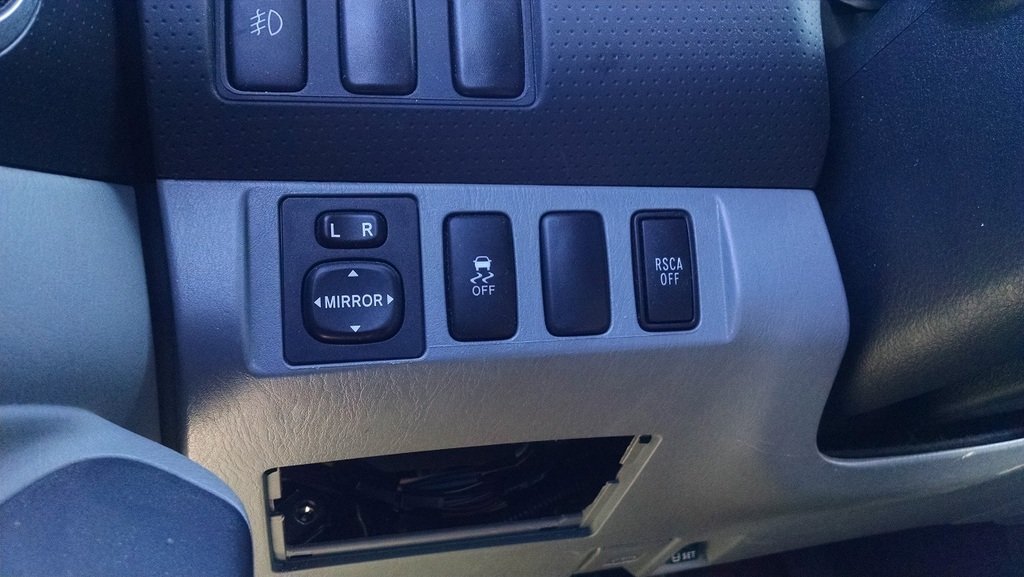

    I decided to use the empty switch location next to the traction control button.

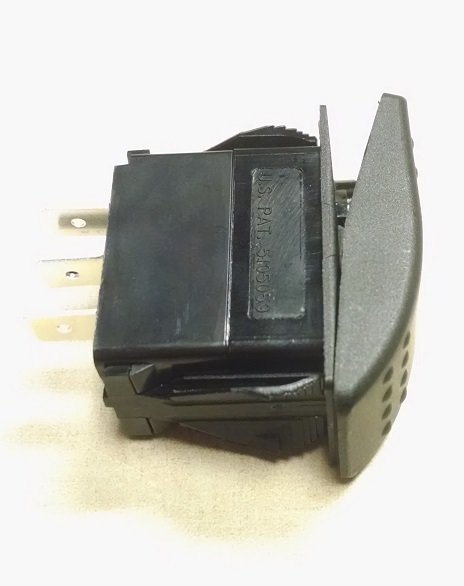

    I wanted a large size rocker and found this switch on Amazon for cheap. The downside to this specific switch is that it is a On-Off-On switch. This means that there is a center position that does not make contact with either terminal. All this means is that if I forget to throw the switch fully, two clicks, in either direction then the camera will just stay off. Here is a link to the specific switch I bought for <$4

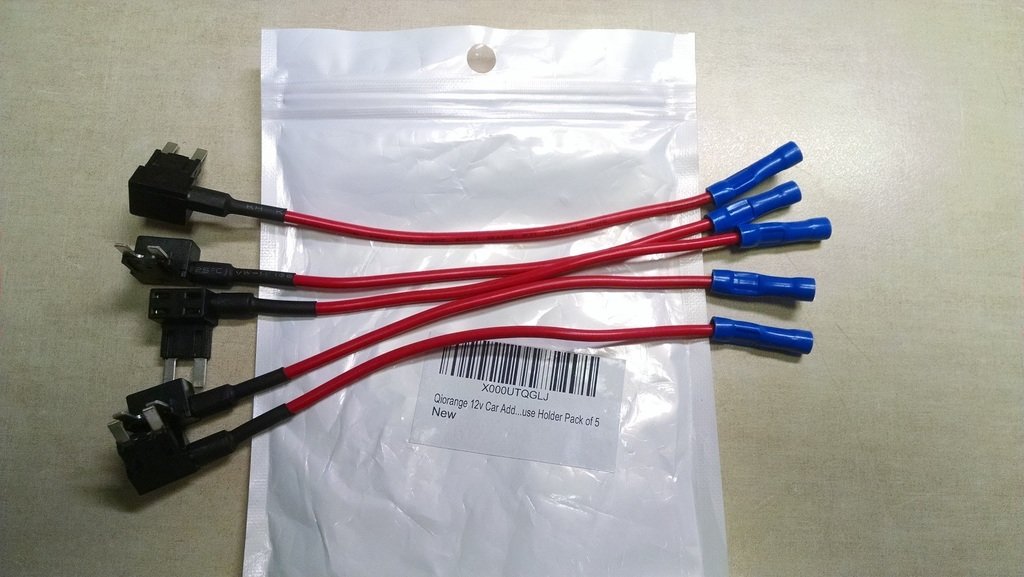

    I bought a 5 pack of the Add-a-circuits off Amazon also

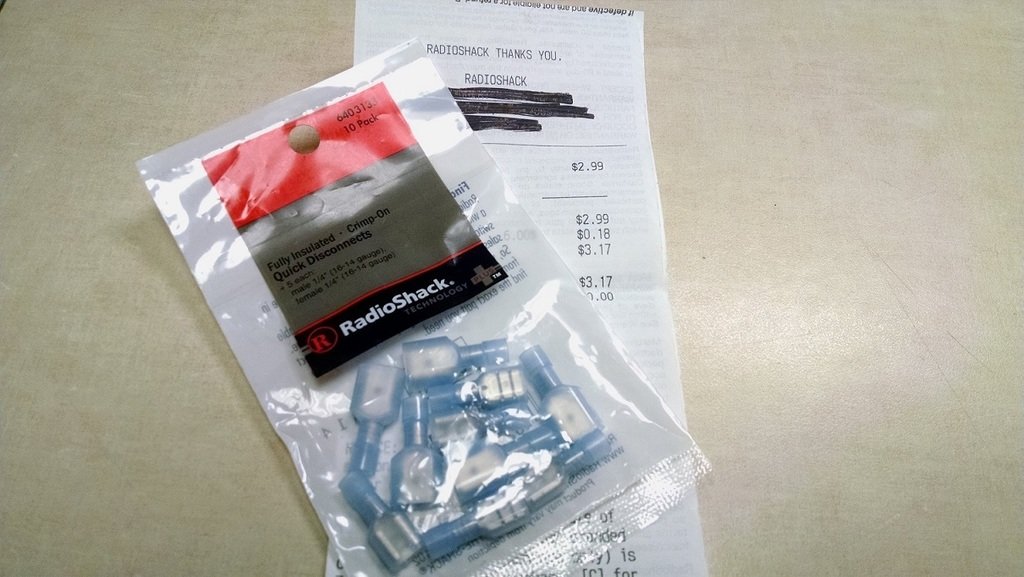

    I picked up a pack of quick disconnect terminals from the local RadioShack. I chose the 1/4" size terminals so that they would connect to the back of the switch.
    RadioShack® 1/4" Quick Disconnects (Item#: 6403133)

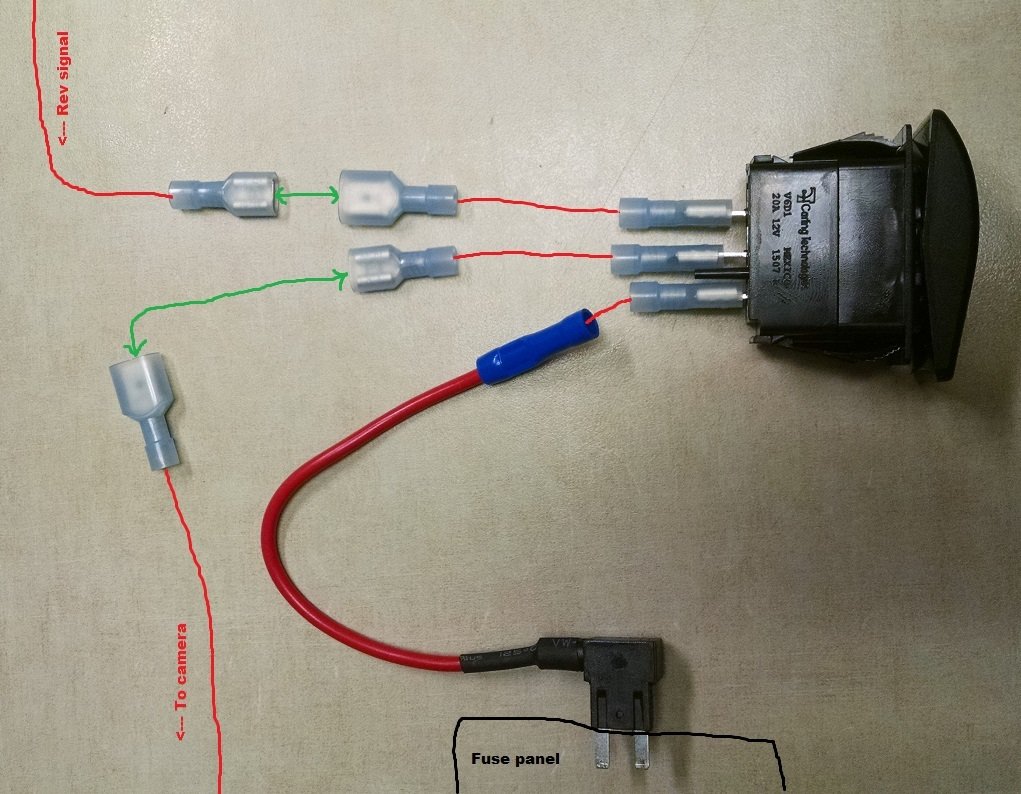

    This shows how I had planned to wire up the switch (how I did in the end)

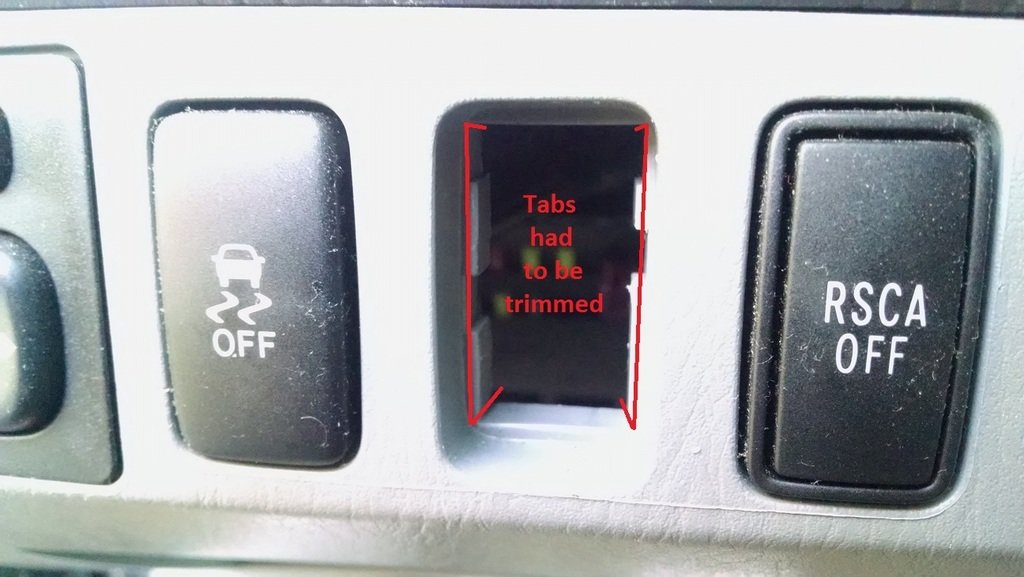

    The empty socket that I wanted to use was a little narrow so I had to use a razor blade to CAREFULLY remove some of the side plastic. I forgot to take a picture of the hole after I trimmed, but it was just wide enough to get the switch through. I did NOT alter the top or bottom, that dimension was good.

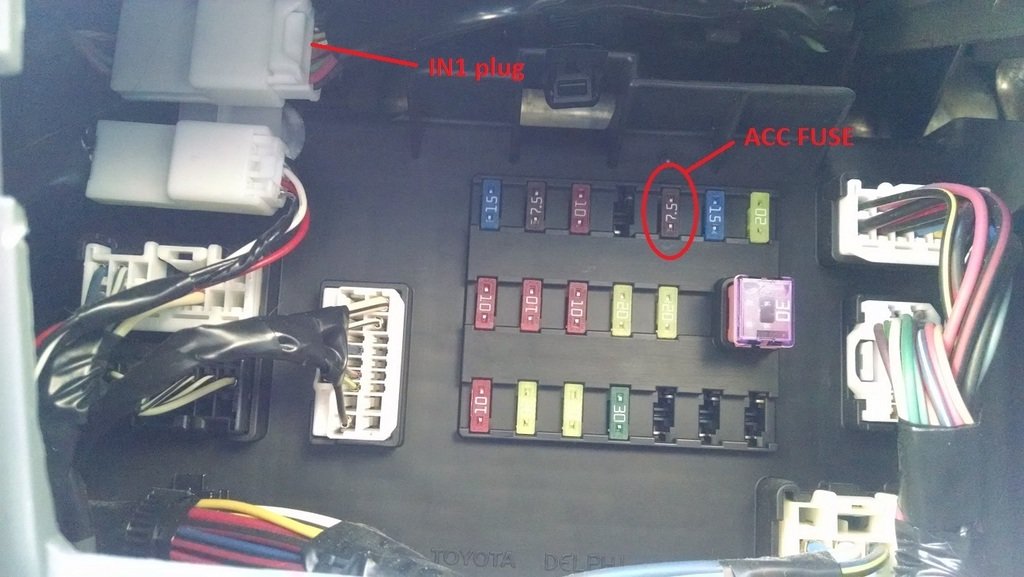

    I choose the ACC fuse to use for my Add-a-Circuit. You can also see the my IN1 connectors has many wires running through it.

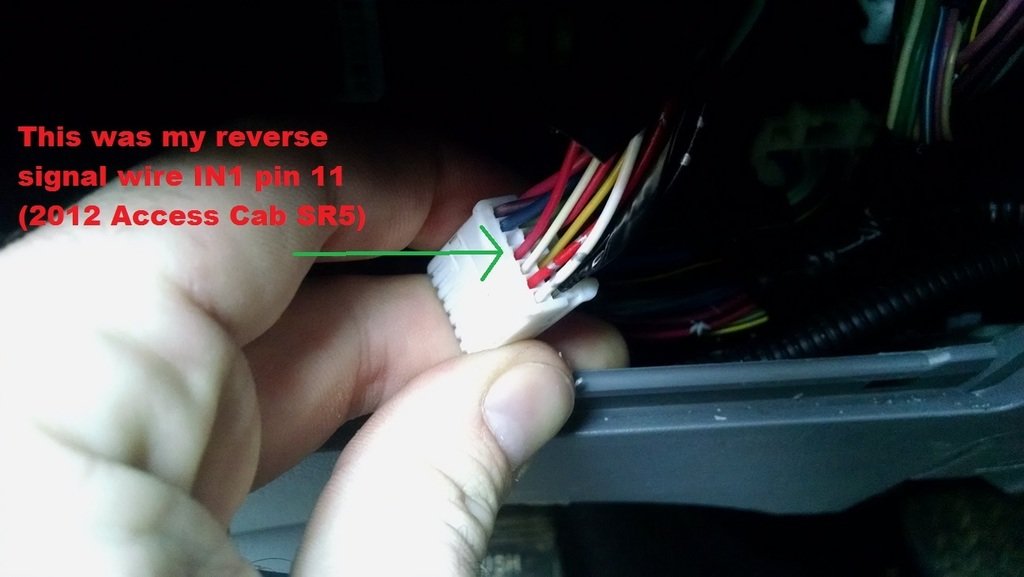

    There were two red wires in my IN1 connector. I used a multimeter to find that one had a constant 12VDC and the other, the one pointed out in this picture, only had 12VDC present when the truck is in Reverse.

    I used a male terminal on the side of the wire that goes back to the camera, and the female terminal on the wire that provides the REVERSE signal. This way I could remove the switch to return the setup to factory settings. The other thing to note is that using the 1/4" terminals means that the crimp area is very large, I folded the stripped wire back over the insulation to make the wire that is being crimped down large enough to grab

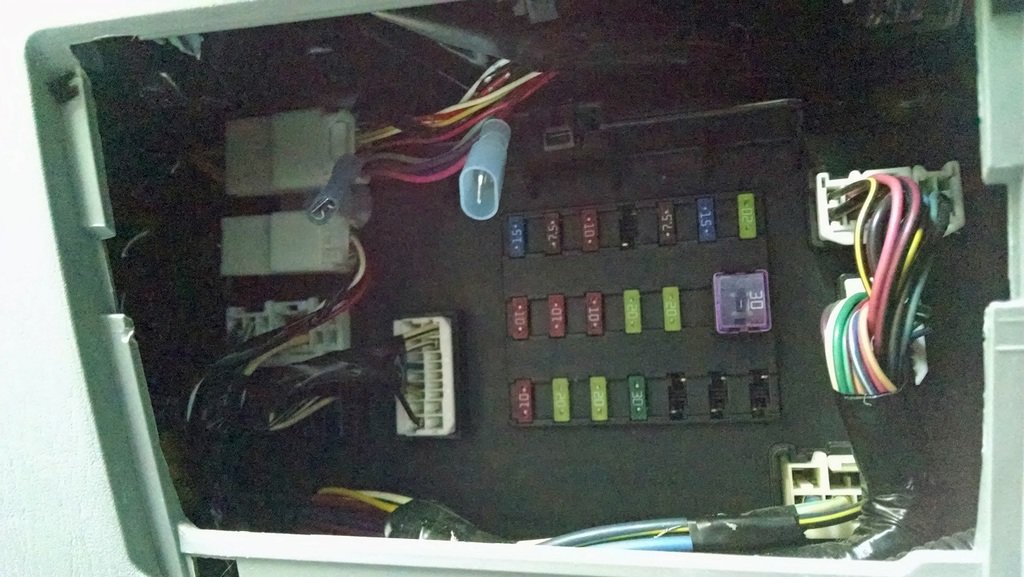

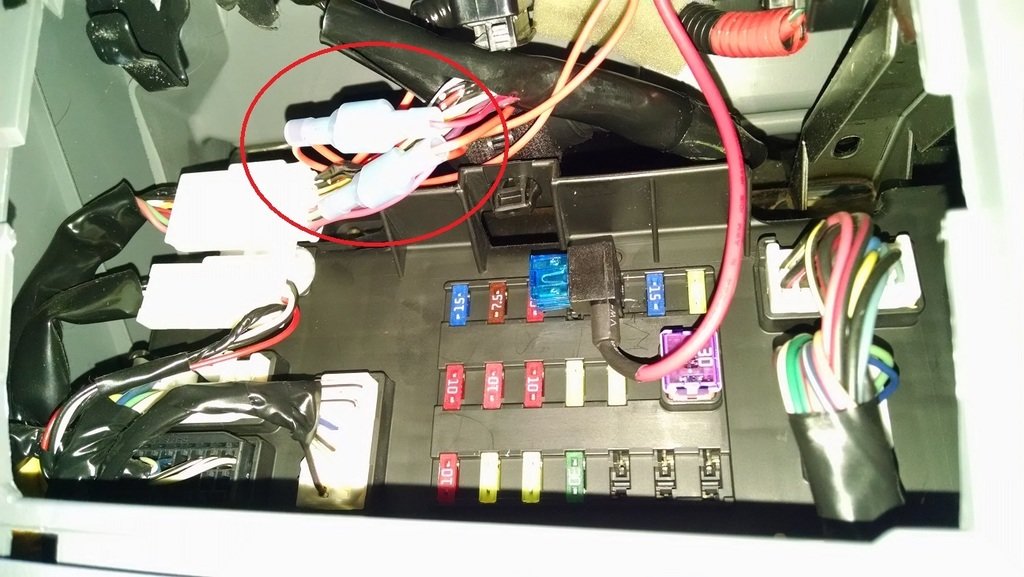

    This shows the wiring all installed, I used wires that were a bit long so they are coiled up behind the connected terminals so that they don't interfere with the coin tray.

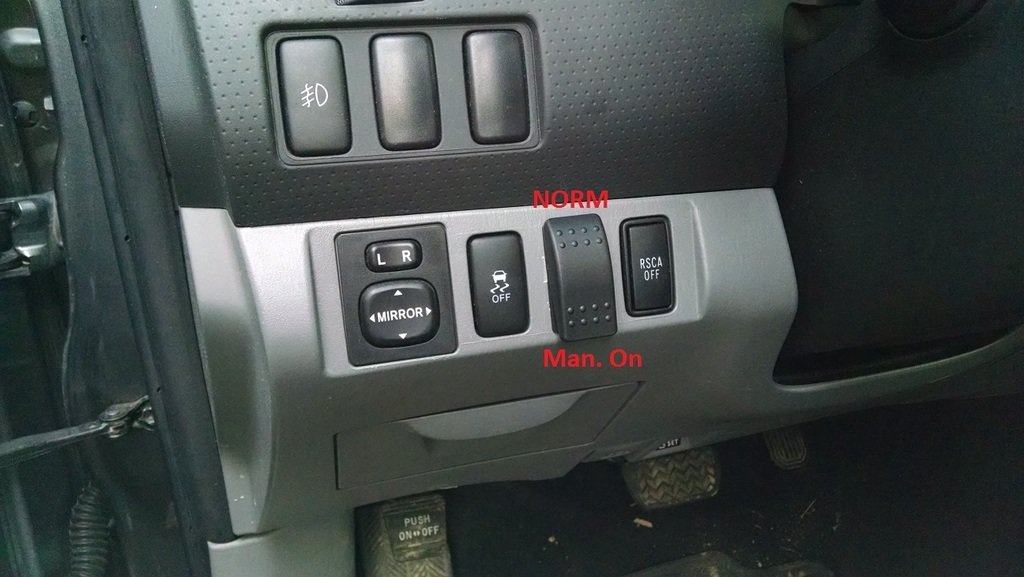

    And this is the switch after completed.

    I noticed there were posts here talking about not being sure if they could do this and stuff like that. I know that for some people it is easier to see the mod rather than read about it. After searching Youtube and finding no video for this mod I decided to compile the info here and what I learned into a DIY. I will post the link here when I get it uploaded.

    seoulja99, Tyson and Fredfifty like this.
  12. Dec 7, 2015 at 8:35 AM
    #212
    Chux

    Chux Pura Vida

    Joined:
    Oct 1, 2013
    Member:
    #113652
    Messages:
    5,941
    Gender:
    Male
    NJ beaches
    Vehicle:
    2013 TRD O/R Beach Buggy
    Click on my Build

    Great write up!

    nevenelestate likes this.
  13. Dec 7, 2015 at 5:56 PM
    #213
    SilverSky15

    SilverSky15 Well-Known Member

    Joined:
    Jul 9, 2015
    Member:
    #159130
    Messages:
    174
    Gender:
    Male
    First Name:
    Brian
    Florida
    Vehicle:
    '15 DoubleCab SR5
  14. Jan 26, 2016 at 10:33 AM
    #214
    Livinserene

    Livinserene Thejerkyguy

    Joined:
    Nov 15, 2013
    Member:
    #116646
    Messages:
    875
    Gender:
    Male
    First Name:
    Kevin
    Nova Scotia
    Vehicle:
    18 sport mt Ovtuned
    OV TUNED MOFOS
  15. Jan 26, 2016 at 8:14 PM
    #215
    steelhd

    steelhd Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118650
    Messages:
    3,060
    Gender:
    Male
    Eastern WA
    Vehicle:
    2011 DCSB TRD OR
    Really nicely done Crom. Glad I finally found this thread.

    Crom [OP] likes this.
  16. Mar 7, 2016 at 9:01 AM
    #216
    TheTacoAdventurer

    TheTacoAdventurer Well-Known Member

    Joined:
    Sep 3, 2013
    Member:
    #111758
    Messages:
    667
    Gender:
    Male
    Boston, MA
    Vehicle:
    2018 DCSB TRD OR
    Forever modding!
    So I have a question about this mod...

    I just did this mod over the weekend. I wired things a little differently but same general idea. The only issues is my reverse lights come on and the truck seems to think its in reverse. Any thoughts?

  17. Mar 7, 2016 at 9:06 AM
    #217
    SpruceTaco

    SpruceTaco トヨタ

    Joined:
    May 18, 2012
    Member:
    #79082
    Messages:
    12,291
    Gender:
    Male
    First Name:
    Mike
    Clearwater, FL
    Vehicle:
    2012 Spruce Mica TRD Sport
    Tinted windows 5%, sill protectors, TRD stubby antenna, weathertech in channel rain guards, wheathertech floor mats, BHLM, Truxedo low pro qt, DTRL deleted, anytime backup camera, bed storage locks, fog lights on anytime, tailgate theft deterrent, painted engine cover, relocated horns, l.e.d bed lights, l.e.d engine bay lights, l.e.d lights above cup holders, in glove box, rear cup holder, in console storage & cubby next to steering wheel, Grillcraft grill, 17x8.5 SCS Ray10's, 35x12.50 Nitto Ridge Grapplers, Borla cat back exhaust, map & dome l.e.d's, TEQ badge on grill, Redline tuning hood struts, Maxtrac spindles, SPC Light Racing UCA's, Bilstein 5100's front set at 0 with OME 885's & extended length Bilstein 5100's in the rear, All Pro expedition leaf springs & 2" blocks, extended brake lines front & rear, 1.5" 4crawler drive shaft spacer, Beefed Taco carrier bearing drop, 1.25" spidertrax wheel spacers on rear, Kenwood DNX570 touchscreen with navigation, 30" led light bar in lower bumper opening, 1/4" top plate spacer drivers side, Bullet Proof Fabricating skid plate, Cali Raised ditch lights & Rago f Fabrication brackets, Amp Research power steps, smoked l.e.d 3rd brake light, Wet Okole seat covers, under cab LED'S tied to dome circuit
    Try wiring it just like this thread says? I did mine exactly like it says & have no problems.

  18. Mar 7, 2016 at 9:28 AM
    #218
    Fredfifty

    Fredfifty Back in a Mini

    Joined:
    Jan 21, 2015
    Member:
    #146926
    Messages:
    817
    Gender:
    Male
    First Name:
    Dave
    Big Island - SF Bay Area
    Vehicle:
    99 5 Lug V6
    DJM 3/4 DJM UCA BJ FLIP CALMAX SHOCKS POLYURETHANE SWAY BAR BUSHINGS POLYURETHANE UCA BUMPSTOPS ROLLED FENDERS DJM 4 INCH ANGLED BLOCKS (STEEL) MINI C-NOTCH FROM ROHDE FABRICATIONS MJBTACO LOWPRO BUMPSTOPS CALMAX SHOCKS ROLLED FENDERS
    waitng for a vid pictorial as well but nice write ups

  19. Mar 8, 2016 at 9:55 AM
    #219
    TheTacoAdventurer

    TheTacoAdventurer Well-Known Member

    Joined:
    Sep 3, 2013
    Member:
    #111758
    Messages:
    667
    Gender:
    Male
    Boston, MA
    Vehicle:
    2018 DCSB TRD OR
    Forever modding!
    I found the problem. I was clearly tired when I did the wiring. So I have a different switch and Im trying to figure out how to wire it correctly. I have a OTRATTW Contra IV Rear Camera switch. Only has +12 coming out. Suggestions on how to tweak the install?

  20. Mar 8, 2016 at 12:46 PM
    #220
    nevenelestate

    nevenelestate Well-Known Member

    Joined:
    Dec 10, 2011
    Member:
    #68497
    Messages:
    201
    Gender:
    Male
    First Name:
    Andrew
    Southern MD
    Vehicle:
    12 Tacoma V6 4X4 SR5
    Stock
    Do you have any pictures of the back of the switch? There is no Contura IV listed on their website, but I am guessing that like most illuminated switch, it has three prongs, two are your through contacts and the third is your power for the LED illumination

    If this switch is like this diagram http://www.otrattw.com/J66a.pdf then I don't think it will work for this application. That is a simple on-off switch. That means that only one position will give you the signal throughout. You need an On-On switch, so that you either have the standard signal, or the forced 12vdc signal.
