2nd gen, Anytime-On Rear View Camera with Switch on Dash mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Sep 25, 2011.

  1. May 26, 2017 at 3:17 PM
    #281
    danknutson

    danknutson Digger

    Joined:
    Nov 21, 2010
    Member:
    #46514
    Messages:
    13
    Gender:
    Male
    First Name:
    Digger
    Saskatchewan
    Vehicle:
    06SR5
    3" lift

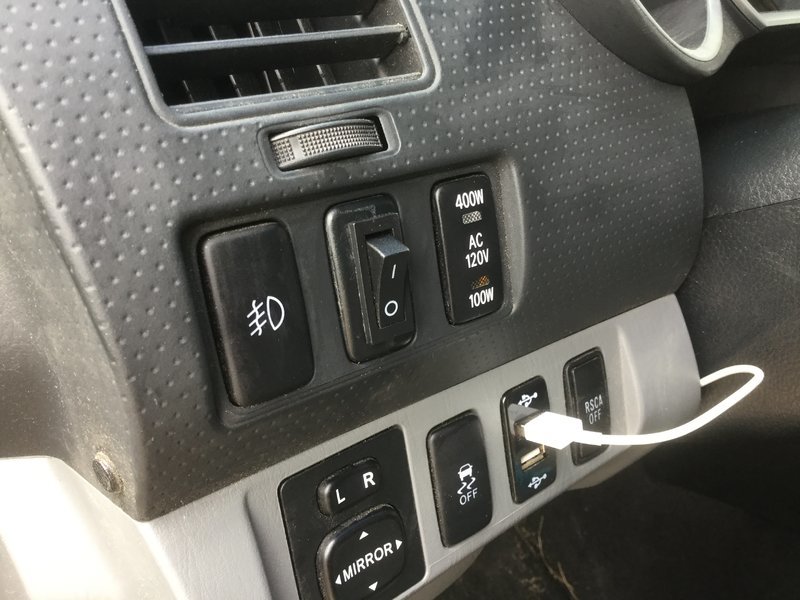

    IMG_1363.jpg I was able to fit a switch into the existing blank using a drill and file, followed the wiring detail everything works great, BTW this is a 2013 TRD model

  2. May 26, 2017 at 3:24 PM
    #282
    raskal

    raskal Well-Known Member

    Joined:
    Oct 28, 2008
    Member:
    #10341
    Messages:
    482
    Gender:
    Male
    B.C.
    Vehicle:
    2013 DCLB TRD MGM
    Do you use the rearview mirror or the radio display for your always on?

  3. May 26, 2017 at 3:33 PM
    #283
    danknutson

    danknutson Digger

    Joined:
    Nov 21, 2010
    Member:
    #46514
    Messages:
    13
    Gender:
    Male
    First Name:
    Digger
    Saskatchewan
    Vehicle:
    06SR5
    3" lift
    I am just using mirror display I'm not going to mess with my Pioneer deck it's too fickle

  4. Nov 21, 2017 at 8:41 AM
    #284
    Pdmarty

    Pdmarty Member

    Joined:
    Apr 13, 2016
    Member:
    #184153
    Messages:
    11
    Gender:
    Male
    First Name:
    Patrick
    Vehicle:
    2015 SR5 Long Bed,Double Cab
    KatSkinz two tone leather with heated front seats.
    Very interested but don’t have the wiring knowledge. What I do have are a very particular set of skills. Skills I have acquired over a very long career. Skills that make me able to pay for people like you. Anyone in the DFW area ever do this mod? Willing to pay $100 for your labor to do this to my 2015 DCLB ?

  5. Nov 21, 2017 at 8:44 AM
    #285
    blksandpearl2010

    blksandpearl2010 Yeah, yeah...

    Joined:
    Aug 23, 2014
    Member:
    #136806
    Messages:
    484
    Gender:
    Male
    NC
    Vehicle:
    2010 LB trdSport
    old man emu, nitrocharger shocks, darkar leaf springs, bbs wheels, access tonneau cover, laufen AT 275/65/18,

    Good luck.. :cool:

  6. Nov 21, 2017 at 8:45 AM
    #286
    danknutson

    danknutson Digger

    Joined:
    Nov 21, 2010
    Member:
    #46514
    Messages:
    13
    Gender:
    Male
    First Name:
    Digger
    Saskatchewan
    Vehicle:
    06SR5
    3" lift
    I don’t know where DFW is so I’m assuming I’m no where nearby

  7. Nov 21, 2017 at 11:05 AM
    #287
    ACEkraut

    ACEkraut Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road

    Dallas-Fort Worth ?????

  8. Nov 21, 2017 at 11:09 AM
    #288
    danknutson

    danknutson Digger

    Joined:
    Nov 21, 2010
    Member:
    #46514
    Messages:
    13
    Gender:
    Male
    First Name:
    Digger
    Saskatchewan
    Vehicle:
    06SR5
    3" lift
    Yup I’m probably 2,600 kms from you

  9. Nov 28, 2017 at 2:41 PM
    #289
    Pdmarty

    Pdmarty Member

    Joined:
    Apr 13, 2016
    Member:
    #184153
    Messages:
    11
    Gender:
    Male
    First Name:
    Patrick
    Vehicle:
    2015 SR5 Long Bed,Double Cab
    KatSkinz two tone leather with heated front seats.
    Yessir DFW metroplex (North Texas).

    OverlAnderson likes this.
  10. Dec 11, 2017 at 10:30 AM
    #290
    winkeldc

    winkeldc Active Member

    Joined:
    Feb 23, 2016
    Member:
    #179134
    Messages:
    35
    Vehicle:
    2014 Reg Cab 4x4
    I have an aftermarket reverse camera and wiring installed into the factory head unit, the basic touchscreen model. The kit came with a factory interface plug for the headunit that has the camera rca, camera ground, and outgoing camera power line. because my truck was not prewired that appropriate slot on the headunit was empty and I installed the interface plug. I then tapped into the reverse lights 12v line under the drivers kick plate and that “trigger wire” from the tap was inserted into another factory plug on the headunit that was already present. In other words, the 12v line gets powered when in reverse and that triggers the headunit To send the 6v power to the camera. The instructions were clear that the 6v camera is powered from the head unit and the 12v power source is only a trigger to tell the headunit to turn on the camera.

    I believe from what I have read that I just need to trick the trigger wire into thinking it has 12v power with a spdt switch and the add a circuit. so in my case, I cut the trigger wire going to the head unit and install that and the fuse tap on t1 or t3, and t2 in my case goes to the head unit to trigger the head unit to operate the camera. Can anyone confirm that I am understanding this correctly? I have seen other threads where this was done on the touchscreen head units for the ‘13-‘15 trucks with the factory wiring and I am somewhat confident the head unit can be tricked because there is no secondary safety measure that won’t allow the camera to operate while moving forward. Just thought I’d ask first rather than after I cause problems.

    Obiwade likes this.
  11. Apr 5, 2018 at 10:23 AM
    #291
    Obiwade

    Obiwade Member

    Joined:
    Aug 30, 2017
    Member:
    #228580
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2010 TRD Off-Road

    Did you end up doing this? It sounds correct about to try this myself.......

  12. Aug 28, 2018 at 2:57 PM
    #292
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things

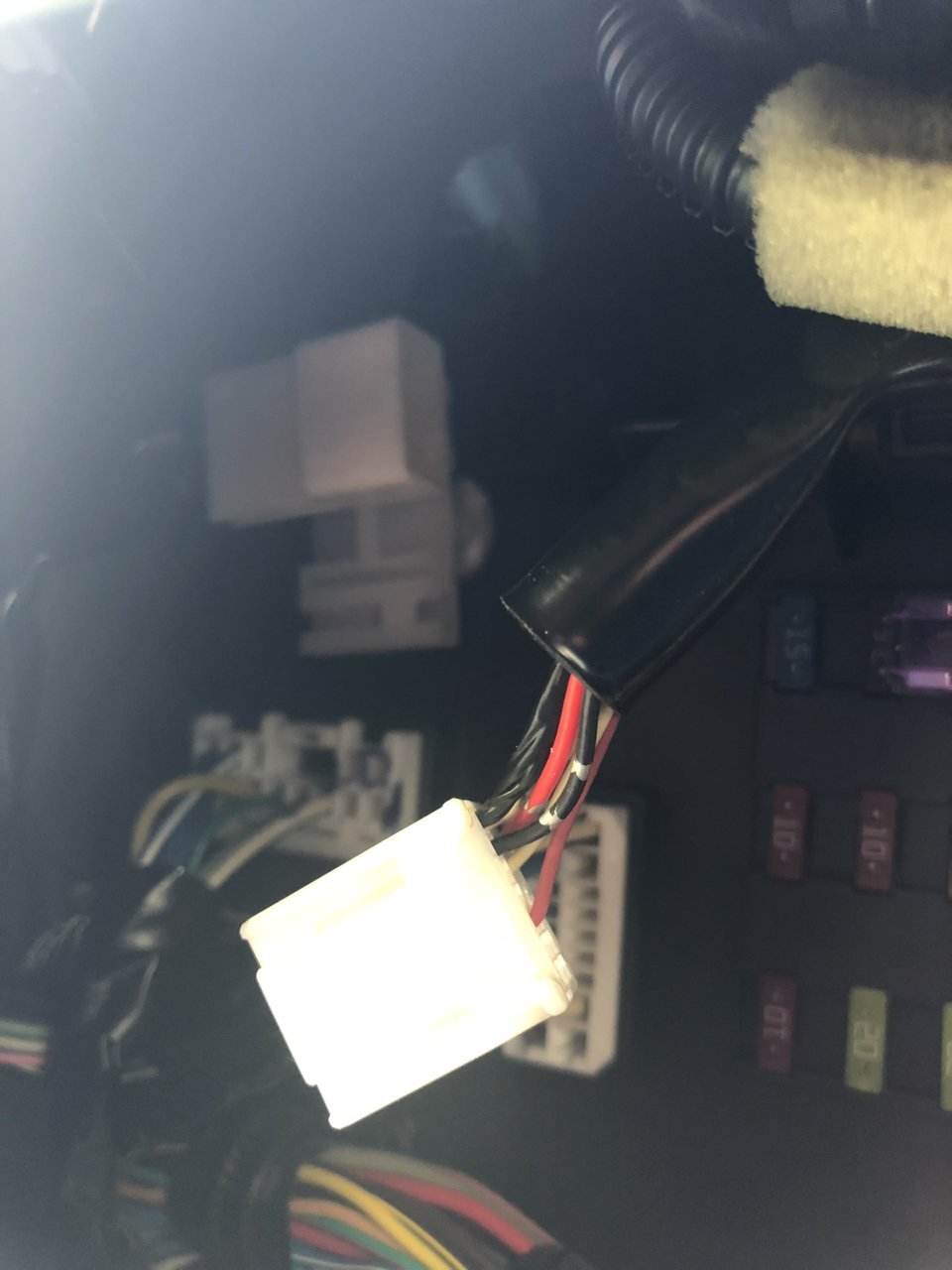

    Is the location on IN1 connector the same for a 2014? I unplugged the connector put the truck in reverse and the cam still works.. im no professional but I don’t think I unplugged the right one

    Last edited: Aug 28, 2018
  13. Aug 28, 2018 at 3:06 PM
    #293
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    I’ll let you know once I get it figured out! I’m near Rockwall.

  14. Sep 6, 2018 at 6:32 AM
    #294
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    you ever figure out the rear cam mod?

  15. Mar 11, 2019 at 5:43 PM
    #295
    Tyson

    Tyson $Mr.T$

    Joined:
    May 28, 2015
    Member:
    #156256
    Messages:
    255
    Gender:
    Male
    First Name:
    Tyson
    Wyoming
    Vehicle:
    15' TRD off road, dbl, 6spd, 4.0L
    All-Pro UCA Stage 4 Icon lift redline hood struts interior dome and map LED lights 2 spot led pods (ditch lights) flush mount rear back up flood pods hood and bed LED lights GPS anytime mod RTMR electrical system (relays fuses etc.) weather tech floor mats anytime fog lights bixenon headlights and fogs ABS off switch anytime rear e-locker 30" OSRAM light bar (in grill) ARB CKMTA12 compressor ARB front locker Rock sliders all-pro Apex coming later: Doug Thorley long tube headers Y pipe Exhaust

    Which wire is your reverse/camera?

  16. Mar 11, 2019 at 7:48 PM
    #296
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
    Go to my build thread link I have a video on how to do this mod there

  17. Mar 13, 2019 at 1:24 PM
    #297
    Tyson

    Tyson $Mr.T$

    Joined:
    May 28, 2015
    Member:
    #156256
    Messages:
    255
    Gender:
    Male
    First Name:
    Tyson
    Wyoming
    Vehicle:
    15' TRD off road, dbl, 6spd, 4.0L
    All-Pro UCA Stage 4 Icon lift redline hood struts interior dome and map LED lights 2 spot led pods (ditch lights) flush mount rear back up flood pods hood and bed LED lights GPS anytime mod RTMR electrical system (relays fuses etc.) weather tech floor mats anytime fog lights bixenon headlights and fogs ABS off switch anytime rear e-locker 30" OSRAM light bar (in grill) ARB CKMTA12 compressor ARB front locker Rock sliders all-pro Apex coming later: Doug Thorley long tube headers Y pipe Exhaust
    Please post the link

  18. Mar 13, 2019 at 3:15 PM
    #298
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
  19. Mar 13, 2019 at 3:20 PM
    #299
    ACEkraut

    ACEkraut Well-Known Member

    Joined:
    May 11, 2014
    Member:
    #129627
    Messages:
    3,350
    Gender:
    Male
    First Name:
    Aaron
    Topsham, Maine
    Vehicle:
    2014 DCSB TRD Off Road
    OverlAnderson likes this.
  20. Mar 13, 2019 at 3:21 PM
    #300
    OverlAnderson

    OverlAnderson A dude playing a dude disguised as another dude

    Joined:
    Sep 23, 2017
    Member:
    #230862
    Messages:
    1,873
    Gender:
    Male
    First Name:
    Anderson
    Farmersville, Tx
    Vehicle:
    14 TRDS DCSB 4X4
    stuff and things
