2nd gen, Anytime-On Rear View Camera with Switch on Dash mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Crom, Sep 25, 2011.

  1. Sep 7, 2012 at 7:42 AM
    #101
    apdale

    apdale Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81587
    Messages:
    111
    Gender:
    Male
    First Name:
    Andrew
    Lexington, KY
    Vehicle:
    2012 Prerunner SR5
    Bed Mat, TRD Bilsteins, Dog shelf, 20% window tint, ImMrYo Rear view mirror bracket, Bestop Supertop, Color matched grille. Fog Light anytime mod, aFe Pro Dry S, WT Floor Liners, Redline hood struts
    I couldn't find one myself but didn't look that hard for one. Its pretty easy to know that camera is on, you'll see it in the mirror. If you happen to leave it on when you shut off the truck, its not a big deal because it goes off with the ignition depending on which fuse you tap into.

    Also, it looks like the one posted by Brianstemm below is a lighted switch, maybe he'll chime in with where he got his.

  2. Sep 7, 2012 at 9:43 AM
    #102
    ibjames

    ibjames Well-Known Member

    Joined:
    Jun 1, 2012
    Member:
    #79886
    Messages:
    97
    Gender:
    Male
    is the backup camera independent of the radio? If you replace the radio does the backup camera work the same?

  3. Sep 7, 2012 at 10:23 AM
    #103
    apdale

    apdale Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81587
    Messages:
    111
    Gender:
    Male
    First Name:
    Andrew
    Lexington, KY
    Vehicle:
    2012 Prerunner SR5
    Bed Mat, TRD Bilsteins, Dog shelf, 20% window tint, ImMrYo Rear view mirror bracket, Bestop Supertop, Color matched grille. Fog Light anytime mod, aFe Pro Dry S, WT Floor Liners, Redline hood struts
    Yeah, as far as I know its totally independent. I believe the Entune models show the image on the screen but for those of us without Entune, I wouldn't see any reason why it would connect to the radio. The camera should still work the same if you replace the radio.

  4. Sep 7, 2012 at 11:51 AM
    #104
    tgw13

    tgw13 Member

    Joined:
    Jul 19, 2012
    Member:
    #83011
    Messages:
    22
    Gender:
    Male
    ATX
    Vehicle:
    '10 4X4 DC TRD
    Thanks. That's a good point. I can't find anything else local so will probably end up at RS for a regular toggle. I did, however, find a great switch if someone does want to have it lit: http://www.oreillyauto.com/site/c/d...1_-1&keyword=toggle+switch&pt=N0947&ppt=C0335

    Looks like you could wire it for different options of lighted or not depending on the switch position...

  5. Sep 8, 2012 at 10:21 AM
    #105
    tgw13

    tgw13 Member

    Joined:
    Jul 19, 2012
    Member:
    #83011
    Messages:
    22
    Gender:
    Male
    ATX
    Vehicle:
    '10 4X4 DC TRD
    [​IMG][​IMG]

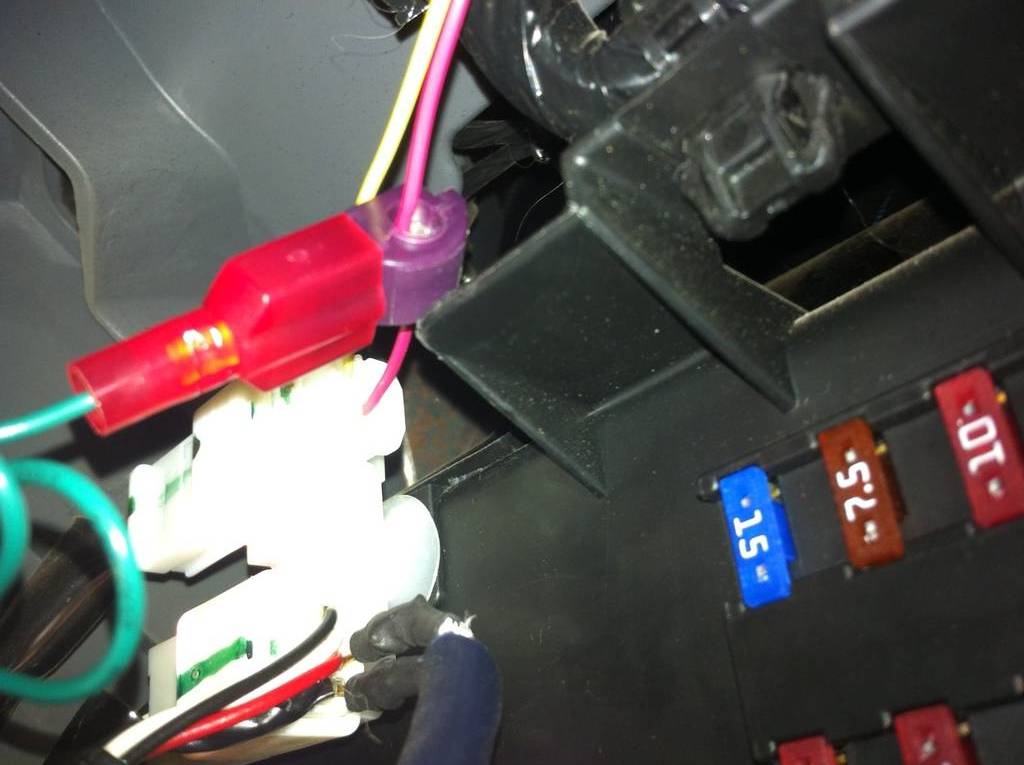

    One more question as i am doing this now. As you can see in the pict, I have already tapped the reverse signal line for my Pioneer HU. So should I cut and splice on the IN1 side of my tap or the other side? Wondering if my HU will take over the screen and always have the camera image up if I am switched to always-on like it does when I go into reverse?

    Thanks for any help!

  6. Sep 8, 2012 at 1:51 PM
    #106
    MADtaco09

    MADtaco09 Hawaii, Fuck Yeah!

    Joined:
    Oct 22, 2011
    Member:
    #65643
    Messages:
    271
    Gender:
    Male
    First Name:
    Chris
    Pahoa, Big Island.
    Vehicle:
    Barcelona Red TRD Sports
    6" Basic Fabtech Lift Kit. 2012 Off Road Tacoma Struts (Less than 100 miles). Cab Mount Chop. K&N CAI. Borla Exhaust. BHLM w/Custom Yellow Blinker Lens & Yellow Reflector. Black LED Altezza Tail lights. Black LED Bermuda 3rd Brake Light. Yellow Tinted Fogs w/ HID 35w 3000K. Nokya Hyper Yellow DTRL Bulb. Anytime Running Fog Light Mod. DTRL Switch Mod (Stealth Mode). Hyper White LED Dome & MAP Lights. Nokya Hyper Yellow Parking Lights. 20% Tinted Windows. Viper Alarm with Remote start. Blacked Out Valance. Blacked Out Badges. Blacked Out Radiator. Relocated Horns. OEM Roof Racks. Wet Okole Seat covers. SATOSHI Grille w/ FJ 60 TOYOTA Emblem Color Matched. TRD License Plate Frame. Sleepy Eyelids Color Matched. 13" EuroStyle Antenna. Bi-xenon Morimoto Mini Stage III Kit (D2S) Retrofit w/ Morimoto 3Five 5000K Bulbs. SS Extended Brake Lines. Seat Belt Chime OFF. Wish List: N-Fab Steps. DTLT Headers. 4.88 Gears. Alcan Leaf Springs. One Piece Drive Shaft.
    subbed for later!

  7. Sep 9, 2012 at 4:51 AM
    #107
    apdale

    apdale Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81587
    Messages:
    111
    Gender:
    Male
    First Name:
    Andrew
    Lexington, KY
    Vehicle:
    2012 Prerunner SR5
    Bed Mat, TRD Bilsteins, Dog shelf, 20% window tint, ImMrYo Rear view mirror bracket, Bestop Supertop, Color matched grille. Fog Light anytime mod, aFe Pro Dry S, WT Floor Liners, Redline hood struts
    What exactly are you trying to do? From the sound of it you are trying to perform this mod and hook up your Pioneer HU. I would try to do one or the other first, then perform the additional mod rather than attempting both at once.

    First, it looks like you just tapped into the power connection for the video feed, so whatever you connect to that tap will go from ground to 12V whenever the camera is turned on(without the mod, whenever you go into reverse). If you want something to attach to your HU you will need to find the actual video signal and feed that into your HU, you might also need to use that 12V signal attached to a relay, to switch on and off the video feed to your HU.

    If you want to use this tap for something and also have it switch with the camera anytime mod I think you would need to tap the side that isn't towards IN1.

    Hopefully this makes sense and works out for you. Good luck!

  8. Sep 9, 2012 at 3:59 PM
    #108
    tgw13

    tgw13 Member

    Joined:
    Jul 19, 2012
    Member:
    #83011
    Messages:
    22
    Gender:
    Male
    ATX
    Vehicle:
    '10 4X4 DC TRD

    I tried it on both sides and ended up with my hu tap in between the splice and the IN1. I installed the HU a few weeks ago and the tap you see is the hu's reverse sensor, so it can display the camera full screen when backing.
    This mod also allows me to use the towing view feature of the Pioneer, which is nice.

    Thanks for the help and suggestions.

  9. Sep 9, 2012 at 6:19 PM
    #109
    apdale

    apdale Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81587
    Messages:
    111
    Gender:
    Male
    First Name:
    Andrew
    Lexington, KY
    Vehicle:
    2012 Prerunner SR5
    Bed Mat, TRD Bilsteins, Dog shelf, 20% window tint, ImMrYo Rear view mirror bracket, Bestop Supertop, Color matched grille. Fog Light anytime mod, aFe Pro Dry S, WT Floor Liners, Redline hood struts
    Awesome, glad you got it working!

  10. Sep 24, 2012 at 8:54 AM
    #110
    RDtres

    RDtres Well-Known Member

    Joined:
    May 20, 2012
    Member:
    #79224
    Messages:
    176
    Gender:
    Male
    Albuquerque
    Vehicle:
    2012 Tacoma DC LB
    So I was successful in doing this mod on my 12 a while back but yesterday when I was doing it on my brothers 09 taco I came across some problems as our fuse boxes arent the same. On my truck I tapped into the backup lights fuse slot with an add a fuse but my brothers doesnt have this slot. What fuse are you guys tapping into? I've tried a few and am not having any luck. I plugged the Add a fuse into the Ignt 2 slot and now the check engine light turns on. Are there any constant power wires under the dash that I can tap into? I'm using a SPDT Scion switch and looking for juice.
    Thx,

  11. Sep 24, 2012 at 9:01 AM
    #111
    Nixinus

    Nixinus Well-Known Member

    Joined:
    Jan 11, 2011
    Member:
    #49100
    Messages:
    1,509
    Gender:
    Male
    Oregon
    Vehicle:
    2010 4x4
    Subscribed. Nice job.

  12. Sep 24, 2012 at 3:19 PM
    #112
    toyoda

    toyoda Active Member

    Joined:
    Nov 4, 2010
    Member:
    #45717
    Messages:
    44
    Gender:
    Male
    Vehicle:
    2010 SR5
    The way I originally did this was just by adding a switch that introduced power to the red wire when it was switched. Not just the end that powers the camera. All was good for the rest of the afternoon. Now, this morning, without even turning the camera on, my check engine light and VSC light have come on, and I don't have any skid control.

    Uh oh.

  13. Sep 25, 2012 at 3:16 AM
    #113
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    611
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    I used the "ACC" fuse, third from the right, top row. Not sure why you're having those problems... Might be something messed up with your switch or related wiring? :confused:

  14. Sep 25, 2012 at 4:46 PM
    #114
    RDtres

    RDtres Well-Known Member

    Joined:
    May 20, 2012
    Member:
    #79224
    Messages:
    176
    Gender:
    Male
    Albuquerque
    Vehicle:
    2012 Tacoma DC LB
    I think we have the same problem. Im going to play with the switch tonight as its obviously tripping something on the guages. Im hoping its a simple wiring mis step.

    Just to be clear ive cut the red wire on the upper harness. Back camera in reverse is cut which means success on the correct wire. I solder the left end camera wire to my toyota factory toggle the right end also to the toggle and the add a fuse with two fuses off the acc slot in the fuse pannel is going to the third prong on my toggle. I just need to figure out power to camera wire not 12v with my toggle.

  15. Sep 25, 2012 at 5:12 PM
    #115
    !TacoTaco!

    !TacoTaco! TACO LOVER!

    Joined:
    Feb 9, 2012
    Member:
    #72517
    Messages:
    869
    Gender:
    Male
    First Name:
    Felix
    PSL, FL
    Vehicle:
    09 Prerunner TRD SR5 Sport
    Removed coal filter, Also installed AFE air filter. Roof rack with custom diamond plate air diverter.
    Subd. For later mod.

  16. Nov 3, 2012 at 4:36 PM
    #116
    JirafaBo

    JirafaBo Well-Known Member

    Joined:
    Jul 24, 2012
    Member:
    #83348
    Messages:
    148
    Gender:
    Male
    First Name:
    Bo
    Orlando
    Vehicle:
    '12 Black Access Cab TRD Sport
    subbing, took 5 searches to find this damn thread

  17. Nov 3, 2012 at 5:04 PM
    #117
    Benson X

    Benson X My build thread sucks...

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    5,561
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    If you don't draw blood, you're doing it wrong!
    I noticed a weird "glitch" after doing the 'Anytime-On' mod. Maybe one of you can test this to see if you get the same results.

    With the truck in Drive, switch the camera ON. It seems to have a timer and will automatically turn off after about 5 minutes (I haven't timed it yet). Once it turns OFF, you can flip the switch Off/On to get it back On. However, if it turns itself OFF and you put the truck Reverse, it will not come back on, even after toggling the switch. It's like it gets canceled out. I have to first put it Park and then turn the camera OFF before I can get it back.

    Just a weird gotcha, but it can be annoying on the trails.

    Has anyone else noticed this?

  18. Nov 3, 2012 at 9:01 PM
    #118
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    The turning off after 5 minutes had been known for a long time. It has been attributed to a screensaver function.

  19. Nov 3, 2012 at 9:07 PM
    #119
    khx73

    khx73 Well-Known Member

    Joined:
    Sep 22, 2011
    Member:
    #63950
    Messages:
    611
    Gender:
    Male
    Saint John NB, CAN
    Vehicle:
    11 MGM DCLB TRD Sport +leather
    Rear camera anytime switch, 4x4 Illuminated Switch (from rcbs204) , rear view mirror lift bracket (from ImMrYo), 75 cent tailgate anti-theft. Technically not mods but give me a break I'm trying to fill space here... OEM Leather pkg, keyless unlock & ACC chime silence, BakFlip G2, Ultra Gauge EM, WeatherTech floor mats, OEM roof rack
    Yep.. it was mentioned somewhere before in this thread I think.
    It seems there is a time-out on the mirror's LCD monitor. It could be over heat protection for the LCD display, or protection from draining the battery if somehow it got left on without the engine running... not really sure.
    It's likely that little screen isn't meant to run continuously, so there probably isn't much heat sink capability built in.
    Turning the circuit off for a second resets it. It will time out regardless of where it's getting its power from - either the reverse-gear switch, or manually through your toggle switch.
    So, when you put it in reverse, then you toggled the switch, you never actually cut power to it.. Next time, just flip your toggle switch off, wait a sec, then flip it back on.

  20. Nov 3, 2012 at 9:28 PM
    #120
    rubenc87

    rubenc87 Cobra

    Joined:
    Feb 2, 2009
    Member:
    #13214
    Messages:
    1,801
    Gender:
    Male
    Texas
    Vehicle:
    2013 Tacoma DCSB 4x4
    DTRL,HID's, Redline Elite Hood Struts,IVD Coilovers and Rear Shocks W/ Ext. Res.,N-FAB Light Bar W/ KC Titanium Lights, Alcan AAL,Wet Okole's, URD T.C.A.I. M/T Classic Lock's BFG AT, Chrome TC UCA'S,TRD Exhaust, Bed Mat,Painted Roof Rack,Access LE,Weathertech's F&R,P&L Lock
    My 2013 has the Entune but the camera image isn't in the H/U, it's on the wider rear view mirror with the alignment aid.
