2nd gen dual battery install

Discussion in '2nd Gen. Tacomas' started by badtoytrd, Jul 30, 2012.

  1. Jul 30, 2012 at 11:35 AM
    #1
    badtoytrd

    badtoytrd [OP] Member

    Joined:
    Jul 5, 2012
    Member:
    #82016
    Messages:
    24
    Gender:
    Male
    First Name:
    Brock
    Seattle
    Well it seems I am following Barlowrs on his ideas so thanks to him but here is my Columbia Overland and National Luna with aux fuse block install.
    I had installed this kit about a year ago but I was never happy with how the wiring was organized or where the aux fuse block was installed so I set out to fix it. I ordered so braided sleeving and heat shrink, went to West Marine for the cables and connectors and had a aluminum plate made up for the fuse block. I ended up having to splice the cable going from the engine to the battery so it would reach and look clean. Took my time and it turned out even better than I thought.

    Image 2.jpg
    Image 3.jpg

  2. Jul 30, 2012 at 11:50 AM
    #2
    SalmonTaco

    SalmonTaco Tasty fish in a tortilla

    Joined:
    Mar 22, 2011
    Member:
    #53488
    Messages:
    1,940
    Gender:
    Male
    First Name:
    Andrew
    Seattle
    Vehicle:
    '08 quatre roues motrices
    Brute Force bumpers, 5100s/885s, SnugTop MVP Shell, USA Spec iPod adapter, WeatherTechs, Tinted Fronts, Mud Flap chop, Tuffy Bed Box, Console Vault, Fogs anytime, ImMrYo mirror bracket, Wet Okoles, aFe Pro Dry S, PowerStop Z36 pads & drilled/slotted rotors, more shit I can't remember
    Clean install.

    Welcome to TW, neighbor.

  3. Jul 30, 2012 at 12:11 PM
    #3
    03f5sp

    03f5sp Well-Known Member

    Joined:
    May 5, 2012
    Member:
    #78254
    Messages:
    639
    Gender:
    Male
    First Name:
    Bill
    Wisconsin
    Vehicle:
    2011 TRD Off Road dcsb
    Front 5100s @ 2.5, 1.5 AAL, 265/75-16 all terrains
    Why would you need a second battery?

  4. Jul 30, 2012 at 12:13 PM
    #4
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,266
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    More capacity for extra stuff like a winch, lights or a very large sound system.

  5. Jul 30, 2012 at 12:14 PM
    #5
    ToyComa92

    ToyComa92 Write your love, Then your anger.

    Joined:
    Sep 9, 2011
    Member:
    #63168
    Messages:
    6,271
    Gender:
    Male
    First Name:
    Jon
    Conifer, Colorado
    Vehicle:
    2006 Tacoma TRD sport Debadged
    Heated katzskin leather, Black TRD sport wheels, Bilstein 5100s, Toytec 2" Springs, Deaver 2" AAL, Pioneer AVH4400BH, Ultragauge, Weathertechs front/rear,
    Yah what is the wattage need for? I mean its cool and id be looking at doing it if i ended up installing the speakers and amps and subwoofers i wanted.

  6. Jul 30, 2012 at 12:54 PM
    #6
    badtoytrd

    badtoytrd [OP] Member

    Joined:
    Jul 5, 2012
    Member:
    #82016
    Messages:
    24
    Gender:
    Male
    First Name:
    Brock
    Seattle
    Second battery powers ARB frig, 12v to bed, gps, and any future 12v needs. Also a bit of piece of mind can use second battery to jumpstart primary battery in the event that it goes dead.

  7. Jul 30, 2012 at 12:54 PM
    #7
    badtoytrd

    badtoytrd [OP] Member

    Joined:
    Jul 5, 2012
    Member:
    #82016
    Messages:
    24
    Gender:
    Male
    First Name:
    Brock
    Seattle
    Thank you for the welcome.

  8. Jul 31, 2012 at 9:16 AM
    #8
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,082
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    A.R.E. MX Shell & Yakima Rack, Stubbs HD-SKO Rock Sliders, JBA UCA's & OME 885 Coils and nitrochargers, Flat BajaRack, Kenwood VHF/UHF Radio, Aux Battery, Solar Panels, L-Track everywhere, Goodyear Duratracs, Four-Leaf pack, Secured tailgate, 7-pin relocation, Inverter 400W all time, In-cab 110v outlets, Rear-seat 12v outlets., Steering shaft TSB, anytime fogs, DTRL toggle switch, aux turn signals, Diff Breather, ImMrYo mirror bracket, ABS Kill switch, (2) Kid Car Seats, and a Glock 23 with night sights.
    Well done. :)

  9. Jul 31, 2012 at 9:36 AM
    #9
    Smoke2

    Smoke2 Well-Known Member

    Joined:
    May 23, 2012
    Member:
    #79379
    Messages:
    71
    Gender:
    Male
    Tacoma
    Vehicle:
    07 DC 4X4 LB
    Rear TSB, Firestone Air bags
    Great Job!
    I should put a second battery in with an isolator.

  10. Jul 31, 2012 at 10:54 AM
    #10
    deeznutz

    deeznutz Well-Known Member

    Joined:
    Aug 3, 2009
    Member:
    #20585
    Messages:
    211
    Gender:
    Male
    Seattle, WA
    Vehicle:
    09 SR5 DC LB 4x4
    That's awesome! Whoa, you're in the Seattle area too!! Hmmm, I've been wanting to do a dual battery setup but was reluctant since I wasn't too familiar on the wiring. Wanna help? :p

  11. Jul 31, 2012 at 11:32 AM
    #11
    badtoytrd

    badtoytrd [OP] Member

    Joined:
    Jul 5, 2012
    Member:
    #82016
    Messages:
    24
    Gender:
    Male
    First Name:
    Brock
    Seattle
    Sure.

  12. Aug 2, 2012 at 9:02 PM
    #12
    badtoytrd

    badtoytrd [OP] Member

    Joined:
    Jul 5, 2012
    Member:
    #82016
    Messages:
    24
    Gender:
    Male
    First Name:
    Brock
    Seattle
    I had wanted to do full build but finally got around to posting it. Had alot of questions so I thought I would post parts list and tolls needed.

    Parts needed

    -Batteries
    Odyssey PC1400 Amt needed: 2

    -Columbia Overland dual battery tray
    http://www.columbiaoverland.com/product/toyota-tacoma-2nd-generation-2005-current-dual-battery-tray

    -Custom made tray for aux fuse block

    -Hardware for aux fuse block plate
    M8-1.25, flat washers, and lockwashers for attaching plate to fender nutserts
    1/4 x 20 allthread, nuts, locknut, flat washers, and lock washers to support end of plate

    -National Luna dual battery kit
    http://www.sierraexpeditions.com/index.php?l=product_detail&p=543

    -Military style battery connectors/terminals
    http://www.sierraexpeditions.com/index.php?l=product_list&c=753

    -Blue Sea aux fuse block
    http://www.sierraexpeditions.com/index.php?l=product_detail&p=550

    -Blue Sea circuit breaker
    http://www.sierraexpeditions.com/index.php?l=product_detail&p=185

    -Cables
    http://www.westmarine.com/webapp/wc...&subdeptNum=50560&classNum=50562#.UBm8zELsIdI

    Red 2 AWG battery cable P/N: 233718 Amt needed: 6’
    Black 2 AWG battery cable P/N: 233726 Amt needed: 6’
    Red 4 AWG battery cable P/N: 179523 Amt needed: 3’
    Black 4 AWG battery cable P/N: 214551 Amt needed: 3’

    -Connectors/Lugs
    http://www.westmarine.com/webapp/wc...&subdeptNum=50566&classNum=50568#.UBn6QELsIdJ

    2AWG heavy duty butt connector P/N: 104259
    2AWG heavy duty lug 3/8” stud P/N: 214163
    2AWG heavy duty lug 5/16” stud P/N: 291146
    2AWG heavy duty lug 1/4” stud P/N: 104309
    4AWG heavy duty lug 3/8” stud P/N: 214254
    4AWG heavy duty lug 5/16” stud P/N: 214247
    4AWG heavy duty lug 1/4” stud P/N: 385799

    -Braided Sleeving
    http://www.buyheatshrink.com/braidedsleeving/pet-braided-sleeving.htm

    Red 3/8” PET braided sleeving P/N: BS0375 Ordered 100’ roll
    Black 3/8” PET braided sleeving P/N: BS0375 Ordered 100’ roll

    -Heat Shrink
    http://www.buyheatshrink.com/heatshrinktubing/3-1-heavy-wall-polyolefin.htm#B

    .4 Red 3:1 heavy wall adhesive lined heatshrink Amt needed: 4’ piece
    .4 Black 3:1 heavy wall adhesive lined heatshrink Amt needed: 4’ piece


    Tools Needed

    -Heat gun

    -Lug/terminal crimper
    http://www.harborfreight.com/hydraulic-wire-crimping-tool-66150.html

    -Lighter/torch/hot knife to cut braided sleeving

    -Assorted screwdrivers and wrenches

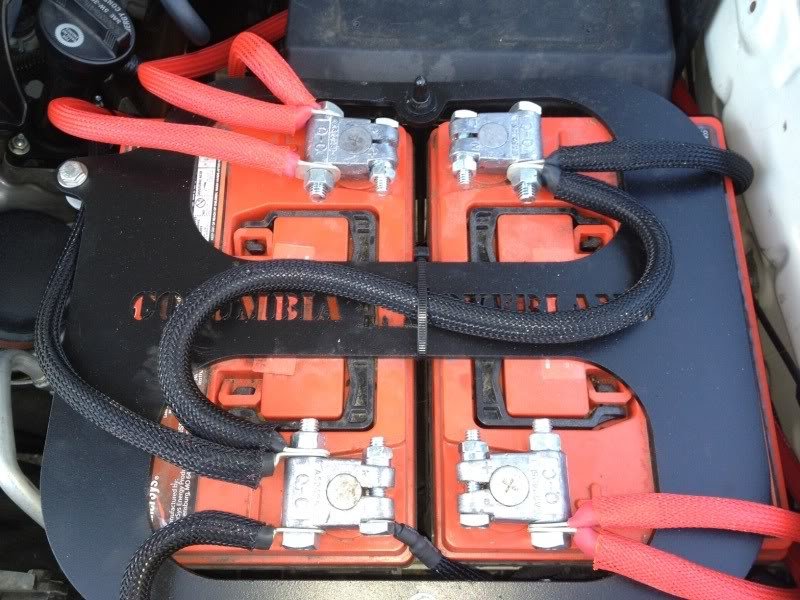

    1. Mounted both batteries and Columbia Overland dual battery tray.
    [​IMG]

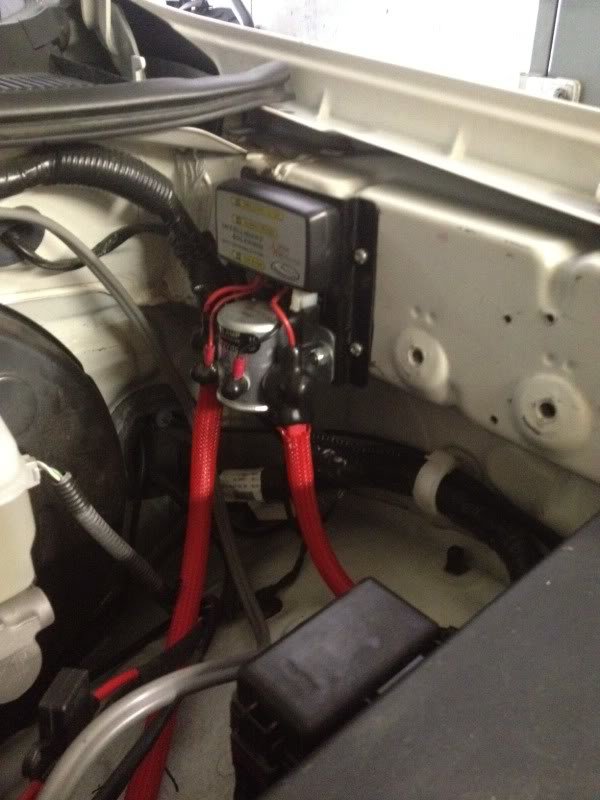

    2. Mounted dual battery solenoid.
    [​IMG]

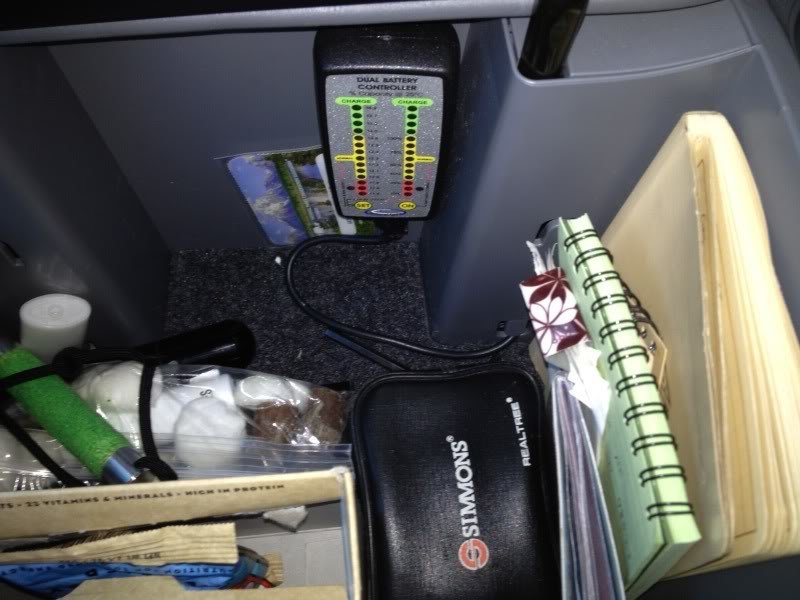

    3. Ran controller cable beneath dash and along center console.
    [​IMG]

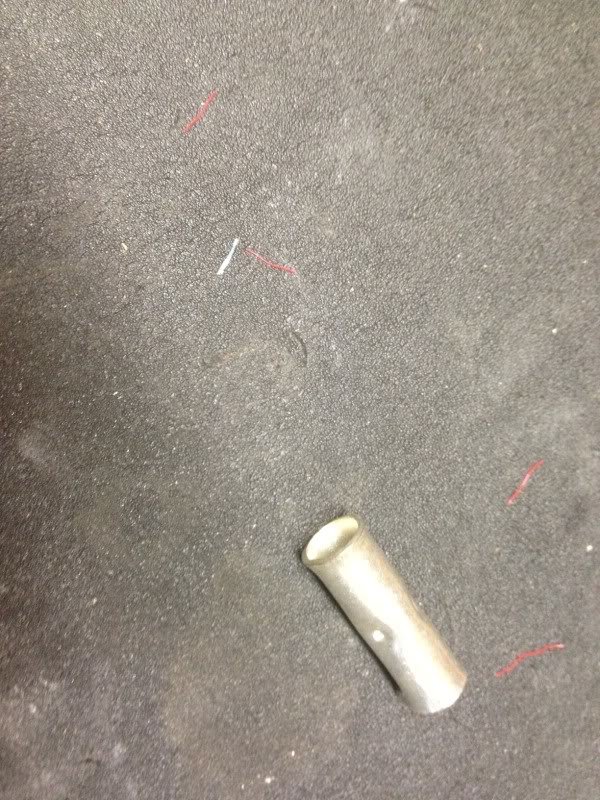

    4. Spliced engine harness cable that runs to primary battery using 2AWG butt splice then covered with heat shrink for protection.
    [​IMG]

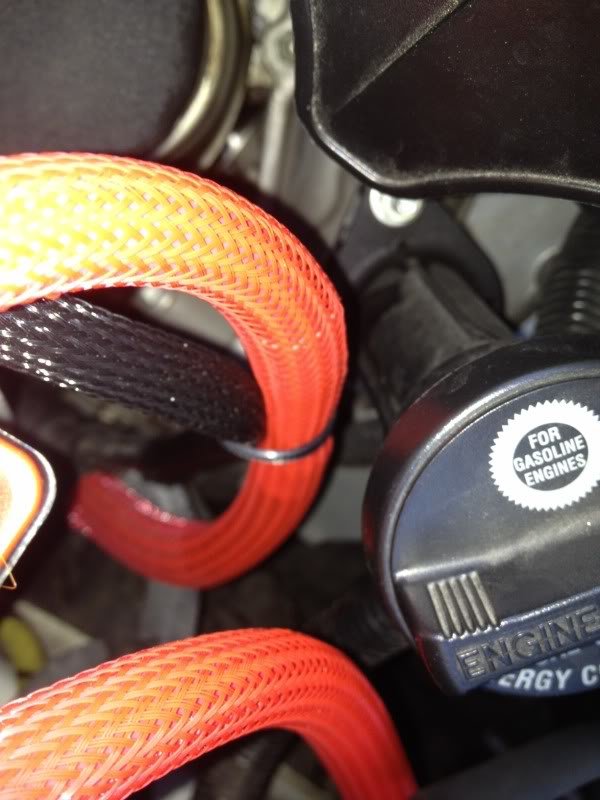

    Where I spliced positive engine connection to primary battery.
    [​IMG]

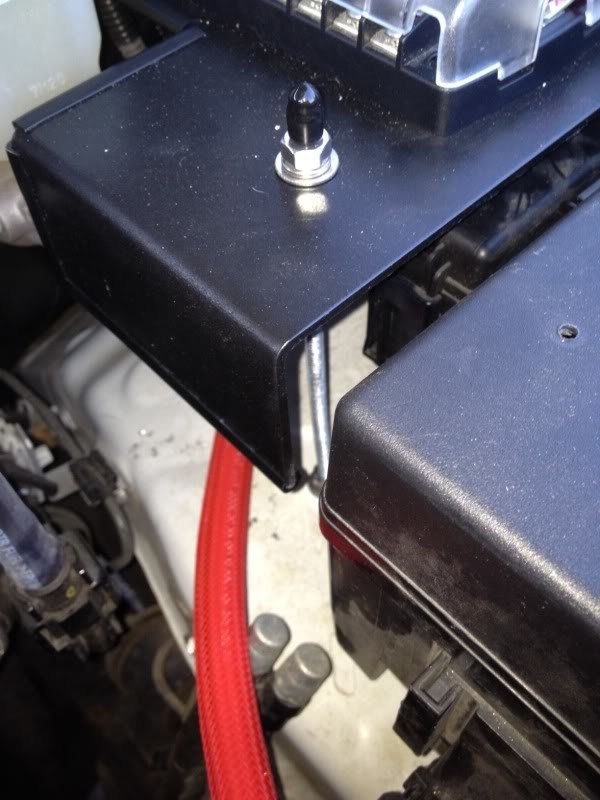

    5. Mounted fuse block plate with M8-1.25 to fender nutserts. I had to support end with 1/4 x 20 all thread connected to hole drilled through fender.
    [​IMG]

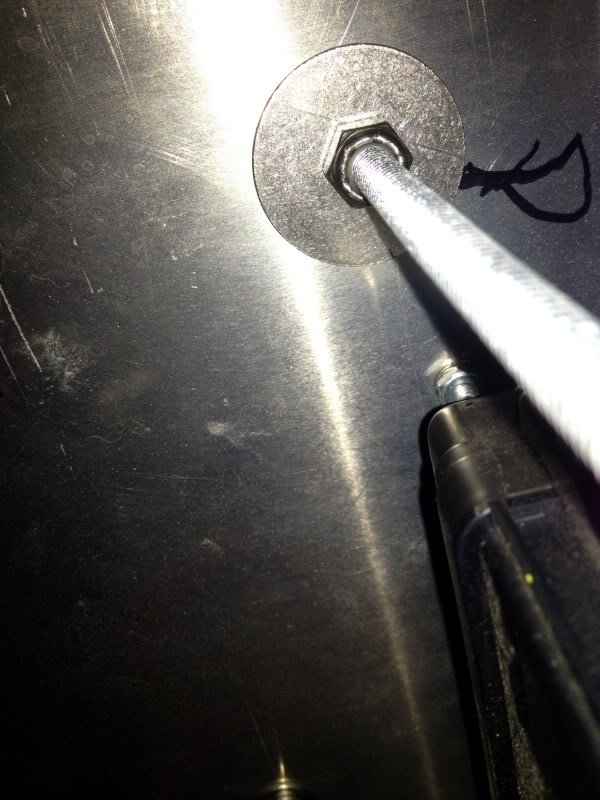

    Bottom of plate. Locknut and flat washer supporting plate.
    [​IMG]

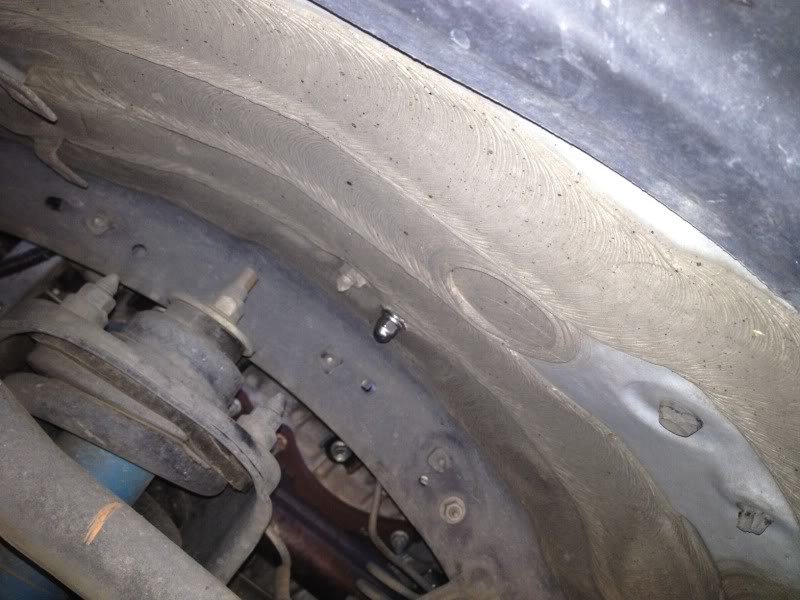

    Fenderwell where all thread comes through.
    [​IMG]

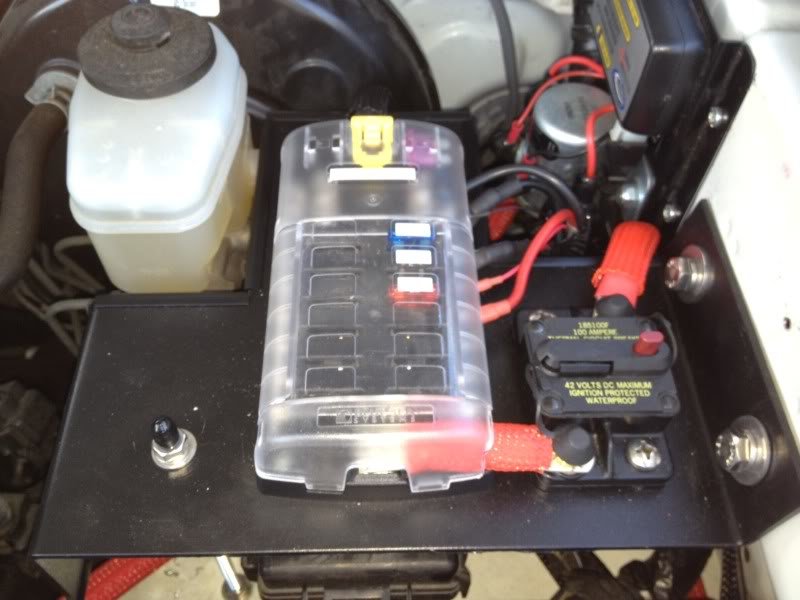

    6. Mounted aux fuse block and circuit breaker. Labeled 12V connections.
    [​IMG]

  13. Aug 4, 2012 at 8:53 AM
    #13
    coulter6

    coulter6 Member

    Joined:
    Apr 21, 2010
    Member:
    #35736
    Messages:
    22
    Gender:
    Male
    NM
    Vehicle:
    06 TRD Off Road DC
    Great looking install, very clean and professional looking.

    What model Taco do you have?

    I have an 06 TRD Off Road with an 130A alternator and was wondering if the Nat'l Luna kit would work with it.

  14. Aug 4, 2012 at 9:00 AM
    #14
    Enzo

    Enzo Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42815
    Messages:
    1,381
    Gender:
    Male
    First Name:
    Opie
    Bedford, Va
    Vehicle:
    2012 FJ Cruiser
    2012 FJ Cruiser Maggiolina Medium Grand Tour w/winter hood National Luna dual battery split charging system ABR Sidewinder Aux battery tray ARB 50qt Fridge w/Transit Bag Bajarack flat rack w/ladder Crawlarado flat black hood blackout TRD exhaust Trasharoo Outback FJ roof console
    The NL kit will work in any car.

  15. Aug 4, 2012 at 9:46 AM
    #15
    skippermike

    skippermike Well-Known Member

    Joined:
    Aug 8, 2011
    Member:
    #61373
    Messages:
    86
    Gender:
    Male
    First Name:
    Mike
    San Diego
    Vehicle:
    08 SR5 4x4 w/off road mods
    3" Icon lift, coilovers, reservoir r. shocks, AAL, Icon UCA, 17" Eagle wheels, extra electrical, inverter, ICOM VHF
    Very nice installation.
    As an alternative in a DC, especially if loads are in cab or bed, is to put a thin, taller AGM battery with an intelligent combiner/isolator behind the rear passenger side seatback. Very easy installation. Also easy to install inverter behind rear driver side seatback, with extra 12v outlets.
    As OP suggested, use Blue Sea components, easily available at West Marine. They are good quality and have excellent tech support.
    My primary reason for installing a second battery is that we are often parked for hours with VHF radio on, 12v spotlight, 110v halogen work light, chargers for handheld radio, phones and sat phone, etc. - and don't want to wear down engine battery!
    Good luck.

  16. Nov 13, 2012 at 9:19 AM
    #16
    Jbcm12

    Jbcm12 Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77894
    Messages:
    815
    Gender:
    Male
    First Name:
    Joshua
    Bay Area
    Sub, good ish

  17. Nov 13, 2012 at 9:31 AM
    #17
    acdronin

    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,702
    Gender:
    Male
    .
    Very nice work!

  18. Nov 13, 2012 at 9:36 AM
    #18
    tacoma16

    tacoma16 Well-Known Member

    Joined:
    Mar 15, 2011
    Member:
    #53109
    Messages:
    1,511
    Gender:
    Male
    First Name:
    Peter
    Ontario
    Vehicle:
    Double cab SR5 4x4
    Check the build
    Very very clean install

    just out of curiosity did you change the alternator to handle the load of the extra battery?

  19. Nov 13, 2012 at 9:37 AM
    #19
    Failure2Comply

    Failure2Comply Well-Known Member

    Joined:
    Sep 29, 2012
    Member:
    #87925
    Messages:
    493
    Gender:
    Male
    First Name:
    John
    Virginia, USA
    Vehicle:
    05 Access TRD/SR5 4x4
    NFab bars, bed mat, Weathertech mats.
    Now that is one professional looking job, well done sir!

  20. Feb 13, 2013 at 6:49 PM
    #20
    Tbird

    Tbird Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21525
    Messages:
    374
    Gender:
    Male
    First Name:
    Tom
    Santa Teresa, NM
    Vehicle:
    05 4X4 TRD Sport Access cab (white)
    ICON Ext.trav coilovers, rear ICON w/res. TC UCAs. All-pro 3" leafpac & U-bolt flip kit. Konig Countersteer offroad wheels. Goodyear Durtracs 260/75/16. Blacked-out badging, BHLM, Extra D-rings, Satoshi grill, SockMonkey "All Terrain" decals, Avid Off-road light bar and rock rails, Wet Okey seat covers. Weathertech digital fit floor mats. GROM ipod interface.
    WOW...very nicely executed. I appreciate the step-by-step and the sources for all the components. I'll probably mimic all you've done and end up with a very similar system.

    :bowdown:
