2nd Gen Headlight Removal, pics

Discussion in 'Lighting' started by Chris(NJ), Dec 13, 2010.

  1. Nov 11, 2012 at 1:28 AM
    #141
    SlvrDCTaco

    SlvrDCTaco Member

    Joined:
    Apr 6, 2012
    Member:
    #76400
    Messages:
    10
    Gender:
    Male
    First Name:
    Drew
    Kentucky
    Vehicle:
    06 TRD Sport SR5
    3" leveling/lift kit 20" chrome Viscera Wheels, 1" wheel spacers, 5pc. billett grille, Smoked led tail lights, Smoked Headlights, Smoked led 3rd Brake light, in channel visors, rear sun deflector, anytime foglight mod.
    i Just left mine out because i didn't feel like fooling with them, the lights hold tight without them

  2. Nov 12, 2012 at 5:12 PM
    #142
    iamsuperbleeder

    iamsuperbleeder Licensed Lunatic

    Joined:
    Nov 4, 2012
    Member:
    #90468
    Messages:
    882
    Gender:
    Male
    First Name:
    Travis
    Lake City, Florida
    Vehicle:
    06 DC Prerunner Taco - SOLD -
    TRD E-locker rear axle swap, Cherrybomb Extreme muffler, custom made CAI, 2.5" spacer lift up front and AAL's in the rear, Sport model seat swap, Pioneer X940BT, Kicker shallow 10" and 12" behind the back seat
    I just grabbed some headlights off an 09 at work today, both of which have multiple mounting tabs broken off. I'm going to pop them open and use the chrome frame in them and paint them black, and also going to use the clear lenses on them since they look immaculate and mine look like hell :D

    Still undecided on what I want to do with the amber lens inside it though; leave it or toss it...

    Using the second set of lights method though because I can have the frames painted by the weekend, then on Saturday or Sunday all I have to do is pull my lights off, break them down, put the black frames in, put them back together, and then reinstall, AND I don't have to sweat accidentally busting the lights on my first try and being screwed :p

  3. Dec 16, 2012 at 9:18 PM
    #143
    fallon

    fallon Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10488
    Messages:
    53
    Gender:
    Male
    Colorado
    Vehicle:
    TRD Sport 4x4
    Any idea where the funky black pin goes? It's the middle of the 3. I got everything back together but was left with this piece left over.

    [​IMG]

  4. Dec 16, 2012 at 9:40 PM
    #144
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    It's the center part of one of the things below it.
    There are 4 on your truck... two that attach the grille to the headlight housings, and two that attach the plastic trim pieces under the headlights to the housings... you can see them when you remove the grille.

    That's it... 4 plastic clips and 10 bolts.

  5. Dec 16, 2012 at 9:42 PM
    #145
    fallon

    fallon Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10488
    Messages:
    53
    Gender:
    Male
    Colorado
    Vehicle:
    TRD Sport 4x4
    That was my first thought, but it's not. It has a slotted head, and the others don't, as well as being shaped a bit differently.

  6. Dec 22, 2012 at 11:01 AM
    #146
    Chris(NJ)

    Chris(NJ) [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    I would've said the same thing as Rich. So ya got me..
    FWIW, I have a huge jar from all of the extra bolts, clips, pins, nuts and whatever else from my years of working on my own vehicles. The cars and trucks have never fallen apart. I think you'll be ok without it :)

  7. May 15, 2013 at 5:12 PM
    #147
    exwrx

    exwrx Well-Known Member

    Joined:
    Sep 10, 2010
    Member:
    #43044
    Messages:
    184
    Gender:
    Male
    Walkerton, ont
    Vehicle:
    05 Silver DC Taco TRD
    stock

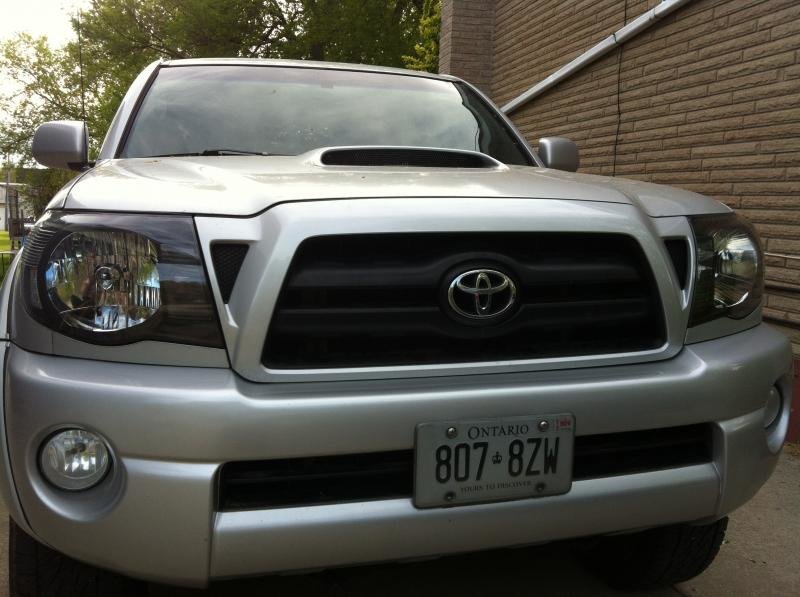

    this thread was helpful today for me thanks!
    [​IMG]

  8. Aug 9, 2013 at 2:30 PM
    #148
    fenderpicks

    fenderpicks Well-Known Member

    Joined:
    Jul 10, 2013
    Member:
    #108031
    Messages:
    763
    Gender:
    Male
    IMO, removing the front bumper is a must to take off the headlight on my 2013.

    The 3rd leg on that headlight is a SOB to put in and remove.
    it scratched my headlight and the corner of my fender during removal process

  9. Sep 3, 2013 at 6:47 PM
    #149
    geogecko

    geogecko Well-Known Member

    Joined:
    Jan 3, 2013
    Member:
    #94316
    Messages:
    155
    Gender:
    Male
    Broken Arrow, OK
    Vehicle:
    2005 TRD Sport 4x4 DC
    Thanks for the write up, helped me out when installing projectors in my housings. While the hidden bolt is hard to get to, it's not too bad to get out, once you know it's there, and what size it is, LOL.

    I lost my 1/4" 10mm socket, but thankfully had a stubby 10mm ratcheting end wrench that worked out okay.

  10. Jun 28, 2014 at 7:09 PM
    #150
    clintrob

    clintrob Tacoma *****

    Joined:
    Feb 8, 2011
    Member:
    #50785
    Messages:
    27
    Gender:
    Male
    First Name:
    Clint
    Charlotte, NC
    Vehicle:
    07 DC 4X4 Sport
    Leather, XM Radio, Running Boards, Truxedo LoPro
    I followed your instructions and replaced my headlights today. Thanks for the pics, they definitely helped. Those bottom bolts were a pain!

  11. Jul 6, 2014 at 2:32 PM
    #151
    goofyboy

    goofyboy Longhorn.

    Joined:
    Sep 29, 2008
    Member:
    #9559
    Messages:
    222
    Gender:
    Male
    Katy, Tx
    Vehicle:
    09 TRD Sport
    How long is that bottom bolt? I think I was on it, but it didn't seem to move.

  12. Jul 6, 2014 at 3:35 PM
    #152
    LowHangingFuries

    LowHangingFuries Well-Known Member

    Joined:
    Aug 25, 2012
    Member:
    #85540
    Messages:
    267
    Gender:
    Male
    First Name:
    Dustin
    GA
    Vehicle:
    2009 TRD sport 4x4 sr5
    Lifted 3" with toytec coilovers and aal in rear. Xd wheels

    You will feel the end of a screw right under it. But it's as long as the too bolts that hold the top of the headlight in. It's a 10mm.

  13. Aug 1, 2014 at 1:20 AM
    #153
    SR5808

    SR5808 Well-Known Member

    Joined:
    Jan 31, 2013
    Member:
    #96579
    Messages:
    382
    Gender:
    Male
    First Name:
    J10
    Honolulu,Hi
    Vehicle:
    Black Prerunner SR5
    Tint/ weathertech visors/ truxedo tonneau cover/ plasti-dipped front emblem and door emblems/ debaged tail gate/depo tail lights..
    So for the 2012+ we have to remove the grill and the vent things on the bottom of the headlights?

  14. Aug 1, 2014 at 2:04 AM
    #154
    melissa0031

    melissa0031 Just enough knowledge to be dangerous

    Joined:
    Feb 17, 2008
    Member:
    #4784
    Messages:
    1,475
    Gender:
    Female
    First Name:
    melissa
    Northern Greenville South Carolina
    Vehicle:
    2012 barcelona red prerunner dc sr5
    Sold my 2005 tacoma dc 4x4..just beginning to build this one.. blacked out badges,weathertech, wet okole seatcovers, custom bedside decals,smittybilt nfab nerf bars, remote start, bilstein shocks on the four corners, l.e.d. interior lights, paint matched engine cover, anytime fog light mod,Bhlm,and satoshi grill, yellow fogs, hood lights, redline hood struts, flyzeye interior console and glove box lighting, 3" Toytec lift sitting on 285/75/16 nitto grappler a/t with mb chaos rims..
    I just did the Bhlm to my 2012 a few weeks ago and yes this is correct ^^^

  15. Aug 1, 2014 at 3:56 AM
    #155
    TRSAndrew

    TRSAndrew I don't check PMs! :( Vendor

    Joined:
    Jan 3, 2012
    Member:
    #69858
    Messages:
    2,053
    Gender:
    Male
    Yes. Pull on the side closer to the grille to release that clip, then "shimmy" it to get it out of the fender clips.

  16. Aug 1, 2014 at 11:42 AM
    #156
    SR5808

    SR5808 Well-Known Member

    Joined:
    Jan 31, 2013
    Member:
    #96579
    Messages:
    382
    Gender:
    Male
    First Name:
    J10
    Honolulu,Hi
    Vehicle:
    Black Prerunner SR5
    Tint/ weathertech visors/ truxedo tonneau cover/ plasti-dipped front emblem and door emblems/ debaged tail gate/depo tail lights..
    Thanks. Is there any write ups for the 2012+ removal? Or is it similar to the older models.

  17. Jan 20, 2015 at 6:44 AM
    #157
    Rippin101

    Rippin101 Well-Known Member

    Joined:
    Jun 19, 2008
    Member:
    #7412
    Messages:
    1,477
    Gender:
    Male
    First Name:
    John
    Jax Beach, FL
    Vehicle:
    2014 TRD Sport 4x4
    BHLM Level 8 MK6 Weathertech Extang Solid Fold AntennaX Bedlight LEDs
    All of the above posts are correct in regards to 2012+ models. You HAVE to remove the front grill and the only way to access the third bolt on the headlights is to go through the wheel well... Thanks for everyones input!

    [​IMG]

  18. Jun 24, 2015 at 7:04 PM
    #158
    gefrorenertau

    gefrorenertau Well-Known Member

    Joined:
    May 5, 2015
    Member:
    #154606
    Messages:
    62
    Gender:
    Male
    Colorado
    Vehicle:
    05 DCSB Sport
    3" OME lift Dakar leafs 255/80/17 Cooper ST MAXX
    image.jpg Installed new headlights in my 05 DCSB TRD Sport today. Thanks for the pics and the write up. Retrofit is next!
