2nd gen LED roof light mount

Discussion in 'Lighting' started by Bobber Bill, May 26, 2012.

  1. May 26, 2012 at 12:34 PM
    #1
    Bobber Bill

    Bobber Bill [OP] Well-Known Member

    Joined:
    Oct 3, 2011
    Member:
    #64554
    Messages:
    1,121
    Gender:
    Male
    * SOLD OUT

    * NO LONGER AVAILABLE

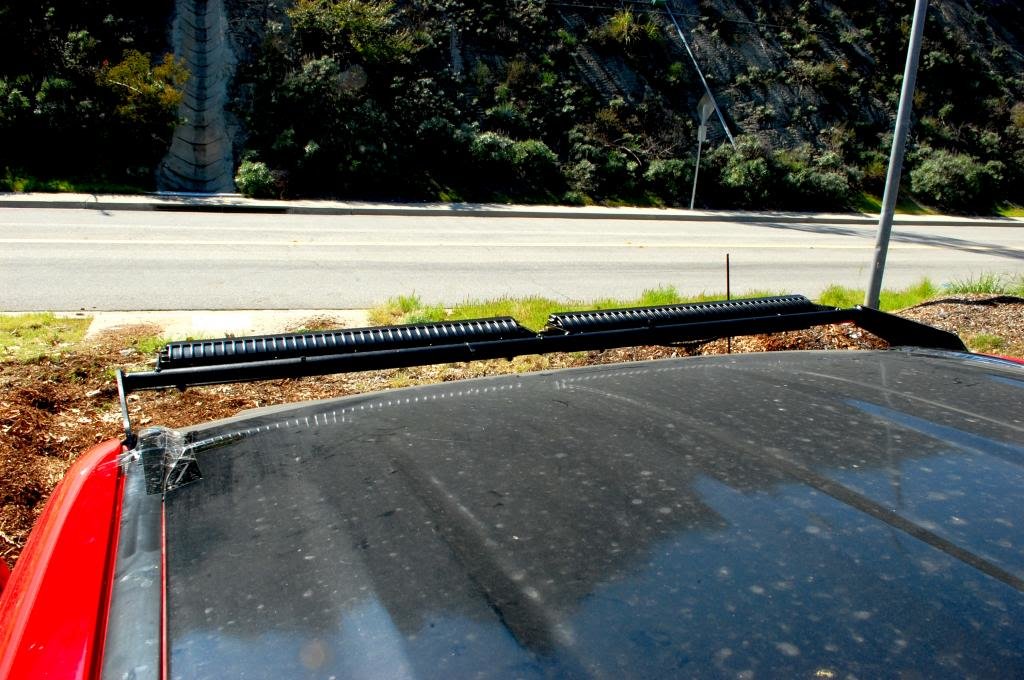

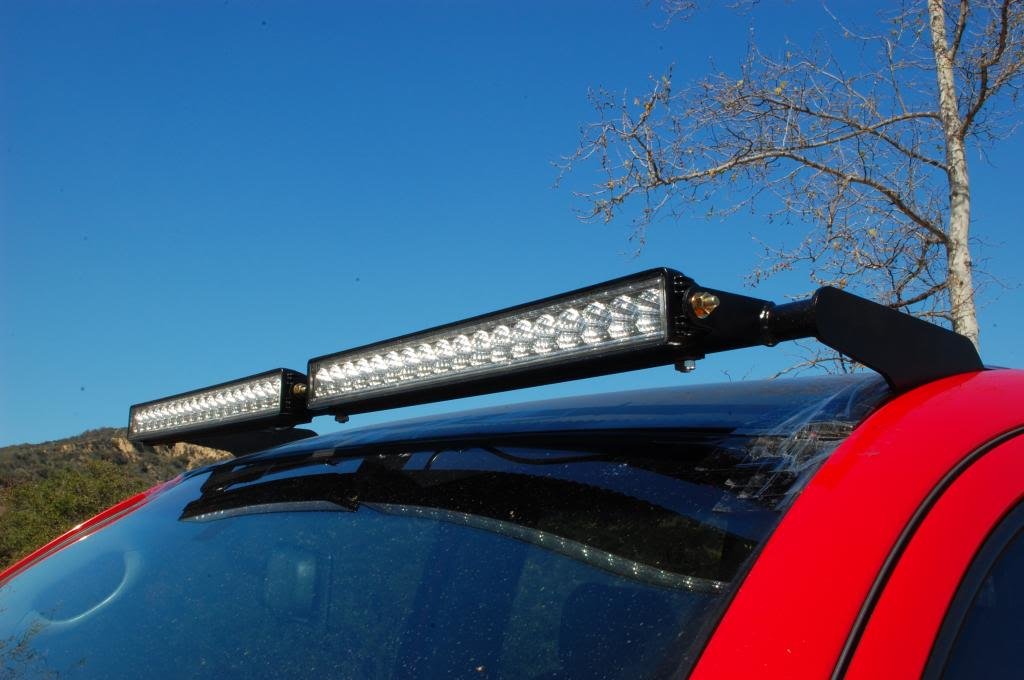

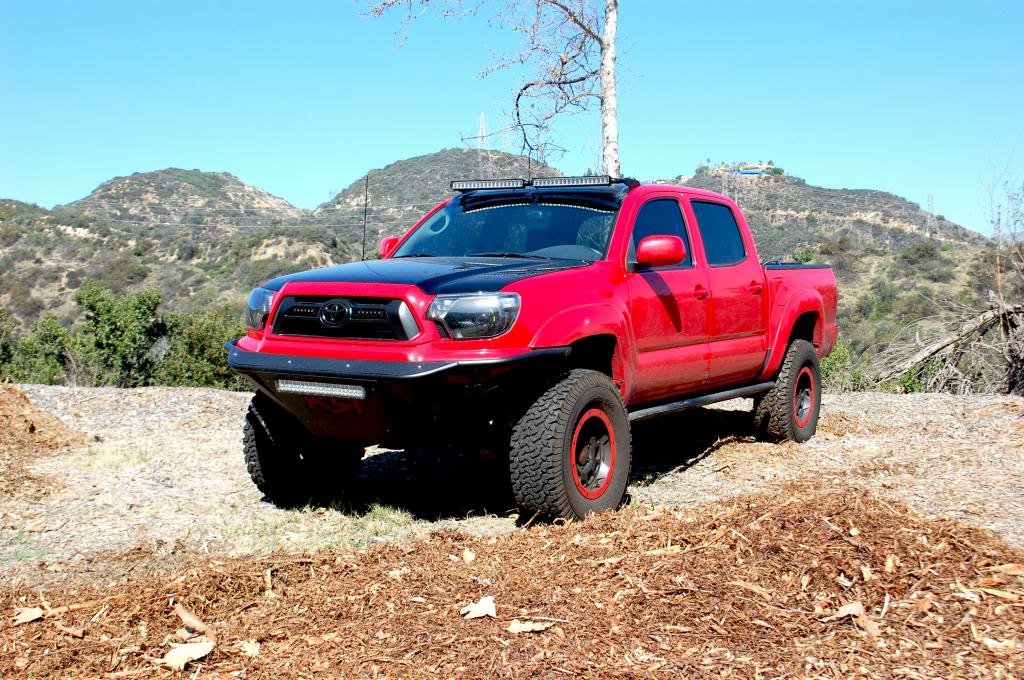

    These bolt-on racks can hold any size LED bar, up to 47.5".

    2 of my custom tabs are included with every rack. They are meant to hold an LED bar at the best position in front of the rack, but can be positioned at any angle. You are responsible for getting the tabs positioned and welded in place.

    You are not limited to huge LED bars with this, you can mount anything that has provisions for tube. Tabs can be made for just about anything!

    100% bolt-on and reversible install other than a little trimming of your rubber rain channel strips, if you decide to run them. No drilling or other permanent alterations required (2005+ Double Cab models only)!

    Can also be adapted to Regular and Access cabs (require drilling).

    All shapes are CNC water-jetted. Side plates are 3/16" plate, light tabs are 1/8" plate and bar is .90 wall 1.00"
    tube. All sets include Zinc coated Class 12.9 hardware (min. Rockwell hardness of C37 & tensile strength of 174,000 psi) and 2 mounting tabs.


    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]

    Anthony250f tested and approved :thumbsup:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    -------------------------------------------------------------------------------------------------------------------------------------------------------------------------


    Last edited: Apr 1, 2014
  2. May 26, 2012 at 12:36 PM
    #2
    sfcadams

    sfcadams Retired Senior NCO

    Joined:
    Aug 13, 2011
    Member:
    #61645
    Messages:
    1,431
    Gender:
    Male
    First Name:
    Dan
    Elizabeth, Indiana
    Vehicle:
    2011 TRD Off Road DCSB Prerunner Skeewped
  3. May 26, 2012 at 12:50 PM
    #3
    SalmonTaco

    SalmonTaco Tasty fish in a tortilla

    Joined:
    Mar 22, 2011
    Member:
    #53488
    Messages:
    1,959
    Gender:
    Male
    First Name:
    Andrew
    Seattle
    Vehicle:
    '08 quatre roues motrices
    Brute Force bumpers, 5100s/885s, SnugTop MVP Shell, USA Spec iPod adapter, WeatherTechs, Tinted Fronts, Mud Flap chop, Tuffy Bed Box, Console Vault, Fogs anytime, ImMrYo mirror bracket, Wet Okoles, aFe Pro Dry S, PowerStop Z36 pads & drilled/slotted rotors, more shit I can't remember
    Want.

    Subbed.

  4. May 26, 2012 at 12:57 PM
    #4
    uscg2008

    uscg2008 Well-Known Member

    Joined:
    Nov 6, 2009
    Member:
    #25537
    Messages:
    2,934
    Gender:
    Male
    First Name:
    coby
    San Diego, CA originally from Huntington Beach, CA
    Vehicle:
    06 trd sr5 four door 4x4
    CLICK ON SIGNATURE>>>>
    sweet!!!!!

  5. May 26, 2012 at 1:00 PM
    #5
    FixedTRD

    FixedTRD Well-Known Member

    Joined:
    Aug 2, 2009
    Member:
    #20511
    Messages:
    2,111
    Gender:
    Male
    First Name:
    Will
    Alhambra, CA
    All pro LT, All pro front bumper,All pro rear fox, 1.5 full leaf and u bolt flip kit. KR sliders, bestop, high lift with custom mount, katskin leather, Hankook MT and atx artillery. DMZ SUA w/FOX triple bypass
    Looks awesome Will I wanted something like that as well.

  6. May 26, 2012 at 3:25 PM
    #6
    SamoTaco

    SamoTaco Active Member

    Joined:
    Aug 4, 2010
    Member:
    #41234
    Messages:
    32
    Gender:
    Male
    Santa Monica, CA
    Vehicle:
    08 4x4 access cab
    I would love to buy these if you're selling them!

  7. May 26, 2012 at 3:26 PM
    #7
    YFZ450MOE

    YFZ450MOE When you blow off steam you get an eyepatch

    Joined:
    Feb 16, 2011
    Member:
    #51261
    Messages:
    1,251
    Gender:
    Male
    First Name:
    Moe
    Auburn, WA / Roseburg, OR
    Vehicle:
    09 white DCSB TRD (it's getting there)
    Icon Extended Travel 2.5" Coil Overs All-Pro U-Bolt Flip Kit Bilstien Rear Shocks Fabtech Add-a-Leaf Icon Upper Control Arms All-Pro Rear Bumper w/ Wrap Arounds & Hitch with custom LED plate light BHLM and Morimoto III D2S retrofit Satoshi Grill 2 Hella Black Magics behind Grill Bestop Supertop BAMF sliders
    That's real nice

  8. May 26, 2012 at 5:26 PM
    #8
    Bobber Bill

    Bobber Bill [OP] Well-Known Member

    Joined:
    Oct 3, 2011
    Member:
    #64554
    Messages:
    1,121
    Gender:
    Male
    Thanks guys. These mounts will be 100% bolt-on for 2nd gen double cabs. Access and single cabs will require drilling and installation of rivet nuts in the drip channels.

    Also, this mount system is one-off and made specifically for this light bar. The universal system will have a 1" OD tube going across. Mounting tabs will be welded to the tube to suit your light(s).

  9. May 26, 2012 at 6:05 PM
    #9
    Hiatt1991

    Hiatt1991 Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41917
    Messages:
    8,227
    Gender:
    Male
    First Name:
    Hiatt
    Flagstaff, AZ
    Vehicle:
    2005 Tacoma Prerunner SR5 TRD offroad
    4" Bodylift 12" Offroad shock spacers Turbo Encabulator
    How much. Thinking of buying a 40" bar.

  10. May 26, 2012 at 6:11 PM
    #10
    707tothe907

    707tothe907 Superior Member

    Joined:
    Oct 28, 2010
    Member:
    #45372
    Messages:
    2,713
    Gender:
    Male
    First Name:
    Jake
    Chico NorCal
    Vehicle:
    05 DCSB Off Road
    Finally! :cool:

    The fact that know one has really made these in production yet amazes me, I'm excited!

  11. May 26, 2012 at 6:30 PM
    #11
    Bobber Bill

    Bobber Bill [OP] Well-Known Member

    Joined:
    Oct 3, 2011
    Member:
    #64554
    Messages:
    1,121
    Gender:
    Male
    Probably $150

    3/16" thick. Fitted for each specific application.

    There are so many different LED light bars out there that I'll have to fit each one in person or according to measurements. I think $150 for a custom fit roof light mounting system is more than fair. Try getting your local fab shop to make you a one off for the price!

  12. May 26, 2012 at 6:35 PM
    #12
    707tothe907

    707tothe907 Superior Member

    Joined:
    Oct 28, 2010
    Member:
    #45372
    Messages:
    2,713
    Gender:
    Male
    First Name:
    Jake
    Chico NorCal
    Vehicle:
    05 DCSB Off Road
    I'm interested to see what the 1" bar looks like... I really like the clean look of just the brackets thats in the pictures.

  13. May 26, 2012 at 9:43 PM
    #13
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,248
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Will...looks amazing. Didnt expect anything less from ya. Can't wait to get my bar now. Someone buy my 20" and 10" from me so i can buy a 42". Good luck with this product Will!

  14. May 26, 2012 at 9:47 PM
    #14
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,458
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
  15. May 26, 2012 at 9:48 PM
    #15
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,800
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    That pretty dope man!! :thumbsup:

  16. May 26, 2012 at 9:53 PM
    #16
    toughtaco

    toughtaco Well-Known Member

    Joined:
    Dec 13, 2008
    Member:
    #11547
    Messages:
    5,750
    Gender:
    Male
    Vehicle:
    05 tacoma dbl cab short bed
    TRD CAI, MBRP dual exhaust, PIAA headlights and driving lights, 5% limo tint, 3 inch Skyjacker lift , AFE throttle body spacer, 285/70/17 BF Goodright AT TA KO, Grillcraft MX with PIAA's behind the grill, anytime fog light mod, reverse camera anytime mod, and PIAA fog lights on the rear bumper anytime mod light bar behind back window with truck lights for reverse assistance, Optima Red Top Battery, Onza 3x5" LEd reverse lights attached to light bar behind cab
    That is def nice. How much does the light bar cost at 45"? That can't be cheap

  17. May 26, 2012 at 9:59 PM
    #17
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,458
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
  18. May 26, 2012 at 10:01 PM
    #18
    toughtaco

    toughtaco Well-Known Member

    Joined:
    Dec 13, 2008
    Member:
    #11547
    Messages:
    5,750
    Gender:
    Male
    Vehicle:
    05 tacoma dbl cab short bed
    TRD CAI, MBRP dual exhaust, PIAA headlights and driving lights, 5% limo tint, 3 inch Skyjacker lift , AFE throttle body spacer, 285/70/17 BF Goodright AT TA KO, Grillcraft MX with PIAA's behind the grill, anytime fog light mod, reverse camera anytime mod, and PIAA fog lights on the rear bumper anytime mod light bar behind back window with truck lights for reverse assistance, Optima Red Top Battery, Onza 3x5" LEd reverse lights attached to light bar behind cab
    ^^Thanks, that is not that bad of a price!!!!!

  19. May 26, 2012 at 10:04 PM
    #19
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    That looks awesome!

  20. May 26, 2012 at 10:14 PM
    #20
    toughtaco

    toughtaco Well-Known Member

    Joined:
    Dec 13, 2008
    Member:
    #11547
    Messages:
    5,750
    Gender:
    Male
    Vehicle:
    05 tacoma dbl cab short bed
    TRD CAI, MBRP dual exhaust, PIAA headlights and driving lights, 5% limo tint, 3 inch Skyjacker lift , AFE throttle body spacer, 285/70/17 BF Goodright AT TA KO, Grillcraft MX with PIAA's behind the grill, anytime fog light mod, reverse camera anytime mod, and PIAA fog lights on the rear bumper anytime mod light bar behind back window with truck lights for reverse assistance, Optima Red Top Battery, Onza 3x5" LEd reverse lights attached to light bar behind cab
    X1000000000000
