    Quick Links: Gland Nut Removal Rivets on bottom of Dakar leaf spring pack help Amazing what a 3 degree shim can do Greasing OME Dakar Bushings Dobinson's "Review" Bought for FJ. Will it work on Taco?

2nd Gen OME Dakar hub to fender measurements

Discussion in 'Suspension' started by OZ-T, Aug 21, 2011.

Page 6 of 45
  1. May 8, 2012 at 10:53 AM
    #101
    ACE_Taco

    #101
    ACE_Taco Long Range Practical Marksman

    Joined:
    Jan 3, 2010
    Member:
    #28682
    Messages:
    204
    Gender:
    Male
    NC
    Vehicle:
    08 DBLCab TRD 4x4
    OME 885x Coils, Dakar Leafs, OME Shocks, TC UCAs, BHLM, Tailgate MOD, WeatherTec Window Deflectors, WeatherTec Floor Mats, Blacked Out chrome bumber, Satoshi Grille, Wet Okole Seat Covers
    Sorry for repeating what you said. I had called ARB before you posted that and didn't half-ass read it...lol:)

    When I installed my OME, Toytec mentioned that I could use the 1/4" top spacer instead of the trim packer. So, that is what I opted to do. Scott at ARB said that I could use both if I needed to. Just wouldn't want to be higher on the driver's side afterwards.

    As far as the measurements, I used my neighbor's carport. My driveway is uneven. I will measure again tonight at the gas station.

    ACE_Taco, May 8, 2012
    #101
  2. May 8, 2012 at 11:05 AM
    #102
    OZ-T

    #102
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Lol , no worries

    OZ-T, May 8, 2012
    #102
  3. May 8, 2012 at 4:30 PM
    #103
    ACE_Taco

    #103
    ACE_Taco Long Range Practical Marksman

    Joined:
    Jan 3, 2010
    Member:
    #28682
    Messages:
    204
    Gender:
    Male
    NC
    Vehicle:
    08 DBLCab TRD 4x4
    OME 885x Coils, Dakar Leafs, OME Shocks, TC UCAs, BHLM, Tailgate MOD, WeatherTec Window Deflectors, WeatherTec Floor Mats, Blacked Out chrome bumber, Satoshi Grille, Wet Okole Seat Covers
    OK, just checked my Dakars. Both leaf packs have a "+"

    ACE_Taco, May 8, 2012
    #103
  4. May 8, 2012 at 4:43 PM
    #104
    OZ-T

    #104
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    That makes more sense then

    OZ-T, May 8, 2012
    #104
  5. May 8, 2012 at 4:44 PM
    #105
    OZ-T

    #105
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You got a spacer on both sides ?

    OZ-T, May 8, 2012
    #105
  6. May 8, 2012 at 5:30 PM
    #106
    BassMaster06

    #106
    BassMaster06 Well-Known Member

    Joined:
    Aug 11, 2010
    Member:
    #41558
    Messages:
    1,280
    Gender:
    Male
    First Name:
    Dan
    South Carolina
    Vehicle:
    2006 Double Cab V6 4x4
    Mods: sand, dog hair, roof rust

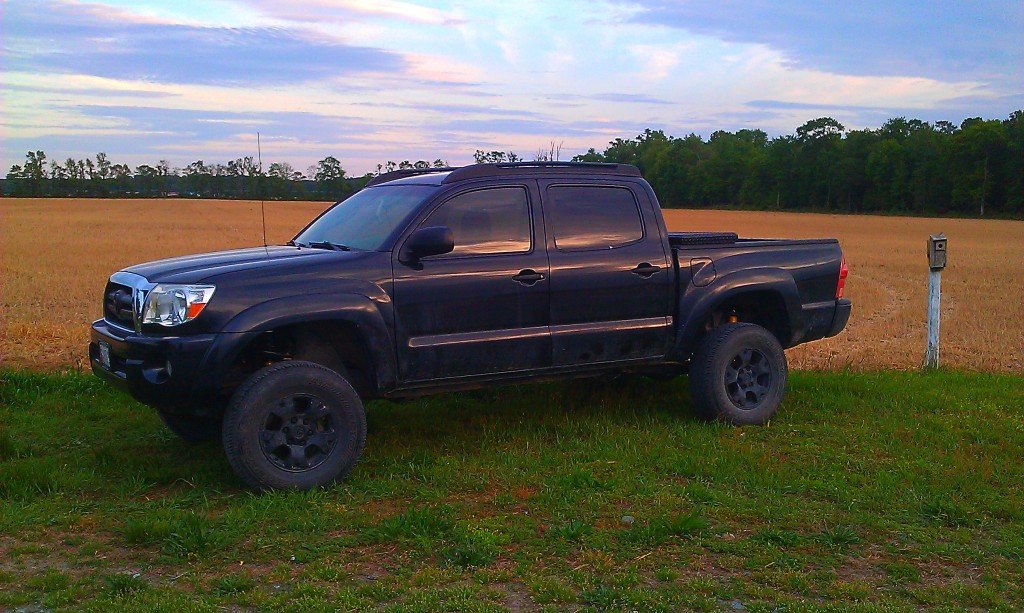

    As promised.....

    Double cab shortbed

    Before:
    Rear driver: 21 11/16
    Rear passenger: 21 7/8

    After:
    Rear driver: 24 1/2
    Rear passenger: 24 5/8

    BassMaster06, May 8, 2012
    #106
  7. May 8, 2012 at 5:42 PM
    #107
    OZ-T

    #107
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    OP UPDATED

    Thanks for the input

    OZ-T, May 8, 2012
    #107
  8. May 8, 2012 at 5:43 PM
    #108
    ACE_Taco

    #108
    ACE_Taco Long Range Practical Marksman

    Joined:
    Jan 3, 2010
    Member:
    #28682
    Messages:
    204
    Gender:
    Male
    NC
    Vehicle:
    08 DBLCab TRD 4x4
    OME 885x Coils, Dakar Leafs, OME Shocks, TC UCAs, BHLM, Tailgate MOD, WeatherTec Window Deflectors, WeatherTec Floor Mats, Blacked Out chrome bumber, Satoshi Grille, Wet Okole Seat Covers
    nope. just a 1/4" spacer on driver's side...

    ACE_Taco, May 8, 2012
    #108
  9. May 8, 2012 at 5:46 PM
    #109
    OZ-T

    #109
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Interesting that your passenger side is still 1/4" higher

    OZ-T, May 8, 2012
    #109
  10. May 8, 2012 at 5:54 PM
    #110
    ACE_Taco

    #110
    ACE_Taco Long Range Practical Marksman

    Joined:
    Jan 3, 2010
    Member:
    #28682
    Messages:
    204
    Gender:
    Male
    NC
    Vehicle:
    08 DBLCab TRD 4x4
    OME 885x Coils, Dakar Leafs, OME Shocks, TC UCAs, BHLM, Tailgate MOD, WeatherTec Window Deflectors, WeatherTec Floor Mats, Blacked Out chrome bumber, Satoshi Grille, Wet Okole Seat Covers
    I know. I have noticed that some ppl on here use 2 trim packers with their OME kit. Maybe I need to add mine. Probably would make up the difference on the Passenger rear also.

    ACE_Taco, May 8, 2012
    #110
  11. May 8, 2012 at 9:38 PM
    #111
    OZ-T

    #111
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Interesting , I don't think I've heard of anybody having to stack trim packers yet

    OZ-T, May 8, 2012
    #111
  12. May 18, 2012 at 4:57 PM
    #112
    Garftore

    #112
    Garftore Well-Known Member

    Joined:
    Jul 15, 2011
    Member:
    #59907
    Messages:
    50
    Gender:
    Male
    First Name:
    Sam
    Oahu, Hawaii
    Vehicle:
    '11 T|X, BLACK
    OME 9000s/ TrimPacker/ 886s/ N182s/ Dakars+AALs+Shims, LR UCAs, BakFlip F1 Bed Cover, AMP MotoXtender, FrontBed OEM Tiedowns, PopLock RearCam Tailgate Latch, RFab Steel Bumpers (Front-Full BrushGuard + mounted Warn x8500i, Rear-OEM style) & Welded Kickout Rails, 16" TRD Wheels, 1.25" SpiderTrax, 285/75 Toyo MTs, Chopped Body Mounts.
    DCSB: P-24"/D-23.5"
    No weight, but full tank.

    My fckn passenger dakars have the "+", and my driver leafs have a "0". Just learned about this +/- deal, so i'm guessing "0" is neutral. i'm gonna switch sides when I install my AALs in a couple weeks. Can anyone tell me what the "0" is all about?

    Garftore, May 18, 2012
    #112
  13. May 18, 2012 at 9:47 PM
    #113
    OZ-T

    #113
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You answered your own question

    OP updated

    OZ-T, May 18, 2012
    #113
  14. May 20, 2012 at 3:59 PM
    #114
    Country101

    #114
    Country101 Well-Known Member

    Joined:
    Apr 7, 2012
    Member:
    #76429
    Messages:
    443
    Gender:
    Male
    NW Arkansas
    Vehicle:
    08 tacoma access cab V6 4x4 manual
    dirty truck mod, custom trailer scratch on tailgate, husky floorliners, OME Lift
    Got my dakars on my access cab and they both measured 25" near as I could tell.

    They both had + on them. I called toytec as I was installing them and they dont have a clue about it. Thier response was "it doesnt mean anything, it's just something the manufacturer puts on there......"

    Country101, May 20, 2012
    #114
  15. May 20, 2012 at 4:45 PM
    #115
    OZ-T

    #115
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    a " + " is a leaf above ARB's spec by up to 1/4 " , a " - " is a leaf below ARB spec by up to 1/4" .

    OZ-T, May 20, 2012
    #115
  16. May 20, 2012 at 4:47 PM
    #116
    OZ-T

    #116
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    OP updated

    OZ-T, May 20, 2012
    #116
  17. May 21, 2012 at 11:56 AM
    #117
    Garftore

    #117
    Garftore Well-Known Member

    Joined:
    Jul 15, 2011
    Member:
    #59907
    Messages:
    50
    Gender:
    Male
    First Name:
    Sam
    Oahu, Hawaii
    Vehicle:
    '11 T|X, BLACK
    OME 9000s/ TrimPacker/ 886s/ N182s/ Dakars+AALs+Shims, LR UCAs, BakFlip F1 Bed Cover, AMP MotoXtender, FrontBed OEM Tiedowns, PopLock RearCam Tailgate Latch, RFab Steel Bumpers (Front-Full BrushGuard + mounted Warn x8500i, Rear-OEM style) & Welded Kickout Rails, 16" TRD Wheels, 1.25" SpiderTrax, 285/75 Toyo MTs, Chopped Body Mounts.
    Installed my D29XLs and rotated my springs. Now the + is on the driver's side and the 0 is on the passenger's.

    P / 25.5", D / 25.25"

    Garftore, May 21, 2012
    #117
  18. May 21, 2012 at 11:58 AM
    #118
    OZ-T

    #118
    OZ-T [OP] You are going backwards

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    50,462
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I'll add your data to the
    $75 d29xl leaf spring
    d29xl numbers at the bottom of the OP

    OZ-T, May 21, 2012
    #118
  19. Jun 5, 2012 at 5:24 AM
    #119
    stractman

    #119
    stractman Well-Known Member

    Joined:
    Apr 27, 2012
    Member:
    #77738
    Messages:
    92
    Gender:
    Male
    Colorado
    Vehicle:
    07 DCSB TRD sport, 4x4
    hey everyone!
    on initial install, i got about 24 5/8" on both sides.
    after two weeks and some wheelin, i ended up with:
    24 1/8", both sides, snugtop shell, 07 DCSB.

    stractman, Jun 5, 2012
    #119
  20. Jun 9, 2012 at 11:04 AM
    #120
    magnetic11

    #120
    magnetic11 Well-Known Member

    Joined:
    Feb 7, 2012
    Member:
    #72357
    Messages:
    961
    First Name:
    Matt
    "some nuke plant"
    Vehicle:
    11 trd sport
    Fab fours front and rear bumpers, B.A.M.F. weld on rock sliders, softopper, removed mud flaps and D-Badged everything. Icon 2.5 Extended Travel coil-overs, Total Chaos upppers, 2.0 Icon extended travel shocks with the resi's and Dekar Leaf packs.
    i got the dakars along with the toytec ultimate lift kit and was woundering if they would adjust enough for the leaf pack so that i wont ahve any rake. and if i should get the top plate spacers for the front?

    magnetic11, Jun 9, 2012
    #120
