2nd Gen: replacement rear leaf spring to coils

Discussion in 'Suspension' started by TPM, Sep 12, 2013.

  1. Sep 12, 2013 at 3:33 AM
    #1
    TPM

    #1
    TPM [OP] crazy russian

    Joined:
    Aug 23, 2013
    Member:
    #111026
    Messages:
    48
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    07 Tacoma OFF-Road TRD
    coils rear suspension, rear disc brakes
    Hi.

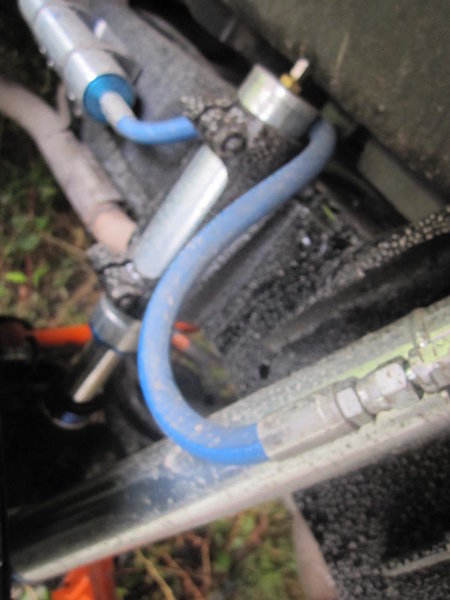

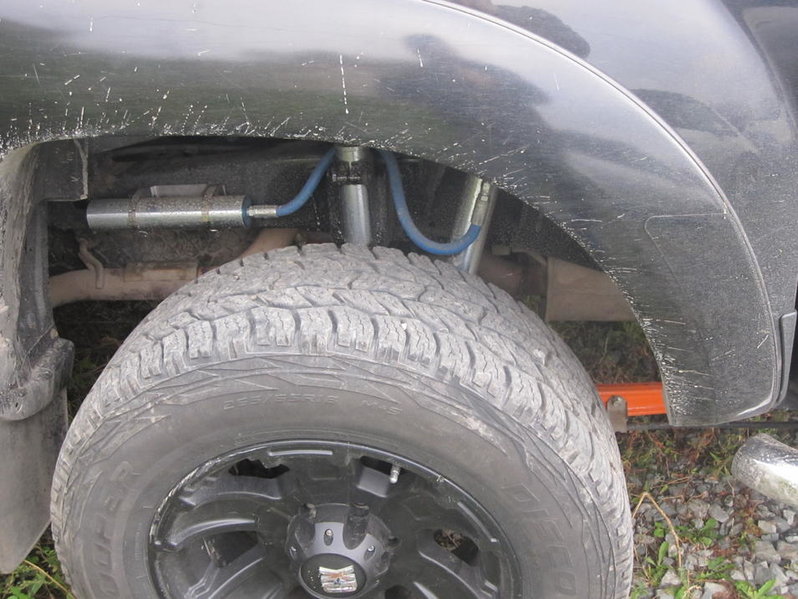

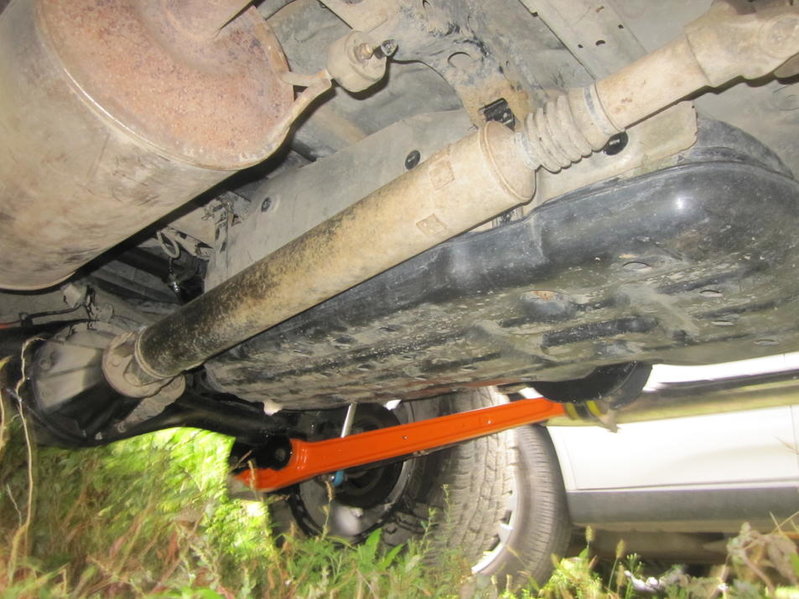

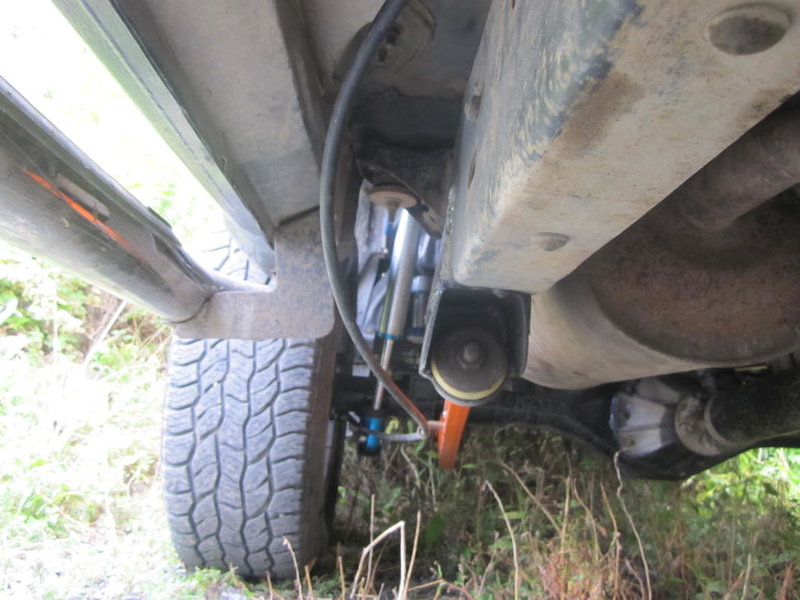

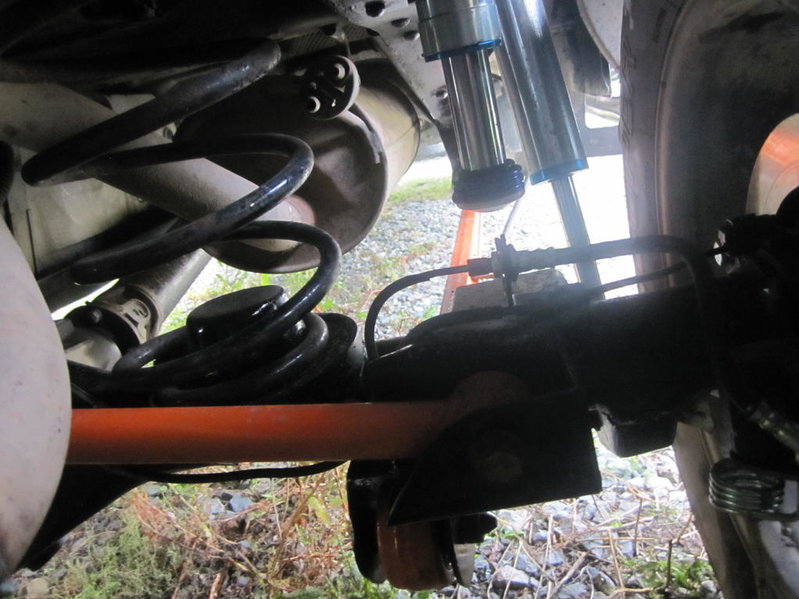

    I just don't like a rear leaf springs suspension - it is only the cause for replacement to coils suspension :) And I built it this way - coils, arms and lateral control link.


    TPM, Sep 12, 2013
    #1
    tinker_troy, HybridTacoma, TacoPandaTRD and 1 other person like this.
  2. Sep 12, 2013 at 4:13 AM
    #2
    SoCaltaco65

    #2
    SoCaltaco65 Well-Known Member

    Joined:
    May 10, 2011
    Member:
    #56389
    Messages:
    7,634
    Gender:
    Male
    Vehicle:
    2011 DCSB 4x4 Offroad TRD
    What is FJ Cruiser?

    SoCaltaco65, Sep 12, 2013
    #2
  3. Sep 12, 2013 at 4:20 AM
    #3
    TPM

    #3
    TPM [OP] crazy russian

    Joined:
    Aug 23, 2013
    Member:
    #111026
    Messages:
    48
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    07 Tacoma OFF-Road TRD
    coils rear suspension, rear disc brakes
    FJ like a stump :)
    The right way is only the Tacoma improvement.

    TPM, Sep 12, 2013
    #3
  4. Sep 12, 2013 at 7:01 AM
    #4
    SpaceBalls

    #4
    SpaceBalls Active Member

    Joined:
    Apr 14, 2011
    Member:
    #54915
    Messages:
    29
    Gender:
    Male
    Vancouver Canada
    Vehicle:
    08 Taco trd
    3" block lift 33" BFG's AT
    Very nice. Don't you want boots on your shocks?

    SpaceBalls, Sep 12, 2013
    #4
  5. Sep 12, 2013 at 10:37 AM
    #5
    YotaDan

    #5
    YotaDan Dan

    Joined:
    Apr 1, 2009
    Member:
    #15461
    Messages:
    2,360
    Gender:
    Male
    First Name:
    Dan
    Oregon
    80 series arms?

    YotaDan, Sep 12, 2013
    #5
  6. Sep 12, 2013 at 10:41 AM
    #6
    JLee

    #6
    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,609
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    X2 how does it handle?

    JLee, Sep 12, 2013
    #6
  7. Sep 12, 2013 at 3:51 PM
    #7
    TPM

    #7
    TPM [OP] crazy russian

    Joined:
    Aug 23, 2013
    Member:
    #111026
    Messages:
    48
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    07 Tacoma OFF-Road TRD
    coils rear suspension, rear disc brakes
    Arms from MMC Pajero. coils, shoks and link from TLC80. All the stock parts, exclude the shocks of course.

    TPM, Sep 12, 2013
    #7
  8. Sep 12, 2013 at 5:54 PM
    #8
    lembowski

    #8
    lembowski Well-Known Member

    Joined:
    Jul 29, 2009
    Member:
    #20347
    Messages:
    6,882
    Gender:
    Male
    First Name:
    Matt
    Rolando, CA
    Vehicle:
    Jeeper Creeper
    :popcorn:

    lembowski, Sep 12, 2013
    #8
  9. Sep 12, 2013 at 9:06 PM
    #9
    Mr. Biscuits

    #9
    Mr. Biscuits gentleman and a scholar

    Joined:
    May 6, 2012
    Member:
    #78316
    Messages:
    1,603
    Gender:
    Male
    First Name:
    Brennen
    Eugene, OR
    Vehicle:
    2000 3.4L Prerunner
    - OME 881s, Dakars + D43XL - Custom front tube bumper - 33x10.5R15 BFG KO2s - Deckplate mod + Airaid intake tube + AFE reusable air filter - Aero Turbine 2525 exhaust, chopped before leaf spring - Toyota Horns emblem by Diaz Fabrication - BOSS CarPlay head unit, 500W amp + 12" Pioneer in ported box - camper shell
    Hell yes. How much travel did you pull from the rear? Cost?

    Mr. Biscuits, Sep 12, 2013
    #9
  10. Sep 15, 2013 at 5:02 PM
    #10
    TPM

    #10
    TPM [OP] crazy russian

    Joined:
    Aug 23, 2013
    Member:
    #111026
    Messages:
    48
    Gender:
    Male
    First Name:
    Paul
    Vehicle:
    07 Tacoma OFF-Road TRD
    coils rear suspension, rear disc brakes
    I have over 1000 miles and still enjoy with new suspension. And I see only a bright side.

    the cost is 1000 USD less:
    - 30 usd for the arms;
    - 400 usd for the PROFENDER shocks and bumpstops;
    - 30 usd for the coils;
    - 60 usd for the link;
    - 100 usd was a payment for the metall;

    TPM, Sep 15, 2013
    #10
    05Taco4x4 likes this.
  11. Mar 11, 2018 at 9:06 PM
    #11
    05Taco4x4

    #11
    05Taco4x4 ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    6,232
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    FJ Tcase, Manual Hubs, 2017 Head unit, Mirror Riser
    In my future

    05Taco4x4, Mar 11, 2018
    #11
