2nd Gen Taco 4Runner Heated, Turn Signal, Approach lighting! & Power Fold? YES! (WIP)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by skygear, Dec 21, 2011.

Thread Status:
Not open for further replies.
  1. Dec 21, 2011 at 5:10 AM
    #1
    skygear

    skygear [OP]                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    - This is 4Runner MOD-MOD!

    I'm Borrowing pics from the original MOD thread found here Another Great read is from HERE That has the Sienna mirror MOD in it

    [​IMG]
    [​IMG][​IMG][​IMG]
    [​IMG]
    [​IMG]DSC08990_9cfc69a23308e54710516f817592556c9a4597ef.jpg[​IMG]
    [​IMG][​IMG][​IMG][​IMG]

    I did find this interesting aftermarket control module that I will be getting. It has direct integration to the lock/unlock features... Well, you look!
    http://simplycoolshop.com/eng/products/smc.asp
    http://www.youtube.com/watch?v=mYyql3nD5ms

    Part #'s <-thanks Shaggy!
    --2010 4Runner RH Mirror Assembly 87910-35A60 $209.07
    --2010 4Runner RH Outer Mirror Cover Gloss Black 87915-28060-C0 $37.43
    --2010 4Runner LH Mirror Assembly 87940-35A30 $209.07
    --2010 4Runner LH Outer Mirror Cover Gloss Black 87945-28060-C0 $37.43
    --2003 Highlander Mirror Defrost Switch (only fits in switch bank to left of steering wheel) 84871-48030 $56.96
    --Defrost Switch Amber Bulb (switch above comes with red bulb) 90011-01058 $3.59
    --Auxilary dash switch below AC ->http://tundrapart.com/lights/auxiliary-dash-panel-switch-with-led/
    -- Replacement Mirror Adjuster switch with heated/ power fold switch 84870A #1 in the link <- thanks Palehorse1

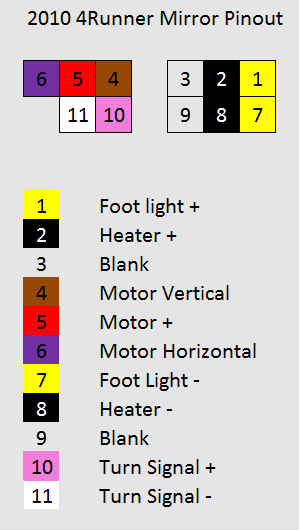

    Diagrams are from muisejt

    Tools needed
    Torx #25 driver
    Soldering Iron
    Solder
    Heat Shrink Tubbing
    Drill 1/4" bit
    10mm socket
    Screw Driver +
    LeatherMan or wire strippers

    Prep and Process
    Disassemble the Mirrors mounting arms from the 4Runners and yours from the Tacoma. (3 Torx screws)
    Discard the 4Runner mount as it is not needed. Also cut the harness off and elongate all the wires. Make note of the color code for each wire. I reused the Tacoma harness for the power mirrors. While your in this area with the door panel off, you can go ahead and ground a few of the wires. either of your Black from the heated mirror(s) & White from the turn signal(s).

    This will leave you with 4 wires you need to elongate/ extend - black + Heat, yellow + convenience lighting, Yellow - convenience lighting. That makes 4 total that you need to run with extra wire through the door and grommets.

    *quick note here- the only circuit I verified polarity on was the Turn Signals. All the others polarity isn't important.

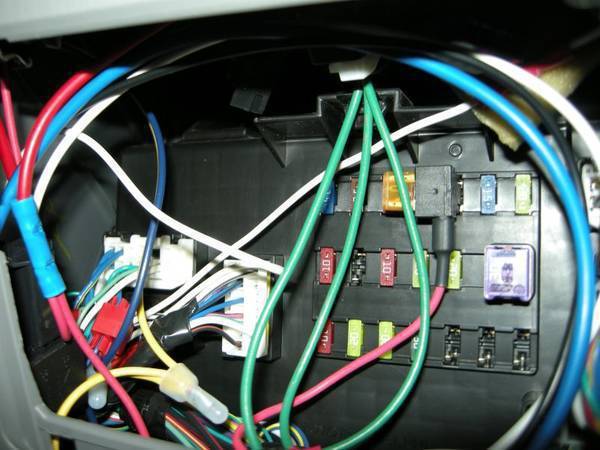

    Using the Fuze tap, I decided to use a drill and make a small hole so I could thread the wire through the top of the fuse block. Looks a little cleaner than the birds nest we might create running the wires in that area.

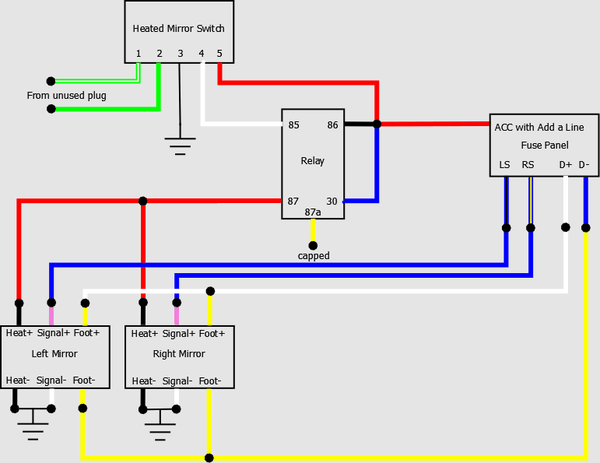

    As the diagram shows, we need to directly tap the wires coming out of the Wiring harness on the left side of the fuse block. I opted to remove the lower dash to gain easier access to them. I disconnected both of the harnesses and followed them to the kick panel area and tapped them there. I make small 1/4 length cuts on the wires just cutting the plastic off to expose the copper wire underneath. Wrap your tap around the area you just cut and solder the connections (3 in total). Cut the blue crimp off the end of the fuse tap and extent the wire about 1.5'. Solder the connection and heat shrink the connection. Feed the wire through the hole you drilled previously. Replace one of the fuses with the 7.5 and a 5or10amp fuse for the heat in the mirrors.

    More to come later- POWER FOLDING NEXT!

    The removal of the mirror and door panels can be found in the Muth pdf http://www.muthco.com/epapers/21001150.pdf

    This is far from complete and I will constantly edit this until it is a solid guide.

    you can get the 4Runner, or Sienna Mirrors and they will snap right in, (should). You will still need to disassemble the whole assembly and doors to run your wires.

    Edit: Sienna mirors will need to be removed from their snap in housing to fit in the tacoma snap in housing. 4Runners will snap in with no issue

    [​IMG]
    [​IMG]
    [​IMG]
    I got them in, sanded with 600 grit and then sprayed with Gloss Black - 7-10 coats. Then baked them under some metal halide lights

    Mav00, Ayden7373, sean82206 and 3 others like this.
  2. Dec 21, 2011 at 11:42 AM
    #2
    Capita

    Capita Well-Known Member

    Joined:
    Jun 6, 2009
    Member:
    #18096
    Messages:
    2,661
    Gender:
    Male
    Corner Brook, Newfoundland, Canada
    Vehicle:
    09 TRD Sport Double Cab
    Awesome! Thanks for posting. Looks like I have a fun project when the snow melts :)

  3. Dec 21, 2011 at 3:09 PM
    #3
    DEEVON911

    DEEVON911 Semi-Pro

    Joined:
    Apr 11, 2010
    Member:
    #35030
    Messages:
    15,187
    Gender:
    Male
    First Name:
    Dave
    Bethel Park, PA. Burb of da Burgh.
    Vehicle:
    2010 MGM Mostly Stock Off-Road 4x4
    TRD Cat-back Exhaust. Semi-Debadged. Trimmed down stock Antenna. Weathertech vent visors. TRD FJ Cruiser Center Cap Wheel Mod. 265/75/16 Firestone Destination A/T,s . Inverter tapped into for outlet in cab. Tacomaworld sticker which adds 5 hp.
    Nice! Thanks for posting this! I need to scrape some money together for this! I really miss having heated mirrors! +1

  4. Dec 21, 2011 at 4:23 PM
    #4
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    459
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,
    sub'd B/C this is awesome and should have been done from toyota.

    tbird95 likes this.
  5. Dec 21, 2011 at 5:07 PM
    #5
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    22,455
    Gender:
    Male
    Ah yeah. Excellent mod.

  6. Dec 21, 2011 at 6:09 PM
    #6
    muisejt

    muisejt Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66923
    Messages:
    235
    Gender:
    Male
    YMM
    Vehicle:
    08 TRD Sport DC LB
    Katzkin, Bi-xenon Morimoto Mini Stage III Kit (D2S), 4Runner Mirrors, Complete Stereo Upgrade with Backup Camera, Pop&Lock PL5400, Extang Solid Fold Tonneau, TRD OR Tow Hook, rcbs204 4x4 Illuminated Switch, Grillcraft, 10" Rigid light bar behind grill, relocated horns, Redline Tuning hood struts, 5100's with 883 and Wheeler 5 leaf, OME carrier barring drop kit, ECGS Bushing, MarionB2B front hubs

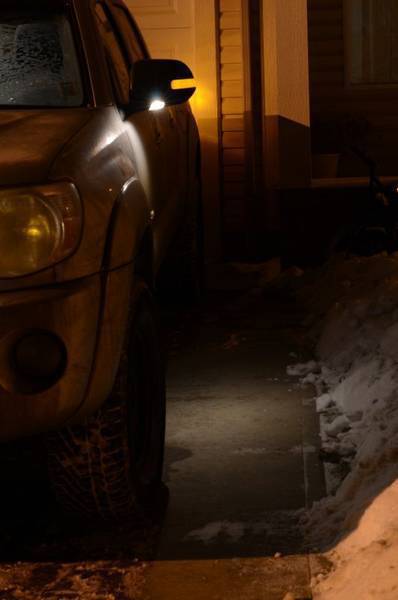

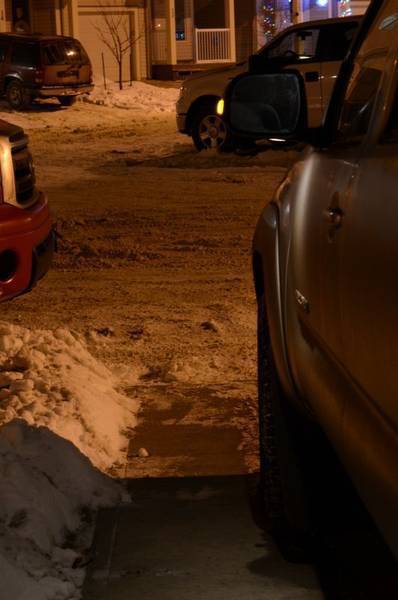

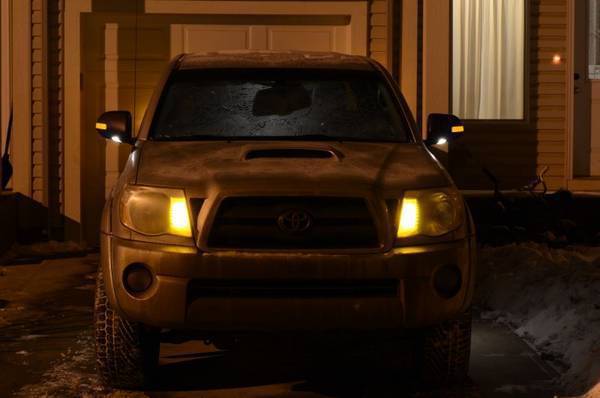

    some night pictures I just went and took

    [​IMG]

    [​IMG]

    [​IMG]

  7. Dec 21, 2011 at 6:15 PM
    #7
    pataco

    pataco Well-Known Member

    Joined:
    Jan 1, 2009
    Member:
    #12092
    Messages:
    2,063
    Gender:
    Male
    Down by the lake
    Vehicle:
    05 4x4 trd dc white
    FOX 2.0 RESIS,LRUCAS,BILLY 5100S ON THE REAR.MAGNAFLOW 11264,COLOR MATCHED GRILL,YELLOW FOG MOD.OVER HEAD DVD,FEDERAL COURAGIA M/T
    very nice ^^^^^

  8. Dec 21, 2011 at 6:17 PM
    #8
    memario1214

    memario1214 Hotshot Offroad Moderator Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    19,756
    Gender:
    Male
    First Name:
    Colton
    Missoula, MT
    Vehicle:
    SOLD - 05 Dub Cab TRD Sport 4x4, CURRENT - '21 Tundra MGM Limited
    Hot damn!!! WANT NAO

  9. Dec 21, 2011 at 7:13 PM
    #9
    kogary

    kogary Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55382
    Messages:
    200
    Gender:
    Male
    Denver
    Vehicle:
    2005 Indigo Ink AC, V6, auto, 4x4
    Heated drivers seat, JVC HU, Sound Ordinance compact 8" sub under passenger seat, Morimoto projectors/D25 HIDs, LED lit cupholder mod
    VERY nice! Definitely just jumped to the top of my mod list!

    Thanks for the write up!

  10. Dec 22, 2011 at 4:46 AM
    #10
    greenguy3

    greenguy3 BOOM goes the dynamite!

    Joined:
    Nov 26, 2011
    Member:
    #67702
    Messages:
    286
    Gender:
    Male
    First Name:
    Ian
    Arkansas
    Vehicle:
    Dirty A$$ TRD
    Mud and dirt
    This is getting good...
    :popcorn:

  11. Dec 22, 2011 at 10:57 AM
    #11
    ouyin2000

    ouyin2000 Well-Known Member

    Joined:
    Oct 16, 2010
    Member:
    #44773
    Messages:
    4,552
    Gender:
    Male
    First Name:
    Ryan
    Nova Scotia
    Vehicle:
    '11 DCSB TRD Sport
    Leer 100XL Canopy, OEM Side steps, TRD Oil Cap, TRD License Plate Cover, WeatherTech Digital Fit Liners, Elite O/R Hitch Shackle, Katzkin Leather Interior, LED Interior Lighting, Foglight Anytime mod, Illuminated 4x4 switch, Grom Audio Aux adapter, Redline Goods leather shift boot console cover and door handle pulls, Sockmonkey bedside decals, Dynolock electric tailgate lock
    Bump!

    Keep up the good work.

  12. Dec 23, 2011 at 4:03 AM
    #12
    taco084gb

    taco084gb No matter where you go there you are.

    Joined:
    Dec 2, 2008
    Member:
    #11225
    Messages:
    1,357
    Gender:
    Male
    First Name:
    Galen
    NorCal
    Sub'd for future reference. Great Idea!

  13. Dec 23, 2011 at 6:02 AM
    #13
    Frankie_G

    Frankie_G Well-Known Member

    Joined:
    Jun 19, 2008
    Member:
    #7409
    Messages:
    189
    Gender:
    Male
    First Name:
    Frankie
    West Seattle, Wa
    wow great job dude. wish i could help. sub'd for awesomness

  14. Dec 24, 2011 at 2:30 AM
    #14
    TnRedNeck721

    TnRedNeck721 Nick Namer

    Joined:
    Mar 10, 2011
    Member:
    #52731
    Messages:
    23,846
    Gender:
    Male
    First Name:
    Zach
    TN
    Vehicle:
    07 TRD off road 4WD
    No mud flaps, plasti dipped emblems, and rear bumper, Weather tech digital fit, Bed mat from tractor supply. Pioneer 4400BH head unit. B.A.M.F bed rail tie downs. AVS vent visors.
    VERY NICE! do they have defrost? if so this may just go on my list of mods.

  15. Dec 24, 2011 at 9:25 AM
    #15
    ninja90177

    ninja90177 Well-Known Member

    Joined:
    Jan 9, 2011
    Member:
    #49009
    Messages:
    84
    Gender:
    Male
    First Name:
    Kenney
    Las Vegas
    Vehicle:
    '09 AC 4x4 Off-Road
    Icon 2.5 C/Os, Wheeler's AAL, OME N182, 265/75-16 KM2s, Murdered Emblems
    sub'd . . . Definitely a new project for my truck!

  16. Dec 24, 2011 at 9:47 AM
    #16
    Captarm

    Captarm Well-Known Member

    Joined:
    Apr 18, 2011
    Member:
    #55150
    Messages:
    170
    Gender:
    Male
    First Name:
    Armand
    Maine and Rhode Island
    Vehicle:
    2010 SR5 Silver/Black, Tinted windows
    Leather Arm Rest Firestone Ride-rite K&N oil air Filter Wet Okole Black/Gray w heated seats Alpine CDE-123 receiver w Blue tooth,MP3,USB port AP Rock-sliders Viper Auto starter, should have gotten with alarm Anytime Fogs NOKYA7626 yellow lights Muth Heated, Signal Mirror Leer Cap Silver stream line top Differential Breather Mod
    Dam, missed this thread and went with the Muth this Fall. Like the dash board switch, will have to replace that for the Muth switch.

  17. Dec 27, 2011 at 8:53 AM
    #17
    darcivic00si

    darcivic00si Love this forum!

    Joined:
    Feb 24, 2008
    Member:
    #4919
    Messages:
    310
    Gender:
    Female
    First Name:
    Darci
    Tucson, AZ
    Vehicle:
    '20 Super White TRD PRO Manual!!!
    Thanks for doing all of this for us!! I will be adding these mirrors soon! :)

  18. Dec 28, 2011 at 8:44 AM
    #18
    TacomaBuzz

    TacomaBuzz Well-Known Member

    Joined:
    Mar 7, 2010
    Member:
    #32764
    Messages:
    1,156
    Gender:
    Male
    First Name:
    Matt
    CT
    Vehicle:
    2014 RegCab 4x4 TX Special Edition
    Sirius, Bugflector,back-rack, stepsides.
    rmepilot likes this.
  19. Dec 28, 2011 at 8:49 AM
    #19
    stunt man hans

    stunt man hans DISPLACED VIKING LIVING IN WYOMING

    Joined:
    Sep 12, 2010
    Member:
    #43127
    Messages:
    4,637
    Gender:
    Male
    First Name:
    Hans
    LIVE FREE OR DIE
    Vehicle:
    2015 AEV RAM 3500
    FULL AEV PROSPECTOR KIT++
    i think i'm going with the muth heated signal mirrors but this is pretty neat.

    if the need ever arises for me to fold my mirrors in though i'll just lean out and do it my self thats what my wife is for lol.

  20. Dec 30, 2011 at 4:52 AM
    #20
    Joeymgd78

    Joeymgd78 Well-Known Member

    Joined:
    Dec 8, 2011
    Member:
    #68382
    Messages:
    450
    Gender:
    Male
    First Name:
    Joey
    at the moment Afghanistan
    Vehicle:
    2008 Tacoma SR5 TRD Offroad 4.0 V6 Double Cab
    what is a power folding mirror
