2nd gen tacoma 3link

Discussion in 'Solid Axle Suspension' started by Pdugan6, Aug 5, 2019.

  1. Aug 18, 2019 at 10:41 AM
    #21
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4

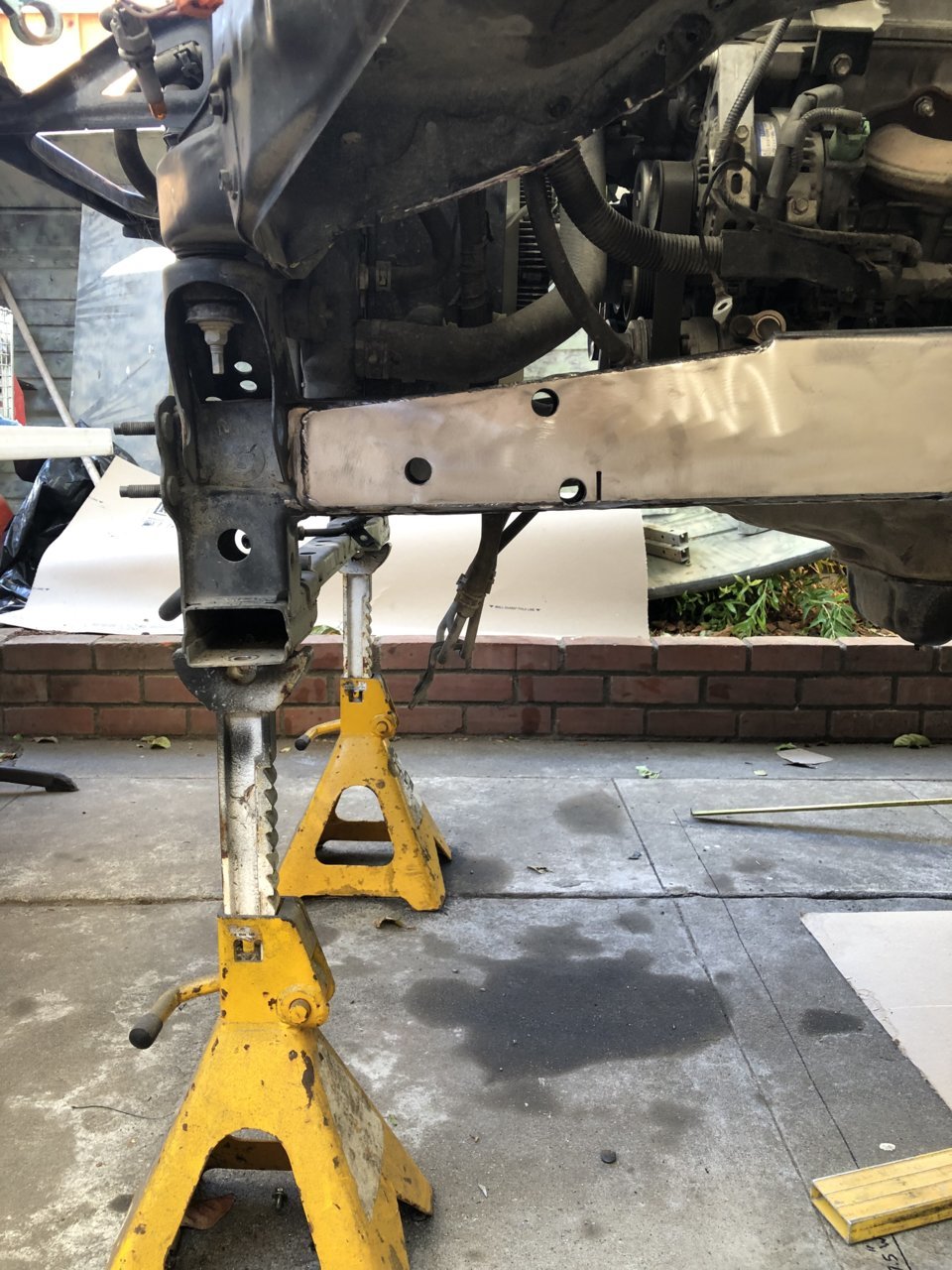

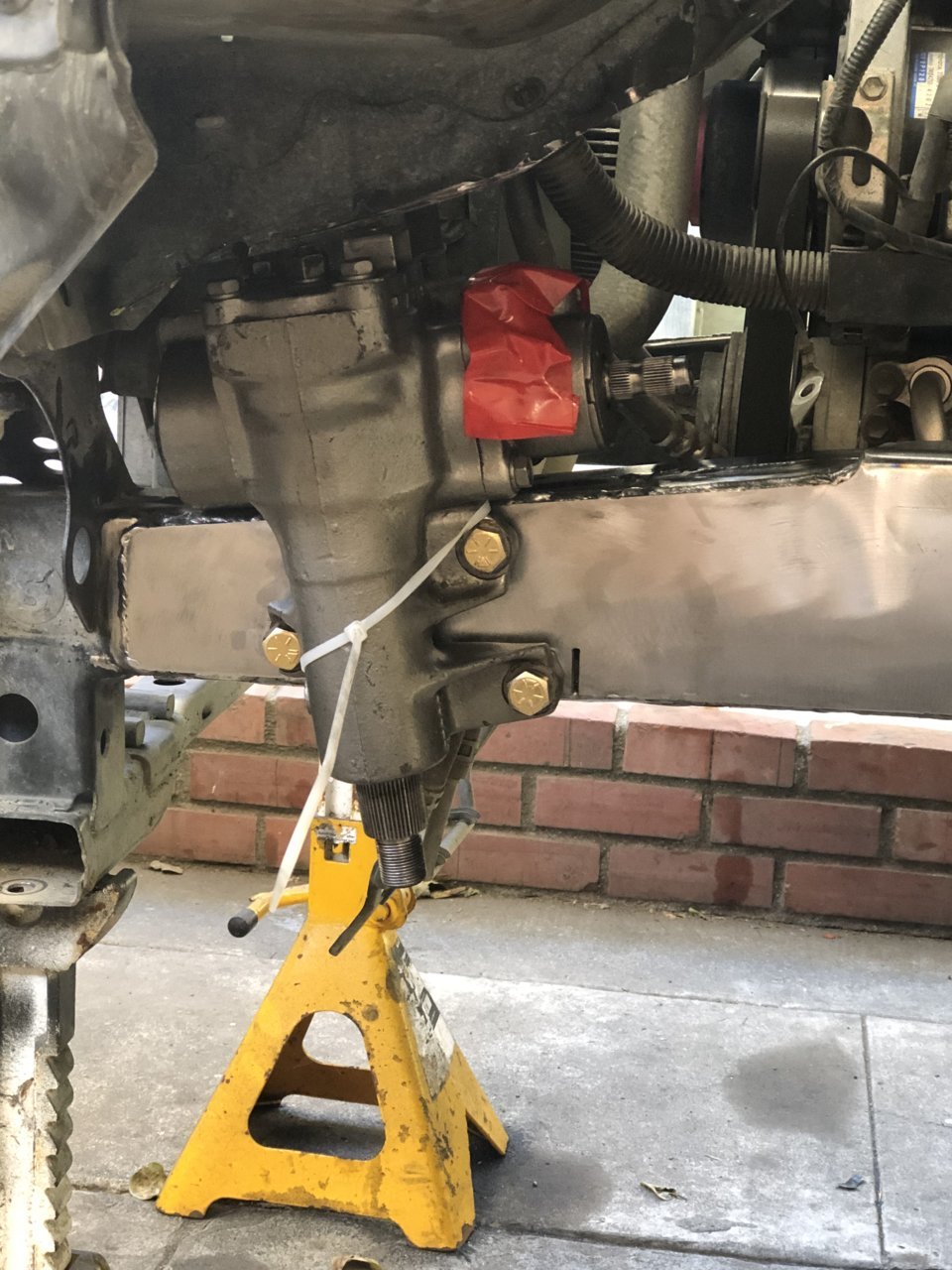

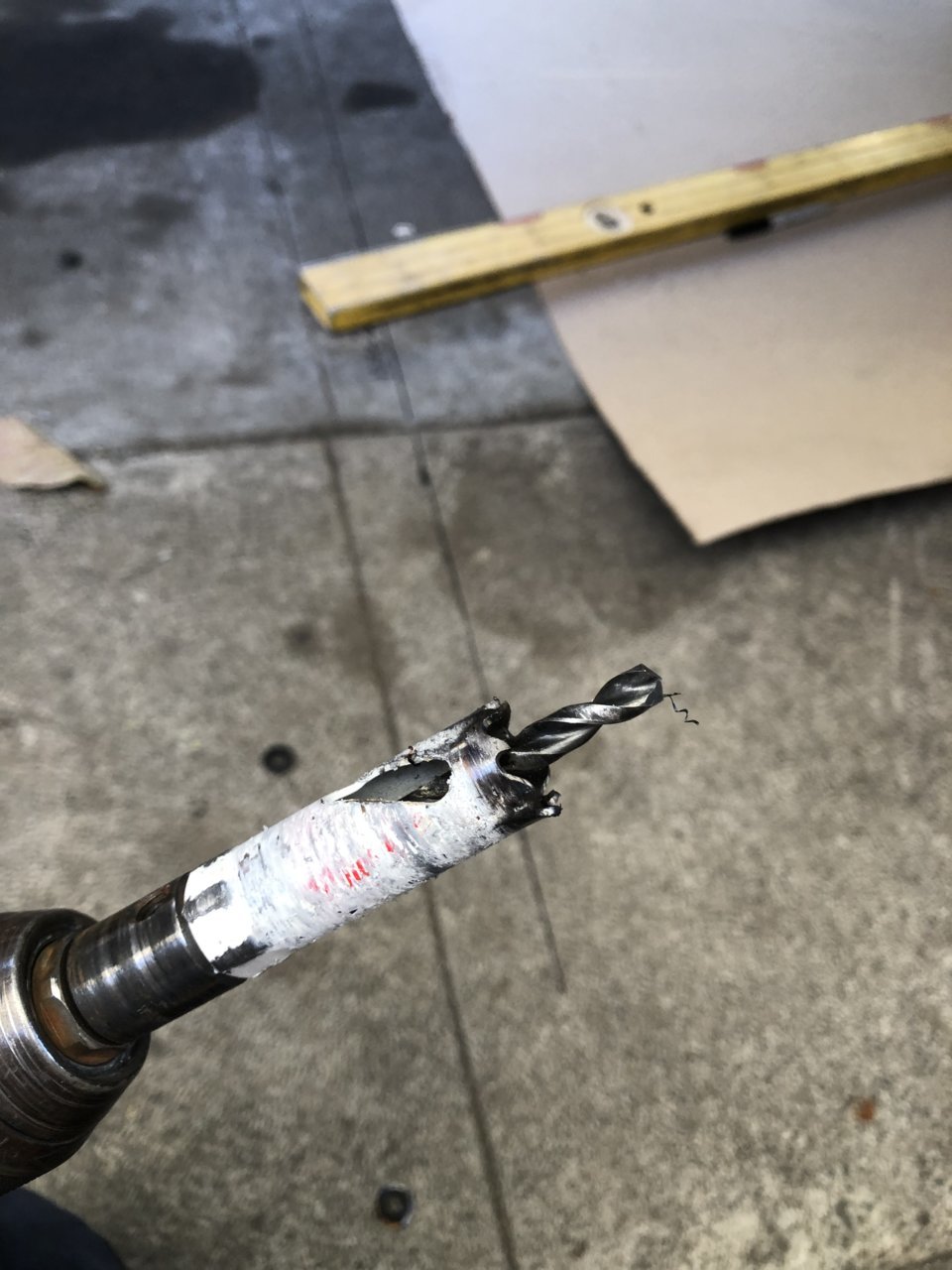

    I got the steering box location holes drilled through the frame and have it temped up. When drilling through the frame you will have to drill through 2 internal threaded studs. If you use a holesaw without the pilot bit it is fairly easy to bore directly through them and then put the pilot bit back on and continue through the inner frame wall. I’m a carpenter so I used a plumb bob to reference both stock and proposed wheelbases. I still have to clean up the inside of the frame rails where the old cross members were before I slide the axle under the truck.

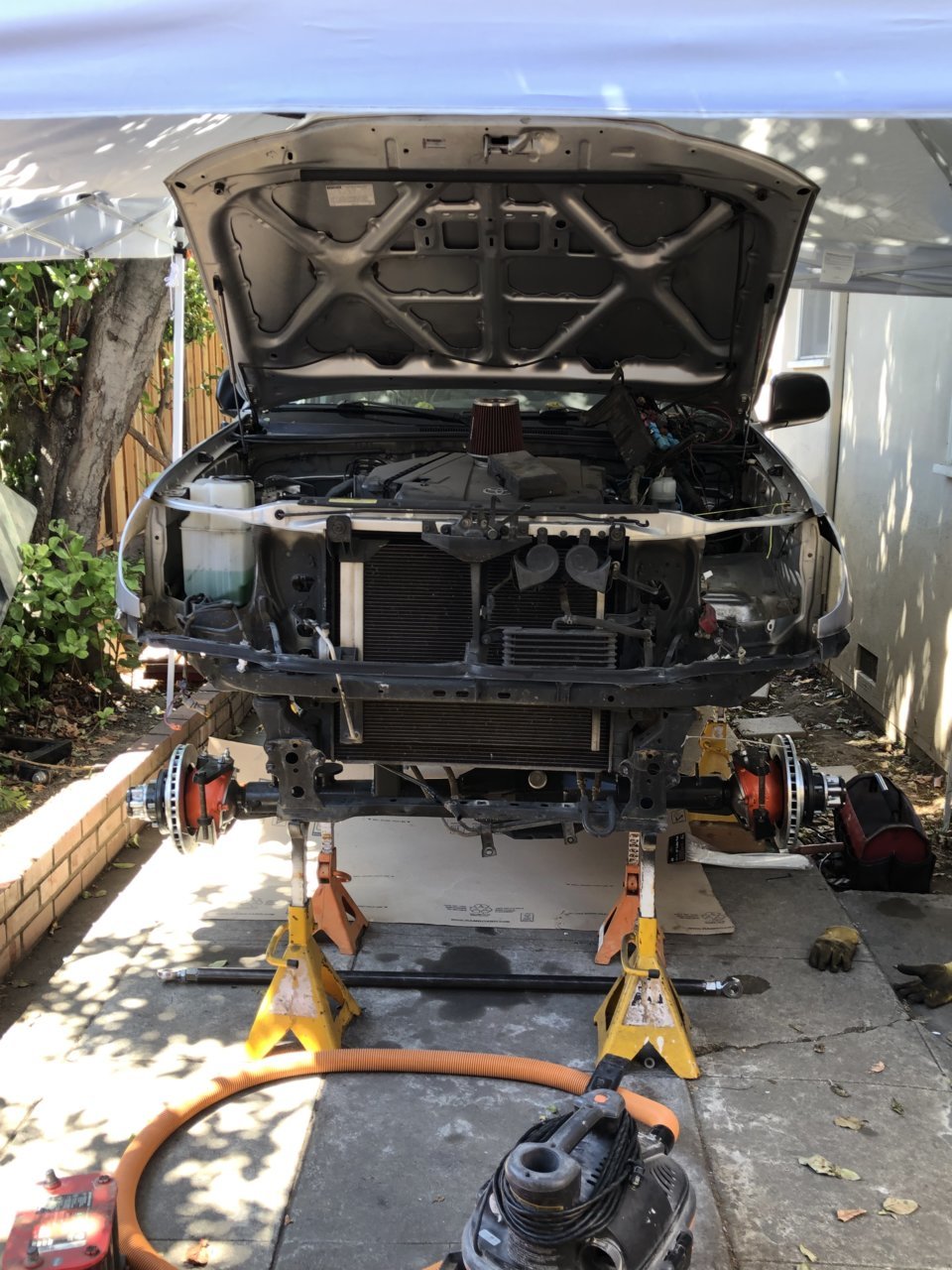

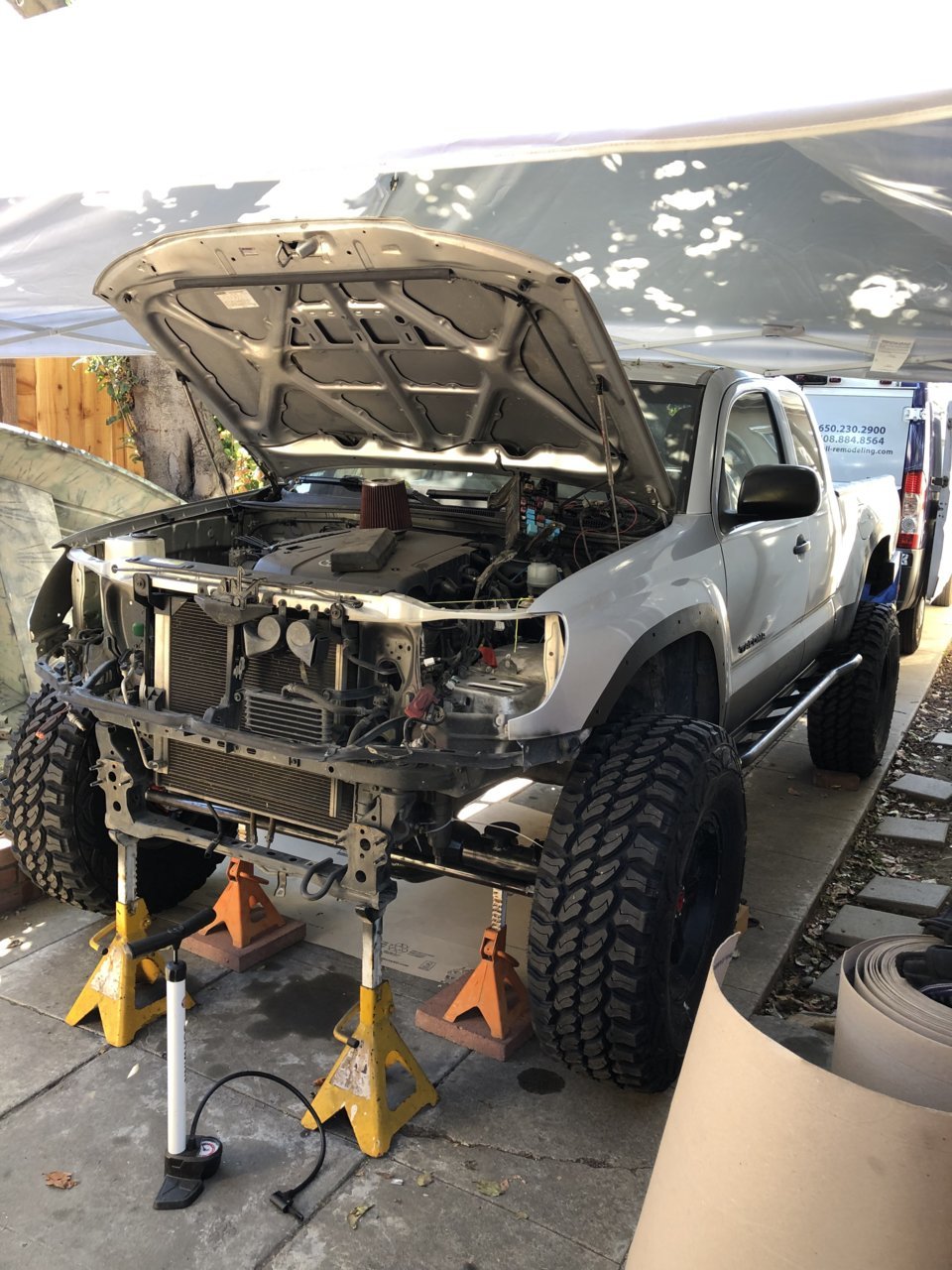

    6DD597CD-F966-4E10-B239-A8306BCB14EC.jpg 6C78B7DB-3D60-488D-9199-FB6EC77B30E7.jpg E64057E5-2EDF-496C-88D5-1687A5D987F0.jpg 8F7E57DA-92F9-497C-9B39-98EA7483B86B.jpg

    hoverlover and Airmain like this.
  2. Aug 18, 2019 at 2:12 PM
    #22
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
  3. Aug 18, 2019 at 4:57 PM
    #23
    malburg114

    malburg114 Well-Known Member

    Joined:
    Dec 26, 2012
    Member:
    #93766
    Messages:
    3,801
    Gender:
    Male
    Las Vegas, NV
    Vehicle:
    2001 Toyota Tacoma TRD
    It’s not to late. Push that steering box as far forward as you can. You’ll thank me later.

    Timbo's Customs and Boomtacoma01 like this.
  4. Aug 18, 2019 at 6:56 PM
    #24
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4

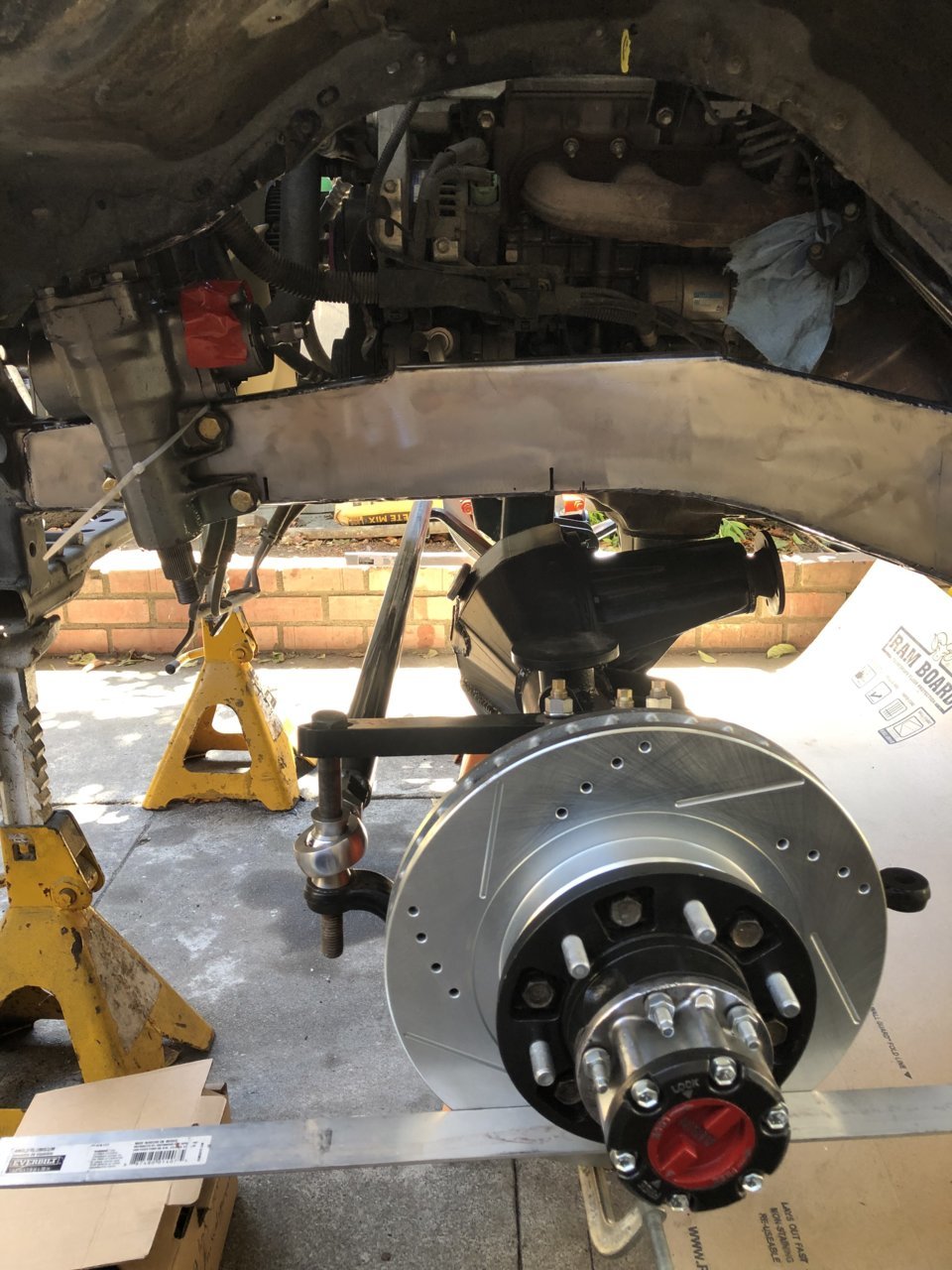

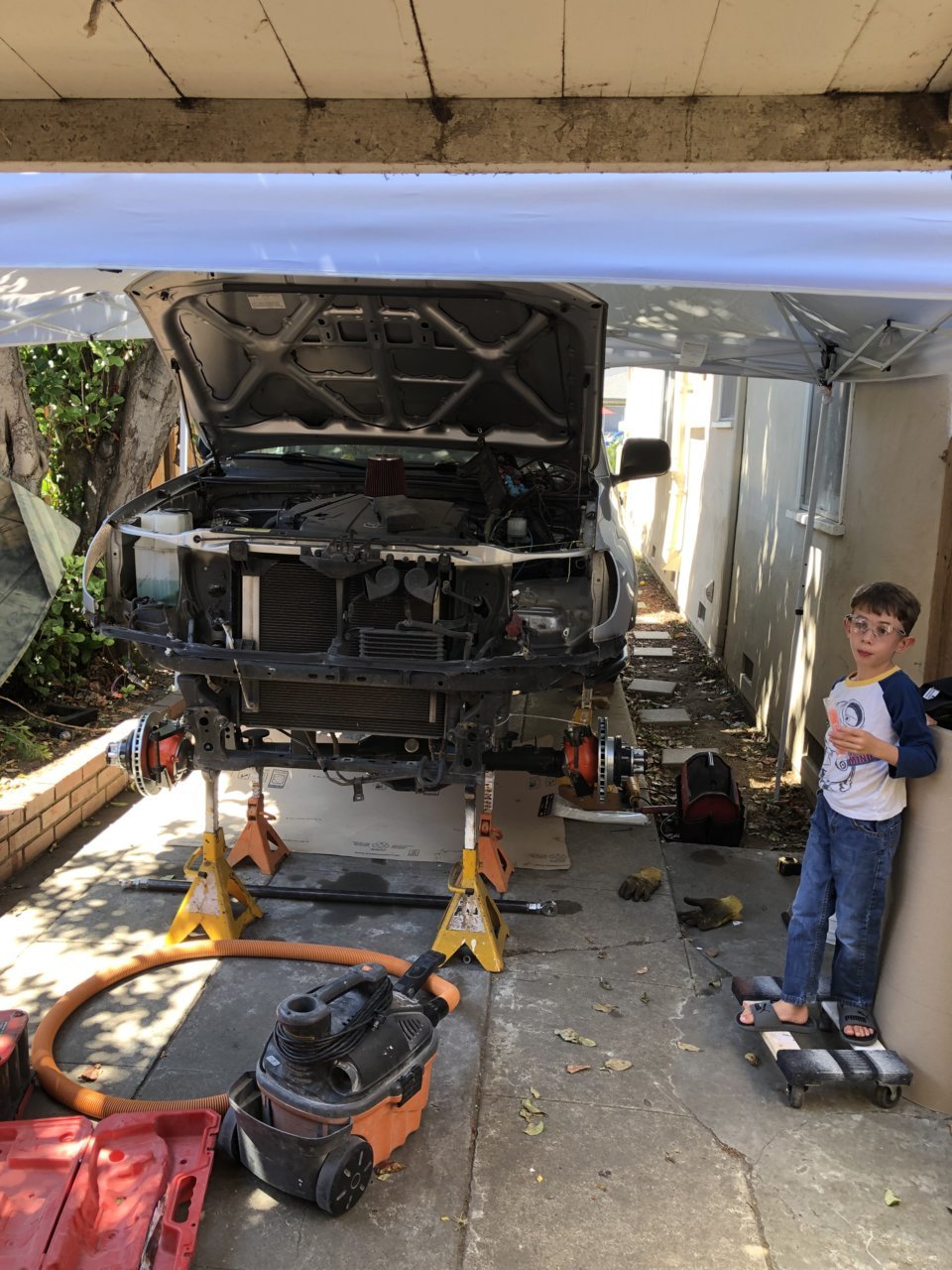

    Good progress this weekend in between fam and boozing/eating.


  5. Aug 18, 2019 at 7:48 PM
    #25
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    Doesn’t look like it but there’s only 1” from the steering box to the body mount. At the top end. I’ll keep it there and see how it looks with drag link

  6. Aug 19, 2019 at 7:29 PM
    #26
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    Bought Coilovers today. Went with 14”king 2.5 remote rezzi. I just had to pull the bandaid off and get it over with. That’s probably the last big ticket item I needed to get. I might run hoops instead of towers too.

    hoverlover, honda50r and 4x4Taco09 like this.

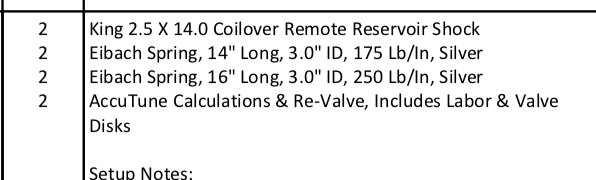

  7. Aug 20, 2019 at 6:28 AM
    #27
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    Just doing curious research on my end, what frame height, uptravel and down travel are you looking to get out of the 14s?

  8. Aug 20, 2019 at 7:27 AM
    #28
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    Frame heights I don’t know yet but going for 5”up and the rest down. For 5” up it will need 6” of shaft showing. I’ll figure out ride height once I get the shocks in hand and start on links and panhard.

    hoverlover and 4x4Taco09 like this.
  9. Aug 20, 2019 at 7:33 AM
    #29
    honda50r

    honda50r Not a Mallcrawler

    Joined:
    May 9, 2017
    Member:
    #218593
    Messages:
    4,111
    Gender:
    Male
    East Tennessee
    Vehicle:
    2nd Gen Tacoma
    Not Stock
    Let's get in the weeds. Why are you opting for the 3-link ?

  10. Aug 20, 2019 at 8:24 AM
    #30
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    Sounds like the approach I'm taking. Going 14 shock but looking for 12 inch of travel and 1 inch of safety net on bump and drop. Any idea on your link mounts on the frame end? I'm building rear crossmember now for the link mounts to go to but always like seeing what others come up with

  11. Aug 20, 2019 at 10:52 AM
    #31
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    I’m doing 3 link to try and keep it lower and not have to fuck with more shit around the tcase and gas tank for a couple reasons and a well built 3 link works great. Most failures when wheeling are due to shredding to hard. I’m a light footed type of wheeler. I’m not against a 4 link though.

    hoverlover likes this.
  12. Aug 20, 2019 at 11:03 AM
    #32
    honda50r

    honda50r Not a Mallcrawler

    Joined:
    May 9, 2017
    Member:
    #218593
    Messages:
    4,111
    Gender:
    Male
    East Tennessee
    Vehicle:
    2nd Gen Tacoma
    Not Stock
    What are the future plans you are making room for?

  13. Aug 20, 2019 at 11:06 AM
    #33
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    I’m going to do straight links on the lower links right in line with the frame and plan on using ruffstuff link kit and brackets. if that’s what you mean and I have a 10deg upper link mount on the inside of the passenger frame. I will have to check it out because it might hit the frame. I still am thinking things through. Buying the shocks just crushed my funds and I need to buy some different shock hoops. I have Barnes towers but am going to go with a 1 1/2” .12 dom 60deg ruffstuff hoop. It will make running the linkage to the steering box way easier and keep it more open. Also the Barnes towers don’t look like they are the right angle that I will need.I guess I could cut the rear flanges on them to angle. I will see.

    hoverlover likes this.
  14. Aug 20, 2019 at 11:08 AM
    #34
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4
    I have a twin stick Fj case and another box in the garage to do dual cases at some point

    ToyotaRoamer86 and hoverlover like this.
  15. Aug 20, 2019 at 12:21 PM
    #35
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    Nice, I was looking at Ruff stuff brackets but ended going Barnes on the link kit and brackets, caught them on a 20% off sale and couldn't pass them up, picked up some weld washers as well to prevent messing up the bolt holes. Good to know about the shock tower, I had an eye on the barnes tower you got but I'l may have to rethink it now.

    I need to get shocks next, that's my last big purchase as well, almost done with recouping from the tires I splurged on. Stuff is not cheap

  16. Aug 22, 2019 at 8:43 AM
    #36
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4

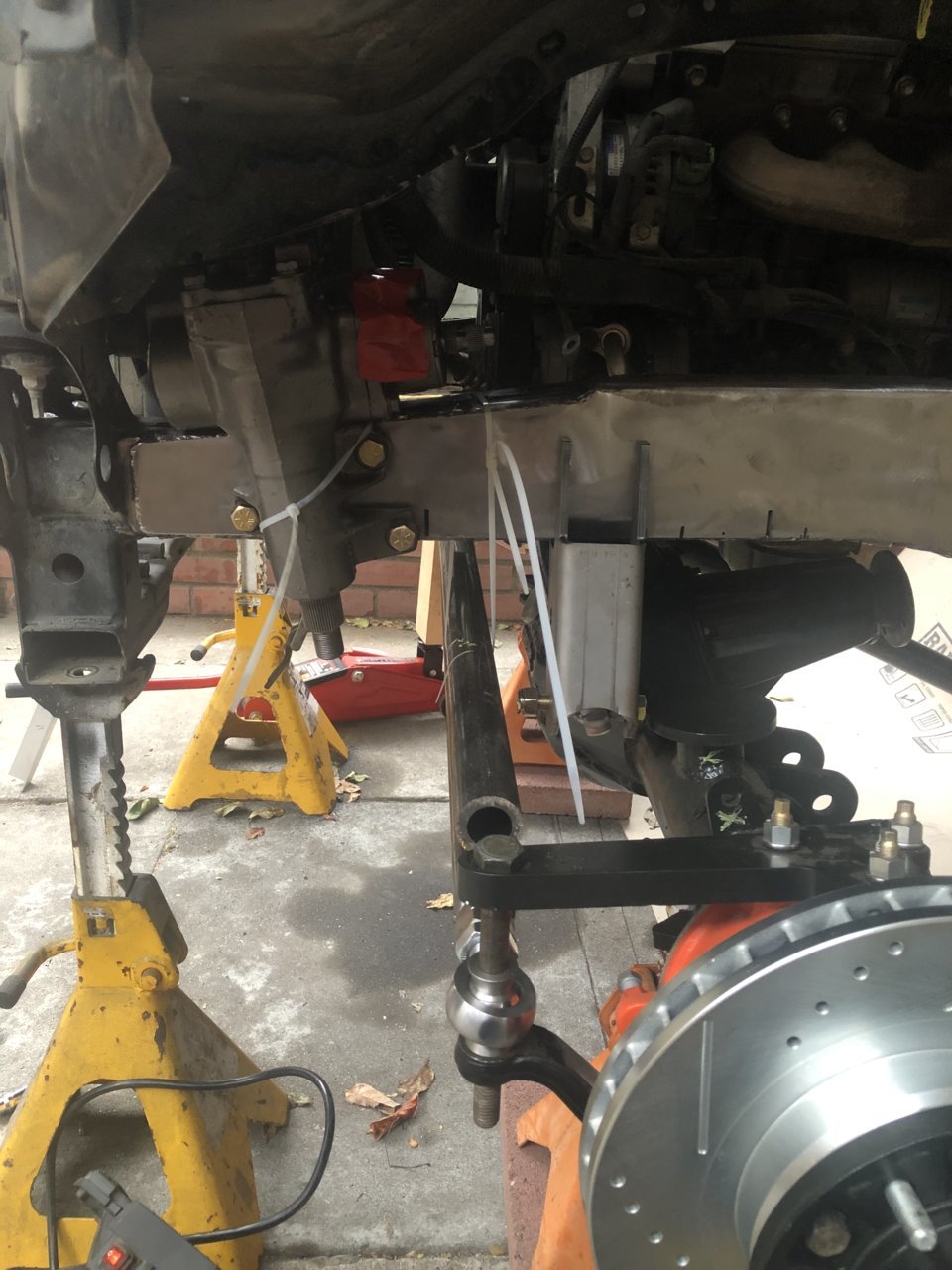

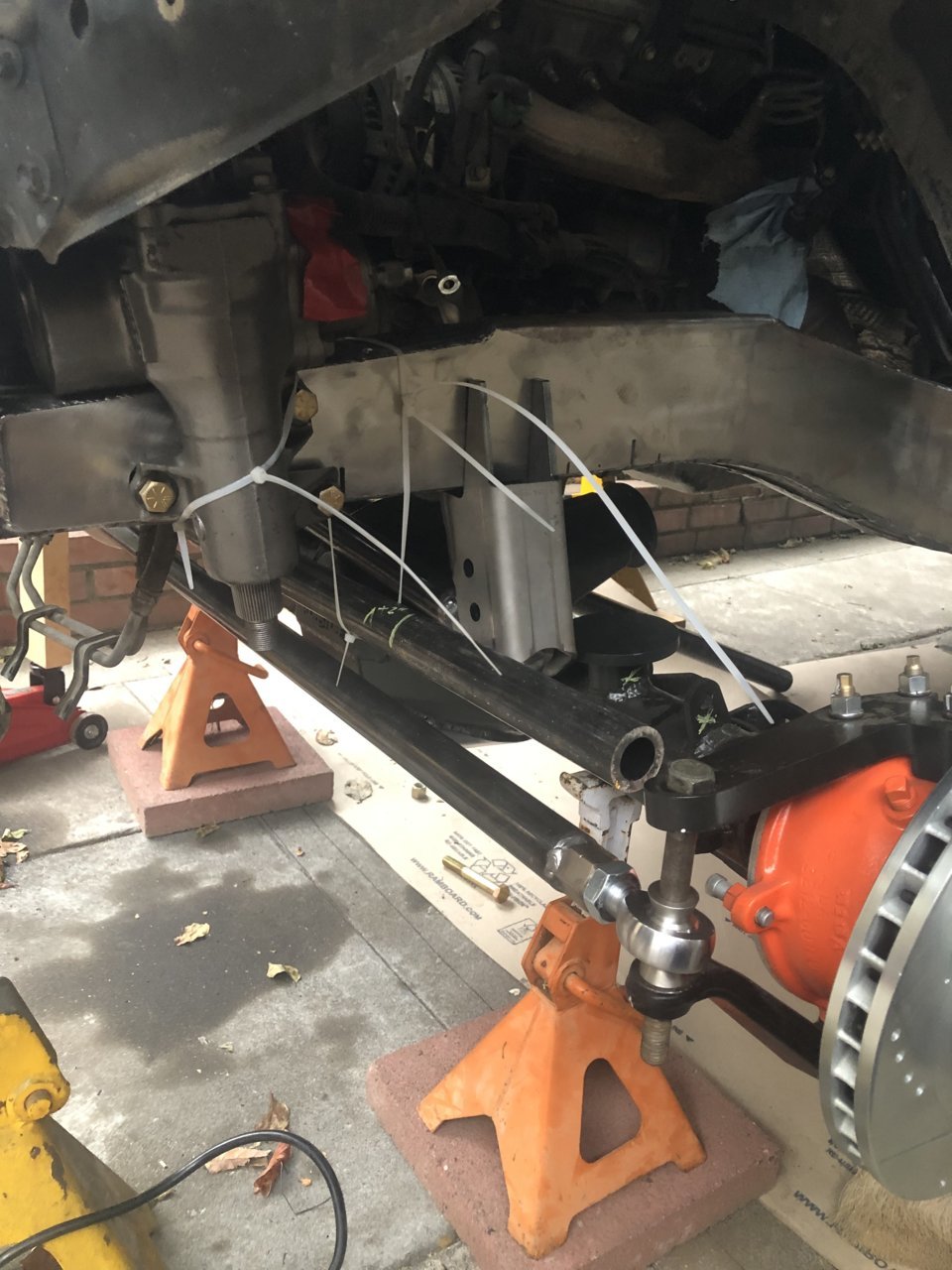

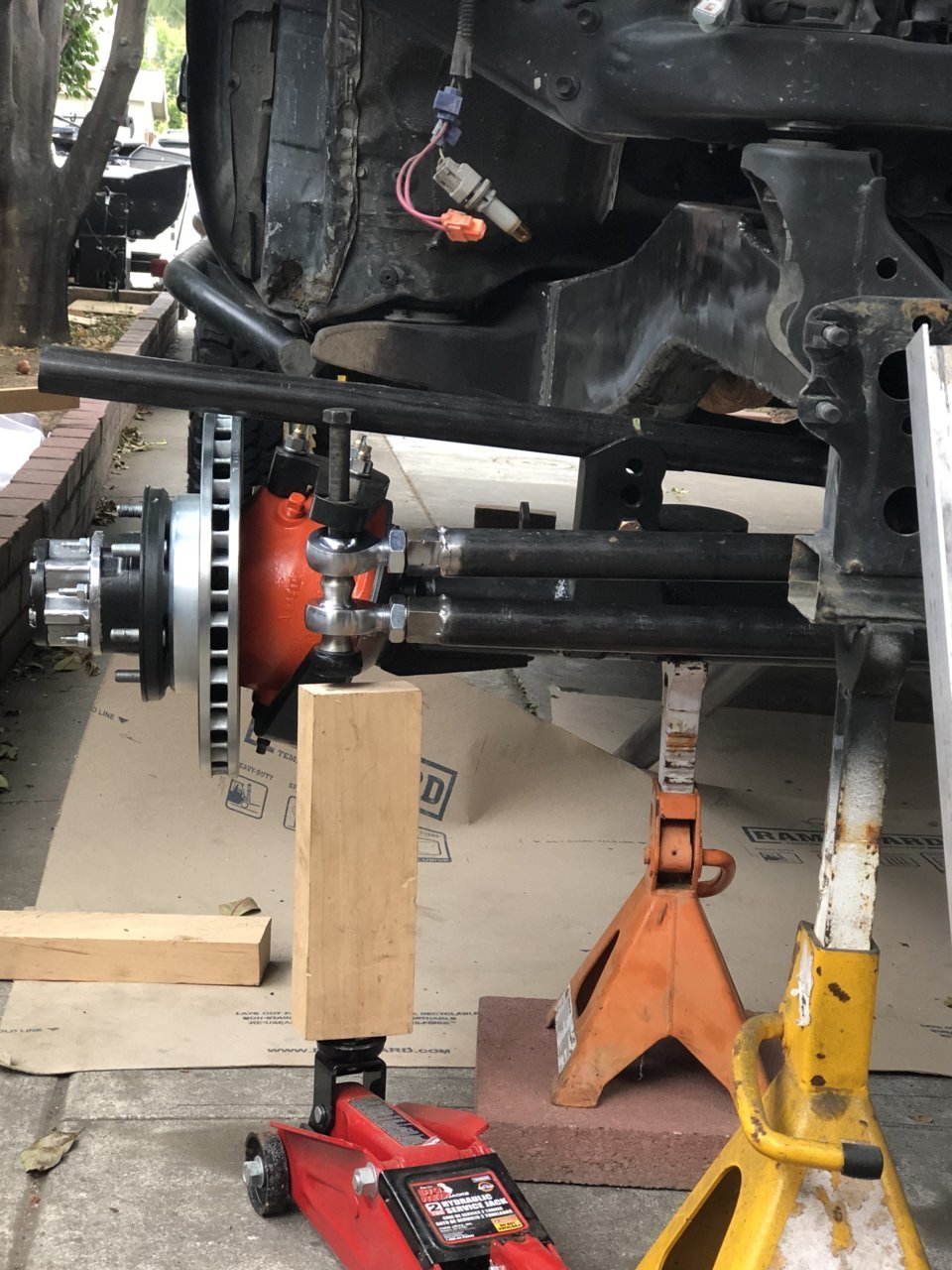

    Did a little mock up of the steering. Might move the box forward an inch and axle back 1/2”-3/4 .the bump stop pads and sway bar tabs that were on the housing when I bought it need to be removed and I will reposition the bump pads later. I need to look into upper link. It might be really hard to get the upper link the same length or a little longer to keep pinion angle ok throughout droop. Will be looking into it. Will have Coilovers in 2 weeks. Need to buy shock hoops. And pitman arm. Probably ruff stuff hoops and sky pitman arm.

    B81ECA17-C3F5-416C-BC31-E9A7F24A630E.jpg A989F0F6-8ED1-4655-A00A-2A1C5D5D1672.jpg 46841FAB-4CD6-4E64-83F3-4A5700394A7C.jpg

    hoverlover and 2012TacomaGuy like this.
  17. Aug 22, 2019 at 8:55 AM
    #37
    2012TacomaGuy

    2012TacomaGuy Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190747
    Messages:
    741
    Gender:
    Male
    First Name:
    Hayden
    Goodyear AZ
    Vehicle:
    2012 Pyrite Mica DCSB TRD Sport
    Empty wallet
    Subd for a sweet build

  18. Aug 22, 2019 at 9:58 AM
    #38
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,990
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    What spring rates did you get for the coilovers?

  19. Aug 22, 2019 at 5:59 PM
    #39
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4

    ToyotaRoamer86 and hoverlover like this.
  20. Aug 22, 2019 at 7:39 PM
    #40
    Pdugan6

    Pdugan6 [OP] Well-Known Member

    Joined:
    Aug 11, 2013
    Member:
    #110271
    Messages:
    1,489
    Gender:
    Male
    First Name:
    Patrick
    Sunnyvale California
    Vehicle:
    3 link solid axle 2011 Tacoma 4x4

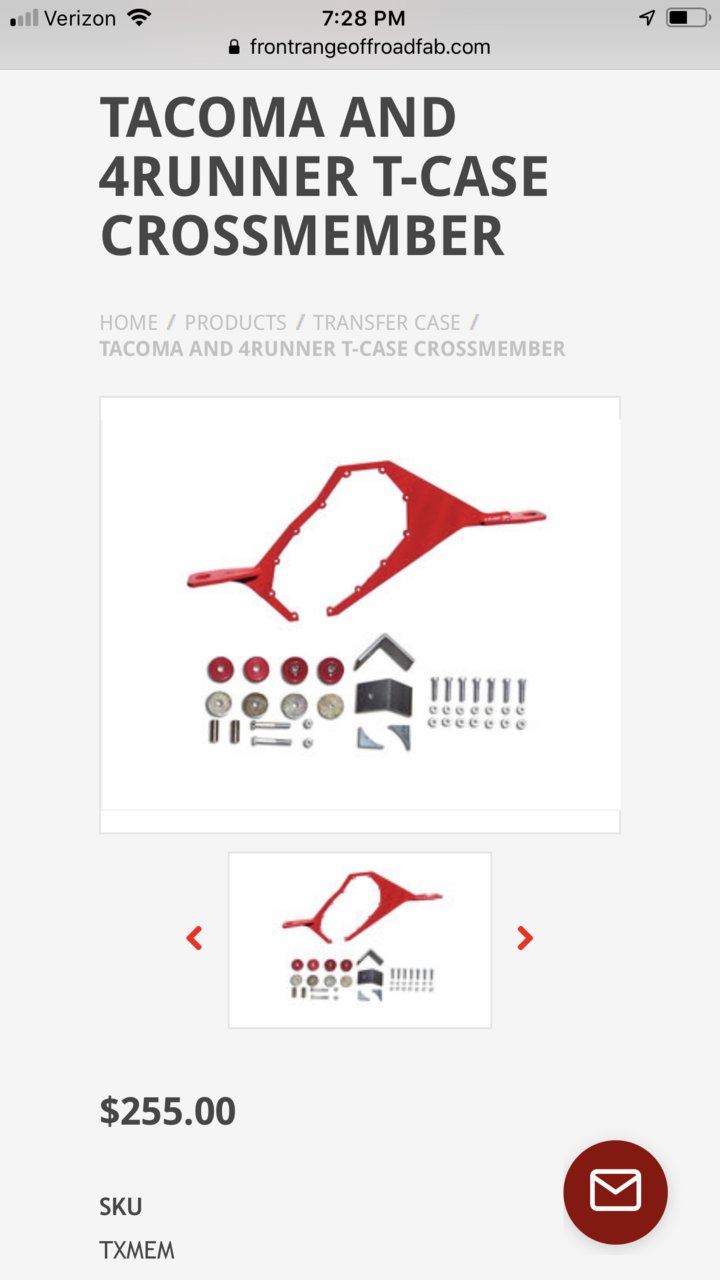

    Ordered a front range off-road tcase crossmember. 736A8C8A-777C-4734-A75D-BE3DCD1A25A6.jpg

    hoverlover likes this.
