    Quick Links: (DIY) AC or Heater Only Blowing on HIGH? Here's a fix Transfer case output seal leak, and center carrier bearing issues License plate light -- shorted circuit? Anyone installed an aftermarket tow package? Adding Bluetooth to factory stereo, with blulogic Best sound deadening material for the cost?

2nd gen Tacoma tube bumper build

Discussion in '2nd Gen. Tacomas (2005-2015)' started by cummins6speed, Nov 13, 2011.

Page 1 of 5
  1. Nov 13, 2011 at 11:14 AM
    #1
    cummins6speed

    #1
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper

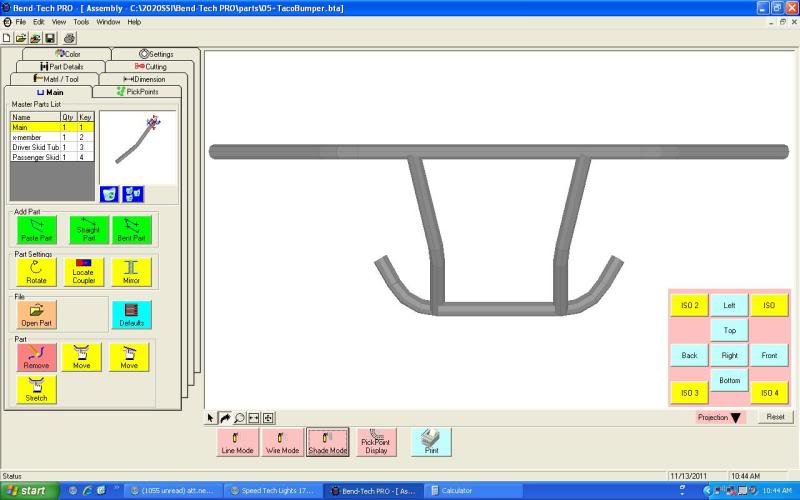

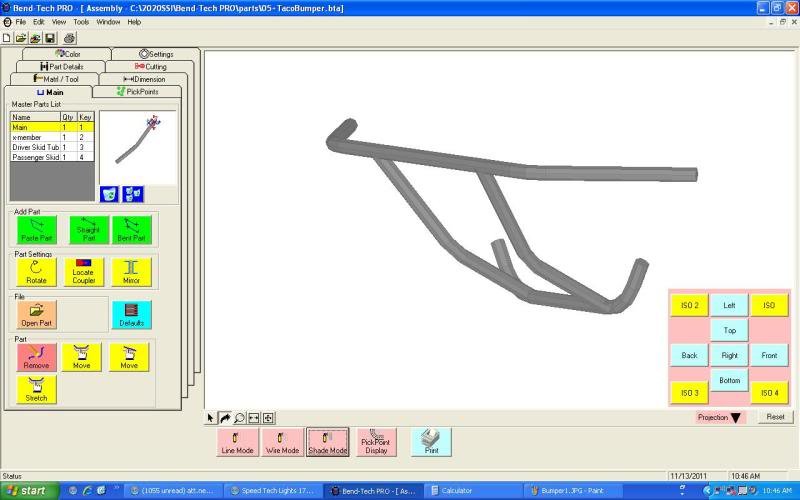

    The tube design

    Plates cut for the uprights
    [​IMG]

    Tacked to the mounting plate
    [​IMG]

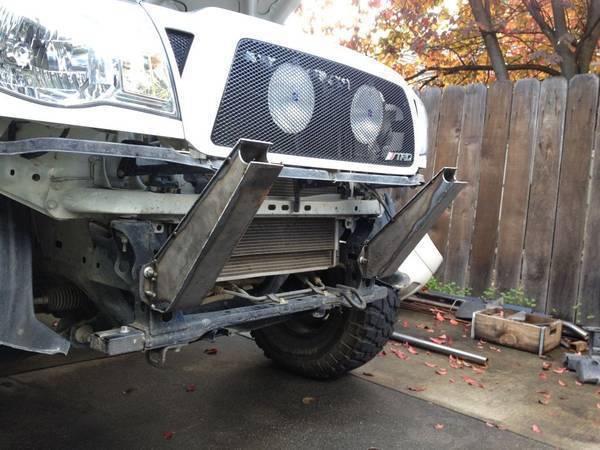

    Test fitting
    [​IMG]

    Bending the front upright plates with my homemade plate bender
    [​IMG]

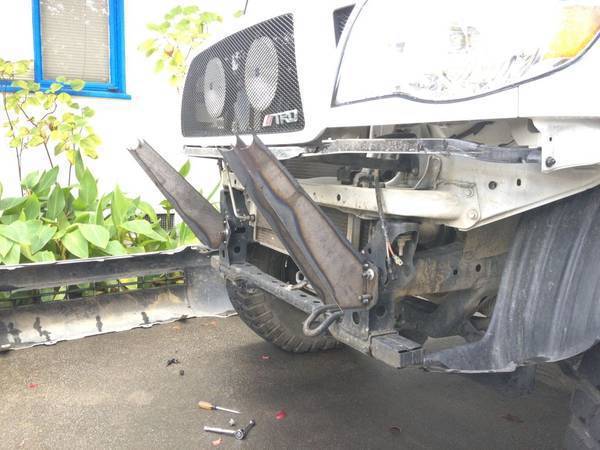

    Back on the truck with the front upright plate tacked on
    [​IMG]

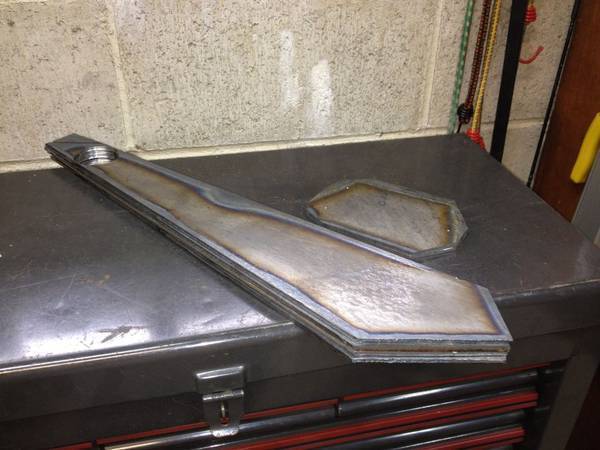

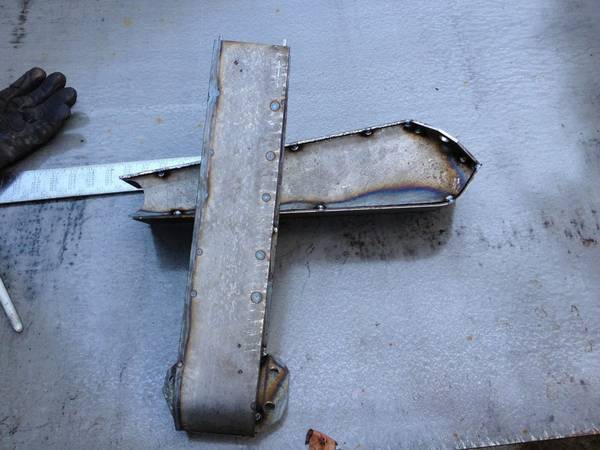

    Passenger upright all tacked together
    [​IMG]

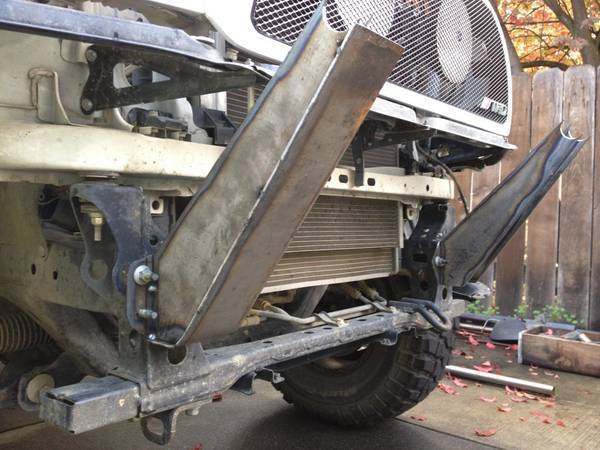

    Both uprights ready for finish welding
    [​IMG]
    [​IMG]
    [​IMG]

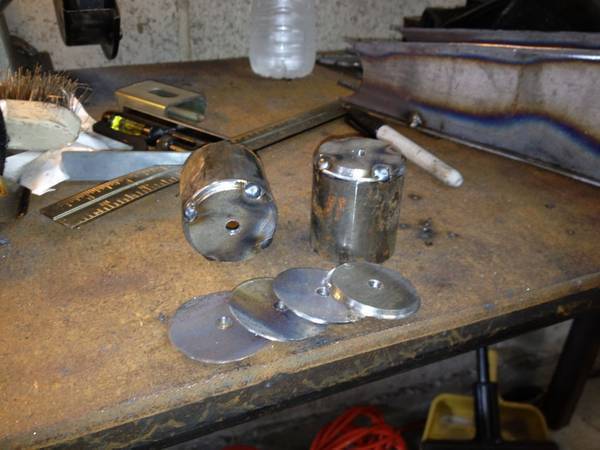

    Taking some scrap tube and the hole saw cutouts from the uprights to make the body mount slugs
    [​IMG]
    [​IMG]
    [​IMG]

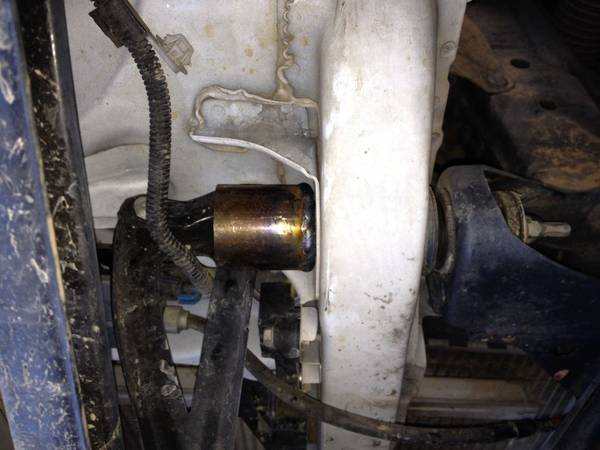

    Body mount slug bolted down to take measurements
    [​IMG]

    Bending the main hoop
    [​IMG]

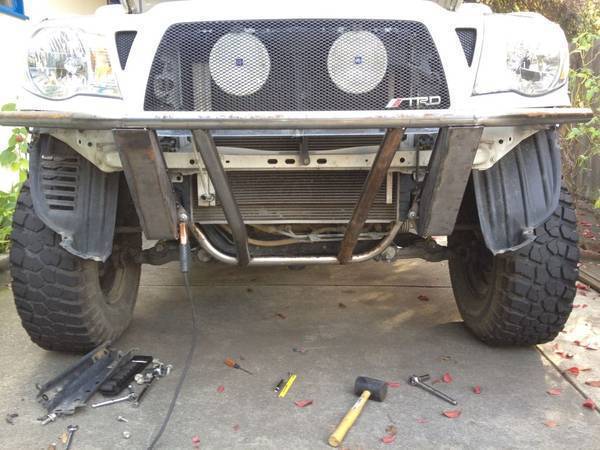

    Test fitting the main hoop
    [​IMG]

    Building the crossmember that bolts to the sway bar mounts and to the factory skid plate support mounts
    [​IMG]

    cummins6speed, Nov 13, 2011
    #1
    Kuntrykid and Stryker420 like this.
  2. Nov 13, 2011 at 11:14 AM
    #2
    cummins6speed

    #2
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    To be continued...

    cummins6speed, Nov 13, 2011
    #2
    Stryker420 likes this.
  3. Nov 13, 2011 at 11:18 AM
    #3
    Johns Taco

    #3
    Johns Taco I'm not 4x4, and have an open diff. So i'm 4x1

    Joined:
    Dec 6, 2010
    Member:
    #47253
    Messages:
    2,073
    Gender:
    Male
    First Name:
    John
    Albuquerque, NM
    Vehicle:
    05 DSM Base SR5 Slug Taco
    Full custom stereo, onboard air compressor, train horns, spacer lift, 30" tires, optima yellow top, rear slider window & tailgate anti-theft mod, pop & lock, class 3 tow hitch, lights in bed, Ultra Gauge, Weather Tech mats, yellow fog lights, camper top, air lift rear airbags, rear diff breather mod, soon to be more...
    Looks good so far. I like it.

    Johns Taco, Nov 13, 2011
    #3
  4. Nov 13, 2011 at 11:22 AM
    #4
    PaidUpTruck

    #4
    PaidUpTruck Well-Known Member

    Joined:
    Nov 23, 2010
    Member:
    #46614
    Messages:
    63
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    Tacoma TRD Off-Road 4x4
    You have amazing welding skills... I am subbing this for future reference...

    PaidUpTruck, Nov 13, 2011
    #4
  5. Nov 13, 2011 at 11:23 AM
    #5
    ColtsTRD

    #5
    ColtsTRD Well-Known Member

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    17,877
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005
    :popcorn:

    ColtsTRD, Nov 13, 2011
    #5
  6. Nov 13, 2011 at 11:25 AM
    #6
    cummins6speed

    #6
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Thanks.

    My welding is far from amazing but thanks :D

    cummins6speed, Nov 13, 2011
    #6
    Stryker420 likes this.
  7. Nov 13, 2011 at 11:33 AM
    #7
    chadderkdawg

    #7
    chadderkdawg Don't ask questions you don't want the answer to..

    Joined:
    Apr 29, 2011
    Member:
    #55763
    Messages:
    8,148
    Gender:
    Male
    Des Moines, Iowa
    Vehicle:
    09 FX4 F150
    Subby Subby

    chadderkdawg, Nov 13, 2011
    #7
  8. Nov 13, 2011 at 11:35 AM
    #8
    floridaoccifer

    #8
    floridaoccifer Civil Servant

    Joined:
    Jan 14, 2009
    Member:
    #12582
    Messages:
    778
    Wow is all I can say, watching this makes me feel like such an idiot on the skill level.

    KEEP UP THE GREAT WORK, definitely subbed on this one...

    floridaoccifer, Nov 13, 2011
    #8
  9. Nov 13, 2011 at 11:41 AM
    #9
    baja820

    #9
    baja820 Well-Known Member

    Joined:
    Jun 24, 2011
    Member:
    #58794
    Messages:
    319
    Gender:
    Male
    pacific northwest mountains
    Vehicle:
    '11 SR5 Tacoma V6 6MT 4x4
    That's sweet! I like it!

    baja820, Nov 13, 2011
    #9
  10. Nov 13, 2011 at 11:55 AM
    #10
    PLC721

    #10
    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,957
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2017 Toyota Tundra Crewmax ProKiller
    Kings, Toyos, Baja Designs, TC, SDHQ
    Looking good

    PLC721, Nov 13, 2011
    #10
  11. Nov 13, 2011 at 11:58 AM
    #11
    HomerTaco

    #11
    HomerTaco also HomerTaco Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    45,874
    Gender:
    Male
    First Name:
    HomerTaco
    HomerTaco
    Vehicle:
    HomerTaco
    HomerTaco ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Impressive... :cool:

    Subbed :popcorn:

    HomerTaco, Nov 13, 2011
    #11
  12. Nov 13, 2011 at 12:03 PM
    #12
    bigcountrypicker

    #12
    bigcountrypicker Jacob Long

    Joined:
    Mar 22, 2011
    Member:
    #53470
    Messages:
    22
    Gender:
    Male
    First Name:
    Jacob
    Batesville Arkansas
    Vehicle:
    2009 dbl cad 4x4 sr5
    color match grill so far
    your welds look like dodo

    bigcountrypicker, Nov 13, 2011
    #12
    Stryker420 likes this.
  13. Nov 13, 2011 at 12:05 PM
    #13
    chadderkdawg

    #13
    chadderkdawg Don't ask questions you don't want the answer to..

    Joined:
    Apr 29, 2011
    Member:
    #55763
    Messages:
    8,148
    Gender:
    Male
    Des Moines, Iowa
    Vehicle:
    09 FX4 F150
    :crapstorm:

    chadderkdawg, Nov 13, 2011
    #13
  14. Nov 13, 2011 at 12:06 PM
    #14
    macgyver

    #14
    macgyver Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,577
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    Not really a fan of tube bumpers, however Awesome work! I like your homemade tubing bender haha. How is that Harbor freight pipe bender working for the tubing?

    macgyver, Nov 13, 2011
    #14
  15. Nov 13, 2011 at 2:12 PM
    #15
    cummins6speed

    #15
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    :confused: Everything is only tacked together except the body mount slugs

    cummins6speed, Nov 13, 2011
    #15
  16. Nov 13, 2011 at 2:30 PM
    #16
    cummins6speed

    #16
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Now that's a nice chop saw notch
    [​IMG]

    Checking the fitment of the skid plate tubes. Prepare to meet your doom stupid crossmember.
    [​IMG]

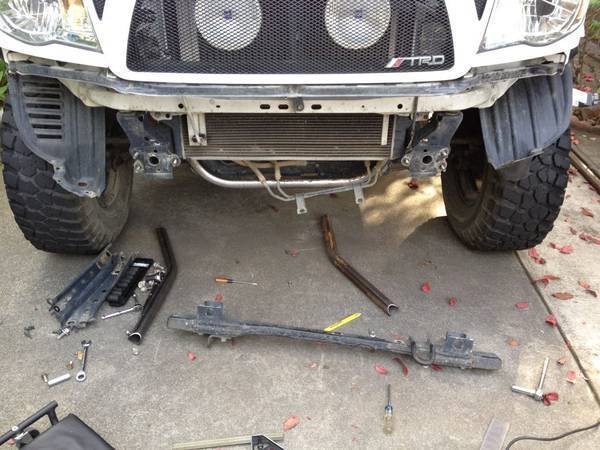

    Goodbye usless, stupid, fugly crossmember
    [​IMG]

    Skid tubes tacked in place, starting to look like a bumper
    [​IMG]
    [​IMG]

    cummins6speed, Nov 13, 2011
    #16
    Stryker420 likes this.
  17. Nov 13, 2011 at 2:37 PM
    #17
    hudhawk

    #17
    hudhawk #texasforever

    Joined:
    Jan 27, 2011
    Member:
    #50037
    Messages:
    2,010
    Gender:
    Male
    First Name:
    Hudson
    California
    Vehicle:
    TRD Off Road
    Rust, lots of rust
    Nice work! Im really liking the design. :thumbsup:

    hudhawk, Nov 13, 2011
    #17
  18. Nov 13, 2011 at 2:42 PM
    #18
    cummins6speed

    #18
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Thanks! Im happy with how its turning out, I think I might like it better than the one I did for my 4runner

    cummins6speed, Nov 13, 2011
    #18
  19. Nov 13, 2011 at 2:53 PM
    #19
    907taco

    #19
    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    that is awesome, one of a kind custom fab. I wish i had the tools for this> Nice work and awesome thread, you going to powder coat ? looking foward to seeing some finished pics. You adding a winch mount ?

    907taco, Nov 13, 2011
    #19
  20. Nov 13, 2011 at 3:26 PM
    #20
    cummins6speed

    #20
    cummins6speed [OP] Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,809
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Im just going to paint it, I might try the duplicolor bed armor. No winch mount for this one but Im sure it can be done

    cummins6speed, Nov 13, 2011
    #20
Page 1 of 5

Products Discussed in

NOCO Boost GB40: 1000A UltraSafe Jump Starter – 12V Lithium Battery Booster Pack, Portable Jump Box, Power Bank & Jumper Cables - for 6.0L Gas and 3.0L Diesel Engines
$87.96
Air Intake Snorkel Kit Fit For 2005-2015 Toyota Tacoma With 4L Right Petrol intake air snorkel kit high performance system compatible kit Replacement black Rotational Molding (2005-2015)
$73.00
Mobil 1 104361 75W-90 Synthetic Gear Lube - 1 Quart (Pack of 2)
$27.88
Steelman Wireless ChassisEAR Auto Diagnostic Tool Kit, Identify The Cause of Troubling Vehicle Noises, 4 Transmitters with 50-Foot Range (61082)
$258.12
Toyota Genuine Transfer Case Gear Oil LF 75W 1 Litre 08885-81080
$97.50
M6 Black Acorn Cap Nuts, Stainless Steel 304 (18-8) Black Coating Acorn Nuts, 20Pcs-Pack
$8.49
Spicer 5-1310X U-Joint Kit 1310/SPL22 Series (OSR)
$23.84
Meguiar's Two Step Headlight Restoration Kit, Headlight Cleaner Restores Clear Car Plastic and Protects from Re-Oxidation, Includes Headlight Coating and Cleaning Solution - 4 Count (1 Pack)
$21.88
Spicer 5-1330X U-Joint Kit 1330/SPL25 Series (OSR)
$27.95
Dasbecan 6Pin Backup Camera Compatible with 2014 2015 Toyota Tacoma Back Up Rear Camera Replaces# 86790-04021 86790-04020
$32.89
Ford Genuine Fluid TA-31 RTV Silicone Sealant - 5 oz.
$29.99
Maestro Acc-SAT-TO2 Sat Radio and GPS Antenna adaptors for TO2 Vehicles
$29.99
Milwaukee Electric - Torch 7T 6L Blade 5PK
$35.78
Mobil Synthetic, SAE Grade : 75W-90, 1 gal. Jug 122035-1 Each
$49.90
TOYOTA Genuine Parts - Inlet Sub-Assy, Wate (16031-0P010)
$49.95
AISIN FCT-013 Engine Cooling Fan Clutch - Compatible with Select Toyota 4Runner, T100, Tacoma, Tundra
$88.79
Derale 13091 single mount 3/8" NPT ports up remote transmission filter kit
$115.99
EBC Brakes Yellowstuff 4000 Series Street DP41657R to Fit MITSUBISHI,LEXUS,TOYOTA (AUSTRALIA AND NEW ZEALAND),TOYOTA,TOYOTA COMMERCIAL
$123.14
BORLA 20248 Universal Performance Exhaust Tip 2.25" Single Inlet / 4" Round Angle-Cut Single Outlet 12" Long Resonated Lined Polished T-304 Stainless Steel Weld On Design
$69.29
Extech LT45 LED Light Meter
$335.99
PRIMEWELD CUT60 60Amp Non-Touch Pilot Arc PT60 Torch Plasma Cutter 110V/220V Dual Voltage 3 Year Warranty
$699.00
ARB RD129 Air Locking Differential
$1,109.99
Toyota Genuine Water Pump Assembly
$145.00
Permatex 81730 Flowable Silicone Windshield and Glass Sealer, 1.5 oz.
$7.71
500Pcs Connector Terminal Pin Wire Harness Pins Automotive Auto Car Electrical Connector Pins Motorcycle ATV 1/1.5/1.8/2.2/2.8/3.5mm
$17.98
3M Marine Adhesive Sealant 5200 (06500) Permanent Bonding and Sealing for Boats and RVs Above and Below the Waterline Waterproof Repair, White, 10 fl oz Cartridge
$22.40
Spicer 5-1330-1X U-Joint Kit
$42.33
Winunite 32.8Ft(10M) Car Door Edge Guards Black, Fits Most Vehicles, No Glue Required, Fade-Resistant, U-Shaped Automotive Trim Car Door Edge Protector for Trucks SUV Sedans
$16.96
ARB ARB710LB 3-1/4" x 30' Recovery Snatch Strap Minimum Breaking Strength 24000 lbs Kinetic Stretch 20% With Reinforced Eyes and Protector Sleeves
$99.95
Genuine Toyota 90916-A2001 Alternator and Fan Belt
$56.92
Hayden Automotive 678 Universal Rapid-Cool 9.5” x 11” Add-On Transmission Cooler – Not for Direct Replacement of the OE Cooler
$51.51
Magnefine 3/8" Magnetic Inline Transmission/Power Steering Filter
$25.95
GEARWRENCH Indexing Pry Bar 16" - 82216
$36.59
Seven Sparta Car Cup Holder Expander with Adjustable Base, Compatible with Hydro Flasks 32/40 Ounce, Compatible with Yeti Ramblers 20/26/30 Ounce, Other Bottles in 3.4"-3.8" (Black)
$15.99
Siless Liner 157 (4 mm) mil 36 sqft Car Sound Deadening Closed Cell Foam & Heat Insulation mat - PE Foam Sound Deadener Material & Heat Barrier
$44.95
3M 08609 Window-Weld Super Fast Urethane Black Cartridge - 10.5 fl oz.
$28.97
OEMTOOLS No-Spill Coolant Funnel Kit, 15 Piece Fluid and Oil Funnel Set, Allows Access To Hard-To-Reach Radiators
$21.99
Switch Pros SP-9100 8-Switch Panel Power System With Concealed Mounting Hardware
$659.00
ATP Automotive AT-205 Re-Seal Stops Leaks, 8 Ounce Bottle
$20.49
Toyota Oil Drain Plug Crushable Steel Gaskets Set of 10 OEM 12157-10010
$13.99
Bilstein 24263108 Shock Absorber
$140.08
Tekonsha 90195 Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles, Compatible with Ford, GM, Chevy, Dodge, RAM, Toyota, Jeep. Wiring harness sold separately.
$171.99
To Top
