2RZ/3RZ, 5VZ, 2UZ Valve Lash Inspection Sheet

Not sure if anyone is interested in this but it kind of speeds up the process when checking valve lash and not having to do the math to figure out the correct size shim. Green is within spec and red needs attention. It is also nice to have if you keep records of your maintenance.

Just click the link and go to "file" > "make a copy" and its all yours.

2RZ/3RZ
https://docs.google.com/spreadsheets/d/1B4dRe3U4b2H-qAXb6LKdDKaDmFsVtSm5TMRx2UY82Wo/edit?usp=sharing


5VZ
https://docs.google.com/spreadsheets/d/1WyjsxfEJamxS5D8BVjG5jiZ6btPb83U_WGiSWwNoe0I/edit?usp=sharing


2UZ non VVT (not sure if different spec or not, I don't have a VVT FSM to confirm.)
https://docs.google.com/spreadsheets/d/1P-WxmPoK4z1AOjj7YtaSJl0kYtcb-gI2X6q7xRe36Co/edit#gid=0

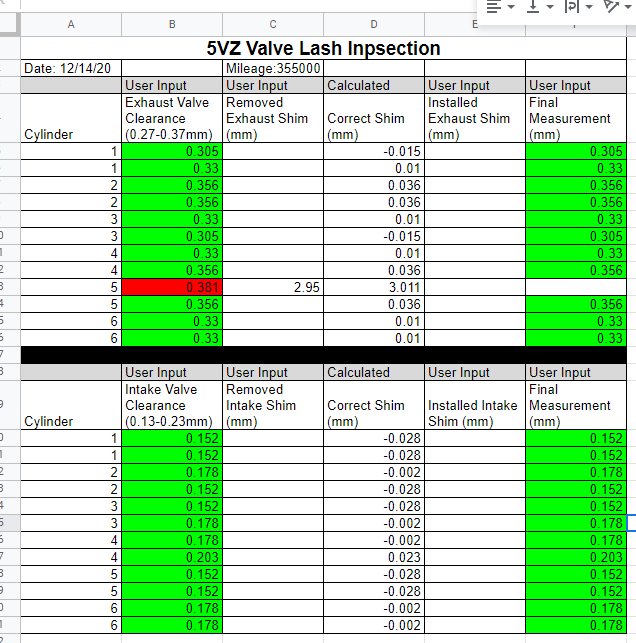

Currently waiting on a shim to finish my 5vz but here is an example.



Good to have in the ol tool bag, thanks!



Updated the original post to include the 2UZ. Not sure if anyone finds this helpful or not.



Very useful. Thankyou



This needs to be a sticky
