3.4L Back fires and I need help

Discussion in '1st Gen. Tacomas (1995-2004)' started by AK1stGen, Oct 11, 2017.

  1. Oct 12, 2017 at 9:21 PM
    #61
    Bulldogs129

    Bulldogs129 There's no cure for Tacoma fever...

    Joined:
    Sep 8, 2016
    Member:
    #196750
    Messages:
    383
    Gender:
    Male
    First Name:
    Malcolm
    Mississippi
    Vehicle:
    2002 Tacoma 4wd, SR5, TRD, 3.4L, auto
  2. Oct 12, 2017 at 9:28 PM
    #62
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    Bulldogs129 and Dalandser like this.
  3. Oct 12, 2017 at 10:33 PM
    #63
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    The scanner I barrowed is not showing anything with fuel trims, the only thing that has to do with fuel is shing when the circuit is open and closed. Maybe it because I don't know what I'm doing but do you have any suggestions on figuring out fuel trims?

  4. Oct 12, 2017 at 11:13 PM
    #64
    Brice

    Brice Turbo Member

    Joined:
    May 28, 2015
    Member:
    #156265
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Brice
    Texas
    Vehicle:
    1999 Tacoma PreRunner V6 SR5
    Turbo'd
    Is it a scangauge?

  5. Oct 12, 2017 at 11:41 PM
    #65
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    It's a Bosch obd2 scan tool

  6. Oct 12, 2017 at 11:55 PM
    #66
    Brice

    Brice Turbo Member

    Joined:
    May 28, 2015
    Member:
    #156265
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Brice
    Texas
    Vehicle:
    1999 Tacoma PreRunner V6 SR5
    Turbo'd
    What model?

  7. Oct 13, 2017 at 12:40 AM
    #67
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
  8. Oct 13, 2017 at 12:46 AM
    #68
    Brice

    Brice Turbo Member

    Joined:
    May 28, 2015
    Member:
    #156265
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Brice
    Texas
    Vehicle:
    1999 Tacoma PreRunner V6 SR5
    Turbo'd
  9. Oct 13, 2017 at 12:53 AM
    #69
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    Thanks! I'll let you know what I find out after work tomorrow

    Brice likes this.
  10. Oct 13, 2017 at 6:58 AM
    #70
    Bulldogs129

    Bulldogs129 There's no cure for Tacoma fever...

    Joined:
    Sep 8, 2016
    Member:
    #196750
    Messages:
    383
    Gender:
    Male
    First Name:
    Malcolm
    Mississippi
    Vehicle:
    2002 Tacoma 4wd, SR5, TRD, 3.4L, auto
    @AK1stGen
    I just called my Toyota parts guy to get a part# for the ignition control module (I thought about buying one off Amazon for a spare)...he told me our 3.4L only has 3 coils + PCM + crank & cam sensors, with the PCM being the controlling part...called the "Wasted spark ignition system".

    Take that for what its worth, but you might want to verify the part before ordering the amazon item. I'm interested in what you find out.

    Just to be curious I ask the pcm price...the PCM part#8966604021, $882.84 :eek:

    Brice and Dalandser like this.
  11. Oct 13, 2017 at 7:37 AM
    #71
    mechanicjon

    mechanicjon They call me "Jonny 9 Fingers"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    3,462
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.

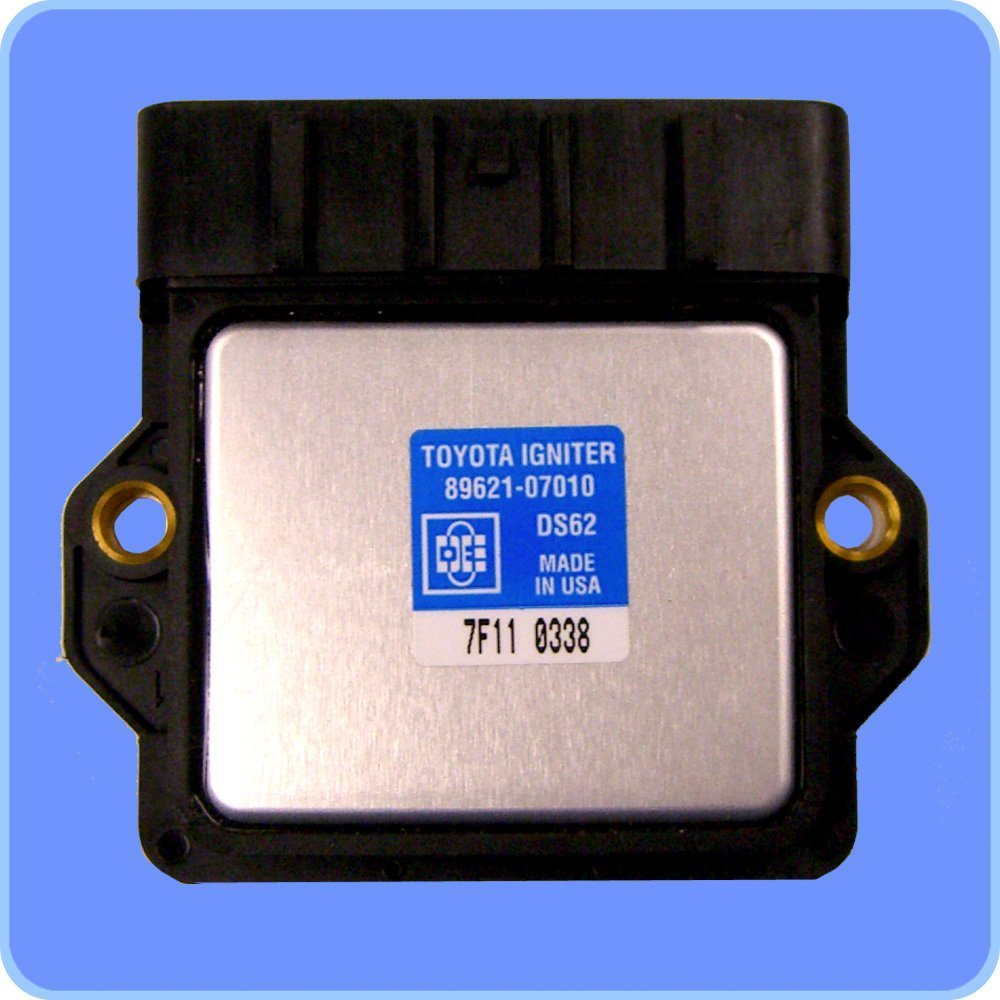

    Your part number is wrong. Does come up. The ECM/PCM 89661-04021 Is the main computer. The v6 does have an igniter. Toyota Part No.: 89621-35020 is the current part number used.

    Bulldogs129 and Dalandser like this.
  12. Oct 13, 2017 at 8:12 AM
    #72
    Bulldogs129

    Bulldogs129 There's no cure for Tacoma fever...

    Joined:
    Sep 8, 2016
    Member:
    #196750
    Messages:
    383
    Gender:
    Male
    First Name:
    Malcolm
    Mississippi
    Vehicle:
    2002 Tacoma 4wd, SR5, TRD, 3.4L, auto
    :hattip:@mechanicjon

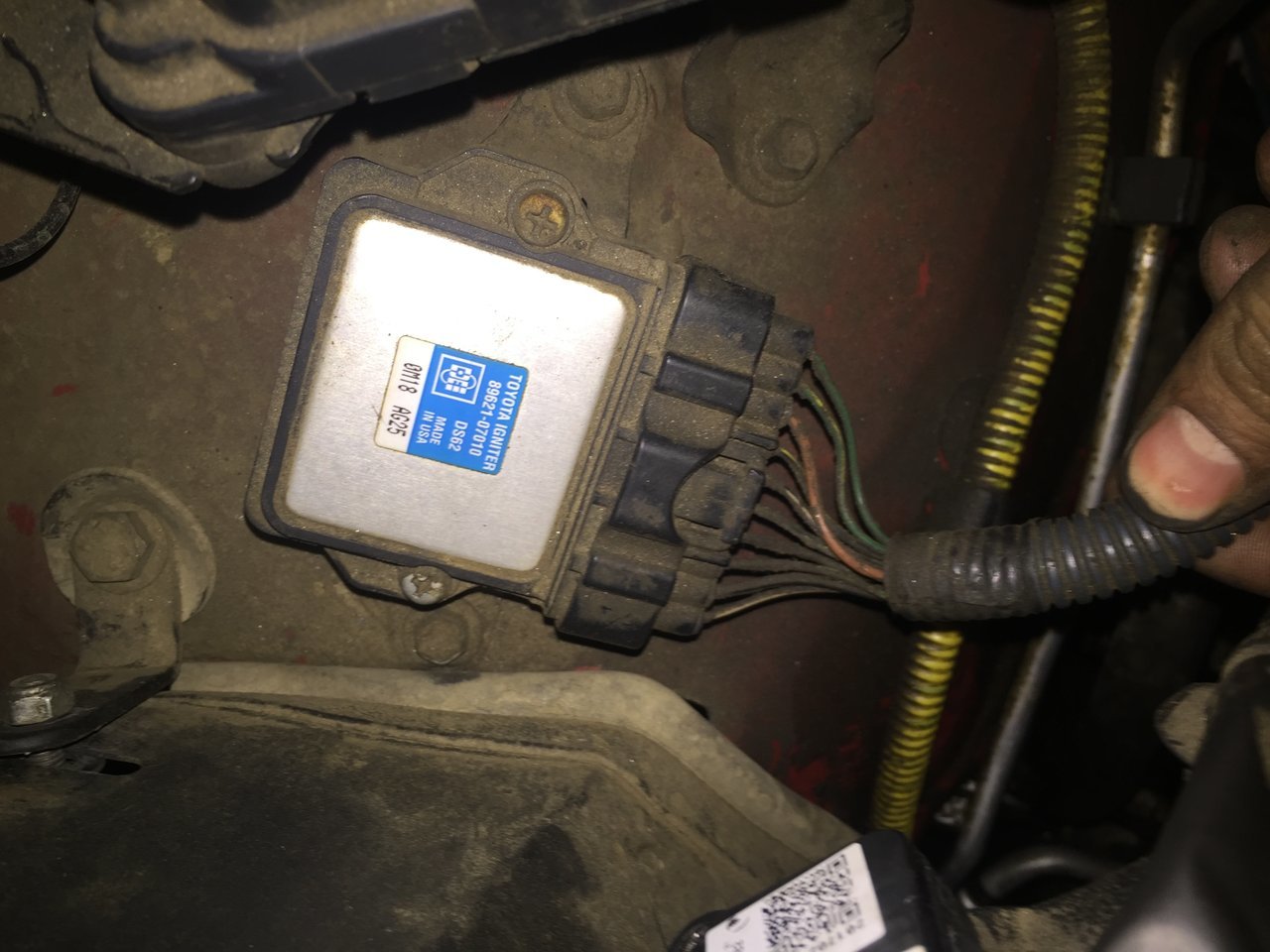

    Good info, this isn't the 1st time the toyota parts guy told me wrong...I can usually do better googling parts. The guy I trust, Gary, is off today...so I got a newbie on the phone. Thanks for clearing it up. Do you have any pics of this part in the engine bay?

    Does part# 89621-35020 replace # 89621-07010 ?

    Last edited: Oct 13, 2017
    Dalandser and mechanicjon like this.
  13. Oct 13, 2017 at 8:39 AM
    #73
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries

  14. Oct 13, 2017 at 8:44 AM
    #74
    Bulldogs129

    Bulldogs129 There's no cure for Tacoma fever...

    Joined:
    Sep 8, 2016
    Member:
    #196750
    Messages:
    383
    Gender:
    Male
    First Name:
    Malcolm
    Mississippi
    Vehicle:
    2002 Tacoma 4wd, SR5, TRD, 3.4L, auto
    :yes: That's the same one on Amazon. I might go ahead and order a spare. The price is right...Thanks

  15. Oct 13, 2017 at 9:06 AM
    #75
    mechanicjon

    mechanicjon They call me "Jonny 9 Fingers"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    3,462
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Tacoma 4dr SR5 TRD Prerunner
    Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 240K and going strong.
    yes

  16. Oct 13, 2017 at 2:06 PM
    #76
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    LT FTRM1 - 12.5%
    ST FTRM1 - -0.8%
    This at idle

    I can't make sense of any of these numbers but hopefully someone can.

  17. Oct 13, 2017 at 3:17 PM
    #77
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    2nd new MAF sensor did not make a difference.

  18. Oct 13, 2017 at 4:45 PM
    #78
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    Igniter also made no difference.

  19. Oct 13, 2017 at 7:35 PM
    #79
    AK1stGen

    AK1stGen [OP] Active Member

    Joined:
    Oct 11, 2017
    Member:
    #232711
    Messages:
    42
    Gender:
    Male
    First Name:
    Austin
    Vehicle:
    01 Tacoma
    3" lift Snorkel Rear e-locker Front ARB locker Front ARB bumper Rear wrap around bumper Bed rack Winch Dual batteries
    Another problem has come up, my fuel guage doesn't work! I must have messed somthing up when I did my fuel pump.
    . :redxfall:

  20. Oct 13, 2017 at 7:35 PM
    #80
    Dalandser

    Dalandser Million bucks short of being a millionaire

    Joined:
    Feb 19, 2015
    Member:
    #149090
    Messages:
    5,041
    First Name:
    Anthony
    Los Angeles / Long Beach
    Vehicle:
    08 PreRunner Regular Cab / 98 4x4 Extra Cab
    Empty Wallet Mod
    @mechanicjon
