30" Light Bar Install - Easier Than You Might Think

Discussion in '3rd Gen. Tacomas (2016+)' started by rysingsun, Dec 16, 2015.

  1. Apr 18, 2018 at 9:29 AM
    #621
    thumpper

    thumpper Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182477
    Messages:
    128
    Gender:
    Male
    First Name:
    Bob
    Nebraska
    Vehicle:
    2008 Taco
    In past vehicles I've usually tapped the relay into the 'running' lights.

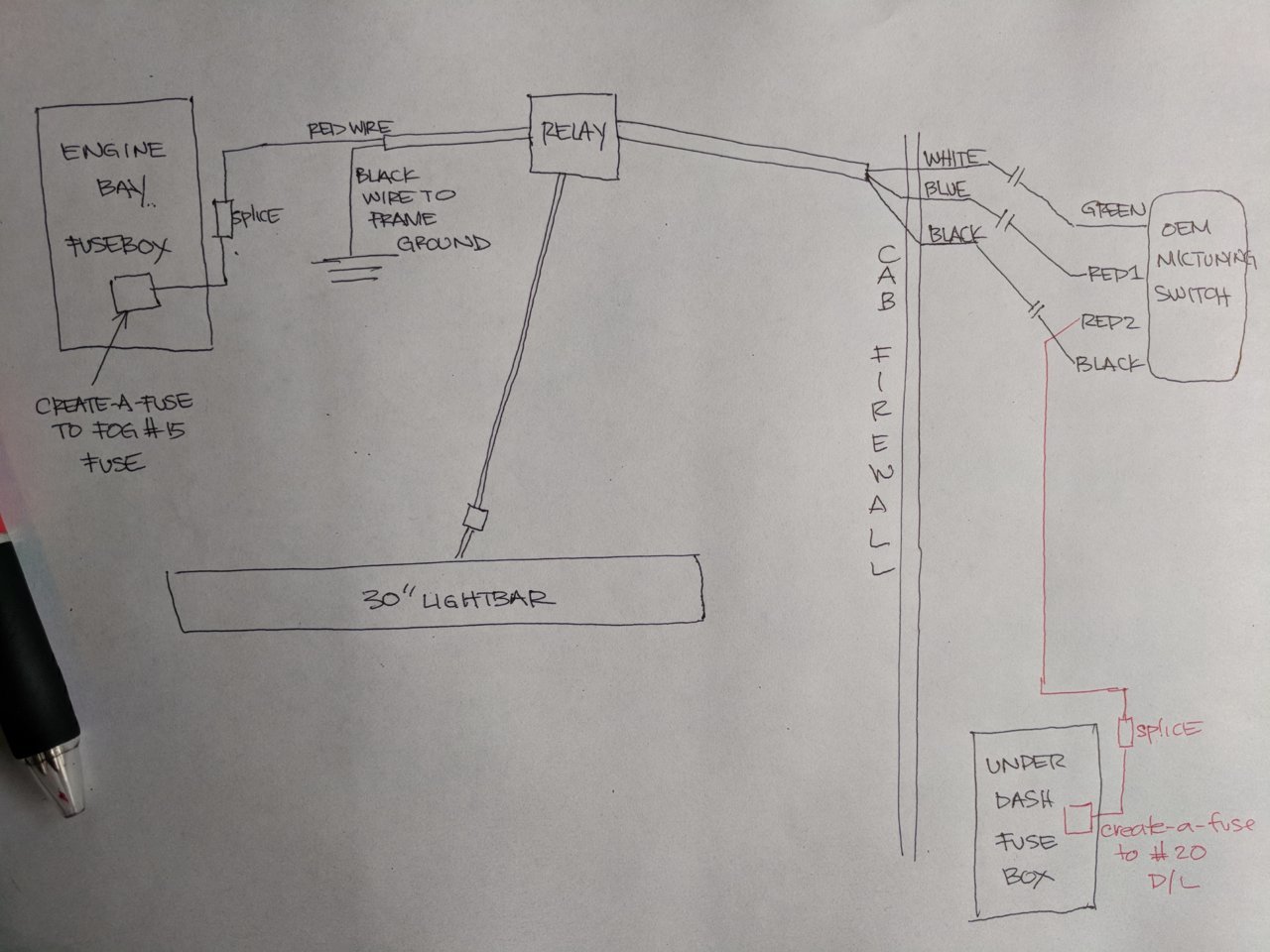

    If you have it to the 'fog' lights it will only turn on when the fogs are on. (if I'm reading your diagram and understanding it correctly) If so when you click on the high beams the fogs turn off there for the light bar would turn off too. Just a thought.

    I guess what is Fog #15 and when is that 'hot'?

  2. Apr 18, 2018 at 9:51 AM
    #622
    advan7

    advan7 Buy once, cry once!

    Joined:
    Mar 5, 2018
    Member:
    #246410
    Messages:
    218
    Gender:
    Male
    407 | 904
    Vehicle:
    Bone Stock
    Stock
    Thanks for pointing that out. When i was looking at the engine bay fuse box the fog fuse is what stood out to me, and I believe its hot once the ignition is on but I could be wrong. I typically always run with my fogs on but forgot they turned off when the high beams are on (but I think that might be the issue if I tapped into the under dash fuse box for the constant power). I'll have to double check when I get home.

  3. Apr 18, 2018 at 10:53 AM
    #623
    Natnewt

    Natnewt Well-Known Member

    Joined:
    Nov 15, 2017
    Member:
    #236068
    Messages:
    104
    Gender:
    Male
    curved I assume?

  4. Apr 18, 2018 at 1:54 PM
    #624
    advan7

    advan7 Buy once, cry once!

    Joined:
    Mar 5, 2018
    Member:
    #246410
    Messages:
    218
    Gender:
    Male
    407 | 904
    Vehicle:
    Bone Stock
    Stock
    So I double checked when I got off of work, and the light bar still comes on when the high beams are on.

    thumpper likes this.
  5. Apr 18, 2018 at 7:54 PM
    #625
    LakeShow24

    LakeShow24 New Member

    Joined:
    Apr 4, 2018
    Member:
    #249382
    Messages:
    3
    Gender:
    Male
    Vehicle:
    TRD Off Road
    Its a straight 32"
    Fits well, close to no gaps

  6. Apr 19, 2018 at 4:20 AM
    #626
    okichewy1

    okichewy1 Just chuggin' along!

    Joined:
    Feb 16, 2018
    Member:
    #244589
    Messages:
    539
    Gender:
    Male
    First Name:
    Ken
    Kimberly, Idaho
    Vehicle:
    2018 DCSB TRD Sport Quicksand
    Ultra Flex bed cover, TRD PRO Grille, 32" LED light under grille, Pop n' Lock on tailgate, OCD organizer for center console and glove box, LED bed lights, OEM bed mat, black TACOMA tailgate letters, LED illumination light package, black vinyl overlays for badges, OEM bed step, plasti-dipped front valance and mirrors, 15% tinted windows and sun strip, vinyl letters on dash, vinyl letters on tailgate handle and door sill protectors, TRD Pro shift knob, home-link rear view mirror, mountain vinyl decal above Tacoma on door, FN FX pro wheels, AVS bug deflector, AVS in-channel window vents, front bed rail, red line hood struts, LED interior lights, TRD Pro skid plate, slim line front license plate holder, CaliRaised LED Ditch light brackets with LED lights, Bilstein 5100's, OME 888's, Dakar HD leaf springs, cubby covers, CaliRaised LED Fog light kit,
    What was the reasoning for running the Red 2 from the switch to a fuse? I just put both red's together into the white and works great. Used the same switch. Watched CaliRaisedLED install video and that is what they are telling people to do with the switch wires. Just curious.

  7. Apr 19, 2018 at 5:41 AM
    #627
    advan7

    advan7 Buy once, cry once!

    Joined:
    Mar 5, 2018
    Member:
    #246410
    Messages:
    218
    Gender:
    Male
    407 | 904
    Vehicle:
    Bone Stock
    Stock
    I always have my lights set to auto with the DRL lights on, so I wanted to switch to turn off and on depending on how I have the lights set. If I have DRL's off, the switch illumination also turns off, if on auto, on, or drl's on, the switch will illuminate with the rest of the switches.

    Of course, I just checked my lightbar again, and without the ignition on I was still able to turn the light bar on. I had the under hood fuse tapped into #15 fogs and thought it would only get power with the ignition on, but I was wrong. Initially I only wanted the lightbar to have power when the ignition is on, so I may change it to another location such as the #20 Radio fuse or may just leave it. haha

  8. Apr 25, 2018 at 6:34 AM
    #628
    Sm32589g

    Sm32589g Well-Known Member

    Joined:
    Mar 10, 2018
    Member:
    #246879
    Messages:
    130
    Gender:
    Male
    First Name:
    Blake
    Washington State
    Vehicle:
    2018 Tacoma TRD off-road Silver Sky w/ leather
    Anyone have a picture of the light throw on the caliraised light bar installed?

  9. Apr 25, 2018 at 10:26 AM
    #629
    ChasVS

    ChasVS Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199367
    Messages:
    812
    Gender:
    Male
    Vehicle:
    2017 Tacoma ACLB TRD Off Road
    What kind of Create-a-fuse did you get for the engine fuse box? Looking for power for a front camera so don't need a bunch of amps.

  10. Apr 25, 2018 at 10:46 AM
    #630
    advan7

    advan7 Buy once, cry once!

    Joined:
    Mar 5, 2018
    Member:
    #246410
    Messages:
    218
    Gender:
    Male
    407 | 904
    Vehicle:
    Bone Stock
    Stock
    ChasVS likes this.
  11. Apr 25, 2018 at 2:36 PM
    #631
    CaliRaisedLed

    CaliRaisedLed Well-Known Member

    Joined:
    Apr 23, 2015
    Member:
    #153803
    Messages:
    7,765
    Gender:
    Male
    First Name:
    Jake
    Texas (DFW)
    Heres our 30" combo beam. It really shows how theres a concentreated spot beam while also having floods shooting to the side.


    Sm32589g likes this.
  12. Apr 27, 2018 at 1:13 PM
    #632
    advan7

    advan7 Buy once, cry once!

    Joined:
    Mar 5, 2018
    Member:
    #246410
    Messages:
    218
    Gender:
    Male
    407 | 904
    Vehicle:
    Bone Stock
    Stock
    Combo beam as well.

  13. May 9, 2018 at 11:47 PM
    #633
    pc3coyote

    pc3coyote IG: pc3coyote

    Joined:
    Sep 28, 2014
    Member:
    #139276
    Messages:
    1,526
    Gender:
    Male
    First Name:
    Paul
    SoCal
    Vehicle:
    17 BBP Sport DCSB 4x4
    Updated my previous light bar wiring write-up in this thread to link to my new LED write-up page here which includes write-ups on front light bars, rock lights, and reverse lights. Footwell lights coming soon. Thanks!


    Last edited: May 20, 2018
    NoOne likes this.
  14. May 10, 2018 at 7:10 AM
    #634
    VTSR516

    VTSR516 Well-Known Member

    Joined:
    Aug 31, 2016
    Member:
    #196073
    Messages:
    60
    Gender:
    Male
    Vermont
    Vehicle:
    2016 SR5

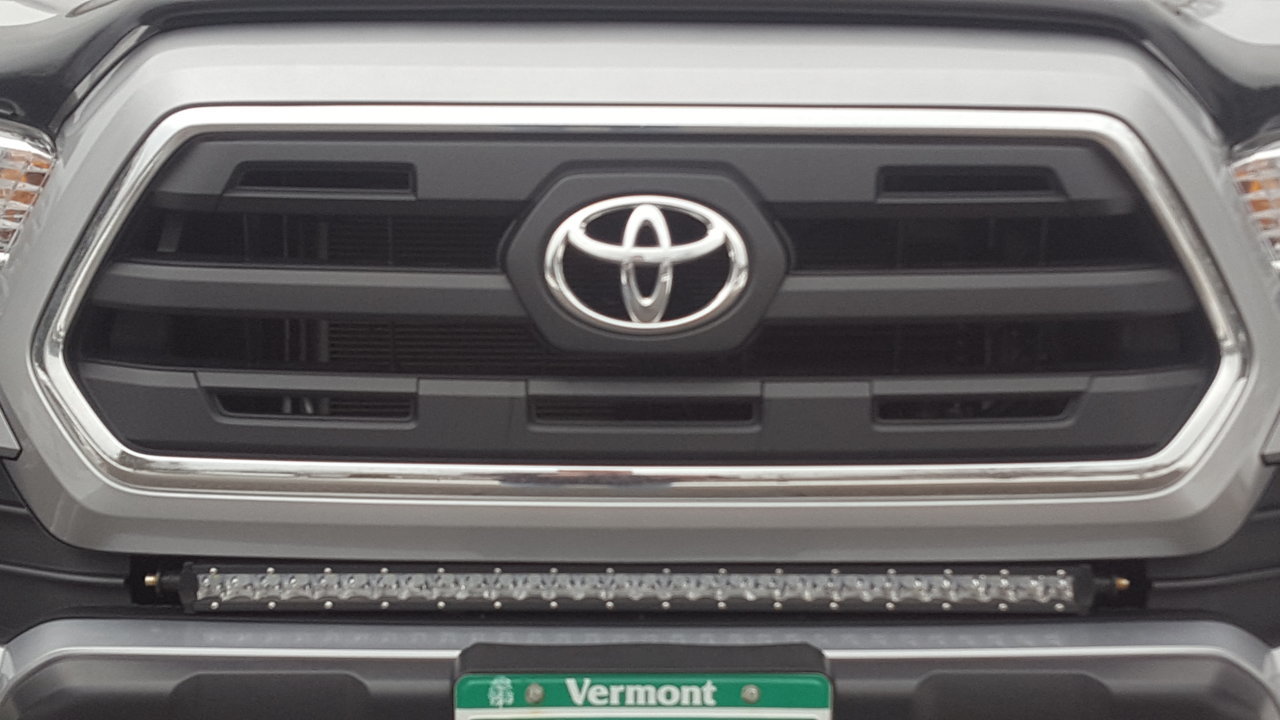

    NEW: LT265 75 R16 General Grabber AT2's Hood and window deflectors ARE cab high color matched CX series cap weathertech floor mats Rough country 30" 15,000 lumen light bar in front grill
  15. May 16, 2018 at 8:12 AM
    #635
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    630
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
  16. May 18, 2018 at 10:35 AM
    #636
    metsfan6734

    metsfan6734 Well-Known Member

    Joined:
    Feb 13, 2018
    Member:
    #244284
    Messages:
    96
    Gender:
    Male
    First Name:
    Eric
    Upstate NY
    Vehicle:
    2017 MGM TRD Off-Road DCSB

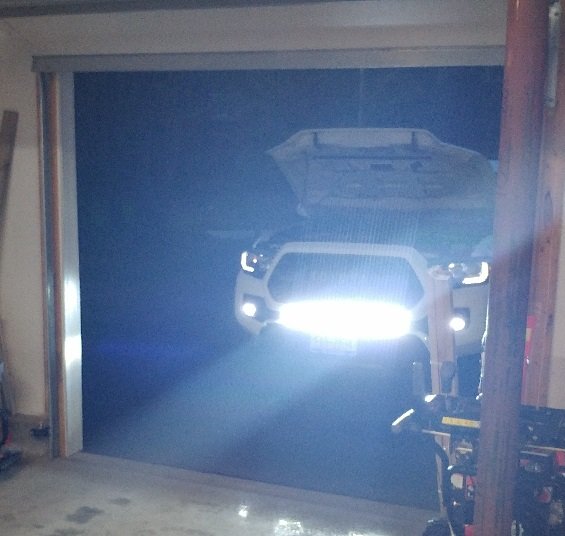

    That is the light which I installed about 4 months ago, I love it and have had no issues with it yet. All the LEDs still work and there has been no water damage or condensation. An I clean it just by soaking it down with the hose. I have also driven in in some cold weather down to single digits and still have no issues. I don't usually have it on for an extended time (typically about 20 minutes or so) but it has never over heated either (although I live in upstate NY and the warmest its been is about 70-75 at the hottest point of the day. I will keep you updated if any issues ever arise

    El Latigo likes this.
  17. May 18, 2018 at 2:03 PM
    #637
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    630
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
    Outstanding!! Exactly what i was hoping to hear... I also bought the Randy Ellis mounting brackets, i believe just like yours..
    Question: Did you have to move, trim, remove the air dams (black plastics on the side) seem like they maybe on the way of the brackets?
    Thank you for your feed back. Sir,
    :thumbsup:

  18. May 18, 2018 at 8:05 PM
    #638
    ngtrd

    ngtrd Member

    Joined:
    Apr 8, 2018
    Member:
    #249877
    Messages:
    23
    Upstate NY
    Vehicle:
    18 TRD Pro MT
    TRD CAI, HDX boards, Sema Pros, KO2, Rugged Liner cover, Bed mat, LED light bar, Power tailgate lock mod, Hondo AR knobs
    I recently installed this light bar with the same brackets. I had to trim the bottom of the air dams to fit around the light bar. There wasn't a lot of material removed but it is required if you want to leave them air dams installed. Just use tin snips and adjust the cut to your liking. It is a really nice setup and has impressive output for the price.

    El Latigo likes this.
  19. May 18, 2018 at 8:53 PM
    #639
    El Latigo

    El Latigo Well-Known Member

    Joined:
    Jan 4, 2018
    Member:
    #240278
    Messages:
    630
    Gender:
    Male
    Anaheim CA
    Vehicle:
    2017 MGM TRD OR Double Cab Short Bed
    Awesome.. doesn't sound that difficult to do..
    Thank you. Sir,
    :cheers:

  20. May 19, 2018 at 5:43 AM
    #640
    ngtrd

    ngtrd Member

    Joined:
    Apr 8, 2018
    Member:
    #249877
    Messages:
    23
    Upstate NY
    Vehicle:
    18 TRD Pro MT
    TRD CAI, HDX boards, Sema Pros, KO2, Rugged Liner cover, Bed mat, LED light bar, Power tailgate lock mod, Hondo AR knobs

    El Latigo likes this.
