30" Light Bar Install - Easier Than You Might Think

Discussion in '3rd Gen. Tacomas (2016-2023)' started by rysingsun, Dec 16, 2015.

  1. Aug 10, 2018 at 6:11 AM
    #661
    craven_morhead

    craven_morhead Active Member

    Joined:
    Sep 23, 2017
    Member:
    #230890
    Messages:
    25
    I'm no expert, but my understanding is that splicing into the bed light wire is taking the place of the add a fuse, since that wire is only energized when your headlights/dash lights are on

    Forge likes this.
  2. Aug 10, 2018 at 6:19 AM
    #662
    Forge

    Forge Well-Known Member

    Joined:
    Jun 18, 2017
    Member:
    #221832
    Messages:
    310
    Gender:
    Male
    First Name:
    Rick
    You think the bed light could handle two switches spliced into it?

  3. Aug 10, 2018 at 6:25 AM
    #663
    craven_morhead

    craven_morhead Active Member

    Joined:
    Sep 23, 2017
    Member:
    #230890
    Messages:
    25
    Yep

    Forge likes this.
  4. Mar 1, 2019 at 4:53 PM
    #664
    Batman!

    Batman! Well-Known Member

    Joined:
    Jul 29, 2017
    Member:
    #225327
    Messages:
    293
    Gender:
    Male
    First Name:
    Juan
    IG: moddedtacomas
    If I leave the grille air ducts off what are the affects? or do it matter at all whether they're on or off

    FloridaSon likes this.
  5. Mar 1, 2019 at 5:16 PM
    #665
    littlefish

    littlefish Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    1,934
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    The one who dies with the most stuff wins.
    Anyone know how to wire a CH 4x4 or mictuning switch to a Baja Designs S8 light bar and harness? Most instructions I see mention 3 wires coming from the harness, but mine only has 2 - a red and a black.

  6. Apr 10, 2019 at 6:30 PM
    #666
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,522
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT
    Installed mine today. Went with the Randy Ellis Design brackets. Removed one air dam for install then put it right back. No trimming needed. I did discover that you can remove the lower trim panel to get better access to the bolts that go from the bracket to the light bar.

    [​IMG]

    [​IMG]

    Made making adjustments a whole lot easier. 2 bolts and a bunch of clips. Just pull, ha.

    I also went with the Caliraisedled switch bracket. I agree with craven_morhead, the switches protrude further than expected. On the plus side, it was only $15 instead of $35. I'll see how my OCD likes it, ha.

    How high are you guys aiming your light bars?

    Last edited: Apr 10, 2019
    Forge likes this.
  7. Apr 10, 2019 at 9:13 PM
    #667
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,522
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT
    Actually the bolts didn't hold it on at all. It was 2 blue clips. Found those on the ground when I was cleaning up.

  8. Apr 24, 2019 at 4:22 PM
    #668
    El_Jefe

    El_Jefe Well-Known Member

    Joined:
    Apr 10, 2019
    Member:
    #289690
    Messages:
    60
    First Name:
    Jefe
    San Diego
    Vehicle:
    2019 Taco TRD OR DC Cavalry Blue
  9. Oct 19, 2019 at 3:22 PM
    #669
    DJKham

    DJKham Member

    Joined:
    Sep 10, 2017
    Member:
    #229628
    Messages:
    14
    Just got the Rigid Radiance Plus (2nd generation) bar installed and will do wiring next, using (provided) harness and Mictuning switches w/3D printed mounting plate.

    Used the Caliraised brackets for the Rigid 30” bar and they worked great. Couple tips for anyone attempting this exact install:

    1) you can’t get this specific light bar in without unbolting the transmission oil cooler (2 x 12mm bolts)

    2) You need to cut the left and right air baffles when using the Caliraised brackets but this really isn’t a big deal (2 min with Dremel- looks stock once you clean it up) and the brackets will somewhat deflect the airflow that the lower baffles would have in the first place. I was on the fence as I didn’t want to cut anything but now having done it, can definitely say it’s a good solution

    3) leave all the mounting hardware loose until you get the light bar leveled, then tighten up the brackets last as they allow you to adjust for height.

    BangosTaco and crackils like this.
  10. Apr 13, 2021 at 1:09 PM
    #670
    DannyD

    DannyD Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79096
    Messages:
    230
    Gender:
    Male
    First Name:
    Dan
    BC Canada
    Vehicle:
    2021 DCLB
    Anybody ever cut the plastic grill with a double row setup. Think it will look like a dog chewed it up?

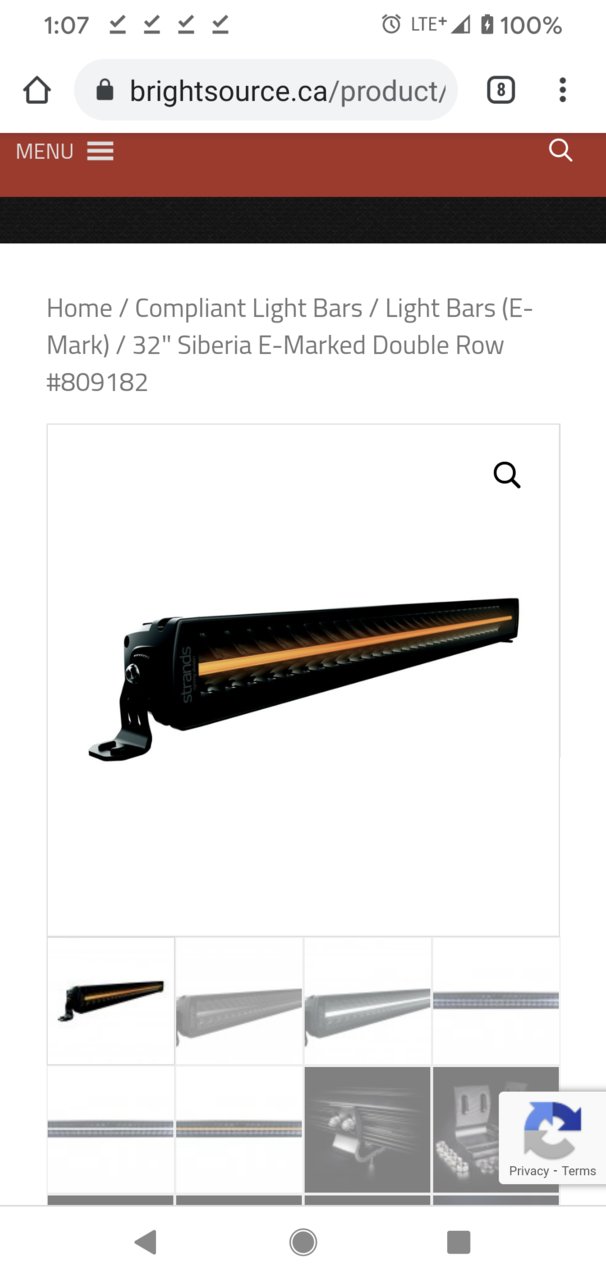

    Thinking about getting this thing but the double rows position light would be right in the middle. They have a single row aswell but less light output.


  11. Apr 13, 2021 at 1:16 PM
    #671
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,522
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT

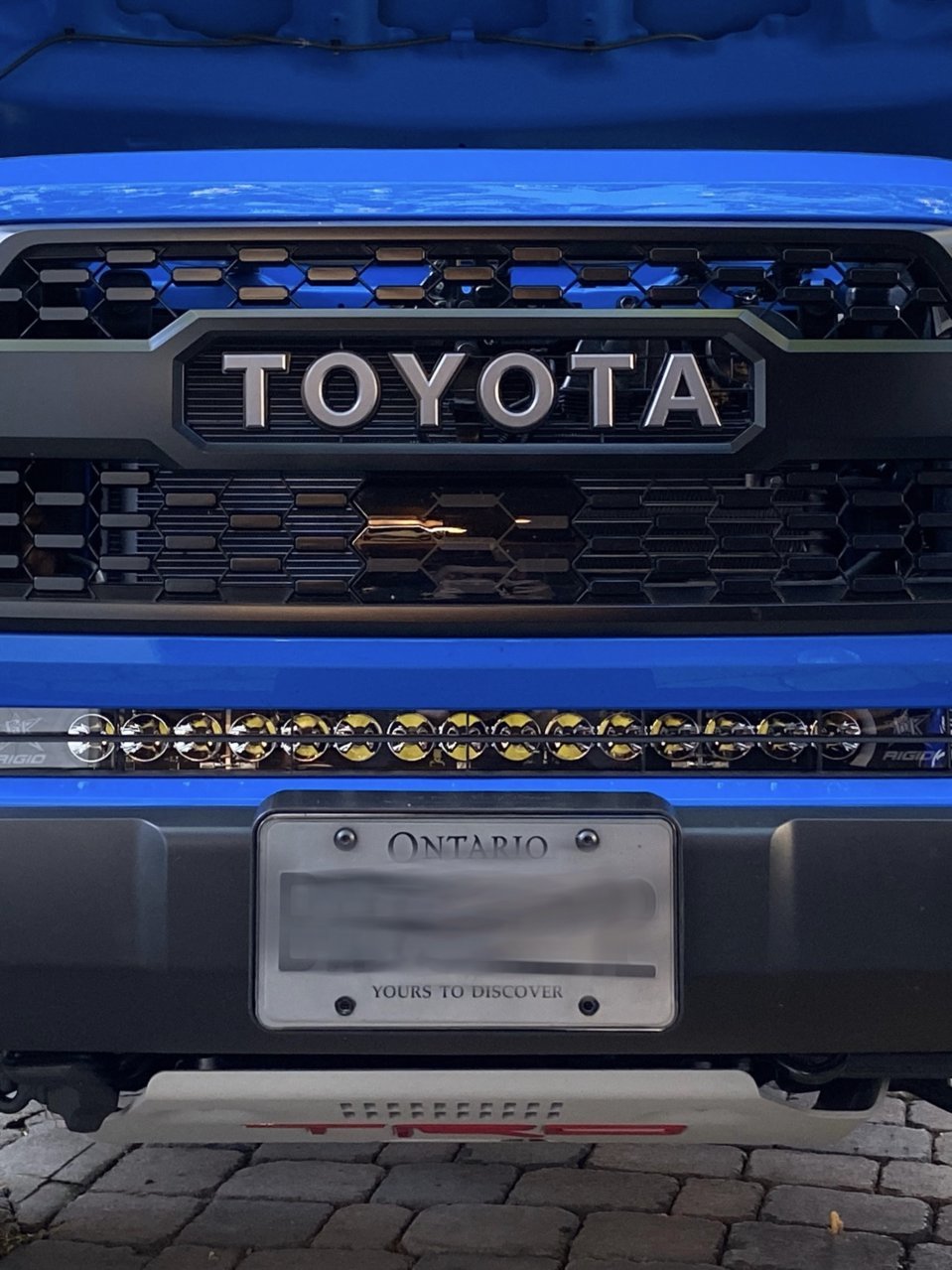

    Didn't cut mine when I had one.

    [​IMG]

    smugly likes this.
  12. Apr 13, 2021 at 2:00 PM
    #672
    DannyD

    DannyD Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79096
    Messages:
    230
    Gender:
    Male
    First Name:
    Dan
    BC Canada
    Vehicle:
    2021 DCLB
    Yah looks great. But this bar I'm looking to buy has a second amber light running down the center used like a day time running light. Looks sick! My truck is still on order so trying to gauge from pictures how noticeable it would be thst I cut the plastic out in front of a double row. Vs getting a flush bracket and getting a single row, which hides the cutting

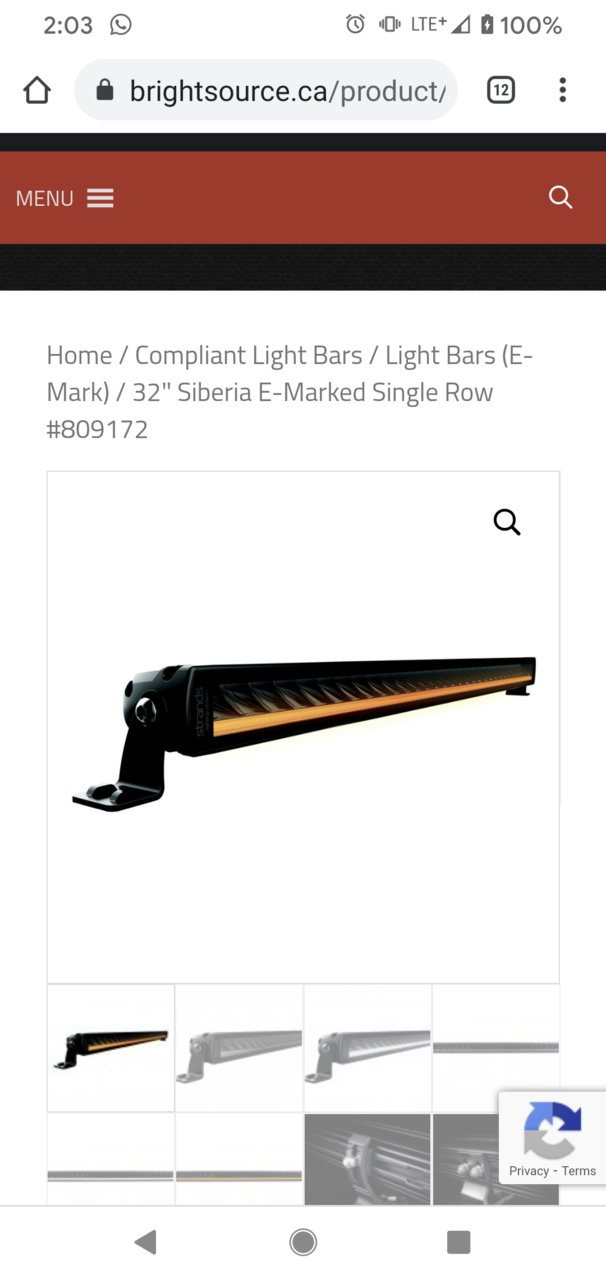

    Screenshot_20210413-140336.jpg [

    Last edited: Apr 13, 2021
  13. Apr 13, 2021 at 2:30 PM
    #673
    shaggy135

    shaggy135 Well-Known Member

    Joined:
    Jan 18, 2019
    Member:
    #279785
    Messages:
    1,522
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2019 Barcelona Red TRD 4x4 OR DCSB MT
    Now I get it. That is a cool light. Middle bar would probably cover most of that middle LED. Could get even crazier and just get a low pro bumper and put a bar in that, ha. That's what I did. And I do see that your company offers a 22" in the same flavor.

    [​IMG]

    https://brightsource.ca/product/siberia-22-double-row/

    smugly likes this.
  14. Apr 13, 2021 at 2:54 PM
    #674
    DannyD

    DannyD Well-Known Member

    Joined:
    May 18, 2012
    Member:
    #79096
    Messages:
    230
    Gender:
    Male
    First Name:
    Dan
    BC Canada
    Vehicle:
    2021 DCLB
    Saving the new bumper for the 5 year old truck mid life crisis lol. I'll probably end up going with the single row flush mount bracket. Atleast that way I know it works

    smugly likes this.
  15. Mar 21, 2024 at 11:57 AM
    #675
    bojangles93

    bojangles93 Member

    Joined:
    Aug 31, 2023
    Member:
    #432504
    Messages:
    5
    Vehicle:
    Black Tacoma TRD Pro MT
    I know this is an older thread, but hoping I may be able to get an answer.

    About to add light bar to my '23 Taco and am curious about switch wiring.

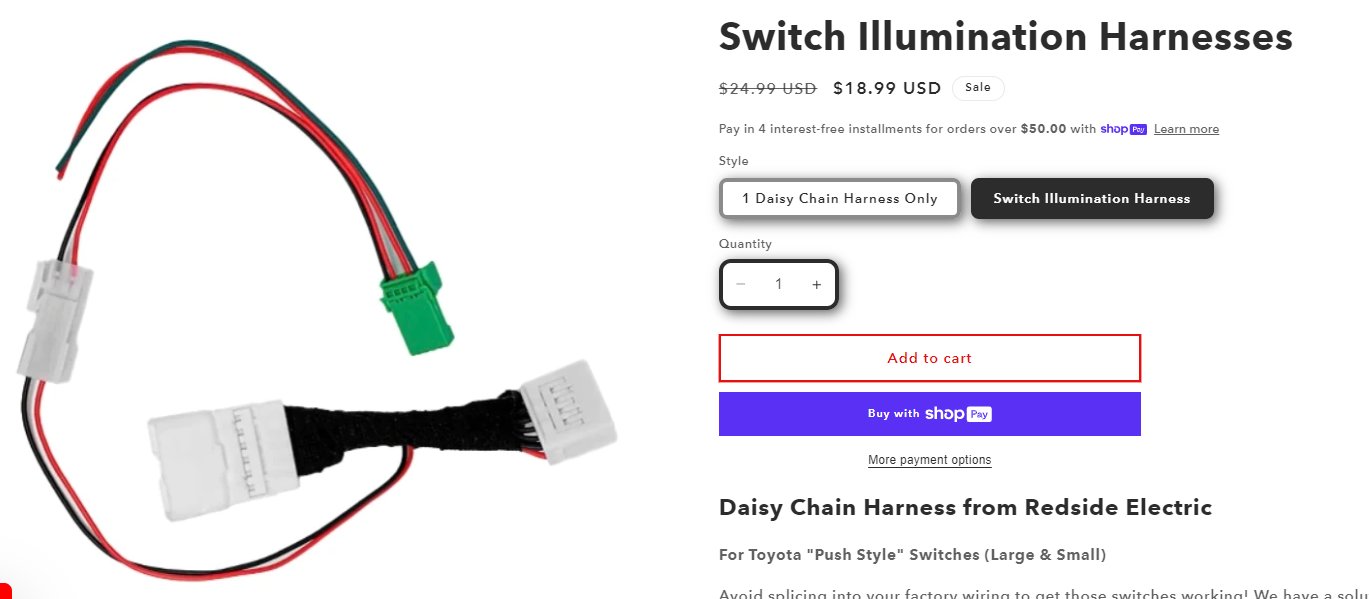

    I have this to simplify the wiring and aoid cutting/splicing...

    Does this mean I will only need to use the add a fuse to an interior fuse for the green and then connect the remaining RED to the blue wire on the relay harness? Essentially, I would end up capping off the white and black wires coming from the harness...

    Am I missing something?

    smugly likes this.
