3d scanner

Discussion in 'General Automotive' started by soggyBottom, Sep 7, 2022.

  1. Sep 7, 2022 at 10:33 AM
    #1
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,756
    3d scanners are getting cheaper and cheaper. It would be awesome to make a group effort out of scanning various parts on the Tacoma.

    Creating a small database of scans would help those that want to design parts, suspension, etc. I'm not interested I'm making this a commercial effort but instead an enthusiast one by people who are designing parts to be shared and sent off to get laser cut.

    I don't think this thread is the place to share them. There are services like thingiverse that are free and allow uploads of 3d scans. Or maybe Tacomaworld has some feature like this. I'm open to any/all ideas.

    Does this sound interesting to anyone? Do you have any ideas to throw into the mix?

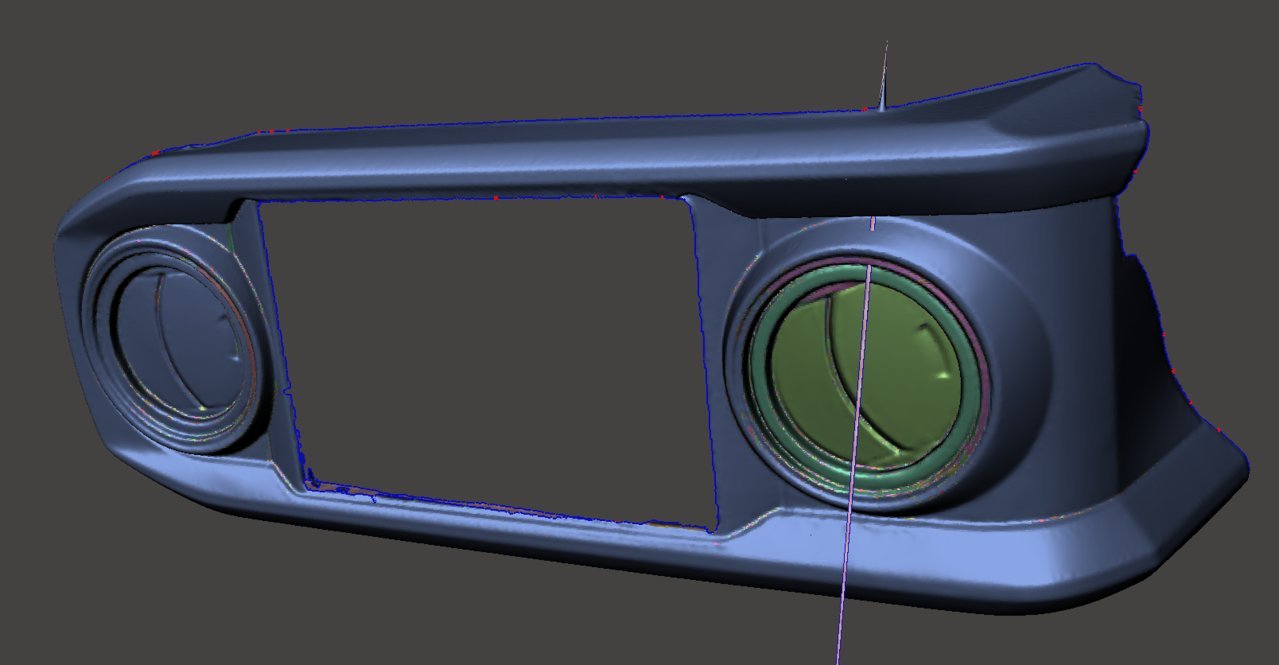

    Here is a small example of something I scanned. I would in the near future I would like to do the rear frame of the truck. Maybe design a 3 link using the scans


    Last edited: Sep 7, 2022
    Juisebocks, 3pooches, SR-71A and 2 others like this.
  2. Sep 7, 2022 at 12:24 PM
    #2
    Maxx

    Maxx Well-Known Member

    Joined:
    Dec 30, 2012
    Member:
    #94017
    Messages:
    1,296
    Gender:
    Male
    First Name:
    Maxx
    Phoenix, AZ
    Vehicle:
    '20 TRD OR 4x4 DCSB AT
    Skinny 35’s, 5.29’s, BH2.1, 6112’s, 14” Short Bodies, Deavers

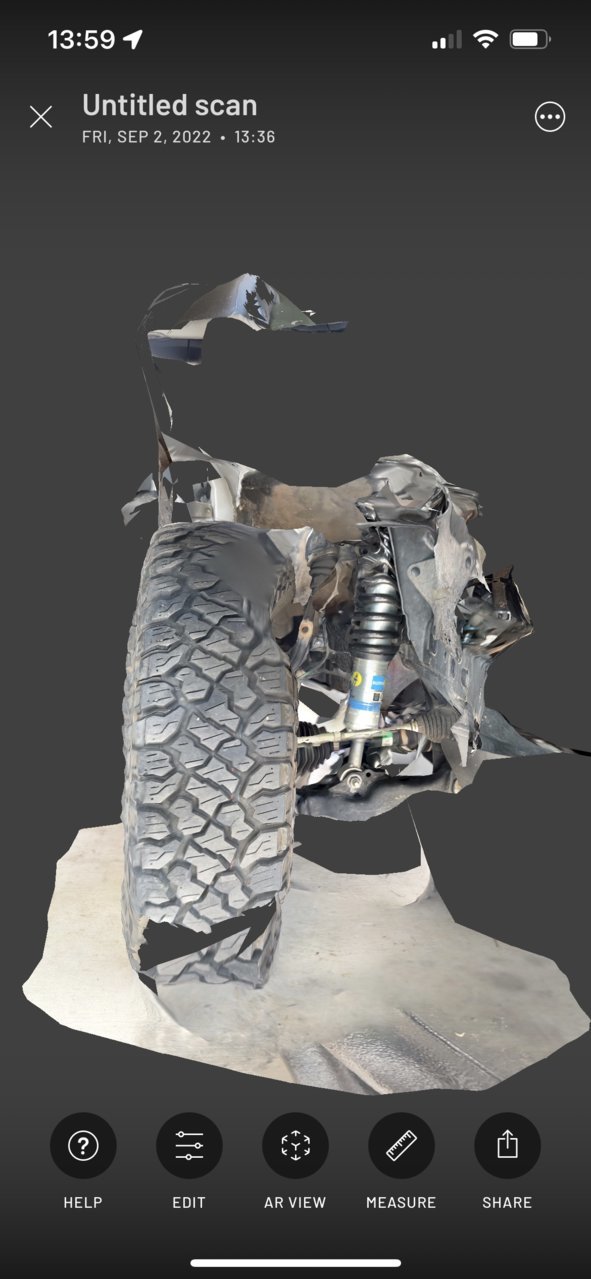

    Tried to use the LiDAR on my phone. Fun to play with but interested in the technology for sure 3447CCE2-1311-45CF-AD54-2F43760045CF.jpg

    soggyBottom[OP] likes this.
  3. Sep 8, 2022 at 10:05 AM
    #3
    koditten

    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    18,564
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
    I'm interested in this. I haven't got past 2d CNC plasma, but this is the next step for me.

    3pooches, SR-71A and soggyBottom[OP] like this.
  4. Sep 14, 2022 at 10:55 AM
    #4
    flag_taco

    flag_taco Active Member

    Joined:
    Jul 24, 2017
    Member:
    #224910
    Messages:
    36
    Gender:
    Male
    SoCal
    Vehicle:
    2015 TRD OR, DCSB
    I can’t help with scanning but I can help with any CNC plasma cutting from scanned parts.

  5. Oct 13, 2022 at 5:20 PM
    #5
    JMcFly

    JMcFly Well-Known Member

    Joined:
    Aug 11, 2020
    Member:
    #337348
    Messages:
    1,208
    Central FL
    Vehicle:
    2012 Tacoma SR5 4x4
    I need to figure out how to use the lidar on my iphone but a dedicated scanner would be much better for sure. Technology is always amazing me

  6. Oct 13, 2022 at 5:39 PM
    #6
    Firn

    Firn Well-Known Member

    Joined:
    Sep 5, 2022
    Member:
    #405191
    Messages:
    1,185
    Vehicle:
    White OR
    Unfortunately the lidar is near worthless. It looks neat but the detail isn't enough.

    If you have an iPhone the FRONT lidar is actually better than the back. Pain to use but the scans are in higher detail.

    P

  7. Oct 23, 2022 at 9:31 PM
    #7
    ayoung

    ayoung Member

    Joined:
    Oct 9, 2016
    Member:
    #199356
    Messages:
    9
    Gender:
    Male
    First Name:
    Adam
    Redmond, WA
    Vehicle:
    2014 Double Cab Tacoma TRD
    I own a metrology services company called Sentinel 3D Scanning. We focus on high-accuracy 3D scanning for quality control and reverse engineering applications. I also happen to own a 1st gen. Tacoma. As I get time, I will be scanning, reverse engineering, and printing some parts for my Tacoma. If any 1st gen. owners are wanting a rough scan of the center of the dash (radio, AC controls), you can download one from this link:

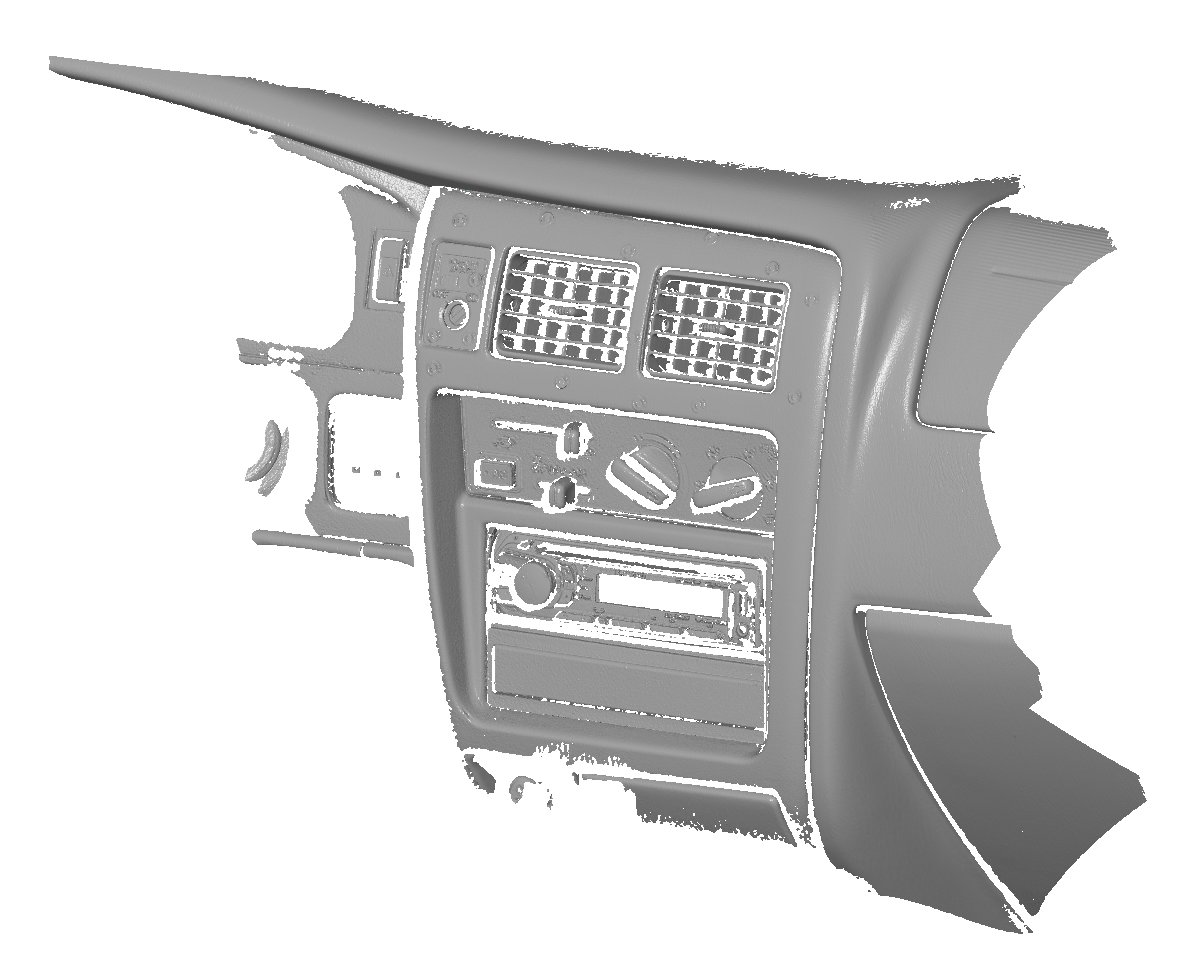

    Tacomaworld - Tacoma Dash


    I was only needing a general shape from this scan, so it's not up to my normal quality standards.

    Juisebocks, Firn, SR-71A and 3 others like this.
  8. Oct 24, 2022 at 1:10 PM
    #8
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,756
    What scanner did you use for this?

  9. Oct 24, 2022 at 4:02 PM
    #9
    ayoung

    ayoung Member

    Joined:
    Oct 9, 2016
    Member:
    #199356
    Messages:
    9
    Gender:
    Male
    First Name:
    Adam
    Redmond, WA
    Vehicle:
    2014 Double Cab Tacoma TRD
    I used our Steinbichler Comet L3D for this scan. It's a large scanner, which made it difficult to position within the cab of my truck to take scans at additional angles. It normally produces higher quality scans than this.

  10. Oct 24, 2022 at 4:08 PM
    #10
    koditten

    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    18,564
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
    Can a scan be done of the driver side seat trim?
    The part that covers the recline mechanism.

    That part always cracks on the 04 version of 1st gens.

  11. Oct 25, 2022 at 7:55 AM
    #11
    ayoung

    ayoung Member

    Joined:
    Oct 9, 2016
    Member:
    #199356
    Messages:
    9
    Gender:
    Male
    First Name:
    Adam
    Redmond, WA
    Vehicle:
    2014 Double Cab Tacoma TRD
    Can you upload a picture or provide a part number for the part you're referring to? If one of the following situations are true, there would be value in taking a scan.

    1. Replacements are hard to find or are no longer available.
    2. Modifications are desired.

    I'm not sure if the part you're referring to would be the same on my Tacoma. If it is, and if it is easy to remove, I could scan it.

  12. Oct 25, 2022 at 8:02 AM
    #12
    tyfoon11

    tyfoon11 Raguel

    Joined:
    Jul 7, 2014
    Member:
    #133462
    Messages:
    3,786
    Gender:
    Male
    First Name:
    J
    Where bald eagles roam, Ca
    garden shed
    Preach. My 02 needs a new one as well,, stupid trim piece

  13. Oct 25, 2022 at 8:52 AM
    #13
    koditten

    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    18,564
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
    I'll see if my cracked, old one is still around.

  14. Oct 25, 2022 at 9:01 AM
    #14
    Danke5305

    Danke5305 Well-Known Member

    Joined:
    Sep 17, 2020
    Member:
    #341107
    Messages:
    125
    Gender:
    Male
    Vehicle:
    2013 tacoma prerunner
    Be a nice idea I would think, I was gone try to make a cheap handheld 3d scanner from a rasberry pi when I get my 3d printer in

  15. Oct 25, 2022 at 10:48 AM
    #15
    BamBeds

    BamBeds Founder of Bambeds Vendor

    Joined:
    Feb 14, 2022
    Member:
    #390168
    Messages:
    196
    Gender:
    Male
    First Name:
    Ben
    Central Coast, CA
    Vehicle:
    '09 Access Cab TRD OR
    Bilstien 8100, 8112, Snugtop w/ windoors
    After a good amount of research, I've just ordered the Einstar 3D scanner from Go3dPro (has a good return policy as opposed to buying from the Einstar website) which I'll be testing out over the next few weeks.

    I was also considering the following much more expensive options but figured that I should experiment with the $1k Einstar before pulling the trigger on a $10k option.
    The software for the Einstar looks very user friendly and capable for my product design needs (low-medium accuracy scanning of truck beds and vehicle interiors)

    $10k - Einscan HX by Einscan (a couple years old)
    $10k - Peel 3 by Peel 3d (also recently released and based in Canada)

    I've also tested out the $800 Revopoint POP 2 (a couple years old) and $1k iPhone 14 Pro.
    I found that the POP 2 lost tracking too easily even with the use of tracking dots and was very sensitive to ambient lighting conditions.
    The Iphone 14 Pro LIDAR wasn't practical because the front lidar range is very low and the rear lidar resolution is very low.

    I'll keep you all posted on the results!

    Best,
    Ben

    Last edited: Oct 31, 2022
    SR-71A and koditten like this.
  16. Oct 27, 2022 at 1:48 AM
    #16
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,756
    If you're relatively new to scanning, dry shampoo is your friend. Most of it has wayyy too much perfume. This one is a good priceand is unscented. You can buy it from target, Walmart, or Amazon. I don't recommend Amazon because twice, they sent me the smelly one.


    Juisebocks and BamBeds[QUOTED] like this.
  17. Oct 31, 2022 at 8:00 PM
    #17
    BamBeds

    BamBeds Founder of Bambeds Vendor

    Joined:
    Feb 14, 2022
    Member:
    #390168
    Messages:
    196
    Gender:
    Male
    First Name:
    Ben
    Central Coast, CA
    Vehicle:
    '09 Access Cab TRD OR
    Bilstien 8100, 8112, Snugtop w/ windoors
    I'm getting some really good results from the new Einstar. This is absolutely the most capable $1k scanner on the market right now.

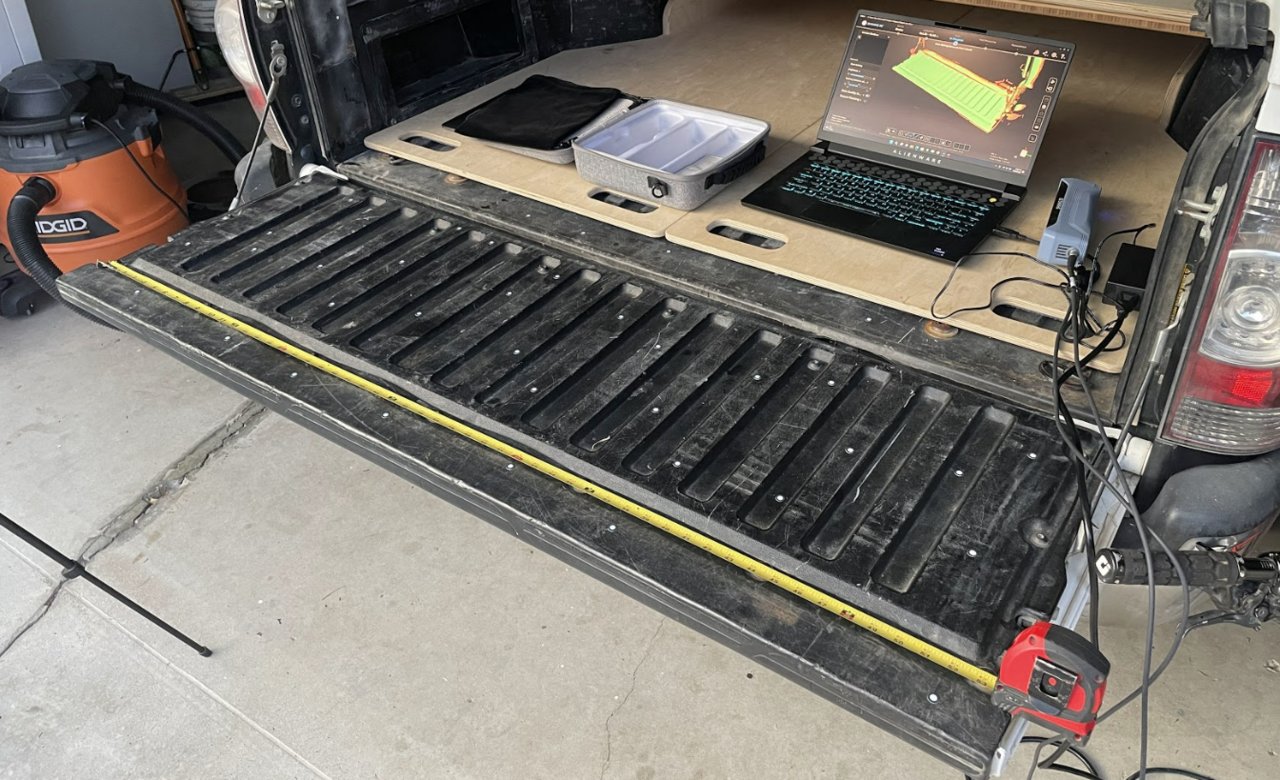

    Here's a scan that I did of the tailgate which came out to be nearly dead on dimensionally over the entire length - within the measurement error of the measuring tape that I was using to verify dimensions.
    Einscan doesn't publish an accuracy figure for this scanner, I suspect this is because if they did it would reduce a lot of their revenue from their higher-end scanners.
    I found it easiest to perform this scan with the scanner in "Texture" tracking mode as opposed to "Feature" or "Hybrid"
    I didn't even need to apply a developer or dry shampoo!

    Product Link (30 day returns): https://amzn.to/3DQqj66


    Dimensional Results:

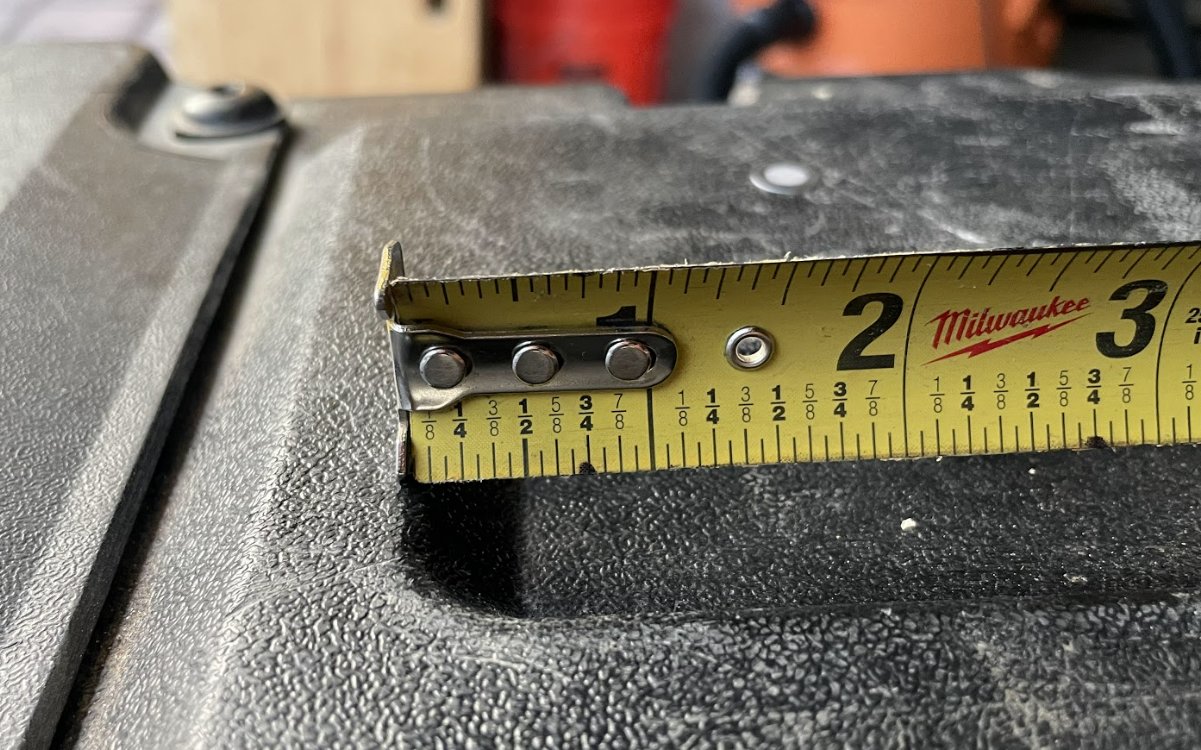

    Scanned Length (center of bolthead to center of bolthead): 1349mm - 53.1"
    Measured Length 53.1"

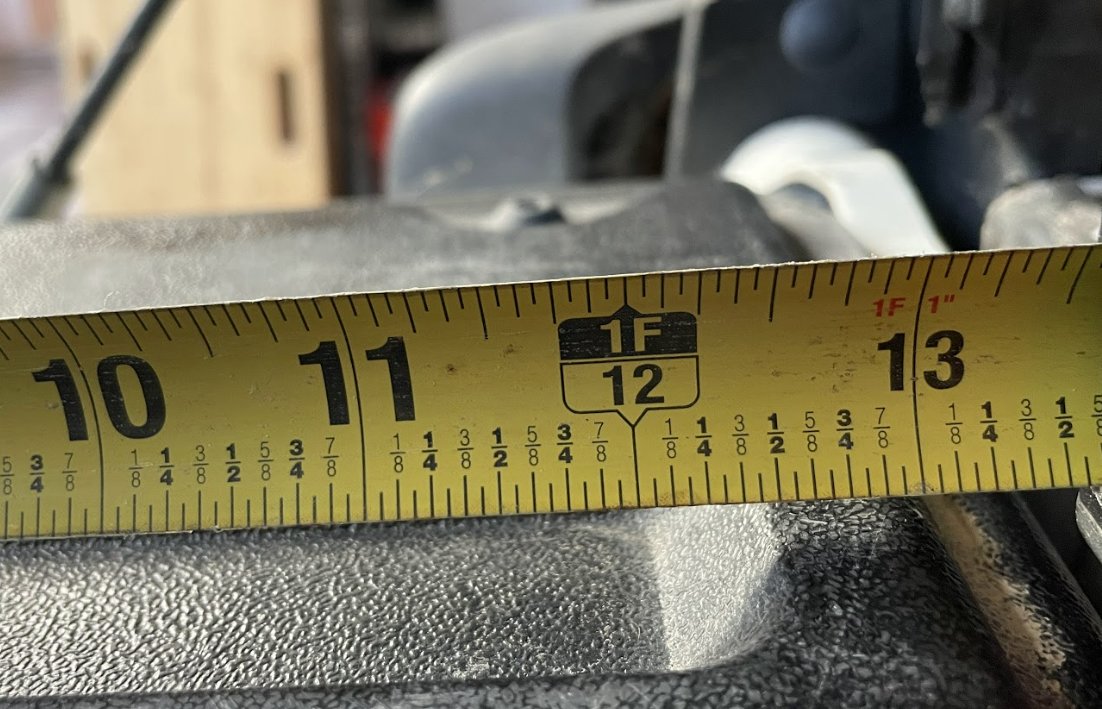

    Scanned Width (rim of groove to rim of groove) 317mm - 12.5"
    Measured Width 12.5"

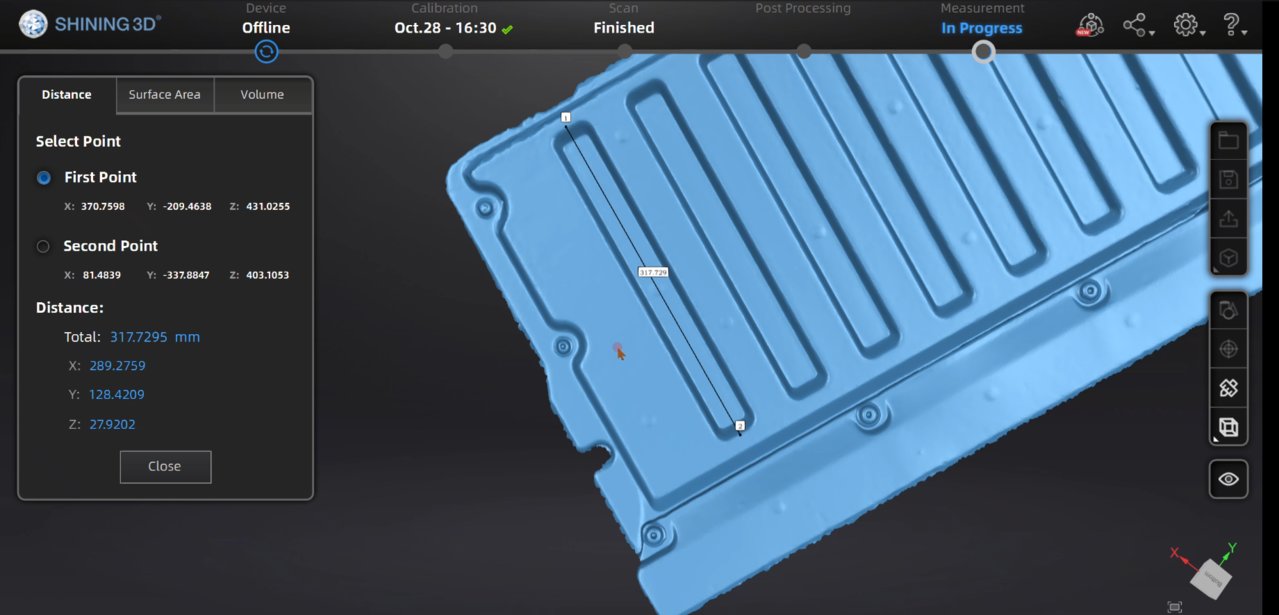

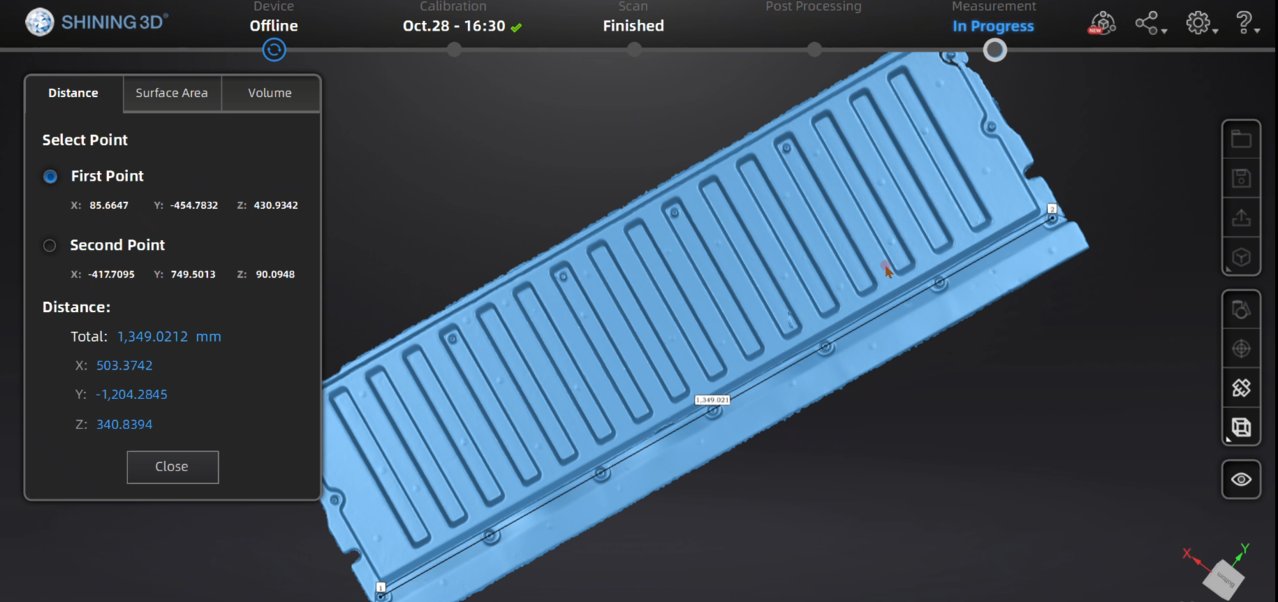

    Final Mesh and Scanner Measurements:

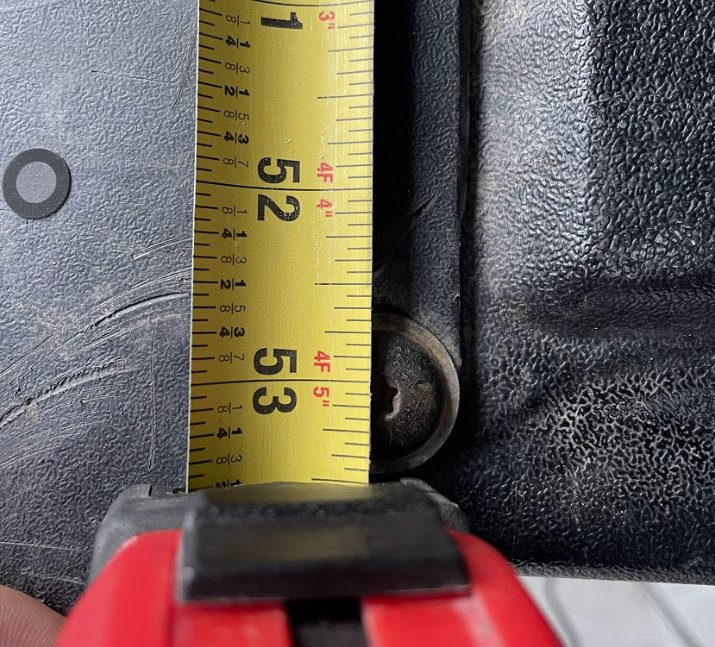

    Length Measurement Pics

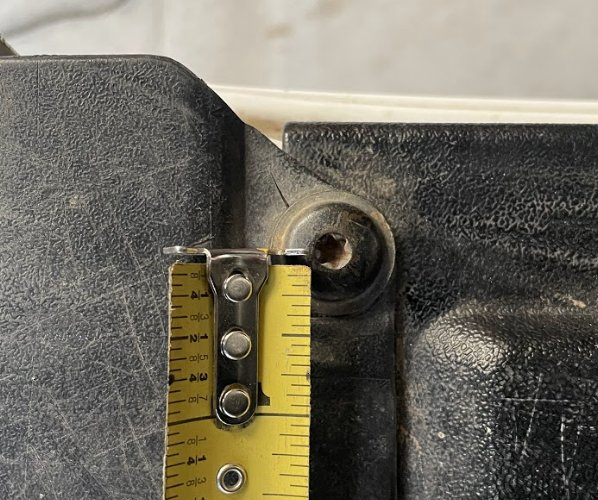

    Width Measurement Pics:

    Sebastian_501, Maxx and SR-71A like this.
  18. Nov 1, 2022 at 8:22 AM
    #18
    soggyBottom

    soggyBottom [OP] Well-Known Member

    Joined:
    Sep 19, 2018
    Member:
    #266818
    Messages:
    1,756
    I'm so happy to see that einscan finally released an affordable scanner.

    BamBeds likes this.
  19. Nov 28, 2022 at 6:21 PM
    #19
    Sebastian_501

    Sebastian_501 New Member

    Joined:
    Nov 28, 2022
    Member:
    #411794
    Messages:
    0
    Gender:
    Male
    First Name:
    Byron

  20. Dec 5, 2022 at 2:33 PM
    #20
    Talon2006

    Talon2006 Well-Known Member Vendor

    Joined:
    Jul 1, 2021
    Member:
    #370119
    Messages:
    305

    I went to a Creaform info session and got to use a Peel 3d, and a GoScanSpark.

    I was very curious if it would really work for my application. Thankfully I bought my wife as well. After demoing both of us were 100% sold. I love having a wife that encourages expensive tool purchases!

    I would look more towards the GoscanSpark vs the Peel 3d if you are going to be doing large objects. I would also consider switching to solidworks or maybe inentor if you are currently using Fusion 360. Fusion 360 struggled to use the scan data.


    As far as sharing Scan data, the big thing is it isn't really the 3d scanner itself that is the useful part of the equation. Its the expensive post processing software that comes with it. I have not had a lot of luck using a 3d mesh in any of the CAD suites do anything useful.
