3rd Gen 2016+ Cab Mount Chop plates

Discussion in 'Bay Area Metal Fabrication' started by JLee, Nov 3, 2015.

  1. Nov 3, 2015 at 12:18 PM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,557
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

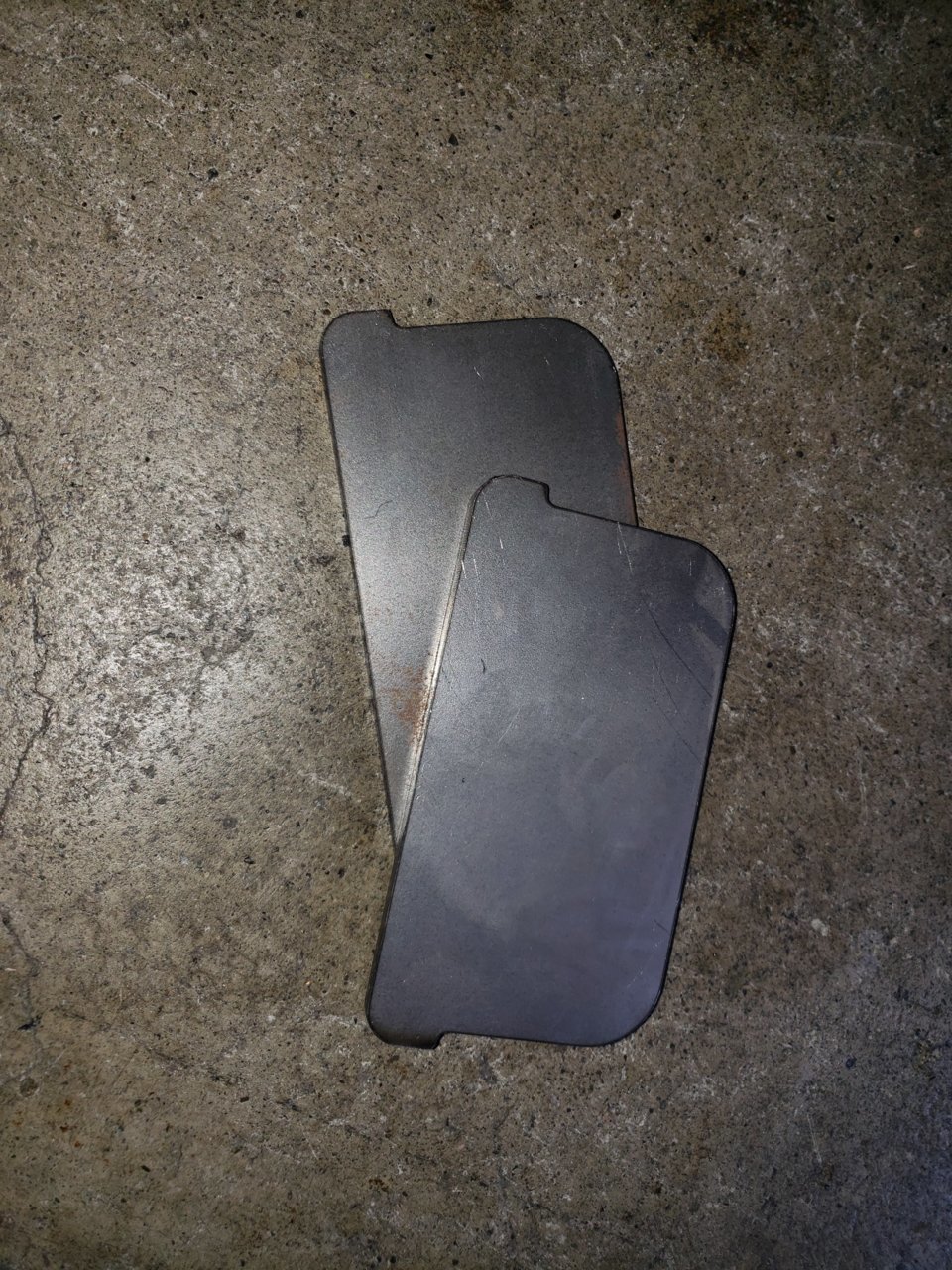

    Are you ready to cut up your new trucks! Well BAMF has the CMC plates designed and in stock ready to ship!

    Here is a little breakdown of the Install.

    Tools needed
    10mm wrench
    Floor Jack
    Jack Stands
    4.5" angle grinder with a flap disk and Zip Wheel. Or better yet a plasma cutter!
    paint pen or sharpie
    Small welding clamp
    Hammer
    Razor knife
    Torque wrench
    140 amp or higher welder
    All safety gear needed to preform the task

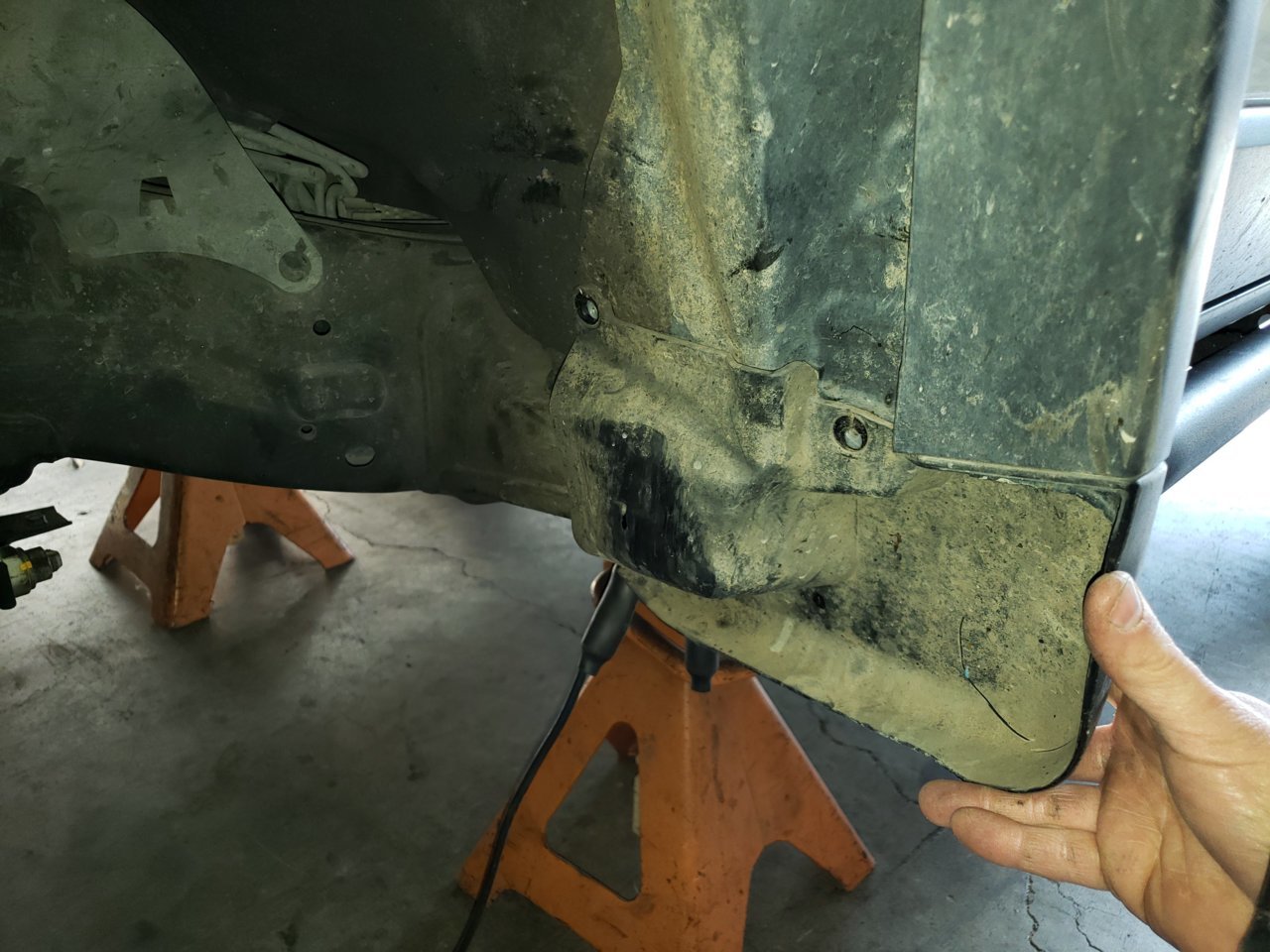

    First thing remove the negative terminal from the battery, jack the truck up and remove the tires.

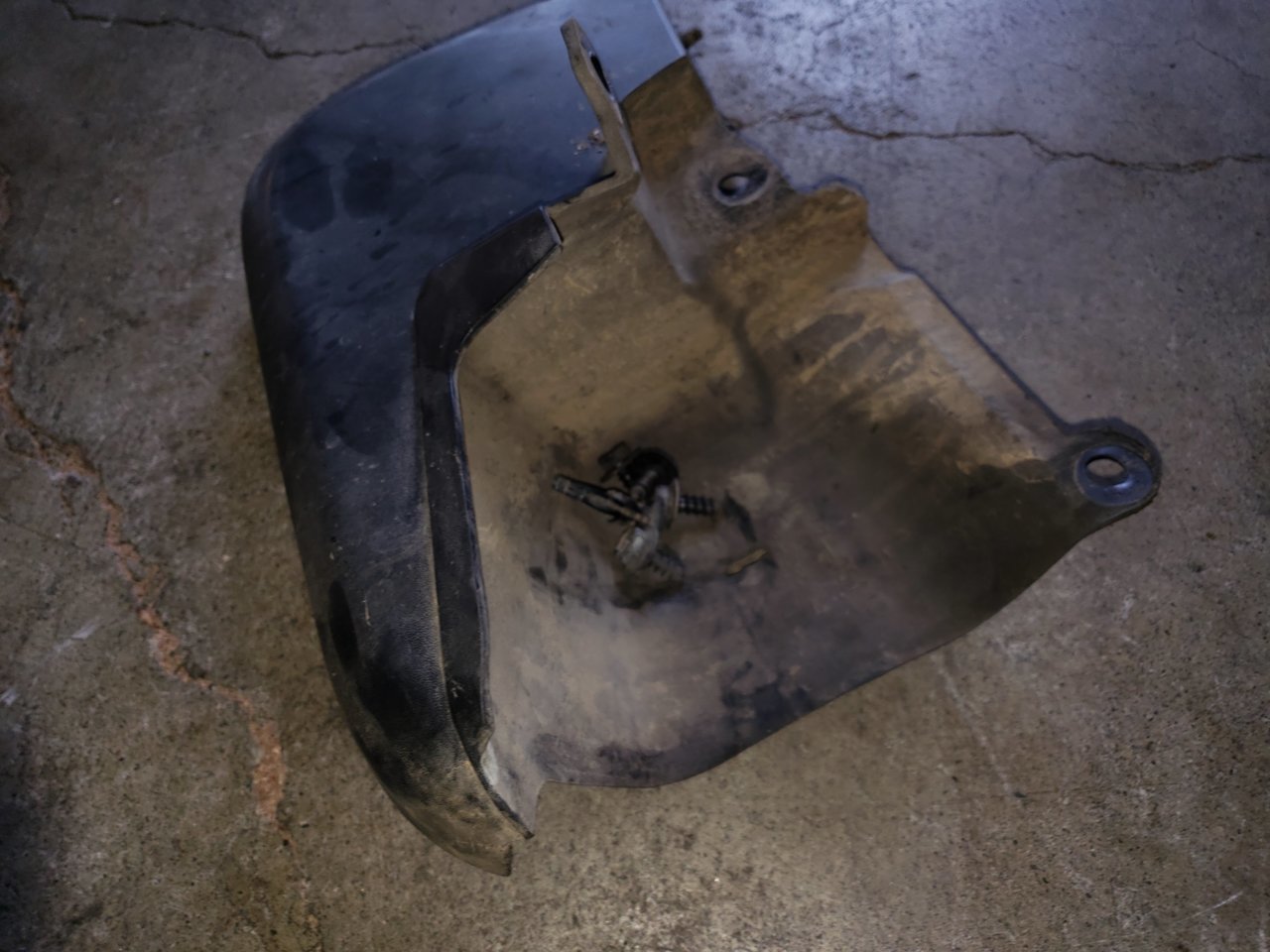

    Then lay the BAMF plate on the cab mount and trace what you need to remove. Note I lake to remove less on the first cut then fine tune it with the flat disk. You can see the yellow mark on the left you will need to remove that plastic as well with the razor knife.

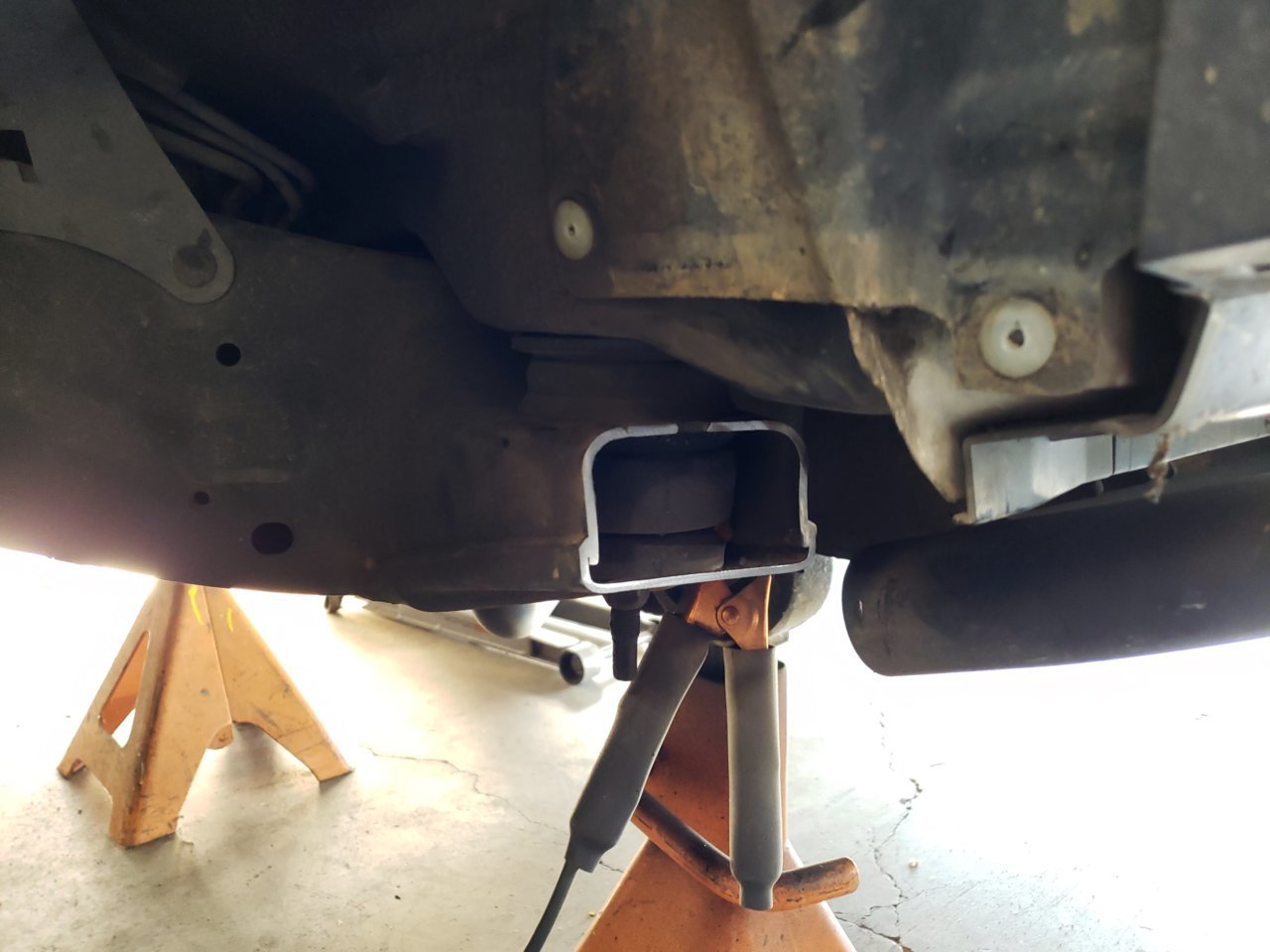

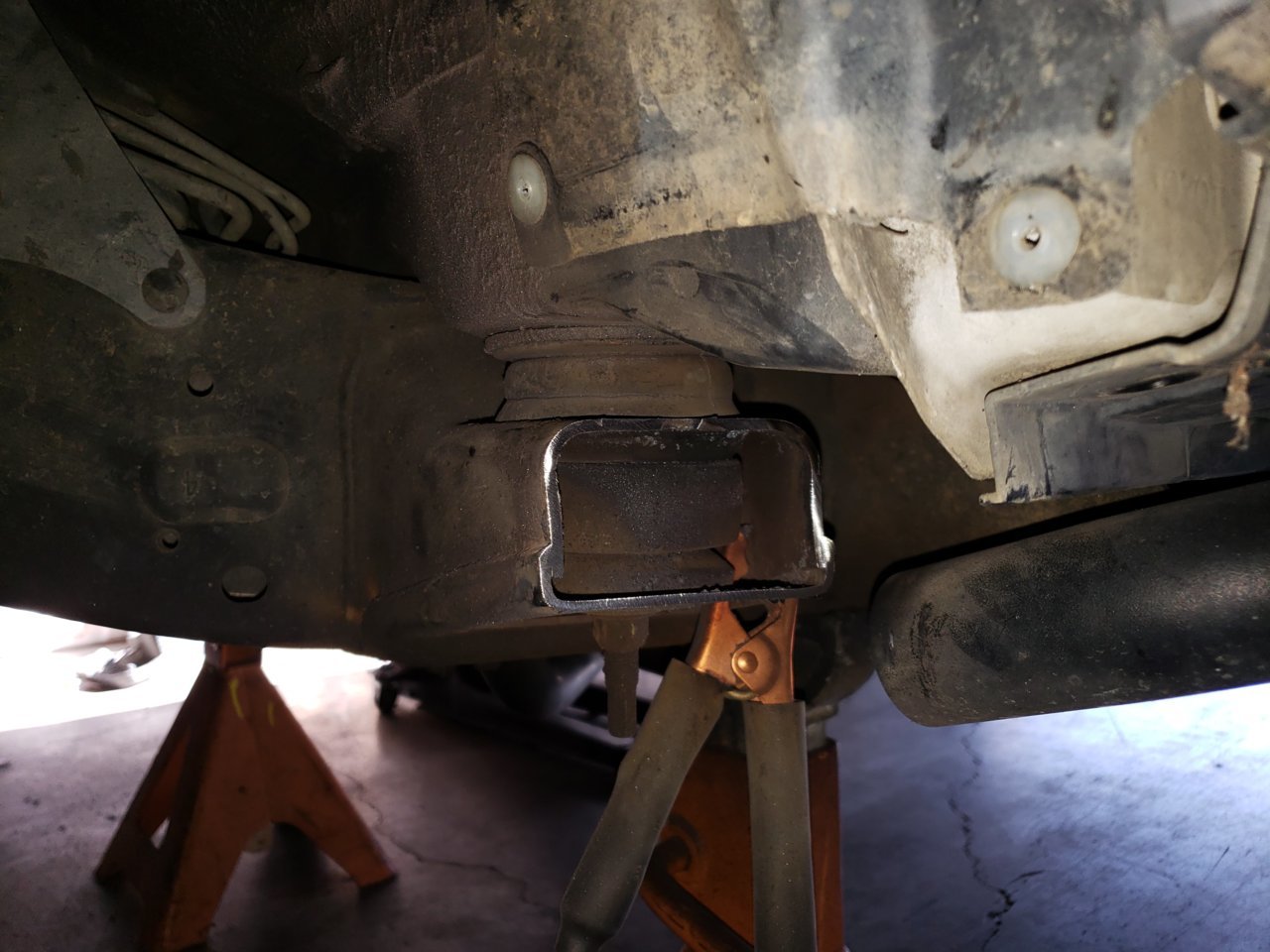

    This is how it should look once cut and sanded down.

    Next you will want to tack only the back of the mount if you removed enough you will have a gap at the outside of it.

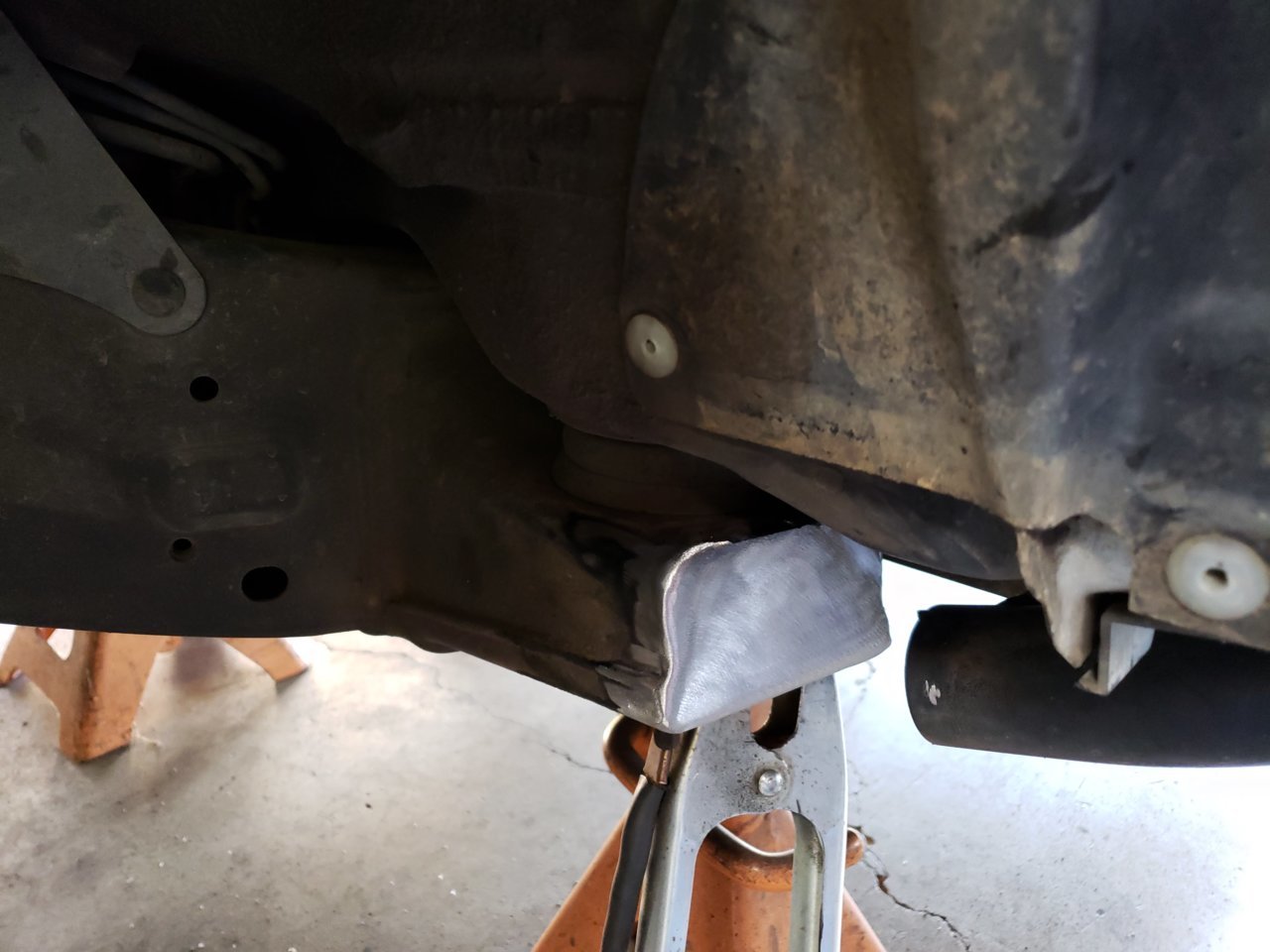

    Now you take your hammer and tap the plate until it forms the cut. You don't have to get it perfect that's why you have the welding clamp. Clamp the cab mount and plate together until the gap is gone and tack in place.

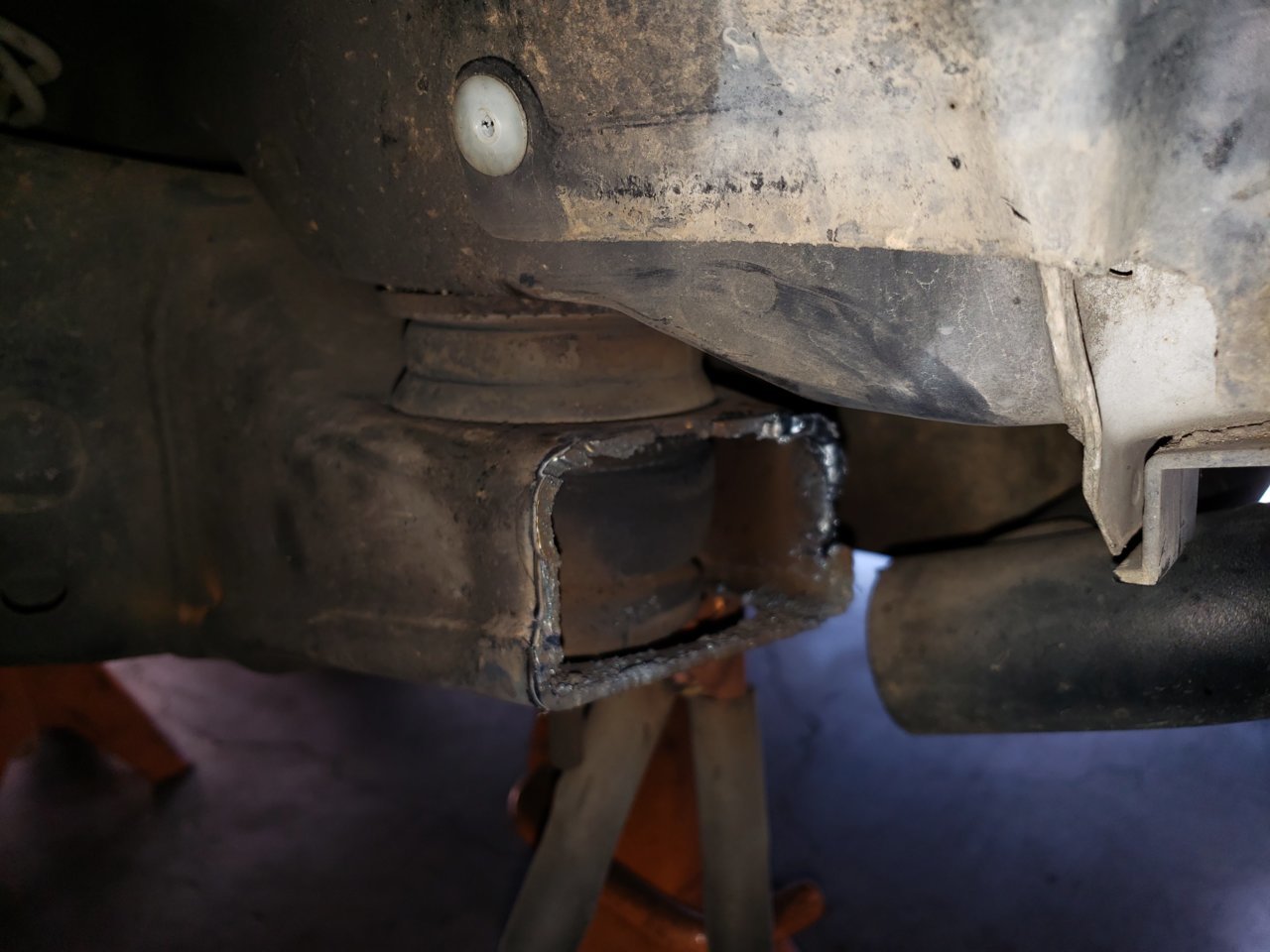

    Once tacked you can start welding it up. Now remember you are not out to win awards on weld appearance. Just stich weld it staggering the welds so you don't over heat the rubber mount.

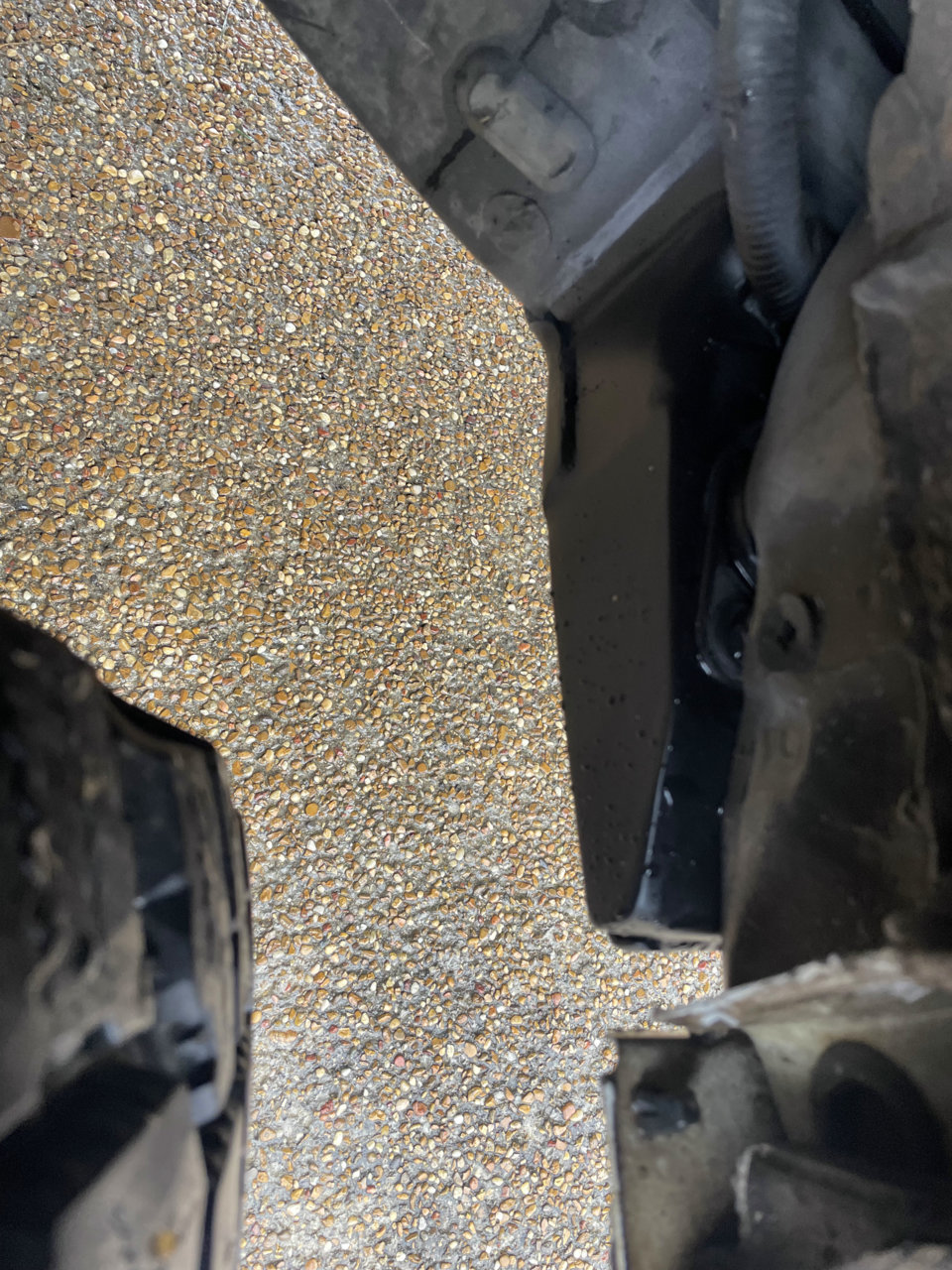

    Now that it's all welded up you can now blend the welds as if they were never there.


    Once it's all blended prime and paint the mount inside and out to prevent rust.


    Attached Files:

    Last edited: Jan 17, 2019
  2. Nov 3, 2015 at 9:52 PM
    #2
    pngo121

    pngo121 Well-Known Member

    Joined:
    Sep 3, 2010
    Member:
    #42700
    Messages:
    1,859
    Gender:
    Male
    First Name:
    Phi
    Pittsburg, CA
    Vehicle:
    16' TRD Sport DCSB 4x4
    flawless job by @JLee. wouldnt be able to even tell that its been cut looking down there.

  3. Nov 6, 2015 at 12:58 PM
    #3
    sect0r

    sect0r Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116437
    Messages:
    165
    Gender:
    Male
    Oregon
    Vehicle:
    14 TRD Sport
    King Mid Travel, BAMF w/ 12" King's, ect
    Looks amazing. I always expect top notch quality from BAMF!

  4. Jan 19, 2016 at 11:59 AM
    #4
    Iggy

    Iggy Vagabond Outdoors

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    4,016
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Looks good! They really beefed up those mounts on the 3rd gens.

  5. Jan 28, 2016 at 2:47 PM
    #5
    elliotts

    elliotts Well-Known Member

    Joined:
    Aug 7, 2014
    Member:
    #135634
    Messages:
    50
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2016 Black Tacoma TRD Off-Road DCSB 4x4
    What shop did this job?

  6. Jan 28, 2016 at 3:02 PM
    #6
    Iggy

    Iggy Vagabond Outdoors

    Joined:
    Feb 2, 2012
    Member:
    #71971
    Messages:
    4,016
    Gender:
    Male
    Northern CA
    Vehicle:
    09 4x4 Off-Road Access Cab
    Check out the build
    Take a look at the back of the shirt of the guy grinding.

  7. Jan 29, 2016 at 8:04 PM
    #7
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,557
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    That's a joke right!

    the.sight.picture, Joe23 and urban like this.
  8. Mar 14, 2016 at 3:01 PM
    #8
    twogiraffe

    twogiraffe Well-Known Member

    Joined:
    Dec 28, 2015
    Member:
    #173363
    Messages:
    93
    Gender:
    Male
    Las Vegas, NV
    Vehicle:
    2016 Double Cab Longbed Offroad Inferno
    * AllPro LOLA 2.0 with expedition rear leaf springs * Stealth Custom Series F5. 17x8.5 Gunmetal * BFGoodrich TA KO2 285/70/17 * SnugTop XtraVision
    I'm going to need this mod on my 2016. There's occasional rubbing during a braking turn, especially if the ground also dips down adding to the shock compression. I'm running 285/70 R17 TA KO2 on SCS F5 wheels with Allpro Lola 2 lift (Fox 2.5 coilover and Allpro UCA). Front diff drop.

    On flat ground, with full turn, there is only 1 cm of room between tire tread and the cab mount. With this mod, will I be able to fit 315 tires? What other changes are recommended to fit 315 in terms of fitment?

  9. Mar 14, 2016 at 3:10 PM
    #9
    pngo121

    pngo121 Well-Known Member

    Joined:
    Sep 3, 2010
    Member:
    #42700
    Messages:
    1,859
    Gender:
    Male
    First Name:
    Phi
    Pittsburg, CA
    Vehicle:
    16' TRD Sport DCSB 4x4
    Will probably have to do some more cutting and hammering to fit the 315s. I'm looking to upgrade to 315s as well but my wheels are as aggressive as the scs.

    JLee[OP] likes this.
  10. Mar 14, 2016 at 3:25 PM
    #10
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,557
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    The only thing i can tell you is to cut until it clears you can cut the end of the cab mount a little more and just tap the plate over in a vice to wrap around if you want to do that.

  11. Apr 2, 2016 at 2:50 AM
    #11
    slickrick 72284

    slickrick 72284 Well-Known Member

    Joined:
    Sep 4, 2015
    Member:
    #163406
    Messages:
    63
    Gender:
    Male
    First Name:
    Rickey
    Rossville, GA
    Vehicle:
    2015 TRD Sport 4x4 DCSB 6sd-man
    17" Helo He835 wheels, 285/70 R17 bf ko2s. 3" front and 2" back leveling kit. Nfab 2" step side. Tyger bed cover. 3" aftermarket bull guard.
    I'm gonna have to do this to my 2015 Tacoma to fit my 285/70r17's bf ko2's. Luckily I work in a machine shop and can get measurements and make my own chop plates to save time and money. Great post Jlee really helpful.

  12. Oct 20, 2016 at 11:25 AM
    #12
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,302
    Gender:
    Male
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    I wonder what doing a CMC does in terms of structure in the event of an accident.
    Isn't the cab mount meant to prevent the wheels from going back and crushing the drivers legs in the event of a collision?

    urban and pabloq506 like this.
  13. Dec 18, 2016 at 11:42 PM
    #13
    IvanCard

    IvanCard Well-Known Member

    Joined:
    Apr 10, 2013
    Member:
    #101826
    Messages:
    255
    Gender:
    Male
    First Name:
    Ivan
    Houston, Tx
    Vehicle:
    13 DCLB SPORT(sold), 17 DCSB OR
    @JLee what type of metal are the plates?

  14. Dec 19, 2016 at 3:41 AM
    #14
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,557
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    A-36 steel

  15. May 14, 2018 at 6:28 AM
    #15
    TonkaToyTaco

    TonkaToyTaco Hope you can run faster than 965 FPS

    Joined:
    Feb 2, 2011
    Member:
    #50428
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Louie
    Vehicle:
    11 Tacoma TRD DCLB 4X4
    Fox 2.0 Coilovers cranked up with JBA UCA, Rear OME 2" leaf pack with Ride Rite air bags, SCS Steath 6 matte black rims wrapped in 285/75/17 Cooper ST MAXX, Blacked out emblems, Debaged tailgate, Tinted windows (5% in rear, 5% up front and 40% on windsheild), Retro color matched HID headlights with Amber Halo, Projector LED Foglight, Custom LED Taillight and 3rd brake light, T-Rex 2 eyelids color matched, Fog light anytime MOD, All LED interior and exterior ligths, Volant CAI With forced Ram, JET throttle body spacer, Aero Turbine SS Muffler, Aero Turbine SS 4inch tip dumped after axel, URD MAF Calibrator, LED bed lights, 4X4 light mod, Satoshi Grill with matching scoop and lower Valance, 20" LED bar and 2 LED Pods behind Satoshi, Diff breather mod, Sea Blu secondary fuse box with 100A breaker, Outlaw Train Horns with dual Air Compressors and 5 Gal tank, Ultraguage, Andre Devil Horns, Pedal Commander
  16. Jan 1, 2023 at 11:30 AM
    #16
    Tucker-Taco

    Tucker-Taco Well-Known Member

    Joined:
    Nov 7, 2021
    Member:
    #381537
    Messages:
    47
    Gender:
    Male
    First Name:
    Tucker
    North Carolina
    Vehicle:
    2017 Tacoma SR5 4WD

    Best CMC plates out there!
