3rd Gen/ 2nd Gen Engine bay Splash Guard/ Rock guards Template.

Discussion in 'Off-Roading & Trails' started by Shveet, Jul 28, 2019.

  1. May 24, 2021 at 4:26 AM
    #81
    Shveet

    Shveet [OP] joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,332
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox
    Oh man, that's mint!
    Glad to see that rubber mat is still around since that looks to be exactly the roll i used.
    But yeah a 3/8ths punch would be ideal and the use of a round file is a pretty good idea but as you mentioned, its best to punch holes ln the go since there might be slight variations on locations
    Cheers!

  2. May 24, 2021 at 4:30 AM
    #82
    Shveet

    Shveet [OP] joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,332
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox

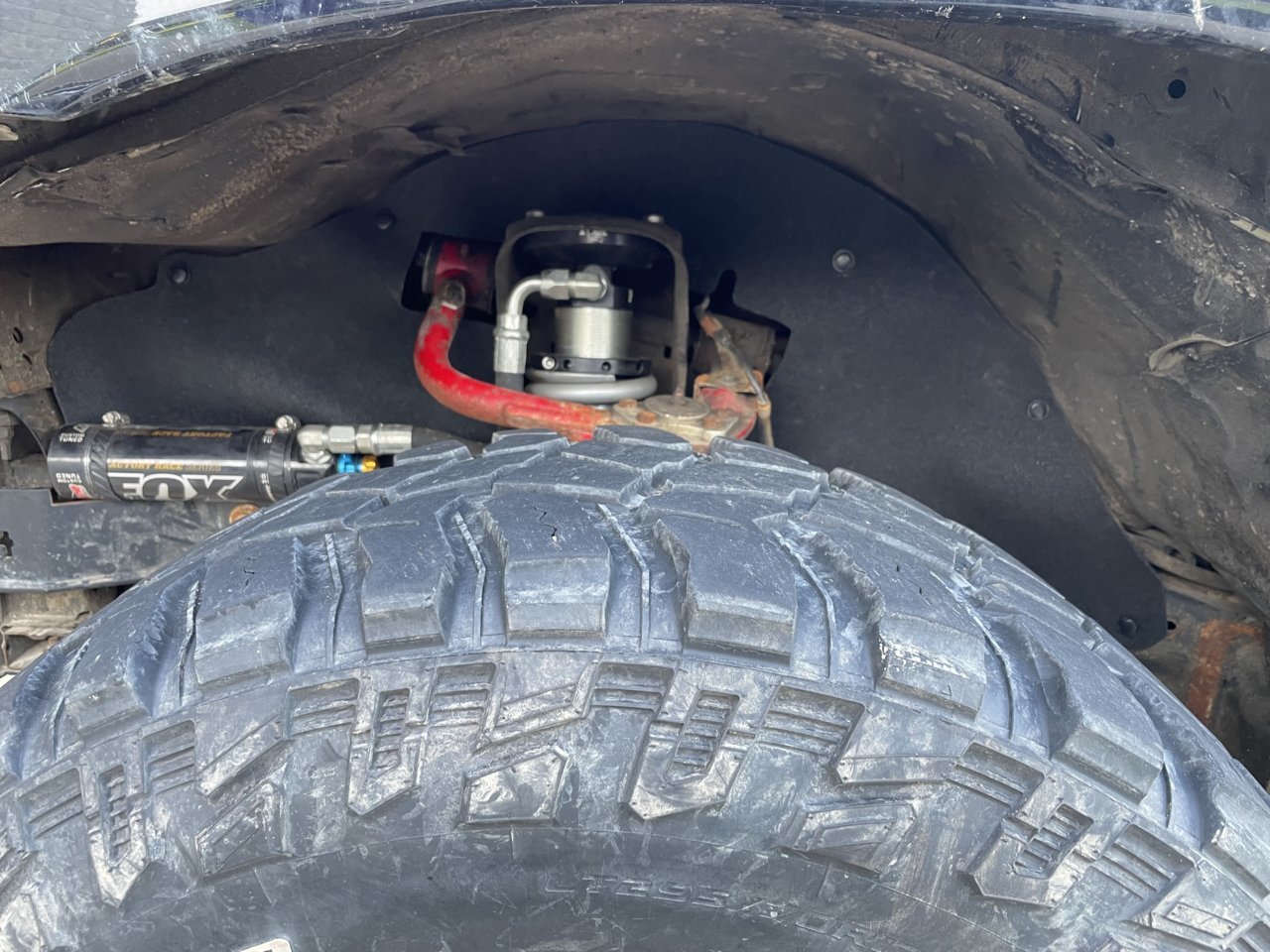

    Guess a progress photo is in order as im nearing the 2 year mark with my first set

    reallifedog, dpele, gabbo2112 and 2 others like this.
  3. May 24, 2021 at 2:10 PM
    #83
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    426
    Gender:
    Male
    First Name:
    Kellen
    BC, Canada
    Vehicle:
    07 DCSB 6MT 4X4
    Pop rivets and JB Weld.
    And you're at the two year mark using that material? That's reassuring! I noticed on my first wheeling trip this weekend with them in that they actually seem to repel dust/dirt a bit. Everything else in the wheel well was dirty but the splash guards.

  4. May 24, 2021 at 6:20 PM
    #84
    Shveet

    Shveet [OP] joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,332
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox
    Thats because theyre new :p
    Once the oily surface collects enough dust itll look like mine doesnt see to harm the material if the surface is dry or not.

  5. Dec 12, 2021 at 11:09 AM
    #85
    PJP71

    PJP71 Member

    Joined:
    Sep 5, 2021
    Member:
    #376250
    Messages:
    23
    Gender:
    Male
    This is awesome that you guys did this! I'm curious is anyone knows if this template works on a 4th gen 4Runner (2003-2009)?

  6. Dec 13, 2021 at 7:38 AM
    #86
    dpele

    dpele Pele Prints Vendor

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    970
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta
    Vehicle:
    2010 Tacoma DCSB
    Elka 2.0 w/ OME Dakars, 285/70/R17 Duratracs, & more!
    Good way to find out is to print it and try! haha

    PJP71[QUOTED] likes this.
  7. Jan 13, 2022 at 5:19 PM
    #87
    Tony T

    Tony T New Member

    Joined:
    Jan 8, 2022
    Member:
    #386714
    Messages:
    2
    Gender:
    Male
    How do I print this out brithrr

  8. May 20, 2022 at 12:54 PM
    #88
    TravelingTacoma22

    TravelingTacoma22 Active Member

    Joined:
    Apr 14, 2022
    Member:
    #395019
    Messages:
    28
    Gender:
    Male
    I'm going to make them today! I found this rubber toolbox liner at Harbor Freights which is ~2mm, I'm going to give it a try...

  9. Jun 22, 2022 at 5:11 AM
    #89
    balls47

    balls47 Well-Known Member

    Joined:
    May 14, 2014
    Member:
    #129781
    Messages:
    72
    Gender:
    Male
    Western Colorado
    Vehicle:
    99 TRD OR, 2014 DCLB TRD Sport
    Glad i found this, both of mine are torn and need replaced. Thanks for the template.

    dpele likes this.
  10. Jul 10, 2022 at 4:25 PM
    #90
    jkauf

    jkauf Well-Known Member

    Joined:
    Jul 12, 2020
    Member:
    #334271
    Messages:
    303
    Gender:
    Male
    Vehicle:
    2013 Tacoma Supercharged - Stock
    This is awesome! Just knocked out my passenger side. Doing driver side in the am. Appreciate everyone who put this together. Cheers!


    gabbo2112, truckbeans and dpele like this.
  11. Jul 23, 2022 at 3:52 PM
    #91
    Sandman614

    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    35,740
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

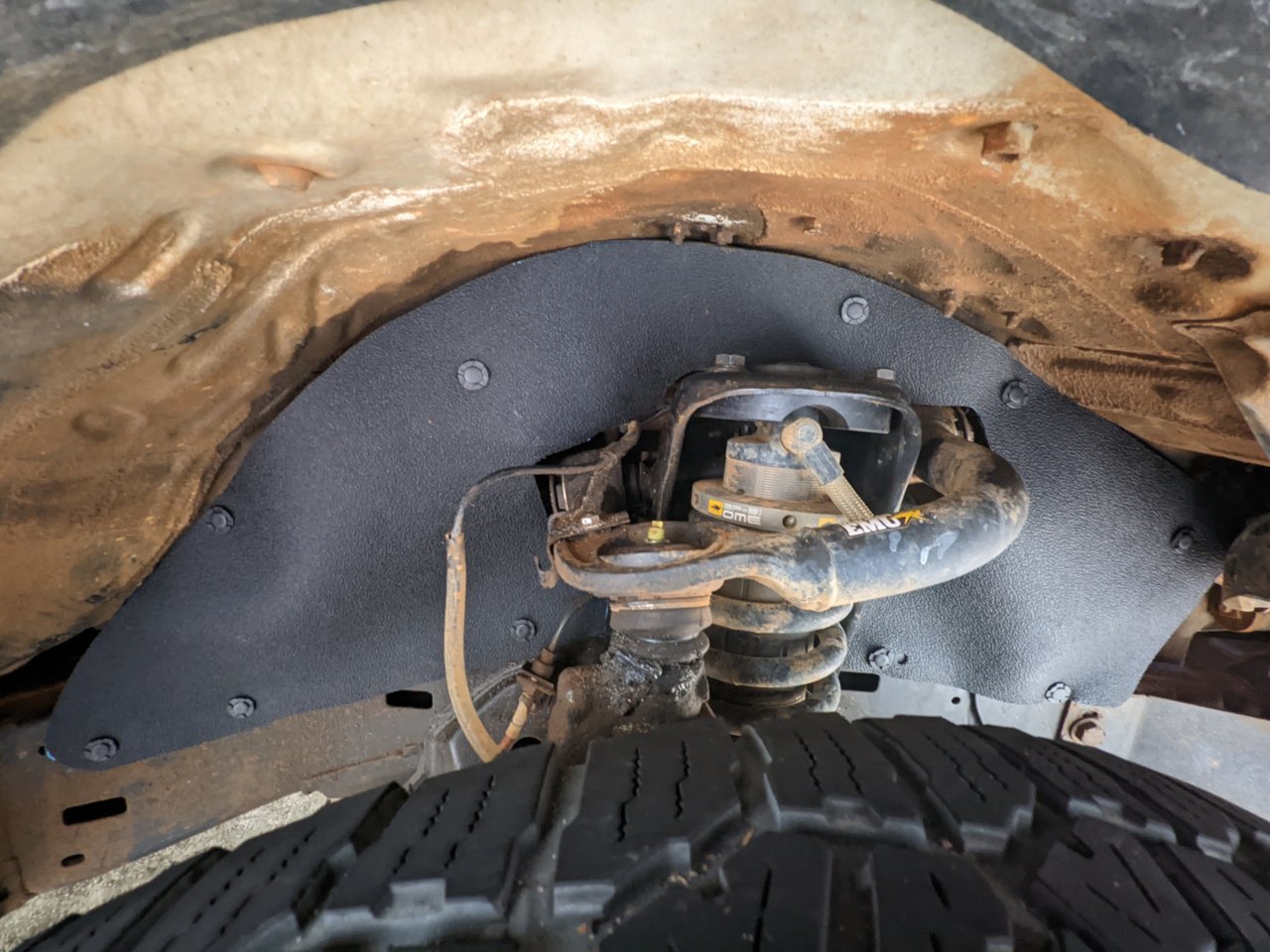

    Thanks for the legwork on the files! Just cut some for my truck from the VersaTex mat


    birry, gabbo2112 and Shveet[OP] like this.
  12. Sep 24, 2022 at 12:59 PM
    #92
    BussinGus

    BussinGus Well-Known Member

    Joined:
    Aug 19, 2022
    Member:
    #403898
    Messages:
    1,334
    Gender:
    Male
    Vehicle:
    2019 cement double cab sport
    Thanks everyone! Saw the link on Shveet's post and had some old pond liner laying around so I made a set this afternoon.

    gabbo2112, reallifedog and Shveet[OP] like this.
  13. Oct 1, 2022 at 2:53 PM
    #93
    tgelata

    tgelata Well-unknown Member

    Joined:
    Apr 26, 2017
    Member:
    #217423
    Messages:
    1,302
    Gender:
    Male
    Probably at work.
    Vehicle:
    2014 Tacoma Crawler & 2008 Tacoma Daily
    Just finished up my set (finally)

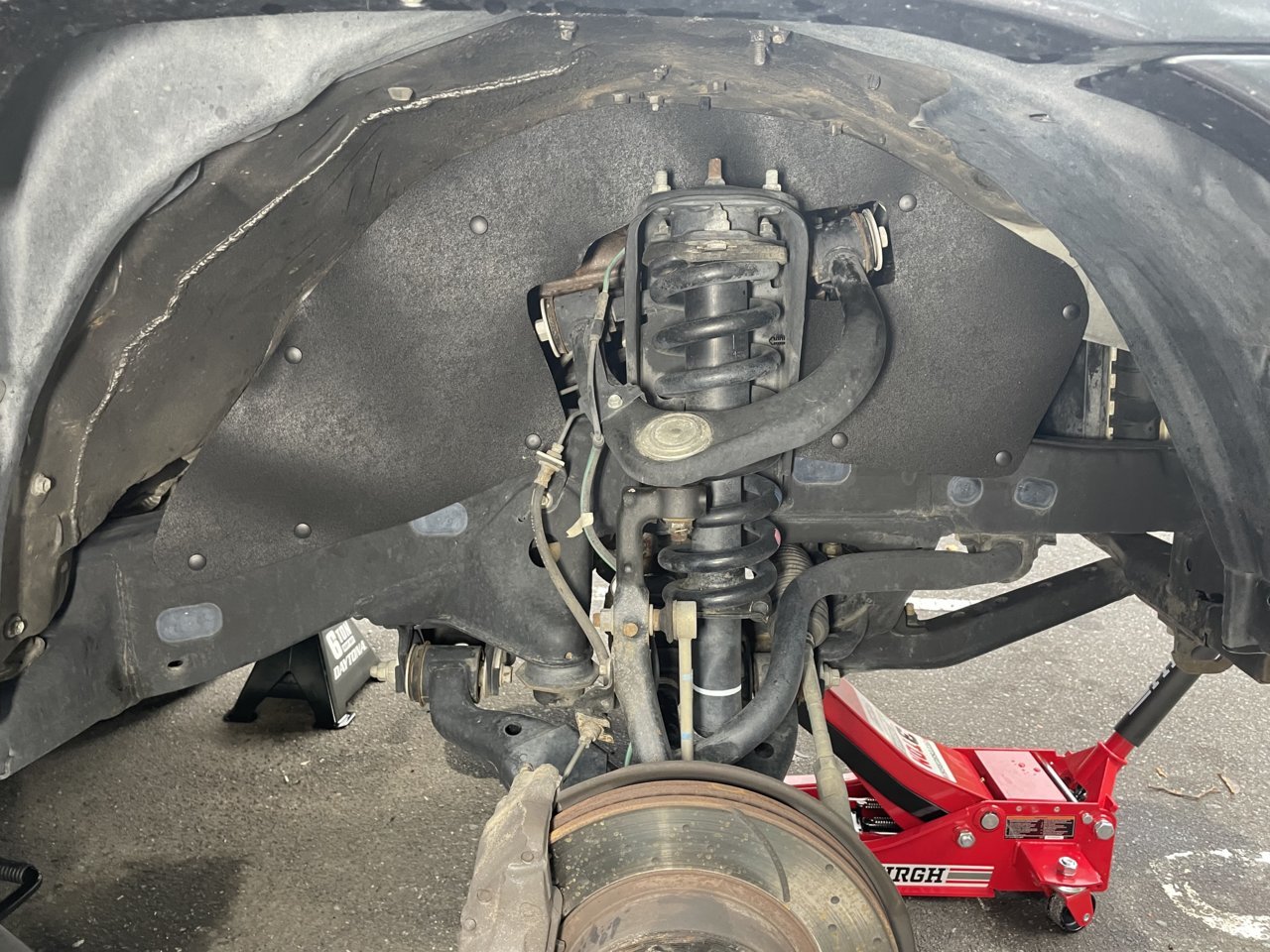

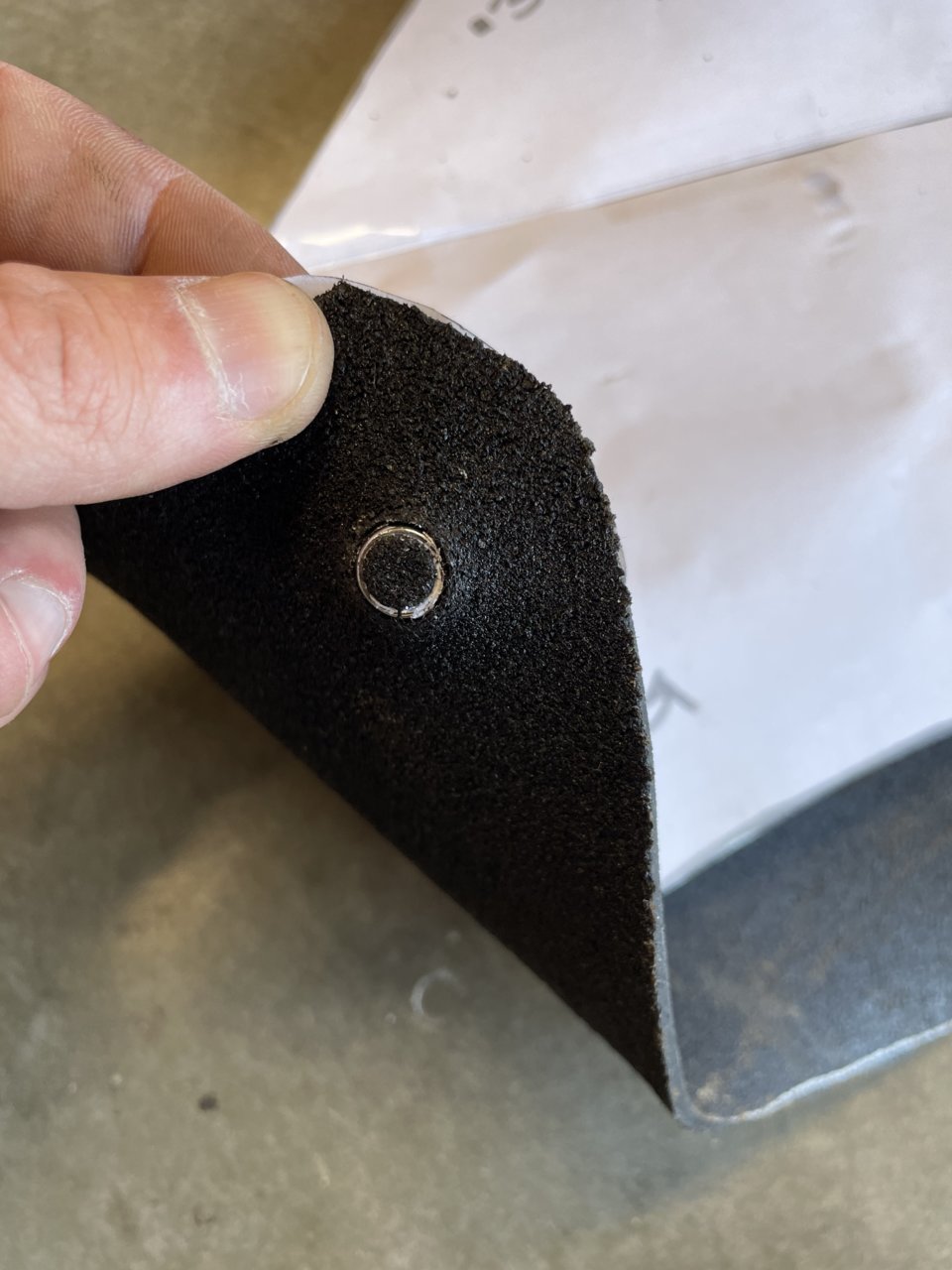

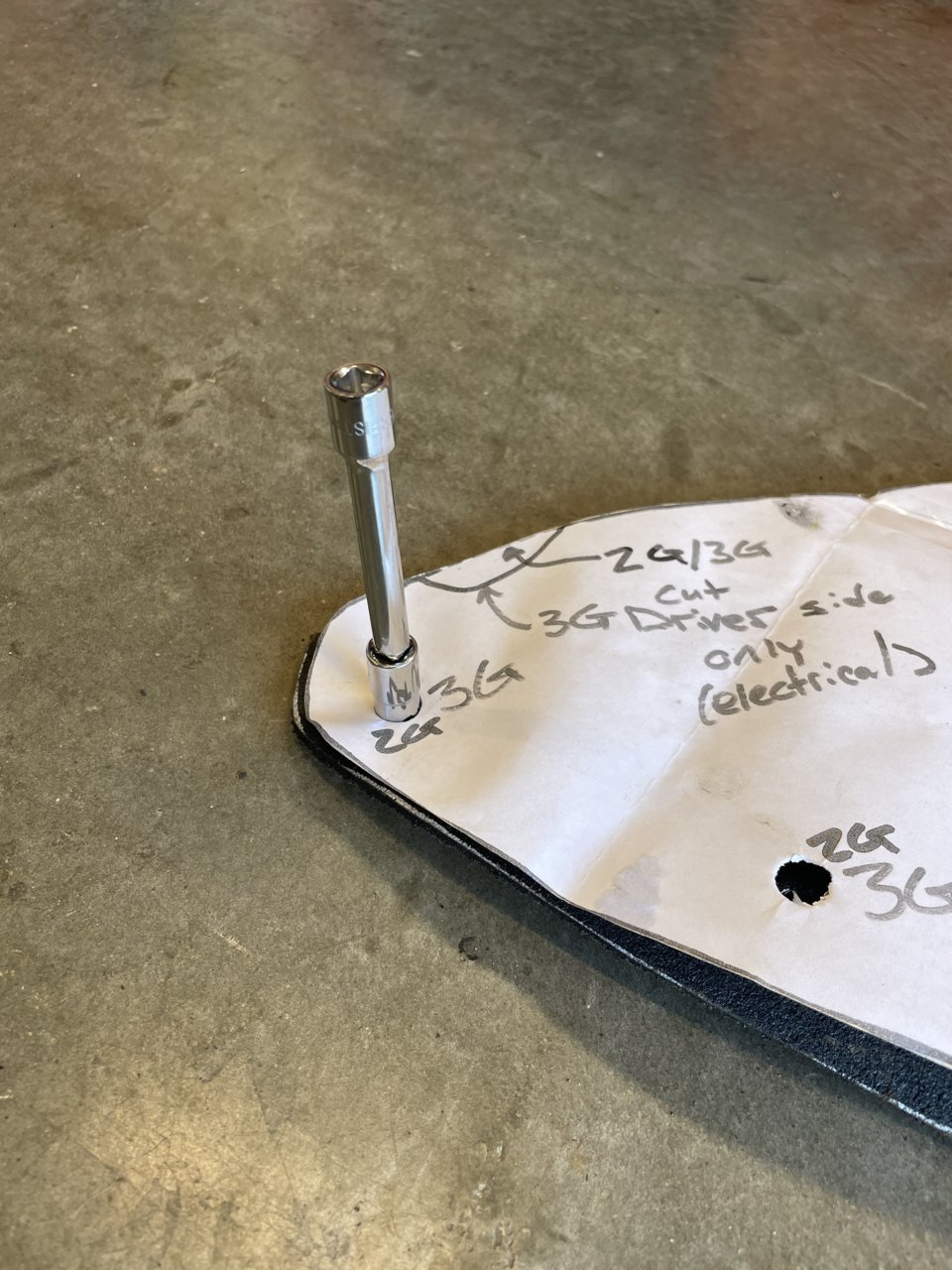

    Just a tip for the pin holes
    Use a 7mm socket with an extension and a hammer.
    Doesn’t take much effort, no special tools and nice round holes


    gabbo2112, dpele, truckbeans and 2 others like this.
  14. Nov 19, 2022 at 10:28 PM
    #94
    20somethingwidataco

    20somethingwidataco Yes, my avatar is a real car.

    Joined:
    Nov 11, 2017
    Member:
    #235681
    Messages:
    6,364
    Gender:
    Male
    First Name:
    Will
    Washington State
    Vehicle:
    2008 AC TRD SPORT M/T
    ACLB 6 SPEED: Suspension: Bilstein 6112s (3rd perch) (F) Taco Lean Spacer Bilstein 5160s (R) TSB Leaf Pack Wheelers Offroad 3 leaf progressive AAL Wheelers Superbump Front Duro Bump U bolt flip kit Duro Bump progressive bump stop 3rd gen TRD offroad sway bar Wheels and Tires: Summit Racing Wheel Dakars (Polished Silver) 285/70r/17 Goodyear Wrangler Duratrax (Load D) "Performance": AFE CAI with custom powdercoated white filter cover MagnaFlow Performance Series Exhaust URD Cam gears XTP Intake Manifold Spacer OTT Torque Tune Brakes: Stoptech Slotted Rotors Stoptech Sport Ultra Composite Brake Pads Wheelers offroad SS brakelines (Front) Interior: Kenwood DD headunit Oem Subaru Kicker Tweeters Alpine 6x9 (Front) & 6.5 (rear) (With Taco tunes speaker mounts) Alpine 500 watt amp Sound Deadening (Doors, Rear "wall", Roof) ODI Rouge Shift Knob Weather Tech Mats Painted/wrapped trim pieces Console Safe Console Vault Gridx Organizer Ram Phone Mount Meso Customs dual color map lights Meso Customs dual color dome light Wet Okole seat covers (Black) Wet Okole center console cover (Black) 1" Seat Raisers (Driver & Passenger) AJT Designs climate control and 4x4 knobs Back Up Camera Lighting: Retrofits (Mini H1's, RGB Halos, 5500k Bulbs)(Lenses wrapped in self healing PPF) Diode Dynamics SS3 Max SAE (Yellow) Diode Dynamics SS3 Pro (Yellow) Driving lights Anytime fog mod Rigid Industries E series 32" Combo bar (spot/flood) Diode Dynamics XPR Reverse Lights Diode Dynamics XP80 turn signals LED brake, parking lights and license plate lights Armor: Apex All Pro sliders BPF steel skid plate Bigass Trailer Hitch Camping/Storage: Leer canopy LED interior lighting Sleeping platform (Storage underneath) Removable snowboard Yakima mounts Extra D rings in bed (6 total) Custom Powder coated white snow shovel with custom bedrail mounts Amazon special Traction Boards Hi Lift 48" Jack with custom Rail mounts to accommodate my sleeper set up Other: All pro Bed Stiffeners Relentless Fab tailgate panel TRD sport graphics (Turd Gen spec) Anti Sun glare hood scoop wrap (Satin Black) Custom FleeBay grille 4 Hella supertones ECGS needle bearing Many Patches BPF shackle mount (With smittybuilt shackle) Tinted windows (Front/Rear + Full canopy)(18%) Meso Customs gasshole AVS inchannel window visors Diff Breather Kit 2012-2015 Oem Turn signal/folding mirrors (w/ sequential signals) 2012-2015 Oem LED taillights Full Size (285/70r17) spare DIY Larger Engine Splash Guards DIY Vipercut
  15. Jan 20, 2023 at 6:14 PM
    #95
    2012Tacoman

    2012Tacoman Active Member

    Joined:
    Feb 3, 2021
    Member:
    #354906
    Messages:
    32
    Gender:
    Male
    First Name:
    Jase
    Vehicle:
    2012 Tacoma TRD Sport
    Been wanting to do this for a while on my taco. I had a factory splash guard rip and it finally gave me the motivation to say… screw it and get it done. I used the .DXF file and auto cad to make a bunch of 8.5” x 11” (typical sheet of paper) rectangles so that it could be printed off easily for a template.
    You can download them as PDFs here… there are 10 sheets total. They are in Black and white, so keep in mind what holes and cuts you want to make for your generation. I recommend taping all the sheet’s together and then taking a colored marker and copying the red and blue in the original template. I ended up not using the holes and just punched them out as I went through putting up the rubber. Hope this helps.


    Attached Files:

  16. Jan 20, 2023 at 6:21 PM
    #96
    2012Tacoman

    2012Tacoman Active Member

    Joined:
    Feb 3, 2021
    Member:
    #354906
    Messages:
    32
    Gender:
    Male
    First Name:
    Jase
    Vehicle:
    2012 Tacoma TRD Sport

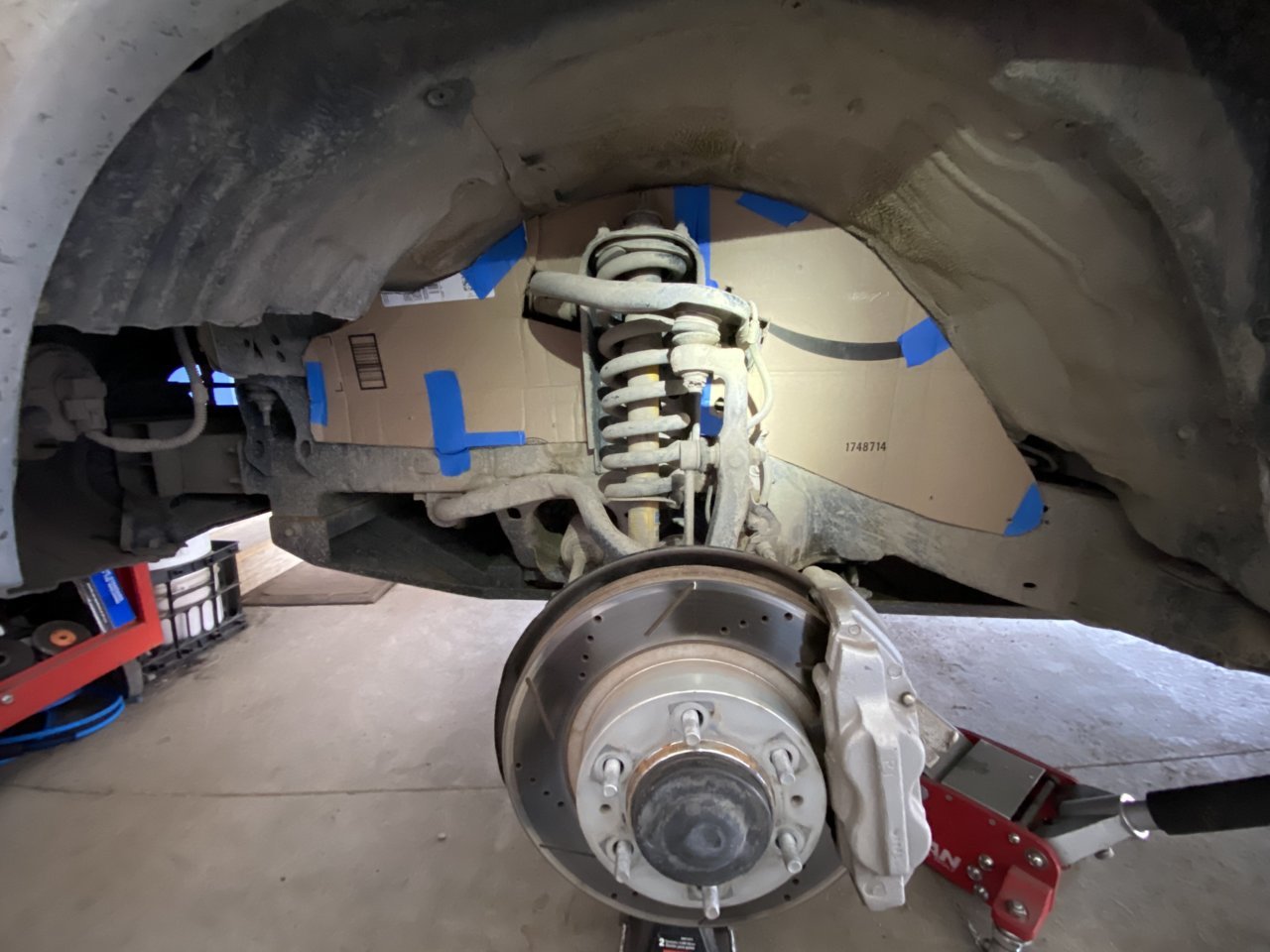

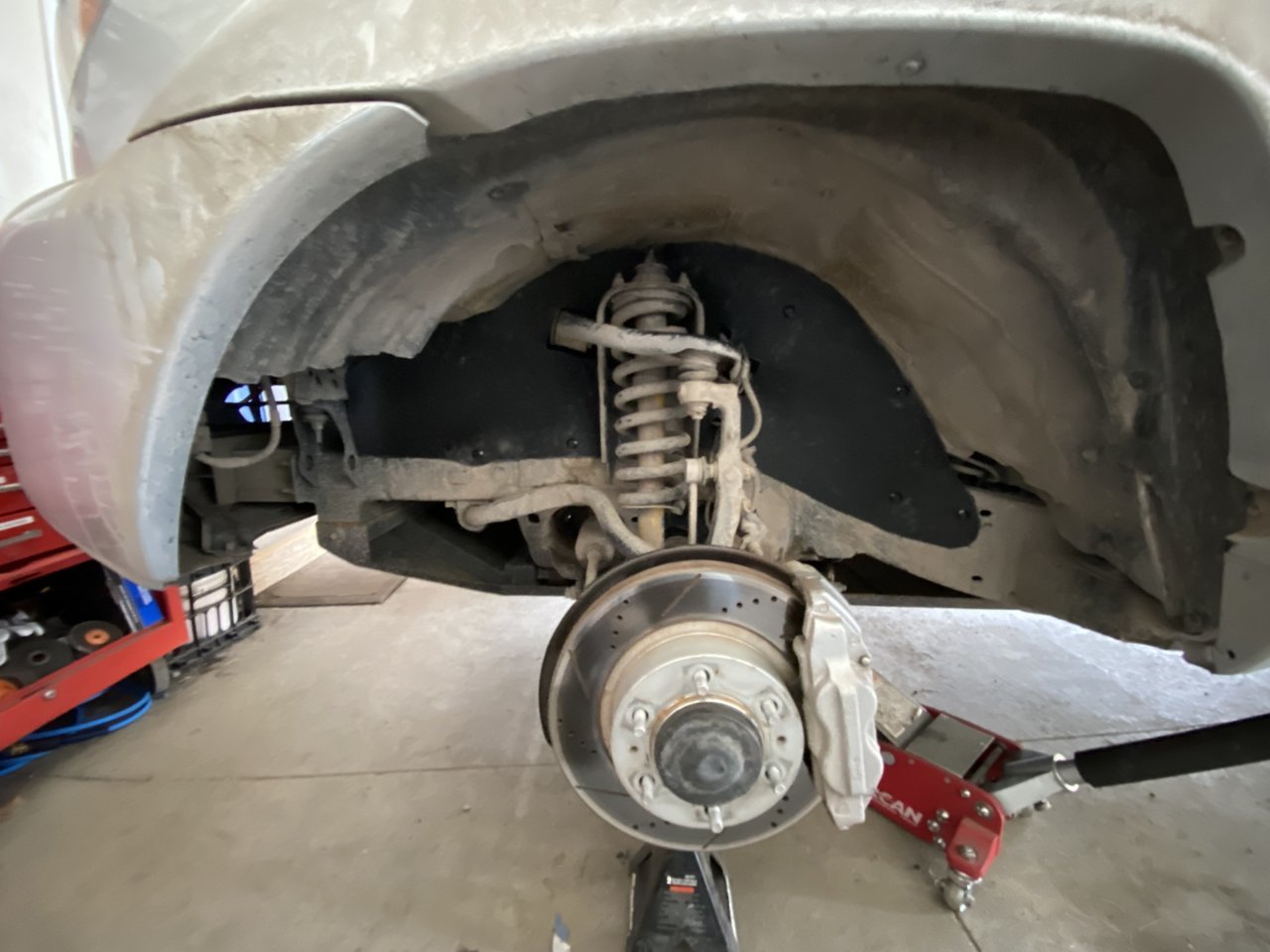

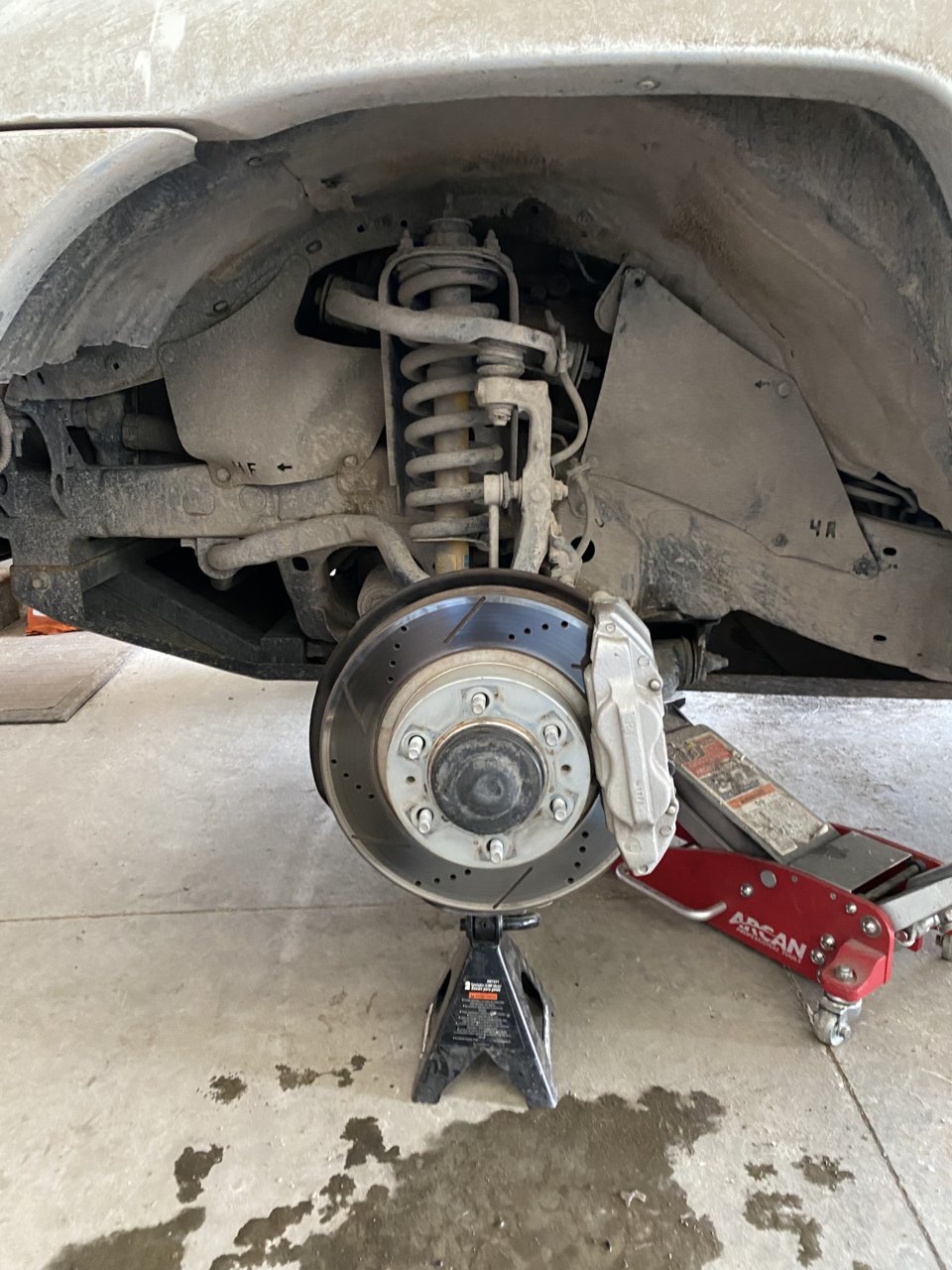

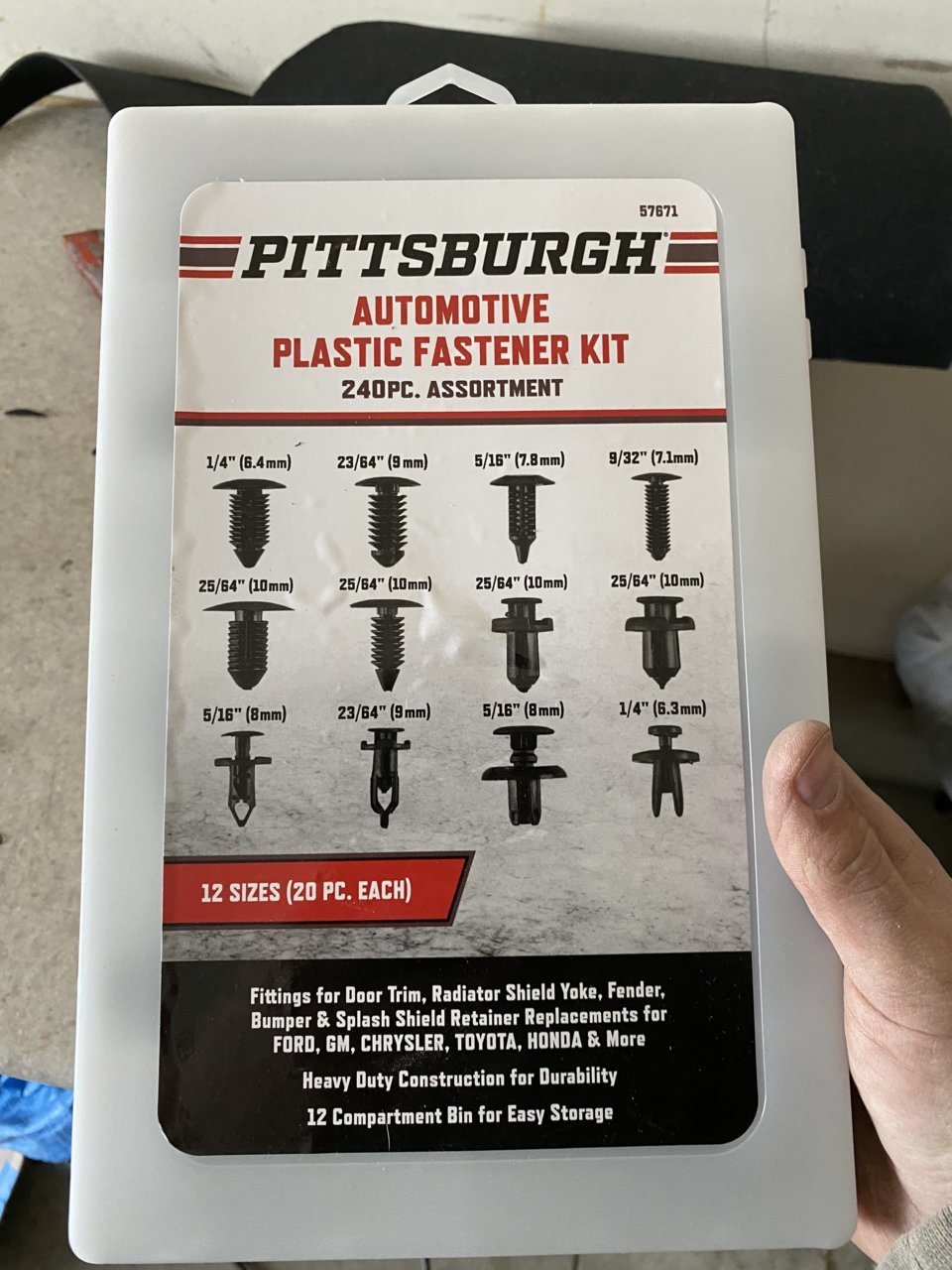

    DBC7A403-D4D3-4CA7-9E86-33BF037EA8FD.jpg FB9E53D5-D083-4A36-A6F4-38DFBC02994E.jpg F1428907-46D6-486B-8443-E61C33D80DDE.jpg 924903A8-7F38-46F0-8054-E77B2E94B5A4.jpg Before, During and After. Much better! The factory ones are crap! I got all of my supplies at under $40. I got the 2mm rubber at Home Depot on a roll. 27”x 56” left me plenty of room to fit the pair. And the plastic tabs at Harbor freight worked awesome to fit the original holes, plus I added a few of my own using a drill. I can’t wait to see how well these keep the mud out.

    BizzyBone, BussinGus, dpele and 2 others like this.
  17. Jan 20, 2023 at 7:53 PM
    #97
    20somethingwidataco

    20somethingwidataco Yes, my avatar is a real car.

    Joined:
    Nov 11, 2017
    Member:
    #235681
    Messages:
    6,364
    Gender:
    Male
    First Name:
    Will
    Washington State
    Vehicle:
    2008 AC TRD SPORT M/T
    ACLB 6 SPEED: Suspension: Bilstein 6112s (3rd perch) (F) Taco Lean Spacer Bilstein 5160s (R) TSB Leaf Pack Wheelers Offroad 3 leaf progressive AAL Wheelers Superbump Front Duro Bump U bolt flip kit Duro Bump progressive bump stop 3rd gen TRD offroad sway bar Wheels and Tires: Summit Racing Wheel Dakars (Polished Silver) 285/70r/17 Goodyear Wrangler Duratrax (Load D) "Performance": AFE CAI with custom powdercoated white filter cover MagnaFlow Performance Series Exhaust URD Cam gears XTP Intake Manifold Spacer OTT Torque Tune Brakes: Stoptech Slotted Rotors Stoptech Sport Ultra Composite Brake Pads Wheelers offroad SS brakelines (Front) Interior: Kenwood DD headunit Oem Subaru Kicker Tweeters Alpine 6x9 (Front) & 6.5 (rear) (With Taco tunes speaker mounts) Alpine 500 watt amp Sound Deadening (Doors, Rear "wall", Roof) ODI Rouge Shift Knob Weather Tech Mats Painted/wrapped trim pieces Console Safe Console Vault Gridx Organizer Ram Phone Mount Meso Customs dual color map lights Meso Customs dual color dome light Wet Okole seat covers (Black) Wet Okole center console cover (Black) 1" Seat Raisers (Driver & Passenger) AJT Designs climate control and 4x4 knobs Back Up Camera Lighting: Retrofits (Mini H1's, RGB Halos, 5500k Bulbs)(Lenses wrapped in self healing PPF) Diode Dynamics SS3 Max SAE (Yellow) Diode Dynamics SS3 Pro (Yellow) Driving lights Anytime fog mod Rigid Industries E series 32" Combo bar (spot/flood) Diode Dynamics XPR Reverse Lights Diode Dynamics XP80 turn signals LED brake, parking lights and license plate lights Armor: Apex All Pro sliders BPF steel skid plate Bigass Trailer Hitch Camping/Storage: Leer canopy LED interior lighting Sleeping platform (Storage underneath) Removable snowboard Yakima mounts Extra D rings in bed (6 total) Custom Powder coated white snow shovel with custom bedrail mounts Amazon special Traction Boards Hi Lift 48" Jack with custom Rail mounts to accommodate my sleeper set up Other: All pro Bed Stiffeners Relentless Fab tailgate panel TRD sport graphics (Turd Gen spec) Anti Sun glare hood scoop wrap (Satin Black) Custom FleeBay grille 4 Hella supertones ECGS needle bearing Many Patches BPF shackle mount (With smittybuilt shackle) Tinted windows (Front/Rear + Full canopy)(18%) Meso Customs gasshole AVS inchannel window visors Diff Breather Kit 2012-2015 Oem Turn signal/folding mirrors (w/ sequential signals) 2012-2015 Oem LED taillights Full Size (285/70r17) spare DIY Larger Engine Splash Guards DIY Vipercut
    You're awesome for this.....

    2012Tacoman[QUOTED] likes this.
  18. Jan 20, 2023 at 7:57 PM
    #98
    20somethingwidataco

    20somethingwidataco Yes, my avatar is a real car.

    Joined:
    Nov 11, 2017
    Member:
    #235681
    Messages:
    6,364
    Gender:
    Male
    First Name:
    Will
    Washington State
    Vehicle:
    2008 AC TRD SPORT M/T
    ACLB 6 SPEED: Suspension: Bilstein 6112s (3rd perch) (F) Taco Lean Spacer Bilstein 5160s (R) TSB Leaf Pack Wheelers Offroad 3 leaf progressive AAL Wheelers Superbump Front Duro Bump U bolt flip kit Duro Bump progressive bump stop 3rd gen TRD offroad sway bar Wheels and Tires: Summit Racing Wheel Dakars (Polished Silver) 285/70r/17 Goodyear Wrangler Duratrax (Load D) "Performance": AFE CAI with custom powdercoated white filter cover MagnaFlow Performance Series Exhaust URD Cam gears XTP Intake Manifold Spacer OTT Torque Tune Brakes: Stoptech Slotted Rotors Stoptech Sport Ultra Composite Brake Pads Wheelers offroad SS brakelines (Front) Interior: Kenwood DD headunit Oem Subaru Kicker Tweeters Alpine 6x9 (Front) & 6.5 (rear) (With Taco tunes speaker mounts) Alpine 500 watt amp Sound Deadening (Doors, Rear "wall", Roof) ODI Rouge Shift Knob Weather Tech Mats Painted/wrapped trim pieces Console Safe Console Vault Gridx Organizer Ram Phone Mount Meso Customs dual color map lights Meso Customs dual color dome light Wet Okole seat covers (Black) Wet Okole center console cover (Black) 1" Seat Raisers (Driver & Passenger) AJT Designs climate control and 4x4 knobs Back Up Camera Lighting: Retrofits (Mini H1's, RGB Halos, 5500k Bulbs)(Lenses wrapped in self healing PPF) Diode Dynamics SS3 Max SAE (Yellow) Diode Dynamics SS3 Pro (Yellow) Driving lights Anytime fog mod Rigid Industries E series 32" Combo bar (spot/flood) Diode Dynamics XPR Reverse Lights Diode Dynamics XP80 turn signals LED brake, parking lights and license plate lights Armor: Apex All Pro sliders BPF steel skid plate Bigass Trailer Hitch Camping/Storage: Leer canopy LED interior lighting Sleeping platform (Storage underneath) Removable snowboard Yakima mounts Extra D rings in bed (6 total) Custom Powder coated white snow shovel with custom bedrail mounts Amazon special Traction Boards Hi Lift 48" Jack with custom Rail mounts to accommodate my sleeper set up Other: All pro Bed Stiffeners Relentless Fab tailgate panel TRD sport graphics (Turd Gen spec) Anti Sun glare hood scoop wrap (Satin Black) Custom FleeBay grille 4 Hella supertones ECGS needle bearing Many Patches BPF shackle mount (With smittybuilt shackle) Tinted windows (Front/Rear + Full canopy)(18%) Meso Customs gasshole AVS inchannel window visors Diff Breather Kit 2012-2015 Oem Turn signal/folding mirrors (w/ sequential signals) 2012-2015 Oem LED taillights Full Size (285/70r17) spare DIY Larger Engine Splash Guards DIY Vipercut
    Literally ordering the stuff to do this now. Stoked

  19. Jan 23, 2023 at 7:08 AM
    #99
    dpele

    dpele Pele Prints Vendor

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    970
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta
    Vehicle:
    2010 Tacoma DCSB
    Elka 2.0 w/ OME Dakars, 285/70/R17 Duratracs, & more!
    Nice work!
    People will still need to print to "actual size" or the template could be slightly off scale.

    Delostx and 2012Tacoman[QUOTED] like this.
  20. Jan 25, 2023 at 5:25 PM
    #100
    2012Tacoman

    2012Tacoman Active Member

    Joined:
    Feb 3, 2021
    Member:
    #354906
    Messages:
    32
    Gender:
    Male
    First Name:
    Jase
    Vehicle:
    2012 Tacoma TRD Sport
    Let us know how those templates work. They should fit nicely if you tape them square at the corners.

    The guards have been awesome on our melty Montanan roads lately. Everything is brown with mud but not my engine bay. :)

To Top
