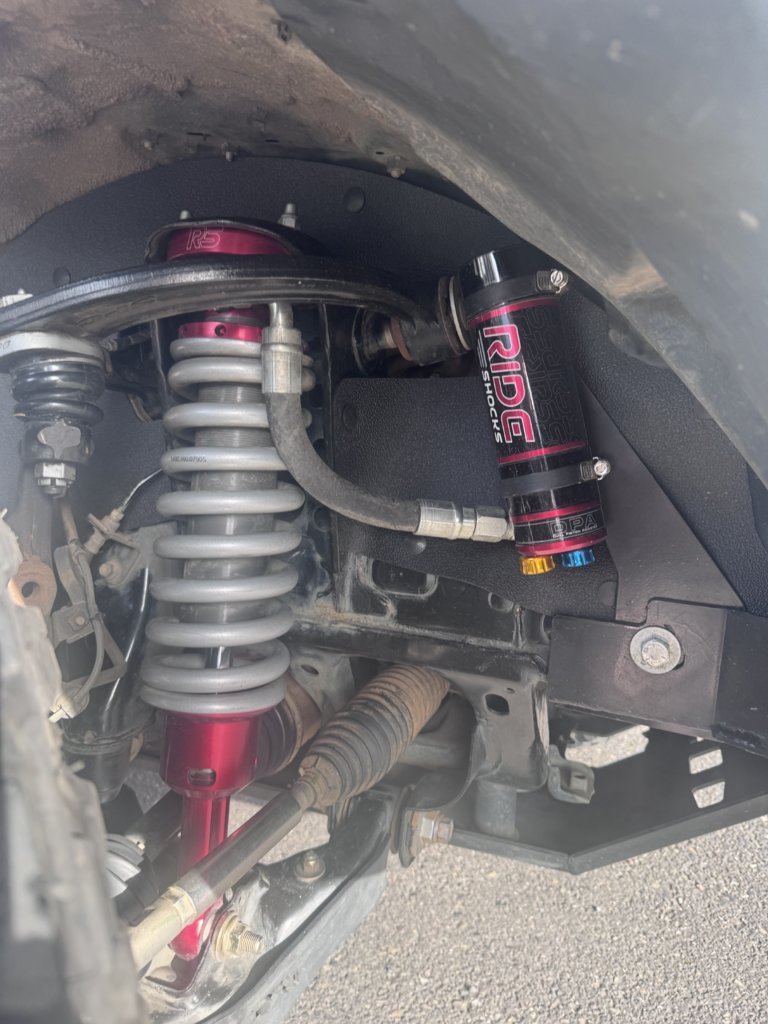

3rd Gen/ 2nd Gen Engine bay Splash Guard/ Rock guards Template.

Discussion in 'Off-Roading & Trails' started by Shveet, Jul 28, 2019.

  1. Feb 27, 2023 at 9:59 AM
    #101
    Bocotacointhewild

    Bocotacointhewild Often wrong, never in doubt

    Joined:
    Oct 14, 2020
    Member:
    #343751
    Messages:
    72
    Gender:
    Male
    First Name:
    Connor
    West coast best coast
    Vehicle:
    2010 ECLB SR5 5MT
    265/75 KO2s, Topper, 2021 TRD OR front suspension, ome 2” rear, diff breather mod, 16” OR rims, rear seat delete, sleeping platform, weatherproofing, blacked out taillights, dual battery, water tank, dirt colored engine bay, interior LED's and a pop n lock

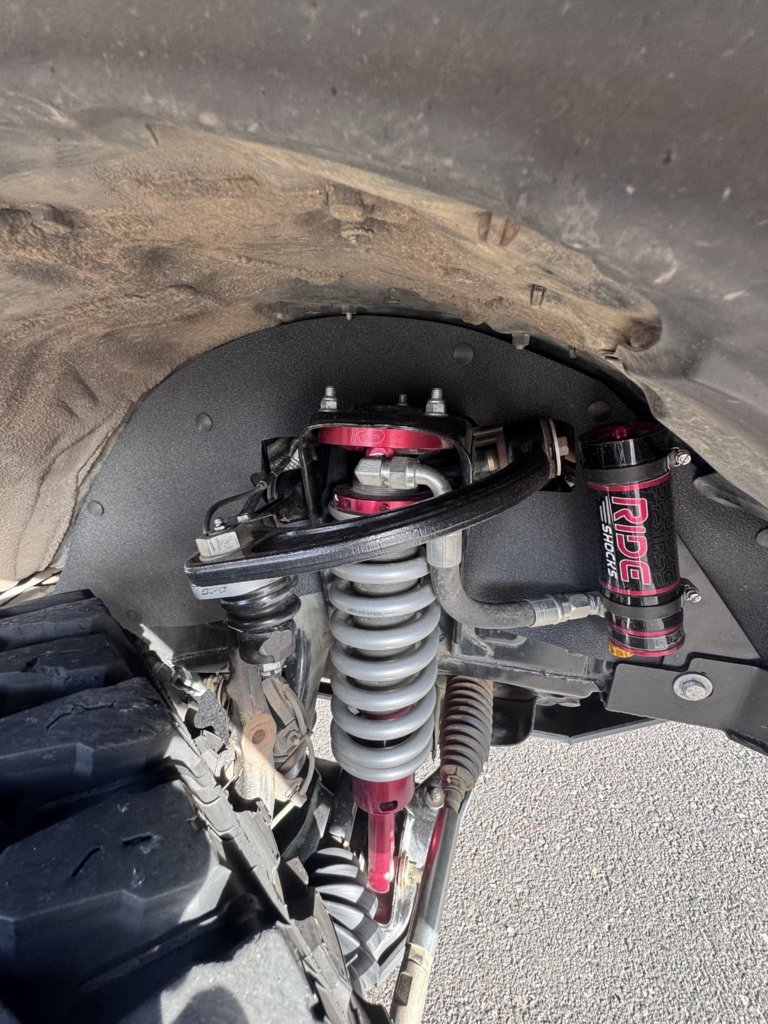

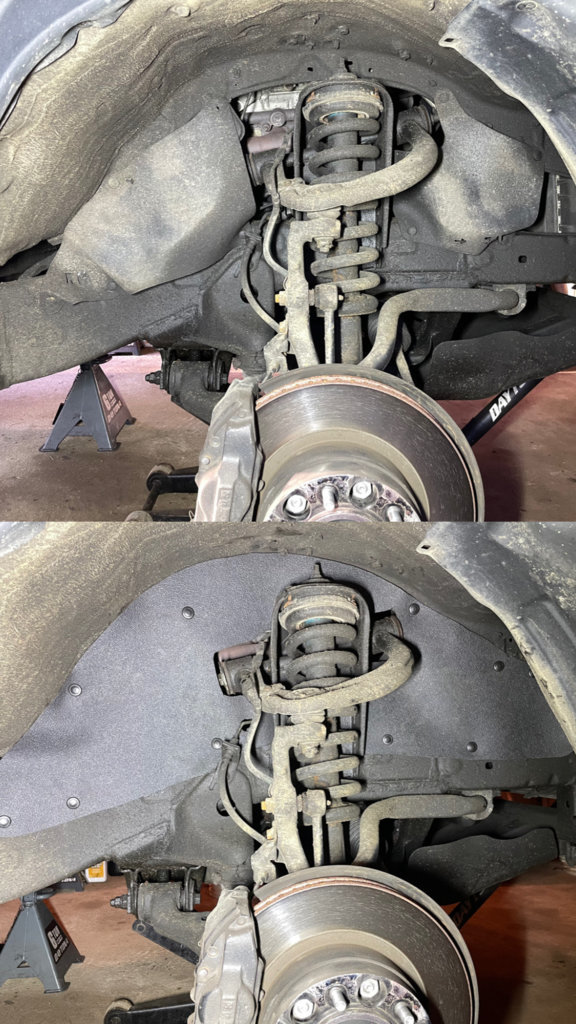

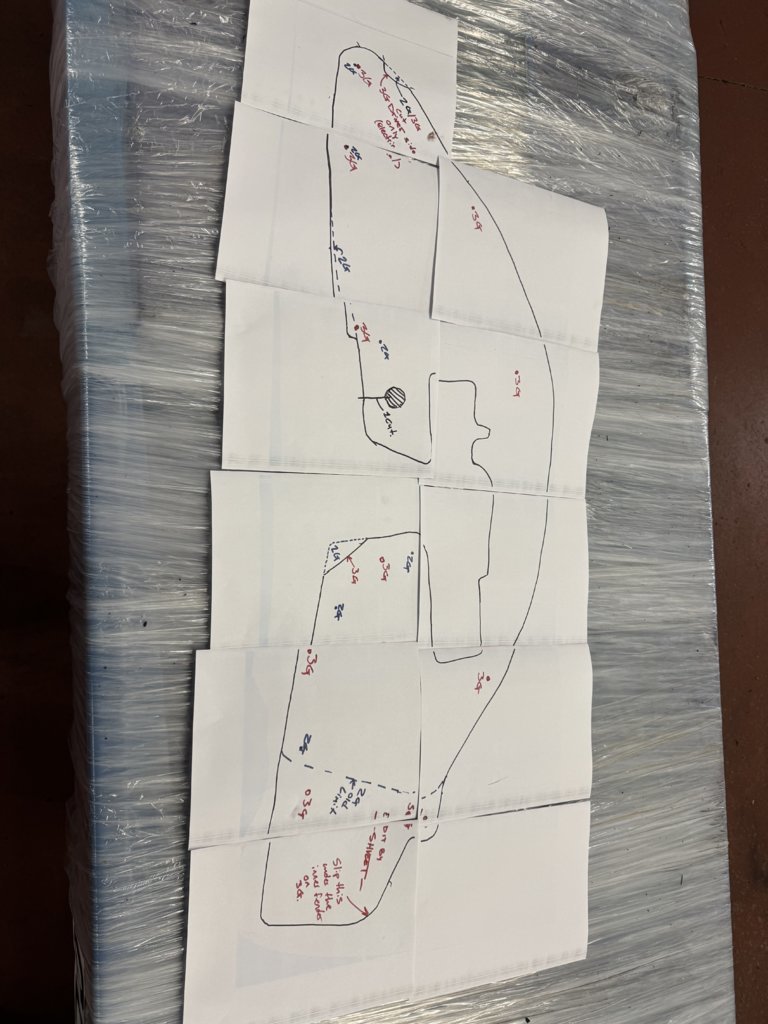

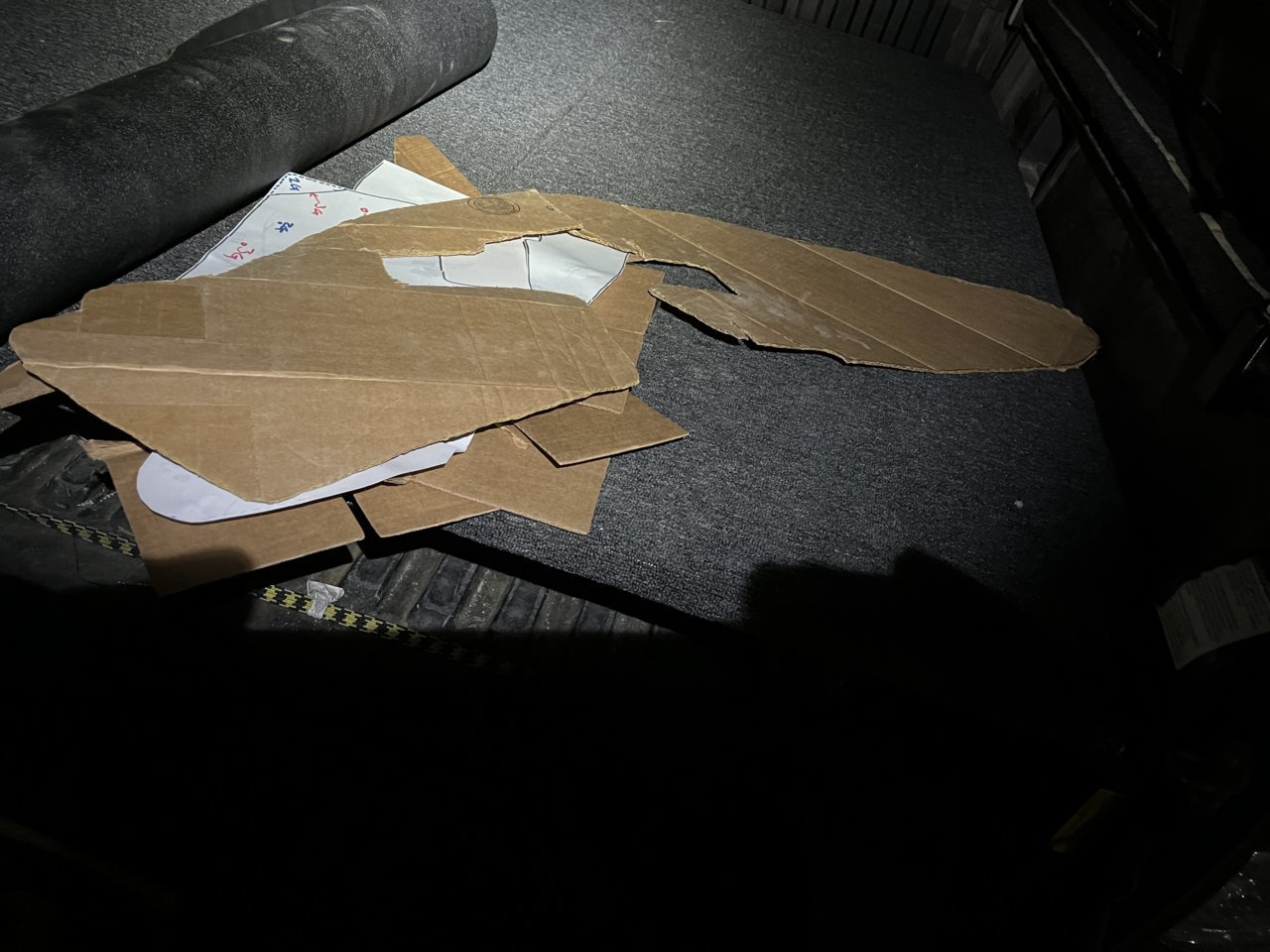

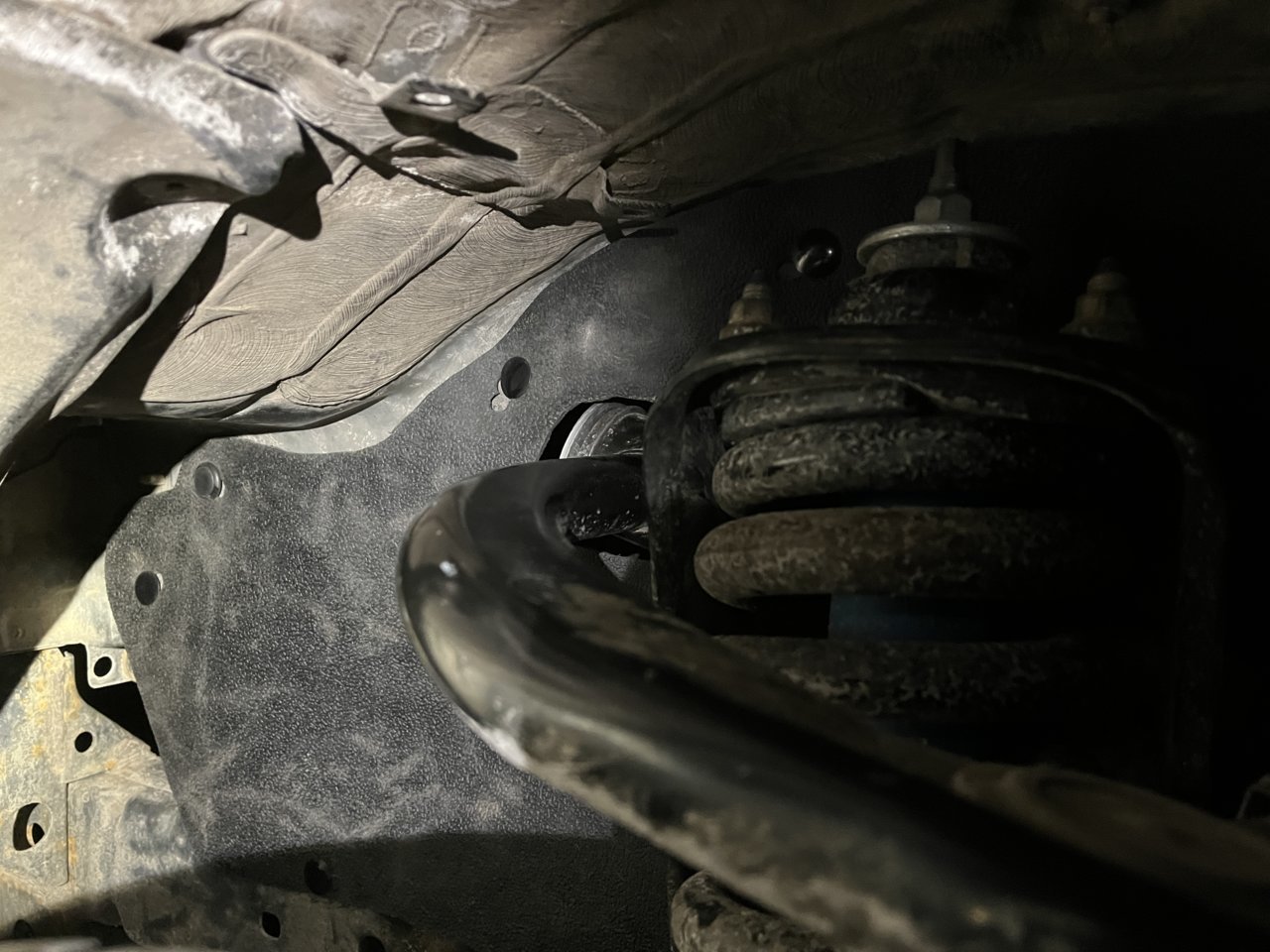

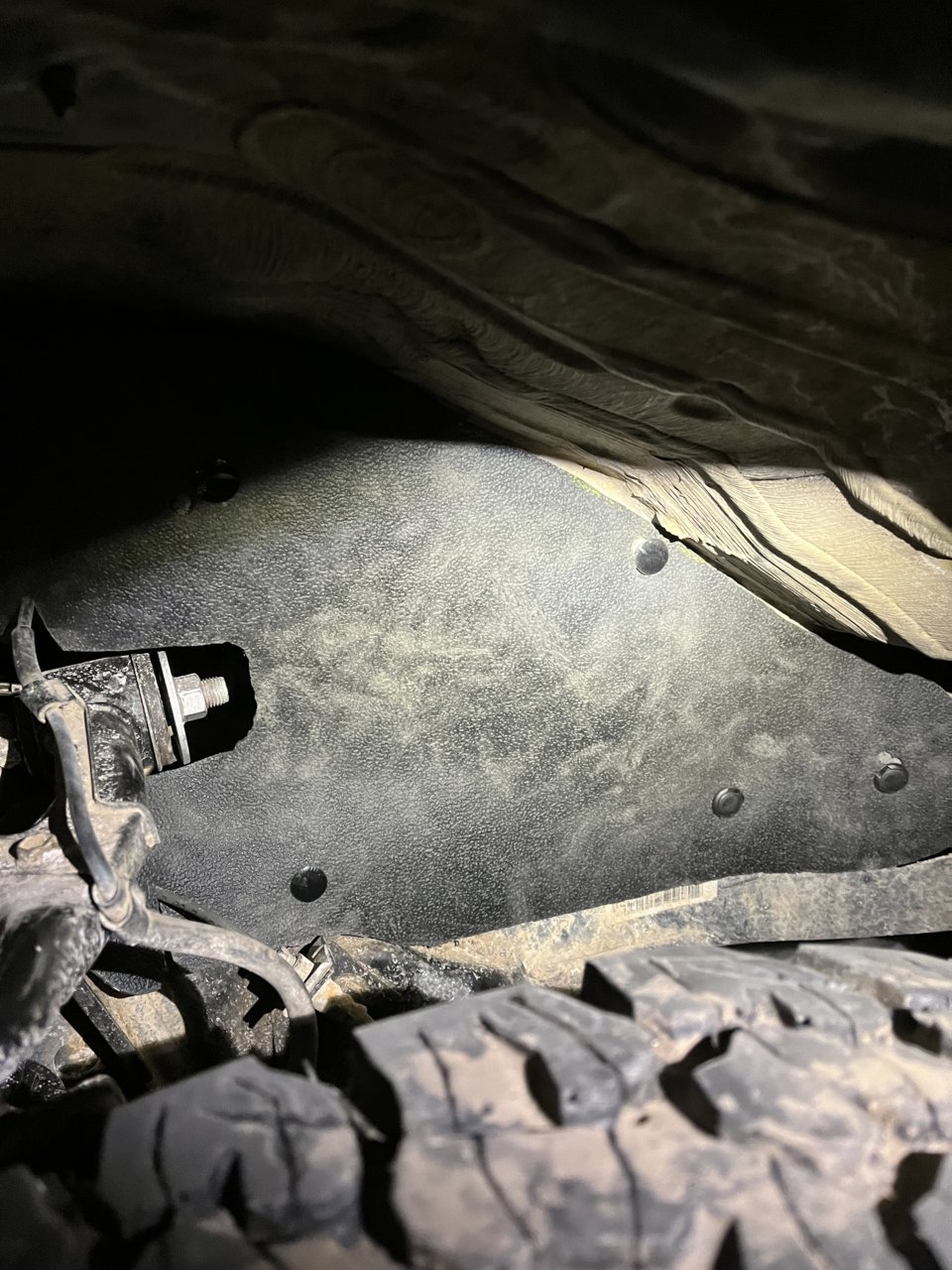

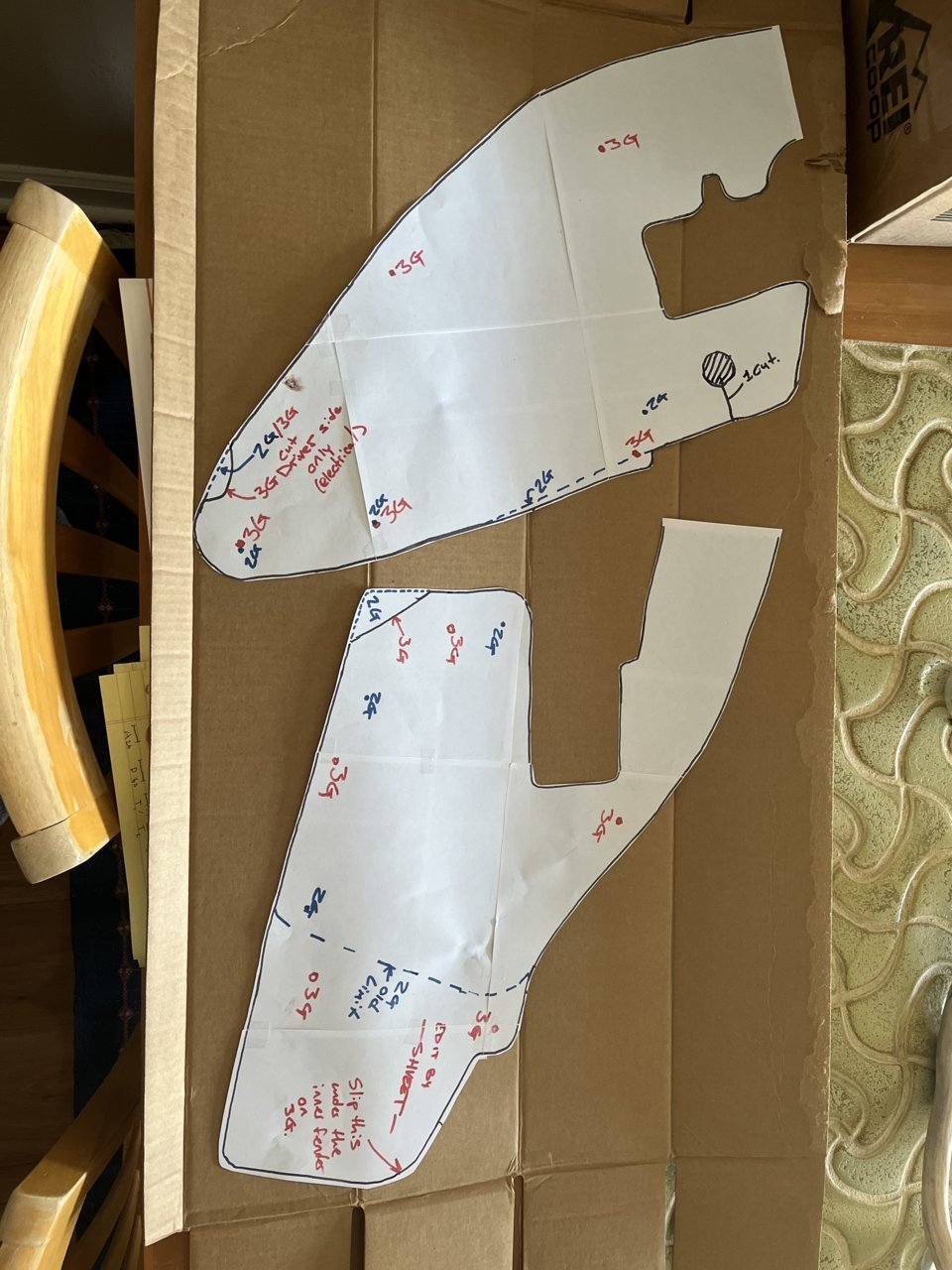

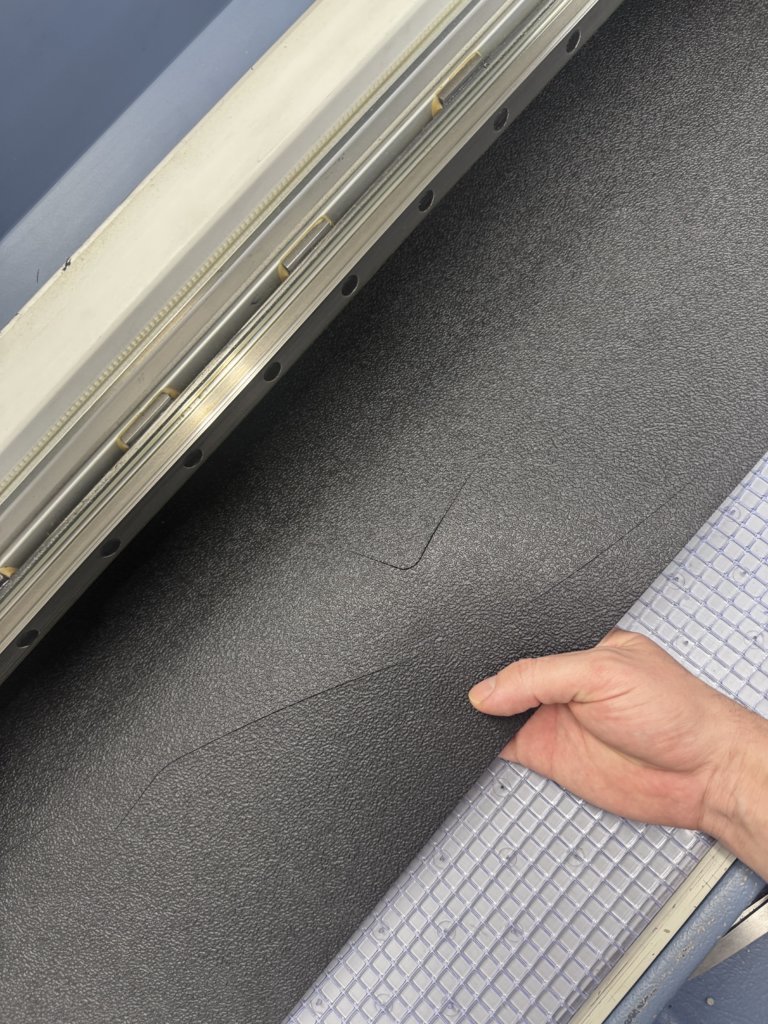

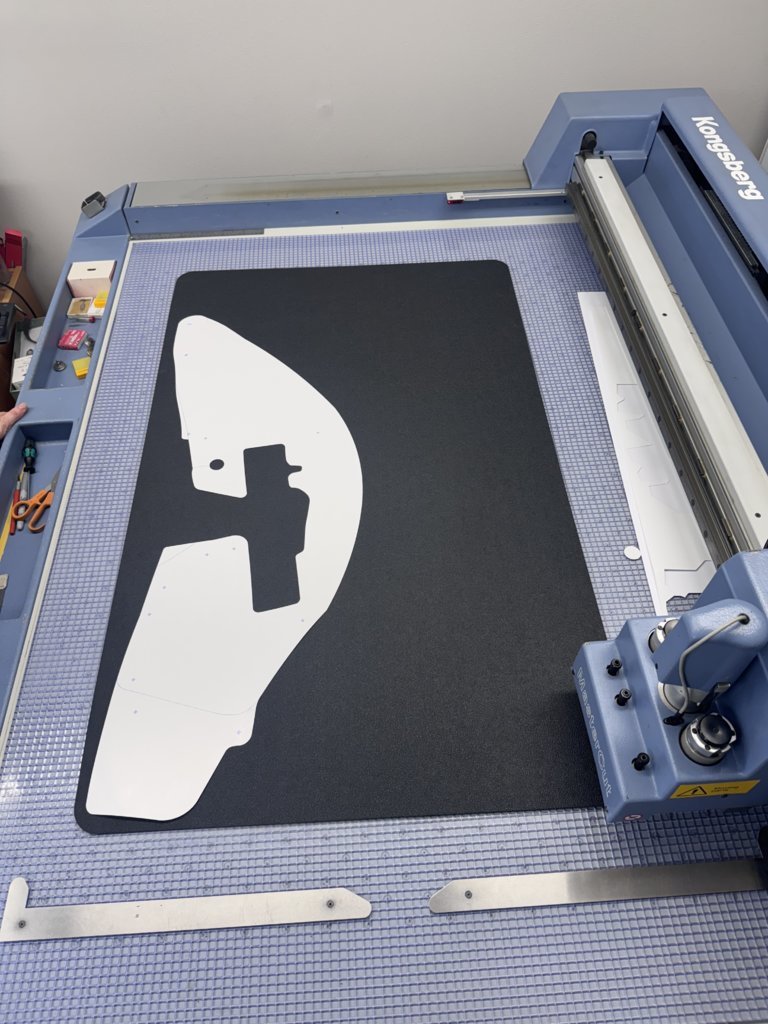

    Did these last friday. Definitely had to make some adjustments for my second gen from the template but overall it was a big help. Printed poster mode, taped and cut the pieces together and then cut cardboard halves. Definitely took some guesswork, evidenced by multiple holes for some of the clips. Used the versatex mat, industrial 40x60. For clips I got a set from Amazon of multiple sizes, ended up using ones smaller than 9mm. 7.1 and 6.8 I believe. Not sure how that works.


    gabbo2112, srspicer, dpele and 2 others like this.
  2. Jun 18, 2023 at 8:52 AM
    #102
    Shveet

    Shveet [OP] joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,318
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox
    took off the splash guards working on the truck, few days later figure to go out with a few buddies on some trails.
    never place them back in as i ran out of clips since the old ones of 3 (actually 4 years, wtf i've had these for this long?) years all broke

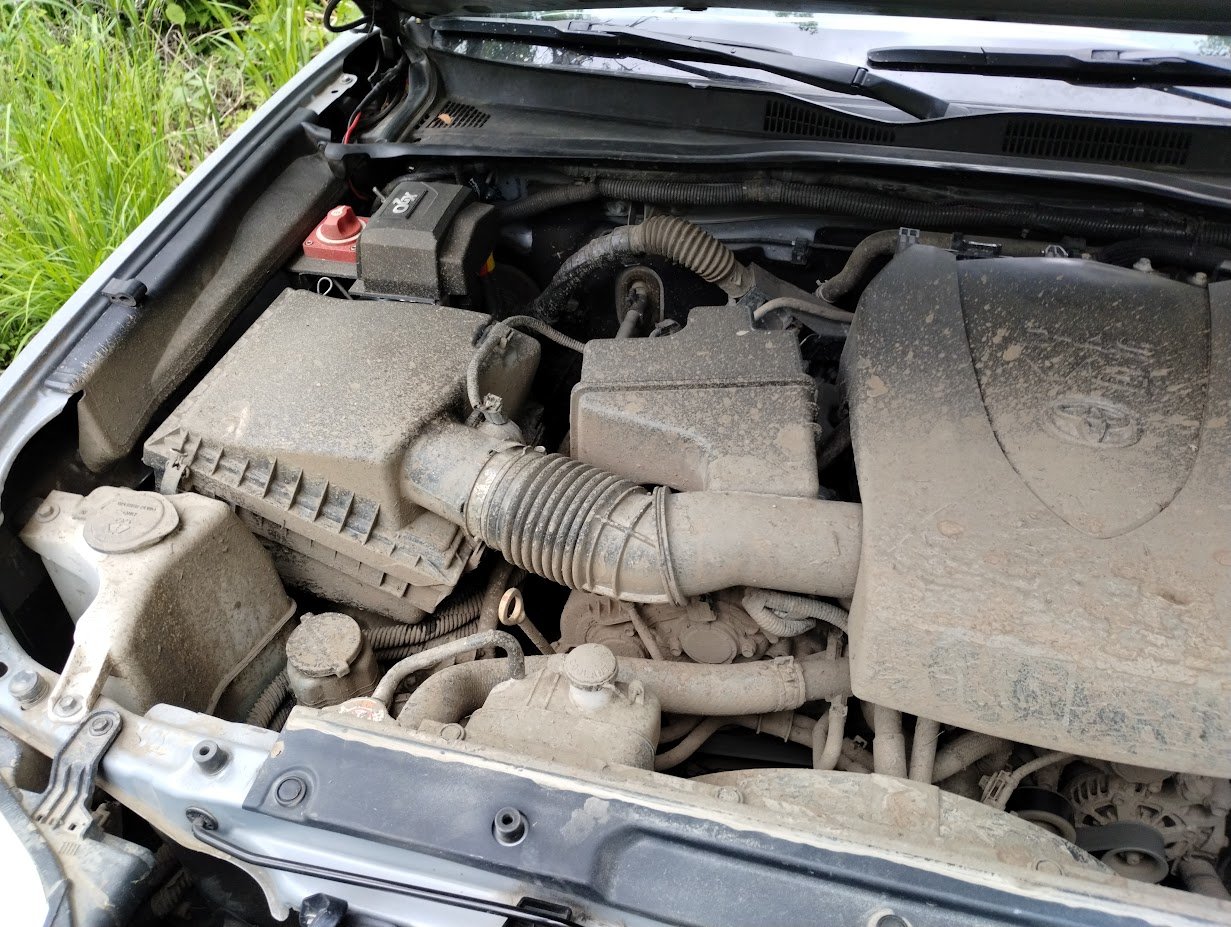

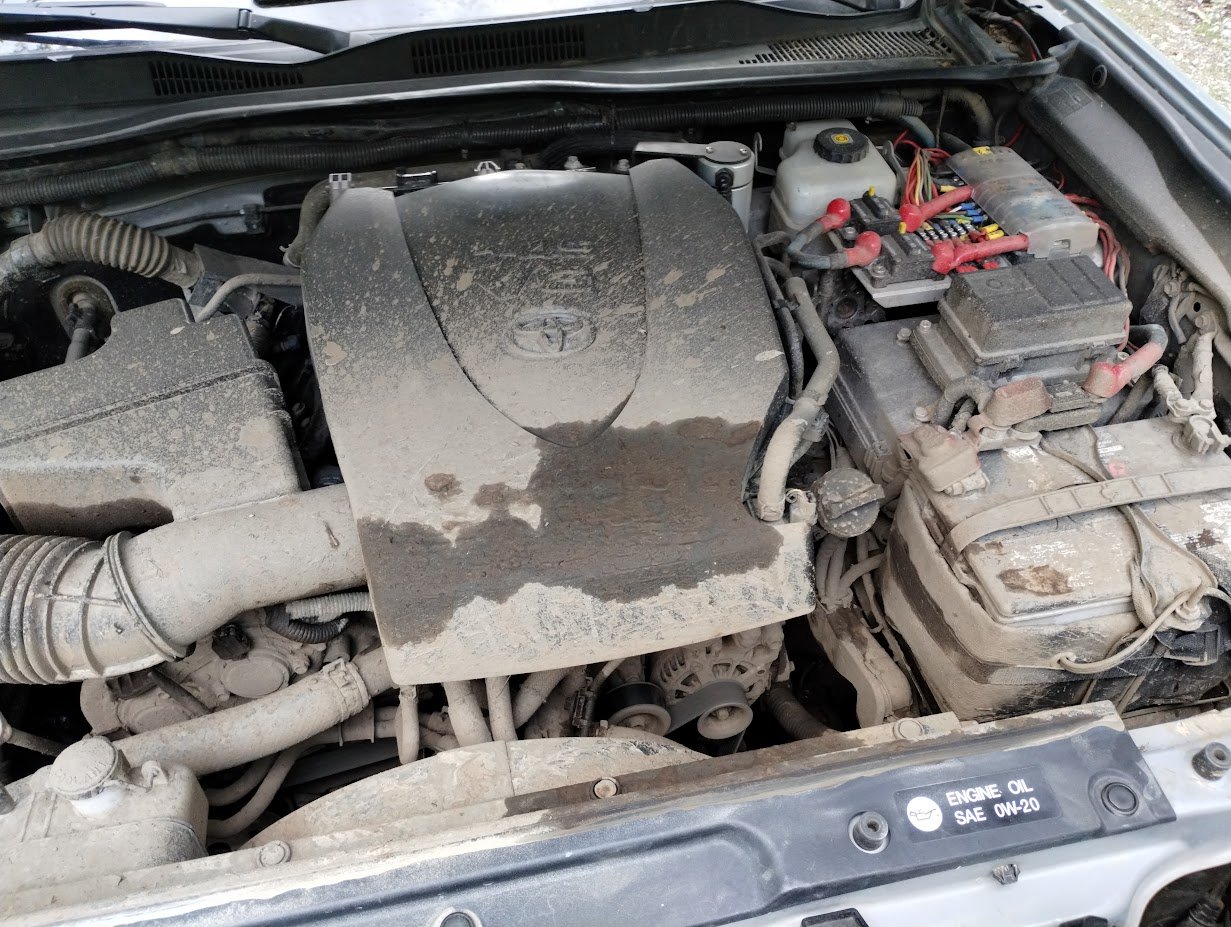

    this was my engine bay after a few hours on the trail and through some muddy water crossings
    :annoyed:


    need new clips now

    gabbo2112 and dpele like this.
  3. Dec 12, 2023 at 10:15 AM
    #103
    NCCarlsbad

    NCCarlsbad Member

    Joined:
    Jul 15, 2022
    Member:
    #401435
    Messages:
    19
    Gender:
    Male
    Vehicle:
    2008 Regular Cab 4x2

    Thanks so much for this!!!! It worked out perfectly. Will post some pics in the next few weeks!

  4. Dec 17, 2023 at 3:11 PM
    #104
    NCCarlsbad

    NCCarlsbad Member

    Joined:
    Jul 15, 2022
    Member:
    #401435
    Messages:
    19
    Gender:
    Male
    Vehicle:
    2008 Regular Cab 4x2

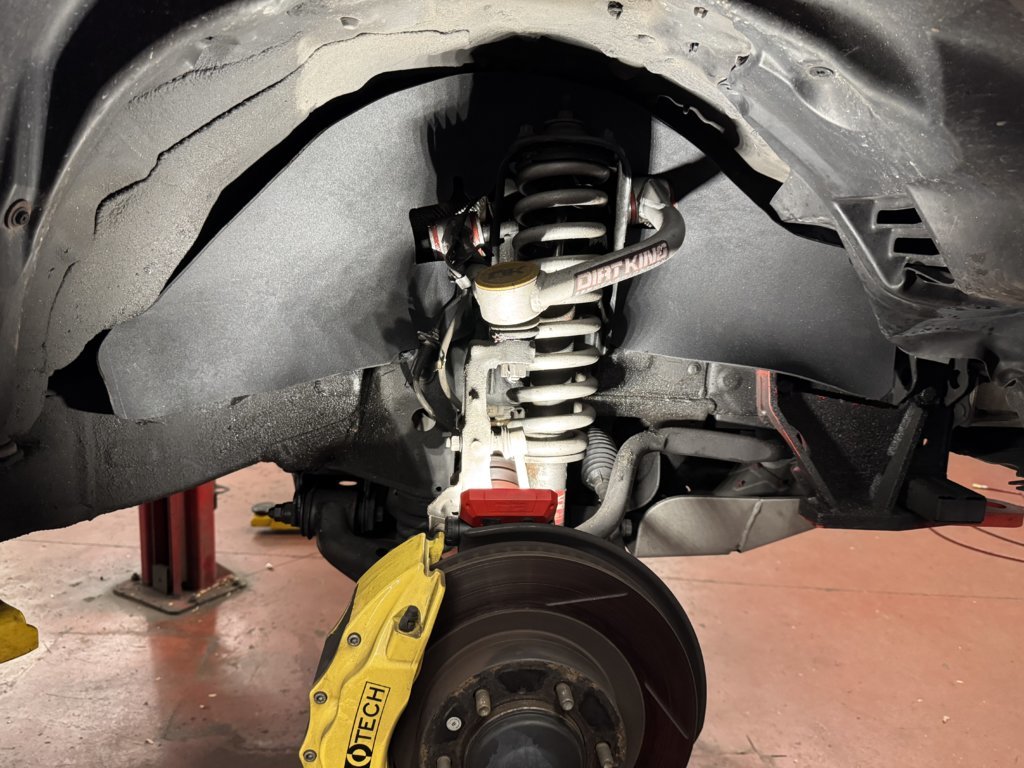

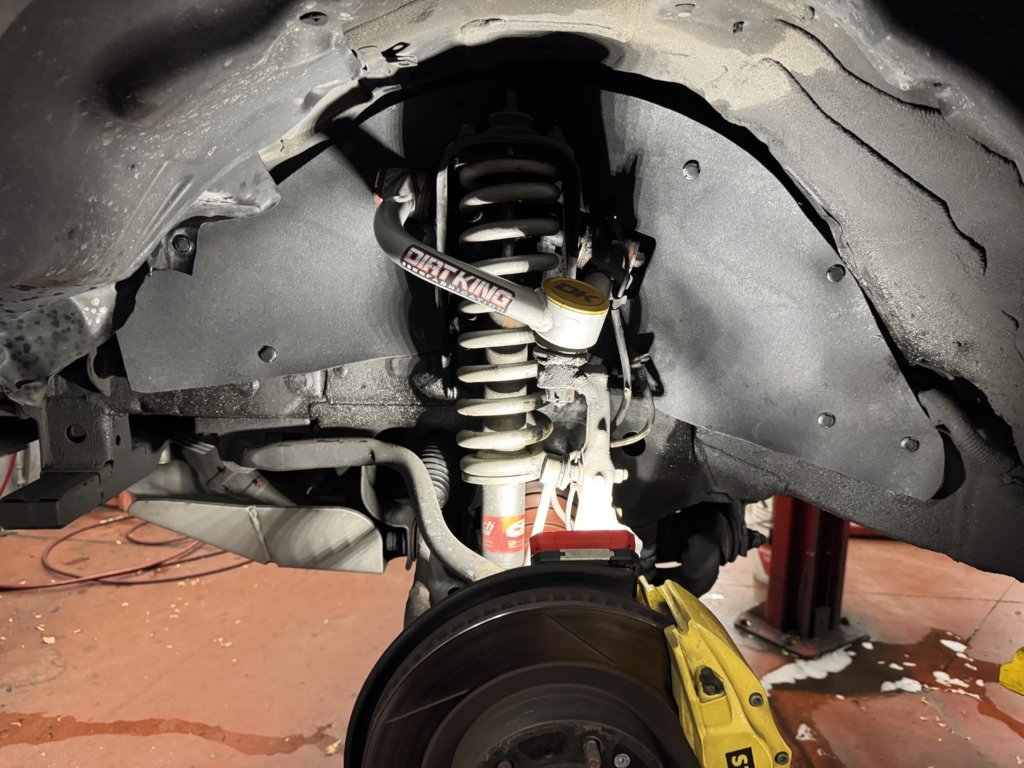

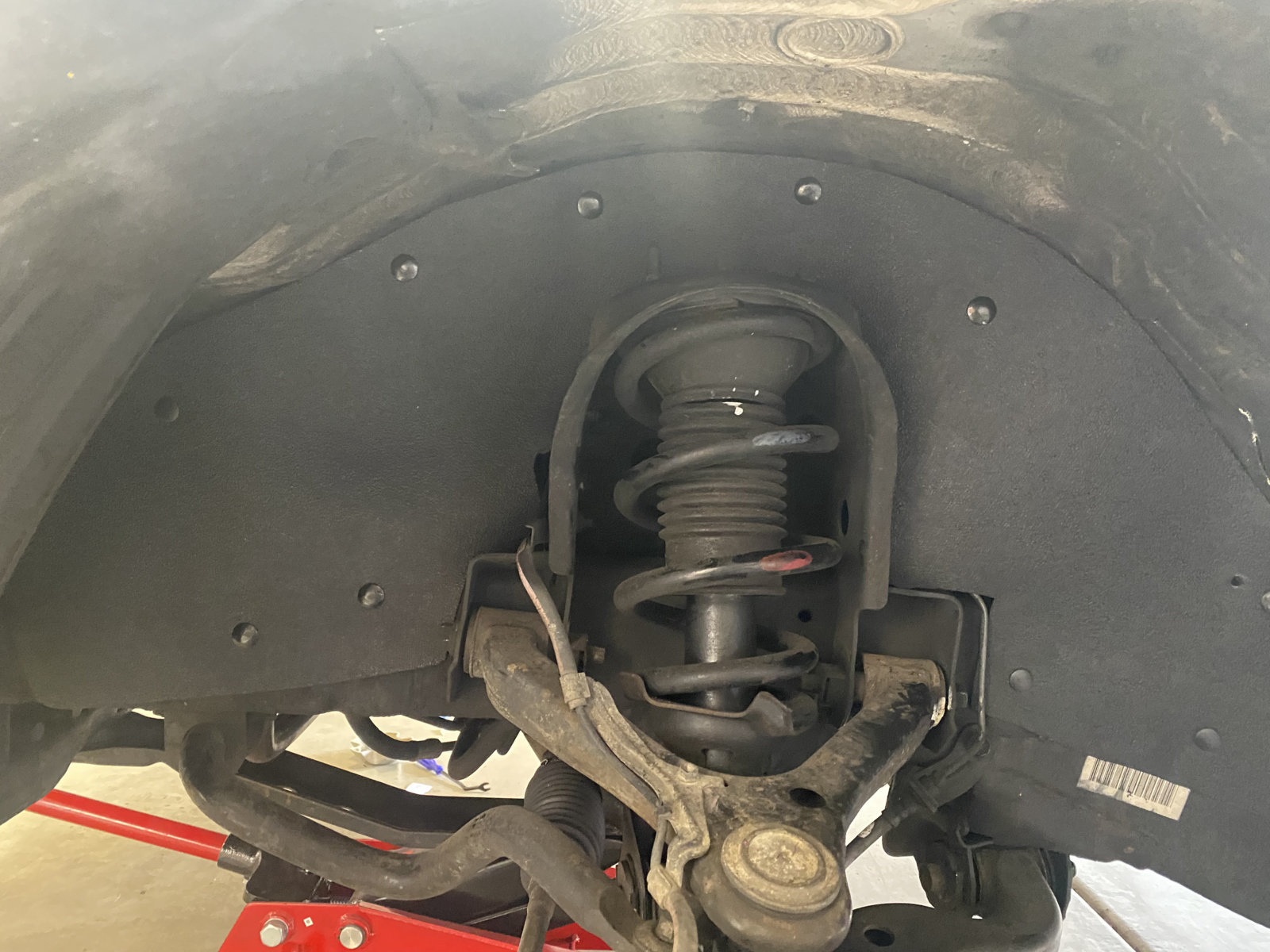

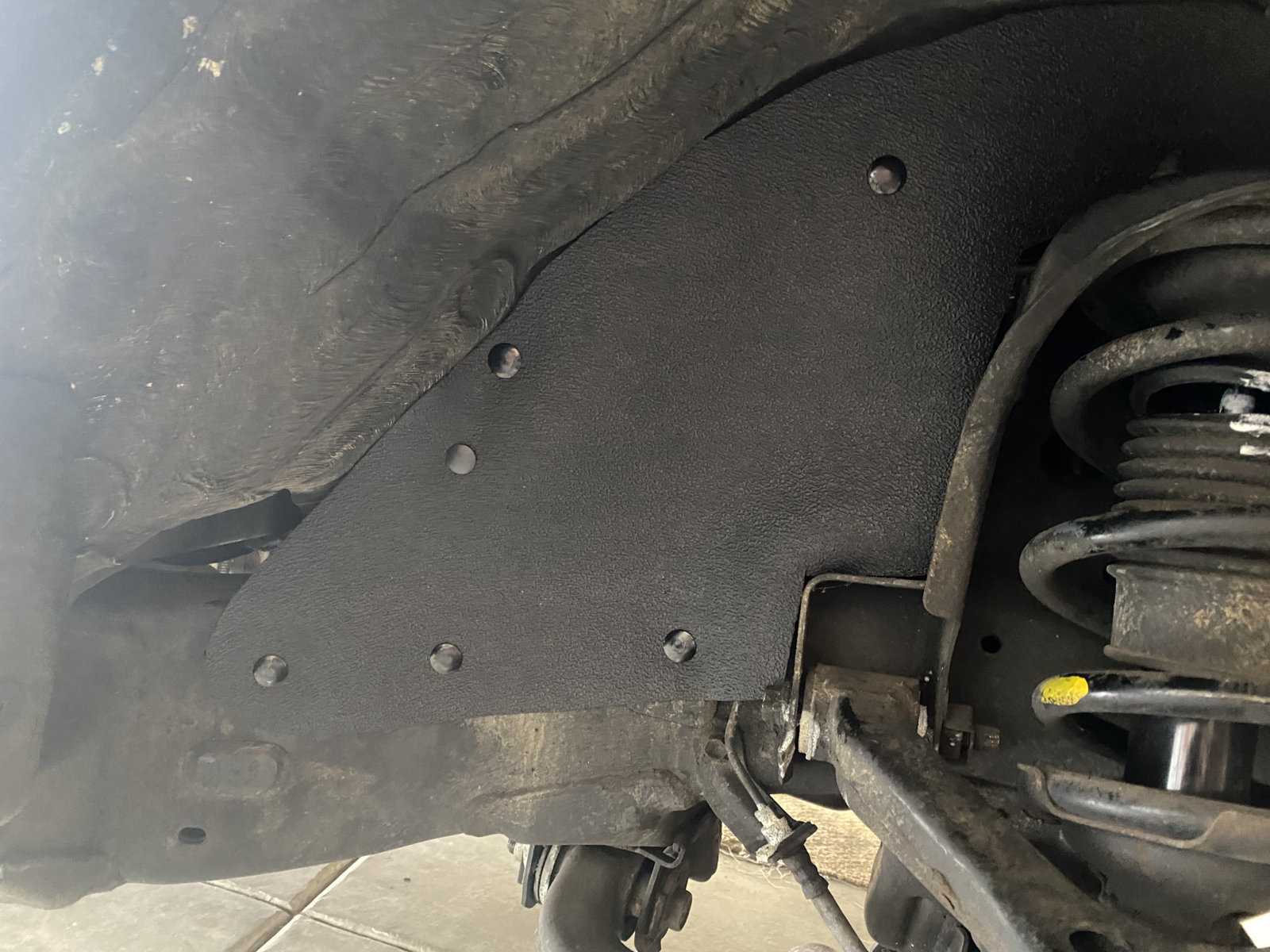

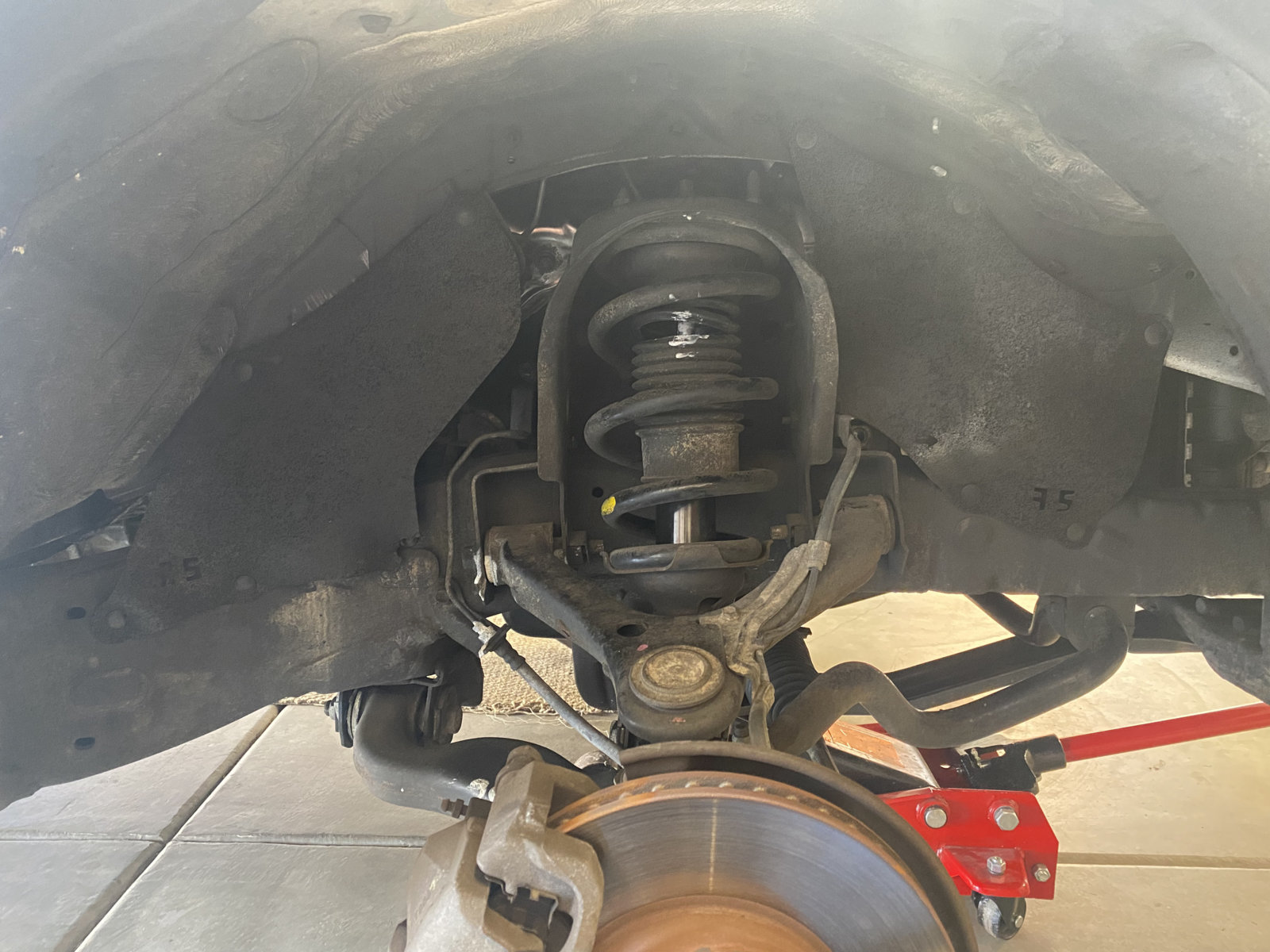

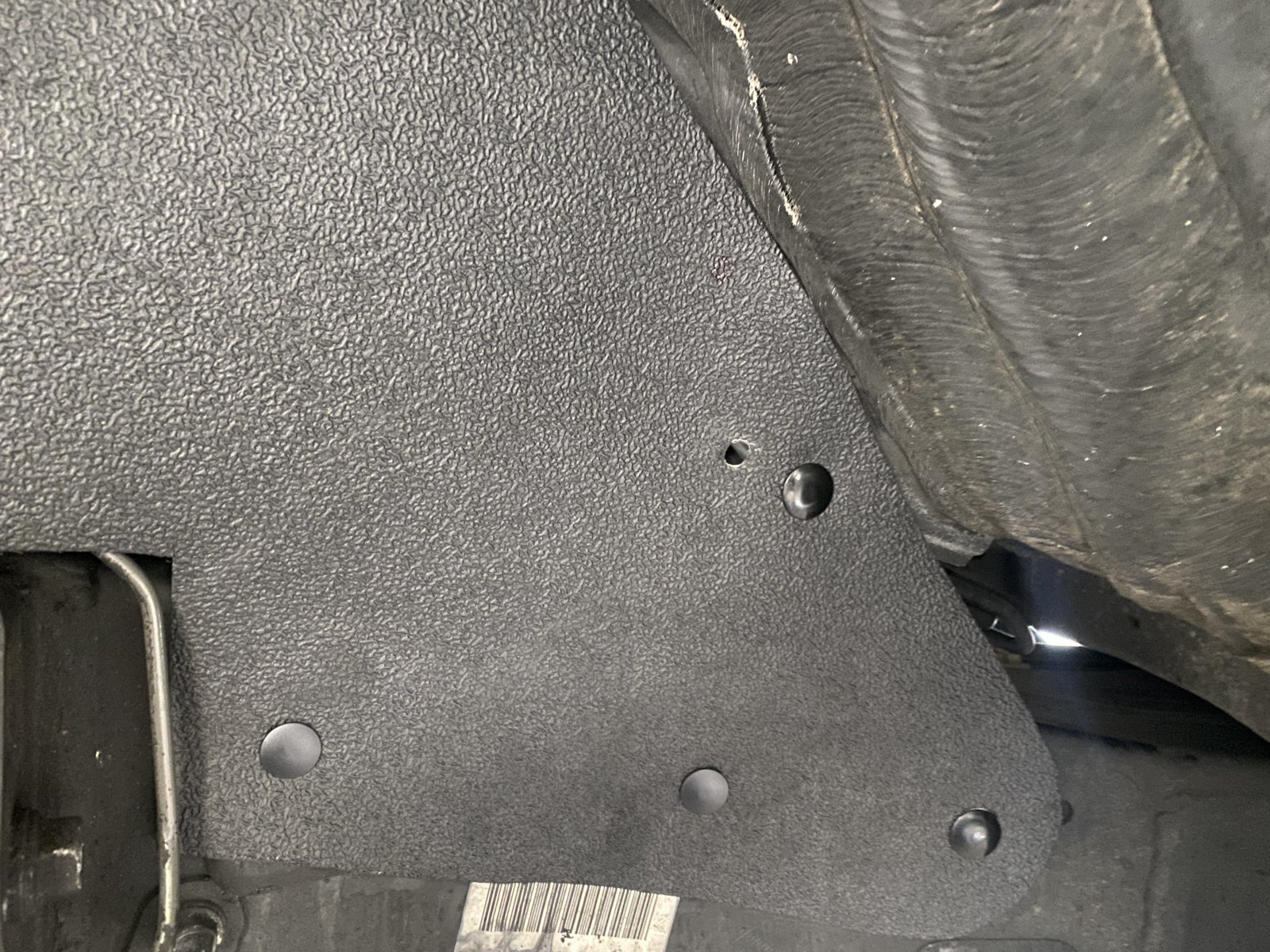

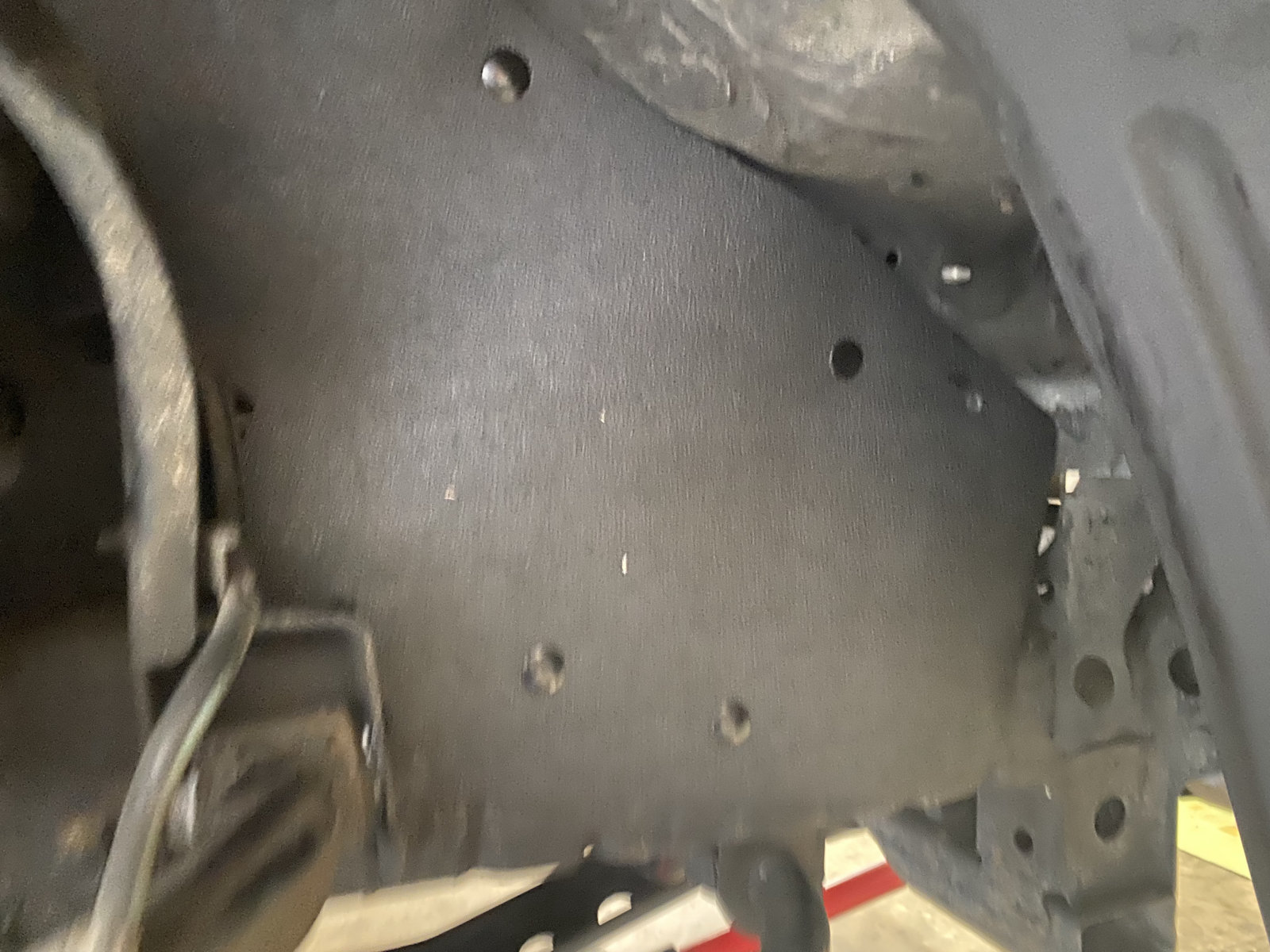

    Finished up the splash guards today. Thanks again for the templates!! All worked out well. I had to make some minor adjustments as it seems the templates were for 4wd trucks, and my son's truck is just a 2008 2wd base model standard cab. Here are a few tips I learned:

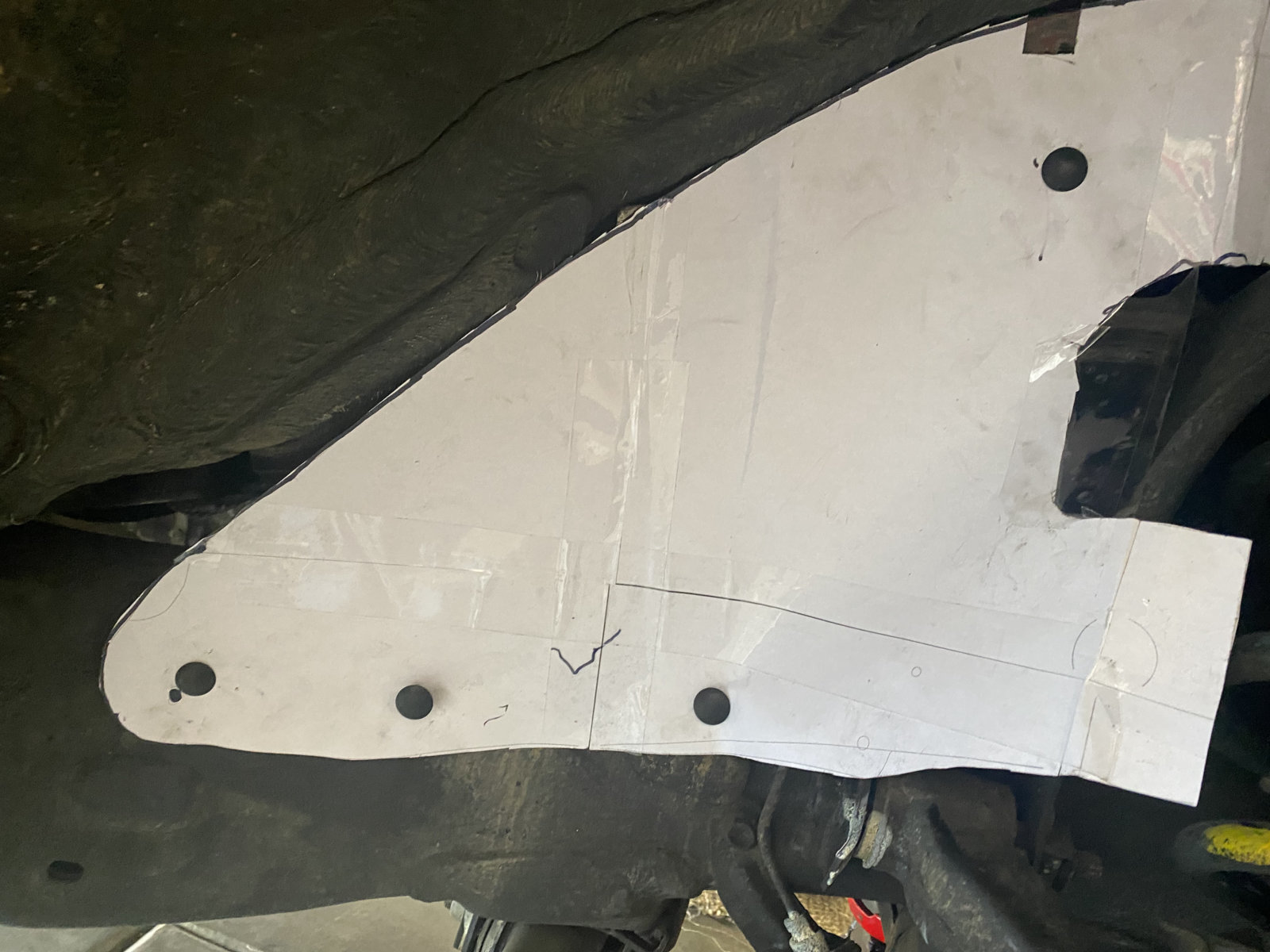

    1. Put the template on the the truck and use all the old broken fasteners to hold up the template. They are most likely broken anyway, but they hold up the paper and allow you to place the holes properly.

    2. I did the passenger side first and used the cut out to make the driver's side. However two holes didn't match the passenger side and I ended up with an extra hole. No big deal.

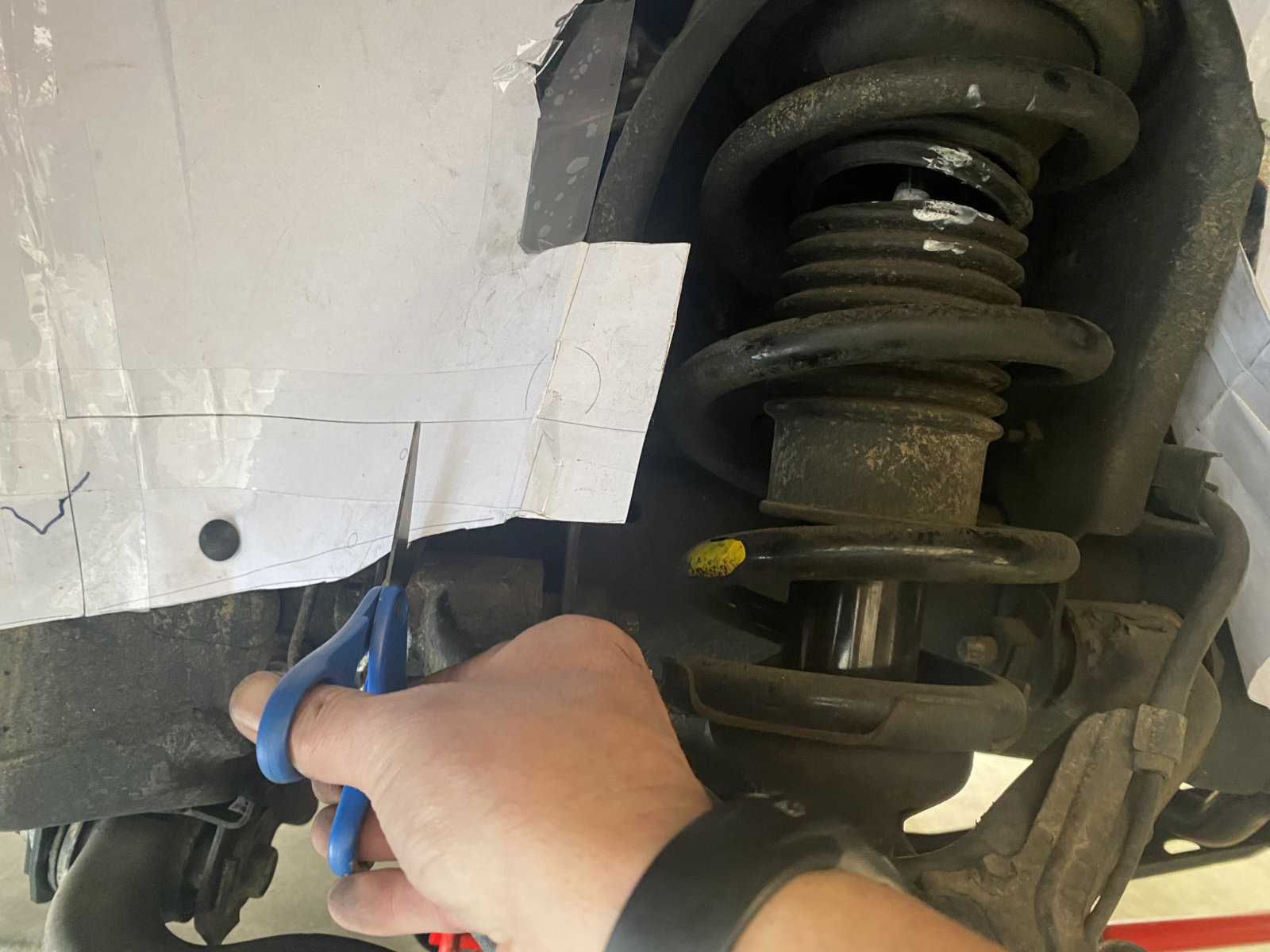

    3. When I put the paper template up, I then added tape to areas that need more coverage and cut areas that needed to be adjusted.

    4. After I cut the rubber mat, I put it on the truck and used the old fasteners. This allowed me to make final adjustment such as making room for brake lines.

    All in all, it was a fun project that saved me a bunch of money and was satisfying to do it myself- of course with the great assistance of the template makers!!IMG_7076.HEIC.jpgIMG_7078.HEIC.jpgIMG_7079.HEIC.jpgIMG_7080.HEIC.jpgIMG_7082.HEIC.jpgIMG_7083.HEIC.jpgIMG_7085.HEIC.jpgIMG_7086.HEIC.jpgIMG_7076.HEIC.jpg IMG_7078.HEIC.jpg IMG_7079.HEIC.jpg IMG_7079.HEIC.jpg IMG_7080.HEIC.jpg

    Last edited: Dec 18, 2023
    gabbo2112 and SR-71A like this.
  5. Dec 22, 2023 at 1:00 PM
    #105
    EGBTER

    EGBTER Well-Known Member

    Joined:
    Mar 23, 2017
    Member:
    #214179
    Messages:
    274
    Gender:
    Male
    First Name:
    Wayne
    Denver CO
    Vehicle:
    2016 TRD SPORT
    Thanks for the info. Used the template to make some and uploaded a video showing the process!


    Canadian Joe, dpele and NCCarlsbad like this.
  6. Jan 1, 2024 at 4:15 PM
    #106
    dpele

    dpele Pele Prints Vendor

    Joined:
    Apr 13, 2016
    Member:
    #184159
    Messages:
    968
    Gender:
    Male
    First Name:
    Dan
    Edmonton, Alberta
    Vehicle:
    2010 Tacoma DCSB
    Elka 2.0 w/ OME Dakars, 285/70/R17 Duratracs, & more!
    Nice work!

  7. Mar 22, 2024 at 11:12 AM
    #107
    BizzyBone

    BizzyBone Well-Known Member

    Joined:
    Jul 25, 2016
    Member:
    #192881
    Messages:
    59
    Gender:
    Male
    gabbo2112[QUOTED] likes this.
  8. Mar 22, 2024 at 12:08 PM
    #108
    BizzyBone

    BizzyBone Well-Known Member

    Joined:
    Jul 25, 2016
    Member:
    #192881
    Messages:
    59
    Gender:
    Male
    Thanks for the PDF's. Do I need to trim the edges of the paper (so the line from the drawing on each page touches each other when taped together) or just print and align the paper end to end and tape together?

  9. Mar 23, 2024 at 5:11 PM
    #109
    gabbo2112

    gabbo2112 Well-Known Member

    Joined:
    Jan 24, 2015
    Member:
    #147112
    Messages:
    751
    Gender:
    Male
    New York
    Vehicle:
    2020 TRD Off Road
    It’s still holding up pretty well, I’ll probably make a new set at some point just to get a slighter better fit. I’m not sure stuff rips easily but if you have a roll it wouldn’t cost you anything to try it out.

  10. Jul 21, 2024 at 1:23 PM
    #110
    Livefree1

    Livefree1 Member

    Joined:
    Jun 18, 2023
    Member:
    #427092
    Messages:
    12
    Gender:
    Male
    First Name:
    Greg
    Vehicle:
    2012 Tacoma

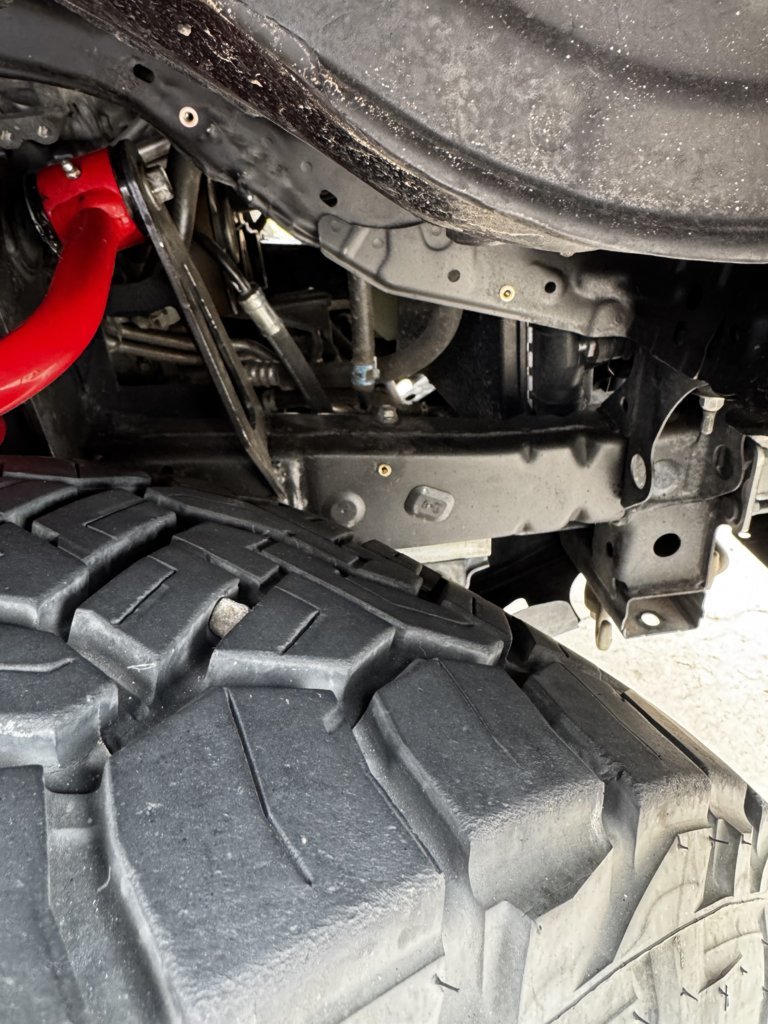

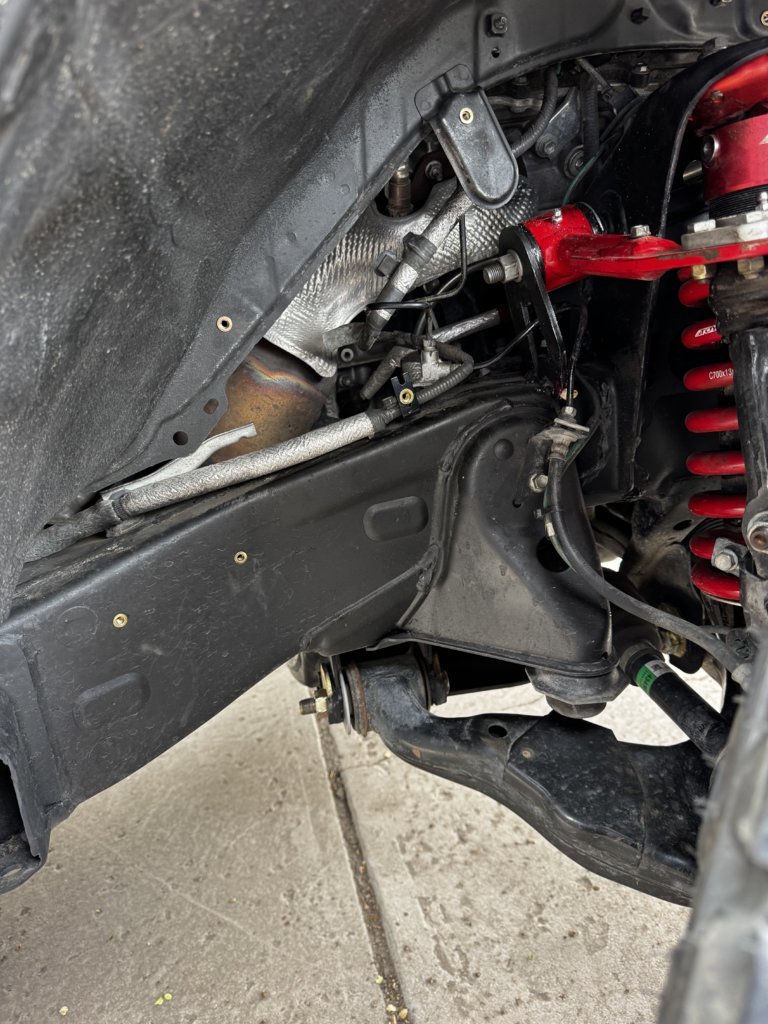

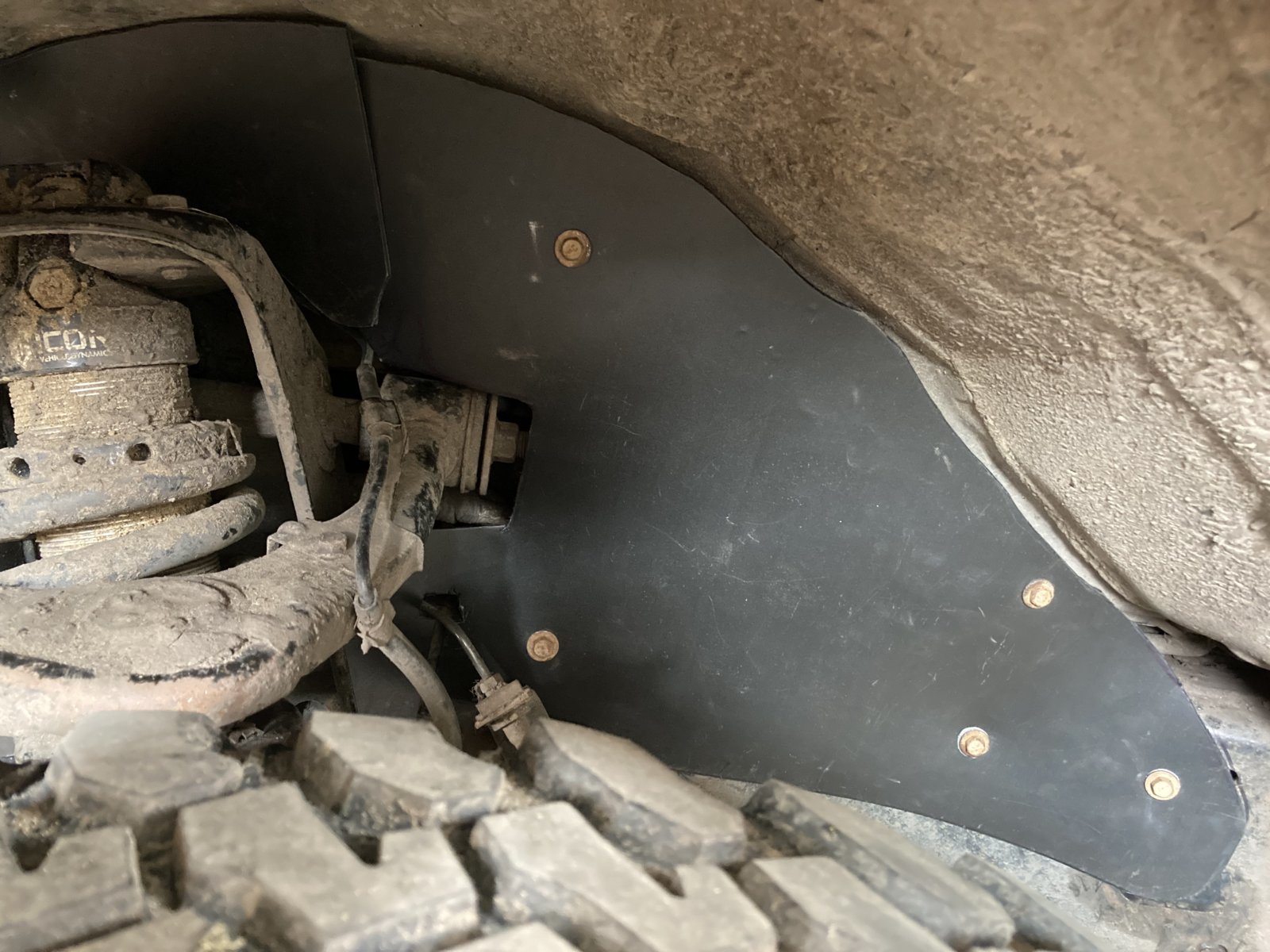

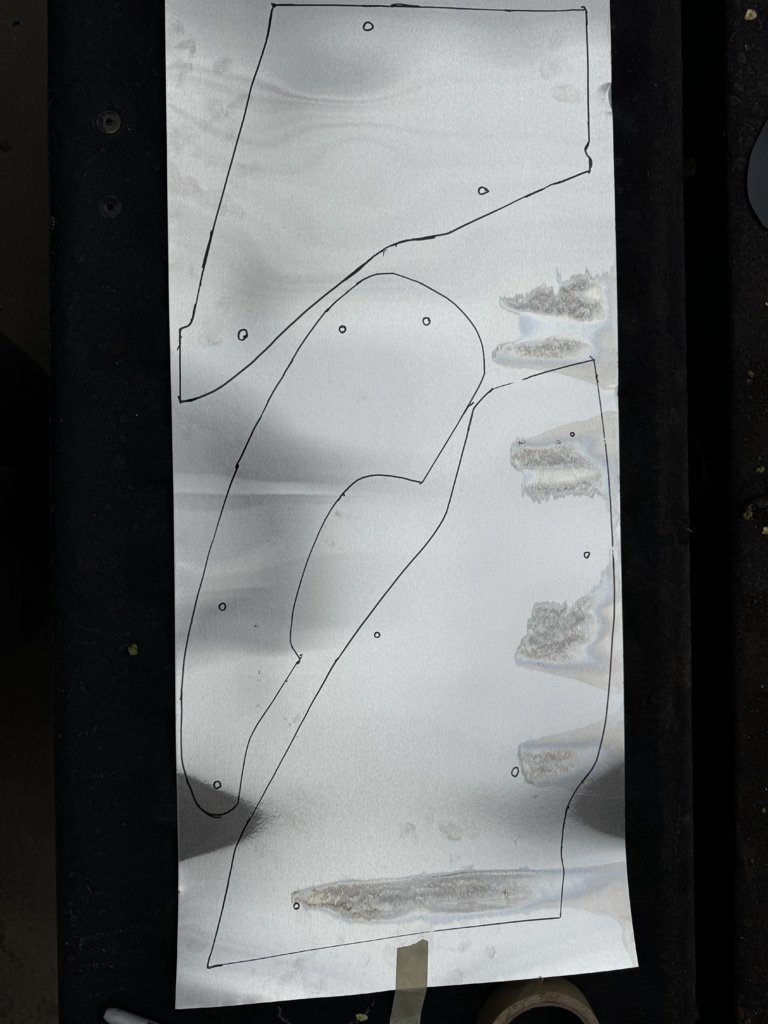

    Thanks for the template guys! It was a huge help. I modified it a bit but it saved me a ton of time by giving me a starting point.

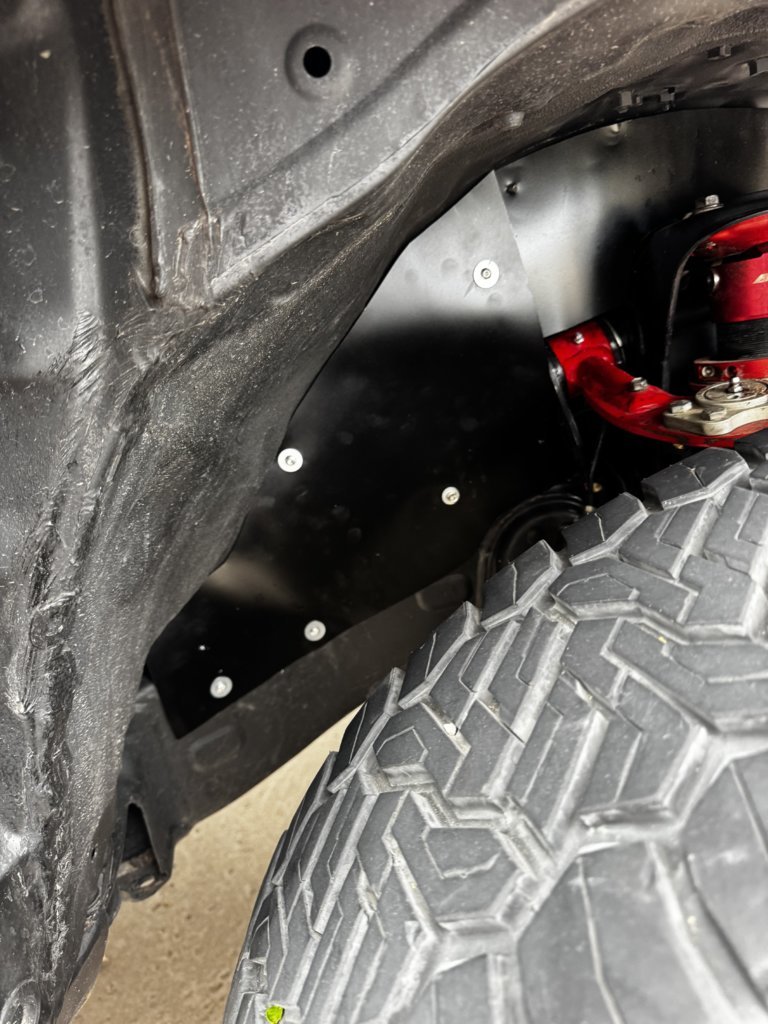

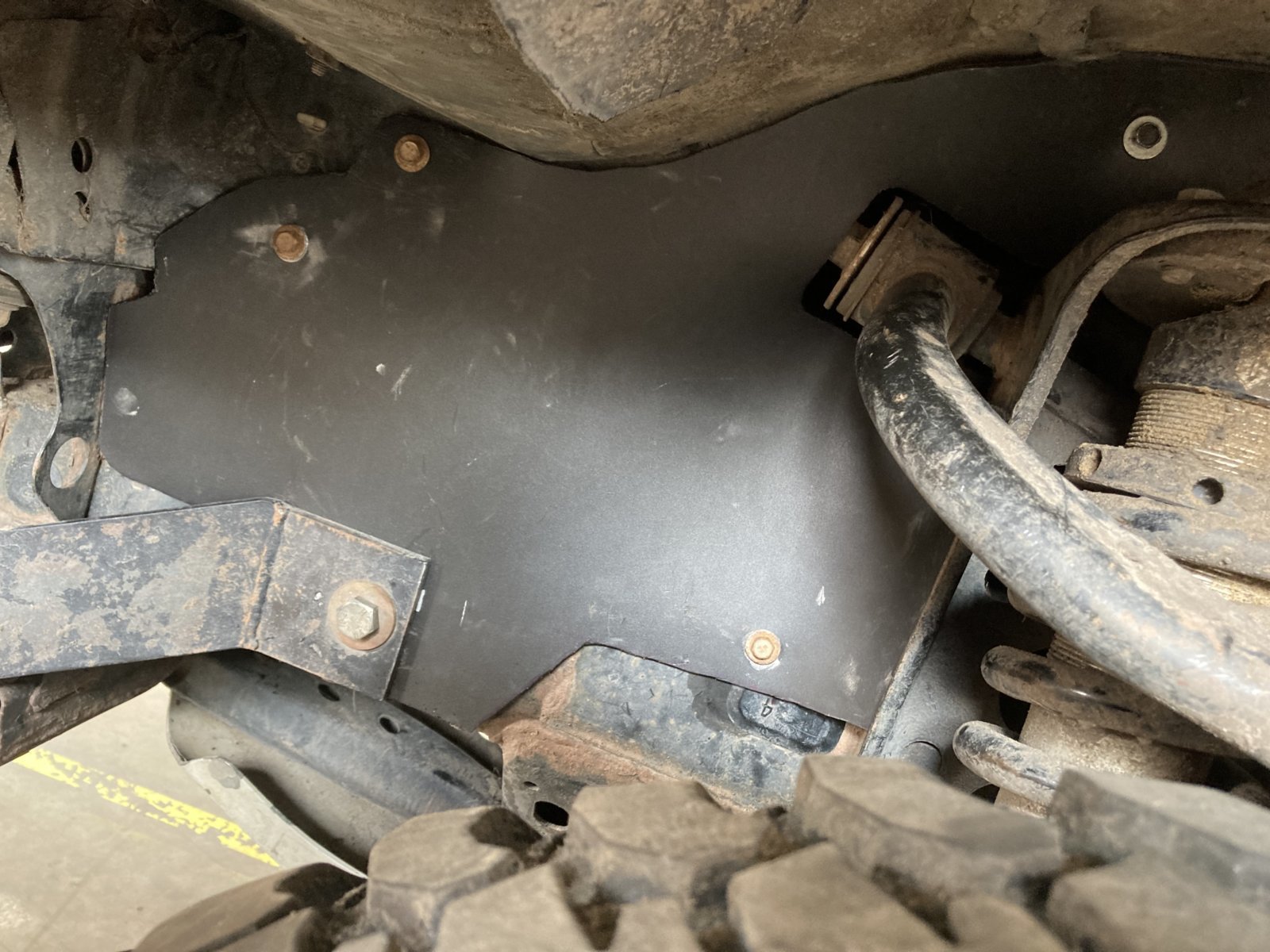

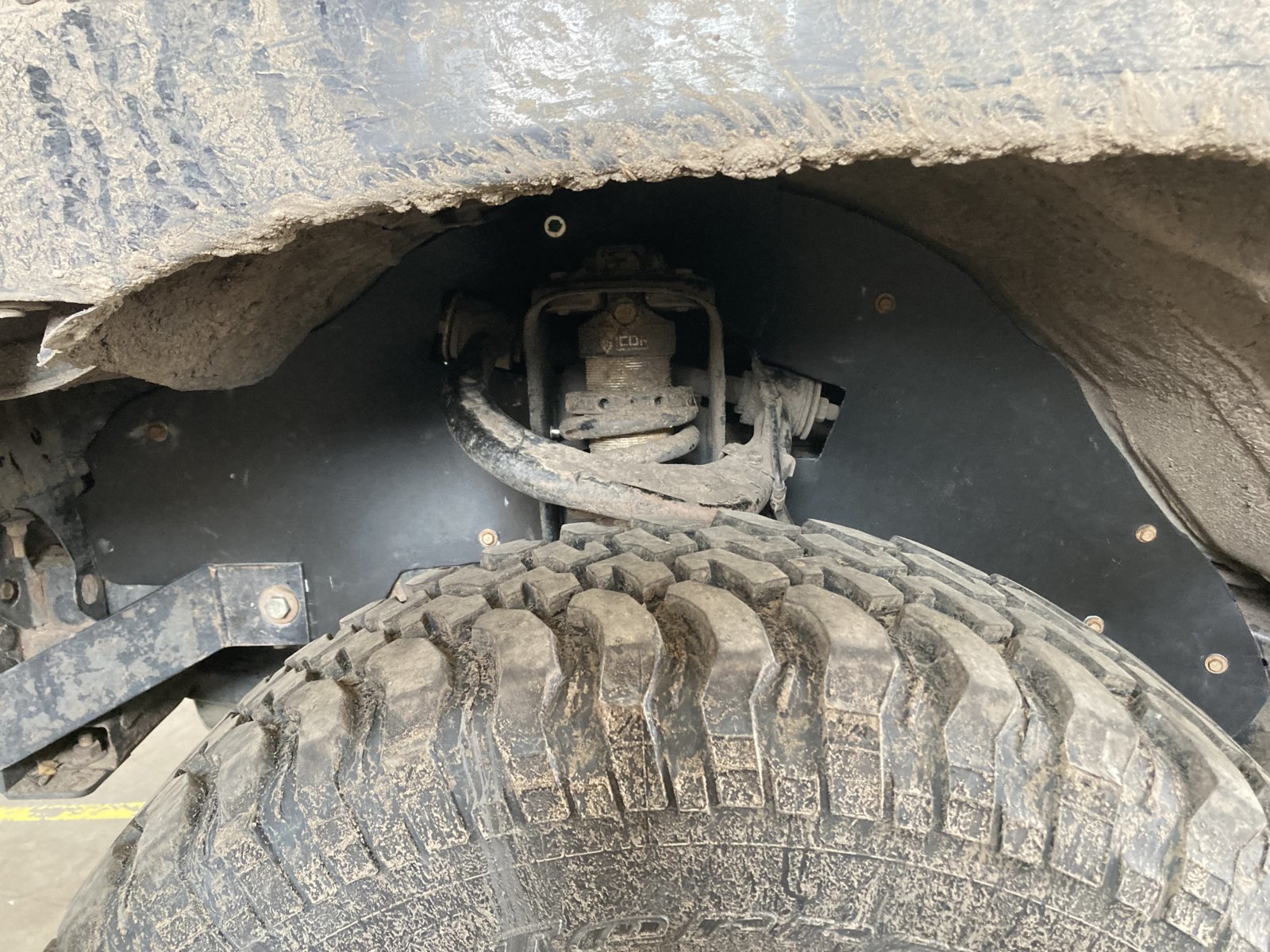

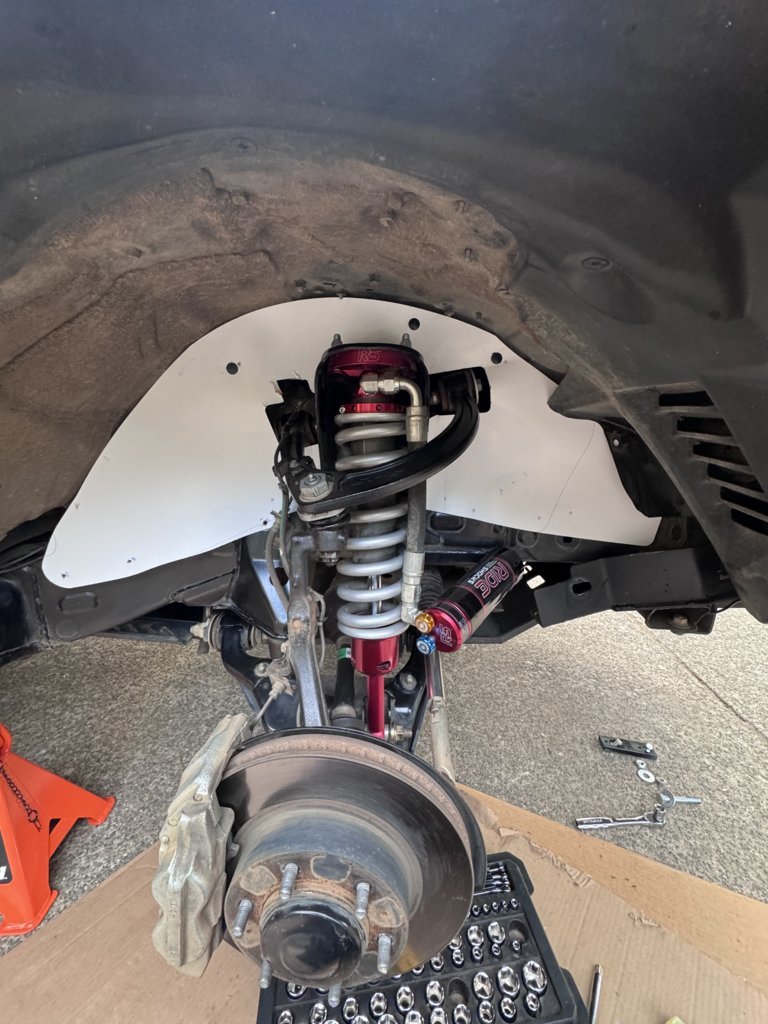

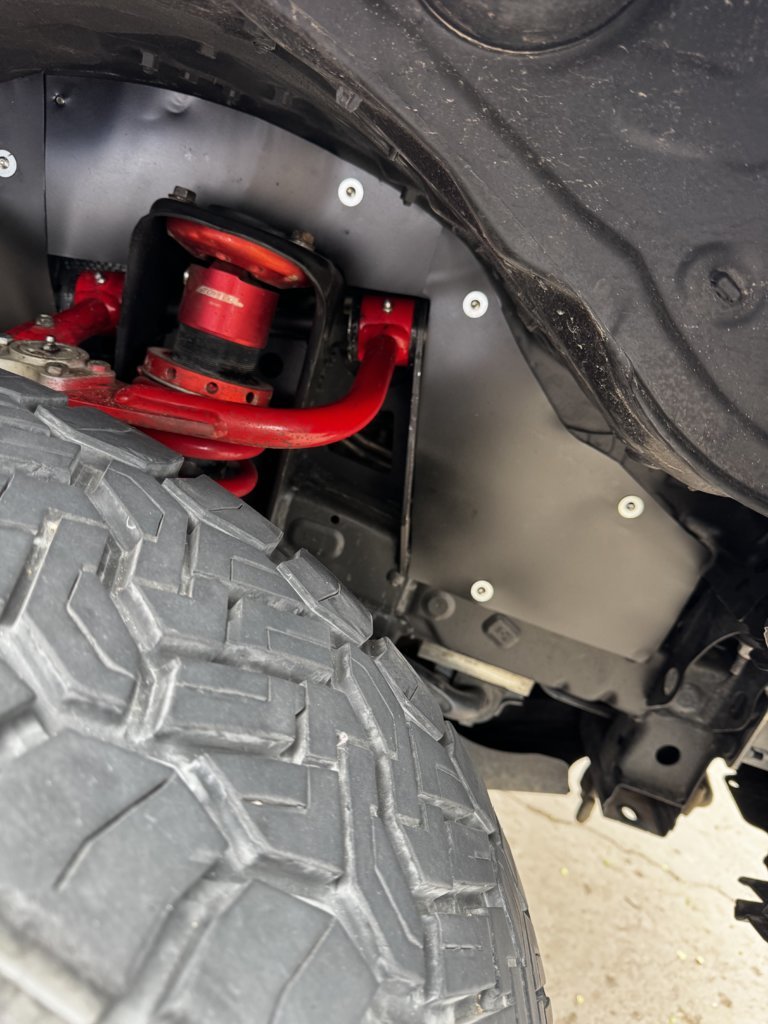

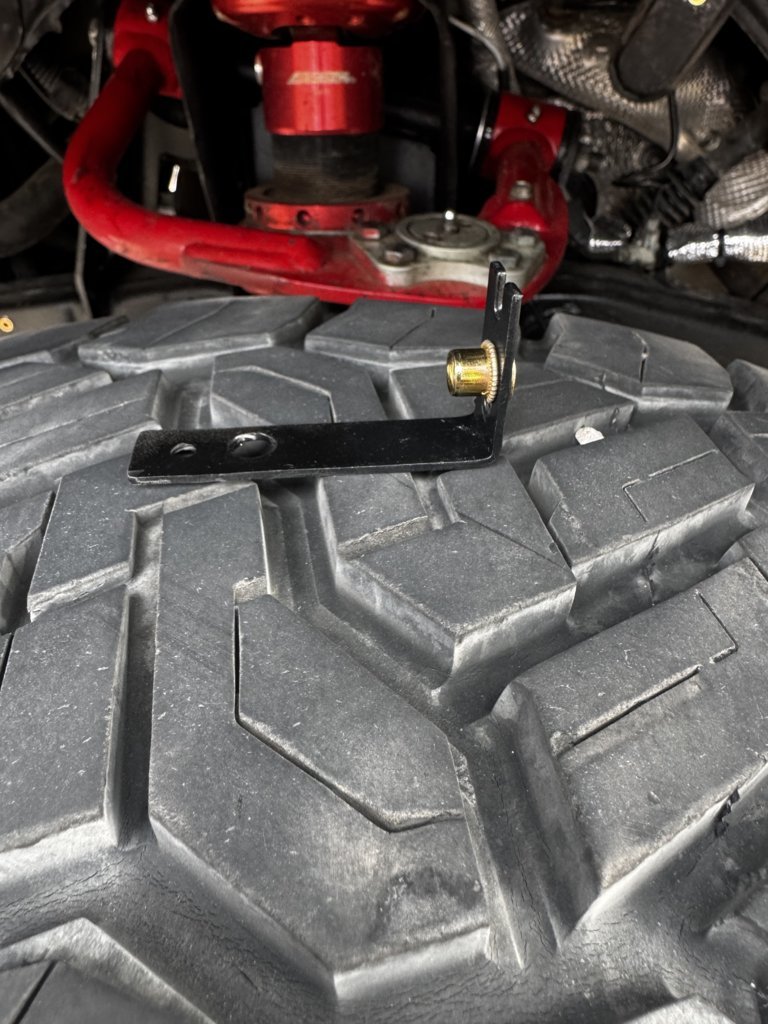

    I wanted mine to be easily removable for maintenance purposes and I hate those stupid body clips, so I used m6 rivet nuts for all the holes and bolted them in. Just had to drill the holes a little bigger.

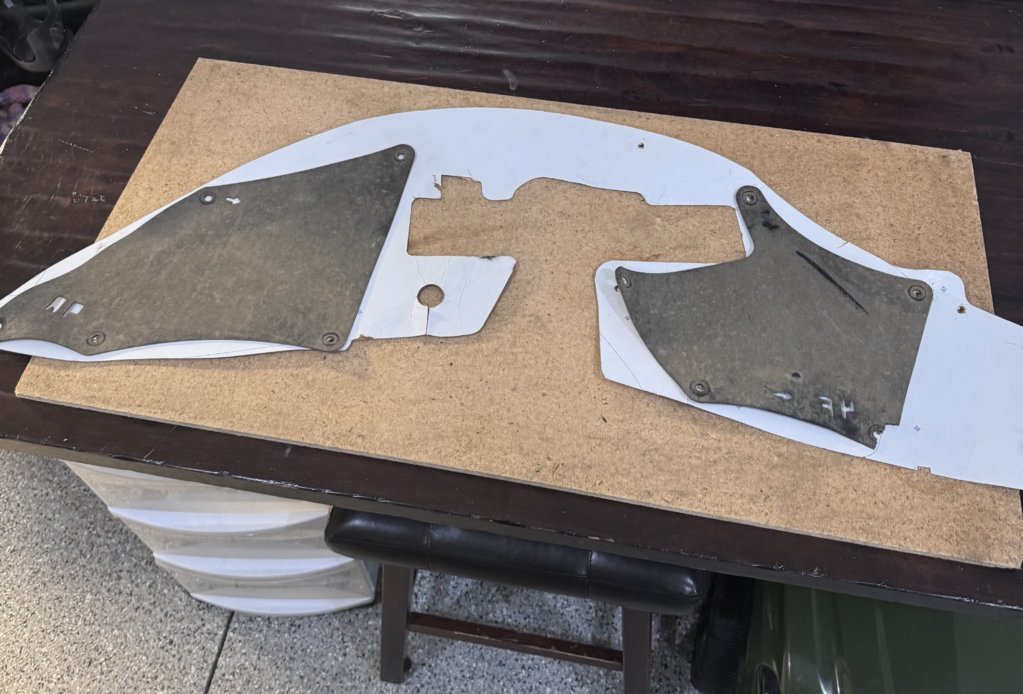

    I also split it in half and did 2 pieces per side. Main reason for this is I used plastic mud flaps for my material, and I could only get half out of one mud flap. Real heavy duty material, should never have to replace them.

    Just thought I’d throw out my mods, in case someone wants to do something similar. Rivet nuts aren’t used very often, but can be super useful in the right conditions.

    Cheers! IMG_1789.jpg IMG_1790.jpg IMG_1789.jpg IMG_1790.jpg IMG_1791.jpg

    gilligoon likes this.
  11. Jul 24, 2024 at 3:10 PM
    #111
    gilligoon

    gilligoon Well-Known Member

    Joined:
    Aug 22, 2017
    Member:
    #227638
    Messages:
    845
    First Name:
    Goon
    Watoosa Ridge, GA
    Vehicle:
    2017 Quicksand TRD OR DCSB
    Bilstein, ICON, Mobtown, Southern Style, Warn, SOS, Nitto, ARE, Northstar
    Nice! I need to get RivNuts for some Moto repairs, so this is a great option/upgrade. Plus... I plan to keep my Gen3 until death... at which point it will be passed to a Scion (if you get my meaning...)
