3rd Gen/ 2nd Gen Engine bay Splash Guard/ Rock guards Template.

Discussion in 'Off-Roading & Trails' started by Shveet, Jul 28, 2019.

Page 7 of 7
  1. Jun 17, 2025 at 6:29 PM
    #121
    Max8

    #121
    Max8 Thinking Outside The Box until they close the lid

    Joined:
    Jan 13, 2024
    Member:
    #441578
    Messages:
    211
    Vehicle:
    23 SR5 DCLB stock
    2012 ARE DCU contractor cap, Transmission aftercooler kit (Iconic Fabrication & Hayden 698), Bed Stiffeners (Kwikfab LLC), Firestone airbag leaf springs, wye connector and pressure gauge, Tailgate security mod (mfgr. by Christian06 on TW), OEM mud flaps, OEM tailgate electronic lock, Tow-Pro Elite Electric Brake Controller, Anytime Backup Camera hardwired 42 ft to camper, RCI Alum. Skid plates & cat covers, 2WD LO mod (BB Tuning), Fumoto oil drain, ECT Always-On Mod (hardness by Funman1steve), 6awg DC DC tow charger wiring, inline 60 amp breakers & battery terminals, Kill switch, KJTO driver side grab handle, Hood hold open gas struts, Scangauge III, Seat Covers (Seat Covers Unlimited... wearing poorly),
    Great mod, thank you OP and template makers!

    Purchased this for $42:
    Nitrile Commercial Grade Rubber Sheet, Black, 60A, 0.093" x 36" x 48"
    Visit the Rubber-Cal Store. NBR rubber with high resistances to oils, ozone, moisture, impacts, and abrasion.
    $40 Nitrile Commercial Grade Rubber Sheet, Black, 60A, 0.093" x 36" x 48"
    https://www.amazon.com/dp/B0C6NMTT4J

    Printed template on plotter paper at copy shop for $6 each x 2 each.

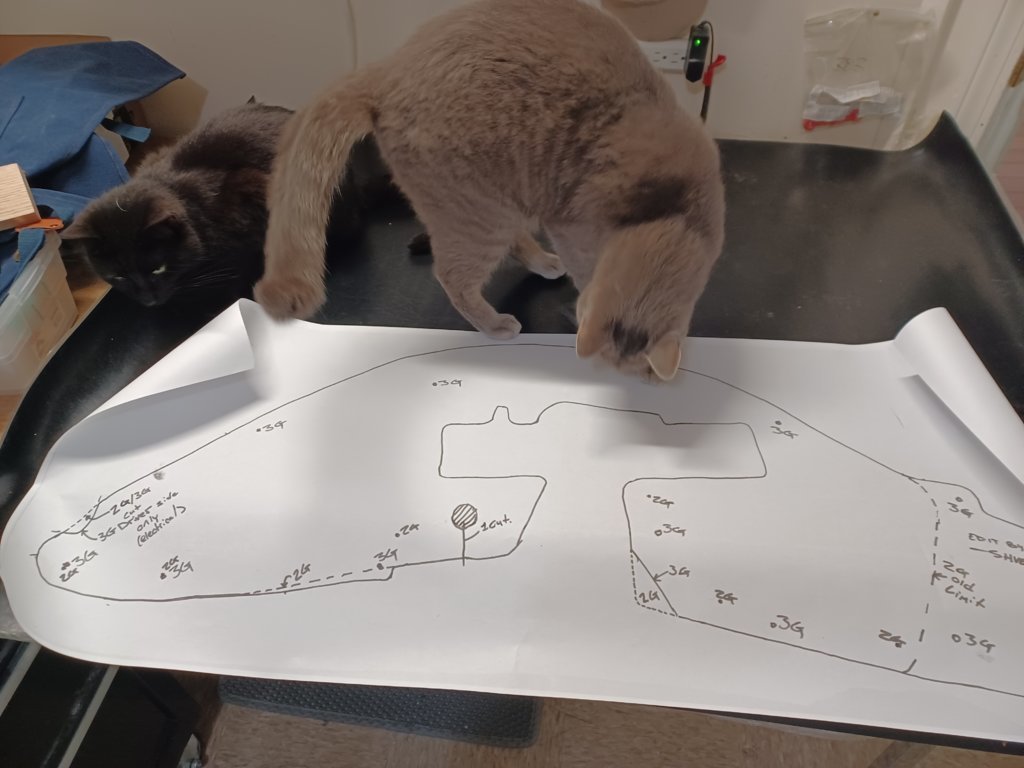

    Template takes up about 16" x 42"
    Gave it to my QA/QC team for inspection.

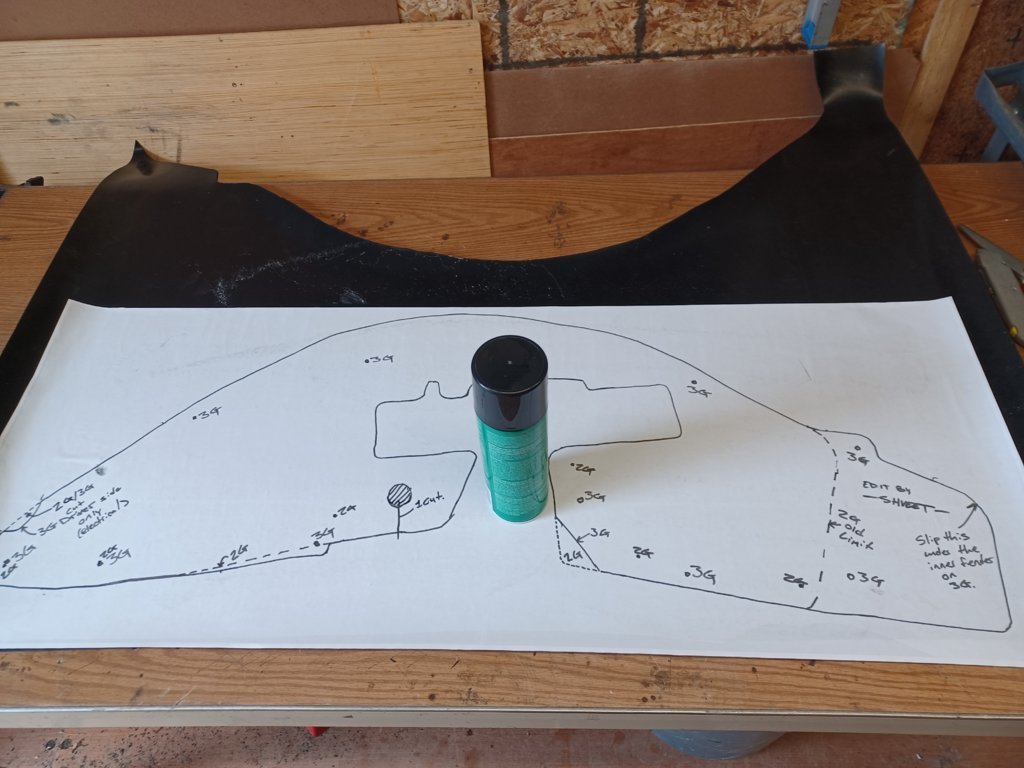

    Lightly sprayed 3M adhesive and smoothed out on sheet.

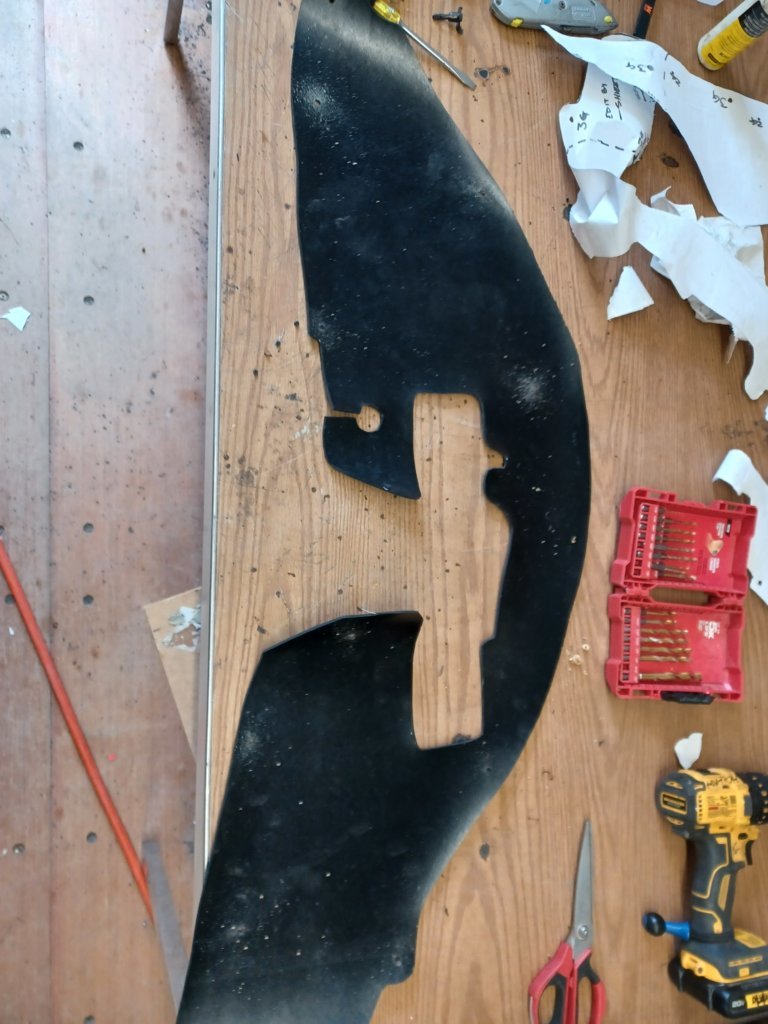

    Cut out with new blade on utility knife. The rubber offers just enough resistance to smoothly fair the curves freehand very easily. Scissors were much harder to use.
    I have an old belt-hole punch for holes, too small. Reamed with 5/16 drill bit.
    Of a cheap assortment of plastic autobody fasteners, one style was a reasonable fit. I liked the two-piece inserts more than the one-piece friction.
    I added two more fasteners up top, easy to eyeball and push a centerpunch through the rubber.

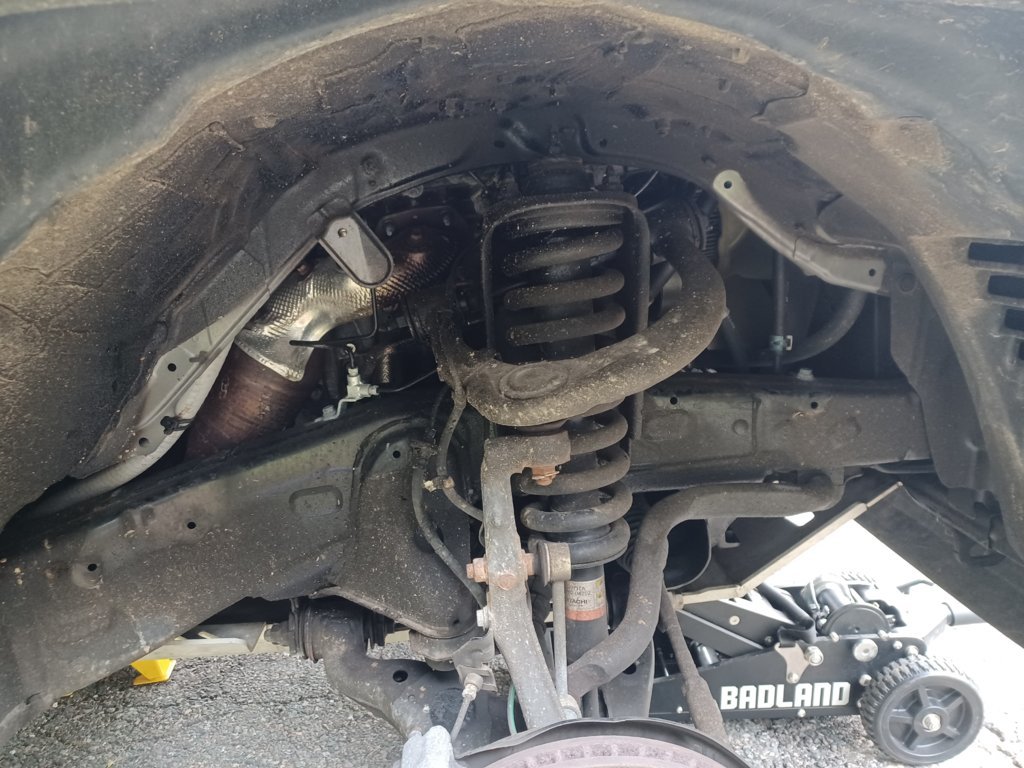

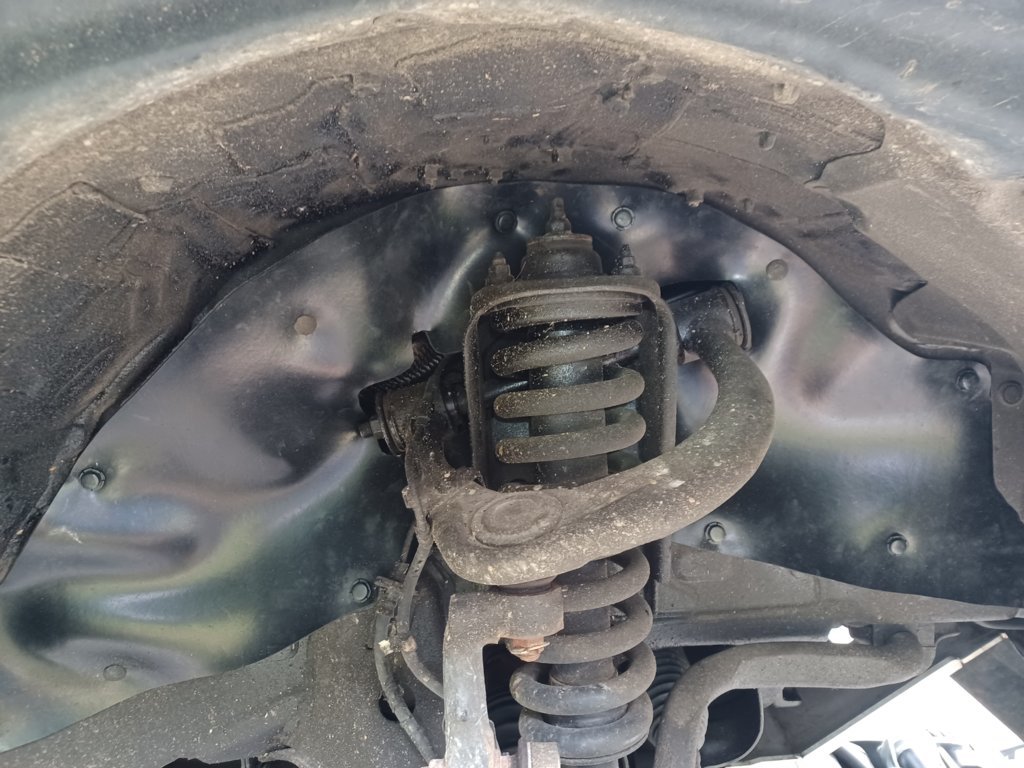

    20250613_170300.jpg 20250617_141211.jpg 20250617_141257.jpg


    Attached Files:

    Max8, Jun 17, 2025
    #121
    th3clara likes this.
  2. Aug 17, 2025 at 5:57 PM
    #122
    Quincyq

    #122
    Quincyq Well-Known Member

    Joined:
    Nov 28, 2018
    Member:
    #274097
    Messages:
    78
    Gender:
    Male
    Vehicle:
    2023 TRD OR 6 SPD Manual
    RRW Wheels, Full RCI skids and rock sliders, DRT diff skid, B&M Short Shifter

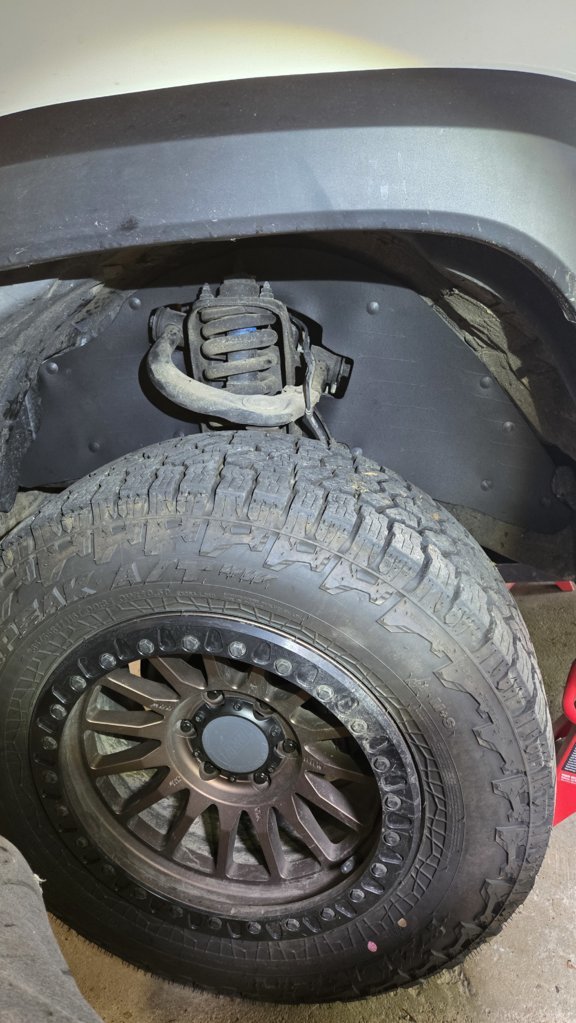

    Here is my finished product. Used some Home Depot BBQ mat for the liner and the push tabs recommended by OP.
    Thanks for the templates!! @Shveet

    Quincyq, Aug 17, 2025
    #122
    gabbo2112, Shveet[OP] and th3clara like this.
  3. Aug 17, 2025 at 7:28 PM
    #123
    NightProwler

    #123
    NightProwler Well-Known Member

    Joined:
    Nov 12, 2013
    Member:
    #116470
    Messages:
    3,551
    Gender:
    Male
    First Name:
    Harlan
    Maricopa, Az
    Vehicle:
    '01 Prerunner, '16 trd4x4, '03 cbr954rr, '03 rc51
    Mind sharing what mat you got exactly? Looking to do this to mine soon.

    NightProwler, Aug 17, 2025
    #123
  4. Aug 17, 2025 at 7:54 PM
    #124
    Quincyq

    #124
    Quincyq Well-Known Member

    Joined:
    Nov 28, 2018
    Member:
    #274097
    Messages:
    78
    Gender:
    Male
    Vehicle:
    2023 TRD OR 6 SPD Manual
    RRW Wheels, Full RCI skids and rock sliders, DRT diff skid, B&M Short Shifter
    Quincyq, Aug 17, 2025
    #124
    NightProwler[QUOTED] likes this.
  5. Aug 26, 2025 at 10:53 AM
    #125
    GRNT4R

    #125
    GRNT4R Well-Known Member

    Joined:
    Feb 24, 2020
    Member:
    #320266
    Messages:
    1,048
    Gender:
    Male
    NC - Triad
    Vehicle:
    2010 TRD Sport DCLB 4WD Silver
    TBD

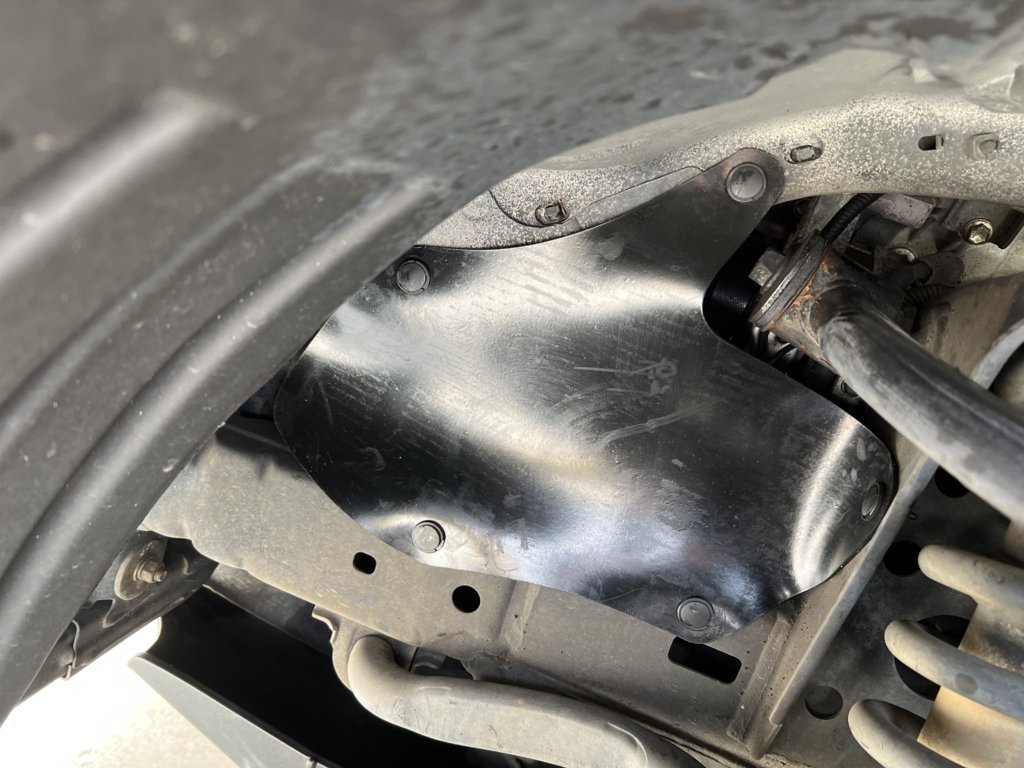

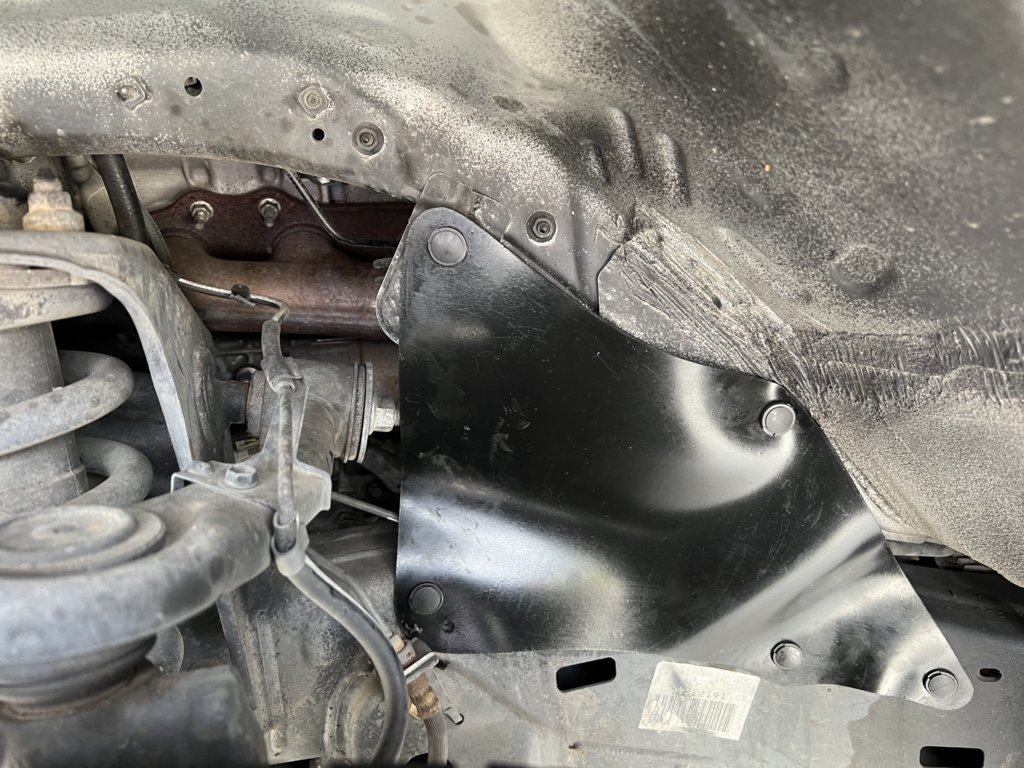

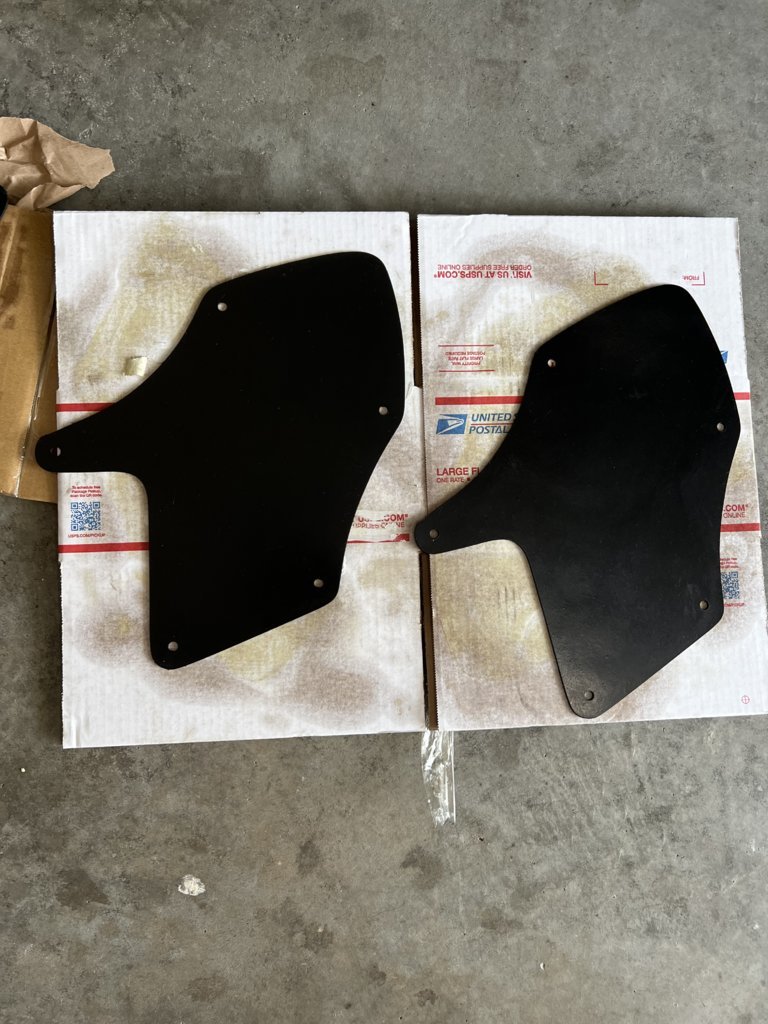

    Finally got around to adding my Rad Runber splash guards in. Wipe them down heavily with Fluid Film before installing based off the manufacturer suggestion.

    GRNT4R, Aug 26, 2025
    #125
  6. Aug 26, 2025 at 1:33 PM
    #126
    Shveet

    #126
    Shveet [OP] joe-shmo

    Joined:
    May 28, 2018
    Member:
    #254719
    Messages:
    6,458
    Gender:
    Male
    Own-tario
    Vehicle:
    2018 shitbox
    .... you...

    ....fluid filmed...

    ....your mud guard?














    :rofl:

    my guy, you have bigger problems by not using the template on page 1

    Shveet, Aug 26, 2025
    #126
  7. Aug 27, 2025 at 9:45 AM
    #127
    GRNT4R

    #127
    GRNT4R Well-Known Member

    Joined:
    Feb 24, 2020
    Member:
    #320266
    Messages:
    1,048
    Gender:
    Male
    NC - Triad
    Vehicle:
    2010 TRD Sport DCLB 4WD Silver
    TBD



    ….. i

    …… did

    ……. per manufacturer instructions to help with durability

    GRNT4R, Aug 27, 2025
    #127
