3rd gen Access Cab LIFTS!

Any other side pictures? thats my same exact suspension setup with a topper as well. I have but a 4cyl though could be a few lb difference, mine is just slightly high in the back. This is with about 400lbs including the topper wondering if yours is the same.



Not running serious trails. Definitely a super premium setup in terms of damping. OEM style bushings/mounts take the edge off. Adjustability a positive for me, my load varies + dialing to full soft means usually not airing down for light off road.
“Worth the money” a personal decision.

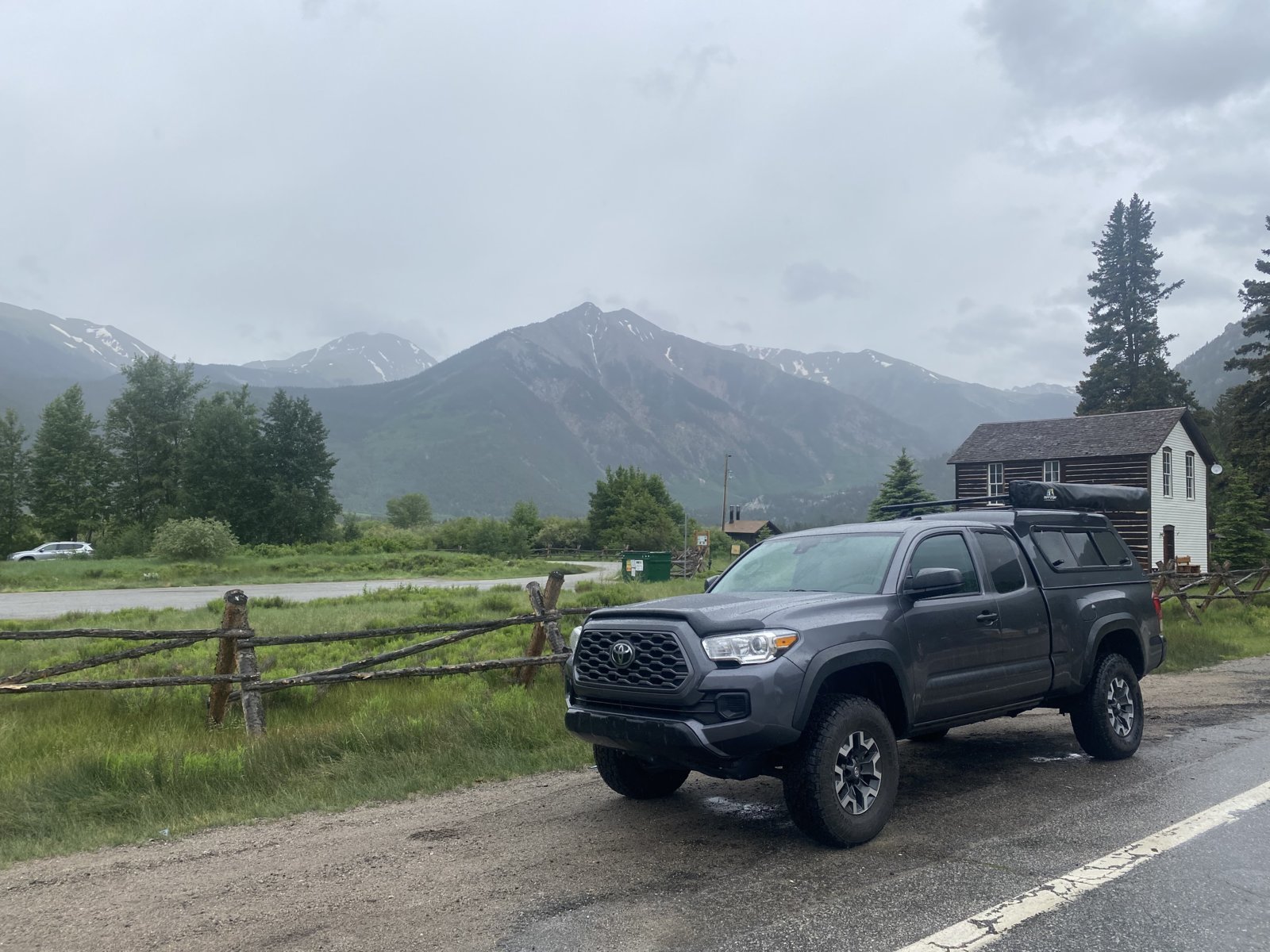

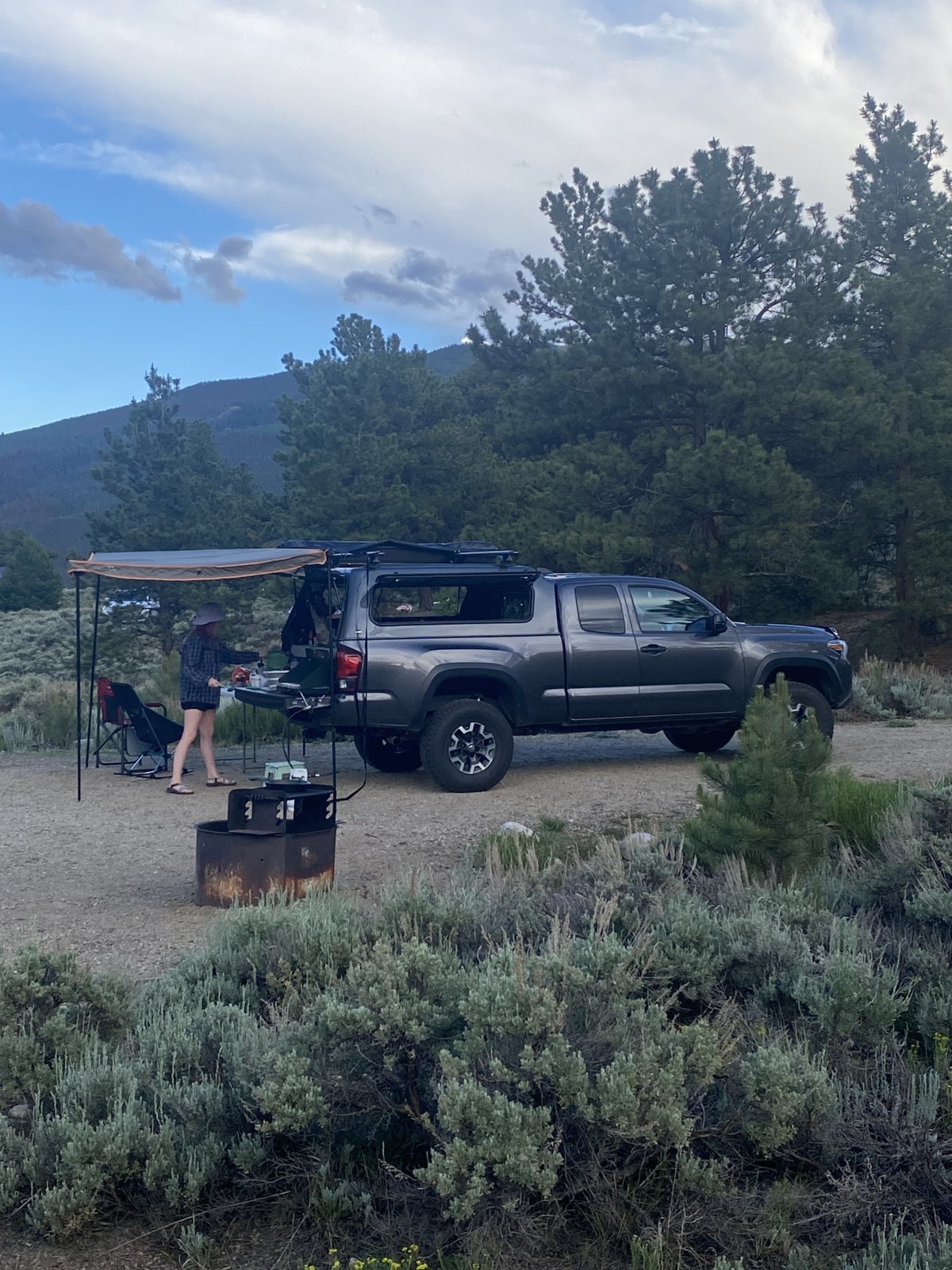

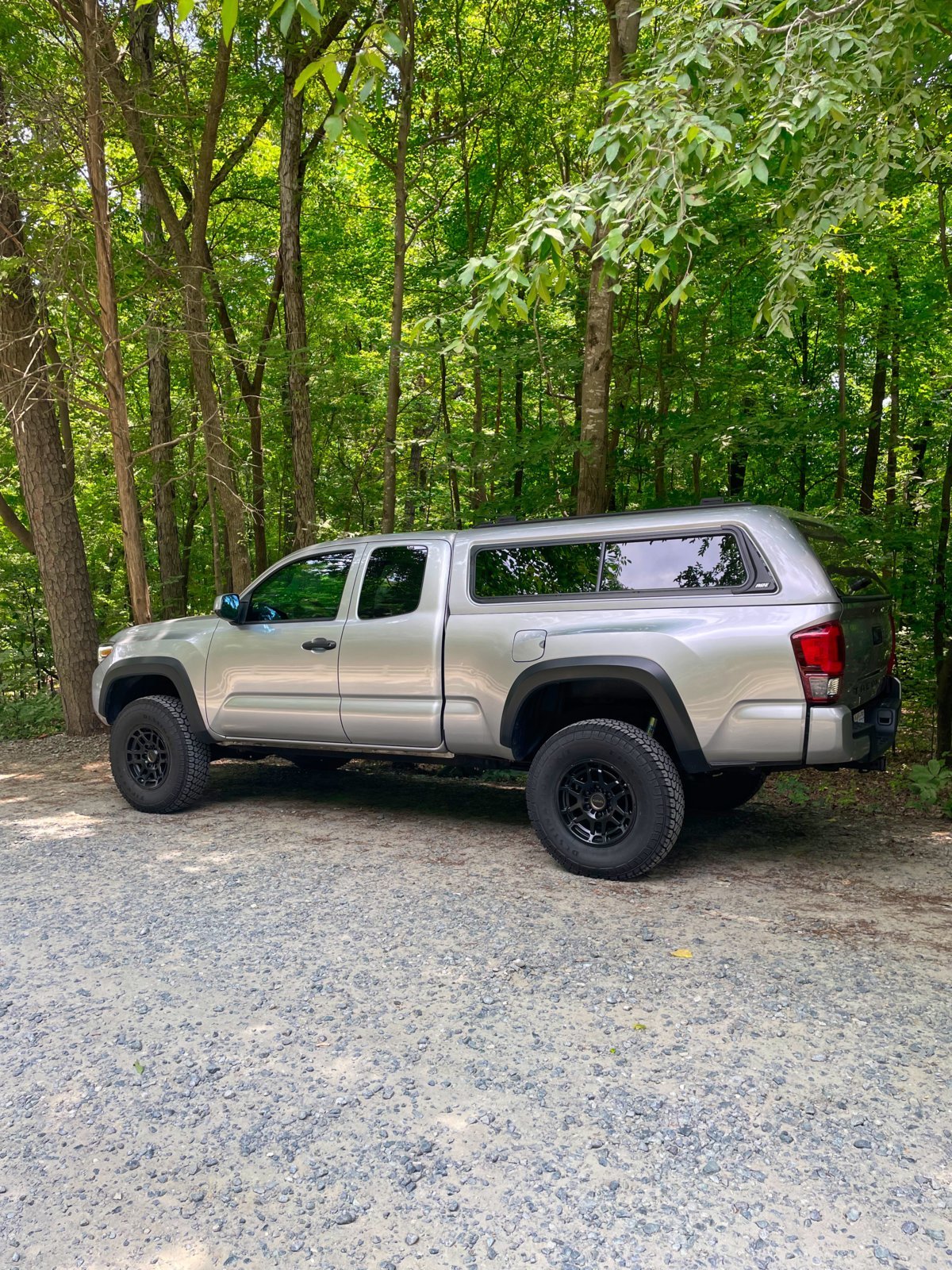

Have these two! In my daily driver I’d say I have about 350-400 pounds back there. In these pics it is fully loaded so probably closer to 600-650 pounds when we aren’t sleeping in the back.
The truck is on a little slope in my previous picture.



Forgot to add this pic



Having a slight rake is good for those times when you really load up the bed. When did you install it? Mine was higher than normal for a while before it settled then it sat perfect.



Slight rake yes agree factory is about 1.25'', im at 2-2.5'' and ive had them installed for 15k. Everyday load is 4-500lbs ive had 6-700 lbs a few times moving some tool boxes etc it did settle but only about 1/2''. I will be towing with it for the first time in the next few weeks with this leaf pack. A 2-3000lb trailer and 5-600lbs in the bed for 6-700 miles may make make it settle more. I have been thinking about maybe switching to option 1 with some sumo springs when i carry a heavy load. I would like 1.25-1.5 rake with my daily setup.



Looks great i miss my midrise mx cap, very similar a tad high in the rear

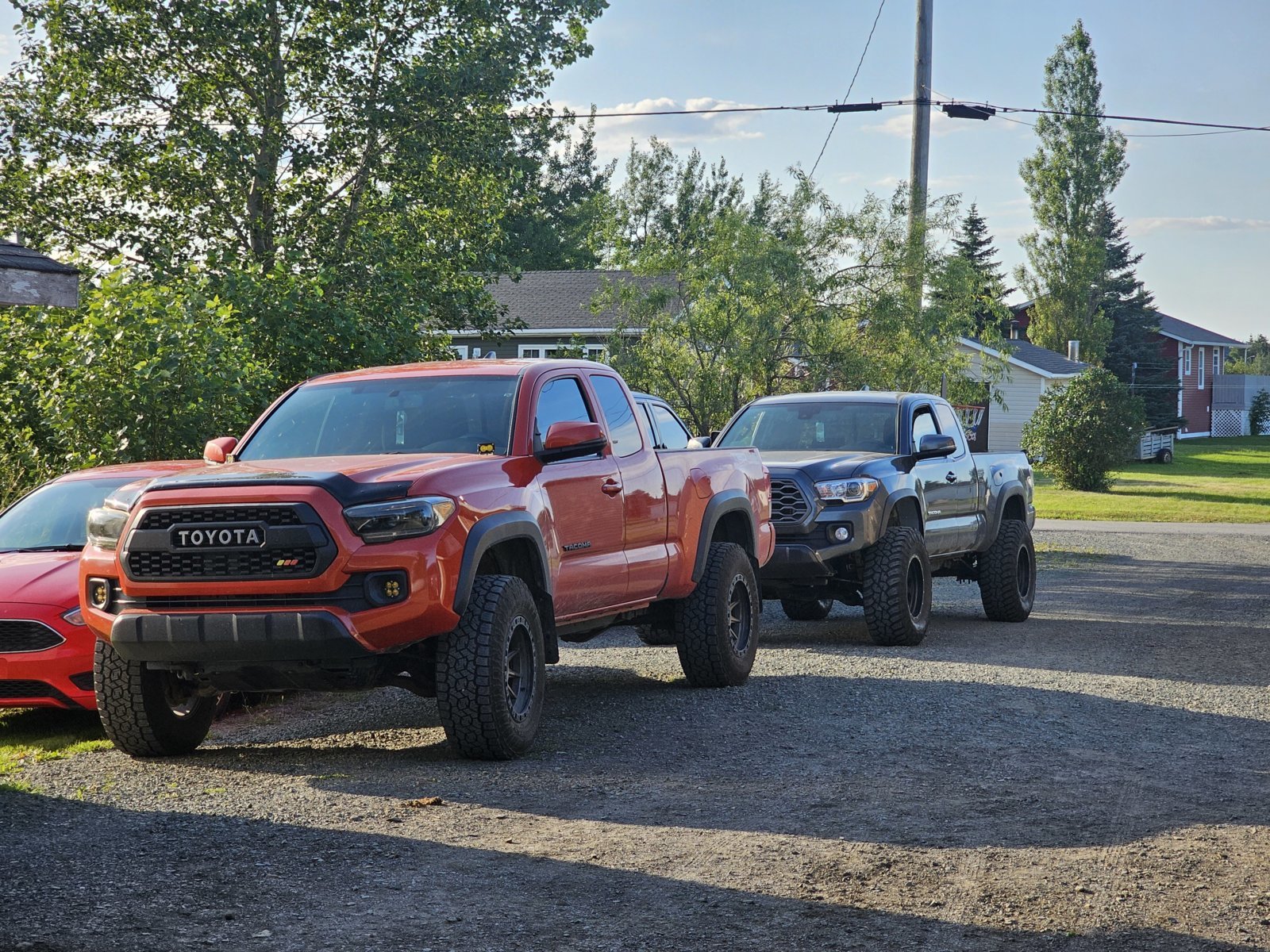

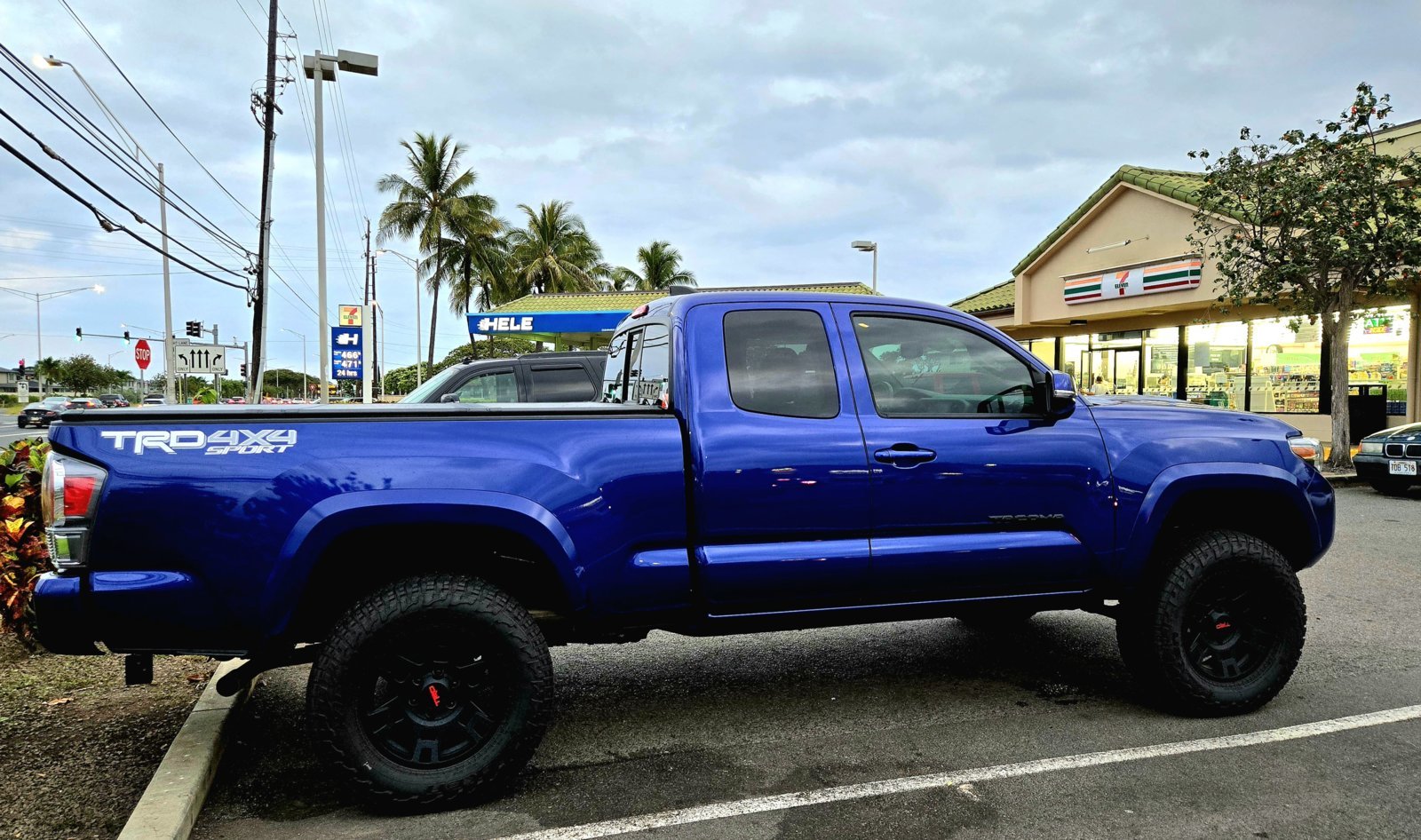

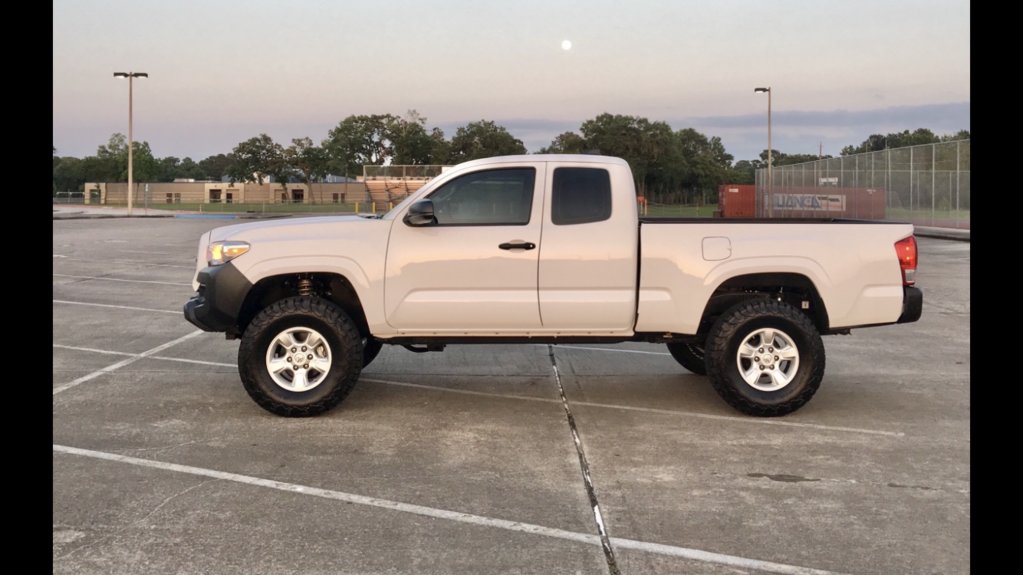

one on eibach stage 1 kit and 33s. other on icon stage 10 kit and 35s



Access Lifts! I prefer access so I don’t have to have more than one person in the truck with me - and I’m never able to be the taxi for everyone darn it



I feel the same way. I ain't no taxi!

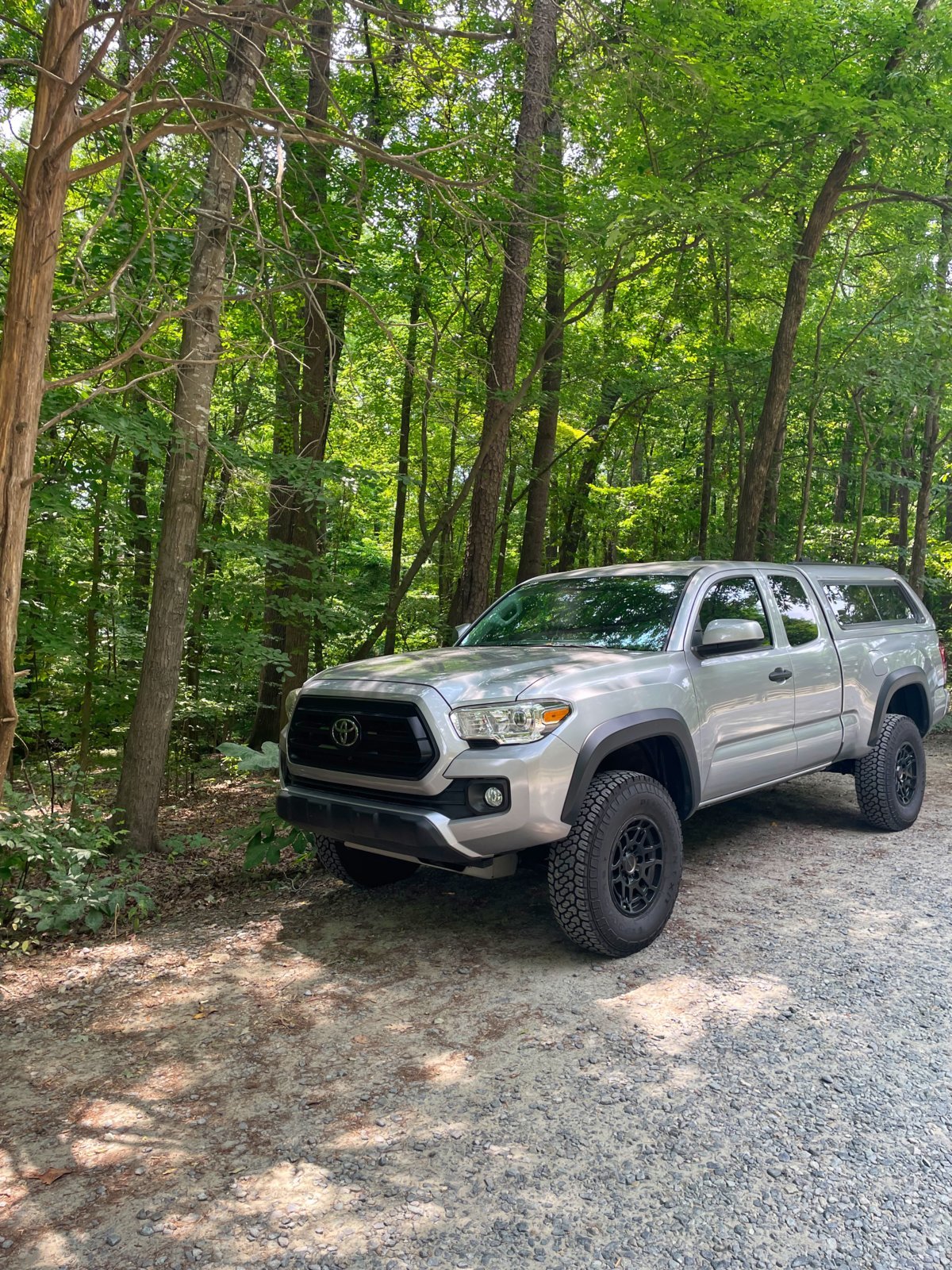

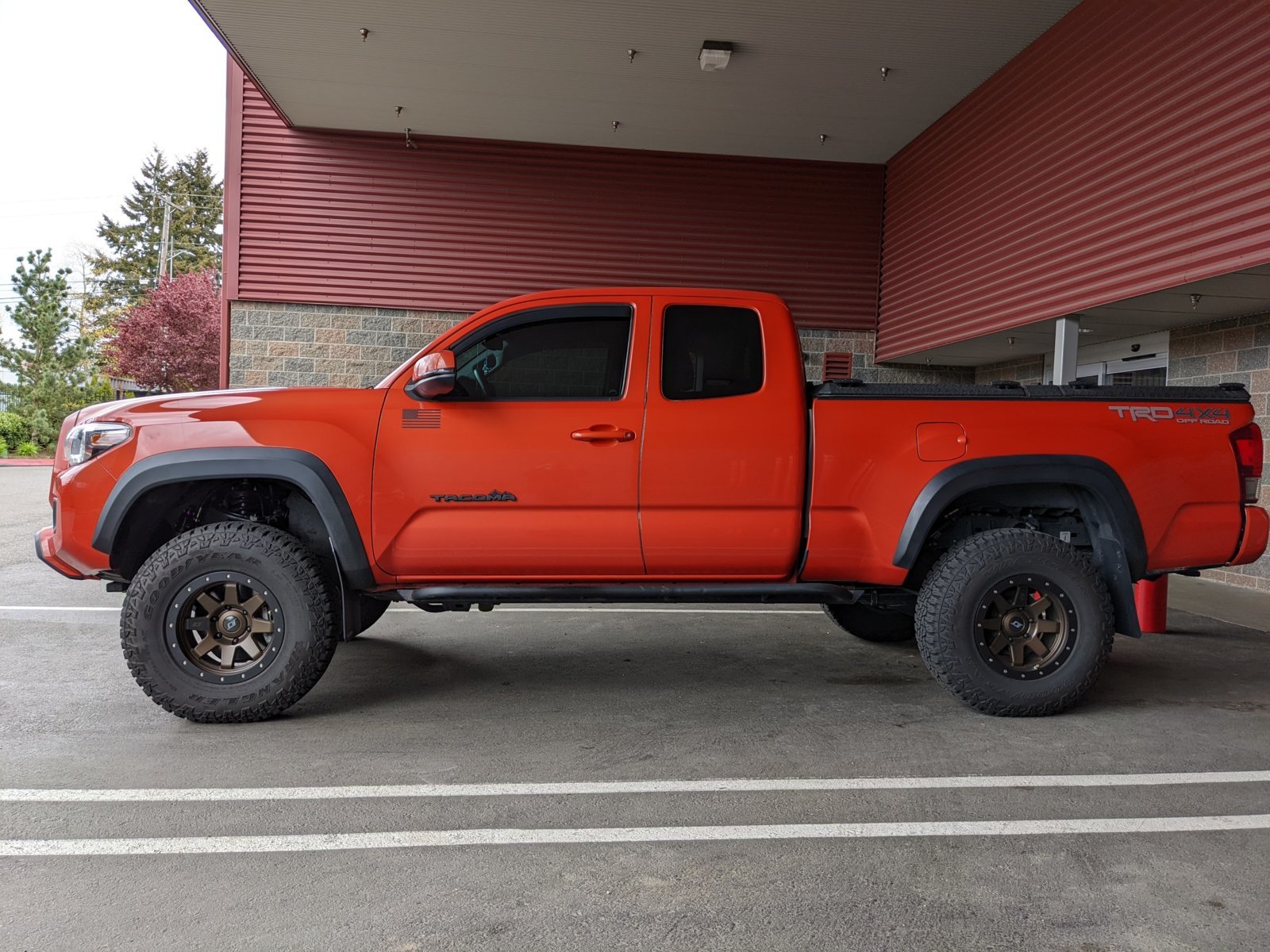

Full Dobinsons MRR lift for me. About 2.5 to 3 inch lift.
C59-352 coils up front. L59-111-R leafs out back.
Wheeler's U-Bolt flip kit and SPC UCAs.
Tires are 265/75/16 Goodyear Wrangler Ultraterrain. Wheels SCS SR8s. (skinny 33's when these wear out)



What wheels and tires on the truck with 33’s? Looks like spacers as well?



american racing ar202 17x9 -12. no spacers. toyo at3s

grey truck has procomp 17x10 bulletholes (no idea on actual model) -3 offset with 2" spacer (-53 total offset)
general grabber x3 tires

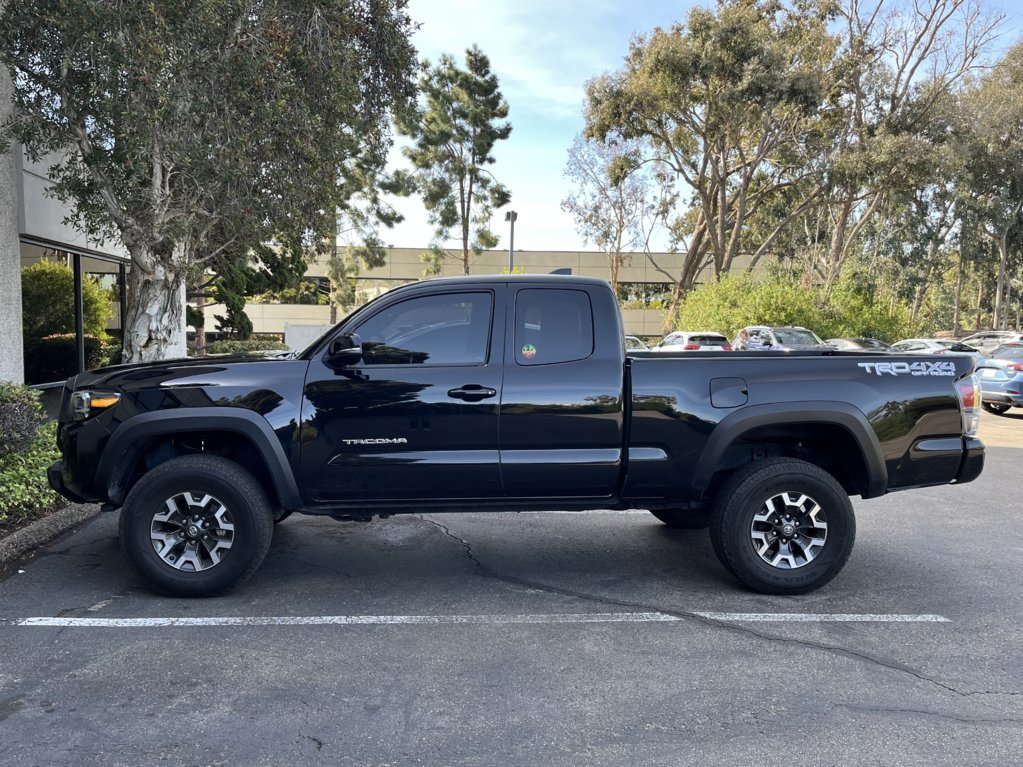

A bump for this thread, just picked a low mile 23, it’s bone stock, but not for long. Keeping the OEM wheels, still figuring out what suspension I want and so on…

PS, this is Tacoma #11 (no 4th gen for me).

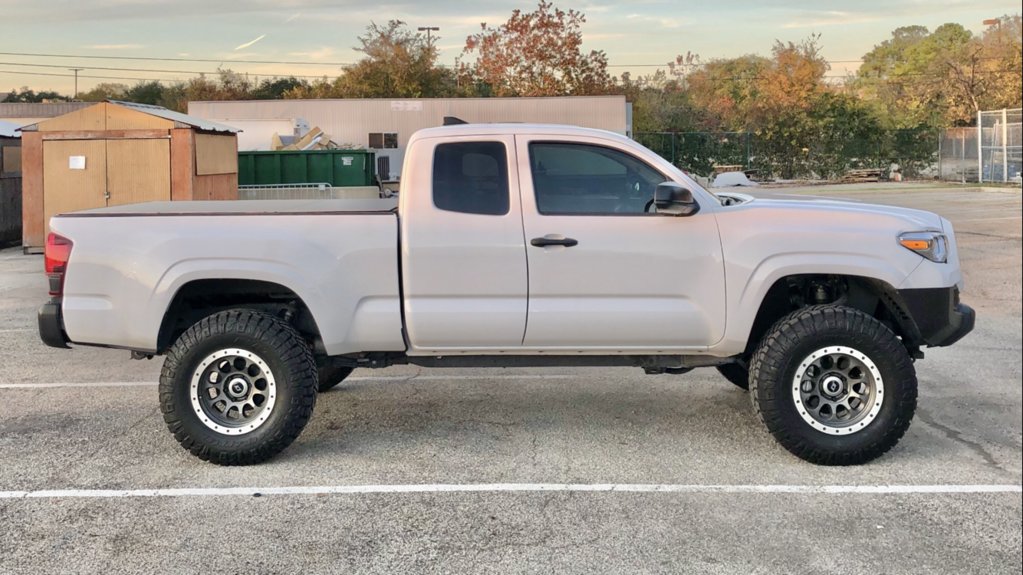

My old 2019

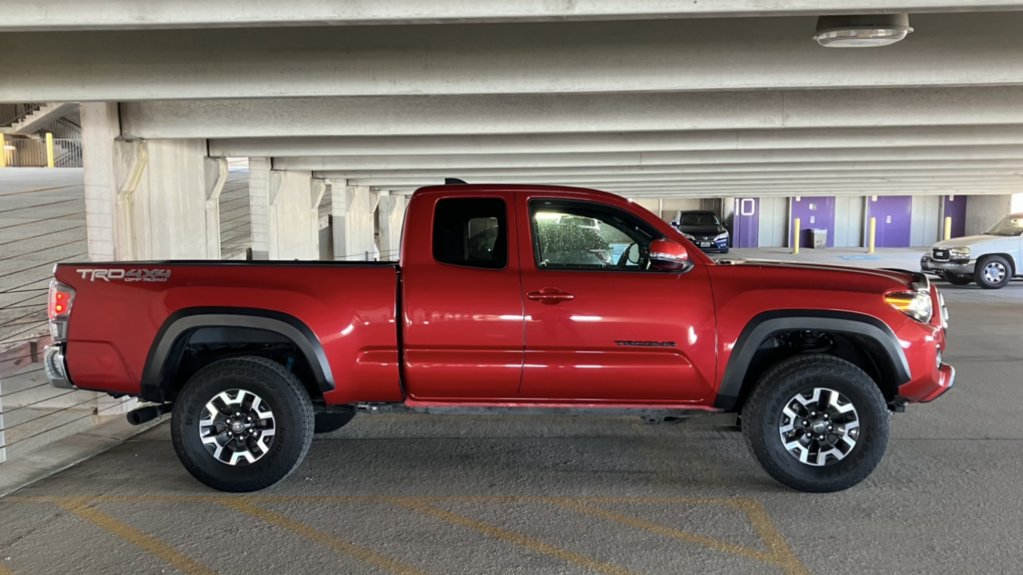

My old 2016.

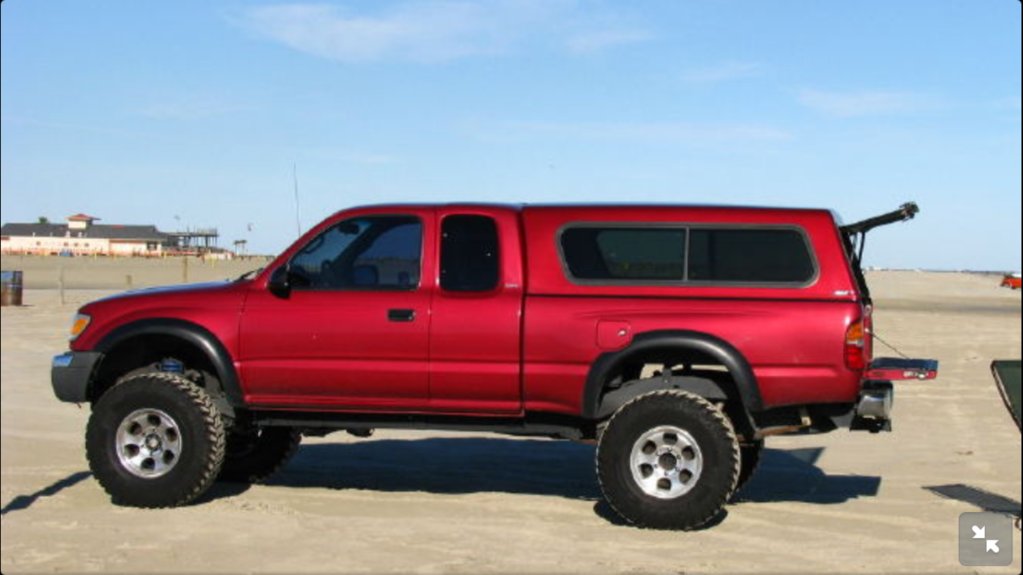

And lastly, the 2000 1st gen

That rounds up my extra cab history

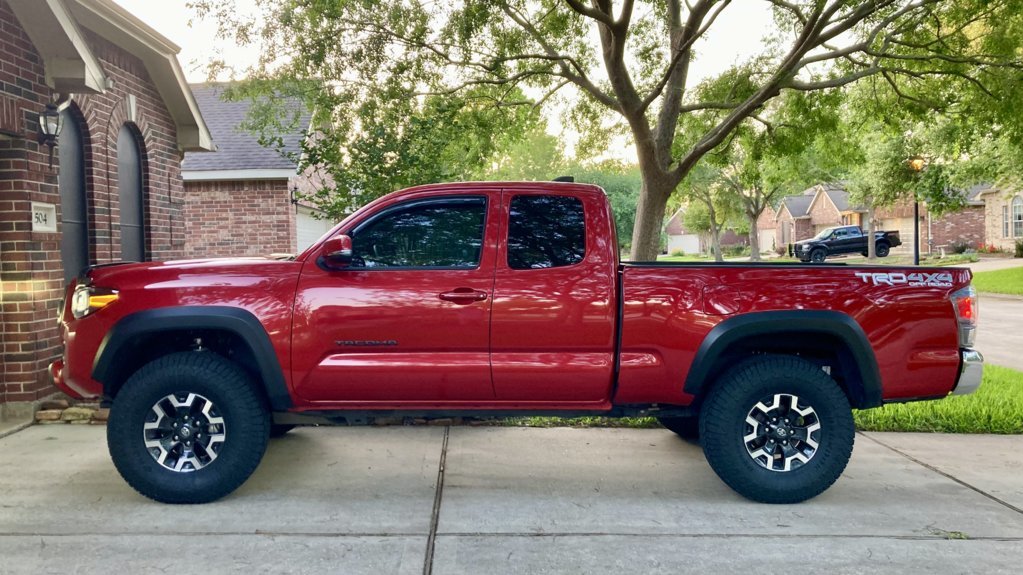

2021 OR A/C

Daily driver with occasional trips to the dirt or snow.

Front: Bilstein 6112’s with clips set to #5 & #4, built right bump stops

Rear: Bilstein 1500’s, Icon AAL with the overload kept installed (shop cut then sealed anything that would contact during use)

Haven’t taken measurements yet as it’s only been two weeks, but so far I like the little bit of leveling without loosing too much rake (I never really haul but don’t want to loose the option). It also drives insanely better than stock.

New wheels & tires in the fall once KO3’s come out in a C-load 265/70r/17



nice truck - welcome to the forum



Congrats on the new Taco. Man, I love that 2000 first gen. That was pretty darn clean. I wish I held on to my '94 extended cab. Those things are classics.



The 2000 was the best road driver, straight and true at 75, 2.7 auto 4WD, the best of the bunch.

Update on the 23, Tinted the windows, added Fox 2.0 coilovers on the front, set to level with stock rear. Have the rear shocks & 1” blocks, not installed yet. Installed new 285/75/16 Hankook dynapro at2 xtreme today, zero rub, quite surprised, but they run a little smaller than others.



Damn I keep telling myself it's fine,don't lift it but these trucks look so good! Thanks for sharing all the pics everyone Motivation I don't really need but...
