3rd Gen BHLM + Retrofit Projector

Discussion in 'Lighting' started by MESO, Apr 29, 2016.

  1. Dec 27, 2019 at 12:28 PM
    #961
    ionakana619

    ionakana619 Active Member

    Joined:
    May 9, 2018
    Member:
    #253032
    Messages:
    42
    Gender:
    Male
    First Name:
    Jonathan
    San Diego, CA
    Vehicle:
    2018 Toyota Tacoma TRD Off-Road 4x4 Cement Grey
    I have a set of RX350 projectors, what else do I need to make them work for a 3rd gen tacoma so that my high beams work? I assume I would have to buy a D2S HID kit. Tried combing through the thread but coundlt find any details, appreciate the assistance.

  2. Dec 30, 2019 at 4:25 AM
    #962
    GreeGunc

    GreeGunc Full of regret

    Joined:
    Sep 6, 2014
    Member:
    #137721
    Messages:
    3,505
    Gender:
    Male
    First Name:
    Jacob
    North GA
    Vehicle:
    1st gen 3rz+18' inferno OR 6spd
    2lo mod. PIAA 510s. Green Floor Lights. Green dash swap. Axle dump exhaust. Husky floor mats. Moto metal mo970's. Shrockworks. Sundown sa-8. 9.5xrc. Kings
    The d2s kit should have a selection for your high beams, when you pick the bulb type....I think h11? It adds an adaptor from the D2s high beam solenoid to 9006 standard plug and then another adapter from 9006 to the h11s on the truck

  3. Jan 4, 2020 at 9:39 AM
    #963
    AM7Jeremy

    AM7Jeremy Well-Known Member

    Joined:
    Feb 11, 2016
    Member:
    #177891
    Messages:
    122
    Gender:
    Male
    First Name:
    Jeremy
    San Diego, California
    Vehicle:
    2017 Super White Tacoma TRD Sport DCLB

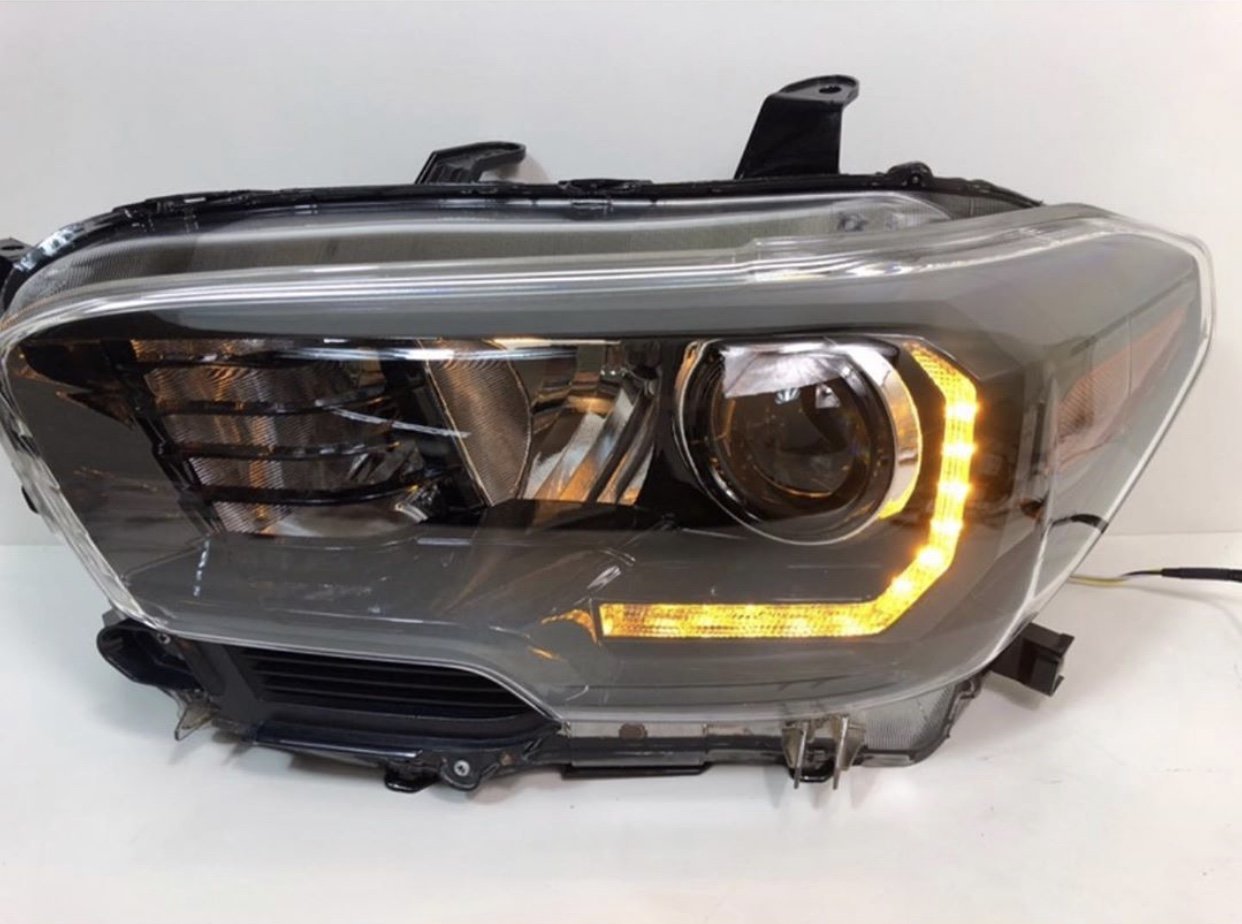

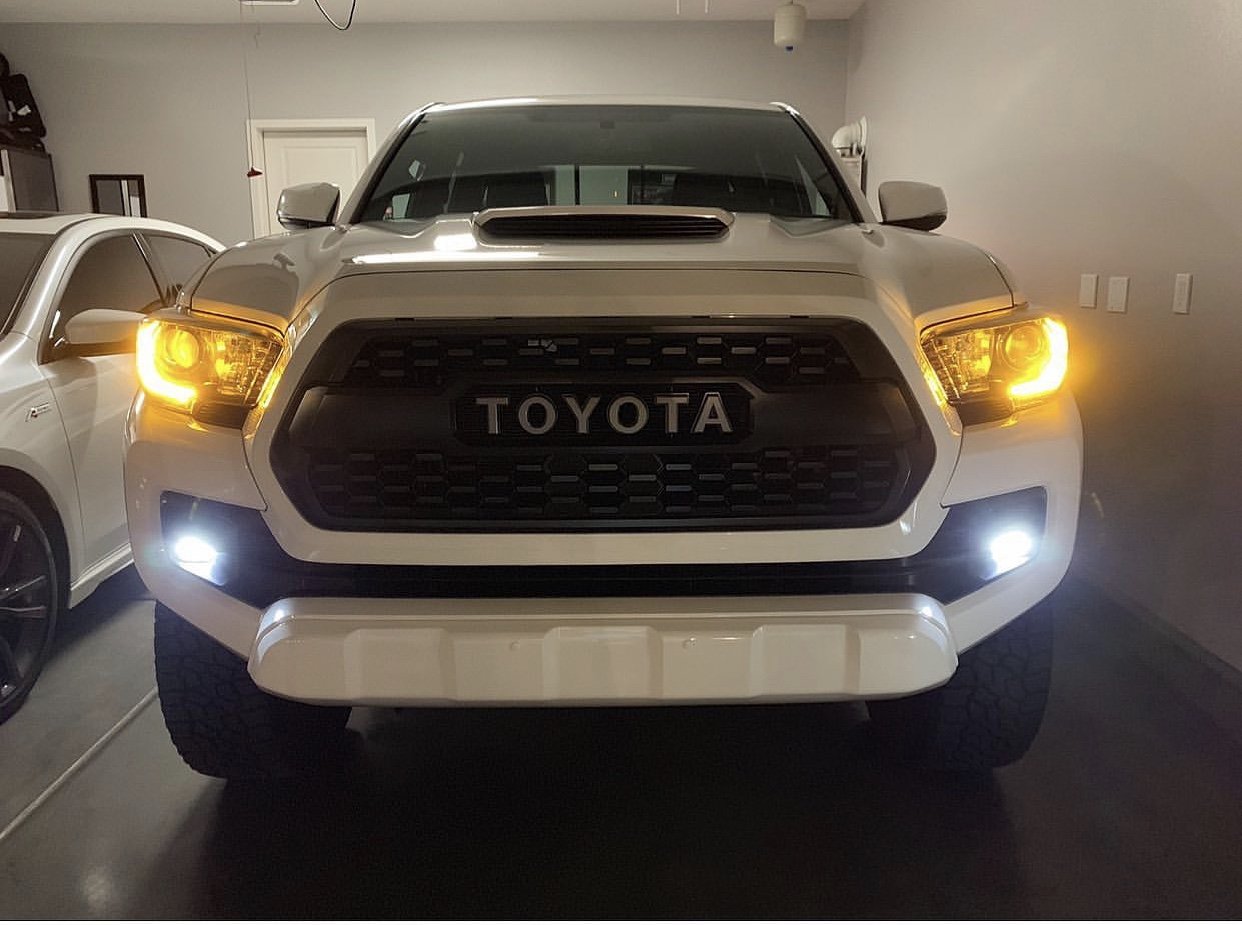

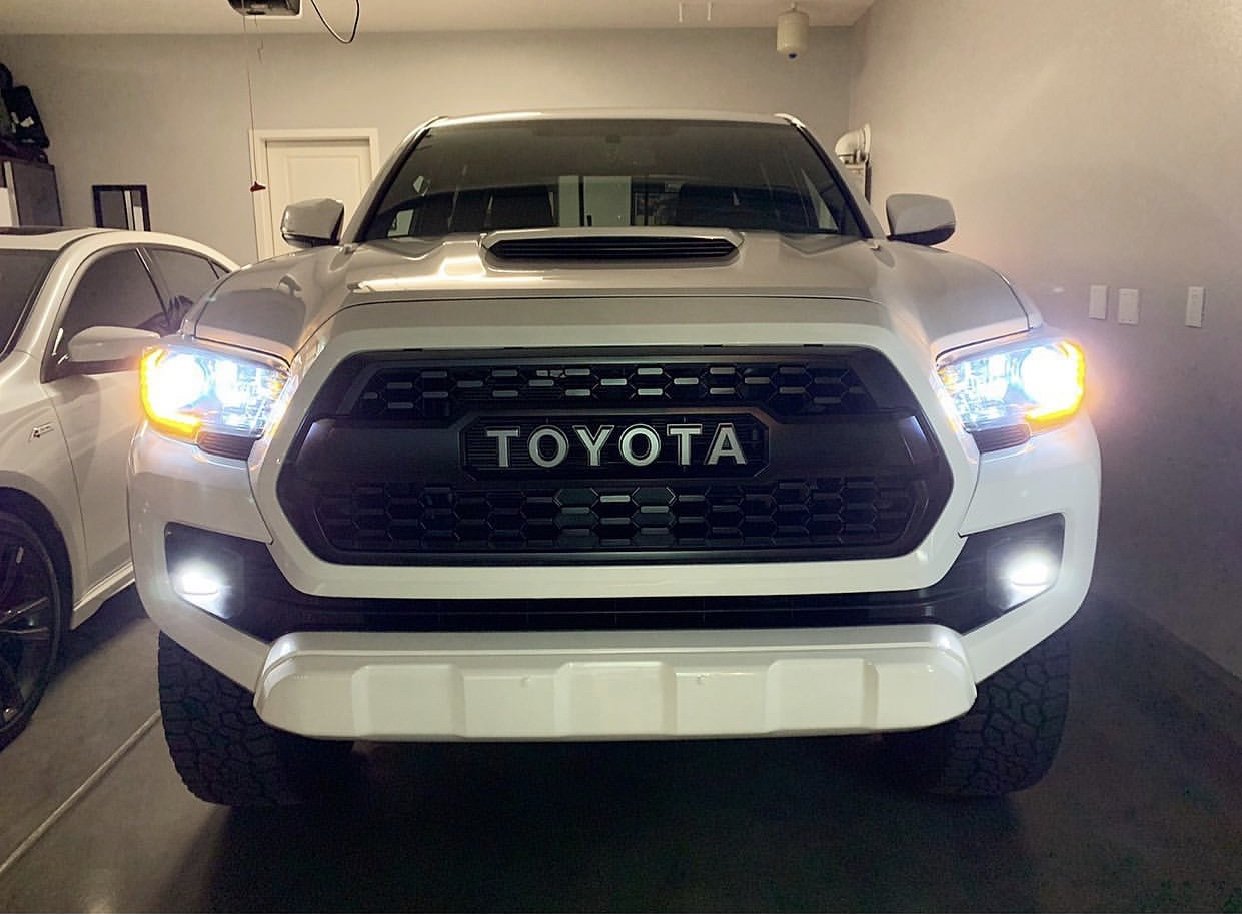

    Here are my OEM TRD Sport headlights w/the following done:

    - Masking/Paint to emulate TRD Pro Headlights
    - Lexus RX350 Projectors
    - Morimoto 5500K HID Bulbs
    - Hiluxtek 35W HID Ballasts
    - Diode Dynamics DRL LED board wired to run constant amber


  4. Jan 8, 2020 at 7:42 AM
    #964
    ionakana619

    ionakana619 Active Member

    Joined:
    May 9, 2018
    Member:
    #253032
    Messages:
    42
    Gender:
    Male
    First Name:
    Jonathan
    San Diego, CA
    Vehicle:
    2018 Toyota Tacoma TRD Off-Road 4x4 Cement Grey
    Thanks, I was thinking you don't need the last one if you get the high beam splitter?



  5. Jan 8, 2020 at 10:06 AM
    #965
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    The last one is a high beam bulb replacement. The splitter would still be needed.

  6. Jan 15, 2020 at 10:59 AM
    #966
    swils

    swils Well-Known Member

    Joined:
    Dec 27, 2018
    Member:
    #277125
    Messages:
    155
    Maryland
    Vehicle:
    2018 OR Blazing Blue, MT
    Edit: Fairly sure this does just go between the OEM to drivers side & the relay input.

    Okay, I've got a single one of these:
    https://www.rallysportdirect.com/part/light-wiring/h660-morimoto-adapter-h8h9h11-male-to-9006-female

    that I bought for the project. I've completely forgotten where it goes in the grand scheme. Does it go between the OEM headlight cord & the HD Relay? Do I only need to run a single side of the OEM cords into the relay?

    D2S: Morimoto XB35 2.0 MORIMOTOD2S35BAL x1
    D2S: Morimoto XB HID (D2S: XB 6500K) D2SMORIMOTOXBHID x1
    Bi-Xenon: Lexus RX350 (Lexus RX350 (Non-AFS), Clear Lenses: STi-R Clear Lenses Performance Tuning: (Must add clear lens) Projector/Lens Tuning Service) RX350PROJECTORS x1
    HD Relay: H11/H9/H8 HDRELAYH11 x1
    High Beam Splitter (Single) H11 Male > H11/9006 Female SPLITTERS x2
    Morimoto RetroRubber Butyl Glue (Black) RRBLACK - x1

    Last edited: Jan 16, 2020
  7. Jan 23, 2020 at 6:24 AM
    #967
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    The more I think about it the more I think I want to go full quad and drop in a Profile Hi-lens. Seems like a perfect fit for the high beam spot. Opinions, thoughts?

    Edit: The more I think about it I don't use my high beam enough to justify doing a quad so I think I will just try to find a bulb that matches the color of RX350 bulbs.

    Last edited: Jan 24, 2020
  8. Jan 23, 2020 at 12:56 PM
    #968
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    20,766
    Gender:
    Male
    Reno, NV
    Vehicle:
    98 Tacoma SR5 Xtra Cab 3.4L
    I was thinking of doing this with my GX but having a halogen low beam setup where the Highs are for snow and ice in the winter and HID/LED projector in the Lows location for regular daily use. Have a power switch for the halogens when needed for snow and ice melting. It also seems like a waste as snow and ice really isn't an issue except for maybe 5 days of the year. The profile Hi-lens seems like a better use for space.

    J_Hacker likes this.
  9. Jan 26, 2020 at 4:20 PM
    #969
    Vato_con_Taco

    Vato_con_Taco Member

    Joined:
    Jan 26, 2020
    Member:
    #317318
    Messages:
    7
    Gender:
    Male
    What’s up!
    New to the forum and the thread. I was able to disassemble the headlight but then ran into a minor speed bump. I want to replace the projector lenses with some clears. Can someone point me in the right direction on how to disassemble the chrome housing with the projector light from the headlight backing?

    Thanks,
    The Newbie

  10. Jan 28, 2020 at 6:31 AM
    #970
    swils

    swils Well-Known Member

    Joined:
    Dec 27, 2018
    Member:
    #277125
    Messages:
    155
    Maryland
    Vehicle:
    2018 OR Blazing Blue, MT
    Hey Vato,

    If I'm reading it right, you'll need to remove 3 screws holding the turn signal bucket in, then pop off 3 clips around the bucket that holds the projector+HighBeam bucket. There's two round ones (with a tab on each side, one on the outer edge, one in the top middle), and a rectangular one at the bottom. Helps to remove the rubber seals off the back first, too.

  11. Jan 28, 2020 at 1:38 PM
    #971
    Vato_con_Taco

    Vato_con_Taco Member

    Joined:
    Jan 26, 2020
    Member:
    #317318
    Messages:
    7
    Gender:
    Male
    Thank you @swils
    I’m completely new to the taco world. I am attempting my first retrofit by practicing on opening cheap eBay deals. Figured it’s cheaper than having to buy a new replacement.

    If you have any tips, please feel free to let me know.

  12. Jan 28, 2020 at 1:48 PM
    #972
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    Biggest thing is patience. Just about all the info I have gathered about doing my retrofit was found in this thread. Read it through a few times and make notes on what you find.

  13. Jan 28, 2020 at 2:26 PM
    #973
    Vato_con_Taco

    Vato_con_Taco Member

    Joined:
    Jan 26, 2020
    Member:
    #317318
    Messages:
    7
    Gender:
    Male
    Sound advice.

    I have a question. Most of the retrofits for projector lights on the thread require the RX350s. Is it possible to use the stock projector and just replace the lens with a clear? I want to run LED’s and not HIDs. Has anyone tried this?

  14. Jan 28, 2020 at 5:22 PM
    #974
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
  15. Jan 30, 2020 at 1:20 PM
    #975
    dskakie

    dskakie Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192352
    Messages:
    960
    Gender:
    Male
    First Name:
    Dan
    Northern CA
    Vehicle:
    2016 TRD OR DCSB

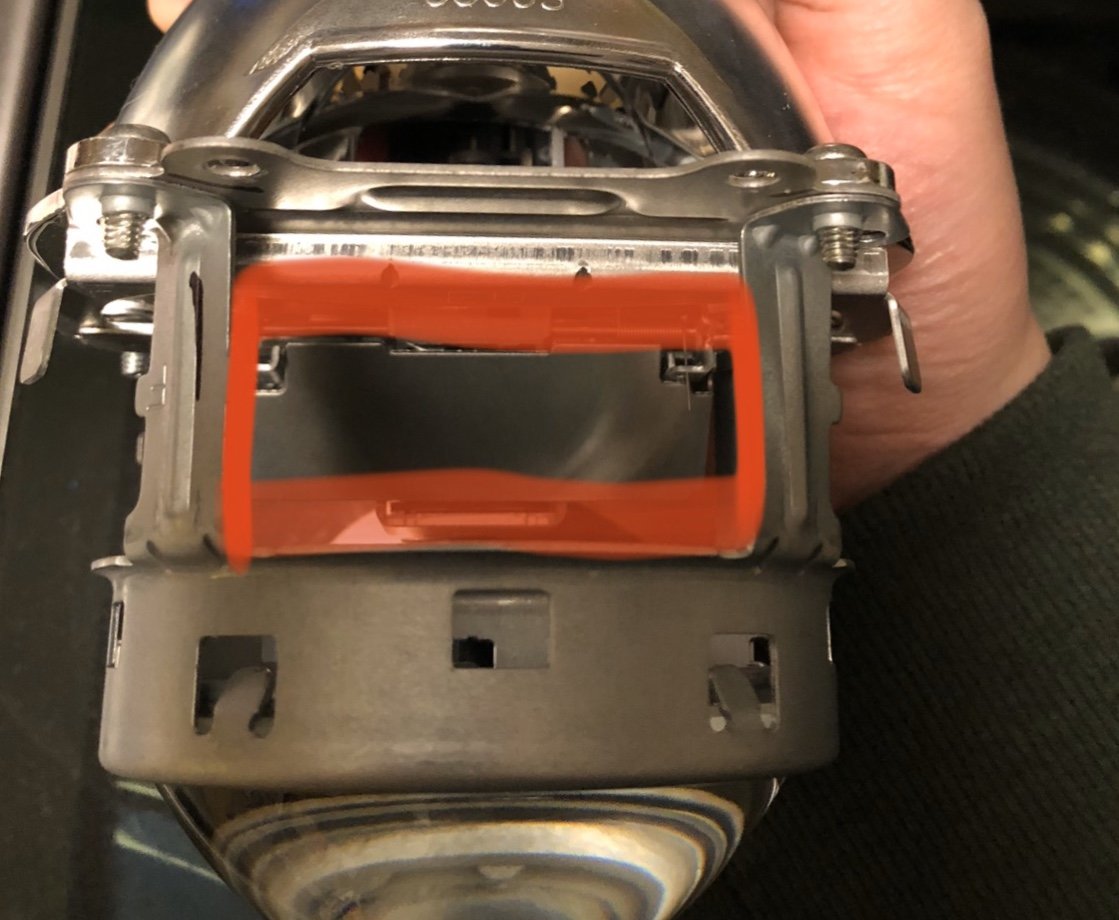

    Quick question as I think I’m gonna attempt this over Super Bowl weekend— for painting the cutoff shield, it’s just the larger, lower section only, right? Not the small/thin shield itself that goes up and down?


    Also, is it okay to just remove, paint, and then replace the lens via the 4 screws? It looks like there’s just the one layout for it to go back into but I was worried to mess with the alignment.

  16. Jan 30, 2020 at 6:18 PM
    #976
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    I’d like an answer to this question as well. I’d like to do the same once I buy my projectors. Still unsure of the color choice yet.

  17. Jan 30, 2020 at 7:22 PM
    #977
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,741
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    You may want to tag Meso for this. He may not be following anymore. I'd help if I could but don't know the answer to this one.

  18. Jan 31, 2020 at 5:50 AM
    #978
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    @MESO thoughts?

    20tacoma17 likes this.
  19. Jan 31, 2020 at 7:22 AM
    #979
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,024
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD 2JZ
    Yes it’s fine to paint the front of that shield. Won’t hurt anything removing the 4 screws. You might see a small sliver of the cutoff shield through the front lens, so if you want to paint that too it’s fine.

    bonnfabrication and dskakie like this.
  20. Jan 31, 2020 at 7:44 AM
    #980
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    Thanks man.
