3rd Gen BHLM + Retrofit Projector

Discussion in 'Lighting' started by MESO, Apr 29, 2016.

  1. Feb 12, 2020 at 6:27 PM
    #1001
    1bad2k

    1bad2k Well-Known Member

    Joined:
    Aug 9, 2009
    Member:
    #20889
    Messages:
    3,331
    Gender:
    Male
    Lone Star State
    Vehicle:
    2017 Tacoma TRD PRO
    Mled 2.0 are out and pretty slick, all you need is the $50 conversion brackets and they'll bolt right in.

  2. Feb 12, 2020 at 6:49 PM
    #1002
    Dilly

    Dilly Well-Known Member

    Joined:
    Oct 10, 2019
    Member:
    #307657
    Messages:
    140
    Gender:
    Male
    LOUISIANA
    Vehicle:
    2019 MGM SR

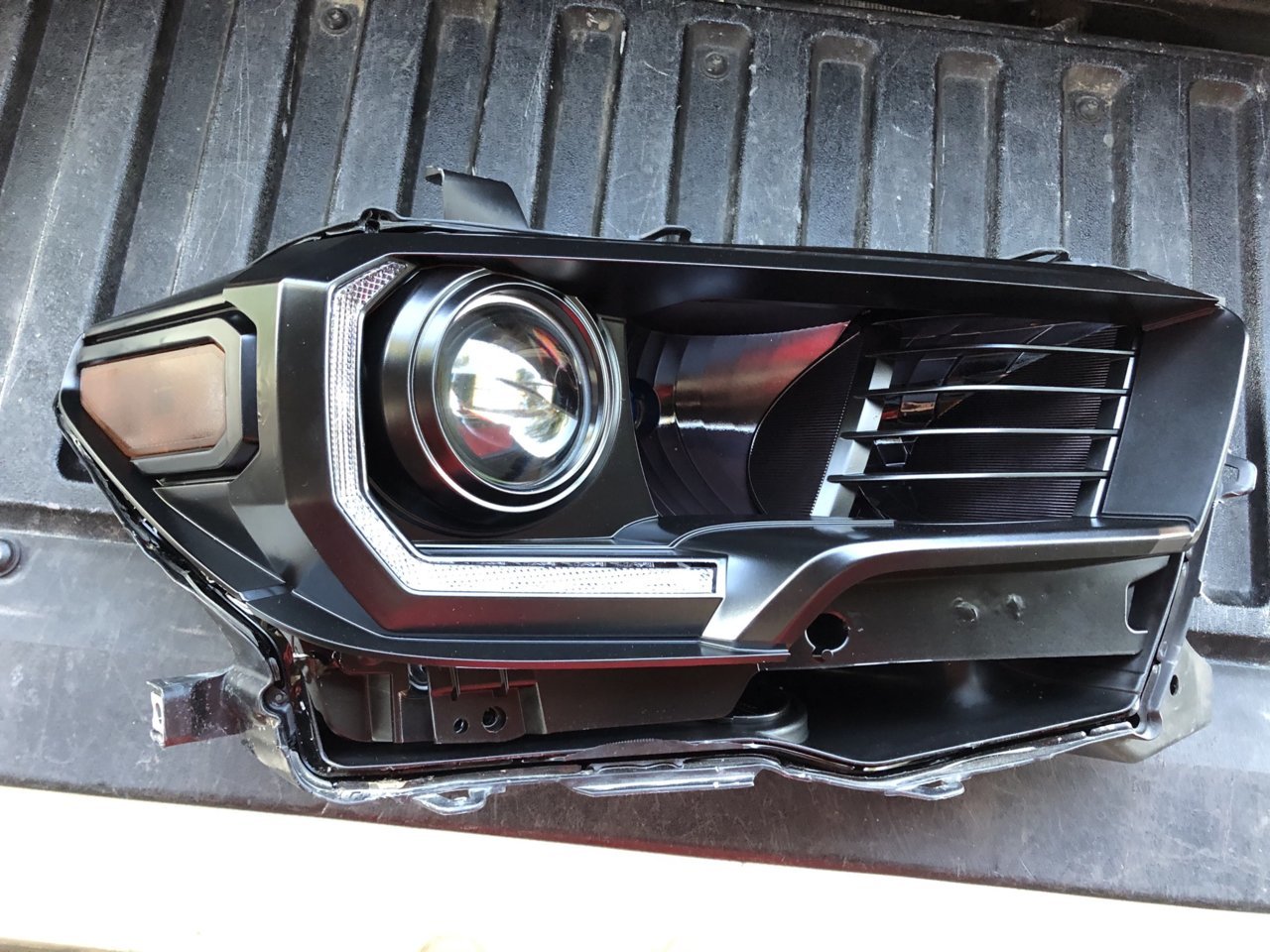

    Good deal on some projectors I found on FB market. Sadly I'm still skittish to crack mine my open so here you for anyone wanting to retro fit.

  3. Feb 12, 2020 at 6:53 PM
    #1003
    Dilly

    Dilly Well-Known Member

    Joined:
    Oct 10, 2019
    Member:
    #307657
    Messages:
    140
    Gender:
    Male
    LOUISIANA
    Vehicle:
    2019 MGM SR
    Also here some cheap sr/sr5 headlights to get you driving while the retro is under way.

  4. Feb 12, 2020 at 7:25 PM
    #1004
    Snaeper

    Snaeper Four Cylinders Strong!

    Joined:
    Jan 9, 2018
    Member:
    #240752
    Messages:
    1,235
    Gender:
    Male
    First Name:
    Martin
    Phoenix, AZ
    Vehicle:
    2019 Quicksand SX 2.7 4x4
    SnugTop Rebel, Infinity Kappa's, ToughDog 40mm
    Well I plan on retrofitting the OEMassive/Tacomabeast headlamp like MESO did (albeit without all the fancy LED work he did) if I retro anything. Quad Bi-Xenon/Bi-LED would be sexy.

    bonnfabrication likes this.
  5. Feb 12, 2020 at 7:59 PM
    #1005
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    322
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD OR DCSB 4x4
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s front bumper, custom roof rack
    I am thinking of doing the same thing. but I do want the fancy LED Halos. so im getting ready to lose my mind and some serious cash in this quest.

    1bad2k likes this.
  6. Feb 12, 2020 at 11:03 PM
    #1006
    1bad2k

    1bad2k Well-Known Member

    Joined:
    Aug 9, 2009
    Member:
    #20889
    Messages:
    3,331
    Gender:
    Male
    Lone Star State
    Vehicle:
    2017 Tacoma TRD PRO
    One thing I'd recommend, anything LED that you want, buy from Diode Dynamics. It's a few extra bucks, but personally I think they are as good or better than OEM LED parts. Just my $.02

  7. Feb 16, 2020 at 11:09 PM
    #1007
    bonnfabrication

    bonnfabrication Well-Known Member

    Joined:
    Oct 3, 2018
    Member:
    #268273
    Messages:
    322
    Gender:
    Male
    First Name:
    Brandon
    Bremerton
    Vehicle:
    2018 Tacoma TRD OR DCSB 4x4
    Dobinsons HD MRR lift SCS F5 wheels BFG K02s front bumper, custom roof rack
    ive been looking into diode dynamics actually. lots of good stuff

    1bad2k likes this.
  8. Mar 4, 2020 at 6:31 PM
    #1008
    AY_ARONTRD

    AY_ARONTRD Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231065
    Messages:
    3,229
    Gender:
    Male
    First Name:
    Aaron
    Murrieta,CA
    Vehicle:
    2019 DCLB Cement OR 4x4
    Little help here... so I’m in the process of a bhlm and retrofit swap. Going through TRS and getting the “retro-Quik” kit.

    With that being said anyone know what high beam splitter to go with? Does not show one for a H9. Also what size halos? 80mm? Was thinking of doing switchback DRL LED’s and halos but TRS doesn’t have them on there site... any help?.

    current

    SuperBad likes this.
  9. Mar 4, 2020 at 6:51 PM
    #1009
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,741
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    I'm guessing you're going with the Rx350 retro kit? Either way not sure what splitter you will need so TRS should help when you order the kit.
    Halos are 80mm.
    https://www.theretrofitsource.com/halos-profile-pivot-switchback-LED-M-XSBHALOS?quantity=1
    I dont think TRS has just the switchback DRL's. Only RGB.
    https://www.theretrofitsource.com/r...egory_facet/Toyota?order=commercecategory:asc
    Diode dynamics does have just the switchback DRL's.
    https://www.diodedynamics.com/2016-2019-toyota-tacoma-drl-led-boards.html
    Light is looking good. :hattip:

    AY_ARONTRD and SuperBad like this.
  10. Mar 4, 2020 at 6:51 PM
    #1010
    SuperBad

    SuperBad Well-Known Member

    Joined:
    Aug 13, 2016
    Member:
    #194456
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Jason
    Dallas, TX
    Vehicle:
    2017 MGM Tacoma OR DCSB
    Truck stuff
    The high beam splitter I got for the rx350 retro are the H11 male > H11/9006 female splitter. No clue about halo.

    AY_ARONTRD and 20tacoma17 like this.
  11. Mar 4, 2020 at 10:07 PM
    #1011
    Ethan22

    Ethan22 Well-Known Member

    Joined:
    Apr 19, 2017
    Member:
    #216731
    Messages:
    158
    Gender:
    Male
    First Name:
    Ethan
    SoCal
    Vehicle:
    2017 TRD-OR 4x4

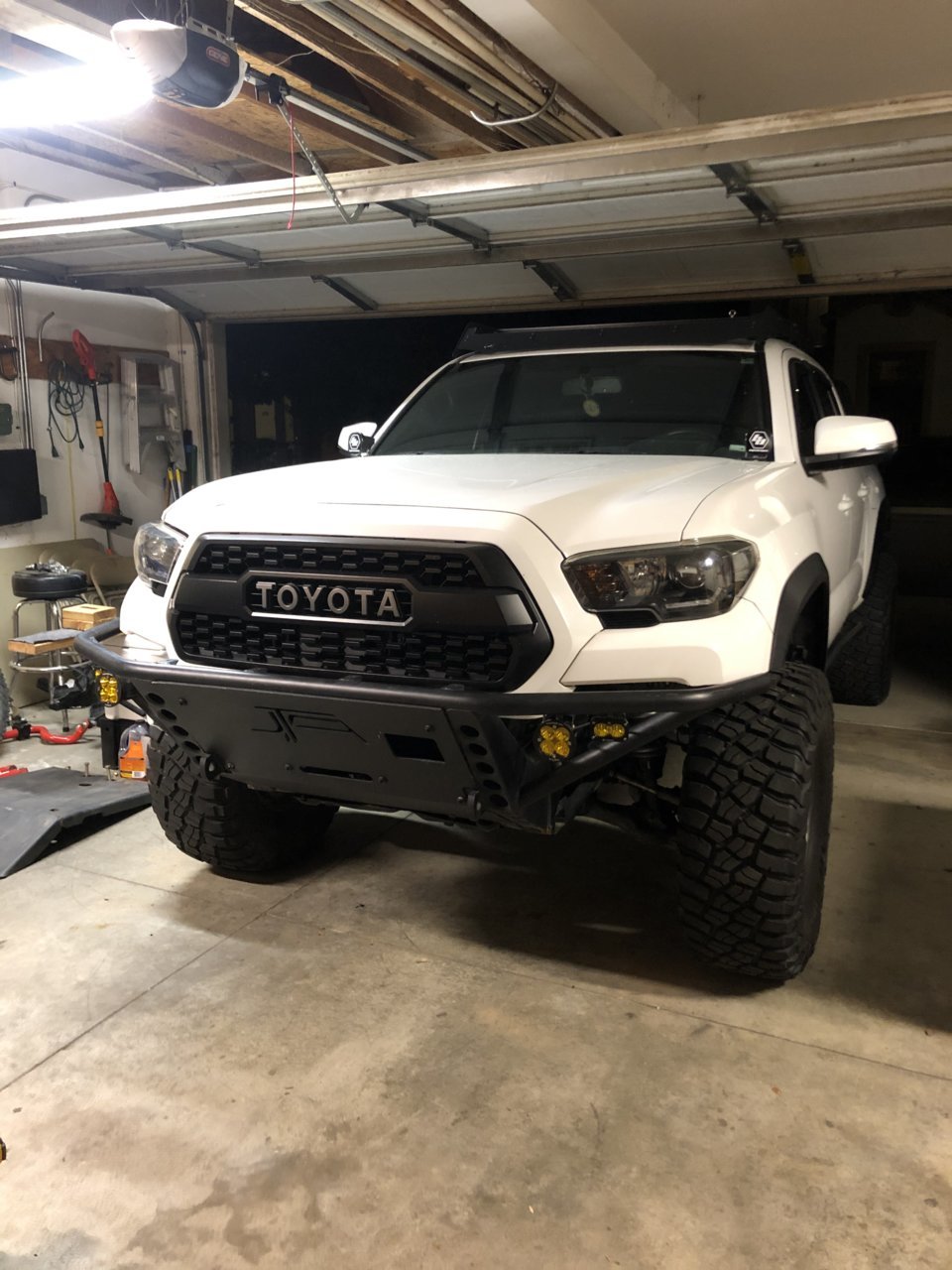

    Conquered blacking out the headlights today, one hell of a project but they came out pretty good


  12. Mar 10, 2020 at 6:36 PM
    #1012
    AY_ARONTRD

    AY_ARONTRD Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231065
    Messages:
    3,229
    Gender:
    Male
    First Name:
    Aaron
    Murrieta,CA
    Vehicle:
    2019 DCLB Cement OR 4x4
    So what’s a solid solution for doing the angry eye? Seems like many cannot get paint to stick to halos...

  13. Mar 15, 2020 at 11:28 AM
    #1013
    J_Hacker

    J_Hacker Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197896
    Messages:
    422
    Gender:
    Male
    Somewhere in Virginia
    Vehicle:
    '19 White ORLB
    OME lift, Soft Topper, TRD rims, Bro grill, MESO goodies
    General consensus of 300 degrees for 10 minutes to get them open? Also, do you set the headlights on the rack or a cookie sheet?
    Also does any one know what size dust cover fits the back of the projector?
    I see the 70mm listed below but I just wanted to confirm.

  14. Mar 15, 2020 at 3:55 PM
    #1014
    dskakie

    dskakie Well-Known Member

    Joined:
    Jul 19, 2016
    Member:
    #192352
    Messages:
    960
    Gender:
    Male
    First Name:
    Dan
    Northern CA
    Vehicle:
    2016 TRD OR DCSB
    I used 285 for 10 min and had no issues with opening mine. Did 2 reheats for around 8 min a piece and was open within 40 min (including bake times). The trim clip remover tool or whatever from Harbor Freight works awesome. Removing the remaining permaseal has been a real pain in the ass so far though. Still working on that with a heat gun when I have time.

    I went with headlight straight on the rack and it was fine

    J_Hacker likes this.
  15. Mar 19, 2020 at 1:25 PM
    #1015
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    1,067
    Gender:
    Male
    Vehicle:
    19 OR

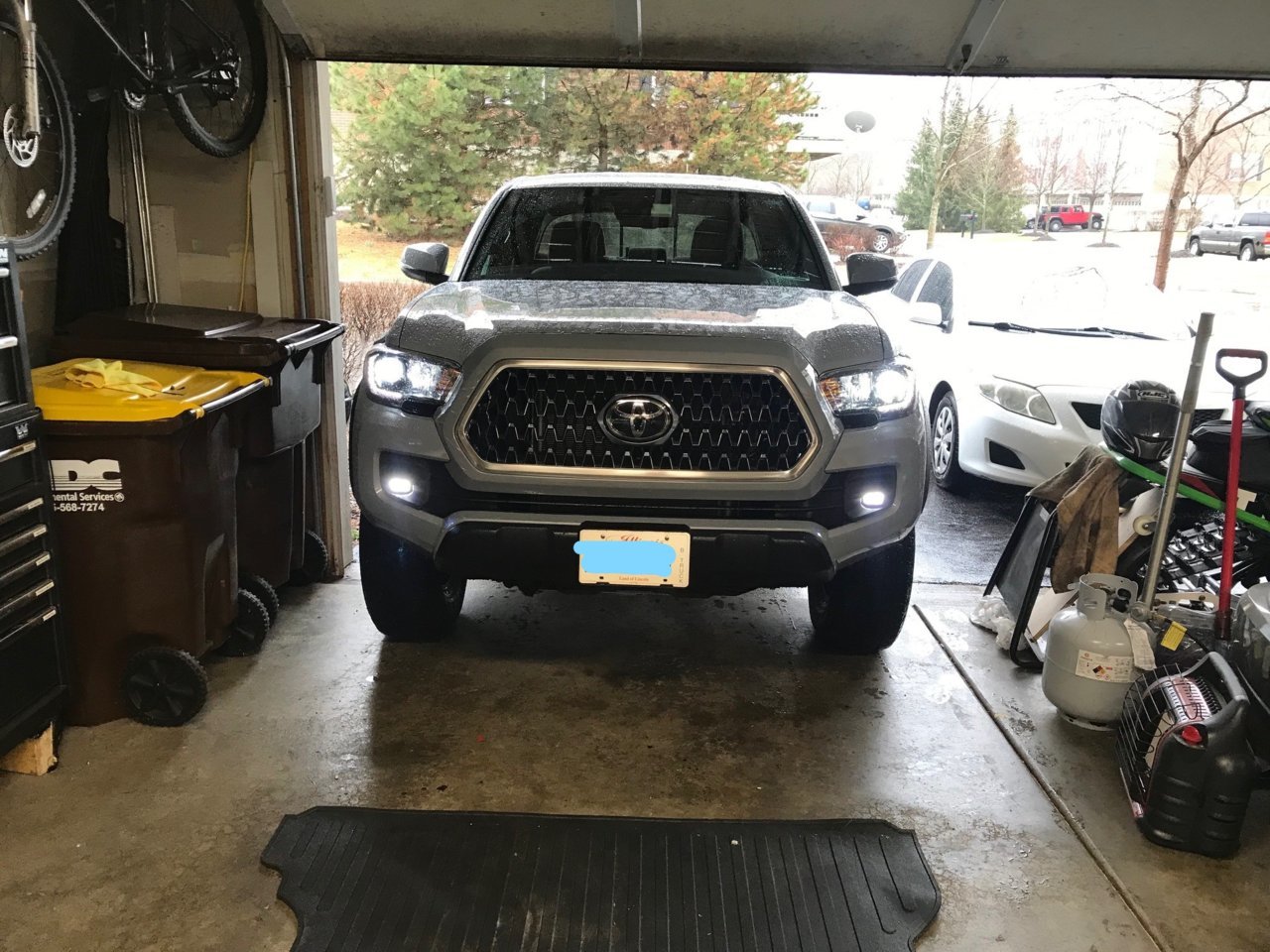

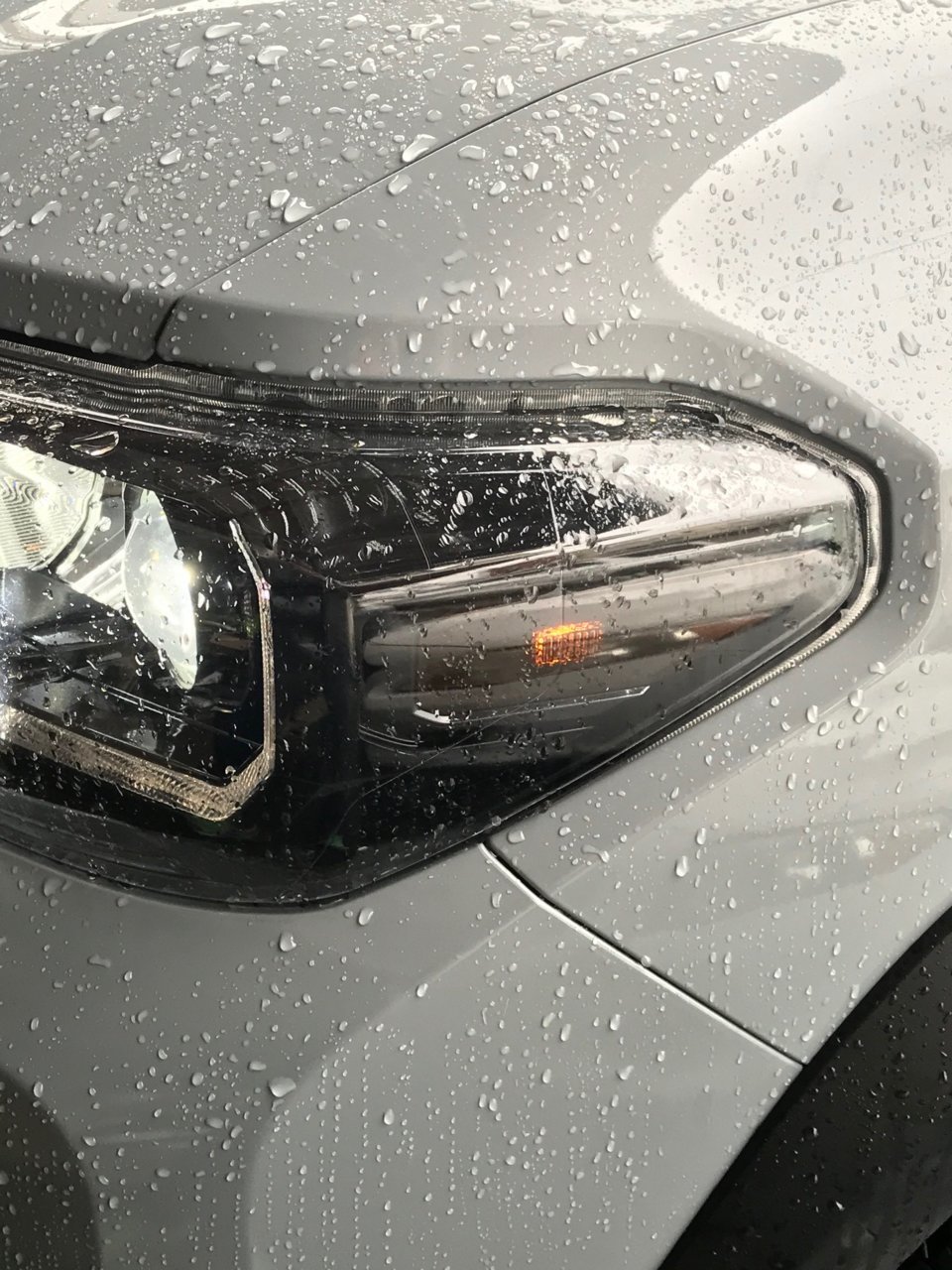

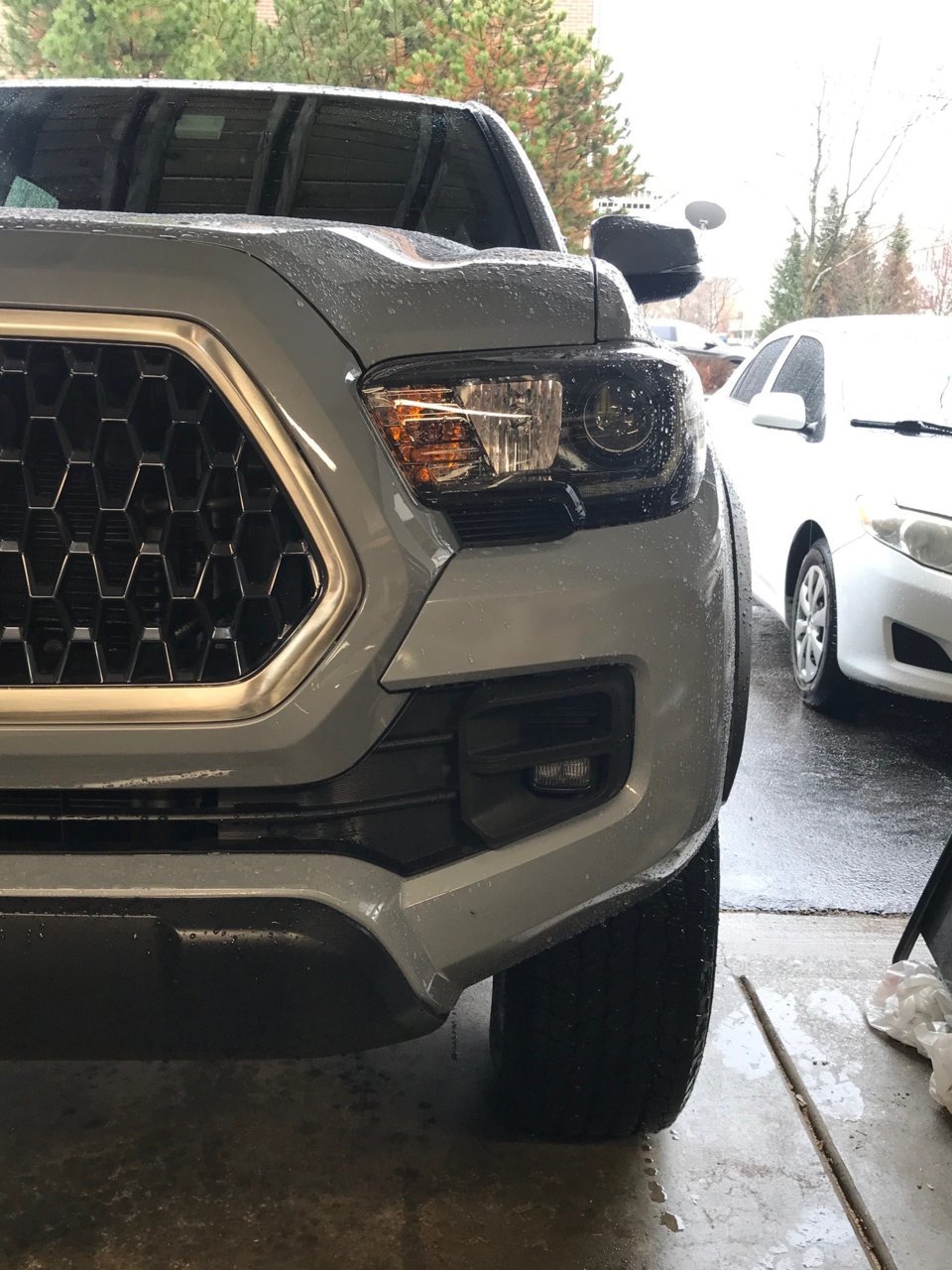

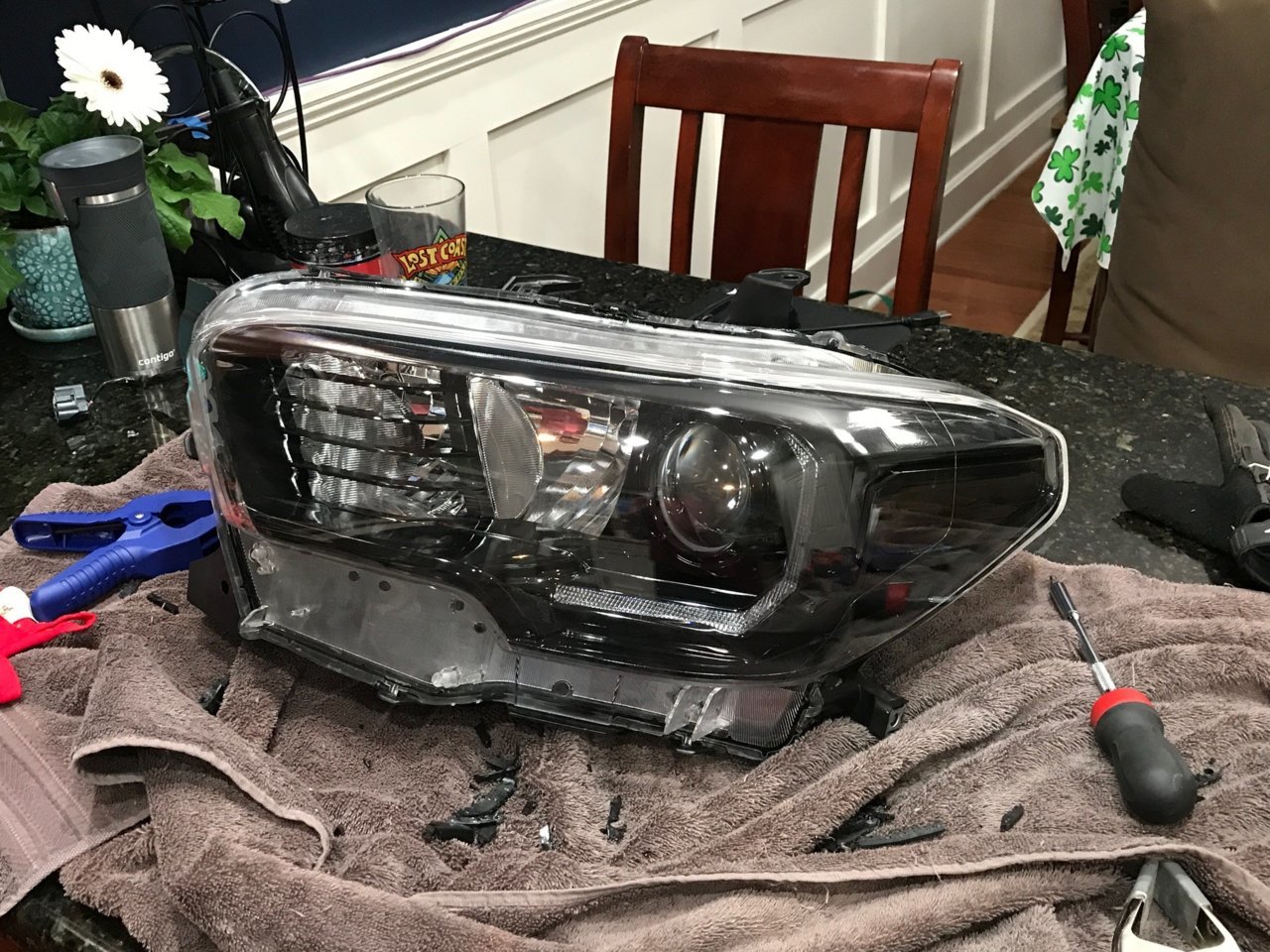

    Thanks to Corona I'm working from home so decided to tackle this. It was a pain in the ass but worth it.

    Black Light.jpg Right Grill.jpg Right Parking Light.jpg InkedLights on_LI.jpg

  16. Mar 19, 2020 at 2:30 PM
    #1016
    TacoWdrd

    TacoWdrd Well-Known Member

    Joined:
    Nov 8, 2019
    Member:
    #310185
    Messages:
    407
    Gender:
    Male
    First Name:
    Shane
    Ohio
    Vehicle:
    2019 MGM TRD OR
    :annoyed:I need to do this with all my spare time :annoyed:

    20tacoma17 likes this.
  17. Mar 21, 2020 at 10:50 AM
    #1017
    AY_ARONTRD

    AY_ARONTRD Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231065
    Messages:
    3,229
    Gender:
    Male
    First Name:
    Aaron
    Murrieta,CA
    Vehicle:
    2019 DCLB Cement OR 4x4
    Help.. wanted to see if anyone has pictures of how they ran accessory wiring in headlights... I’m installing RGB demon eyes and RGB drl boards and not sure where to route wires to outside of headlight.

  18. Mar 21, 2020 at 11:23 AM
    #1018
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,741
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17

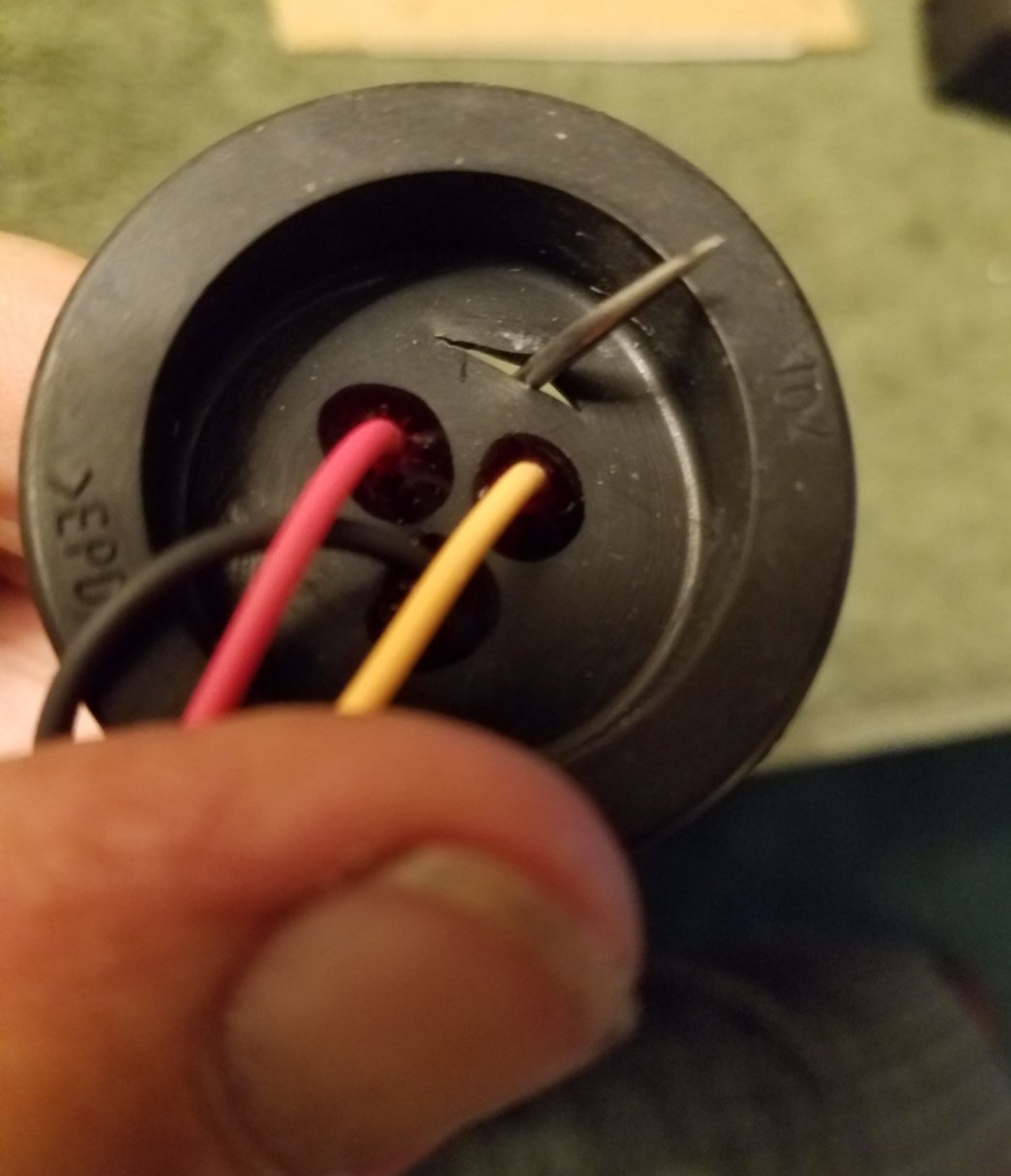

    Cut a small slit in your original drl wire grommet. After you are done, seal all around the wires with rtv black.

    AY_ARONTRD likes this.
  19. Mar 21, 2020 at 11:47 AM
    #1019
    AY_ARONTRD

    AY_ARONTRD Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231065
    Messages:
    3,229
    Gender:
    Male
    First Name:
    Aaron
    Murrieta,CA
    Vehicle:
    2019 DCLB Cement OR 4x4
    So since I’m not using stock wiring just cut both ends and use it as a seal? That would be for both the drl board and the demon eye wiring correct? What about for the wiring for the projector itself? Would that just pass through low beam grommet? Thanks for the replies!

  20. Mar 21, 2020 at 11:53 AM
    #1020
    20tacoma17

    20tacoma17 Well-Known Member

    Joined:
    Nov 8, 2016
    Member:
    #201910
    Messages:
    6,741
    Gender:
    Male
    Vehicle:
    2017 DCLB Sport AT
    Lifted on 275/70/17
    Yes you can just cut the wires on both sides and use for as many wires that will fit. If you are talking about the high beam shutter wire, then yes it can also go through there. Not sure of your setup? Also, I'm no expert by any means. :hattip:

    AY_ARONTRD likes this.
