3rd Gen Center console switch panel mod

Discussion in '3rd Gen. Tacomas (2016+)' started by Movementwarrior, Oct 13, 2021.

  1. Oct 13, 2021 at 6:36 PM
    #1
    Movementwarrior

    Movementwarrior [OP] TACOTIME

    Joined:
    Oct 12, 2021
    Member:
    #379503
    Messages:
    13
    Gender:
    Male
    Vehicle:
    '21 Green OR
    Hey everyone!


    Ive been doing a lot of little projects on my '21 OR Taco! It has been pretty awesome to learn how to do everything from electrical to welding etc. As far as this mod goes:

    Ive been wanting to get rid of that freaking wireless charger out of my center console as I don't use it and I've heard/ read a lot of issues with bubbling etc.

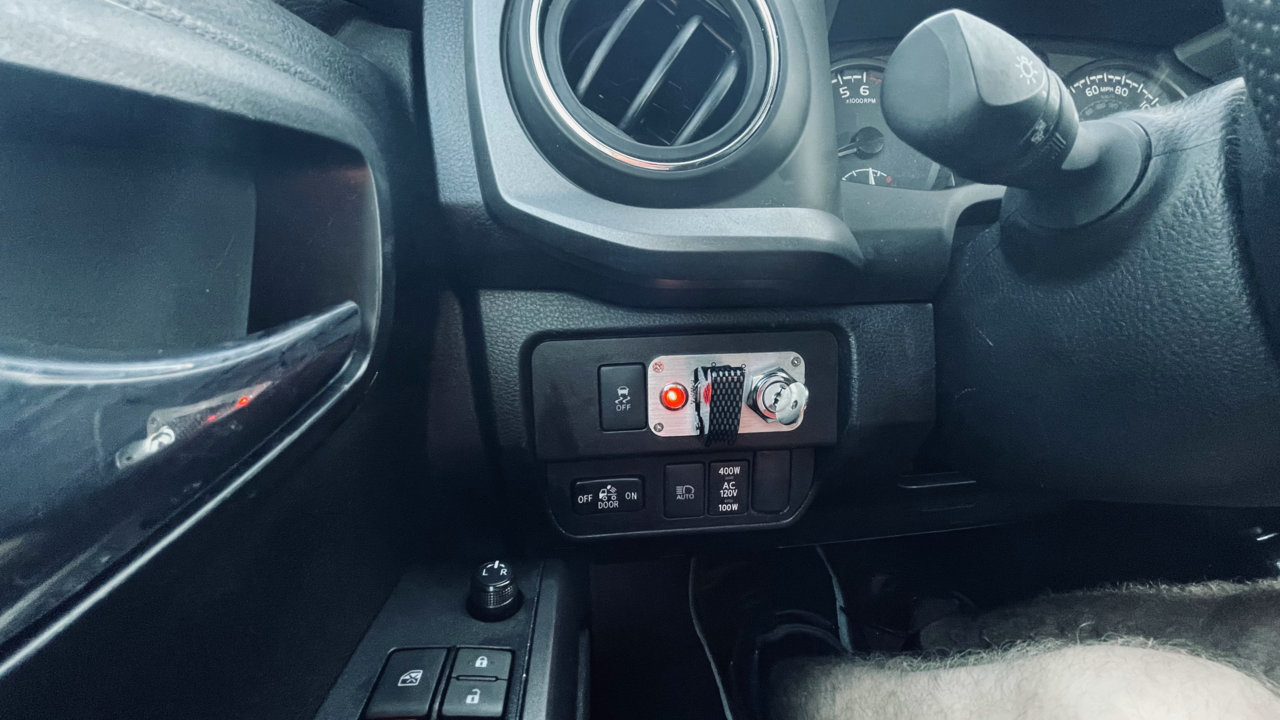

    So originally, I installed a keyed kill switch and switch on the left driver control panel. for my rear bed rack pod lights. Pic below:


    Once I started adding more accessories (ditch lights, more pods, VHF-- more to follow) I wanted to have a centralized location for all of my switches/ accessories.

    I bought a 6 gang switch panel (here) https://www.amazon.com/gp/product/B08GS36N35?ie=UTF8

    Im not a complete fan of the quality of the plastic or the carbon fiber look but this was my test run.

    I ended up having to do a lot of cutting, adjusting and making a bracket/ faceplate for the switch panel

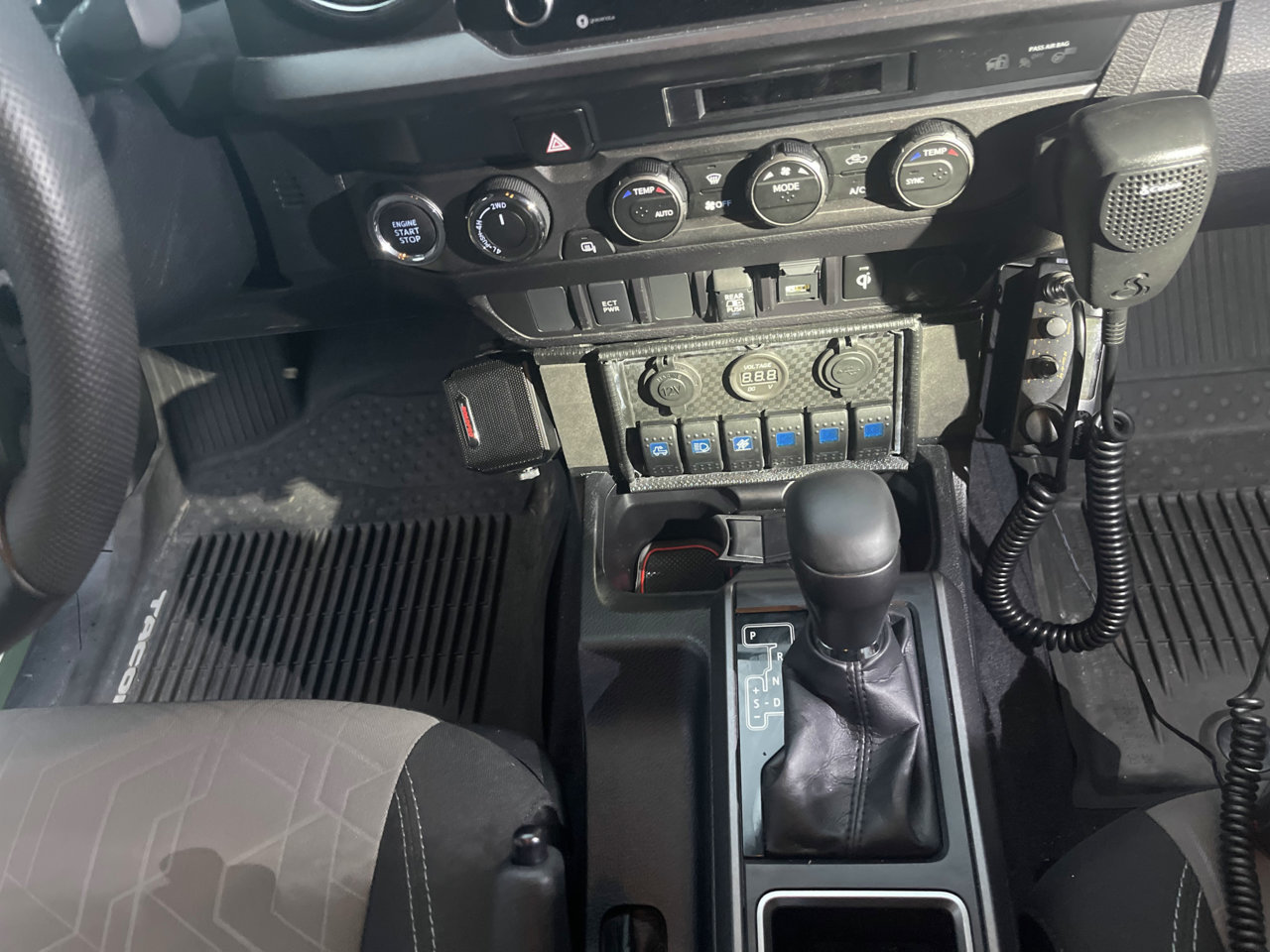

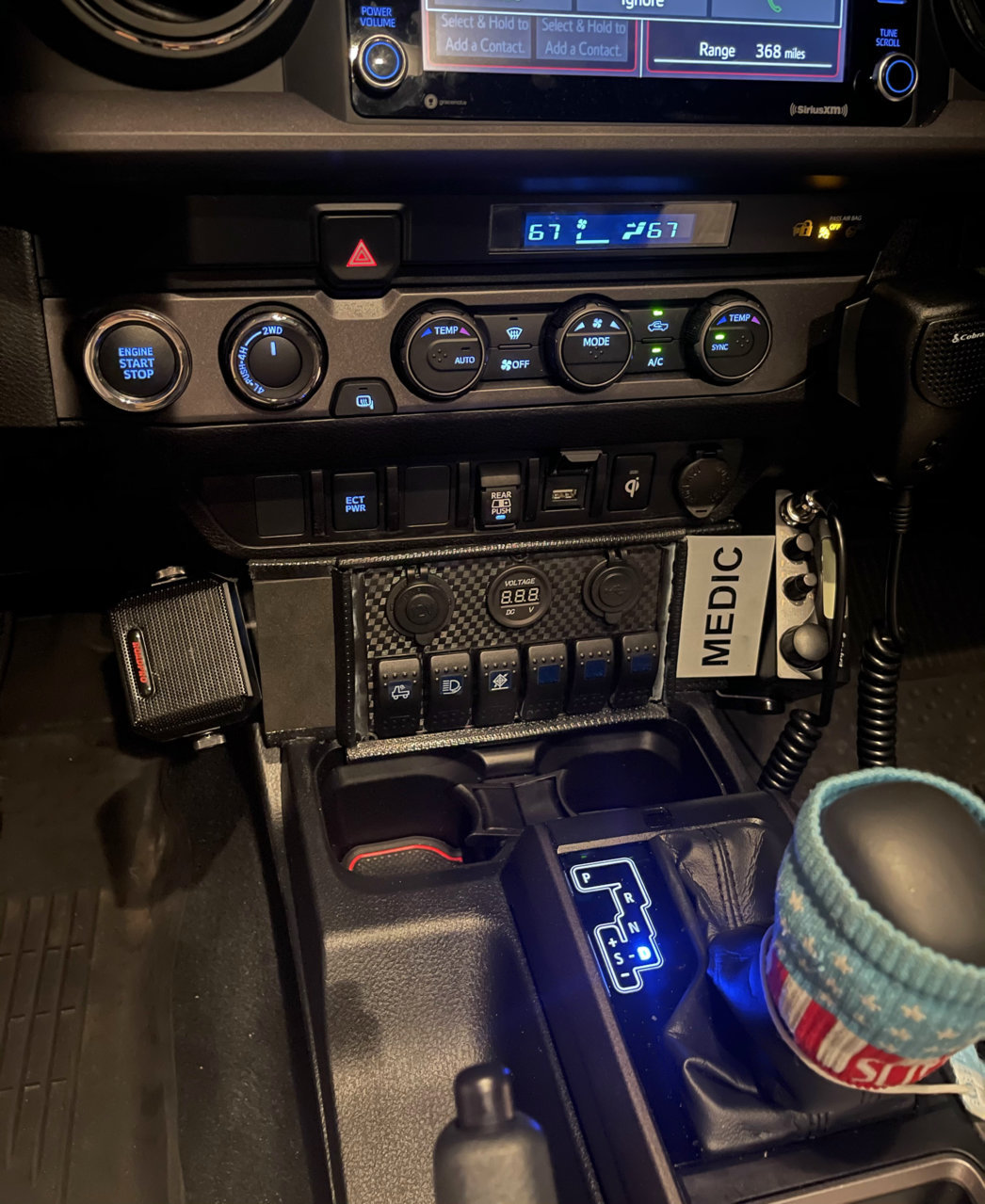

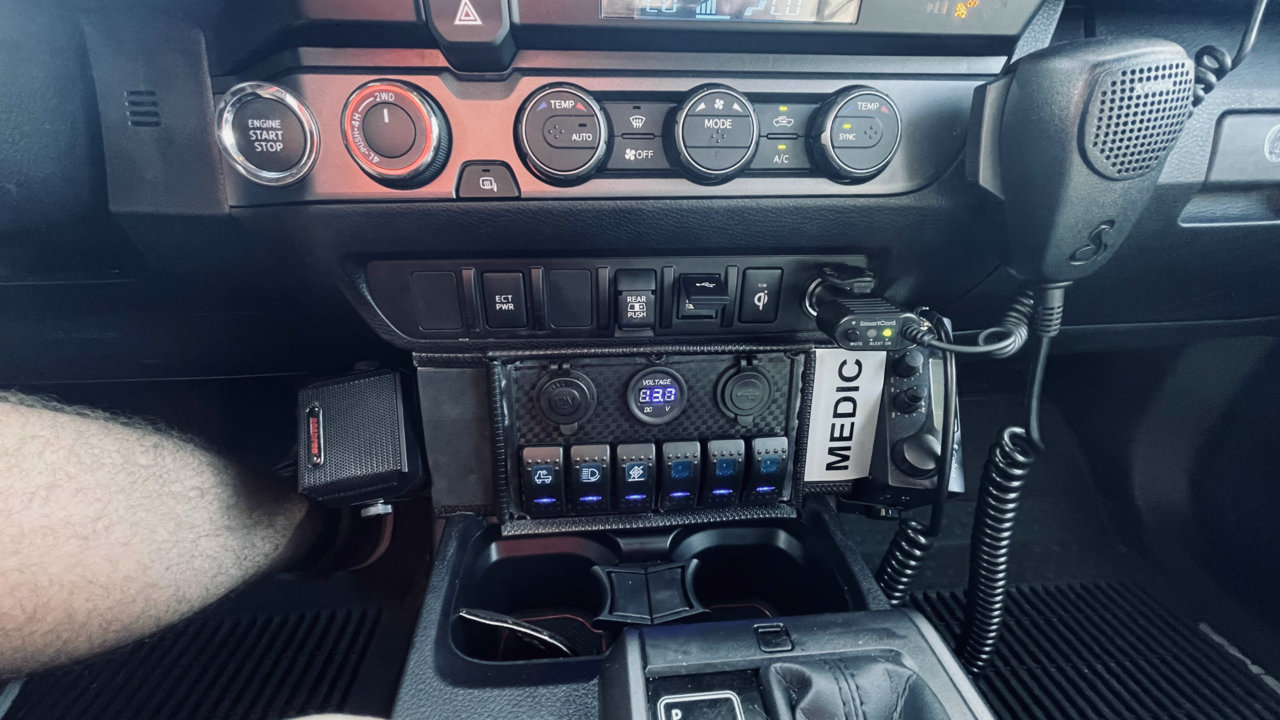

    So far, its ran pretty nicely. I will try and post more photos tomorrow when its light out but here are some photos of the wiring and panel.

    7E4CC830-201C-4093-B141-D5C8ED23DEC9.jpg CC94BB77-755E-4C69-A741-B5C8F5199AB8.jpg 394F08DE-2E52-42D1-B265-63A6744DA7BF.jpg 2013447E-B4A8-45C3-8F0C-B2277CC8EA5B.jpg

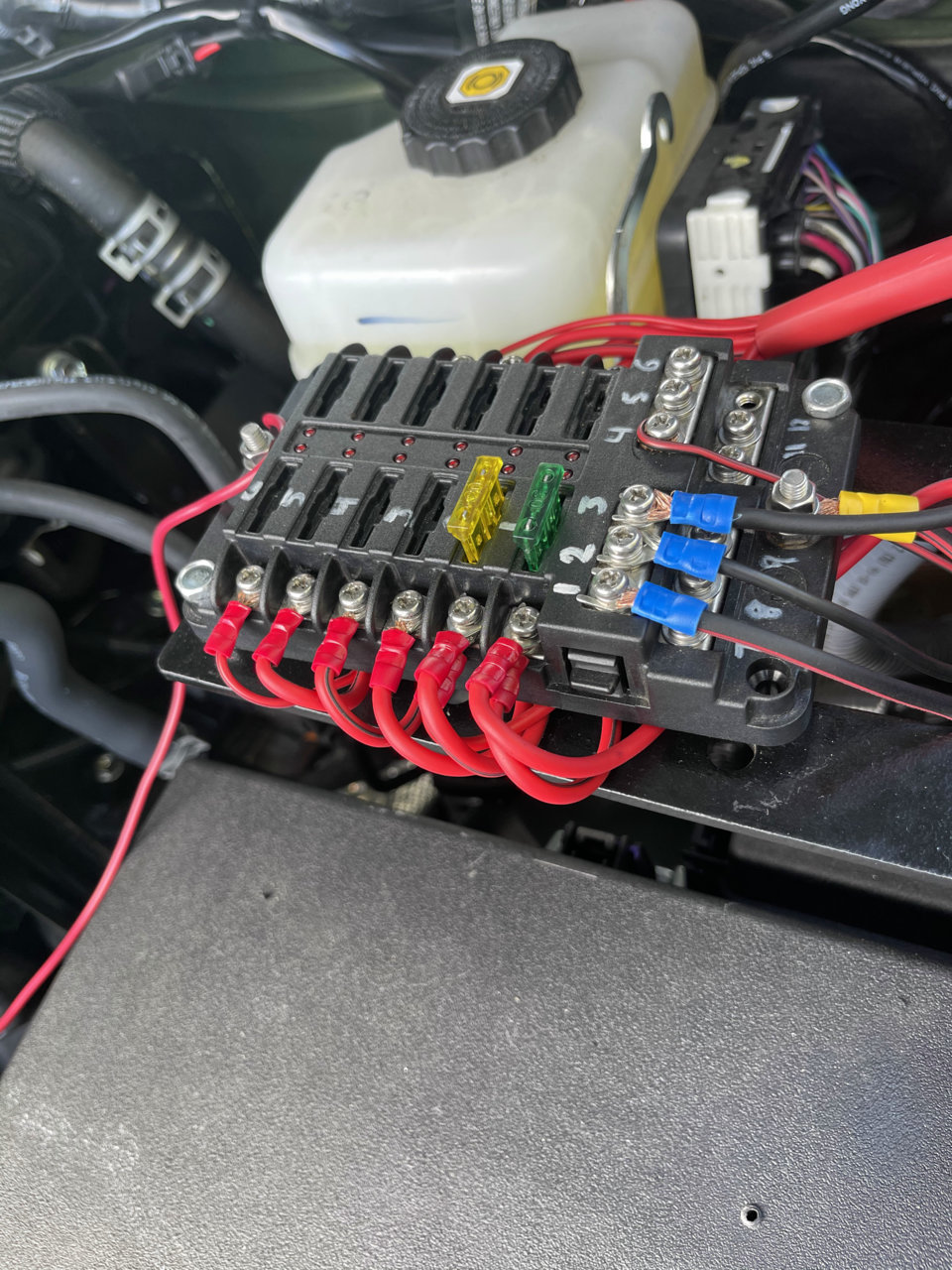

    I ran conduit from the firewall on the drivers side in the engine well. I used two L brackets to mount a separate fuse box that all of my accessories will go on to. This is so that I can keep my aftermarket things separate and also will be able to control when power is ran to them. Just extra and redundancy that is probably not needed but hey ‍♂️ I enjoy it.

    Let me know if you guys have any questions or want any details on how the wiring/ install was done!!


    Thanks,


    K
