3rd GEN Front DIFF vibrations

Discussion in '3rd Gen. Tacomas (2016-2023)' started by 2017 TRD Taco, Dec 6, 2018.

  1. Dec 6, 2018 at 8:51 AM
    #1
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    Ok people I really need help with this one.

    I have a lifted 17 O/R 4x4 thats getting really bad vibrations at higher speeds. I already did the ECGS bushing install and it seemed to help a little bit but after a day or so it came back. Now I am getting a rumble strip vibration at lower speeds also a vibration at 60mph and up that i can feel in the pedals and steering wheel. I still need to figure my pinion and driveshaft angles. I really hope I don't have to uninstall everything I've done to send it to Toyota to get it fixed.

    ANY help would be appreciated, I really don't know what else to do. I am in the Houston area so if anyone knows any taco gurus please let me know.

    Thanks in advance

    Setup
    Front: FOX 2.5 DSC's ext. travel w/600lb springs set at 23 thread LH and 20 RH
    UCA's are Camburg Kinetics
    Diff drop

    Rear: FOX 2.5 DSC's
    ICON RXT's without extra leaf installed
    OME fk29 CB drop

    Wheels: SCS 17x8.5 Ray 10's

    Tires: 285/70/17 Ridge Grappler's

    Nunya Bizness likes this.
  2. Dec 6, 2018 at 8:56 AM
    #2
    Unchained 5150

    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,421
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.
    Does it go away in 4x4?

  3. Dec 6, 2018 at 8:56 AM
    #3
    TacoRated

    TacoRated Do the chickens have large talons?

    Joined:
    Apr 18, 2016
    Member:
    #184657
    Messages:
    601
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DCSB TRD OR
    High speed, special purpose duct-tape noise cancellation LCAs. Redline Tuning hood struts Hefty Fabworks Rock Sliders Trifold Bed Cover TRD Pro Grille
    Is the lower speed about 30mph?

  4. Dec 6, 2018 at 8:57 AM
    #4
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    to be honest not really

    Nunya Bizness likes this.
  5. Dec 6, 2018 at 8:57 AM
    #5
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    yes on the lower speed rumble strip vibes

    Nunya Bizness likes this.
  6. Dec 6, 2018 at 9:04 AM
    #6
    TacoRated

    TacoRated Do the chickens have large talons?

    Joined:
    Apr 18, 2016
    Member:
    #184657
    Messages:
    601
    Gender:
    Male
    Colorado
    Vehicle:
    2016 DCSB TRD OR
    High speed, special purpose duct-tape noise cancellation LCAs. Redline Tuning hood struts Hefty Fabworks Rock Sliders Trifold Bed Cover TRD Pro Grille
    So it could be the tires or brakes. With the tires they may be off balance. When’s the last time you had them checked?

  7. Dec 6, 2018 at 9:07 AM
    #7
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    I think i might know what the low speed is but high speed. . . The whole front of the truck vibrates

    Nunya Bizness likes this.
  8. Dec 6, 2018 at 9:08 AM
    #8
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill

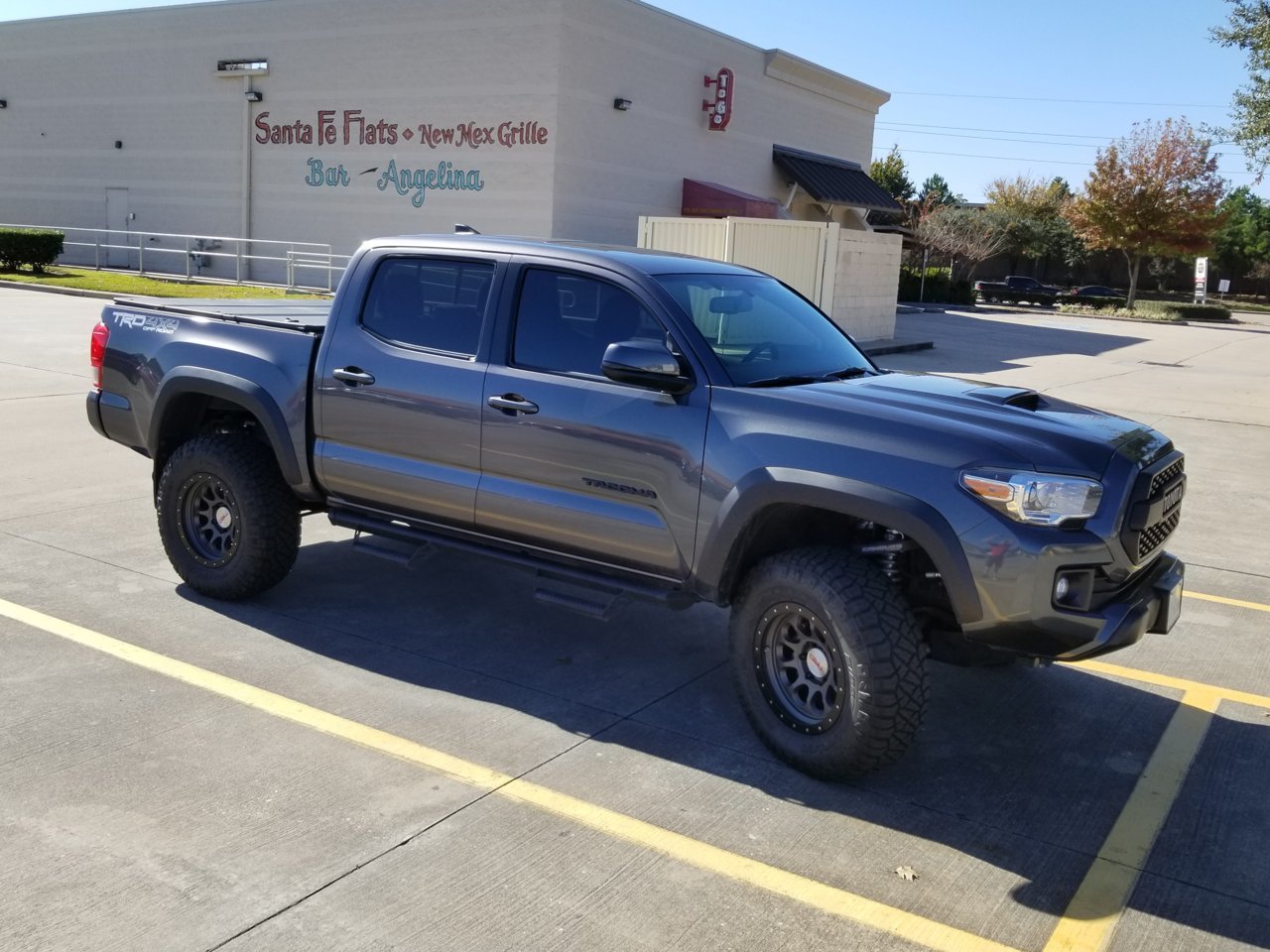

    Here's my TRD


    SilverII and Nunya Bizness like this.
  9. Dec 6, 2018 at 9:10 AM
    #9
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    I just got the whole thing put together. The wheels and tires wheel done by someone I know and he owns the shop

  10. Dec 6, 2018 at 9:10 AM
    #10
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    Ill take it back to him and see if that could be it

  11. Dec 6, 2018 at 9:13 AM
    #11
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    Could the front diff be low on fluid for any reason and be causing this? When I did the ecgs bushing install I caught what came out and then I just put it back it. I was about to change the diff fluid to see if I can find any matter in the bottom of it.

  12. Dec 6, 2018 at 9:14 AM
    #12
    TheTacomaInn

    TheTacomaInn Well-Known Member

    Joined:
    Oct 3, 2017
    Member:
    #231882
    Messages:
    224
    Gender:
    Male
    First Name:
    Rob
    Littleton, CO
    Vehicle:
    17 OR Access Cab, OME 887,HD Dakars, 285s
    Subbed for the solution.

    I have a 17' OR having similar issues. Did lift, CB drop, real axle shims, and ECGS bushing and still having similar vibrations mainly at 45-50mph. Short of doing the front diff drop (which i really don't think will help) I'm not sure what else to try.

  13. Dec 6, 2018 at 9:18 AM
    #13
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    ...agreed i dont know what else to do. I have not installed shims yet... and i did try removing the diff drop and it got worse for me at all speeds. I might know what the low speed vibration might be, as for the high speed ... thats what i am worried about. I have to drive on Grand Parkway outside of Houston and the speed is 75mph, which means 85 to others. I know lifting a truck and putting on bigger tires will cause this but its frickn BAD at high speed

  14. Dec 6, 2018 at 9:19 AM
    #14
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    9,652
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    Ford F350, Lexus RX450h, FZJ80, Jeep YJ
    Does it occur under braking?

    If so it could be your rotors. I needed mine turned at 20k

    2017 TRD Taco[OP] likes this.
  15. Dec 6, 2018 at 9:25 AM
    #15
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    nope, nothing while braking. the worry is the heavy highspeep vibes. feels like its gonna break something

  16. Dec 6, 2018 at 9:28 AM
    #16
    CZ5ANM Taco

    CZ5ANM Taco Well-Known Member

    Joined:
    Apr 1, 2016
    Member:
    #183036
    Messages:
    539
    Gender:
    Male
    BC, Canada
    Vehicle:
    2016 DCSB Manual 35x11.5s
    Front Suspension King Ext Fronts 700# Icon UCA delta joints JD fab spindle gussets All Pro cam tabs DuroBumps Warfab steering sleeves Rear Suspension Old Man Emu leafs -Radflo Ext travel rears Timbrens ubolt flip kit SCS stealth 6 Wheels 35x11.5 Maxxis Razr [ 34.5 x 9.75 on 8.5 rim not on truck] Heavy Stuff Relentless front bumper Smitty 3rd Gen winch Big County Customs skid plates Arc One industries rear HC bumper RCI sliders Misc Arb dual compressor Arb rear locker Pelfreybilt fuse panel tray Cali raised ditch light mounts Cali raised bed stiffeners 5th Gen 4runner LED fog lights Racks Retraxone XR tonneau Yakima load bars Sherpa Roof Rack Camping Smittybilt Tent Dometic CFX50 fridge
    Check your new wheels for signs a weight didn’t come off. You’d see the residue from double sided tape.

    Had that happen to mine.

    TacoRated and 2017 TRD Taco[OP] like this.
  17. Dec 6, 2018 at 9:39 AM
    #17
    TacoTRD78

    TacoTRD78 Well-Known Member

    Joined:
    Jul 27, 2015
    Member:
    #160390
    Messages:
    6,725
    Gender:
    Male
    First Name:
    John
    Stuart,fl
    Vehicle:
    15 tacoma trd off road
    4X Innovations Sliders Tech deck Bilstein 5100's OME 885 CB radio install Rear diff breather mod After market front bumper lights Redline hood struts Shorty antenna door seal protectors Glove box/ Center console motion light Trailer harness plug relocation mod/Edit SOS HC rear bumper Ditch mount Lights with CBI brackets morimoto fog lights
    Is everything tight?Ball joints ok? a possible bent rim. Rotor maybe warped. Carrier bearing shot? I would definitely do a balance and alignment. Good luck OP keep us posted.

    2017 TRD Taco[OP] likes this.
  18. Dec 6, 2018 at 9:40 AM
    #18
    Ronzio

    Ronzio Well-Known Member

    Joined:
    Feb 20, 2018
    Member:
    #245114
    Messages:
    2,720
    Gender:
    Male
    Pennsylvania
    Vehicle:
    17 DCSB TRDOR
    Check the run out on the rotors one of the two maybe is warped. Does the steering wheel oscillate back-and-forth?

  19. Dec 6, 2018 at 9:50 AM
    #19
    2017 TRD Taco

    2017 TRD Taco [OP] TX TRD

    Joined:
    Dec 6, 2018
    Member:
    #274994
    Messages:
    39
    Gender:
    Male
    First Name:
    Jeff
    Tomball, TX
    Vehicle:
    17 O/R 4x4 dcsb
    Front: Camburg Kinetics UCA's FOX 2.5's w/DSC's: LH at 23 thread, RH 20 threads Wheeler's Diff Drop Rear: FOX 2.5's w/DSC's ICON RXT's w/o extra leaf installed OME FK29 Carrier Drop SCS Ray 10's 17x8.5 w/machined TRD caps NITTO RIdge Grappler's MESO led mirrors TRD FAUX Grill
    Steering feels tight, but i can feel the vibration through the wheel at cruise speed (60 +)

    Nunya Bizness likes this.
  20. Dec 6, 2018 at 9:52 AM
    #20
    Nunya Bizness

    Nunya Bizness A-A-Ron aka Stunny Gunny

    Joined:
    Jul 7, 2018
    Member:
    #258649
    Messages:
    24,472
    Seckzy! Many like!

    And welcome to TW
