3rd Gen HID vs LED vs Halogen H11 projector headlights

Discussion in '3rd Gen. Tacomas (2016+)' started by crashnburn80, Jan 25, 2019.

  1. Dec 22, 2021 at 1:24 PM
    #5501
    Saturnine

    Saturnine I am a meat popsicle

    Joined:
    Jun 25, 2020
    Member:
    #332540
    Messages:
    1,875
    North of the wall
    Vehicle:
    17 TRD OR AC MGM
    That's a better result than anything for the taco

  2. Dec 23, 2021 at 4:34 PM
    #5502
    brandon78lusch

    brandon78lusch Well-Known Member

    Joined:
    Oct 22, 2019
    Member:
    #308678
    Messages:
    3,476
    Gender:
    Male
    First Name:
    Brandon
    Mooresville NC and Greenville NC
    Vehicle:
    2019 TRD Sport DCSB, 1978 Pontiac Firebird Trans Am
    I was looking at the vehicle lighting laws for each state and I came across this for North Carolina. I thought a general service lamp was any reflector style housing, which is anything from a halogen hand-held flashlight to a halogen reflector headlight. Can anyone explain whether this only applies to aftermarket modifications which alters light output, or if this is restricting halogen reflector headlights on cars?

  3. Dec 23, 2021 at 9:11 PM
    #5503
    JustinTRD20

    JustinTRD20 Member

    Joined:
    Apr 16, 2021
    Member:
    #362928
    Messages:
    19
    Gender:
    Male
    Vehicle:
    DCLB OR
    Recently changed my low beam H11s to H9s (by modifying the H9 itself) and a few weeks later noticed it's out. Checked the H9 and it looked fine. Tried plugging the H11 back in and that won't turn on either. It's late so I haven't got to check the fuse box yet, but is there a possibility I fried my harness? Just wondering if anyone else had a similar issue.

  4. Dec 23, 2021 at 9:28 PM
    #5504
    Toy_Runner

    Toy_Runner Well-Known Member

    Joined:
    Nov 19, 2019
    Member:
    #311172
    Messages:
    337
    Gender:
    Male
    Vehicle:
    99 4Runner SR5
    3" OME lift, heavy coils f/r 3/16" steel skids Modified Coastal Offroad diy bumper 5spd swap ('98 donor)
    A standard H9 should only draw about 10w more than an H11, well within the factory wirings ability to handle. Check the pigtail to the bulb for any signs of chafing/damaged insulation (most likely place to be damaged) then check your fuses.

  5. Dec 23, 2021 at 9:37 PM
    #5505
    JustinTRD20

    JustinTRD20 Member

    Joined:
    Apr 16, 2021
    Member:
    #362928
    Messages:
    19
    Gender:
    Male
    Vehicle:
    DCLB OR

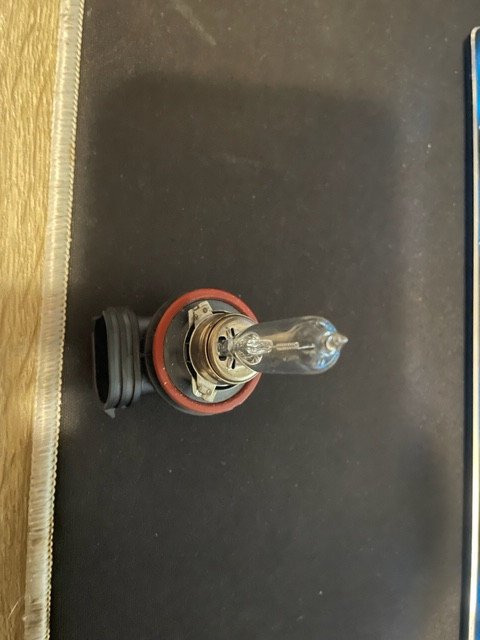

    I did notice what looked like tiny shards of glass. It's hard to see in this photo, but along the red o-ring there's a couple. IMG-2302_b6b5e3ef6a4a4a5e9140a5c1f8903bc66f20a268.jpg

    I was more surprised that the stock bulb wouldn't turn on when reinstalled. I'll check the fuse box in the morning though

  6. Dec 31, 2021 at 11:42 PM
    #5506
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,485
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Follow up on the Lexus RX350 D2S retro post with adding preferred OEM grade components vs China aftermarket.

    Additional items tested:
    Philips Xtreme +150 D2S HIDs
    Osram Xenarch +200 D2S HIDs
    Denso OEM Toyota 35w ballasts

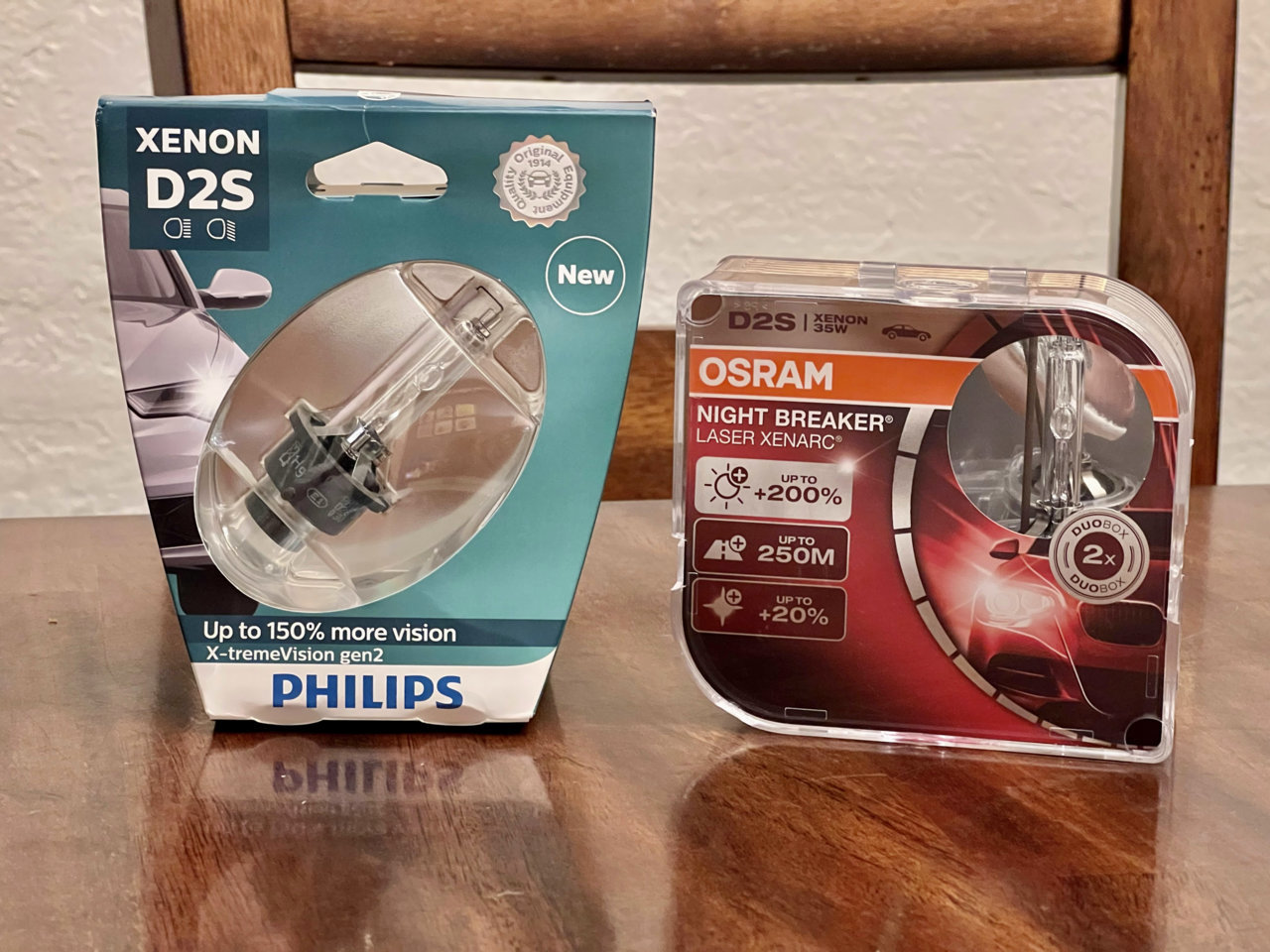

    The most advanced D2S HID bulbs on the market, Philips XtremeVision +150 and Osram Nightbreaker Laser Xenarc +200.


    First, a startup comparison between Morimoto with a Hylux 35w ballast vs Osram with an OEM Denso 35w ballast.

    Morimoto/Hylux left vs Osram/Denso right
    https://www.youtube.com/watch?v=BJNjxF7BWOA
    Very obvious which products are aftermarket vs legitimate OEM grade, startup time of OEM grade components is significantly quicker and brighter.

    Morimoto left vs Osram Xenarc +200 right (after full warm up)

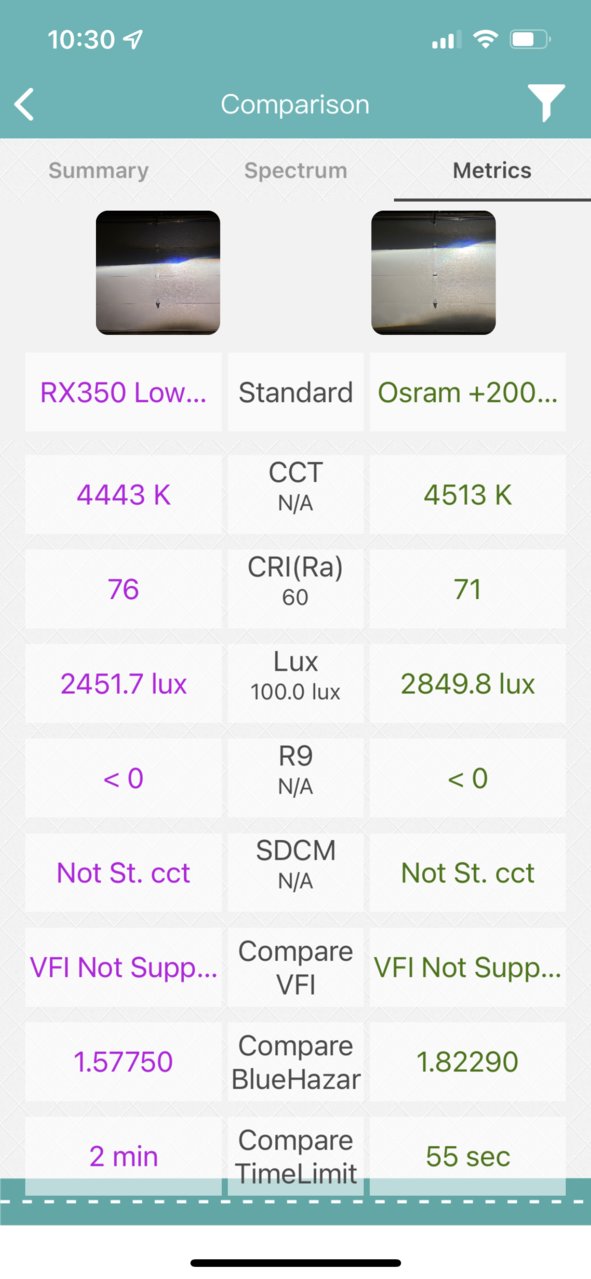

    A little challenging to tell in the photo, but the Osrams definitely have a better hot spot concentration than Morimoto.

    Output was actually much closer than I expected, and the color temps are very similar. Osrams come in at 16% higher output intensity on low beam.

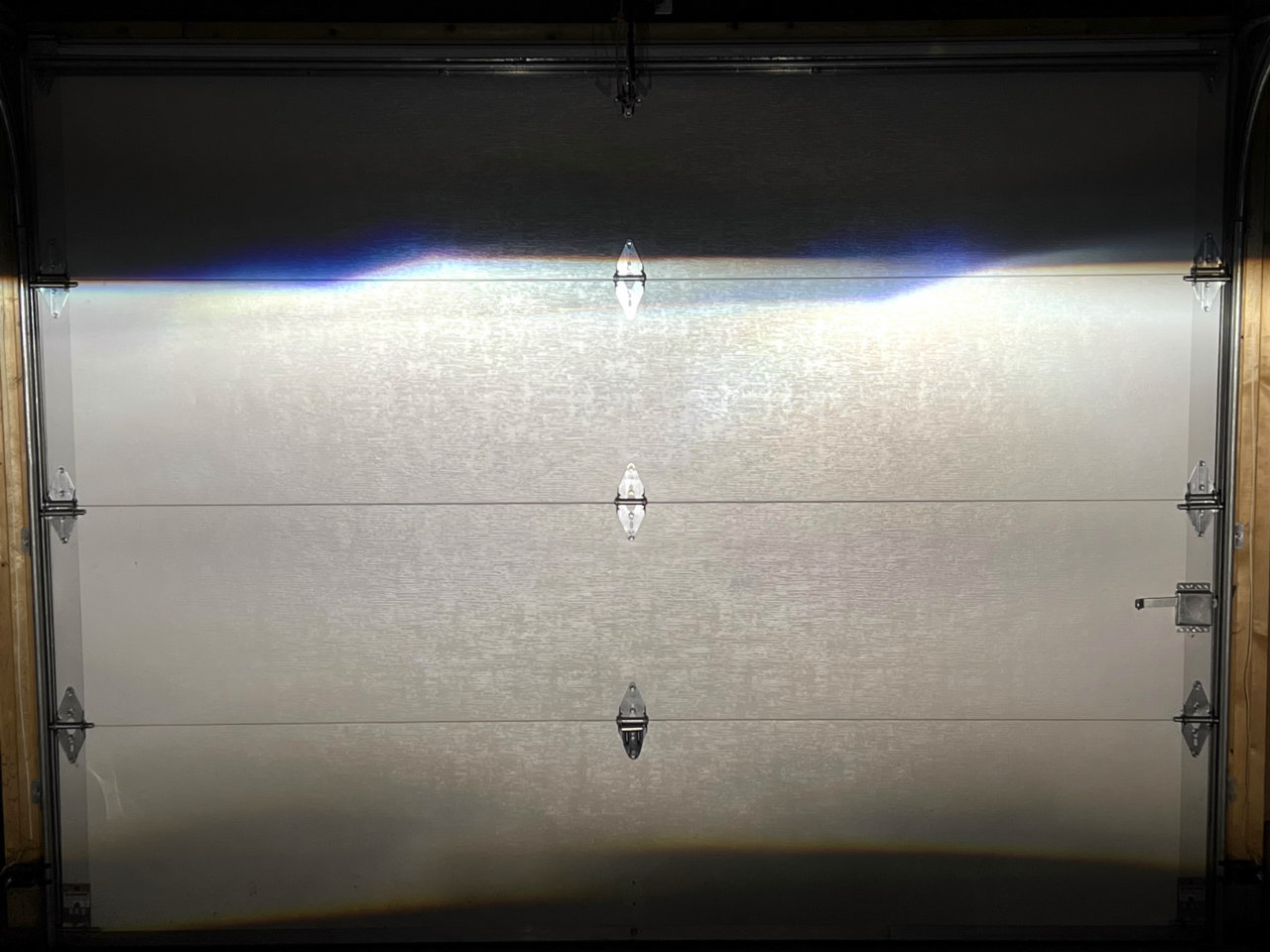

    Morimoto left vs Osram right, low beam.

    High beam the Osrams come in at 25% higher output than Morimoto

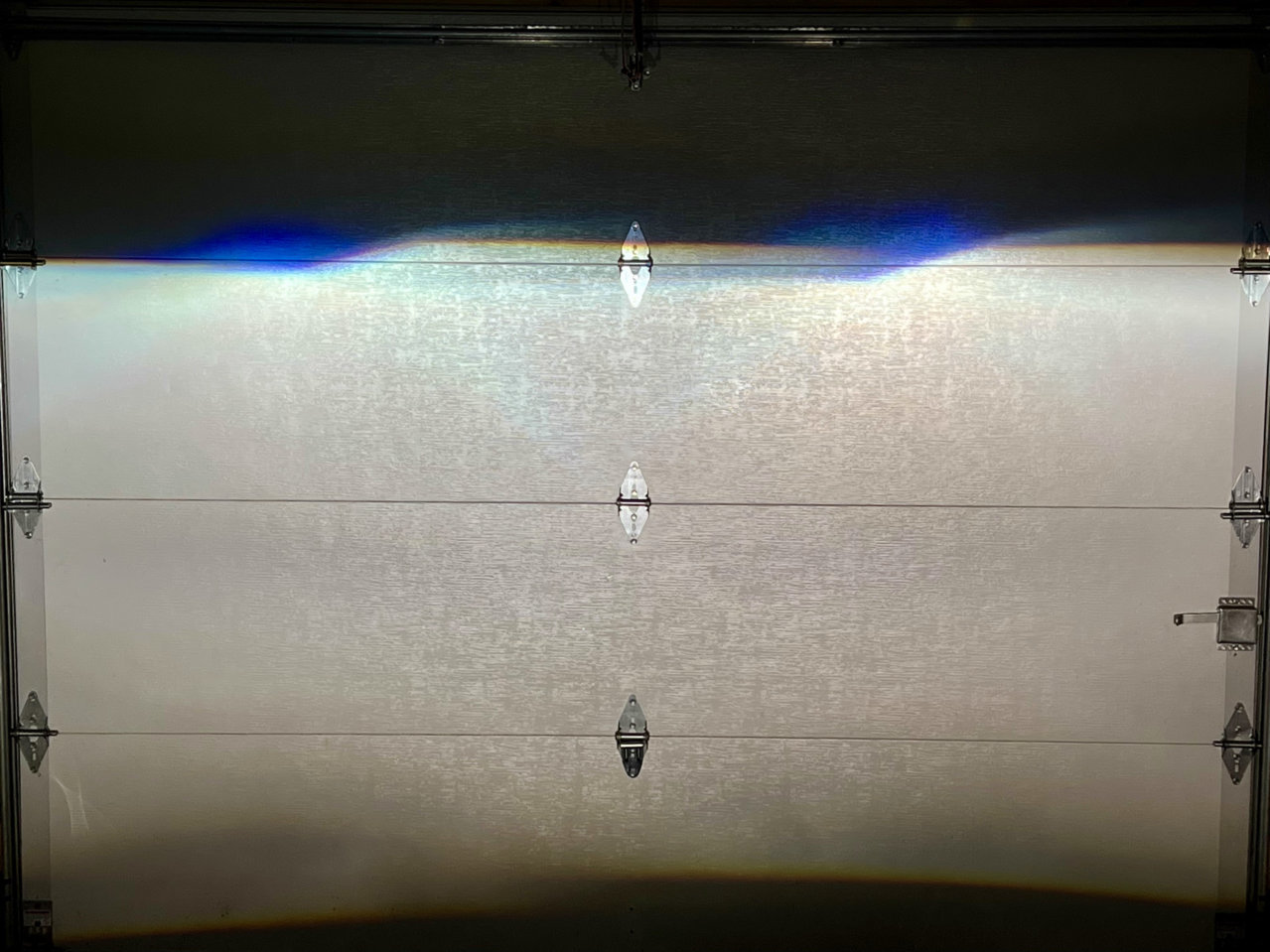

    Morimoto left vs Osram Right, high beam

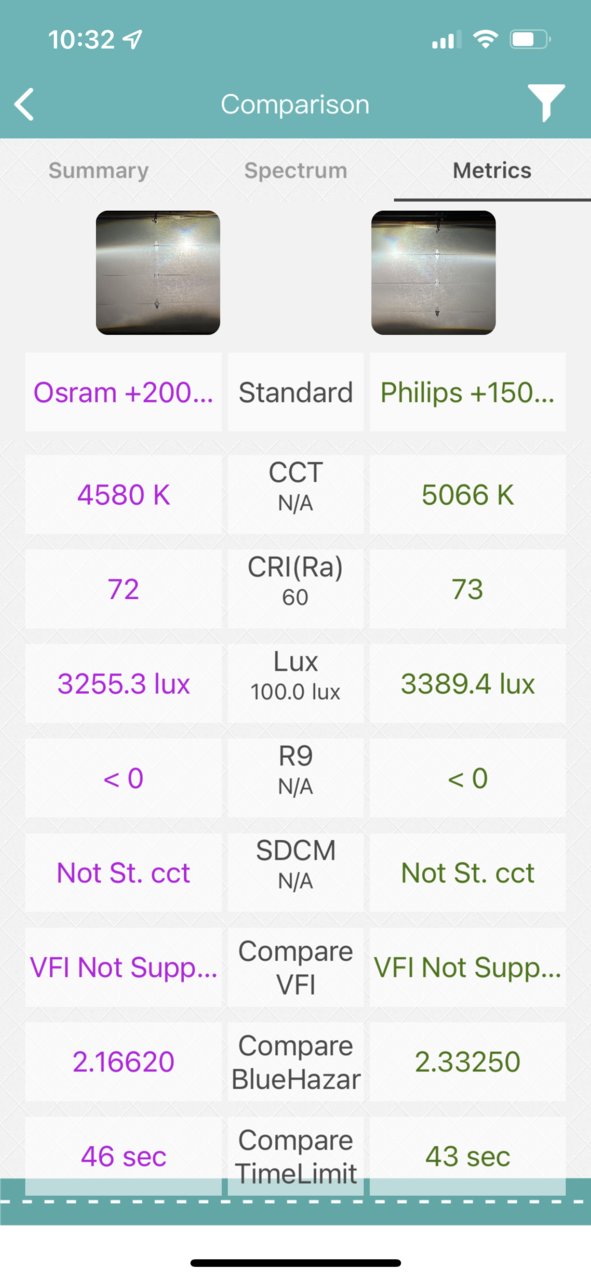

    But the Osrams Xenarcs were not the highest output intensity, Philips Xtremes put down higher numbers.

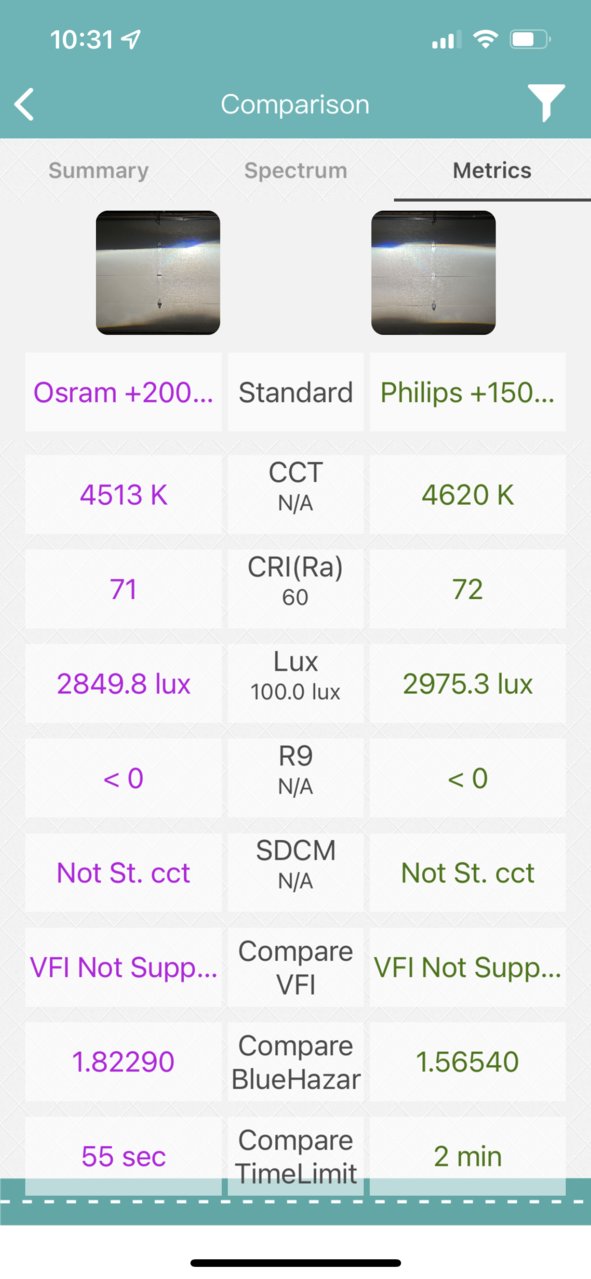

    Philips Xtreme +150 left vs Osram Xenarc +200 right

    Osram Xenacr +200 vs Philips Xtreme +150, low beam

    Osram Xenacr +200 vs Philips Xtreme +150, high beam

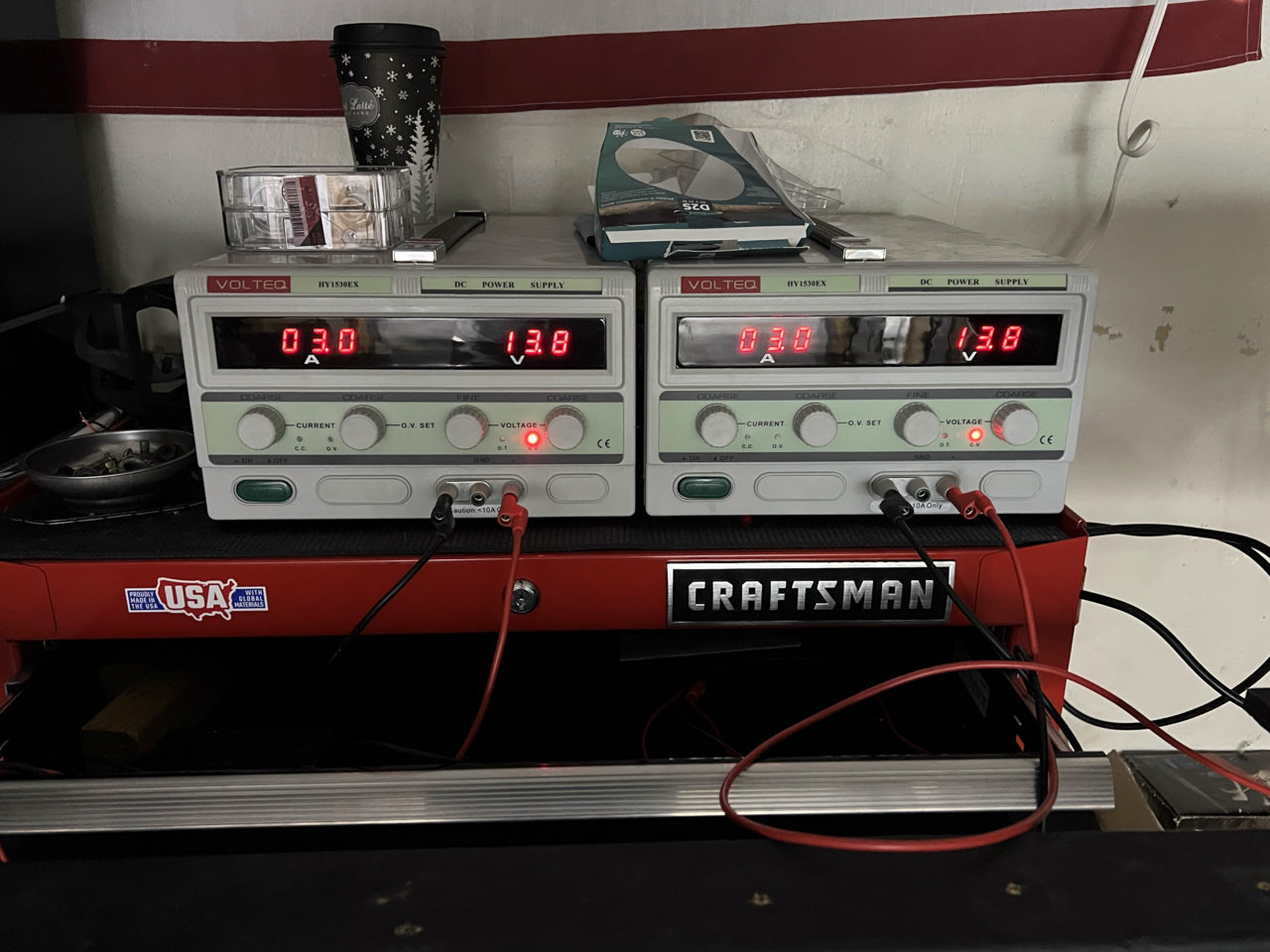

    Both the Philips and Osram had the same 3.0A draw

    OEM ballasts will draw far more power at startup than cheap aftermarket, the high power draw is used to ignite the capsule and get it to max operating output immediately, minimizing the warm up time. As such the Denso ballasts exceed the 6A draw max of my high precision power supplies on startup, meaning I have to break out the heavy hitting 30A power supplies but in doing so loose a digit of precision. For retrofitting purposes, what this means is that OEM ballasts must be run on a standalone relayed harness as the startup draw will exceed the OEM low beam circuit. (No it won't be anywhere remotely close to 30A, that is just the rating of my larger power supplies).

    The Philips Xtreme +150s deliver a ~4-4.4% gain over the Osrams Xenarc +200s. The Philips hot spot does seem visually smaller with more high color temp in the beam pattern. While peak intensity in both high and low beam goes to Philips by a ~4% margin, I personally preferred the larger hot spot and warmer color temp of the Osram Xenarc +200s.

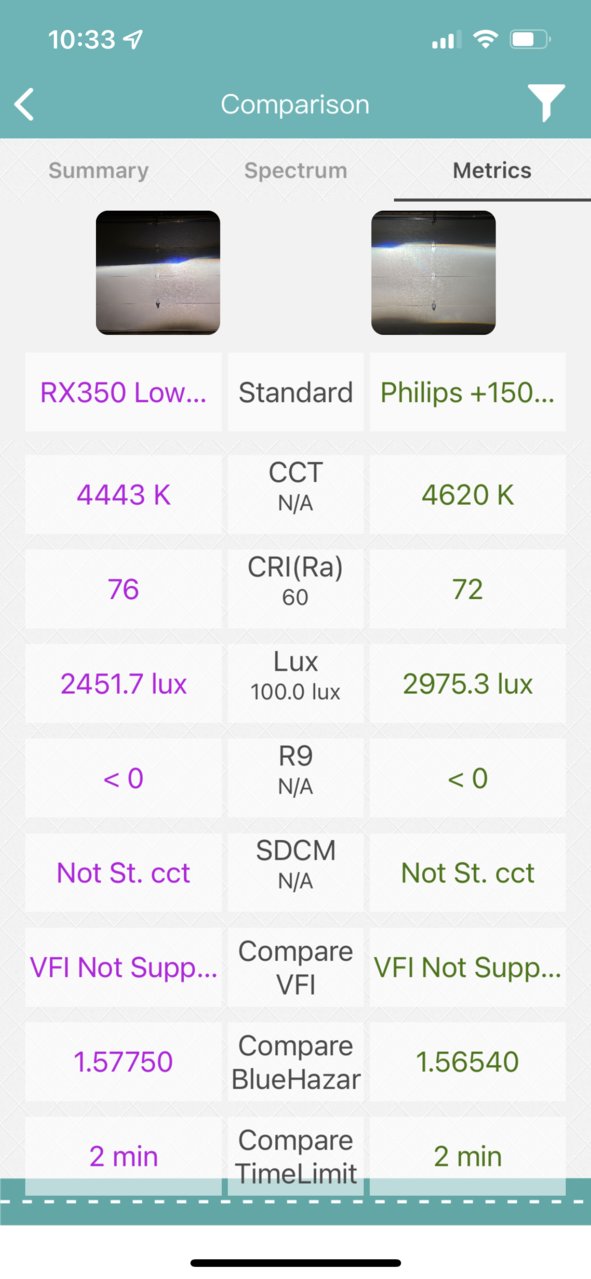

    Comparing Morimoto left to Philips right low beam, the Philips come in at ~21.4% higher in output intensity.

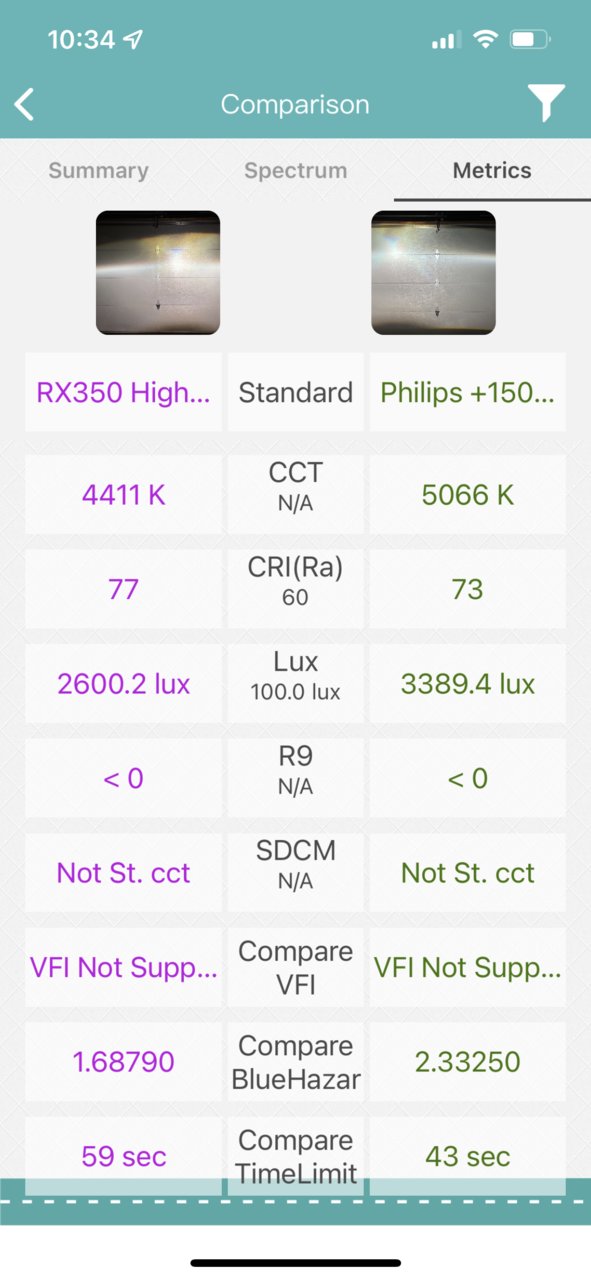

    Comparing Morimoto left to Philips right high beam, the Philips come in at ~30.4% higher in output intensity.

    Not at all surprising that the worlds leading German lighting manufactures produce superior performing lighting products, or that OEM Toyota Japanese ballasts are vastly superior to Chinese aftermarket.

    Note for retrofitting the Denso ballasts tested in this post are not waterproof, as they are in a waterproof enclosure in an OEM assembly for OEM applications. Meaning the ballasts will either need to be waterproofed (TRS offers this service) or you should select a different OEM ballast such as those by Hella which are waterproof from the factory.

    Special thanks to @Bertw192 for providing his RX350 retros for the testing again as well as the Osram Xenarc bulbs, and @TacoFergie for donating the Denso ballasts.

    Last edited: Dec 31, 2021
