3rd Gen HID vs LED vs Halogen H11 projector headlights

Discussion in '3rd Gen. Tacomas (2016+)' started by crashnburn80, Jan 25, 2019.

  1. Mar 14, 2019 at 6:23 AM
    #681
    Boghog1

    Boghog1 Jack of all trades, master of none.

    Joined:
    Dec 31, 2018
    Member:
    #277600
    Messages:
    558
    Gender:
    Male
    Southern, NH
    Vehicle:
    2019 AC V6 4x4
    See Build Thread in Signature
  2. Mar 14, 2019 at 6:45 AM
    #682
    darkfader

    darkfader can i fit these tires without rubbing?

    Joined:
    Jul 29, 2014
    Member:
    #134971
    Messages:
    557
    Gender:
    Male
    First Name:
    Josh
    West Virginia
    Vehicle:
    2018 DCSB6MTFTMFW
    Right, using the fogs in clear weather can also decrease your night vision further down the road. I don’t normally run them unless it’s inclement weather. My photo was for entertainment purposes only.

  3. Mar 14, 2019 at 7:40 AM
    #683
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    To be clear, the OEM wiring always remained untouched. It was just the inner plastic tab on the H9 bulb that had to be trimmed. Getting the adapter harness and trimming it once makes it so you don’t need to trim the each time, making it then plug and play.

    gurneyeagle, Tacosrus and darkfader like this.
  4. Mar 14, 2019 at 7:42 AM
    #684
    johnnyroid

    johnnyroid Member

    Joined:
    Mar 26, 2017
    Member:
    #214424
    Messages:
    21
    Gender:
    Male
    First Name:
    John
    Vehicle:
    2017 Black Tacoma Sport TRD
    A well constructed, respectful response to my question! Thank you! I read through this, and get the logic. I will submit, however, that as a motorcycle rider, it's not only about what the light can enable you see, it's what they do to make yourself more visible to others, which is actually why I leave mine on (I have touring fogs on my 2018 Yamaha Venture as well that stay on).

    BLUF, I get the reasons outlined above, make perfect sense, however, lights are a good tool to help others see you as well.

    arnette64 likes this.
  5. Mar 14, 2019 at 8:10 AM
    #685
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    256
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    Here’s my original post on it.


  6. Mar 14, 2019 at 8:12 AM
    #686
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    After getting the final bulbs tested and reorganizing post #2/3, I’ll add this up there for easier reference to others.

    YDCtaco, trazerr and skierd like this.
  7. Mar 14, 2019 at 11:27 AM
    #687
    NMTrailRider

    NMTrailRider Well-Known Member

    Joined:
    Sep 28, 2009
    Member:
    #23469
    Messages:
    4,494
    We don't yet have an H11-H9 connector. People are getting an H11-H11 connector and modding it to accept H9 bulbs.

  8. Mar 14, 2019 at 12:13 PM
    #688
    YDCtaco

    YDCtaco Go Deacs!

    Joined:
    Dec 24, 2015
    Member:
    #173013
    Messages:
    1,008
    Gender:
    Male
    First Name:
    Scott
    Charlotte/Winston-Salem
    Vehicle:
    2016 DCSB TRD OR 4x4-Auto
    Ahhhh, so there is no h11-h9. That makes perfect sense

    NMTrailRider likes this.
  9. Mar 14, 2019 at 12:24 PM
    #689
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    *yet. I’m working on getting an HD relayed harness made that will be plug and play H11->H9 to further increase the output of the H9 bulbs.

    Last edited: Mar 14, 2019 at 12:40 PM
    WiscoPat, oly51, YDCtaco and 2 others like this.
  10. Mar 14, 2019 at 12:53 PM
    #690
    NMTrailRider

    NMTrailRider Well-Known Member

    Joined:
    Sep 28, 2009
    Member:
    #23469
    Messages:
    4,494
    With the anticipated harness... we can still safely run the H9 bulbs on the OEM wiring?

  11. Mar 14, 2019 at 1:03 PM
    #691
    Boghog1

    Boghog1 Jack of all trades, master of none.

    Joined:
    Dec 31, 2018
    Member:
    #277600
    Messages:
    558
    Gender:
    Male
    Southern, NH
    Vehicle:
    2019 AC V6 4x4
    See Build Thread in Signature
    you should be safe but to be 100% Certain you would want to conduct a voltage drop test on the wiring but that is out of my scope of expertise on how to properly conduct and interpret the results.

    NMTrailRider likes this.
  12. Mar 14, 2019 at 2:08 PM
    #692
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Yes, you can safely run the H9s on the OEM wiring. You can check your headlight fuse rating, the H9s pull 72w (rated at 65w), 72w/12v=6A conservative. Actual voltage will be higher on battery voltage and even higher on alternator voltage, both reducing Amperage.

    Voltage drop test won’t tell you the safety factor, it tells you the efficiency loss of the OEM wiring harness, aka the performance improvement potential by running an HD relayed harness directly to the battery.

    r1200gs4ok and NMTrailRider like this.
  13. Mar 14, 2019 at 10:19 PM
    #693
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    What is frustrating is when you spend $150+ on lighting products from China from “reputable companies” for a thread and multiple shipments claim to be delivered when they did not arrive. Meaning I’ve waited for a month plus on multiple shipments and thrown money away on companies that did not deliver, multiple times. I will not recommend these companies or products that fail to deliver to others, which is unfortunate from a product evaluation standpoint. These were the last lights I was waiting on to be delivered, which means crown for best performance bulb over all goes to the Philips Vision +30 H9.

    r1200gs4ok likes this.
  14. Mar 14, 2019 at 10:38 PM
    #694
    r1200gs4ok

    r1200gs4ok Well-Known Member

    Joined:
    Aug 8, 2016
    Member:
    #194111
    Messages:
    1,457
    Gender:
    Male
    First Name:
    O. K.
    Irvine, Ca
    Vehicle:
    2016 Tacoma TRD Sport DCLB w/ Tech, Nav, Tow Pkg, MGM
    hahaha.....i have a BMW R1200gs and have Darla's....run them 100% of the time......day or night .....to be SEEN........i get it.....

    johnnyroid likes this.
  15. Mar 15, 2019 at 7:39 AM
    #695
    kakwvu

    kakwvu Almost Heaven

    Joined:
    Jun 27, 2016
    Member:
    #190707
    Messages:
    2,772
    Gender:
    Male
    First Name:
    Kyle
    Morgantown, WV
    Vehicle:
    2016 OR 4X4 6MT BBP
    Bright lights in bikes are a totally different animal. Loud pipes and bright lights save lives.

    Got pulled over on base once for not having a reflective safety jacket on once because they scream military. I had LED turn signals and HIDs. He said he couldn’t see me.. and I was like then I guess I won’t be getting hassled anymore if you can see me on my bike right now. My bike basically had a halo around it .. no ticket for me :)

    r1200gs4ok likes this.
  16. Mar 15, 2019 at 10:15 AM
    #696
    r1200gs4ok

    r1200gs4ok Well-Known Member

    Joined:
    Aug 8, 2016
    Member:
    #194111
    Messages:
    1,457
    Gender:
    Male
    First Name:
    O. K.
    Irvine, Ca
    Vehicle:
    2016 Tacoma TRD Sport DCLB w/ Tech, Nav, Tow Pkg, MGM
    know what you mean.....the Marine Corps was definitely on top of that....they check you entering the gate.....in town, and on streets I now were a mesh jacket over my protective jacket that has a yellow reflective stripe......my helmet has reflectivity all around......the Clearwater lights are the best.....if you cant see me coming, you should not be on the road.....

    kakwvu likes this.
  17. Mar 16, 2019 at 9:40 AM
    #697
    mrCanoehead

    mrCanoehead Well-Known Member

    Joined:
    Nov 9, 2017
    Member:
    #235493
    Messages:
    237
    Gender:
    Male
    Thunder Bay
    Vehicle:
    2018 DCSB Sport manual 3.5 l

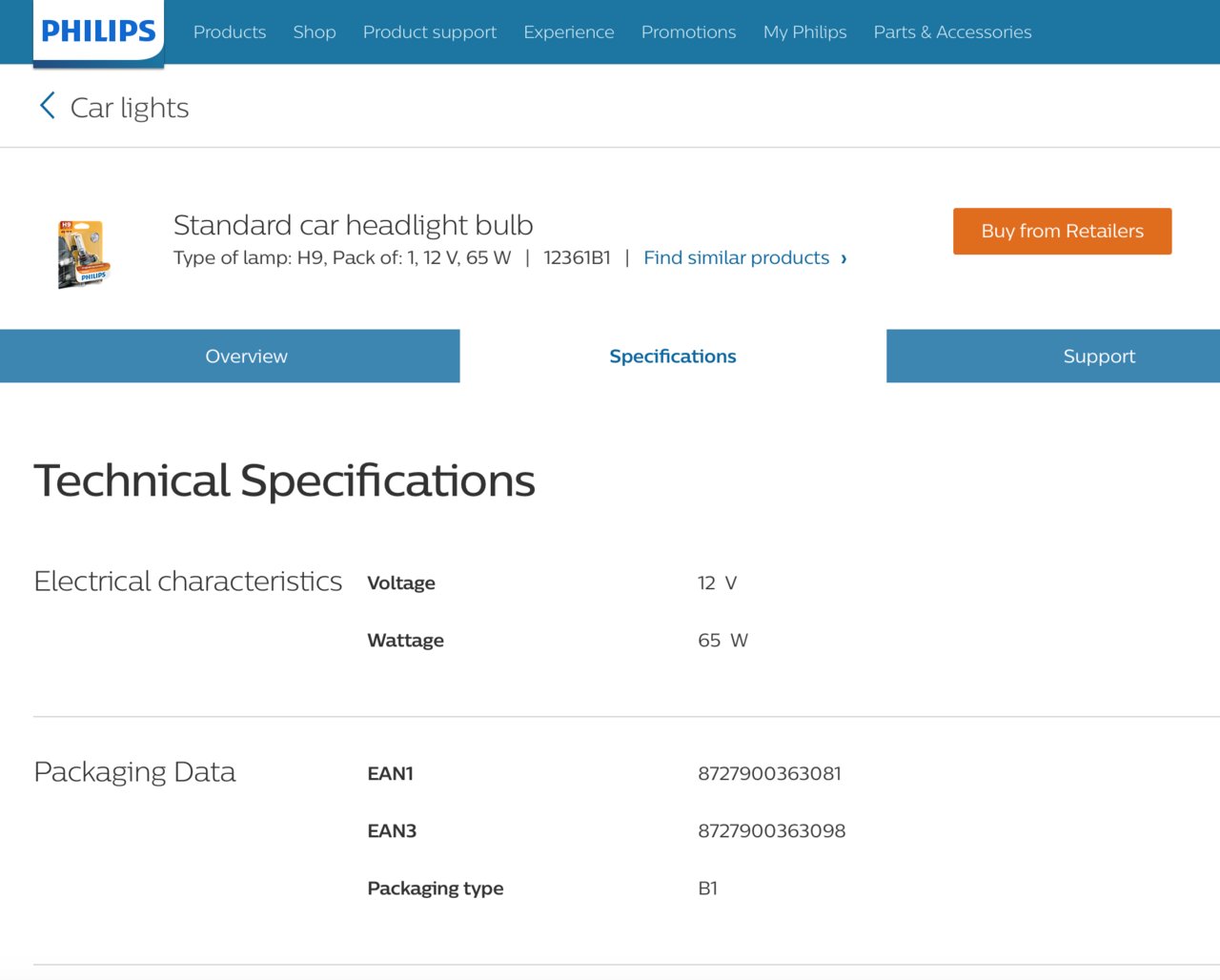

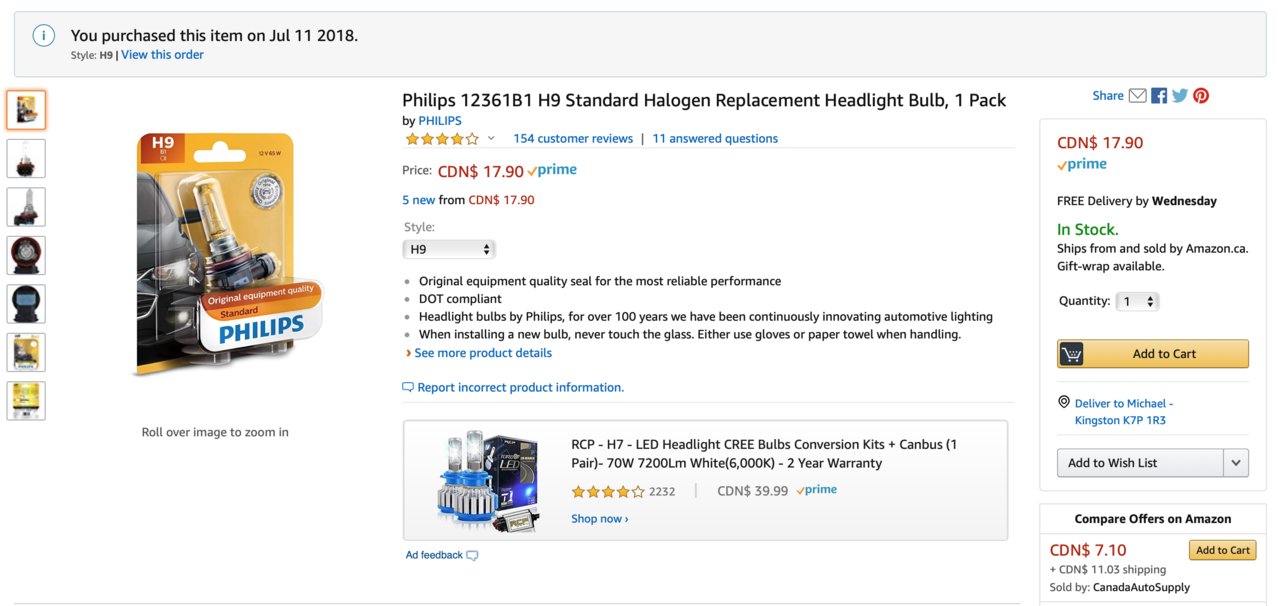

    Are these the Philips H9 +30 bulbs being referred to? As far as I can tell, there is only one part number on the philips.co.uk site, which is 12361B1, but sometimes it is referred to as "Vision" and sometimes "Vision +30" on eBay. You can buy part number 12361B1 on amazon.ca, in fact that is what I have in my truck right now. They are not called "Vision" in Canada, box says "standard".
    Screen Shot 2019-03-16 at 12.36.01.jpg

    Screen Shot 2019-03-16 at 10.03.53.jpg

    crashnburn80 [OP] likes this.
  18. Mar 16, 2019 at 9:55 AM
    #698
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    I believe 12361B1 is their part number for an H9 as I’ve seen it on both Vision and Standard bulbs, but they are not the same. The bulbs are not sold as ‘standard’. Vision +30 appears to be the older branding, it looks like Philips dropped the +30 and now just refers to them as “Vision” to differentiate it from “standard”. Vision H9s are not imported to North America from what I can tell, meaning you need to order out of Europe. Amazon.co.uk, Amazon.de or eBay. If you have a domestic Amazon account it works internationally, and it will automatically charge you in your local currency to avoid any international exchange rate hits from your bank.

    mrCanoehead likes this.
  19. Mar 16, 2019 at 11:17 AM
    #699
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    14,117
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium

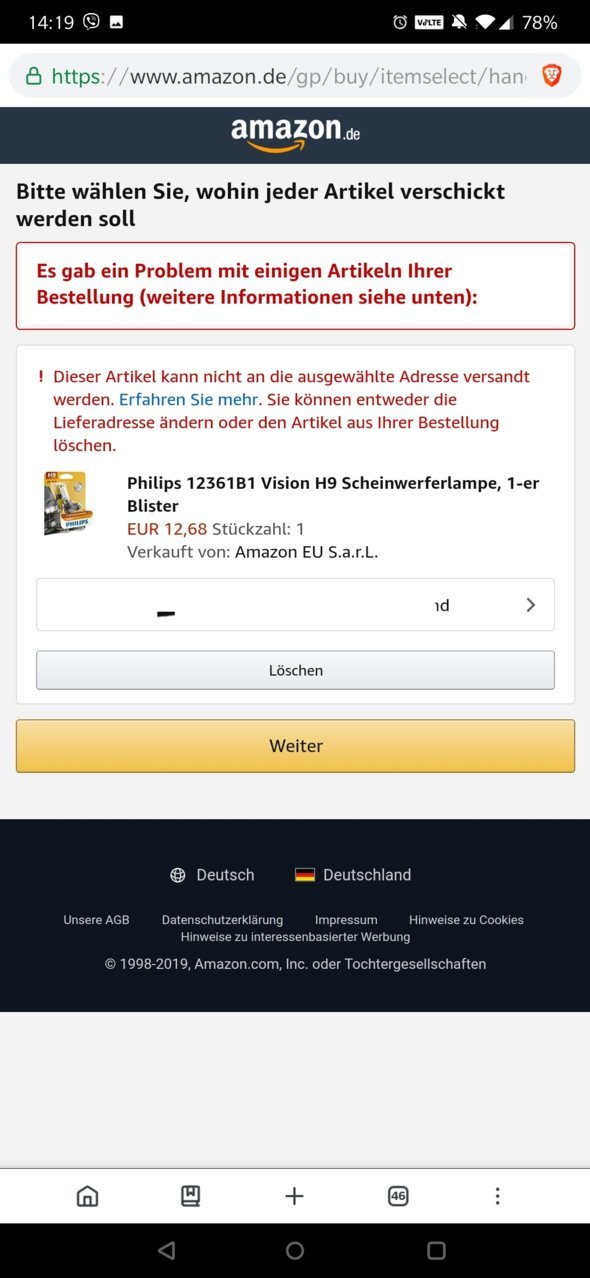

    I tried to order from Amazon.de once, and it wouldn't accept my shipping address :notsure:

  20. Mar 16, 2019 at 2:33 PM
    #700
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    6,835
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 MGM TRD OR DCSB
    Go Hawks!
    Hmm. Did you try Amazon.co.uk? I’ve ordered a few things from the UK site without issues. I though someone had ordered from the German one, but maybe it was the French site, .fr.
