3rd Gen HID vs LED vs Halogen H11 projector headlights

Discussion in '3rd Gen. Tacomas (2016+)' started by crashnburn80, Jan 25, 2019.

  1. Apr 3, 2019 at 11:49 AM
    #881
    gurneyeagle

    gurneyeagle Well-Known Member

    Joined:
    Jul 3, 2018
    Member:
    #258179
    Messages:
    491
    Gender:
    Male
    Saint Augustine, FL/Houston, TX
    Vehicle:
    2008 Tacoma SR5, 2018 Audi TT RS, 2018 Tacoma TRD Off Road (Cement), 2019 MDX
    Soooooooooooooo……………………….

    Should we use the Stock high beam H9s in the low beams (after modifying the bulb socket, of course)?

  2. Apr 3, 2019 at 12:12 PM
    #882
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Obviously you would need to replace the high beam bulb then. But that is a free way to try out the mod before spending any money on bulbs.

  3. Apr 3, 2019 at 12:15 PM
    #883
    gurneyeagle

    gurneyeagle Well-Known Member

    Joined:
    Jul 3, 2018
    Member:
    #258179
    Messages:
    491
    Gender:
    Male
    Saint Augustine, FL/Houston, TX
    Vehicle:
    2008 Tacoma SR5, 2018 Audi TT RS, 2018 Tacoma TRD Off Road (Cement), 2019 MDX
    Actually, I went swapping out the H11 low beam with a H9, while leaving the high beam alone.

    Thanks!

    crashnburn80 [OP] likes this.
  4. Apr 3, 2019 at 12:45 PM
    #884
    gurneyeagle

    gurneyeagle Well-Known Member

    Joined:
    Jul 3, 2018
    Member:
    #258179
    Messages:
    491
    Gender:
    Male
    Saint Augustine, FL/Houston, TX
    Vehicle:
    2008 Tacoma SR5, 2018 Audi TT RS, 2018 Tacoma TRD Off Road (Cement), 2019 MDX
    To continue to conversation of replacing the low beam H11's with the stock H9 high beam bulb - any thoughts on the lifespan of the stock H9 high beam used as a low beam?

  5. Apr 3, 2019 at 1:00 PM
    #885
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Rated life span of 250 hours. I run bulbs rated at 200 hours, I don’t run my lights in the day time, and they last almost exactly one year. Based on my use they would last 15 months. Your usage may vary.

    gurneyeagle likes this.
  6. Apr 3, 2019 at 8:15 PM
    #886
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

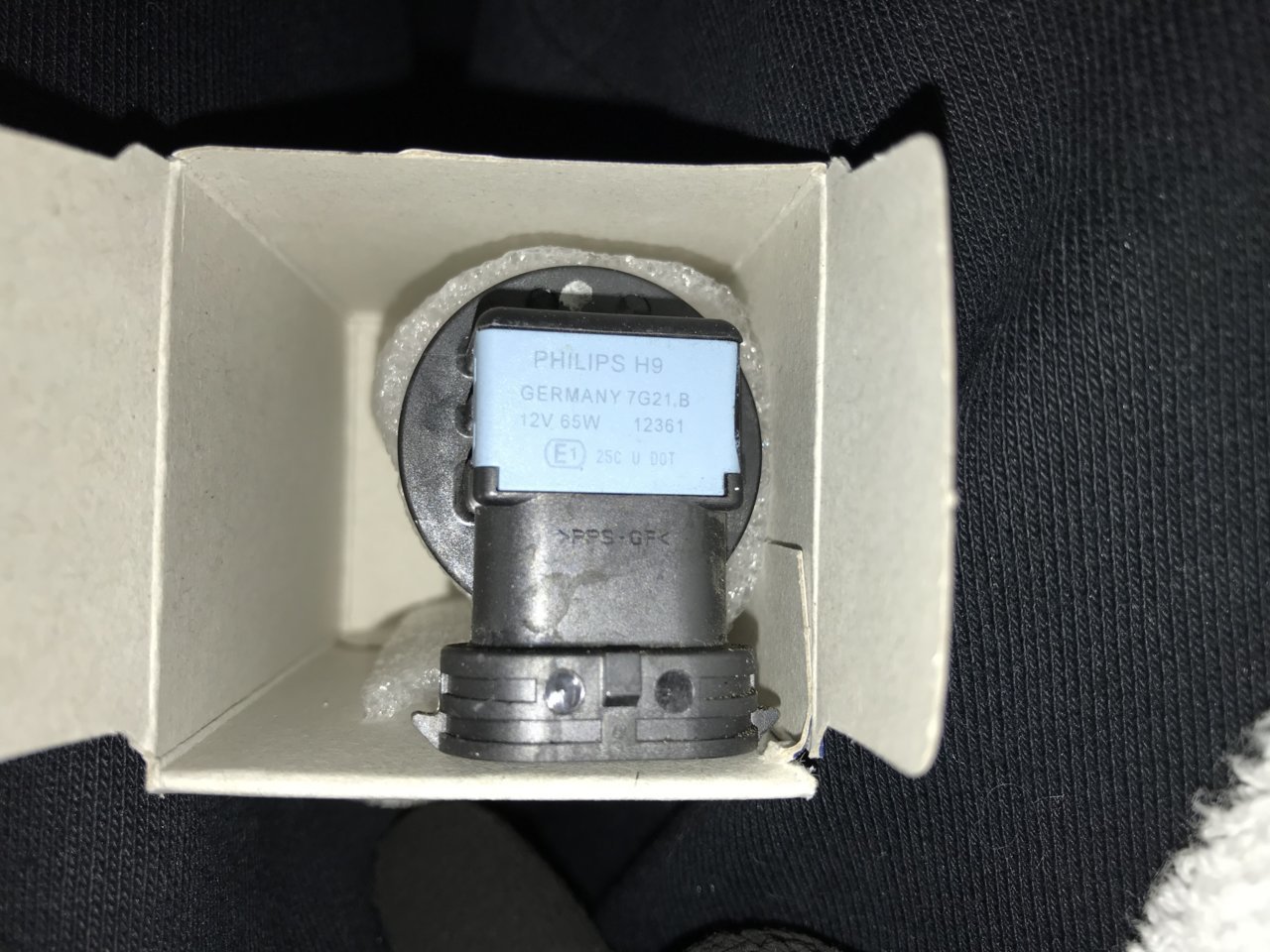

    I think I found how to get the best performing German Philips H9s domestically for the price of the Hellas.

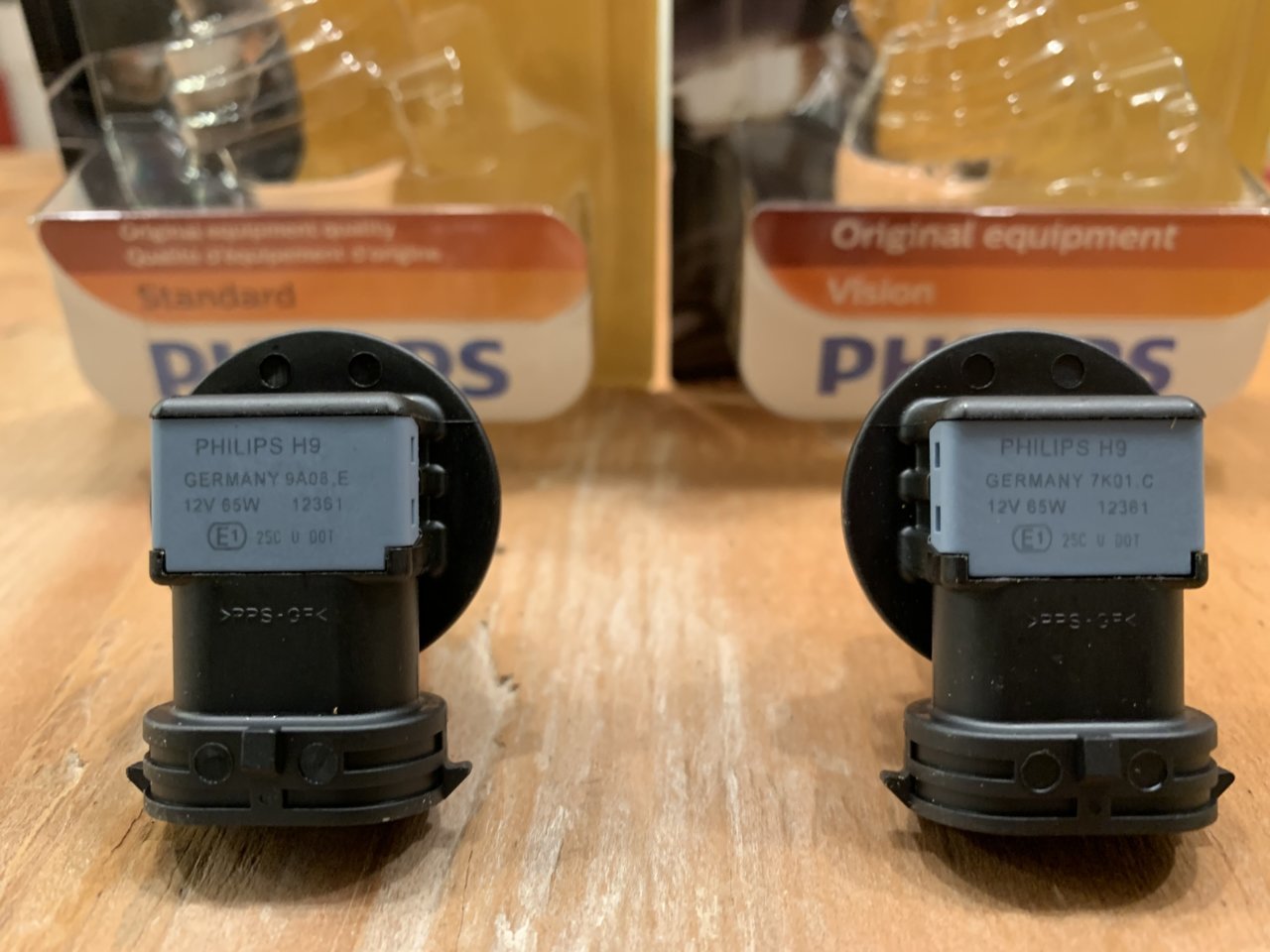

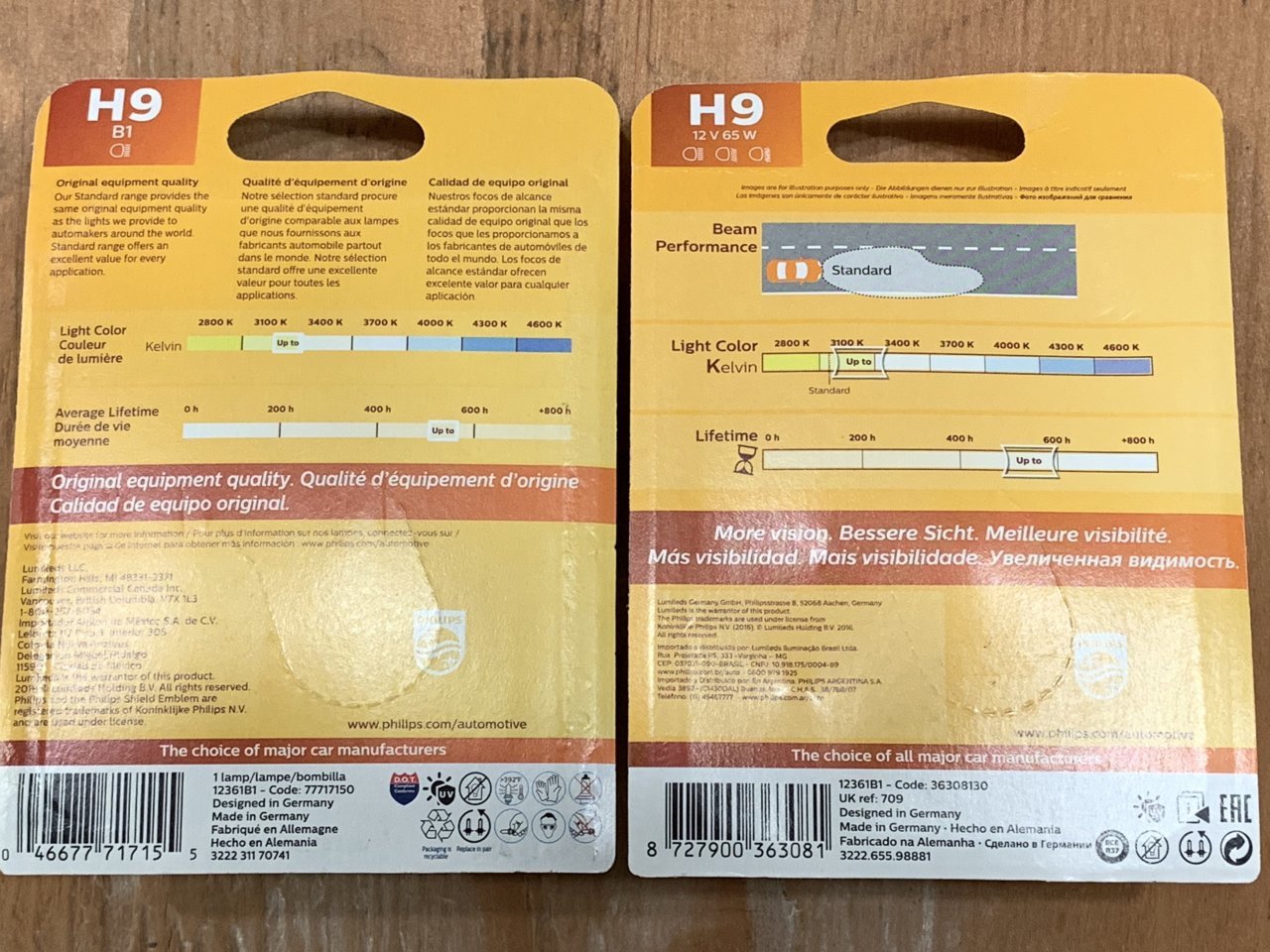

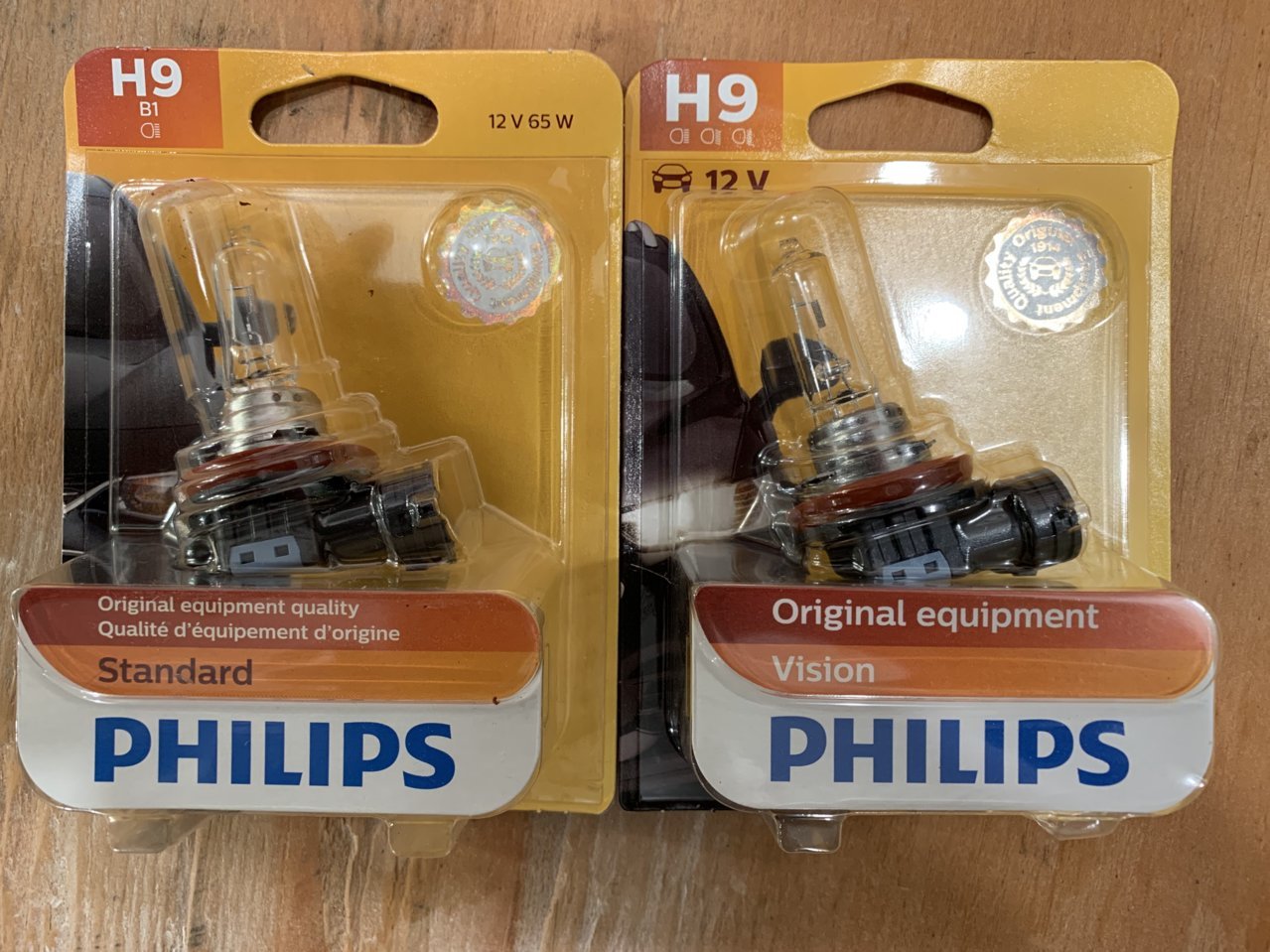

    ACDelco is a parts brand owned by GM. ACDelco H9s appear to be Philips German “Vision” H9s. GM appears to use the same H9s as Toyota but sell them under their own reboxed brand of ACDelco, for significantly less at $9. And being GM they are easy to buy domestically. They don’t even bother to change the name on the back of the bulb. I’ve ordered some off Amazon to confirm before directing people to an Amazon link.

  7. Apr 3, 2019 at 8:41 PM
    #887
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    506
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    How much are the bulbs from Toyota? I checked... $45+ per bulb!!! List price is $65.54! Oof... they’ll sell tens of those...

  8. Apr 3, 2019 at 9:10 PM
    #888
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    Wow that is absurd! By comparison some GM parts suppliers sell them for $7.

    gurneyeagle likes this.
  9. Apr 4, 2019 at 5:11 AM
    #889
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    631
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
    I received and installed the Hyper Yellow bulbs yesterday. As someone else mentioned, the light is a pale YELLOW rather than amber. Suits me fine. One thing I noticed, which kinda' surprised me is that the OE fog light bulbs were OSRAM H16 12V 19W. I guess that I just assumed that they would also be H11 55W. You know what they say about assumptions... :cool:

  10. Apr 4, 2019 at 7:01 AM
    #890
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    TRD trucks have H11 wide-angle fogs, non-TRD 3rd Gens have standard H16 fogs.

    Tullie D likes this.
  11. Apr 4, 2019 at 7:32 AM
    #891
    arnette64

    arnette64 Well-Known Member

    Joined:
    Sep 19, 2012
    Member:
    #87300
    Messages:
    638
    Gender:
    Male
    Amos, QC (Canada)
    Vehicle:
    2016 Inferno TRD Sport Double Cab 4X4
    '16 Inferno TRD sport DC
    Except Canadian TRD sport.....come with H16 foglamps socket and bulbs like the SR5...

    Canadian TRD Offroad come with the H11 wide-angle fogs

    crashnburn80 [OP] likes this.
  12. Apr 5, 2019 at 4:02 AM
    #892
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    631
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
    So are the fog light housings also different, or is it just the bulbs?

  13. Apr 5, 2019 at 4:45 AM
    #893
    HacksawMark

    HacksawMark Well-Known Member

    Joined:
    Aug 5, 2018
    Member:
    #261741
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Mark
    OREGON
    Vehicle:
    2018 Silver Tacoma V6 DCSB TRD OffRoad
    HID low beams, AVS Vent Shades
    See Post 890 where crashnburn80 answers your question.

  14. Apr 5, 2019 at 6:14 AM
    #894
    arnette64

    arnette64 Well-Known Member

    Joined:
    Sep 19, 2012
    Member:
    #87300
    Messages:
    638
    Gender:
    Male
    Amos, QC (Canada)
    Vehicle:
    2016 Inferno TRD Sport Double Cab 4X4
    '16 Inferno TRD sport DC
    Housing is different, you need to "trim" the little metal tab on the H11 bulb to fit.

  15. Apr 5, 2019 at 6:18 AM
    #895
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    631
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
    Not knowing that the H11 bulbs wouldn't fit without trimming, I just put them in without trimming. Oops!

    They say that a Hummingbird shouldn't be able to fly. Hummingbirds don't know this, so they fly anyway. :thumbsup:

    Boghog1 likes this.
  16. Apr 5, 2019 at 6:20 AM
    #896
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    631
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
    Not exactly, that post is what brought up my question.

    kakwvu likes this.
  17. Apr 5, 2019 at 6:23 AM
    #897
    HacksawMark

    HacksawMark Well-Known Member

    Joined:
    Aug 5, 2018
    Member:
    #261741
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Mark
    OREGON
    Vehicle:
    2018 Silver Tacoma V6 DCSB TRD OffRoad
    HID low beams, AVS Vent Shades
    Reread it. It's two different housings and two different bulbs.

  18. Apr 5, 2019 at 7:02 AM
    #898
    crashnburn80

    crashnburn80 [OP] Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,800
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
    The housing and beam pattern are different. TRD trucks in the US come with wide angle fogs that project nearly 90 degrees to the side of the truck, the other models come with standard more forward facing fogs. Since the TRD fogs cover much more area, they need a much brighter light source, hence the H11.

    xxTacocaTxx, oly51 and HacksawMark like this.
  19. Apr 5, 2019 at 7:15 AM
    #899
    Tullie D

    Tullie D Well-Known Member

    Joined:
    Mar 5, 2019
    Member:
    #285417
    Messages:
    631
    Gender:
    Male
    First Name:
    Tullie
    Wilson, NC
    Vehicle:
    2019 SR5 V6 AC 2WD
    Extang Encore, Bed lights, Grill lights, Flux Capacitor
    Thank you. Do you know what I should expect, performance wise, with the Nokya NOK7618 Hyper Yellow bulbs in my OE H16 housings? I don't want to be "that guy" with the blinding glare. :facepalm:

  20. Apr 5, 2019 at 9:33 AM
    #900
    replica9000

    replica9000 ./$0|./$0&

    Joined:
    Apr 6, 2008
    Member:
    #5782
    Messages:
    14,468
    First Name:
    Jason
    Lake Chargoggagoggmanchauggagoggchaubunagungamaugg
    Vehicle:
    2019 T4R OR Premium
    I heard some H11s will fit in the H16 socket without trimming. The stock H11s don't fit without trimming.

    arnette64 likes this.
