3rd Gen Tacoma HAI's Cable Assy. for Front/Rear Camera Anytime, Navigation Override, Smartphone Mirr

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by Hoangde, Jul 18, 2017.

  1. Jul 18, 2017 at 11:38 PM
    #1
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Members of TW!

    Some friends and members asked me to build HAI’s cable Assy. (Human Awareness Integrated) . After all the feedback from these people, I am deciding to build 10 HAI’s cable assy. to share with our members.

    Allow me to explain all the benefits of HAI’s cable assy.

    1. User can use it to integrate Front Camera assy and view at any time.

    2. User can use it for fully control Head Unit while the truck is in motions.

    3. User can use it to integrate Smartphone Mirroring.

    4. User can use it to view Rear Camera at any time.

    5. User can use it to integrate Media Player into Head Unit.


    You send me $65.00 USD via Paypal as Family and Friends and I will send back HAI’s Cable Assy. S/H and tracking number included for people in CONUS.

    The HAI’s Cable assy can almost 90% plug and play due to:

    · Allow user to buy Rear Camera Switch on user choice.

    · Allow user to buy Front Camera per desired location.

    · Allow user to buy Smartphone Mirroring unit depend on the type of smartphone (iPhone/Android).

    And detail assy. needed for Rear Camera Any time Switch

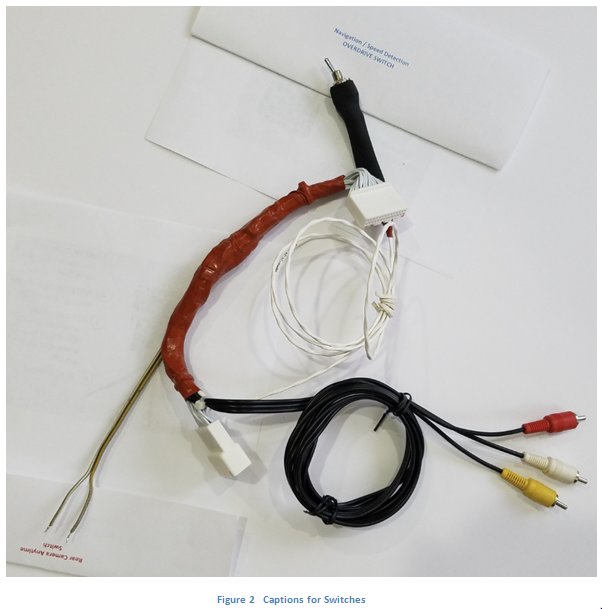

    Close up of Navigation/Speed Detection Override Switch.

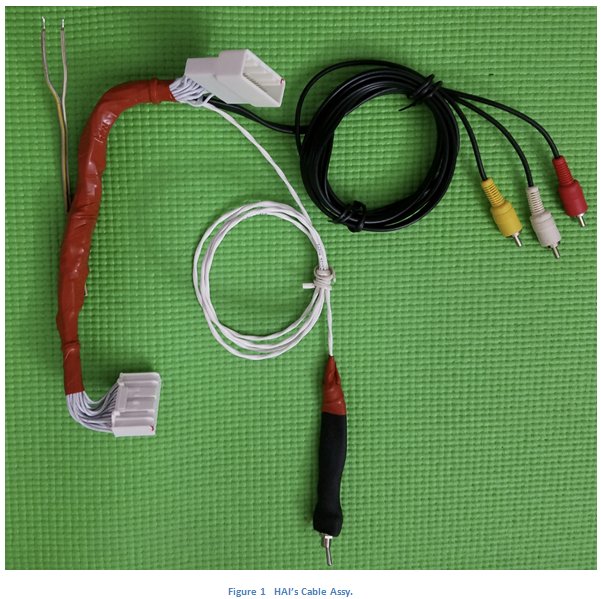

    Again, $65.00 USD is for HAI’s Cable Assy. as in Figure 1.


    Only 10 cables will be build and test by me before ship to buyer. It is buyer responsibilities to setup. HAI’s Cable Assy. instruction is in YouTube's link. Detail what this cable can do:

    1. Front Camera
    Need one Front Camera at Walmart or eBay/Amazon
    Need one RCA Coupler
    Assy. Camera per manufacture instruction. Connect Camera video output to yellow RCA connector and RCA Coupler in HAI’s cable assy.


    2. Smartphone Mirroring.
    User need to buy one Mirabox or equivalent in eBay.
    Assy per Mirabox instruction then connect RCA connectors from HAI’s Cable Assy. to Mirabox.


    3. Media player
    Buy a media player then connect RCA connectors from HAI’s Cable Assy.


    4. Rear Camera Any time.

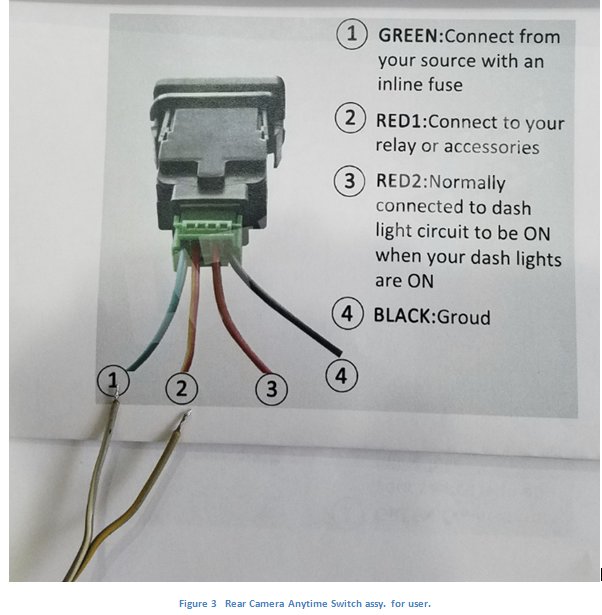

    User needed to buy one Mic Tunng Toyota push switch eBay/Amazon ..etc. Assy. per Figure 3.

    5. Navigation Override
    Allow user to control Head Unit as the truck is in "P" mode . (to change address in Navigation or access to all menu in Head Unit).


    To use:


    Front Camera anytime
    Ensure Override switch is on.
    AUDIO > Source >A/V


    Rear Camera Anytime
    Press Mic Tuning Switch per Figure 3.


    Smartphone Mirroring.
    Ensure Override switch is on.
    AUDIO > Source >A/V
    Paired smartphone per Mirabox instruction.


    Media Player
    Ensure Override switch is on.
    AUDIO > Source >A/V


    Navigation Override and Fully Control Head Unit while the truck is in motion
    Ensure Override switch is on.



    Again, I only plan to build 10 HAI’s Cable assy. First come first serve.
    Paypal as family and friend ONLY . $65.00 USD and HAI’s Cable Assy. (Figure 1) will ship to your address in CONUS.

    Note:
    I am Not Responsible for direct, indirect, incidental or consequential damages resulting from install and use the HAI's Cable Assy.

    Last edited: Aug 17, 2017
  2. Jul 18, 2017 at 11:40 PM
    #2
    alxdo2

    alxdo2 Proud Toyota Owner

    Joined:
    Dec 19, 2015
    Member:
    #172633
    Messages:
    288
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2016 4x4 SR5 Double Cab Tacoma
    * DoubleCab 4x4 SR5/Appearance Package Tacoma * Added Toyota Tonneau Bed Cover * Added Toyota Predator Steps * Added Weather Tech Mats * Added Tacoma Letter Inserts on Tailgate * Added MBRP Catback Exhaust * Added Weather Tech Bed Step * Added Sound Proofing Material * Added New Speakers on 4 doors * Added TRD PRO Grill * Added LED Bulbs Hi/Low * Added Skid Plate
    ctmedic likes this.
  3. Jul 18, 2017 at 11:41 PM
    #3
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Yes, all you needed is HAI's Cable Assy, 3 RCA couplers and one one Mirabox or equivalent in eBay.
    Keep in mind that HAI's cable assy. can do Smartphone Mirroring, Front Camera Anytime, Rear Camera Anytime, Media player and Navigation/Speed Detection Override.

    Last edited: Jul 18, 2017
  4. Jul 18, 2017 at 11:43 PM
    #4
    alxdo2

    alxdo2 Proud Toyota Owner

    Joined:
    Dec 19, 2015
    Member:
    #172633
    Messages:
    288
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2016 4x4 SR5 Double Cab Tacoma
    * DoubleCab 4x4 SR5/Appearance Package Tacoma * Added Toyota Tonneau Bed Cover * Added Toyota Predator Steps * Added Weather Tech Mats * Added Tacoma Letter Inserts on Tailgate * Added MBRP Catback Exhaust * Added Weather Tech Bed Step * Added Sound Proofing Material * Added New Speakers on 4 doors * Added TRD PRO Grill * Added LED Bulbs Hi/Low * Added Skid Plate
    Okay cool, looking up the installation for one of those MIRA boxes now. Was about to order the beat sonic one soon cause it was so plug and play, but then I saw this.

  5. Jul 19, 2017 at 8:02 PM
    #5
    tacogeorge

    tacogeorge Well-Known Member

    Joined:
    Feb 20, 2016
    Member:
    #178849
    Messages:
    94
    Gender:
    Male
    First Name:
    George
    Vehicle:
    2016 Tacoma TRD Off Road
    Count me in. Might also try to attach a 4-way selector and put some cameras in side mirrors.

  6. Jul 20, 2017 at 12:26 PM
    #6
    tw0leftskis

    tw0leftskis Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211959
    Messages:
    539
    Gender:
    Male
    First Name:
    Patrick
    LN
    Vehicle:
    '17 Tacoma TRDOR 4x4
    oil catch can, bed rail.
    Count me in for 1

  7. Jul 23, 2017 at 10:23 AM
    #7
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611

    Attached Files:

    Last edited: Aug 13, 2017
  8. Jul 23, 2017 at 6:09 PM
    #8
    tw0leftskis

    tw0leftskis Well-Known Member

    Joined:
    Feb 28, 2017
    Member:
    #211959
    Messages:
    539
    Gender:
    Male
    First Name:
    Patrick
    LN
    Vehicle:
    '17 Tacoma TRDOR 4x4
    oil catch can, bed rail.

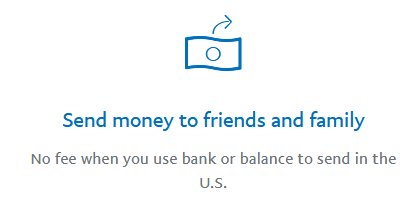

    Payment sent as friends and family

    Seanb600 and Hoangde [OP] like this.
  9. Jul 23, 2017 at 8:03 PM
    #9
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Confirmed, Pm'd. Ship out tomorrow morning once I have your address and will email back with tracking number.

    Thanks,

  10. Jul 25, 2017 at 1:09 PM
    #10
    thinkingburrito

    thinkingburrito Well-Known Member

    Joined:
    Sep 22, 2015
    Member:
    #164940
    Messages:
    79
    Gender:
    Male
    Newport Beach, CA
    Vehicle:
    2016 TRD Sport 4x4. Icon\Total Chaos\Baja Designs
    Felling this. Look out for a payment from dirtworthy!

    Hoangde [OP] likes this.
  11. Jul 25, 2017 at 4:56 PM
    #11
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Confirmed. Ship out tomorrow morning and will email back with tracking number.
    Thanks,

    thinkingburrito likes this.
  12. Jul 30, 2017 at 5:41 AM
    #12
    HOOPSboy

    HOOPSboy Well-Known Member

    Joined:
    Jul 14, 2017
    Member:
    #224033
    Messages:
    153
    Gender:
    Male
    Houston TX
    Vehicle:
    19 TRD OR 4x4 DCLB Cement
    Is there a way to hook up a firestick to this system? Would like to use my phone as a hotspot sometimes and stream content.

    It appears that be be done with the crux system.

  13. Jul 30, 2017 at 10:19 AM
    #13
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Easy than that
    One HDMI2COMPOSITE for $11 (read description first) or get this unit
    and one Firestick.
    Connect 2 together and you can hook up to HAI's cable assy. Sit back and enjoy your work.

    Last edited: Jul 31, 2017
  14. Jul 30, 2017 at 10:08 PM
    #14
    alxdo2

    alxdo2 Proud Toyota Owner

    Joined:
    Dec 19, 2015
    Member:
    #172633
    Messages:
    288
    Gender:
    Male
    First Name:
    Alex
    Vehicle:
    2016 4x4 SR5 Double Cab Tacoma
    * DoubleCab 4x4 SR5/Appearance Package Tacoma * Added Toyota Tonneau Bed Cover * Added Toyota Predator Steps * Added Weather Tech Mats * Added Tacoma Letter Inserts on Tailgate * Added MBRP Catback Exhaust * Added Weather Tech Bed Step * Added Sound Proofing Material * Added New Speakers on 4 doors * Added TRD PRO Grill * Added LED Bulbs Hi/Low * Added Skid Plate
    In the description of that product it states:

    • INCOMPATIBLE with TV Sticks, (such as Fire Stick, Roku, Chromecast), mobile phones and iPad series. Please hook up the USB power cable to 5V power plug before use.

    Have you tried using it?

  15. Jul 30, 2017 at 11:03 PM
    #15
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Just a quick setup for photo op.

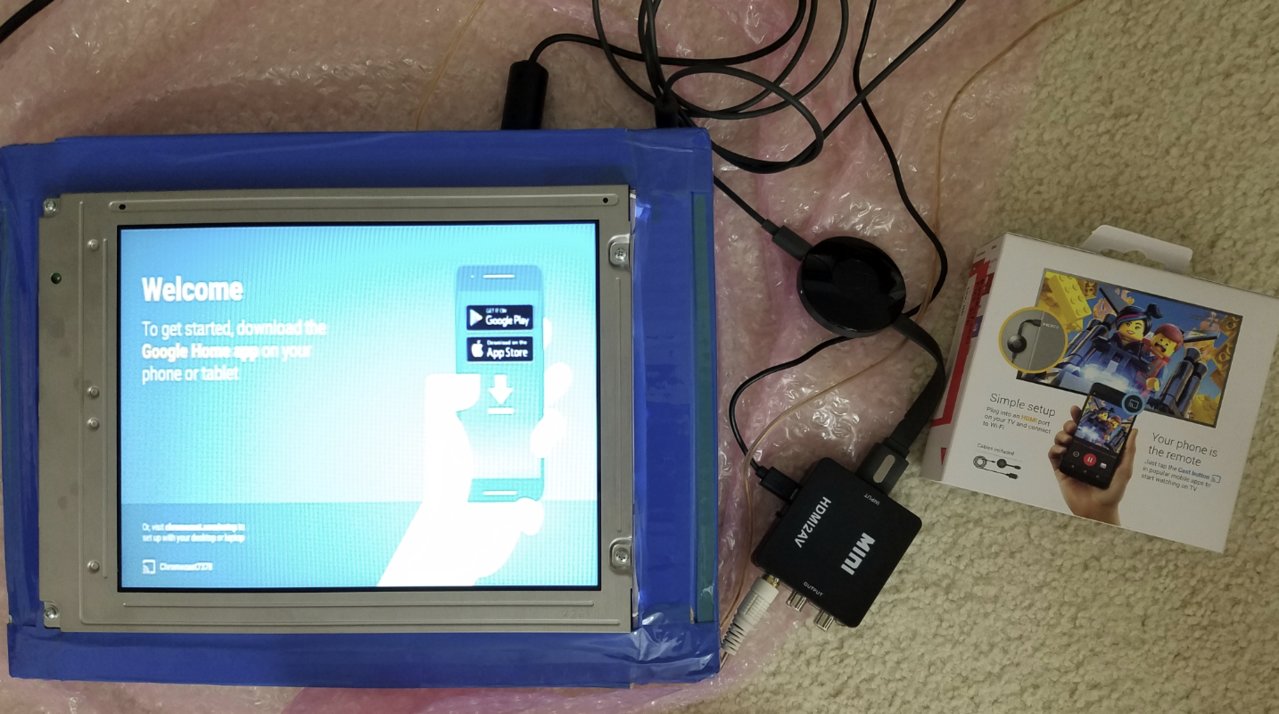

    With Chromecast

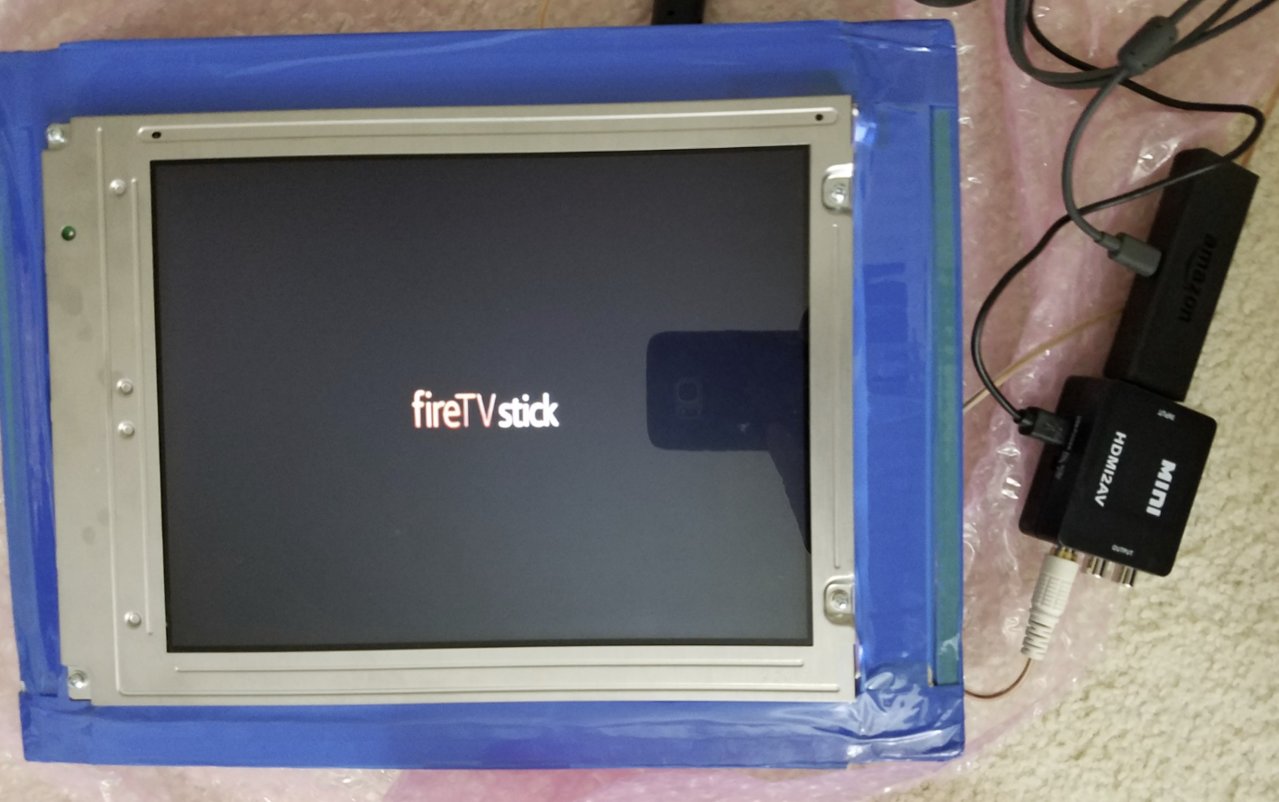

    With Firestick

    As you can see, I am using HDMI2AV. They are identical as GANA and from GANA, Tested both and installed both types for my friends.

    Feel free to get MINI HDMI2AV or similar device in ebay as you see in my photos. Also updated post # 15 for a better choice.

    Last edited: Jul 31, 2017
  16. Jul 31, 2017 at 11:17 AM
    #16
    CXP8PRO

    CXP8PRO Well-Known Member

    Joined:
    Mar 7, 2017
    Member:
    #212571
    Messages:
    73
    Gender:
    Male
    First Name:
    Andrew A
    Vehicle:
    17' TRD PRO Super White
    look for my payment. thank you

  17. Jul 31, 2017 at 12:10 PM
    #17
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
    Confirmed. Ship out tomorrow morning and will email back with tracking number.
    Thanks,

  18. Aug 4, 2017 at 6:49 PM
    #18
    Lalo73

    Lalo73 Well-Known Member

    Joined:
    May 13, 2017
    Member:
    #218913
    Messages:
    54
    Gender:
    Male
    First Name:
    Everardo
    El Centro
    Vehicle:
    2017 RED TRD PRO
    TINT, BFG TIRES 265 75 R16 , SPEAKERS AMP, BIKE RACK, BED MAT
    What the hell I want one!

  19. Aug 7, 2017 at 10:03 AM
    #19
    Hoangde

    Hoangde [OP] Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196593
    Messages:
    611
  20. Aug 8, 2017 at 8:24 AM
    #20
    Tacodust

    Tacodust Member

    Joined:
    Jul 17, 2017
    Member:
    #224309
    Messages:
    23
    Gender:
    Male
    First Name:
    Jason
    Vehicle:
    2018 Cement DCSB
    Wheels: @VTXwheels Rogue-Satin Bronze Tires: @falkentire MT01 35x12.5x16 Suspension: @ivdsuspension Stage 7 Billet(delta joints) RXT leafs and Omega 2.5 bypasses Rack system: @frontrunneroutfitters Slimline 2 Bed rack:@wilco_offroad ADV SL Bumper/skids: @pelfreybiltoffroad Steel plate bumper/steel skids Sliders: @wilco_offroad
    I'm in!
