3rd Gen Tacoma Power Folding Mirrors

Discussion in '3rd Gen Tacoma Parts Marketplace (2016-2023)' started by KTJO 4x4, Mar 2, 2019.

Thread Status:
Not open for further replies.
  1. Jul 9, 2019 at 6:51 AM
    #441
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,105
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport
    Will try to take as many pics as I can.

    KTJO 4x4[QUOTED][OP] and NoOne like this.
  2. Jul 9, 2019 at 10:57 AM
    #442
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,328
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    Considering a diy kit. The only thing I’d like to see more of is the switch install. The custom panel looks out of place just sitting on top like it does imo and being that it seems you have to cut a hole for that to insert anyways why not just cut the smaller hole for the switch? Is it because it needs something to clip into (a frame/base if you will)?

    Edit: I see how the custom panel can be a good option to cover up the cut lines since it sits on top. That would be my only concern cutting just for the actual switch is you’d see the cut lines. Unless I found someone near me that bought/has a ultrasonic knife and would let me rent it out

  3. Jul 9, 2019 at 11:26 AM
    #443
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    1,063
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, Fog delete, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns, Diamondback HD cover, Mobtown engine/trans skid plates, RCI control arm skids, JLT oil catch can, Meso overhead Hex rack.
    I'm thinking about laying down a couple layers of painters tape to help fend off errand scrapes. I'm going to try to work up a cut template that I can 3D print. It would be to get a rough opening.It wont stop a Dremel. But if I size it right, it may cause an interference with the spinning collet and I can catch it before a major errant cut is made. Then after the rough opening is there, use the 3D template and finish cut the opening with an x-acto.
    If that fails, I'll be searching for some type of overlay

  4. Jul 9, 2019 at 11:27 AM
    #444
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,100
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM
    I am in for a DIY kit as I have always been.

  5. Jul 11, 2019 at 1:06 AM
    #445
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust

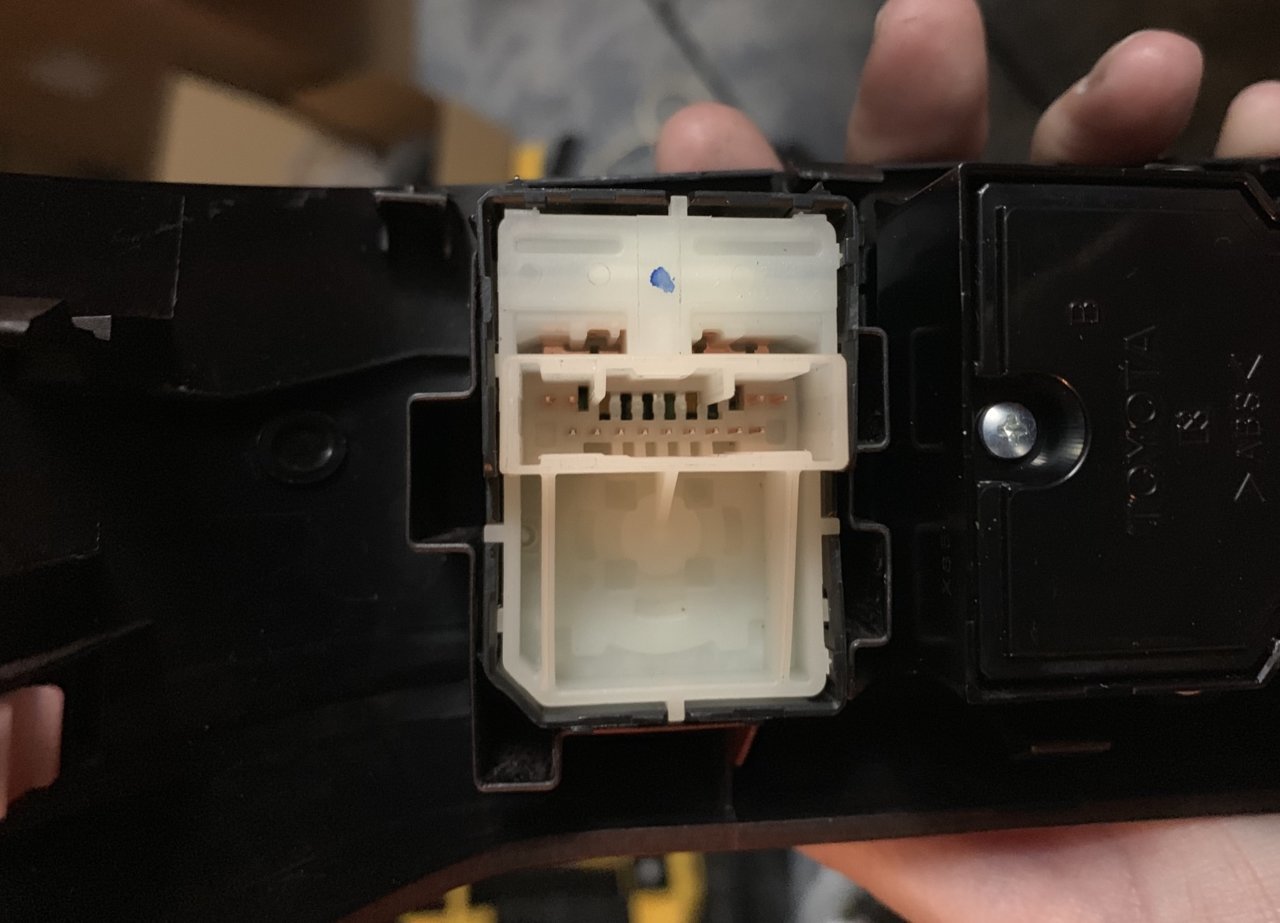

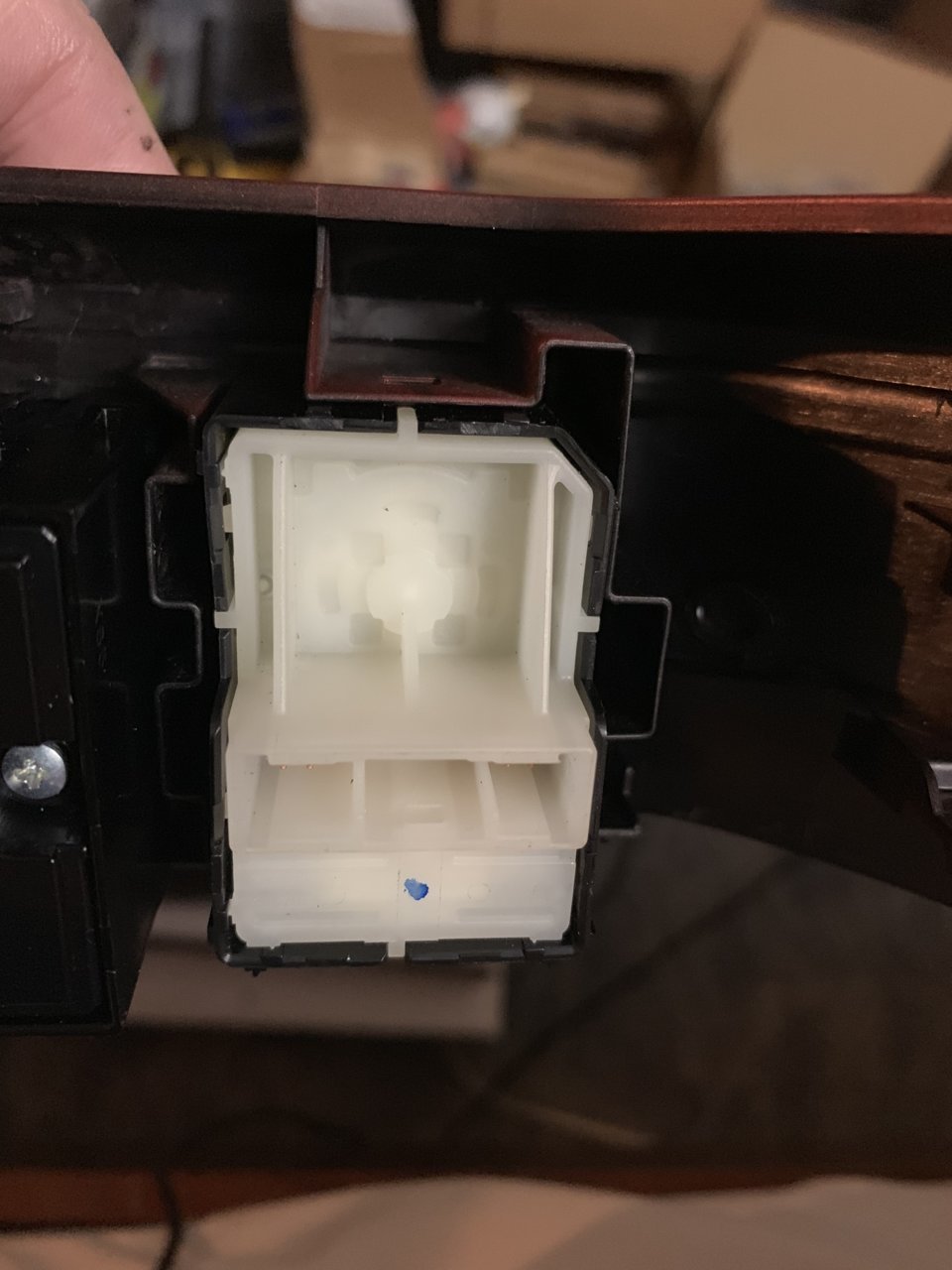

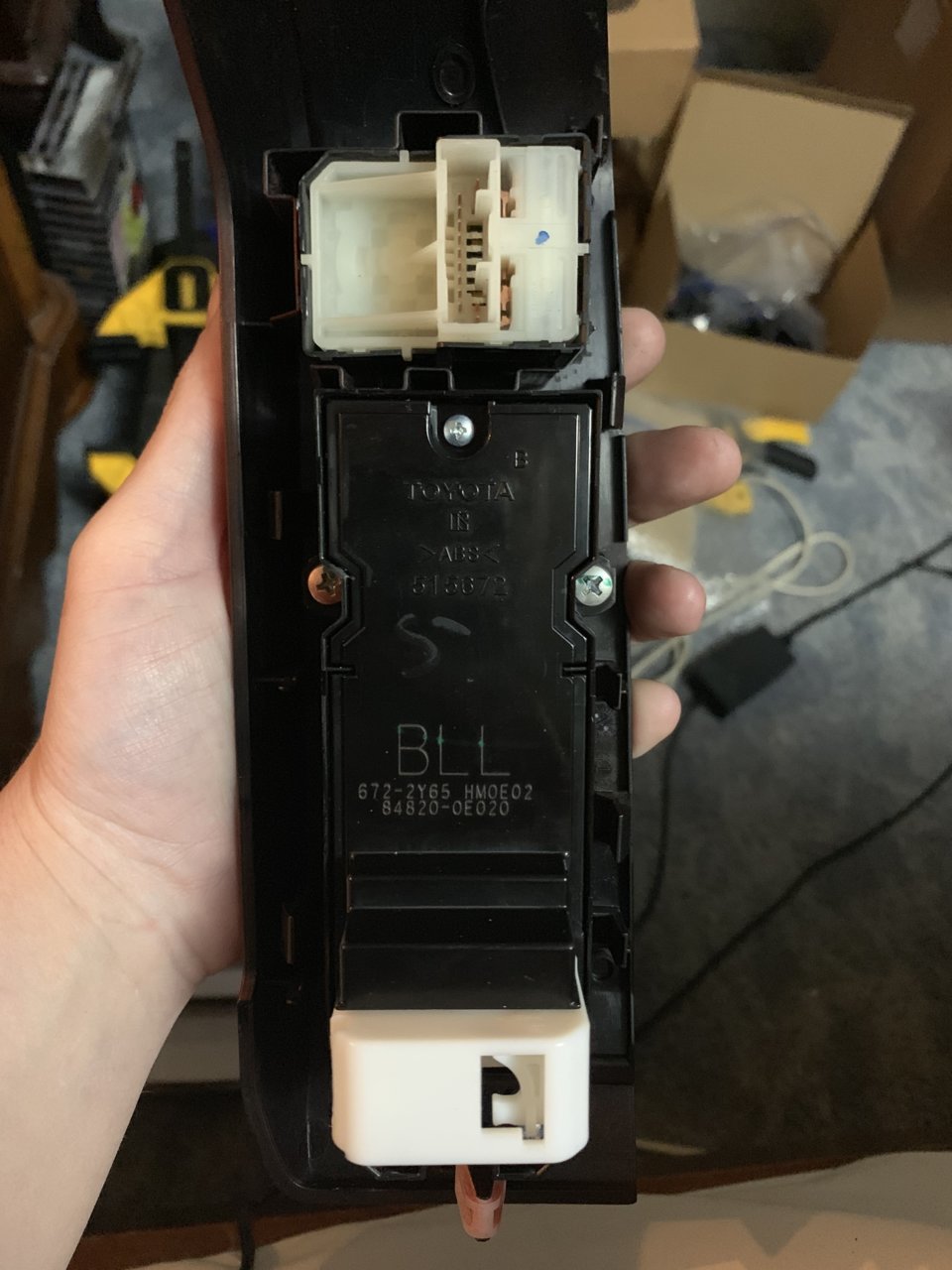

    Take a look at my personal switch panel. I have a pic posted on the first page of this thread of each install. The Custom Switch Bezel and then just the Cut-Out. There are Pros and Cons to both options.

    Custom Switch Bezel: Yes it sits above the OEM Panel, but you do not have to worry about your cut because it covers it up. It looks nice and clean. Very easy to install.

    Cut-Out in OEM Panel: Sits levels but you have to be very clean with your cut lines or you see absolutely everything. The only way around this is to do something like me and have like carbon fiber stickers or something. I didn’t really think about it beforehand because I had my carbon fiber prior to making my cut but afterwards I was extremely happy because I had absolutely nothing to worry about. If I had screwed up, it would have covered it all up anyways.

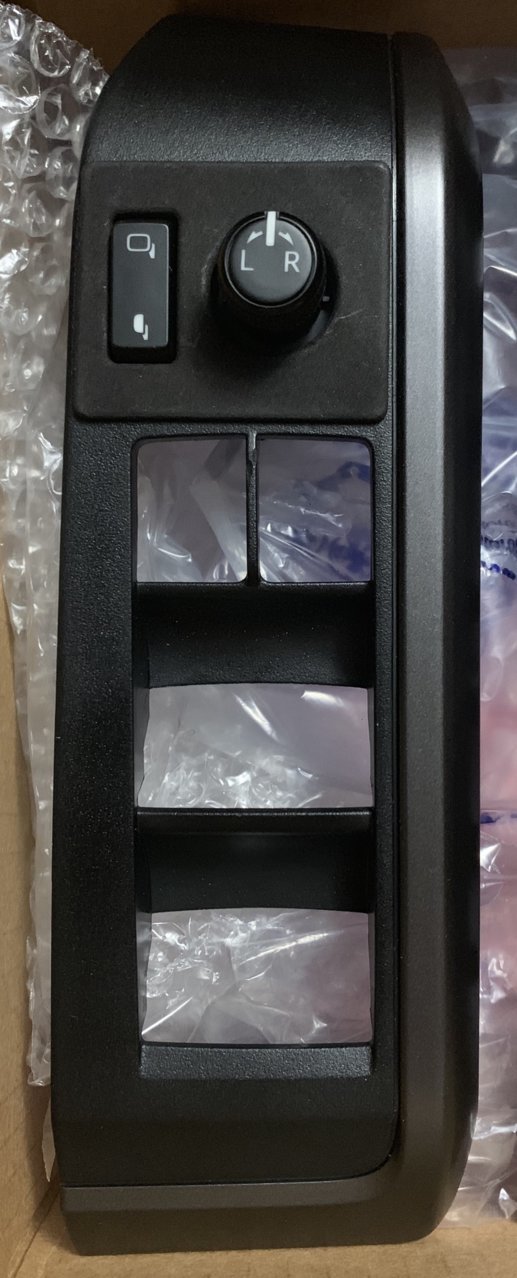

    I’m sending this one out tomorrow. Just finished it up tonight.

    Keep it simple and take it slow. It’s better to go little by little than take too big of a chunk out.

    It will be released soon

    BluLED, Inferno__Taco and Rainoffire like this.
  6. Jul 11, 2019 at 1:17 AM
    #446
    Synergy001

    Synergy001 IG: @pnwx.taco

    Joined:
    Dec 10, 2015
    Member:
    #171908
    Messages:
    1,950
    Gender:
    Male
    PDX
    Vehicle:
    00 ACLB -Daily, 16 DCSB -Adventure Rig
    What about mirrors that fold down when u reverse like the Lexus?

    cemented likes this.
  7. Jul 11, 2019 at 1:33 AM
    #447
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    I have not seen these personally. I would need to see these first. If I could get my hands on a set I’d be able to test them and give feedback

    Synergy001 likes this.
  8. Jul 11, 2019 at 3:34 AM
    #448
    cemented

    cemented Well-Known Member

    Joined:
    Jan 11, 2017
    Member:
    #207255
    Messages:
    1,901
    Gender:
    Male
    First Name:
    Cole
    Portland, OR
    Vehicle:
    2017 TRD PRO Cement AT Maggy 84mm OTT
    Oh you fancy, huh?

  9. Jul 11, 2019 at 7:22 AM
    #449
    cemented

    cemented Well-Known Member

    Joined:
    Jan 11, 2017
    Member:
    #207255
    Messages:
    1,901
    Gender:
    Male
    First Name:
    Cole
    Portland, OR
    Vehicle:
    2017 TRD PRO Cement AT Maggy 84mm OTT
    The power mirrors tilt down to give you a better view of the curb when you place it in reverse. Luxury vehicles will do it to whatever side the mirror control switch is on. @Synergy001 just needs to pony up and get a GX 470.:rofl:

  10. Jul 11, 2019 at 7:30 AM
    #450
    Synergy001

    Synergy001 IG: @pnwx.taco

    Joined:
    Dec 10, 2015
    Member:
    #171908
    Messages:
    1,950
    Gender:
    Male
    PDX
    Vehicle:
    00 ACLB -Daily, 16 DCSB -Adventure Rig
    Haha yeah Lexus been having them for a while. I’m wondering if it would fit a Toyota. If you could make them to fit that would be awesome lol!

    Haha someday. Just tired of moving my mirrors up when I have Daisy DD. When she reverse parks on the driveway and then when I get in to drive the truck the mirrors are facing down lol!

  11. Jul 11, 2019 at 7:53 AM
    #451
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    Yeah I know what they do. I just need to have a set in my hands to convert for someone so I can give an answer. I don’t see why they wouldn’t be able to be converted. :thumbsup:

    Synergy001 and cemented[QUOTED] like this.
  12. Jul 11, 2019 at 7:54 AM
    #452
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    Haha you buy me a set and I’ll see what I can do ;)

    Synergy001[QUOTED] and cemented like this.
  13. Jul 11, 2019 at 10:39 AM
    #453
    Synergy001

    Synergy001 IG: @pnwx.taco

    Joined:
    Dec 10, 2015
    Member:
    #171908
    Messages:
    1,950
    Gender:
    Male
    PDX
    Vehicle:
    00 ACLB -Daily, 16 DCSB -Adventure Rig
    I’ll check the junkyard one of these days and report back lol

  14. Jul 11, 2019 at 9:49 PM
    #454
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,328
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    I’ve already seen those which was the reason for my reply. Yea every time I see the overlay panel the more I’m not a fan… it just looks more of an after thought rather than factory. So I’m going to pass on the overlay. But I still would like to see more pictures- what I meant was of thebackside where the new switch actually seats, like what does it actually seat to if you cut your own hole for the switch. It looks like the overlay also have the frame/base for the switch (like the center dash switches and how they seat into the panel. I may just get an ultra sonic knife just to do this unless I can find someone close that has one and pay for borrowing. But need to get an idea of how the switch mounts

    KTJO 4x4[QUOTED][OP] likes this.
  15. Jul 11, 2019 at 10:35 PM
    #455
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust

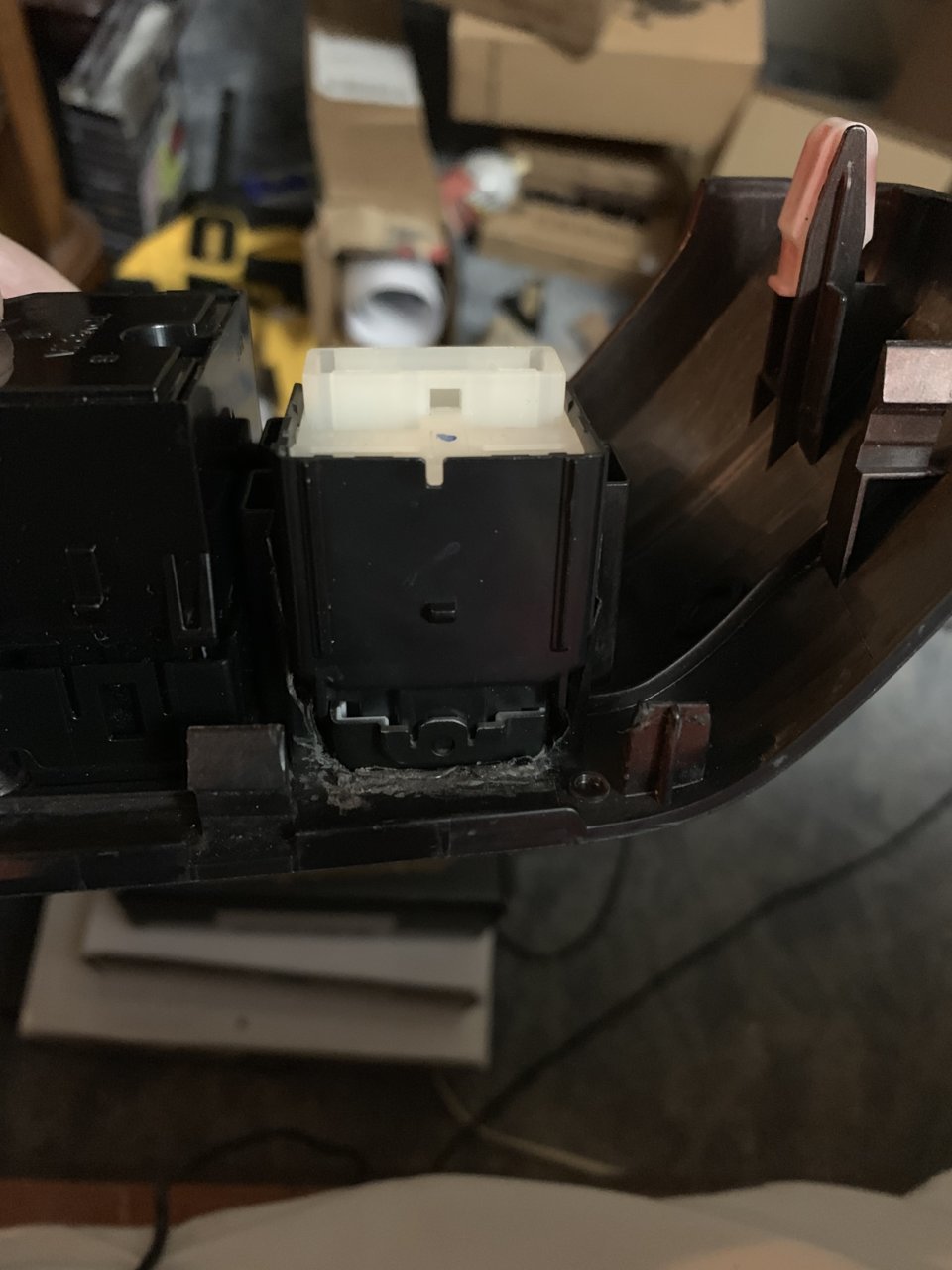

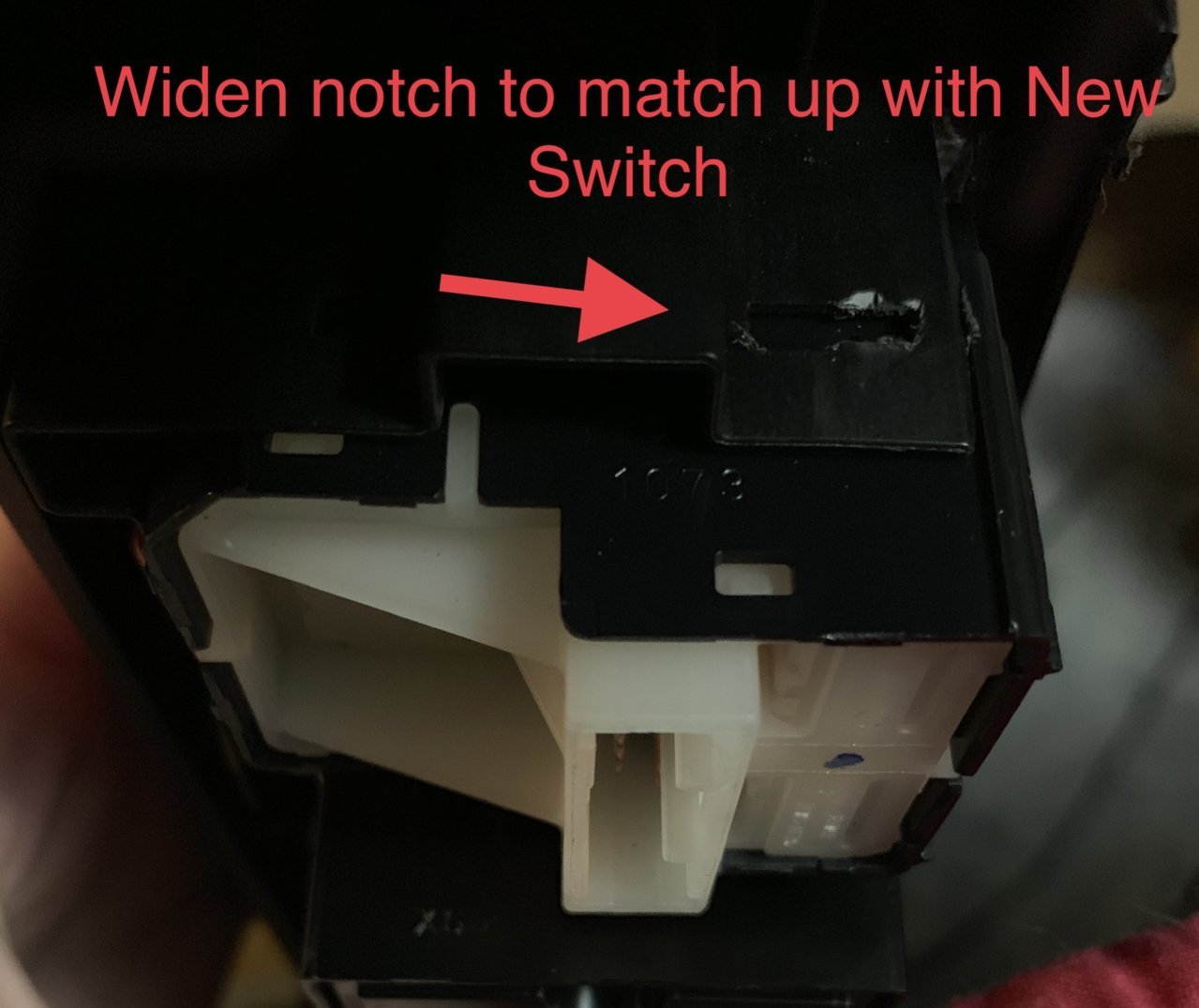

    Ok so the New Switch is actually wider than the Bezel on the bottom...


    Therefore, what you will need to do is cut the one side completely out.

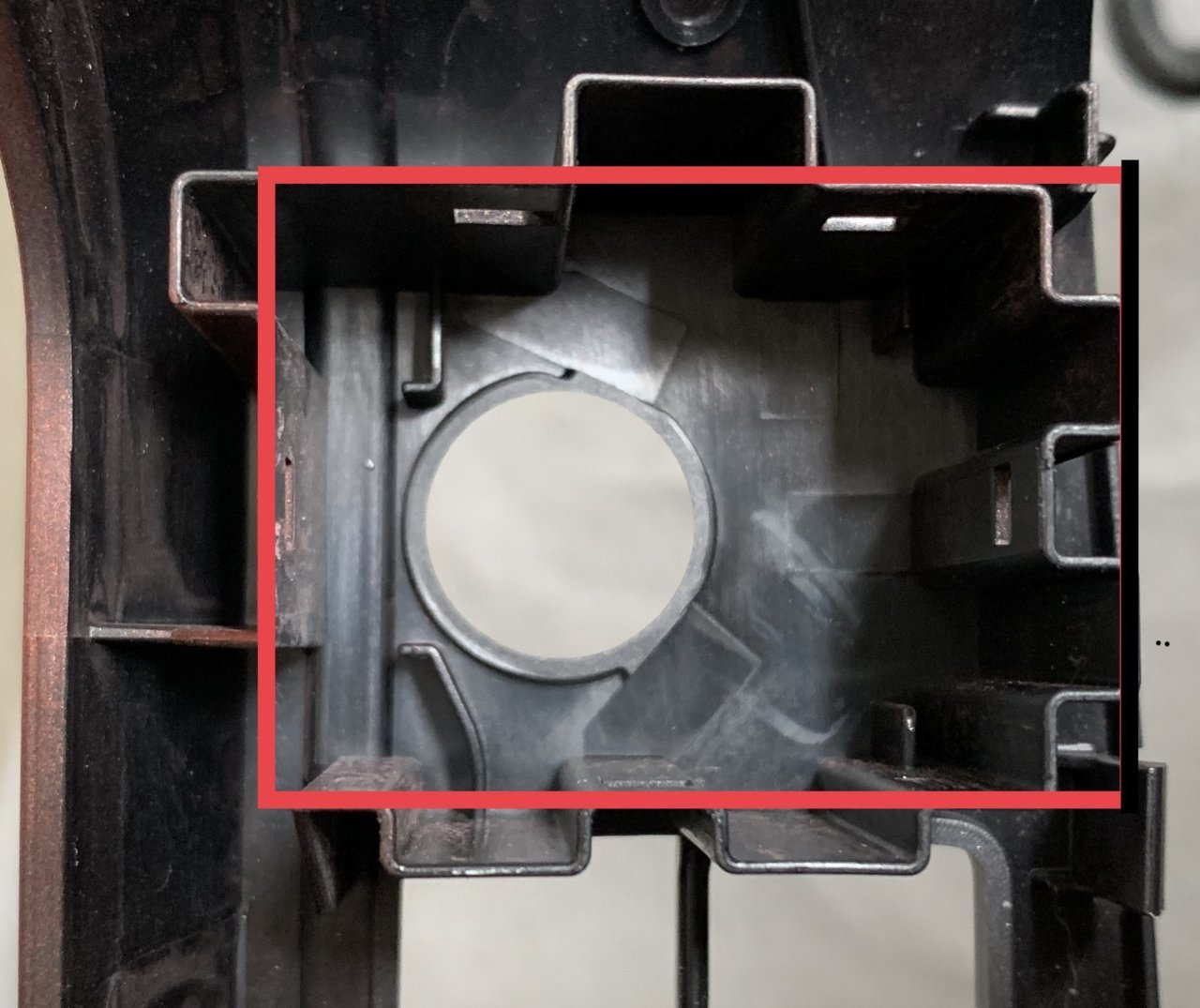

    You keep the three red sides and remove the black side. Then insert the New Switch.



    End of OEM Bezel that you have removed...


  16. Jul 11, 2019 at 10:43 PM
    #456
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    UPDATE:
    1. I gave everyone a New Bezel in their Kit. However, if you decide you do not want it, you can send it back. I just thought I’d sent them out no matter what so that everyone could take a look for themselves and just in case they screwed up on their cut, they had a backup :)
    2. I have been completely swamped this week. I do apologize completely. I am going to get out the install instructions tomorrow. However, I’m sure you have all looked at the kit and have seen what I have already posted on this forum with my install and could probably do the install without it. It is that easy. Plug-N-Play. I absolutely love this kit. It is that easy. I did forget to add in their some 3M for the Control Kit to stick wherever you would like so you may need to pick some up. I do apologize for that. You can use whatever you want. Again, I will get that out tomorrow if it kills me. I cannot wait for these to be installed. Yay!!!

    elaudtr and Rainoffire like this.
  17. Jul 11, 2019 at 11:05 PM
    #457
    baldbeardedtaco

    baldbeardedtaco Well-Known Member

    Joined:
    Sep 4, 2018
    Member:
    #265223
    Messages:
    3,328
    Gender:
    Male
    FL
    Vehicle:
    18 TRD Sport DCSB MGM
    That definitely gives a better idea. I’m assuming the mirror adjustment knob fits exactly in the existing hole without any modifications

    KTJO 4x4[QUOTED][OP] likes this.
  18. Jul 11, 2019 at 11:10 PM
    #458
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    That is correct

    Rainoffire likes this.
  19. Jul 12, 2019 at 12:51 AM
    #459
    Rainoffire

    Rainoffire Well-Known Member

    Joined:
    May 31, 2018
    Member:
    #255034
    Messages:
    3,105
    Gender:
    Male
    Vehicle:
    2017 QS DCLB TRD Sport

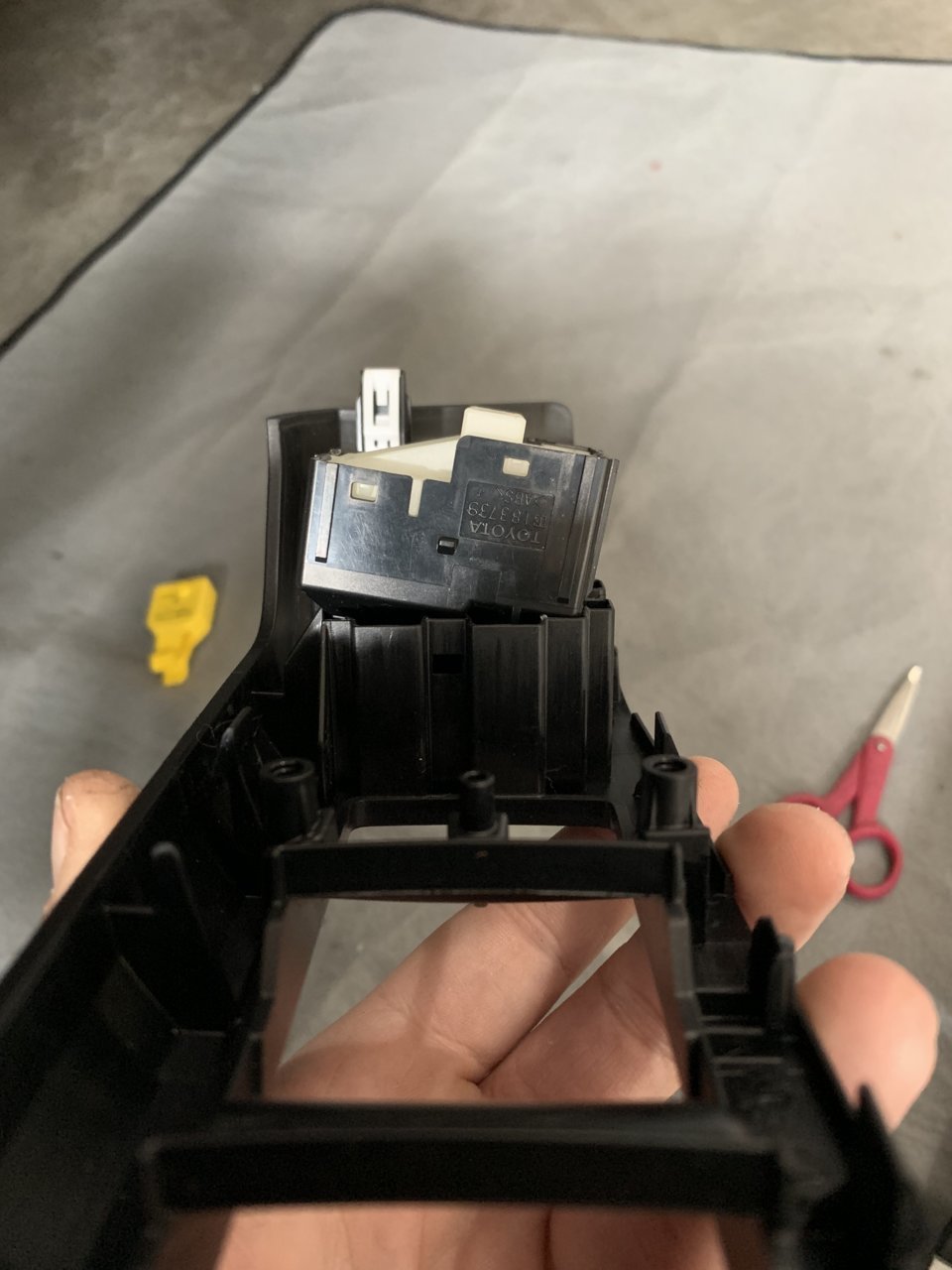

    So we just need to cut a small rectangle for the fold switch.
    Should not be that hard... hopefully.

    Also thanks for the new bezel in kit, great customer service.


    I won't be able to work on it right away, since I am still waiting for the next Meso's puddle lights drop.
    Thought it would be best to do it at the same time.

    KTJO 4x4[QUOTED][OP] likes this.
  20. Jul 12, 2019 at 1:27 AM
    #460
    KTJO 4x4

    KTJO 4x4 [OP] Well-Known Member

    Joined:
    Oct 10, 2016
    Member:
    #199424
    Messages:
    3,884
    Gender:
    Female
    First Name:
    Katie
    Oregon
    Vehicle:
    2017 TRD OFF-ROAD 4x4 DCSB BARCELONA RED
    Nitro 4.88 Gears OVTune 1.05 91Oct DirtyDeeds Exhaust
    That is totally up to you. Yes. You will need to cut a small rectangle for the fold switch. I didn’t really care for it just bare. However, if you make an absolute perfect cut I’m sure it will look just fine.
